jablotron JA-63 PROFI" User manual

JA-63 „Profi“
User manual

Alarm system JA-63 „Profi“ - 2 - MGK51504
Contents:
1Limited warranty...........................................................................................................................2
2Indicators.......................................................................................................................................3
3Controlling the system.................................................................................................................4
3.1Arming...................................................................................................................................5
3.2Disarming..............................................................................................................................6
3.3Panic Alarm...........................................................................................................................6
3.4To stop ALARM.....................................................................................................................6
3.5Home arming.........................................................................................................................7
3.6Door opening.........................................................................................................................7
3.7Alarm memory reading..........................................................................................................7
3.8Split system arming...............................................................................................................7
3.9Subsystem arming.................................................................................................................8
3.10Appliance control...................................................................................................................8
4User’s settings..............................................................................................................................8
4.1New master code ..................................................................................................................8
4.2User codes setting.................................................................................................................9
4.3Internal clock setting..............................................................................................................9
4.4Automatic arming / disarming..............................................................................................10
4.5Bypass.................................................................................................................................10
5Digital communicator.................................................................................................................11
5.1JA-60GSM Dialer module....................................................................................................11
5.2JA-65X Telephone communicator.......................................................................................11
5.2.1Telephone numbers for voice message sending........................................................11
5.2.2Telephone communicator testing ...............................................................................12
6System testing............................................................................................................................12
7Battery replacement...................................................................................................................12
8Enrollment of the control panel to UC-2xx modules...............................................................13
1 Limited warranty
Subject to the conditions of this Limited warranty Jablotron Ltd. warrants this product to
be free from defects in design, material and workmanship at the time of its original
purchase by a customer for a subsequent period of two (2) years. Should your Product
need warranty service, please return it to the dealer from whom it was purchased.
Conditions:
1. The warranty is valid only if the original receipt issued to the original purchaser by
the dealer, specifying the date of purchase, is presented with the Product to be
repaired or replaced. Jablotron reserves the right to refuse warranty service if this
information has been removed or changed.
2. This warranty does not cover any failure of the Product due to misuse, including
but not limited to use in other than the normal and customary manner, in
accordance with instructions for use and maintenance of the Product. Nor does
this warranty cover any failure of the product due to accident, modification,
adjustment, improper repair or acts of God.
3. This warranty does not apply to batteries nor modules of other suppliers (e.g. SIM
card of the GSM provider).
4. The warranty provided does not affect the consumer's statutory rights under
applicable national legislation in force, nor the consumer's rights against the
dealer arising from their sales / purchase contract.

Alarm system JA-63 „Profi“ - 3 - MGK51504
Note: features of this system can be substantially modified by programming
during installation. The installer should instruct the users how to operate and test
the system.
2 Indicators
The alarm system’s status is indicated on the keypad. There can be multiple
keypads in the system and in such a case all keypads will have identical functions.
A keypad’s LED indicators and display inform the user about the conditions of the
system.
LED indicators:
Alarm: alarm triggered by an intruder, smoke, gas etc
Tamper: opened cover, damaged detector, excessive
number of attempts to enter code, etc.
Fault: power loss, lost communication with a detector
etc., (view details by pressing N)
Battery: battery of the device specified on the display is
low. See battery replacement section.
information received from a wireless item or wireless
communication of the keypad in progress
Armed: continues = armed, slow blinking = exit delay,
fast blinking = entrance delay
Power: continues = AC power & back up battery O.K.,
blinking = failure (AC or back up battery), off = control
panel is not powered

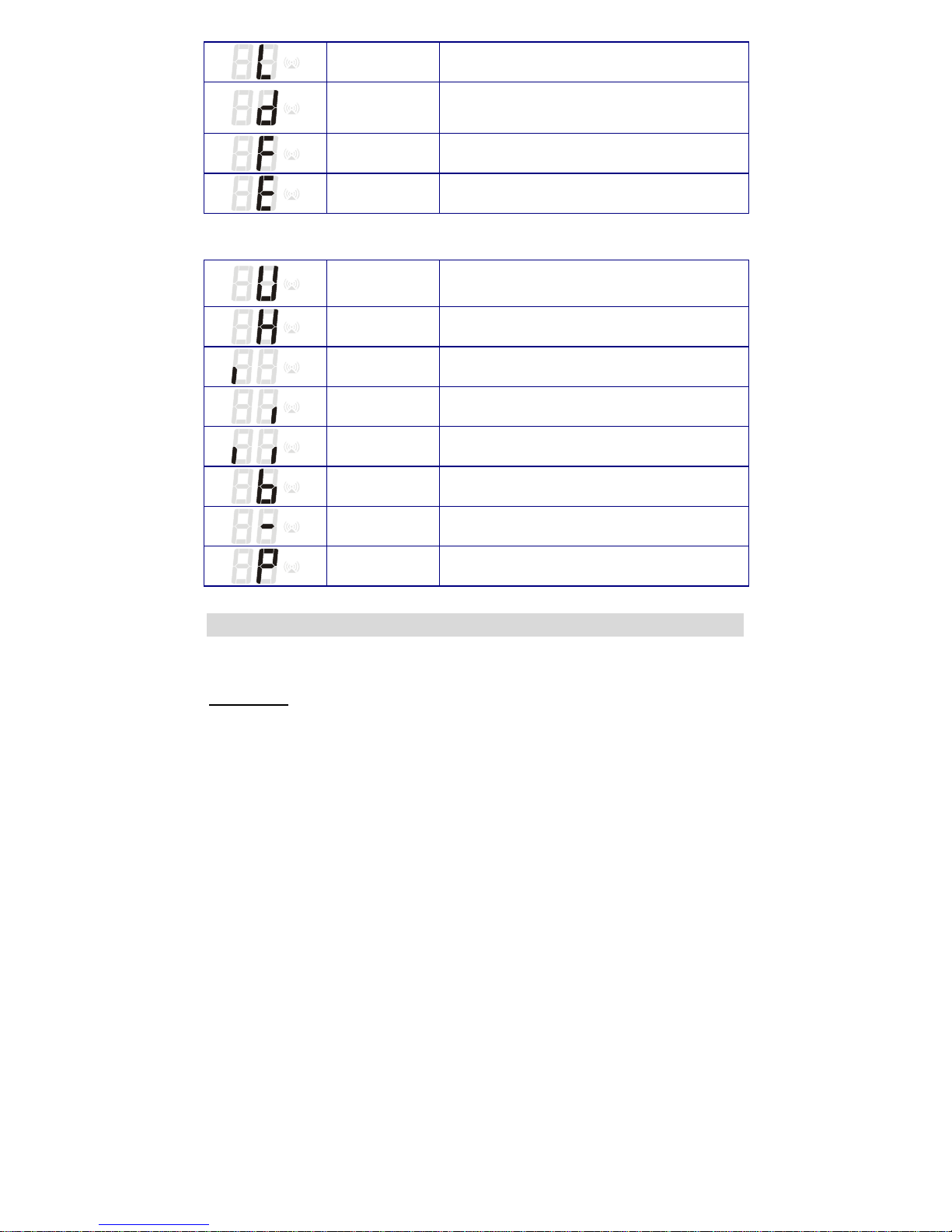

88 display specifies event source:
wireless
detector 12 indicated event (Alarm, Tamper, Failure or Battery) was caused by detector number 12
wired zone 2 indicated event (Alarm, Tamper, Failure or
Battery) was caused by wired zone number 2
wireless
controller 3
indicated event was caused by wireless
controller (remote control, keypad, Panic button)
number 3
Control panel indicated event (Tamper or Failure) was caused
by the control panel
Wireless siren indicated event (Tamper, Failure or Battery)
was caused by the outdoor wireless siren
Sub control
panel indicated event (Alarm, Tamper, Failure or Battery) was caused by the sub control panel

Alarm system JA-63 „Profi“ - 4 - MGK51504
Telephone line indicated event (Tamper or Failure) was caused
by the telephone line
digital bus indicated event (Tamper or Failure) was caused
by a device (keypad or PC) connected to the
digital bus
communication
failure wireless keypad lost connection with the control panel
error self testing error – call installer
tab. 1
88 display specifies mode of the control panel:
user mode authorized supervisor can test, bypass zones, change
batteries, record voice messages, program tel.
numbers and adjust internal clock in this mode
home arming system is partially armed – particular detectors are
bypassed (someone remains in the house)
A section armed A section is armed (split system)
B section armed B section is armed (split system)
complete
arming system is completely armed
bypass warning that some detectors are bypassed –
indicated while arming
key pressed waiting for more data to complete the entry
programming
mode for installer programming and testing
tab. 2
3 Controlling the system
The system can by controlled by keypads, remote controls or by a PC with the
Comlink Software.
User codes
Can be used to arm and disarm the system or to reset an alarm. There can be up to
14 different user codes for individual users. The system stores to its memory which
code was used for which operation as well as the time &date of usage. This data can
go to a Central monitoring station and can also be viewed using a PC with Comlink
software. All user codes are empty as a factory default and should be programmed by
the supervisor (see section 4.2).

Alarm system JA-63 „Profi“ - 5 - MGK51504
Master code
Is an extra (15th) access code for the supervisor. It can operate the system and it
also allows for the programming of the other user codes and to enter the user mode
(see section 4).
Factory default master code is 1234. The supervisor should change it after
installation.
Service code
Is an extra code, used by the installer to enter the programming mode. End users
are not usually told this code.
If an invalid access code is entered more than four times in a given period of
time, it will trigger a Tamper alarm on the control panel.

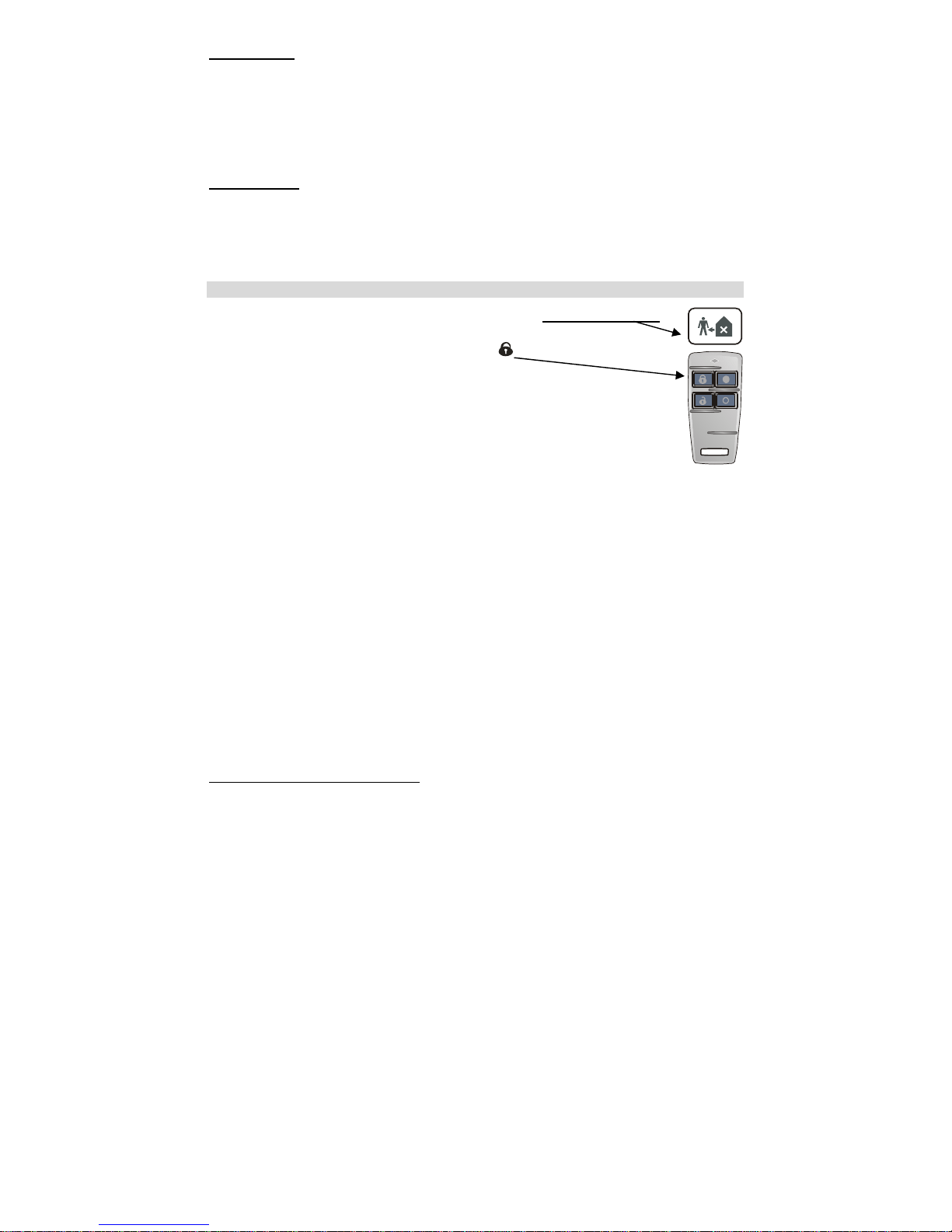

3.1 Arming
On the keypad - enter your user code or press the fast arming button*.
On the remote control (RC-4x) – press the button
system will beep once and the exit delay countdown will start
ARMED indicator will flash during exit delay**
you should leave the protected area within the duration of the
exit delay
If there are 4 beeps while arming, the system is indicating an unusual situation
and the keypad will display the specific information:
ALARM and a zone number – the zone is not ready (opened door etc.),
check the indicated item.
b– some detectors are bypassed (done by supervisor, see part 4.5)
Note: supervisor can program an automatic arming for a desired time (for
example, the house will be armed automatically at 21:00 if left disarmed).
Automatic disarming is also programmable. See part 4.4 for details.
*Fast arming (without access code) can be disabled by the installer
** The JA-60F battery powered wireless keypad will stop indications 10sec after the most recent key
entry.

Alarm system JA-63 „Profi“ - 6 - MGK51504

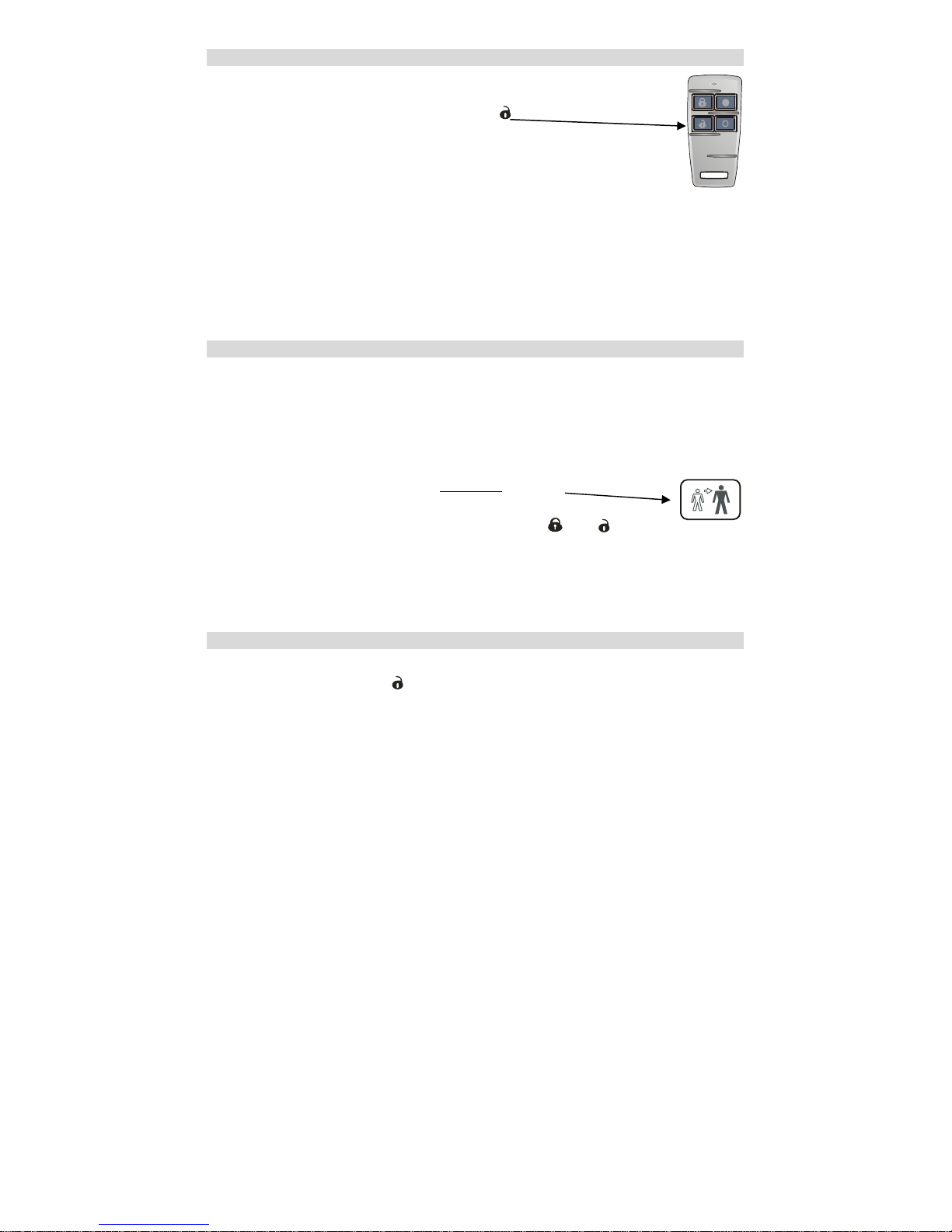

3.2 Disarming
On the keypad -enter your user code
On the remote control (RC-4x) – press the button
system will beep twice
if there are 3 beeps, important information is indicated and will
be displayed on the keypad. Examples:
oFAILURE LED is flashing – press the N key to view the cause
oALARM LED and zone number is flashing = alarm in the memory.
Be careful and check the house.
if you enter the premises when the system is armed, the entrance delay
countdown will start after you trigger a delayed detector (ARM LED will
flash and beeps will sound if programmed so*).
3.3 Panic Alarm
If you are in danger you can trigger the silent panic alarm to inconspicuously call
for help. While in Panic alarm mode the control panel can send a voice message,
an SMS message and data to a central monitoring station via a telephone line
(depends on installation settings).
Panic alarm can be triggered:
On the keypad - press the panic key and then enter your
access code.
On the remote control (RC-4x) - press the and buttons
simultaneously. The remote control can be switched (by installer) to a
Panic mode, in which pressing of any button will trigger the Panic alarm.
By pressing this large sized panic button, the RC-22 (can be installed
on the wall, under a desk etc.).
3.4 To stop ALARM
If an alarm is triggered when you are present, you can stop it by entering your access
code or by pressing button on the remote control.
Sending of voice and SMS messages will cease after the alarm is stopped. All
corresponding report codes (alarm triggering & stopping) will be sent to the
central monitoring station.
If user does not stop the alarm, it will stop automatically after the programmed
period and the alarm memory indicator will activate. The control panel will
return to the same mode as before the alarm.

Alarm system JA-63 „Profi“ - 7 - MGK51504

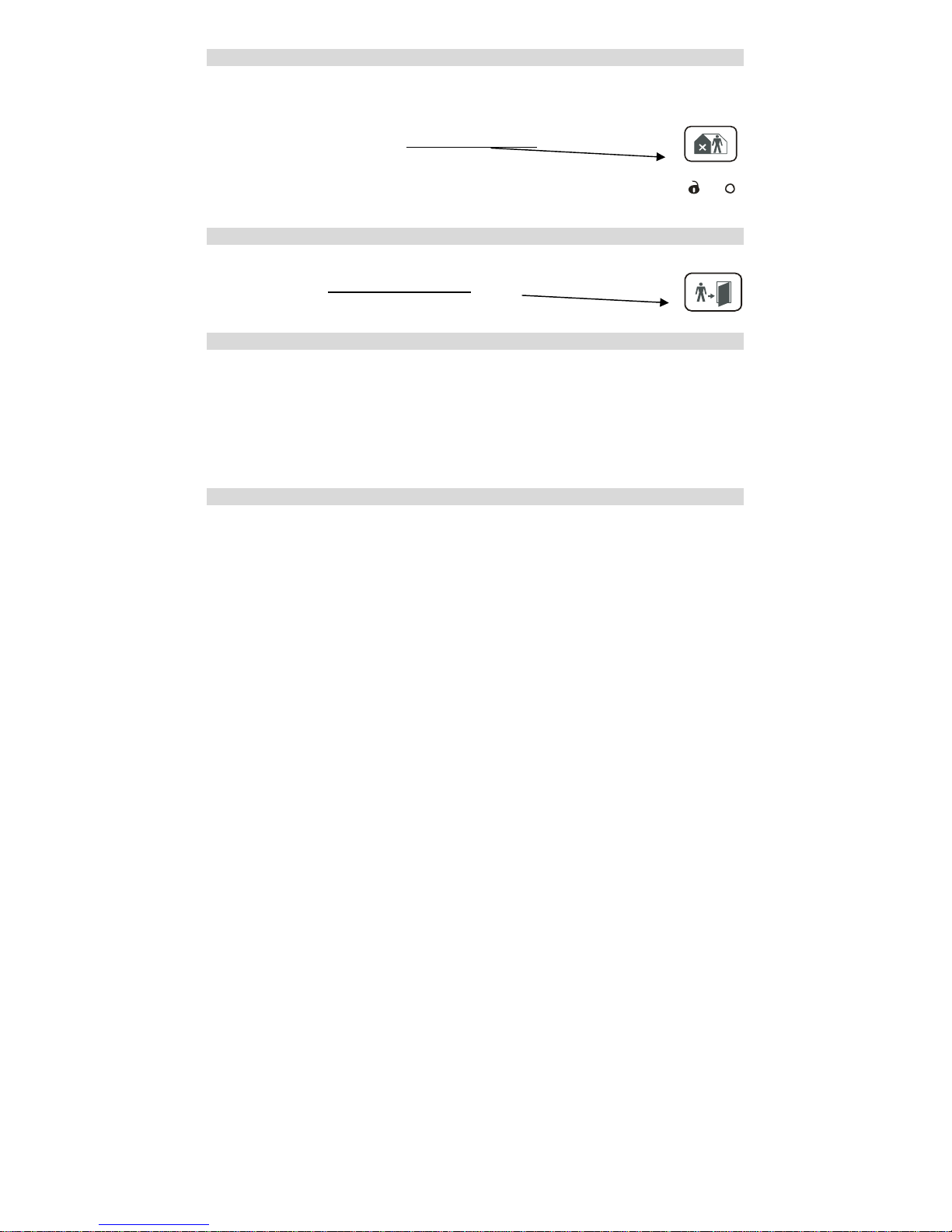

3.5 Home arming
The installer can program particular detectors so that they will be automatically
bypassed in the so called “Home” partial arming. This allows for people to stay in
the particular part of the house after arming. To arm partially:
On the keypad press home arming button
Hwill indicate the Home partial arming on the keypad.
To disarm a partially armed system -enter your user code or press the or
button on the remote control.
3.6 Door opening
An electrical door lock (if installed) can be controlled via the alarm system.
Press the door opening button on the keypad to release the
lock.
3.7 Alarm memory reading
All events (arming, disarming, alarms, failures…) are recorded into the control
panel’s memory along with the time and date. The complete system history can be
viewed using a PC with Comlink software. Alarms and failures can also be viewed
on the keypad by entering:
F 4 - will show the last recorded alarm or failure. Press key 4 multiple
times to go deeper in to the memory.
3.8 Split system arming
The system can be split by the installer into two independent sections (A,B) and
a shared section (corridors, stairs, a main door…). This allows for a particular user
to arm and disarm only a particular section of the house with his/her code or
remote control (exactly as in a non split system). Arming of sections A and B is
indicated by I I symbols on the keypad. The shared section will be armed
automatically when A and B sections are both armed.
With the master code the supervisor can arm and disarm both sections. If the
master code is entered, the system will arm (if completely disarmed) or disarm (if
any section is armed).
Entering F1 master code will control only section Aand F2 master code only
section B (this is true only when fast arming is disabled by the installer).
Note: partial Home arming is not possible if the system is split.

Alarm system JA-63 „Profi“ - 8 - MGK51504
3.9 Subsystem arming
In a large building a sub control panel can be enrolled to the JA-63. The
subsystem reports all alarms and failures to the main system.
The installer can program if the systems will be armed and disarmed separately
(by their own codes and remote controls) or if the main control panel will rule the
sub control panel. Ask your installer for explanation on how to operate your
system if a sub control is panel installed.
3.10 Appliance control
The system can be used to control an electrical appliance (light, heating,
ventilation etc.). In such a case users can operate the device:
Locally with keypad* – entering F81 (ON) or F80 (OFF).
Remotely by phone keypad or by SMS messages – the control panel
must be equipped with GSM communicator for this feature
*Installer can program that this feature will work only when the entry is followed by a user code.
4 User’s settings
Following section is designated for the system supervisor, who knows the
master code.
All programming sequences can be terminated before completed (by Nkey).
4.1 New master code
The master code is used by the supervisor. The factory default master code is
1234 and you should program your own four digits code. Code programming is only
possible when the system is disarmed.
To change an existing master code enter:
F 5 xxxx yyyy yyyy
where xxxx is the existing and yyyy is the new master code (new code must be
entered twice to avoid an error).
Example:
Existing code 1234 will change to 6723 entering: F 5 1234 6723 6723

Alarm system JA-63 „Profi“ - 9 - MGK51504
4.2 User codes setting
There can be up to 14 different user codes for individual users. The system stores
to its memory which code was used for what event and when. This data can go to a
Central monitoring station as well and can also be viewed by a PC with Comlink
software.
All user codes are empty as a factory default and the supervisor should program
them entering:
F 6 xxxx yy zzzz
where xxxx is the master code, yy is the user code index (from 01 to 14) and
zzzz is the new user code.
Example:
If the master code is 1234 and the user 3 new code should be 5277 enter:
F 6 1234 03 5277
To delete a particular user code, enter 0000 as the new code (combination
0000 can not be used as a valid code).
Example:
If the master code is 1234 the user 3 code can be deleted by:
F 6 1234 03 0000
Notes:
You can program new codes only when the system is disarmed.
The supervisor should record the codes to the table on last page of this
manual (it should be kept hidden in a safe place).

If the system is split, the supervisor can change the user codes, but can
not change to which section the particular code belongs (only the installer
can change this).
4.3 Internal clock setting
The control panel has a built in real time clock. All events are stored to the event
memory including the time & date. The clock should be set after installation, but
the supervisor can set the clock while in the user mode.
To switch the control panel to the user mode enter F 0 master code. User
mode will be indicated by a Uon the keypad. To set the clock enter:
4 hh mm DD MM YY
where: hh = hours; mm = minutes; DD = day; MM = month and YY = year
Example: at 21:30 on March 19. 2005 enter: 4 21 30 19 03 04
To exit user mode press N.

Alarm system JA-63 „Profi“ - 10 - MGK51504
Actions' table
a no splitting split
0 no action no action
1 arm all arm all
2 disarm disarm all
3 partial arming arm A
4 partial arming arm B
5 disarm disarm A
6 disarm disarm B
4.4 Automatic arming / disarming
The system can automatically arm and disarm for a requested period of a day.
While in the user more, up to ten instructions (time & action) can be programmed
in the period of one day.
To switch the control panel to the user mode enter F 0 master code. User
mode will be indicated by a Uon the keypad. To program automatic arming enter:
64 n a hh mm
where: n= instruction number from 0 to 9
a= action (see the actions' table)
hh = hours (from 00 to 23)
mm = minutes (from 00 to 59)
Example: to program an automatic complete
arming of the system at 21:15 everyday
enter: 64 0 1 21 15
Notes:
If any automatic action is selected, it will be preformed everyday at the
programmed time, following the internal control panel clock.
The automatic arming and disarming can be overridden manually anytime
(by a user code or a remote control)
If the control panel is in the requested arming mode before the action
time, the programmed action will not change the arming
Factory default setting - all instructions are set for no action
To exit user mode, press the N key.
4.5 Bypass
The supervisor can bypass (switch off) particular zones (potential sources of
alarms) while in the user mode. If a zone is bypassed, it can’t trigger an alarm.
To switch the control panel to the user mode enter F 0 master code. User
mode will be indicated by a Uon the keypad.
To set up bypass:
1. Press key 1 to open the bypass menu.
2. With key 1 and 7you can scroll all potential alarm sources (wireless
detectors are distinguished with the symbol ).
3. Select the source (detector, wired input…) which you want to bypass and:
a. either press key 2for 2 seconds to bypass the source for the next
arming period (confirmed by flashing Battery LED);
b. or press key 3for 2 seconds to bypass the source permanently
(confirmed by the Battery LED being permanently lit);
