Jabra GN 9050 User manual

GN 9050 Beta User Manual
1
GN 9050 WIRELESS HEADSET
SYSTEM
BETA USER MANUAL

GN 9050 Beta User Manual
2
Component list
1. Base station
2. Base stand
3. Remote
4. Interface cord
5. AC adapter
6. Battery
Remote Beltpack Functions
1. Headset Mode indicator-blinks when the system is in Headset mode, no light when
in handset mode.
1. Volume control- press + to increase volume and – to decrease volume
2. Mute button: Press to activate mute and press again to unmute.
3. Headset/Handset button/ handset lifter button: Press to enter Headset or Handset
mode (LEDs on the remote and base station light in Headset mode) No Lights in
Handset Mode. For use with optional handset lifter device, see handset lifter user
manual.
Base Functions
1. Transmit Settings: Adjusts the volume of your voice.
2. Telephone Compatibility Settings: Fine-tunes the system to your telephone system.
3. Battery Charge indicator: Lights when the remote is properly seated in the base
charger, blinks when battery is fully charged.
4. Base/Tone Control: Allows for choice of base and tone on receiver volume.
1
2
3
4
5
6

GN 9050 Beta User Manual
3
Audio Indicators
Battery Information
Basic Feature Set:
•2.4GHz, Digital FH-SST radio system
•Up to 150 feet range from base station
•Minimum of 50 concurrent users in one location w/ encryption/ security.
•System continuously checks link availability and generates a “no link” beep in the
belt unit in the event the base unit and belt unit cannot communicate.
•6 hours minimum portable talk time with standard battery
•12 hours minimum talk time with optional spare battery
•Connects to almost any type of telephone set via the handset port (RJ-9 port)
•Transmit volume adjustable at base unit (8 steps) via up/down buttons
•Receive volume (loudness) adjustable at portable unit (8 steps) via volume up/down
controls
•Belt unit has a mute button
•Base unit docks and charges the belt unit and can also charge a second spare
battery
−Fast charging allows batteries to fully charge within 3 hours maximum.
•ON/OFF switch located on remote.
•Beep tones are used in the belt unit (earpiece of the headset) to indicate low battery,
mute, max and min volume and out of range
•Base unit has LEDs to indicate charging status, in-use indication
•Compatible with ReadiLine and GN Netcom handset lifter accessory
Mute Tone sounds in headset every 15 seconds
Out of Range Tone sounds in headset every 10 seconds
Low Battery Tone sounds in headset every 20 seconds
Volume Tone sounds in headset at max and min levels
Battery Type Nickel Metal Hydride (NiMH) 3.6 V 500 mAH
Capacity on-line Fully charged battery provides 6 hours of talk time
Capacity off-line Fully charged battery provides 80 hours
Recharging Time Maximum of 3 hours
Battery Life 2 years if battery is recharged when not in use

GN 9050 Beta User Manual
4
BASE FRONT
In-Use
Indicator
Spare battery
charge
indicator
Remote
charge
indicator
Where Remote docks
to charge

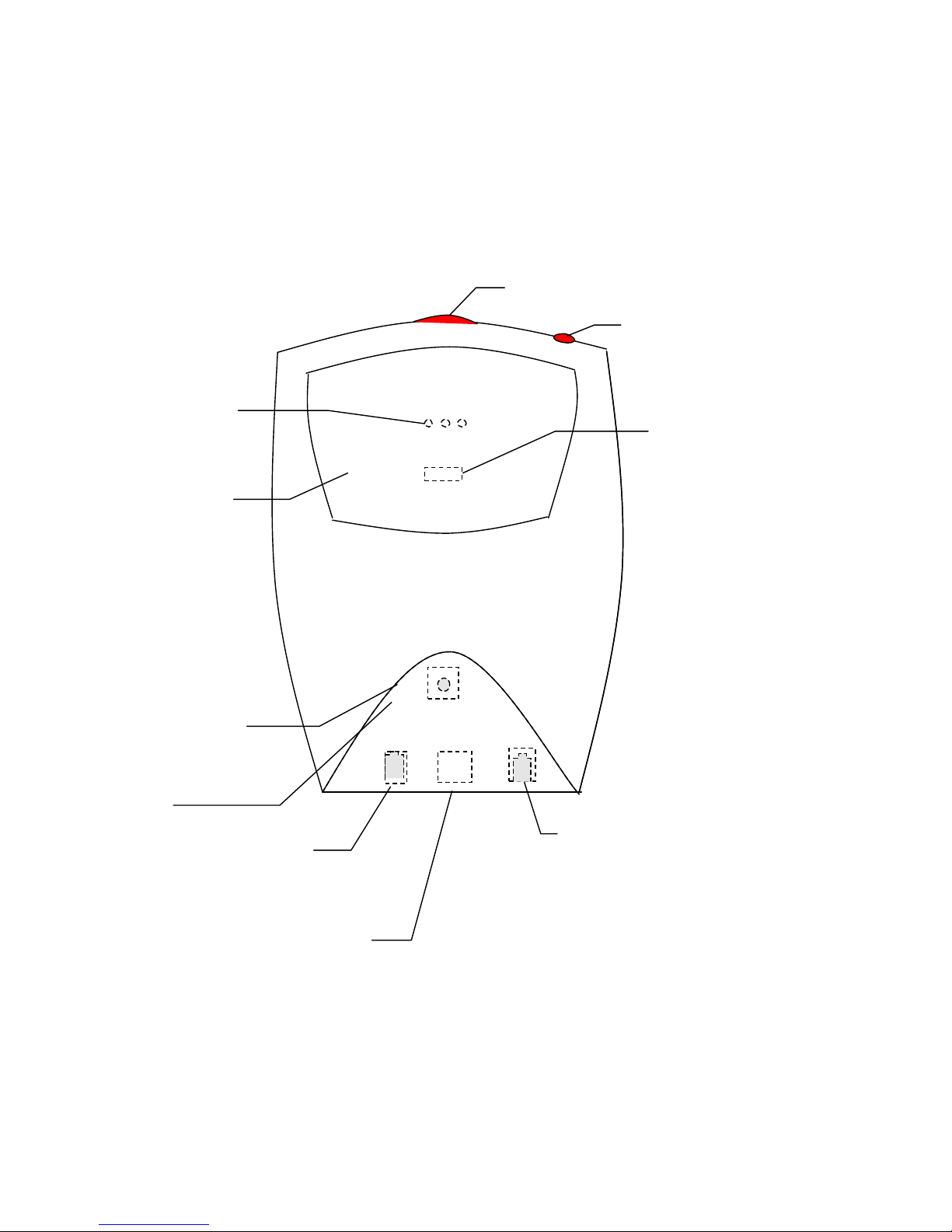

GN 9050 Beta User Manual
5
AUX Jack
(underneath
plastic form)
Spare battery
slot
AC
Power
Jack
Base Stand
To Phone
RJ-9
Host Port
In-Use
Indicator
Spare battery
charge
indicator
Contacts for
Spare battery
slot
BASE REAR
To
Handset

GN 9050 Beta User Manual
6
The base unit contains the following Indicators/Buttons/Switches/Controls:
•Status Indicator: This indicates Base unit link status. The LED will be
constant when a link is established and while in headset mode.
•Remote unit Charge Indicator: This is a red/green LED that indicates red
when charging and green when fully charged.
•Spare Battery Charge Indicator: This is a red/green LED that indicates red
when charging and green when fully charged.
•Transmit Switch: This is a single, 8-position sliding switch that allows the user
to fine tune their transmit level. 1= low 8 = high.
•Telephone Compatibility Switch: 8-position compatibility switch configures the
9050 to telephone it will be used with. Allows for user to Connection used for
manufacturing and test purposes.
•Tone/Bass Control: Allows the user to choose between tone and bass
balance for receive volume.

GN 9050 Beta User Manual
7
BELT UNIT, FRONT
Mute
Button
Volume Up
Button
Volume Down
Button
On/Off
Button
Removable
Battery Pack
(behind)
In-Use
Indicator
Headset
2.5mm plug
Clip (behind)
Removable
Battery Pack
Headset
2.5 mm Plug
BELT UNIT, REAR
Clip
Clip contacts
(inside TBC)
Belt Unit
(behind)

GN 9050 Beta User Manual
8
The Remote unit contains the following Indicators/Buttons/Switches/Controls:
•““ON/OFF/Handset Lifter” Button: This button attempts to initiate a voice link
or terminates a link depending on the current link state as well as serves as
the handset lifter control button that raises and lower the handset on the
telephone when using it with the optional GNN handset lifter or Hello Direct
ReadiLine.
•“VOL UP” & “VOL DOWN” Buttons: These buttons control the receive volume
level in eight steps.
•“MUTE” Button: This button mutes the transmit path of the microphone.
Battery State:
Both the belt unit battery charger and the spare battery charger will employ smart
battery charging techniques to allow shorter recharging times. Each recharging circuit
will have a corresponding charge LED to indicate charge status.
CHARGE INDICATOR DESCRIPTION
OFF – Battery not present / not charging
RED – Recharging
GREEN – Fully charged

GN 9050 Beta User Manual
9
Setting Up
1. Connect all Cords.
Unplug the handset cord from the base of the telephone. Plug the Interface cord
into the vacated handset cord port on the telephone. The location of this port is
different for each phone and is often on the underside of the phone. Some
telephones must be programmed for headset use.
2. Attach the Base Stand.
Carefully insert the three plastic clips into the vacant base station holes.
3. Attach the battery to the remote:
Press the two buttons located on the side of the battery while carefully inserting
the plastic tabs into the remote. You should hear it click into place.

GN 9050 Beta User Manual
10

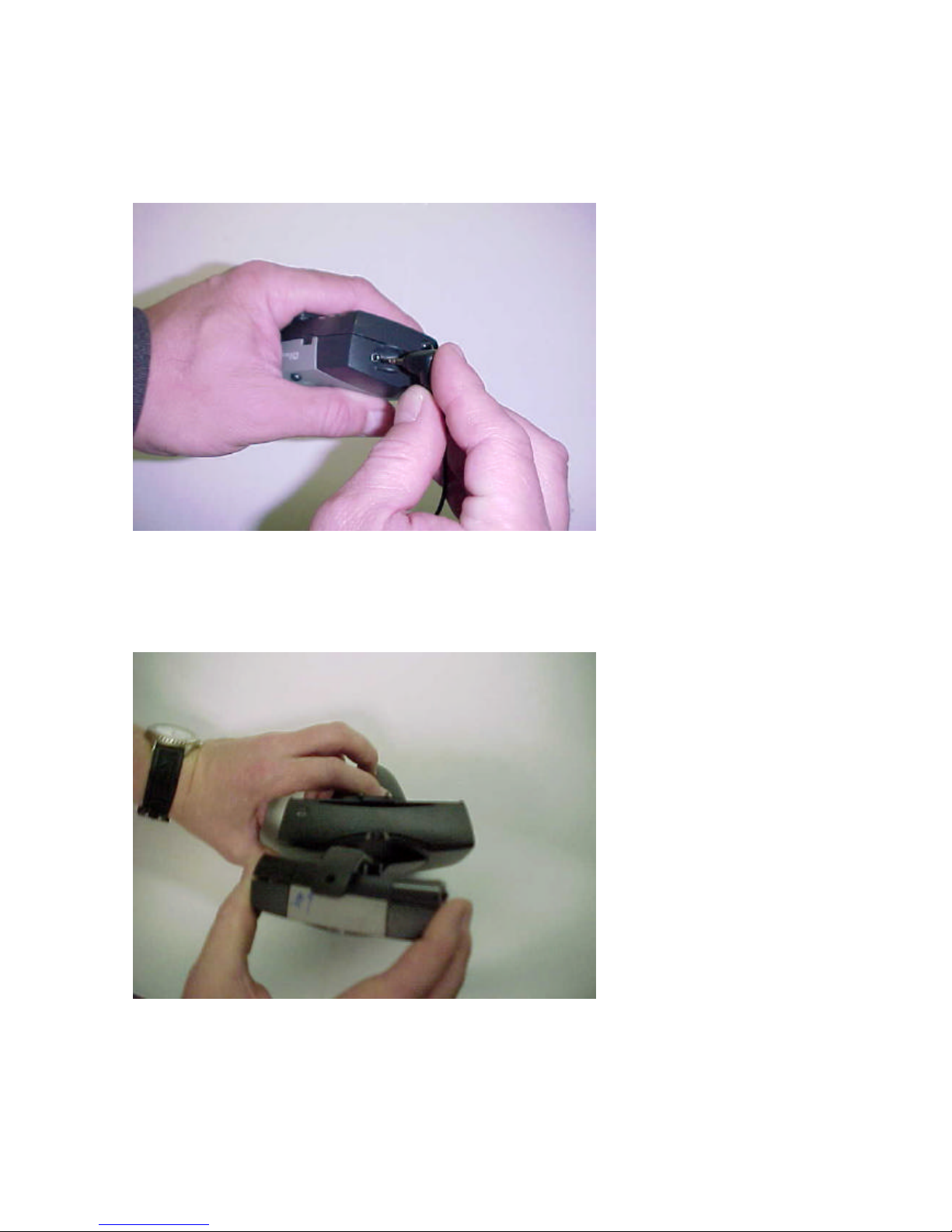

4. Connect the Headset to the Remote.
5. Charge the Remote
Slide the Remote into the Charger on either side of the base station. The Battery
Charge light on the front of the base station illuminates. Charge the battery for a
full three hours. You may use the handset while the battery charges.
Note: Battery Charge Indicator blinks green when battery is fully charged.

GN 9050 Beta User Manual
11
6. Using the Headset
Press the On/Off Headset Handset button to put the system in headset mode.
The headset mode light on the top of the remote blinks and the In Use indicator
on the base station illuminates.
7. Put the headset on and select a telephone compatibility setting until dial tone is
clear. If dial tone is clear for both A and G set to A.
8. Remove the handset and make a call. While switching between the headset and
the handset, adjust the transmit (microphone) setting until your voice is the same
volume on both devices. (1 is softest, 8 is loudest)
9. Use the remote to adjust the receive (speaker) volume. IF your telephone has
volume control, set it to mid-range.
10. To roam up to 150 from the base, remove the remote from the base station and
clip it to your belt, pocket or shirt.

GN 9050 Beta User Manual
12
Cautionary Notes to Computer Users:
When using any headset with a computer, care should be taken in dry or low humidity
environments to protect the user from electrostatic discharge from the monitor (CRT).
Computer monitors can induce a substantial electrostatic charge when turned on or off,
or when there is a power failure, and the resulting electrostatic discharge can be passed
through the headset to ground. A user in close proximity to or touching the computer
may feel a common “shock” sensation, similar to touching a door knob after walking
across a carpet, causing no harm to the user. This discharge is entirely due to the
computer monitor, the headset is merely the shortest path to ground.
To minimize the possibility of electrostatic discharge through the headset, you can
•Use a grounded screen in front of the monitor.
•Use static dissipative wrist straps.
•Increase the relative humidity in the room to 60% or more.
•Install static dissipative carpets or floor covering.
•Remove the headset before turning the computer on or off.
GN Netcom, Inc. products meet all OSHA, UL, FCC and CSA standards.
FCC Notice to Users:
The equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction, may cause harmful interference to radio
communication.
However, there is no grantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
•Consult the dealer or an experienced radio / TV technician for help.

GN 9050 Beta User Manual
13
1. This equipment is compliant with Part 68 of the FCC Rules. On the Base station of
the equipment, is a label that contains, among other information, the FCC
registration number for this equipment. If requested, this information must be
provided to the Telephone Company.
2. The device may not be connected directly to the telephone network, but must
connect to a FCC registered telephone.
3. If this device is malfunctioning, it may also be causing harm to the telephone
network. The device should then be disconnected until the source of the problem
can be determined and until repair has been made. If this is not done, the
Telephone Company will notify you in advance that temporary discontinuance of
service may be required. But if advance notice is not practical, the Telephone
Company will notify the customer as soon as possible. Also, you will be advised of
your right to file a complaint with the FCC if you believe it is necessary.
4. The Telephone Company may make changes in its facilities, equipment,
operations and/or procedures that may affect the operation of this equipment. If
this happens, the Telephone Company will provide advanced notice in order for
you to take the necessary steps to maintain uninterrupted service.
5. If the telephone company request information on what equipment is connected to
their lines, inform them of:
(a) The telephone number that this unit is connected to.
(b) The FCC Registration Number 1LSTXNAN-9050. (indicated on the label).
6. In the event of equipment malfunction,all repairs should be performed by our
Company or an authorized agent. It is the responsibility of users requiring service
to report the need for service to our Company or to one of our authorized agents.
Service can be obtained at:
GN Netcom, Inc.
77 Northeastern Boulevard
Nashua, NH 03062
1-800-826-4656

GN 9050 Beta User Manual
14
Industry Canada Notice to Users:
The Industry Canada label identifies certified equipment. This certification means that
the equipment meets telecommunications network protective, operational and safety
requirement as prescribed in the appropriate Terminal Equipment Technical Resource
Document(s). The department does not guarantee the equipment will operate to the
user’s satisfaction.
Before installing this equipment, users should ensure that it is permissible to be
connected to the facilities of the local telecommunications company. The equipment
must also be installed using an acceptable method of connection. The customer should
be aware that compliance with the above conditions might not prevent degradation of
service in some situations.
Repairs to certified equipment should be coordinated by a representative designated by
the supplier. Any repairs or alterations made by the user to this equipment, or
equipment malfunctions, may give the telecommunications company cause to request
the user to disconnect the equipment.
Users should ensure for their own protection that the electrical ground connections of
the power utility, telephone lines and internal metallic water pipe system, if present, are
connected together. This precaution may be particularly important in rural areas.
CAUTION: Users should NOT attempt to make such connections themselves, but
should contact the appropriate electric inspection authority, or electrician, as
appropriate.
NOTICE: The Ringer Equivalence Number (REN) assigned to each terminal device
provides an indication of the maximum number of terminals allowed to be connected to
a telephone interface. The termination of an interface may consist of any combination of
devices subject only to the requirement that the sum of the ringer equivalence numbers
of all the devices does not exceed 5. This device requires a radio license, unless it
(including antenna) is installed totally inside a building. (User must obtain this license
from Industry Canada.)

GN 9050 Beta User Manual
15
Warranty:
GN Netcom, Inc. warrants this product against all defects in material and workmanship
for a period of two years from the date of original purchase. The conditions of this
warranty and our responsibilities under this warranty are as follows:
• The warranty is limited to the original purchaser.
• The warranty is void if the serial number, date code label or product label is removed,
or if the product has been subject to physical abuse, improper installation,
modification, or repair by unauthorized third parties.
• The responsibility of GN Netcom, Inc. under this warranty shall be limited to the repair
or replacement of the product at the sole discretion of GN Netcom, Inc.
• Any implied warranty on GN Netcom, Inc. products is limited to one year from the date
of purchase on all parts, including the cords and connectors. Specifically exempt from
warranty are limited-life consumable components subject to normal wear and tear,
such as microphone windscreens, ear cushions, ear tips, decorative finishes, batteries,
and other accessories. GN Netcom, Inc. is not liable for any incidental or
consequential damages arising from the use or misuse of any GN Netcom, Inc.
product.
• A copy of your receipt or other proof of purchase is required. Without proof of
purchase, your warranty is defined as beginning on the date of manufacture as labeled
on the product.
• This warranty gives you specific legal rights and you may have other rights, which
vary, from location to location.
Unless otherwise instructed in the User Guide, the user may not, under any
circumstances, attempt any service, adjustments or repairs on this unit, whether in or
out of warranty. It must be returned to the factory or authorized service agency for all
such work.

GN 9050 Beta User Manual
16
To Obtain Service:
For customer service and technical support, call GN Netcom, Inc. at
1-800-826-4656 or 1-603-598-1100.
Ship the product in a suitable shipping container, fully insured and with the shipping
charges prepaid.
Include the following with the product:
• Your name, company name, address and telephone number.
• A description of the problem.
• A copy of the receipt or other proof of purchase (without proof of purchase, your
warranty will be defined as beginning on the date of manufacture as labeled on the
product).
Or, for out of warranty products:
• A purchase order which authorizes repair.
In-warranty products are warranted for one year from the repair date or for the
remainder of the original warranty period, whichever is longer.
Out-of-warranty products will be repaired or replaced at the prevailing charge and carry
a one-year warranty from repair date.
GN Netcom, Inc. will not assume any responsibility for any loss or damage incurred in
shipping. Any repair work on GN Netcom, Inc. products by unauthorized third parties
voids any existing GN Netcom, Inc. warranty.
Ship To:
In U.S.A.
GN Netcom, Inc. • 77 Northeastern Boulevard
Nashua, NH 03062 • 1-800-826-4656
In Canada
GN Netcom, Inc. • 1515 Matheson Blvd. • Unit 104
Mississauga, Ontario L4W 2P5 • 416-620-1440
In Latin and South America
Please ship to the distributor from whom you purchased the product.
