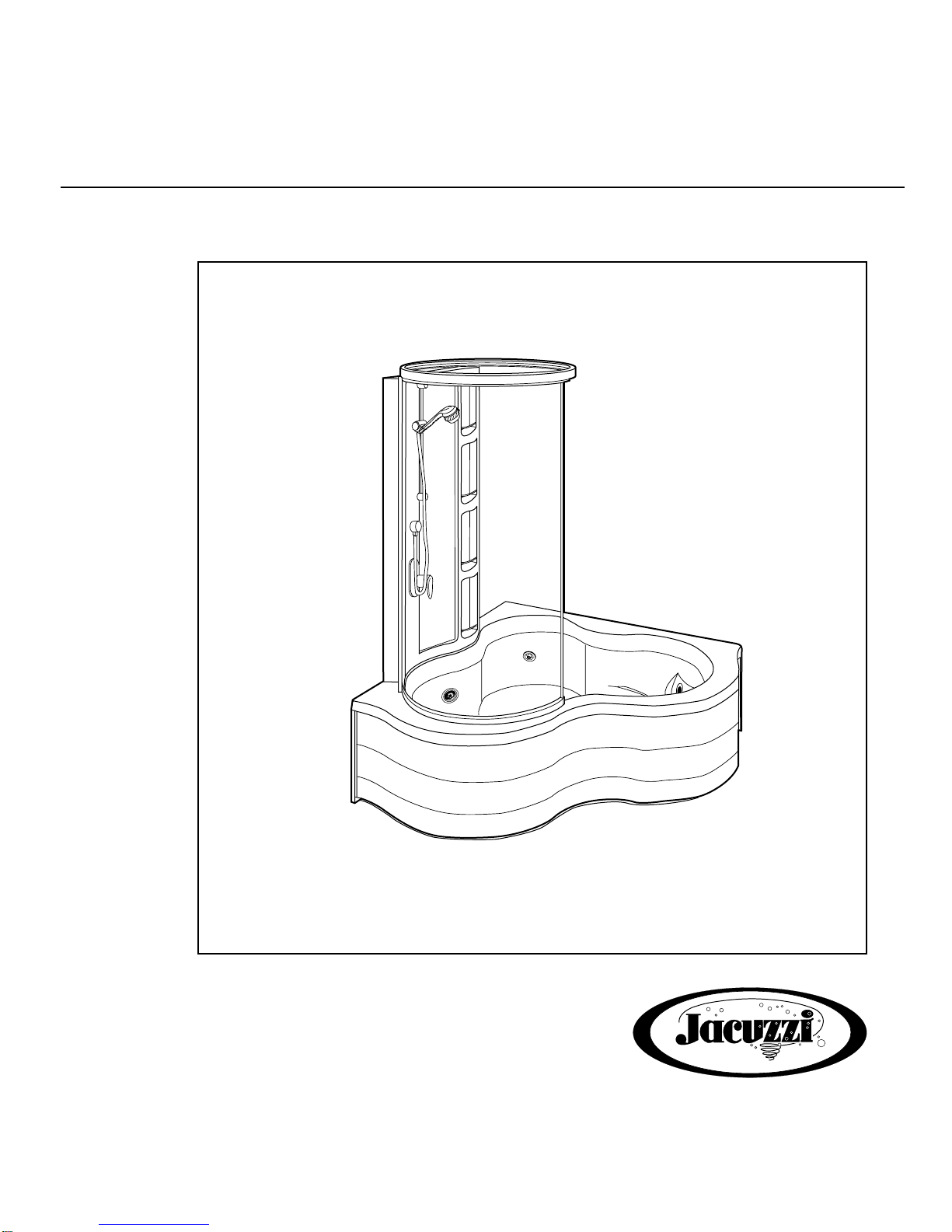

INSTALLATION AND OPERATING MANUAL
J-CORNER SHOWER TOWER™
ENCLOSURE-Verona™

1
Important
The bath must be installed according to installation instructions (F258000) for the Verona™ whirlpool bath.
Follow the instructions to ensure that proper framing has been provided to support the J-Corner Shower Tower.
Finishing materials must be waterproof and sealed so that spray and condensation do not cause moisture dam-
age.
NOTE: The J-Corner Shower Tower has been partially pre-assembled for your convenience during
installation. The installer must still follow the instructions to ensure proper installation of the tower and
components (see page 11). We recommend that two persons perform this installation.
Contents
Exploded View of J-Corner Shower Tower _________________________________________________ 2
Shower Tower Hardware Identification Chart __________________________________________________ 4
Tower Assembly _______________________________________________________________________ 6
Water Lines to Mixer/Diverter Valve _________________________________________________________ 8
Attaching Diverter Valve to Shower Wall _____________________________________________________ 8
Tower Installation ______________________________________________________________________ 10
Tower Disassembly______________________________________________________________________ 11
Placing Tower __________________________________________________________________________ 12
Fixed Panel Assembly____________________________________________________________________ 13
Mounting Top Ring and Wall Bracket to Tower_________________________________________________ 15
Fixed Glass Frame End Attachment _________________________________________________________ 17
Sealing and Trimming ____________________________________________________________________ 18
Attaching Face Plate _____________________________________________________________________ 19
Handle Installation and Operation___________________________________________________________ 19
Tools Required
1. Drill.
2. Drill bits: 3/32", 1/8", 3/16", 5/16" and 9/32".
3. Flat blade screw driver, No. 1.
4. Phillips type blade screw driver, No. 2.
5. 5/16" or 8 mm deep socket or nut driver.
6. Caulking gun.
7. Sealant (silicone).
8. Adjustable wrenches (small and medium).
9. Allen wrenches: 1.5 mm, 2.5 mm, 3 mm and 5/64".
10. Step ladder.

2
FIXED PANEL
SEE PAGE 13 & 14
BAILS
SEE PAGE 6
FACEPLATE
SEE PAGE 19
WALLBAR
SEE PAGE 7
MIXER (INCLUDING
HOSE CONNECTIONS)
SEE PAGES 8 & 11
L EXTRUSION
SEE PAGE 18
L EXTRUSION
SEE PAGE 18 TOP RING
SEE PAGE 15 & 16
WALL BRACKET
SEE PAGE 15 & 16
TOWER
SEE PAGE 10
HANDLE
SEE PAGE 19
HAND HELD
SHOWER,
FLEX HOSE
SEE PAGE 19
WATER INLET
SEE PAGE 6
END EXTRUSION
SEE PAGE 17

3

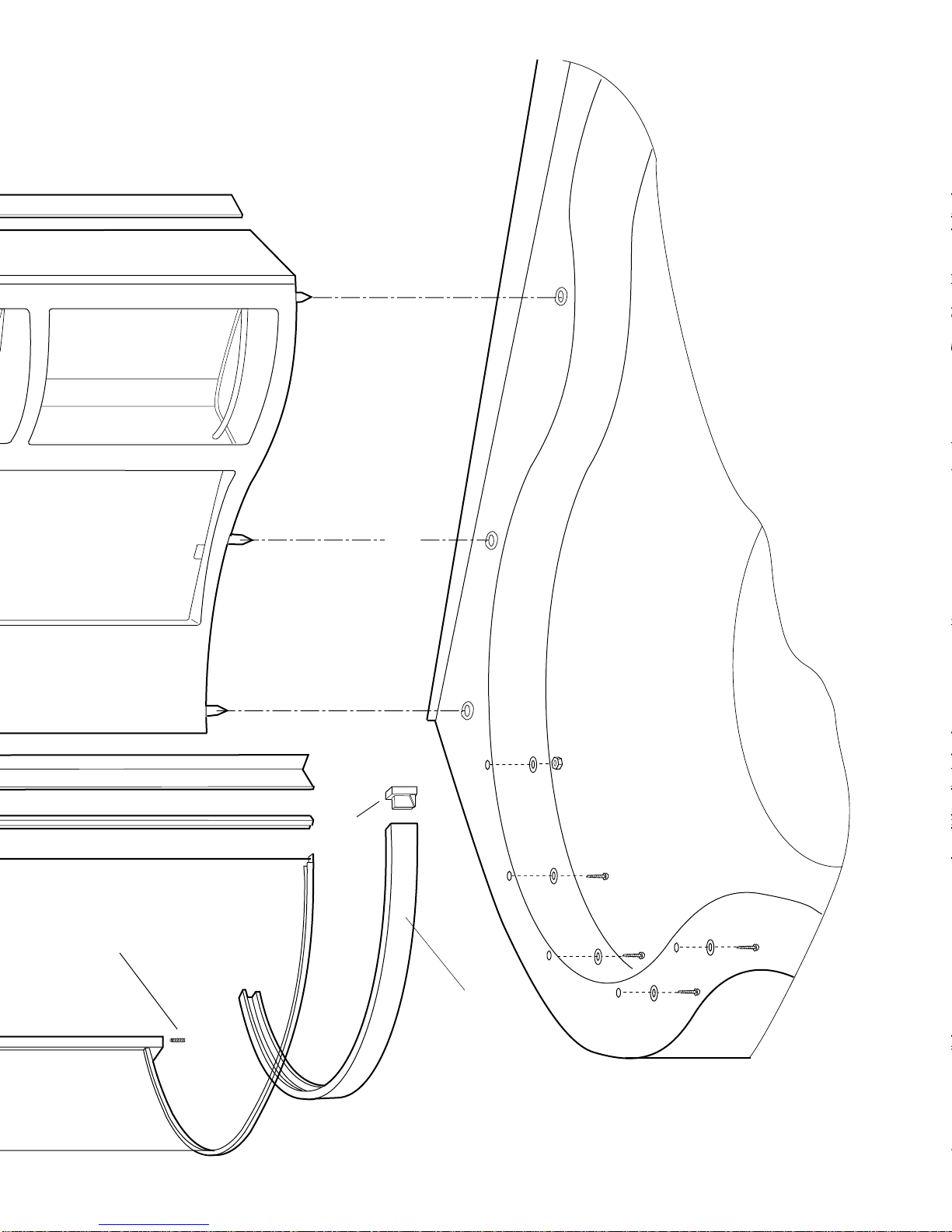

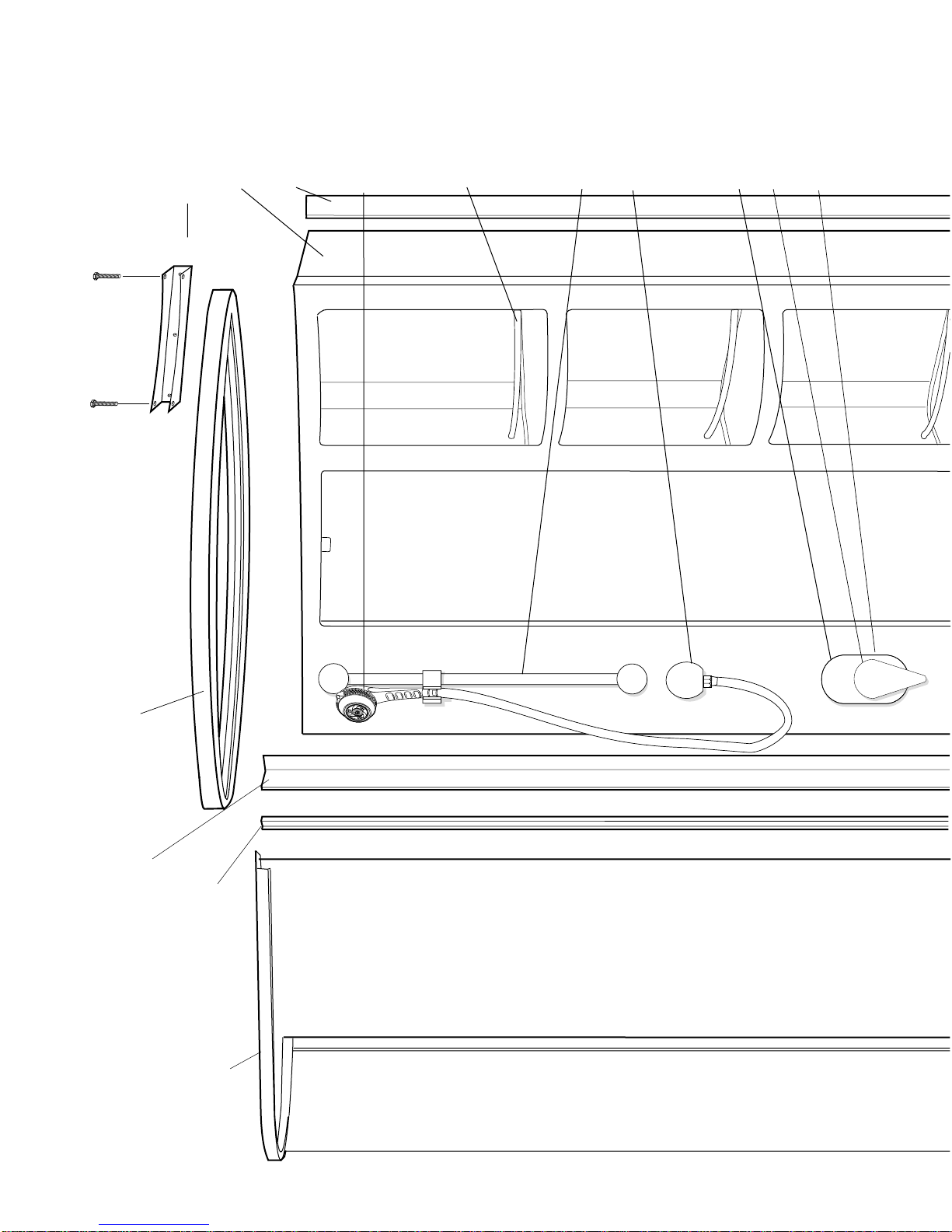

EXPLODED VIEW OF J-CORNER SHOWER TOWER
END CAP
SEE PAGE 18
BOTTOM RAIL
SEE PAGE 13 & 14
SET SCREW
SEE PAGE 14

4

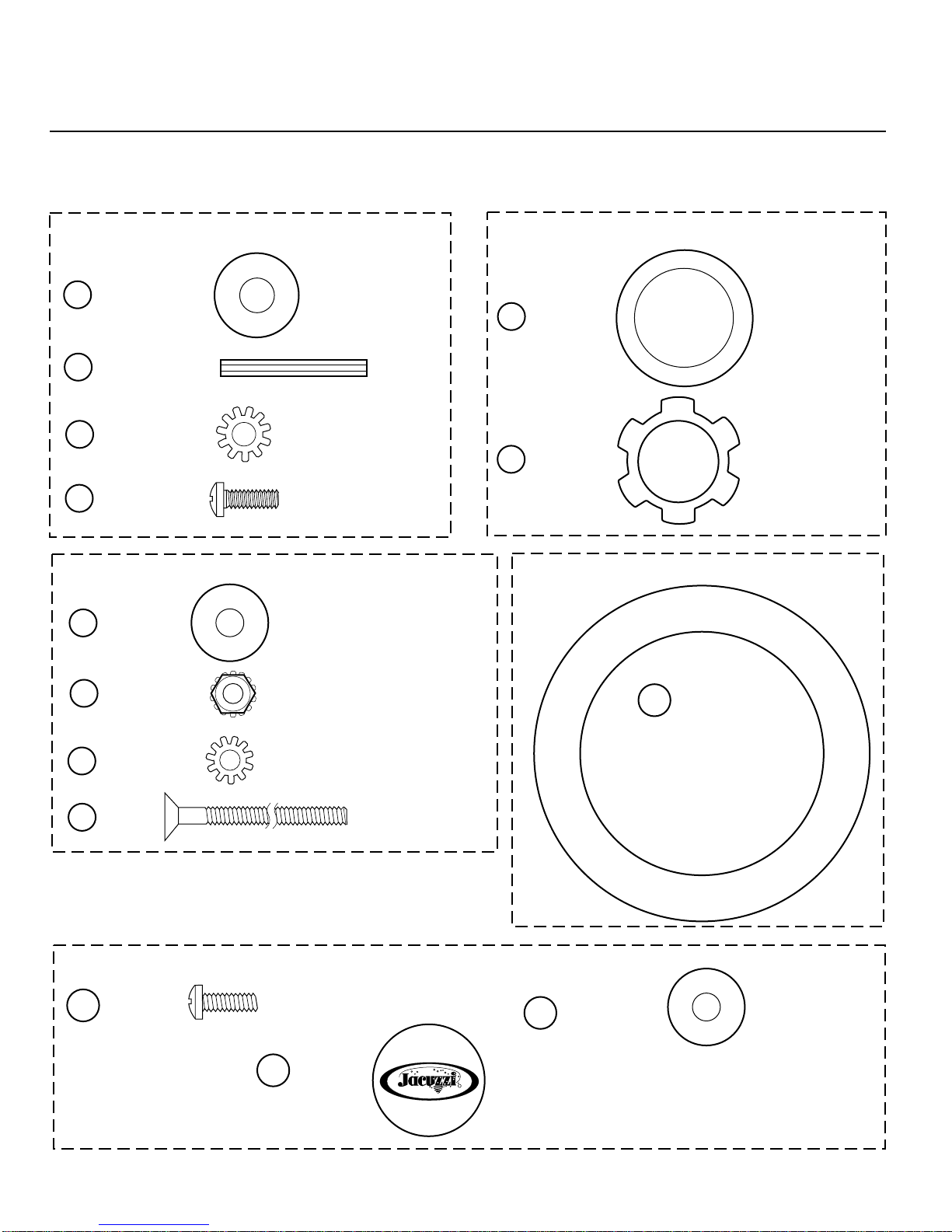

Shower Tower Hardware
Identification Chart
The diagrams for these fasteners are shown actual size for fast identification.
HARDWARE
ZLOW TRACK
END CAP
CAP
QTY. -1
EXTERNAL TOOTH
LOCK-WASHER #8
STAINLESS STEEL
WASHER
QTY.-1
Y
SHEET METAL
SCREW
#8-18X2" S.S.
XSCREW
QTY.-1
SCREW, HEX
WASHER BOLT
1/4-20X2.5"
WBOLT
QTY.-2
SHEET METAL
SCREW
#10-16X2" S.S.
SCREW
QTY.-3
V
FLAT WASHER
#10 TYPE A
STAINLESS STEEL
WASHER
QTY.-3
U
HEX LOCKNUT #8-32
NUT
QTY.-1
T
M3.5X9.5MM
STAINLESS STEEL
SCREW
QTY.-10
S
M4.2X19MM
STAINLESS STEEL
SCREW
QTY.-9
R
PAN HEAD SCREW
#8-32X1/2"
STAINLESS STEEL
SCREW
QTY.-3
Q
FLAT WASHER
#8 TYPE B
STAINLESS STEEL
WASHER
QTY.-8
P
PIN #8-32
.25DIAX1"
PIN
QTY.-3
O
EXTERNAL TOOTH
LOCK-WASHER #10
STAINLESS STEEL
WASHER
QTY.-8
D
SCREW
QTY.-8 SET SCREW
6X32
C
NUT
QTY.-8 HEX NUT
10X32
B
BOLT
QTY.-8 SLOT FASTENER
10X32
A
AA SET SCREW
#8-32 x 1 1/2"
SCREW
QTY.-1

5
Shower Tower Hardware
Identification Chart
The diagrams for these fasteners are shown actual size for fast identification.
HARDWARE
NUT
QTY.-1
J
WASHER
QTY.-1
I
WATER INLET HARDWARE
LOCKNUT
1/2"-14NPT
FIBRE WASHER
1.24 DIA
WALL BAR HARDWARE
FLATHEAD SCREW
#10-24 x 2 1/2"
STAINLESS STEEL
SCREW
QTY.-2
E
WASHER
QTY.-2
F
EXTERNAL TOOTH
LOCK-WASHER #10
STAINLESS STEEL
HEX LOCKNUT
#10-24
H
NUT
QTY.-2
FLAT WASHER
#10, TYPE B
GWASHER
QTY.-2
MIXER HARDWARE
FOAM GASKET
3"O.D.
EE GASKET
QTY.-1
FLAT WASHER
#10
WASHER
QTY.-1
DD
SCREW
#10-24
SCREW
QTY.-1
HANDLE HARDWARE
BB
WHIRLPOOL
BATH
R
SCREW
QTY.-6
N
CROSS RECESS
SCREW M4X12
STAINLESS STEEL
MWASHER
QTY.-3
EXTERNAL TOOTH
LOCK-WASHER M4
STAINLESS STEEL
STANDOFF
QTY.-3
L
KWASHER
QTY.-1 FIBER WASHER
.75 O.D.
CAP
QTY.-1
CC
PLUMBING HARDWARE

TOWER ASSEMBLY
1. Assemble the four (4) bails to the tower wall.
(See Illustration 1.) Do not overtighten the
nuts on the threaded shaft end. Overtighten-
ing may break the stud.
BAIL
ILLUSTRATION 1
BAIL
SET SCREW (8)
BOLT (8)
SHELF
NUT (8)
C
A
B
EXTERNAL TOOTH
LOCK-WASHER #10
STAINLESS STEEL
WASHER (8) D
WASHER
QTY.-8
D
BOLT
QTY.-8
NUT
QTY.-8
SCREW
QTY.-8
A
B
C
SLOT
FASTENER
10 X32
HEX NUT
10 x 32
SET SCREW
6 x 32

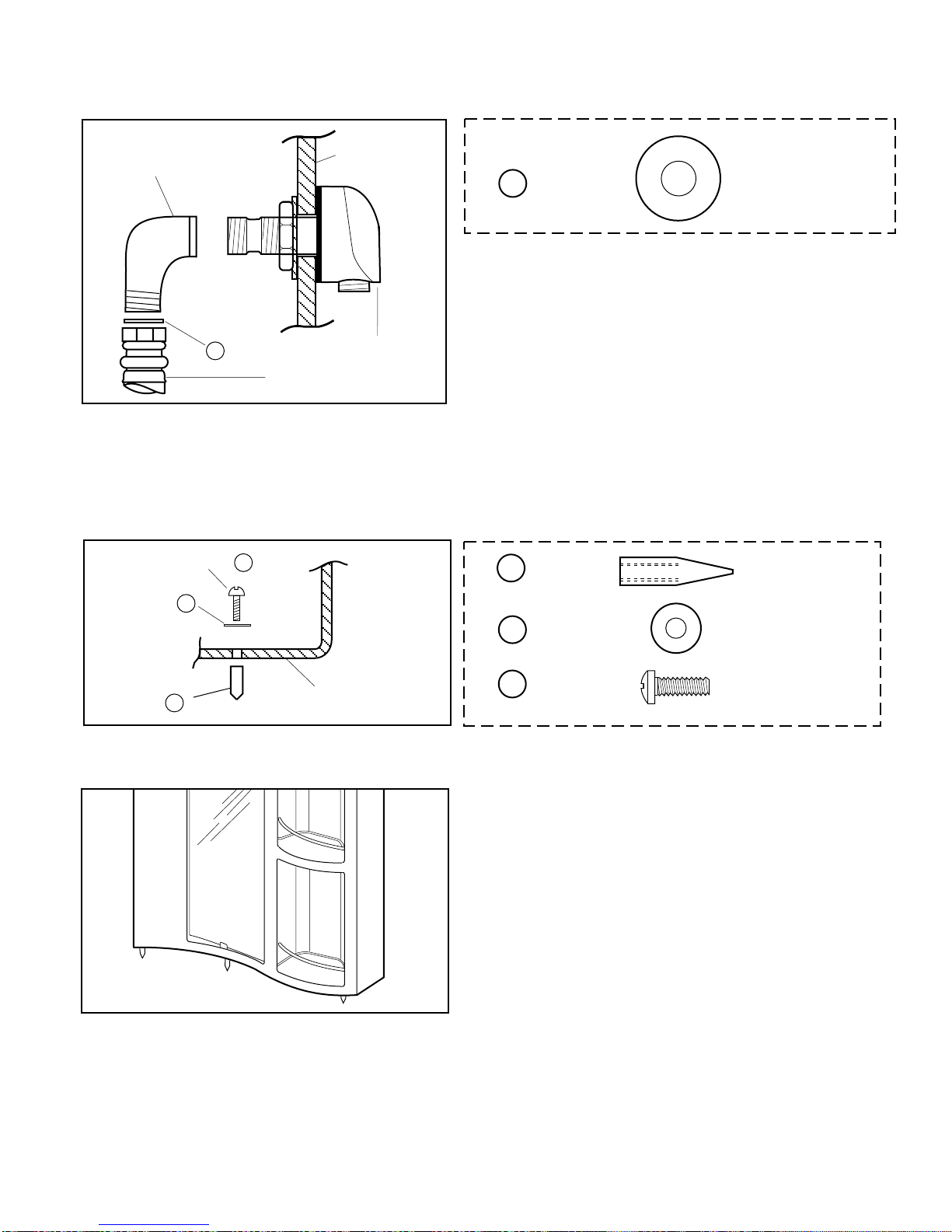

2. Attach the water inlet to the tower wall.
(See Illustration 2.)
NUT
QTY.-1
JLOCKNUT
1/2"-14NPT
FIBER WASHER
1.24 DIA
WASHER
QTY.-1
I
J NUT
CAULK
I WASHER
WATER
INLET
TOWER
WALL
WATER INLET
ILLUSTRATION 2
6

7
3. Attach the wallbar assembly to the tower wall.
(See Illustration 3.)
FLATHEAD SCREW
#10-24 x 2 1/2"
STAINLESS STEEL
H
G
ILLUSTRATION 3
1/8" BEAD OF CAULK
WALLBAR STAND-OFF
EXTERNAL TOOTH
WASHER F (2)
SCREW E (2)
CAP
SIDE VIEW
OF WALLBAR
WALLBAR
SHOWER HEAD
BRACKET
SOAPDISH
SHOWER
WALL
KEP
NUT
H (2)
FLAT
WASHER
G (2)
EXTERNAL TOOTH
LOCK-WASHER #10
STAINLESS STEEL
HEX LOCKNUT
#10-24
FLAT WASHER
#10, TYPE B
WASHER
QTY.-2
NUT
QTY.-2
WASHER
QTY.-2
F
SCREW
QTY.-2
E
SCREW
#10-24x4"
S.S.
PARTS NOT NEEDED
SCREW
QTY.-2
1
TOGGLE NUT
10-24
NUT
QTY.-2
2
WALL BAR

ILLUSTRATION 5
ATTACHING MIXER VALVE TO SHOWER WALL
SCREW
QTY.-3
N
CROSS RECESS
HEAD SCREW M4X12
STAINLESS STEEL
EXTERNAL TOOTH
LOCK-WASHER M4
STAINLESS STEEL
MWASHER
QTY.-3
ILLUSTRATION 4
WATER LINES TO MIXER VALVE
✳
USE
THREAD
SEALANT
SCREWS (3)
WASHER (3)
N
M
K
WASHER
QTY.-1
FIBER WASHER
.75 O.D.
L
STANDOFF
QTY.-3
COLD WATER
LINE (48")
HOT WATER
LINE (48")
MIXER VALVE
M/F 90°ELBOW
M/F 90°
ELBOW
✳
✳
✳
✳
✳
SCREW (6)
N
STANDOFF (3) L
SCREW
QTY.-3
N
TO WATER INLET
PLUG
WASHER
K
WATER SUPPLY
TO SHOWER (12")
M/F 90°ELBOW
8

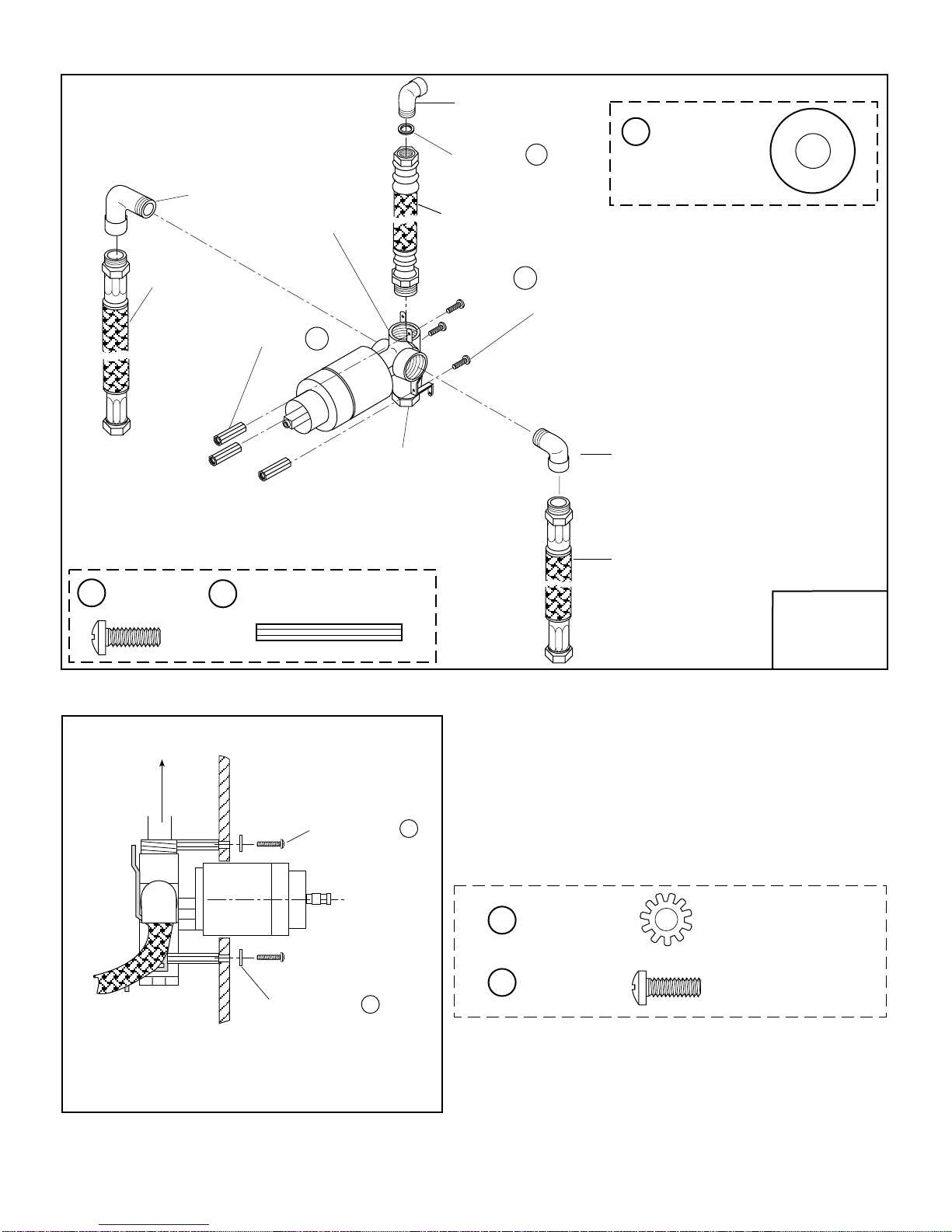

4. Attach the Hot/Cold water lines and shower line to the
mixer valve. Use an approved thread sealant on
threads. Attach standoffs to the mixer valve. (See
Illustration 4.)
5. Attach the mixer valve to the shower wall. (See Illustra-
tion 5.)

ILLUSTRATION 8
OPIN
QTY.-3
FLAT WASHER
#8 TYPE B
STAINLESS STEEL
WASHER
QTY.-3
P
PAN HEAD SCREW
#8-32 x 1/2"
STAINLESS STEEL
SCREW
QTY.-3
Q
SCREW Q
WASHER P
PIN O TOWER
BOTTOM
ILLUSTRATION 7
TOWER PINS
PIN #8-32
.25DIA X 1"
KWASHER
QTY.-1
ILLUSTRATION 6
12" HOSE
WATER
INLET
TOWER
WALL
FIBER WASHER
90°ELBOW
K
LOCATED IN HARDWARE PACK
FIBER WASHER
.75 O.D.
9
6. Attach the shower line to the water inlet (12" hose).
(See Illustration 6.)
7. Attach the three (3) pins to the bottom of the tower.
(See Illustrations 7 and 8.)
8. After these steps are completed, set the tower aside.

10
TOWER INSTALLATION
1. To locate the drilling template, place it over the bath. The template should be against the bath flange edge
and template corner 'A' should be at the bath's corner. (See Illustration 9.)
Note: If bath has been installed with finish materials over bath flange, trim an amount off the template along
the bath flange edge equal to the thickness of mortar and finish materials. (See Illustration 9A.)
2. The inner orange circle should be centered over the circular opening of the bathtub. (See Illustration 9.) The
edge marked “BATH FLANGE EDGE” must be parallel with the back wall. With the template lying flat, tape
firmly to eliminate any shifting.
3 Using a sharp center punch, lightly tap through the template hole center location marks onto the bath surface.
Remove the template.
4. Drill two (3) 9/32" diameter holes for the tower and five (5) 3/16" holes for the bottom rail. (Do not drill through
the template.)
IMPORTANT: THE HOLES MUST BE DRILLED AS ACCURATELY AS POSSIBLE TO INSURE PROPER
INSTALLATION AND OPERATION OF THE SHOWER DOOR.
ILLUSTRATION 9 (LEFT HAND SHOWN)
ILLUSTRATION 9A
TILE OR FINISH
MATERIAL
CEMENT
BOARD
BATH RIM
MORTAR
CAULKING
FLANGE
STUD WALL
MORTAR & FINISH
MATERIAL THICKNESS
3/16" HOLE (5)
9/32" HOLE (3)
TAPE FIRMLY
(TYP)
INNER ORANGE CIRCLE
A
TEMPLATE
BATH FLANGE EDGE TOWER
WALL
BATH FLANGE EDGE

11
5. Attach Hot and Cold water supply lines of the mixer to the stub-out supply lines. (See Illustration 10.)
6. Locate the on/off handle and temporarily place it on the mixer valve. (See Illustration 26 on page 19.) With the
mixer valve in the OFF position, turn on the water supply. Check for leaks at all connectors. Seal any leaks
and continue.
ILLUSTRATION 10
Although the J-Shower Tower is shipped partially assembled, it will have to be partially disassembled to
install. After removing packing materials, follow the instructions below.
1. Remove end cap on the lower track. (Page 18, illustration 24.)
2. Remove the top ring. (Page 15, illustration 19.)
3. Remove the fixed panel with bottom rail. (Page 14, illustration 15 .)
4. Itisnotnecessarytoremovebailsorwallbar. Waterconnectionswillhavetoberemovedtoapplysealant.
DISASSEMBLY INSTRUCTIONS
HOT WATER
SUPPLY LINE
COLD WATER
SUPPLY LINE
HOT/COLD WATER
STUB-OUT WITH
VALVES
(NOT PROVIDED)
48" HOSE

12
PLACING TOWER
ILLUSTRATION 11

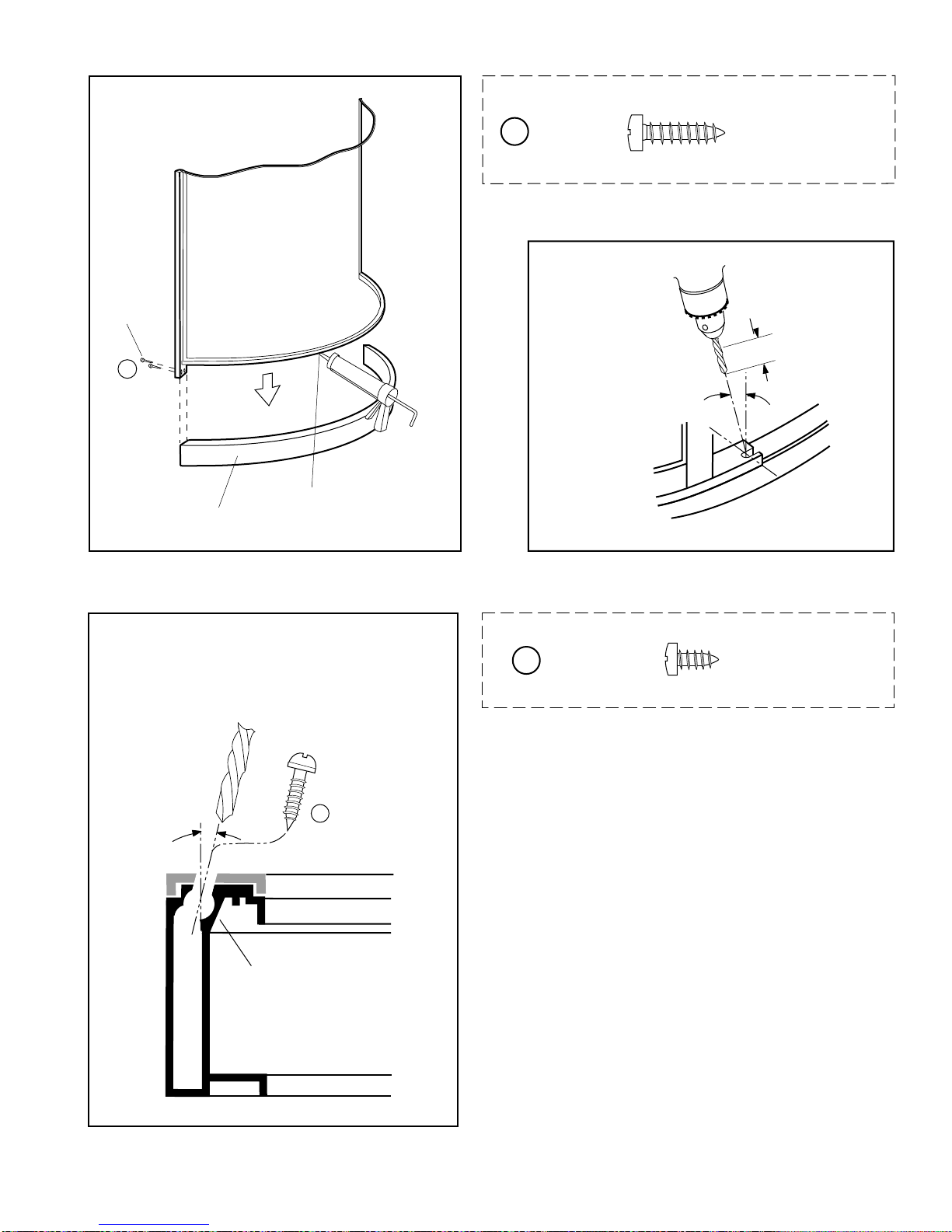

7. Dry fit tower pins into holes to check hole location. Apply sealant around the three tower wall holes on the
bath and around the perimeter where the tower will sit. (See Illustration 11.)
8. Place the tower pins in the holes and push the tower down firmly. The tower will stand temporarily on its
own. Clean off excess sealant.
9. Place the U-extrusion against the wall edge, set back 13/32" from front edge. Drill three (3) 1/8" holes into
the wall and U-extrusion. Put sealant on the mating surface of the U-extrusion, or on the wall, and secure the
U-extrusion to the wall with the stainless steel screws, R.
CAULK
SET BACK 13/32"
M4.2X19MM
STAINLESS STEEL
SCREW
QTY.-3
R

FIXED PANEL
BOTTOM RAIL LAY A 1/4" BEAD OF
SEALANT UNDER THE
FIXED PANEL
TWO
SCREWS
15°
ILLUSTRATION 14
ILLUSTRATION 12 ILLUSTRATION 13
S
R
15°
1/8"
IMPORTANT:
MUST DRILL AT A 15°
ANGLE TO AVOID
DRILLING THROUGH
DOOR GUIDE AREA.
IMPORTANT:
MUST DRILL AT A 15°
ANGLE TO AVOID
DRILLING THROUGH
SIDE OF RAIL.
M3.5X9.5MM
STAINLESS STEEL
SCREW
QTY.-1
S
FIXED PANEL TO BOTTOM RAIL
DRILLING FIXED PANEL
DRILLING FIXED PANEL
DOOR GUIDE
AREA
OU
T
SIDE
M4.2X19MM
STAINLESS STEEL
SCREW
QTY.-2
R

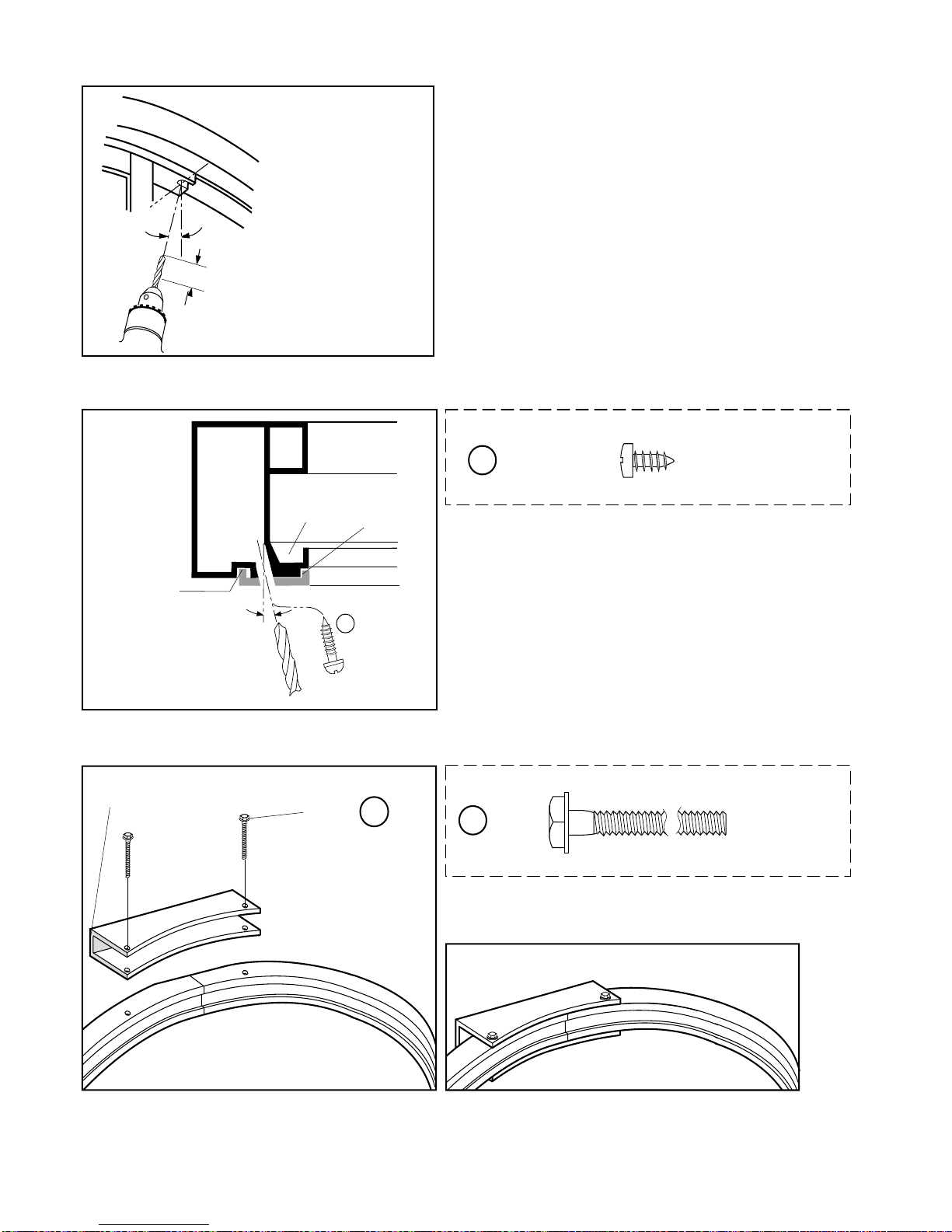

10. Locate the bottom rail and the fixed panel. Lay a
bead of sealant on the bottom of the fixed panel.
Secure the bottom rail to the fixed panel. (See
Illustration 12.) Drill a 3/32" diameter hole into the
bottom rail at a 15°angle. Drill only through the first
aluminum thickness. (See Illustration 13.) Secure
the front of the fixed panel to the bottom rail. (See
Illustration 14.) Clean off excess sealant.
13

14
FIXED PANEL ASSEMBLE TO BATH
11. Screw 1 1/2" Allen set screw 3/4" deep into the bottom of the fixed panel. Lay a 1/4" bead of sealant under
the bottom rail and inside the back channel of the vertical frame. Place the assembly against the vertical
edge of the tower and onto the bath surface, interlocking the two extrusions. (See Illustration 15.) Secure the
assembly to the bathtub using one (1) nut and washer and four (4) screws and washers following the fasten-
ing sequence. Gently push on the shaded portion of the bottom rail (see Illustration 15) to align with the holes
in the bath shell. After installing the fixed panel, apply sealant along all four inside edges of the glass frame.
Clean up excess sealant.
VERTICAL
EDGE OF
TOWER
1FASTENING
SEQUENCE
ILLUSTRATION 15
HEX LOCKNUT
#8-32
TNUT
QTY.-1 M4.2X19MM
STAINLESS STEEL
SCREW
QTY.-4
R
FLAT WASHER
#8 TYPE B
STAINLESS STEEL
WASHER
QTY.-5
PSET SCREW
#8-32 x 1 1/2"
SCREW
QTY.-1
AA
(5) P
(4) R
AA
CAULK
2
3
4
5
LOCATED IN HARDWARE KIT
GENTLY PUSH
THIS AREA
T

ILLUSTRATION 19
WASHER (1) SCREWS (2)
SCREW INTO
FIXED PANEL
YW
X
SCREW(1)
SCREW HERE
EXTERNAL TOOTH
LOCK-WASHER #8
STAINLESS STEEL
WASHER
QTY.-1
Y
BOLT
QTY.-2
W
SHEET METAL
SCREW
#8-18X 2" S.S.
SCREW
QTY.-1
X
RING TO TOWER
SCREW, HEX
WASHER BOLT
1/4-20X2.5"
ILLUSTRATION 16
BRACKET LOCATING
PARALLEL
WITH
STUD WALL
FLAT PORTION
OF TOP RING
FLAT WASHER
TYPE A
STAINLESS STEEL
WASHER
QTY.-3
U
WOOD SCREW
SCREW
QTY.-3
V
ILLUSTRATION 17
TOWER
WALL
TOP PLANE
OF RING
MARK LINE
TOP RING
RING TOP PLANE MARK
STUD WALL
WALL
BRACKET
ILLUSTRATION 18
BRACKET TO WALL
TOWER WALL
WALL BRACKET
SCREW (3)
MARK LINE
WASHERS(3) V
W
INNER SURFACE OF
BRACKET UPPER LEG
RING
LOCATED IN HARDWARE PACK
15
12.Locate the top ring. Remove the plastic retainer extrusion and set
it aside for later use. Place the top ring on the fixed panel and
tower wall. The top ring groove on the underside of the top ring
must mate with the top of the fixed panel. The flat portion of the
ring should be parallel with the stud wall. (See Illustration 16.)
Mark a line on the stud wall indicating the top plane of the bracket.
(See Illustration 17.) Remove the ring. The top surface of the
bracket upper leg must align with the top ring line previously
marked. (See Illustration 18.) Locate and secure the bracket to
the wall.
13.Place the top ring on the tower and fixed panel. Align the three
holes in the top ring with the two tower holes and one hole in the
fixed panel. (See Illustration 19.) Secure the top ring to the tower.

ILLUSTRATION 20
IMPORTANT:
MUST DRILL AT A 15°
ANGLE TO AVOID
DRILLING THROUGH
ROLLER TRACK OF
TOP RING.
ILLUSTRATION 22A
BOLT
QTY.-2
W
M3.5X9.5MM
STAINLESS STEEL
SCREW
QTY.-1
S
DRILLING TOP RING
RING TO BRACKET
ILLUSTRATION 22B
RING TO BRACKET
ILLUSTRATION 21
DRILLING TOP RING
SCREW, HEX
WASHER BOLT
1/4-20X2.5"
BOLT
QTY.-2 W
PAINT OUTSIDE EDGE TO
MATCH BATHROOM FINISH
15°
1/8"
O
UT
SID
E
LOCATED IN HARDWARE PACK
IMPORTANT:
MUST DRILL AT A 15°
ANGLE TO AVOID
DRILLING THROUGH
ROLLER TRACK.
S
15°
ROLLER
TRACK
TOP
RING
GROOVE
FIXED
PANEL
16
15.Plumb and square the tower. (See Illustrations 22A and
22B.) Secure the top ring to the wall bracket by inserting
the hex bolts through the wall bracket into the top ring
and tighten (wall bracket is pre-threaded).
14.Drill a 3/32" diameter hole into the top ring at a 15°
angle. (See Illustration 20.) Engage the top of the fixed
panel with the top ring groove. Secure the top of the
fixed panel to the top ring. (See Illustration 21.)

17
16. Apply sealant in frame and extrusion. Align and place extrusion above end cap onto the fixed glass.
FIXED GLASS FRAME END ATTACHMENT
ILLUSTRATION 23
SEALANT
FIXED
GLASS
END
EXTRUSION

17. Install on the sides of the tower the aluminum extrusions provided. They may be sealed in place or secured
with screws (S, quantity 6). Seal the end cap by applying clear silicone sealant prior to placing into the end of
the lower track. Secure with self-tapping screw S.
18
END CAP
L-EXTRUSION
L-EXTRUSION
SEALANT
BACK
WALL
WALL
ILLUSTRATION 24
Z
SEALANT BACK
WALL
WALL
M3.5X9.5MM
STAINLESS STEEL
SCREW
QTY.-1
S
LOCATED IN HARDWARE PACK
SCREW
S
SCREW
S
CAP
QTY. -1
Z
