JADO Wynd 816 User manual

Installation Instructions
To ensure that your installation proceeds smoothly--please
read these instructions carefully before you begin.
©JADO USA 2003

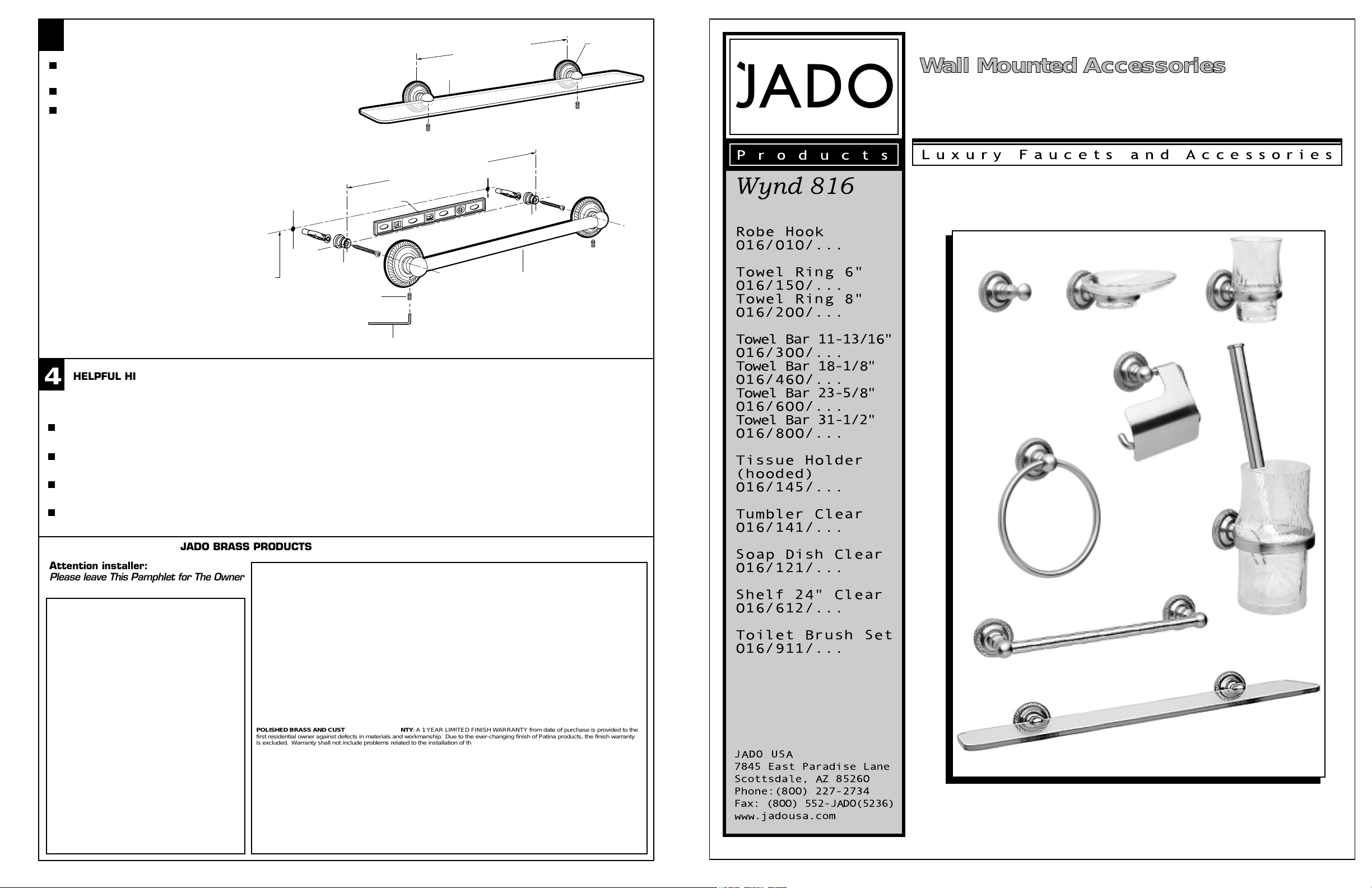

Products Luxury Faucets and Accessories
Wall Mounted Accessories
4HELPFUL HINTS FOR CLEANING AND MAINTENANCE
The solid brass product you have just purchased has been designed to give you years of beauty and service. It is
important to bring to your attention proper care and maintenance procedures, which will ensure its lasting beauty.
First and foremost, it is important (as it is with any fine piece of jewe ry or furniture) that the product be wiped c ean and
dry with a soft damp c oth after every use.
Second, under no circumstances shou d an abrasive c eaner or combination c eaner/po ish be used on JADO products.
The abrasive nature of such products wi eventua y destroy the finish and void the warranty.
In the event of stubborn b emishes shown on the finish, we recommend use of Windex window c eaner with a soft c oth,
but we do not recommend it be used on an everyday basis.
It is important to note that it is norma to expect signs of usage over time.
Thank you for selec ing JADO for your home.
109634 109634
JADO USA
7845 East Paradise Lane
Scottsdale, AZ 8526O
Phone:(8OO) 227-2734
Fax: (8OO) 552-JADO(5236)
www.jadousa.com
Product Numbers
Robe Hook
O16/O1O/...
Towel Ring 6"
O16/15O/...
Towel Ring 8"
O16/2OO/...
Towel Bar 11-13/16"
O16/3OO/...
Towel Bar 18-1/8"
O16/46O/...
Towel Bar 23-5/8"
O16/6OO/...
Towel Bar 31-1/2"
O16/8OO/...
Tissue Holder
(hooded)
O16/145/...
Tumbler Clear
O16/141/...
Soap Dish Clear
O16/121/...
Shelf 24" Clear
O16/612/...
Toilet Brush Set
O16/911/...
Wynd 816
TO THE PURCHASER OF JADO BRASS PRODUCTS
A en ion ins aller:
Please leave This Pamphlet for The Owner
POLISHED BRASS AND CUSTOM FINISHWARRANTY: A 1YEAR LIMITED FINISH WARRANTY from date of purchase is provided to the
first residential owner against defects in materials and workmanship. Due to the ever-changing finish of Patina products, the finish warranty
is excluded. Warranty shall not include problems related to the installation of the product.
MECHANICS
MECHANICAL WARRANTY: A LIFETIME LIMITED WARRANTY is provided to the first residential owner on parts to be free from failure
related to defects in materials and workmanship but not installation.
CONDITIONSTOWARRANTIES
JADO Bathroom & Hardware Manufacturing Corp.places the following conditions on its finish and mechanical warranties to the first residential owner only.
JADO finish and mechanical warranties are limited to products correctly installed and used in a residential environment.
JADO warranties will not assume liability for damage due to abuse, mishandling, incorrect installation, improper maintenance, or deterioration
due to normal use.
JADO will not be liable for labor or other costs relating to the sale, installation, or replacement of their products.
In the event of a defect in any JADO product covered by this warranty, the product must be returned to the dealer where originally purchased
along with proof of purchase.
JADO's obligation under the warranty shall be limited to the repair or exchange of any product which has been determined by JADO to be
defective after appropriate examination.
The state of California has mandated under Proposition #65 that
manufactures of products, including faucets which come into
contact with potable water, must warn the consumer if the product
contains materials listed by the state as a carcinogen or
reproductive toxin. Lead, which is contained in all brass faucets in
limited amounts appears on the State's list.
Preliminary industry tests have indicated that users of faucets
made from brass face no significant danger, however,
California Proposition #65 requires that we provide you with the
following notice:
NOTICE: JADO products conform to industry
requirements of water conservation under the
ASTM / ANSI A112.18.1M-1994 plumbing code.
Lavatory, bidet, wet bar and kitchen faucet sets
have a maximum flow rate of 2.2GPM. Shower
heads, hand showers and body sprays have a
maximum flow rate of 2.5GPM.
Warning: This product contains an element
known to the State of California to cause cancer
of reproductive harm.
JADO BATHROOM AND HARDWARE MFG.CORP.
7845 East Paradise Lane
Scottsdale, AZ 85260
JADO warrants this product to be free from defects in materials or workmanship for as long as the original consumer purchaser
owns their home.
JADO will provide, free of charge, at it’s sole option, replacement part(s) or product (or if no longer available, a comparable
product) to replace those which have proven defective in materials or workmanship.
Proof of purchase (original sales receipt) from the original consumer purchaser must be made available to JADO for all limited
warranty claims.This limited warranty is non transferable.It does not apply in the event of product damage due to the use of other than
genuine JADO replacement parts, installation error, abuse, misuse, or improper care and maintenance (whether performed by
a plumber, contractor, service provider or member of the purchaser’s household).The limited warranty excludes damage due to aggressive
air or water conditions, or harsh or abrasive cleaners and/or materials.This limited warranty excludes all industrial, commercial and business
usage, whose purchasers are hereby extended a two year limited warranty (with the exception of solenoid valves and other electronic
components which carry a one year limited warranty) applying to all other terms of this limited warranty except duration. This limited warranty
does not cover labor charges incurred and/or damages sustained in installation, repair or replacement, nor incidental or consequential
damages, all of which are expressly disclaimed.This limited warranty is applicable only to JADO faucets manufactured after June 1, 1996
and installed in the United States and/or Canada.
This limited warranty gives the original consumer purchaser of an JADO faucet specific legal rights which may vary from state to
state or from province to province.This limited warranty does not cover any liability for consequential or incidental damages, all of which
are hereby expressly disclaimed, or the extension beyond the duration of this limited warranty of any implied limited warranties, including
those of merchantability or fitness for an intended purpose.In some states or provinces the exclusion or limitation of incidental or consequential
damages is not allowed, so those exclusions may not apply to you.
JADO Bathroom & Hardware Manufacturing Corp. provides the following warranties only to the first residential owner of our products.
FINISHES
FAUCET LIFETIME FUNCTION AND FINISH LIMITED WARRANTY
See detai for the center to center dimension of TOWEL BARS (1) and
MOUNTING POSTS (2). For insta ation of the MOUNTING POSTS (2) see step 1.
The center ine of MOUNTING POSTS (2) must be eve .
3INSTALL TOWEL BAR OR GLASS SHELF
Insta TOWEL BAR (1) or SHELF (3) onto insta ed MOUNTING
POSTS (2). Push TOWEL BAR (1) or SHELF (3) f ush against
finished wa and tighten SET SCREWS (4) with HEX WRENCH (5)
supp ied to secure accessory to wa .
Note Glass shelf is held in shelf brackets with set screws.
OPTIONAL TO
FINISHED FLOOR
(50" TO 60")
SHELF
BRACKETS
LEVEL
016/300 (11-13/16")
016/460 (18-1/8")
016/600 (23-5/8")
016/800 (31-1/2")
016/612 (15-3/4")
1
C/L
C/L
3
C/L
C/L
4
Towel Bar
Shelf 24" Clear
5
2
2

109634
1INSTALL WALL BRACKET
2INSTALL ACCESSORY
1
Note Installation is typical for all wall mounted accessories.
Robe HookTowel Ring
Soap Dish Clear
Tissue Holder
Tumbler Clear
Toile Brush
Se
ROUGHING-IN
DIMENSIONS
109634
Phi ips Screwdriver
TOOLS REQUIRED
016/300 (11-13/16")
016/460 (18-1/8")
016/600 (23-5/8")
016/800 (31-1/2")
Robe Hook
Towel Ring Tissue Holder
(hooded)
Tumbler Clear
Soap Dish Clear
Toile Brush Se
Towel Bar
Shelf 24" Clear
Drill Level
10'
Tape
Measure
2 -3/8" D.
5- 3/4"
2 -3/8" D.
15- 3/4"
5 -3/4"
23- 5/8"
4 -3/4"
6- 1/4" D.
7- 1/4"
5 -1/2"
1 -7/8"
2 -3/8" D.
2- 1/2"
2- 3/8" D.
1 -7/8"
2 -3/8" D.
5- 1/8"
3 -1/8"
2- 3/8" D.
5 -7/8"
2-3/8" D.
4- 1/8"
2- 3/8" D. 4 -1/16"
Regular Screwdriver
The wa mounted accessories work best if secured to a wa stud or cross brace within the wa , using the SCREW (1) supp ied.
If the wa mounted accessories are to be insta ed on a ti e or p aster wa the ANCHOR (3) and SCREW (1) shou d be used.
Secure MOUNTING POST (2) to wa with SCREWS (1).
Insta ation for two posted accessories are insta ed in the same manner but at the indicated dimension between the posts.
For installations on drywall or tiled walls Use ANCHOR (3) and SCREW (1) for securing MOUNTING POST (2) to finished wa .
Dri a 1/4" dia. ho e a minimum of 1-3/4" deep. Insert the ANCHOR (3) f ush with face of the finished wa .
Determine desired height and ocation (optiona ) and mark a center ine. Using the MOUNTING POST (2) as a temp ate mark the
spot for the ANCHOR (3). If MOUNTING POST (2) is secured to a stud or cross brace, dri sma pi ot ho e for SCREW (1).
3
1
4
2
OPTIONAL TO
FINISHED FLOOR
1/4" DIA. HOLE
5
Insta WALL MOUNTED ACCESSORY onto insta ed MOUNTING POST (2). Push WALL MOUNTED ACCESSORY f ush against
finished wa and tighten SET SCREW (4) with HEX WRENCH (5) supp ied to secure to wa .
2
31
OPTIONAL TO
FINISHED FLOOR
FINISHED
WALL
