Jaeger-leCoultre DUOMETRE Q6062420 User manual

English
TABLE OF CONTENTS
Introduction
Accuracy and precautions for use
Water resistance
“1000 Hours Control” test
Technical specications
Movement
Functions
Use
International Guarantee
Limited Guarantee
(United States of America and Canada)
Guarantee for Australia
21
21
21
22
23
23
24
25
28
30
32

20

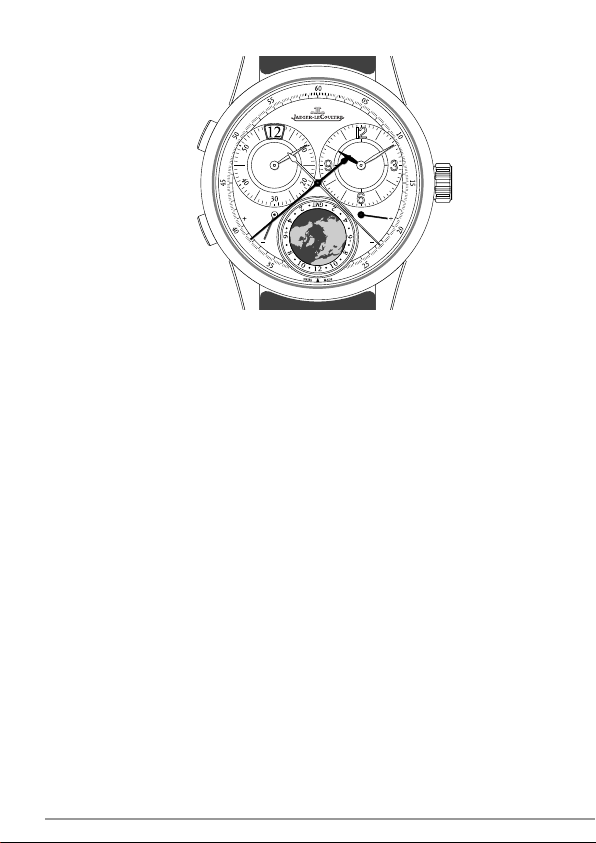

1Hour hand for time function
2Minute hand for time function
3Crown
4Power-reserve for time function
5Digital time display for the second time zone
6Minute hand for the second time zone
7Monopusher to adjust the time zone
8Power-reserve for second time zone
9Time zone indication
D
U
O
M
E
T
R
E
C
A
L
I
B
R
E
3
8
3
1
2
4
3
5
6
8
9
7

English
21
Introduction
We congratulate you on the acquisition of your Jaeger-LeCoultre watch, and
thank you for your condence in us.
We invite you to consult the operating instructions and hope your Jaeger-
LeCoultre timepiece brings you great enjoyment.
Accuracy and precautions for use
Manually-wound or automatic mechanical watches
The precision of mechanical watches is determined by the balance.This oscillates
at a rate of 28,800 vibrations per hour.
Despite all the care that the master watchmakers of the Jaeger-LeCoultre Manu-
facture have lavished on building and assembling your watch, its accuracy is sub-
ject to the inuence of gravity, magnetic elds, impacts and ageing of the oils.The
precision of a watch is measured by its regularity of rate in various positions.
Your individual temperament and your activities could be the cause of slight ir-
regularities. If you observe a discrepancy in the running of your watch, we advise
you to entrust it to an authorised Jaeger-LeCoultre retailer who will make the
necessary adjustments. Watches with mechanical movements must not be used
for sports involving signicant risk of impact or abrupt actions, such as golf or
tennis for example.
Water resistance
Your Jaeger-LeCoultre watch is water-resistant to 5 bar/atm.The water resistance
of your watch is identiable by the symbol engraved on the back.This means that
your timepiece has been tested at an overpressure of 5 bar, corresponding to an
immersion pressure of 50 metres (1 bar/atm = approx. 10 metres).
In accordance with the ISO 22810/NIHS 92-20 standard, in order to guarantee
the durability of the watch's characteristics over time and as the water resistance
may be affected by certain activities, it is recommended that the user:
- have the water resistance of the watch checked by an authorised Jaeger-
LeCoultre dealer, in accordance with the recommendations of the Jaeger-
LeCoultre Manufacture and at any event after each opening of the case, in
which case it is recommended that the test be carried out with increased
air pressure

22
- check when making the purchase that the strap or bracelet is suitable for the
intended use
- avoid subjecting the watch to excessively abrupt temperature changes
- protect the watch from being dropped or suffering other shocks (have the
watch checked after any violent impact)
- avoid the use of the controls, push-piece or time-setting crown while under
water or before the watch has dried after immersion
- restore the time-setting crown and the push-pieces to their normal positions
(or, where applicable, close the compression key) after every manipulation
- rinse the watch with fresh water after use in sea water.
You may use your watch during short swims, and when jumping in from the
edge of a swimming pool but not from a diving board. Your watch must not
be used for scuba diving or for sports involving signicant risk of impact, such
as windsurng or water-skiing. Also note that leather straps are not suited to
aquatic activities.
Furthermore, it is vital to have the water resistance of your watch checked by
an authorised Jaeger-LeCoultre retailer at least once every two years, and at any
event before any period during which it is liable to undergo prolonged and/or
regular immersions.
“1000 Hours Control” test
Jaeger-LeCoultre submits all its watches to the stringent “1000 Hours Control”,
a unique battery of comprehensive and rigorous internal tests lasting a full 1000
hours.
The“1000 Hours Control” seal or legend placed or engraved on the back of your
watch certies that the latter has undergone this programme of observation in
our laboratories and has successfully passed all the tests relating to regularity of
rate, temperature, atmospheric pressure and resistance to shocks and magnetic
elds, as well as water resistance trials.Your watch is thus capable of withstanding
the daily stresses and strains that await it when worn on your wrist.
The criteria of the “1000 Hours Control” programme considerably exceed the
standards of ofcial timing tests, which deal only with part of the movement.
Jaeger-LeCoultre tests not only the movement prior to being cased up in the
watch, but also the watch as a whole.

English
23
Technical specications
- Manually-wound mechanical movement, Jaeger-LeCoultre Calibre 383
Dual-Wing.
- 28,800 vibrations/hour.
- Power-reserve: approximately 50 hours.
- Power-reserve of second time zone: approximately 50 hours.
- Water-resistance: Water-resistant to 5 atm.
Movement

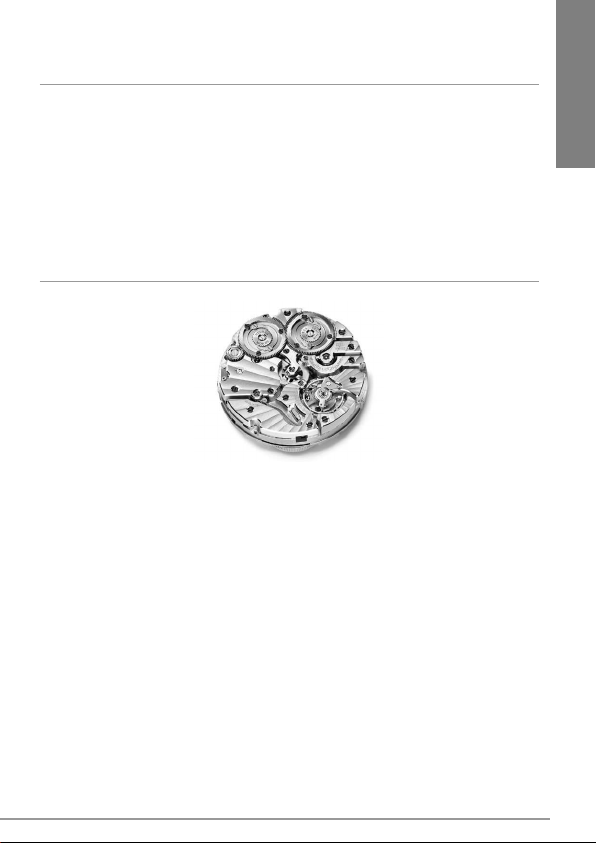

Jaeger-LeCoultre Calibre 383.
Important note regarding the power-reserves of the Calibre 383 Dual-Wing.
The Dual-Wing movement of the Duomètre Unique Travel Time watch model
comprises two barrels. The rst barrel provides a 50-hour power-reserve for
the watch’s time function.The second barrel, independently of the rst, provides
a 50-hour power-reserve for the second time zone. The functions thus do not
cause any loss of energy or isochronism in the escapement.The power-reserve
for the time function can be read on the hand between 4 and 5 o’clock. The
power-reserve for the second time zone can be read on the hand between
7 and 8 o’clock.
In both cases, the power-reserve is at its maximum when the hand is positioned
opposite the “+” symbol. As energy is consumed, the hand will gradually point
towards the “-” symbol. When the hand is opposite the “-” symbol (after ap-
proximately 50 hours), this indicates that the power reserve has been exhaust-
ed.This is the last chance to wind up the watch without losing the settings.

24
Both barrels can be wound using crown A, in position 1.
By turning the crown clockwise, you wind up the second time zone (and there-
fore restore its power-reserve). By turning the crown anti-clockwise, you wind up
the time function barrel (and therefore restore its power-reserve).
Important:
Although the two power-reserves are independent, it is vital that both are wound
before the timepiece can be used. If one of the power-reserves is depleted,
the movement will stop (no damage will be caused to the movement). It will
thus be necessary to wind the two power-reserves according to the instructions
to restart the calibre.
Functions
The Duomètre Unique Travel Time is the rst world time watch in which the
second time zone can be set to the minute.
Thanks to the Dual Wing concept, which enables the addition of functions with-
out disrupting the power supplied to the regulating organ, the second time zone
of your Duomètre Unique Travel Time does not lead to energy loss.
Consequently, the Duomètre Unique Travel Time displays the following:
- The hours, minutes and second of the time where you live (local time)
- The hour, minute and day/night GMT indicator of the city selected for the
second time zone.
- The power-reserves which enable the winding levels to be controlled.
Power-reserve of time
function
Winding the
second time zone
Winding
the time function
D
U
O
M
E
T
R
E
C
A
L
I
B
R
E
3
8
3
Power-reserve of
the second time zone

English
25
Use
Starting the watch
Crown in position 1
The watch can be started by turning the crown clockwise to wind on the barrel
of the second time zone and anti-clockwise to wind that of the reference time.
The watch is fully wound when the two power-reserve hands reach the “+”
symbol. There is no stop to tell you that the movement has been fully wound,
as excess winding is absorbed by a slipping spring. This prevents damaging the
going train.
Setting the time
Adjusting the globe position and indication of the 24-hour time zones
- The globe and the time zones are connected, enabling the globe and time
zone indication to be moved with the aid of the two push-pieces.
- These are based on the time zone of reference (the main time zones are
visible on the back of the piece). They can be aligned to the hour marker
which is found at 6 o'clock.
D
U
O
M
E
T
R
E
C
A
L
I
B
R
E
3
8
3

26
Setting the reference time
Crown in position 3
- The movement is then locked (“stop seconds” function).To enable time setting
accurate to one second, stop the time function seconds hand (gold or rhodium
plated-hand) at 60.
- Move the hands forward clockwise to the desired time and, on the hour signal,
push the crown back to position 1.The watch starts running again.
Setting the second time zone as the reference time
Crown in position 2
- Rotating the crown moves the minute hand of the second time zone
forward by intervals of 1 minute at a time. To move through the hours more
rapidly, it is possible to move the minute hand back and forth above the hours
disk, which causes the disk to move forward by one hour.
- Align the time of the second time zone with the reference time.
- Make sure to respect the day/night indication on the globe.
The destination time is now ready for setting.
D
U
O
M
E
T
R
E
C
A
L
I
B
R
E
3
8
3
+
-

English
27
Setting the second time zone
‘Standard’ time zone
Crown in position 1
- Adjust the time at your desired destination using the push-pieces. Press once
on the upper push-piece to move the second time zone forward by one hour.
Press the lower push-piece once to move the time of the second time zone
back one hour.The watch is set and ready for wearing.
Half hour time zones
Crown in position 1
- Adjust the time at your desired destination using the push-pieces. Press
once on the upper push-piece to move the second time zone forward by one
hour. Press the lower push-piece once to move the time of the second time
zone back one hour. Set the time zone up to GMT+5.
Crown in position 1
- Use the crown to change the minutes and advance by 30 minutes
- The watch is set and ready for wearing.

Jaeger-LeCoultre watches
In order to benet from the International Guarantee and/or the Limited Guar-
antee and/or the Manufacturer’s Guarantee for Australia, Jaeger-LeCoultre prod-
ucts must be purchased exclusively from authorised Jaeger-LeCoultre retailers or
from Jaeger-LeCoultre Boutiques. Maintenance and repair work must be entrust-
ed to an authorised Jaeger-LeCoultre retailer, or a Jaeger-LeCoultre Boutique or
an authorised Jaeger-LeCoultre Service Centre. If these conditions are not met,
the manufacturer’s guarantee does not apply. Please contact Jaeger-LeCoultre to
obtain the list of authorised Jaeger-LeCoultre retailers all over the world.
International Guarantee
The International Guarantee applies to Jaeger-LeCoultre products sold or
presented for guarantee repairs in all countries, except the United States of
America and Canada (for these two countries, see the Limited Guarantee)
and Australia (for this country, refer to the Guarantee for Australia).
Terms and conditions of the Jaeger-LeCoultre International Guarantee
Your Jaeger-LeCoultre watch is guaranteed against all manufacturing defects for
two years from the date of purchase, subject to the following conditions.
Any part found by our technical services to be defective as a result of a man-
ufacturing defect will, at the sole discretion of Jaeger-LeCoultre, be repaired or
replaced free of charge. The Jaeger-LeCoultre International Guarantee is valid
only if the guarantee certicate enclosed with this booklet has been duly com-
pleted, dated, stamped and signed by the authorised Jaeger-LeCoultre retailer or
the Jaeger-LeCoultre Boutique who sold you your watch.
This Jaeger-LeCoultre International Guarantee does not cover defects resulting
from accidents, mishandling or incorrect or abusive use (for example, knocks,
dents, crushing, excessive temperatures, powerful magnetic elds), the use of or
effect of using batteries other than those designated by Jaeger-LeCoultre, unau-
thorised alteration or repair or the consequences of normal wear and ageing of
the watch, the strap or the glass, the loss of water-resistance after two years from
the date of purchase if your watch is water-resistant, or any defect resulting from
contact with water if your watch is not water-resistant.
Jaeger-LeCoultre water-resistant watches may be identied by the symbol
engraved on the back.Their water-resistance is guaranteed for two years
from the date of purchase, provided that the glass, the bezel, the back, the middle
28

English
part and the crown have not been damaged. It is nevertheless essential to have
the water-resistance of your watch checked at least once every two years, and
in any event, prior to any period of intensive use, either by an authorised Jaeger-
LeCoultre retailer or by a Jaeger-LeCoultre Boutique or by an authorised Jaeger-
LeCoultre Service Centre (for further information please see your User
Manual).
For quartz watches, this guarantee does not cover the battery life.
As a consumer, you may have legal rights under applicable national legislation
governing the sale of consumer goods; those rights are not affected by this
guarantee.
29

Limited Guarantee (United States of America and Canada)
The following Limited Warranty applies to Jaeger-LeCoultre products sold or
presented for warranty repairs in the United States of America and Canada
only.
Terms and conditions of the Jaeger-LeCoultre Limited Warranty
Your Jaeger-LeCoultre watch is guaranteed against all manufacturing defects for
two years from the date of purchase, subject to the following conditions.
Any part found by our technical services to be defective as a result of a man-
ufacturing defect will, at the sole discretion of Jaeger-LeCoultre, be repaired or
replaced free of charge. The Jaeger-LeCoultre Limited Warranty is valid only if
the warranty certicate enclosed with this booklet has been duly completed,
dated, stamped and signed by the authorised Jaeger-LeCoultre retailer or the
Jaeger-LeCoultre Boutique who sold you your watch.
This Jaeger-LeCoultre Limited Warranty does not cover defects resulting from
accidents, mishandling or incorrect or abusive use (for example, knocks, dents,
crushing, excessive temperatures, powerful magnetic elds), the use of or effect
of using batteries other than those designated by Jaeger-LeCoultre, unauthorised
alteration or repair or the consequences of normal wear and ageing of the
watch, the strap or the glass, the loss of water-resistance after two years from
the date of purchase if your watch is water-resistant, or any defect resulting from
contact with water if your watch is not water-resistant.
Jaeger-LeCoultre water-resistant watches may be identied by the symbol
engraved on the back.Their water-resistance is guaranteed for two years
from the date of purchase, provided that the glass, the bezel, the back, the middle
part and the crown have not been damaged. It is nevertheless essential to have the
water-resistance of your watch checked at least once every two years, and in any
event, prior to any period of intensive use, either by an authorised Jaeger-LeCoultre
retailer or by a Jaeger-LeCoultre Boutique or by an authorised Jaeger-LeCoultre
Service Centre (for further information please see your User Manual).
For quartz watches, this guarantee does not cover the battery life.
Except insofar as prohibited by applicable law, this Limited Warranty shall be
the exclusive manufacturer warranty. Neither this Limited Warranty nor any
other warranties, whether expressed or implied, including, but not limited to,
30

English
any implied warranty of merchantability or of tness for any particular pur-
pose, shall extend beyond the period of two years from the date of purchase.
The liability of Jaeger-LeCoultre is limited solely and exclusively to repair or
replacement under the terms and conditions stated herein. Jaeger-LeCoultre
shall not be liable, by virtue of this Limited Warranty or otherwise, for any loss
or damage arising out of the use of or inability to use this watch nor for any
incidental or consequential damages relating in any way to this watch.
Some States, Provinces and Territories do not allow limitations on how long
an implied warranty lasts or the exclusion or limitation of incidental or conse-
quential damages, so the above limitations or exclusions may not apply to you.
This Limited Warranty grants you specic legal rights, in addition to which
you may have other legal rights that vary from one Country, State, Province
or Territory to another.
31

Guarantee for Australia
This Guarantee for Australia applies to Jaeger-LeCoultre products sold or
presented for guarantee repairs in Australia only.
Terms and conditions of the Jaeger-LeCoultre Guarantee for
Australia
Mandatory Statutory Rights. Our goods come with guarantees that cannot be
excluded under the Australian Consumer Law. You are entitled to a replace-
ment or refund for a major failure and compensation for any other reasonably
foreseeable loss or damage.You are also entitled to have the goods repaired or
replaced if goods fail to be of acceptable quality and the failure does not amount
to a major failure.
Jaeger-LeCoultre Guarantee. This Jaeger-LeCoultre Guarantee gives you addi-
tional rights provided by Jaeger-LeCoultre. Every Jaeger-LeCoultre product is
made and tested to meet the Jaeger-LeCoultre quality standards. Nevertheless,
should your Jaeger-LeCoultre product prove defective, please contact the Jaeger-
LeCoultre retailer or the Jaeger-LeCoultre Boutique indicated on your guaran-
tee certicate; only authorised Jaeger-LeCoultre retailers or Jaeger-LeCoultre
Boutiques are entitled to provide guarantee service as dened in this Jaeger-
LeCoultre Guarantee. In order to benet from this guarantee you will be re-
quired to present this Jaeger-LeCoultre guarantee certicate duly completed,
dated, stamped and signed by an authorised Jaeger-LeCoultre retailer or by a
Jaeger-LeCoultre Boutique.
This Jaeger-LeCoultre Guarantee covers defects of materials or workmanship of
your Jaeger-LeCoultre product. Jaeger-LeCoultre will remedy these identied de-
fects free of charge for up to two (2) years from the date of purchase.Thereafter,
Jaeger-LeCoultre will repair any defective product or part subject to a service
charge. The Jaeger-LeCoultre Guarantee does not cover defects and damage
caused by accident, improper use (including knocks, dents, crushing, etc.), normal
wear or tear, alteration, dismantling or repair by persons other than authorised
Jaeger-LeCoultre repair specialists or the use of components other than those
recommended by Jaeger-LeCoultre, watches with the serial number removed or
the strap or glass altered, the loss of water resistance after two years after the
date of purchase if your watch is water-resistant, and any defect resulting from
the contact with water if your watch is not water-resistant.
32

English
Jaeger-LeCoultre water-resistant watches may be identied by the symbol
engraved on the back. Their water resistance is guaranteed for two
years from the date of purchase, provided that the glass, the bezel, the back, the
middle part and the crown have not been damaged. It is essential to have the
water resistance checked by an authorised Jaeger-LeCoultre retailer, a Jaeger-
LeCoultre Boutique or an authorised Jaeger-LeCoultre Service Centre at least
every two years, and in any event, prior to any period of intensive use. Please
refer to the operating instructions for further details.
For quartz watches, this guarantee does not cover the battery life.
33

Jaeger-LeCoultre Customer Service
A Jaeger-LeCoultre timepiece is a high-precision instrument that operates 24
hours a day, or 8,760 hours a year. It is therefore essential to have it serviced
once every three years in order to guarantee its good working order and its
durability. If signicant variations occur in the settings, it may be necessary to have
the movement serviced.
It is also necessary to have the water-resistance of the watch checked once
every two years, or prior to any period during which it will be subjected to
prolonged and/or regular immersion.
Maintenance and repair work must be entrusted to an authorised Jaeger-
LeCoultre retailer, or to a Jaeger-LeCoultre Boutique or authorised Jaeger-
LeCoultre Service Centre. The list of our points of sale and service centres is
available on our website: www.jaeger-lecoultre.com. You will also nd this infor-
mation at the end of this document, under the heading “Where to entrust my
timepiece for maintenance?”
Our authorised Service Centres are staffed by watchmakers trained at the
Jaeger-LeCoultre Manufacture, and have the workshops, tools and parts required
for the repair and maintenance of Jaeger-LeCoultre watches and clocks.
In certain cases, especially for operations requiring special tools and parts, the
Service Centres will send your watch to the Jaeger-LeCoultre Manufacture in
Switzerland to have the necessary work carried out.
34
