James Ultra 2000 User manual

USER GUIDE

www.jpl.uk.com
www.jpl.uk.com
INTRODUCTION
Thank you for buying this James Products Ltd ultrasonic cleaner.
Ultrasonic cleaning is a unique phenomenon. Millions of tiny bubbles are
created when ultrasonic sound is passed through liquid. It is these tiny
bubbles combined with a huge pressure that creates incredible cleaning
results.
READ THE USER GUIDE
The Ultra range of ultrasonic cleaners are very easy to use, although to
get the best from your new purchase, we recommend you read this User
Guide before getting down to any serious cleaning.
It also contains important safety information as well as practical hints.
UNPACKING
Remove your Ultra 2000 cleaner from its packaging and ensure that
along with this User Guide you have the correct mains plug fitted for you
supply and the specified accessories.
Retain the packing carton for storage of your unit, and also in the unlikely
event that the unit needs to be returned for service or repair.
IMPORTANT
This unit is fitted with a 13 Amp (BS 1363) plug with a 3 Amp fuse.
When replacing the fuse only a 3AASTA approved to BS1362 type should be
used. Always be sure to re-fit the fuse cover.
In the event that you need to change the plug then the following instructions
must be followed :
As the colours of the wires in the mains lead of this appliance may not
correspond with the coloured markings identifying the terminals in your pliug,
proceed as follows:
The wire which is coloured blue must be connected to the terminal which is
marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the terminal which is
marked with the letter L or coloured red.
No connection is to be made to the earth terminal of the plug.

1
1
INDEX
2 Safety Instructions
3 Suggested Applications
4 Features and Accessories
5 Operating Instructions
6 Different ways of cleaning
7 Removing Carbon, Tarnish & Rust
8 Using the Optional Accessories
9 Maintenance and Storage
9 Specification
10 Guarantee
Ultra 2000
Ultra 2000

SAFETY INSTRUCTIONS
Do not operate this unit if the cord or plug is damaged. Please
refer to a service centre for examination and repair.
To avoid electric shock never touch the cord or socket with wet
hands.
Keep the unit unplugged before filling.
Do not use boiling water as damage to the unit may occur.
Do not exceed the "MAX" marking on the inside of the tank.
Always unplug the unit immediately after use and before emptying.
Do not operate the unit next to heat sources such as radiators.
Operate on a dry level surface.
To avoid electric shock do not immerse the unit into water or other
liquid. The unit should not be exposed to dripping or splashing and
no objects filled with liquids should be placed on top of it.
Do not fill the tank with abrasives or corrosive chemicals.
Repeated cleaning cycles will enhance the cleaning effect.
The unit should never be left unattended when plugged in.
Do not attempt to remove any screws or panels. There are no user
serviceable parts inside.
2
2
www.jpl.uk.com
www.jpl.uk.com
READ THIS BEFORE USING YOUR PRODUCT

Porous stones such as pearls etc
should not be immersed. Use the
optional watch stand to hold the
stones out of the water.
If in doubt please refer to our website
www.jpl.uk.com for more information.
3
3
Ultra 2000
Ultra 2000
SUGGESTED APPLICATIONS
Jewellery
Necklaces, Rings, Bracelets etc.
Watches and Glasses / Sunglasses
Waterproof wristwatches, Watch chains,
Glasses, Sunglasses etc.
Toiletry Items
Electric toothbrush heads, Electric shaver heads, Razor blades,
Combs, Toothbrushes, Dentures etc.
Office Equipment
Printer heads, Fountain pen nibs, wax or rubber stamps etc.
Metal Items
Metal cutlery (knives/forks etc), Old coins, Metal badges, Valves,
Machine nozzles, Small metal parts etc.
WHAT CAN, AND WHAT CAN'T I CLEAN?
Watches should be fully
waterproof (30m or more).
For watches that are not
waterproof, the optional
Watch Stand can be used.
To avoid risk of damage,
glasses and sunglasses
should always be placed
‘face up’ in the cleaner,
ensuring no other objects
can touch or rub the lens.
Any unfirm or inlaid item may become loose. Items that are easy to be discoloured are not
recommended for ultrasonic cleaning. eg: Textiles, Leather products, woodware etc.
DO NOT put a watch or mobile phone which is NOT waterproof into the tank as damage may
occur.
DO NOT put any spectacle frame or artware which is made from shell or hawksbill into the
tank for cleaning as damage may occur.
For more applications please refer to our website
www.jpl.uk.com

4www.jpl.uk.com

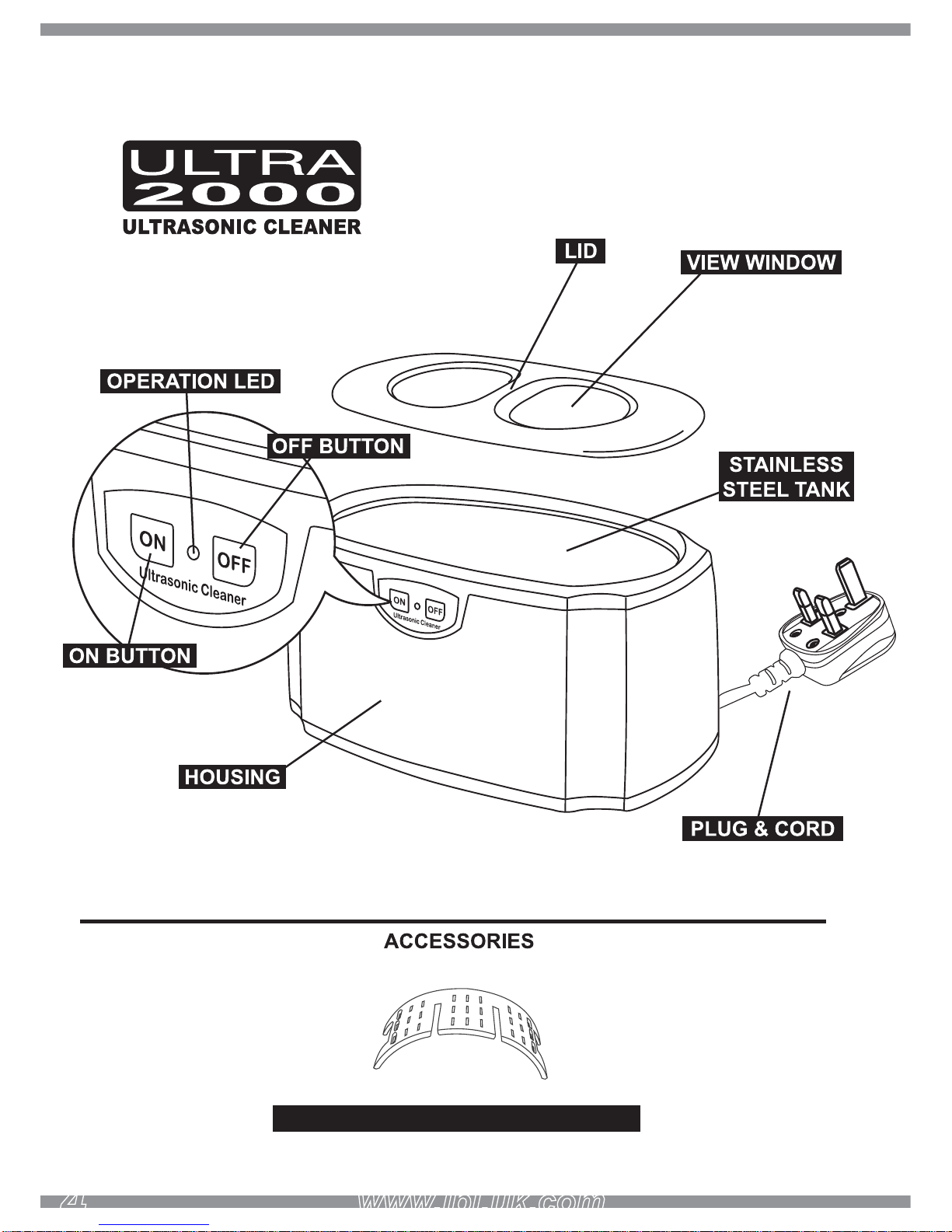

FEATURES AND ACCESSORIES
WATCH STAND / EARRING HOLDER
OPTIONAL

5
5
Ultra 2000
Ultra 2000
OPERATING INSTRUCTIONS
Open the lid, and fill the stainless steel tank with warm water.
(water should not be hotter than 40 - 50 degrees centrigrade).
Do not exceed the "MAX" marking on the inside of the tank.
Close the lid. Ensure your hands are dry, and plug the unit in.
Place the item to be cleaned into the water. Ensure any items
with a delicate surface such as glasses/sunglasses lenses are
not touching or rubbing the tank walls or base.
Ensure the item is immerged as fully as possible, ensuring the
water level does not exceed the "MAX" marking.
HOW DO I USE THE ULTRA 2000 CLEANER
NEVER OPERATE THE UNIT WITHOUT WATER IN THE CLEANING TANK
- DAMAGE MAY OCCUR
NEVER USE BOILING WATER - DAMAGE MAY OCCUR
1
2
3
Press the ON button to start cleaning. The red Operation LED
will illuminate while unit is in operation. The built in timer will
automatically turn the cleaner off after 3 minutes.
Note : During operation the unit will 'Buzz', this is normal.
If required you can stop the cleaning process by pressing the
OFF button, or when cleaning has finished you can repeat the
process by pressing the ON button again.
When cleaning is finished, unplug the unit from the mains, and
open the lid to remove the item.
Poor away the water and wipe the stainless steel tank with a
clean dry cloth.
4
5
6

6
6
www.jpl.uk.com
www.jpl.uk.com
NEVER OPERATE THE UNIT WITHOUT WATER IN THE CLEANING TANK
- DAMAGE MAY OCCUR
NEVER USE BOILING WATER - DAMAGE MAY OCCUR
DIFFERENT WAYS OF CLEANING
GENERAL CLEANING
Use only plain warm water. Ensure the "MAX" marking is not
exceeded when immersing the item.
ENHANCED CLEANING
If the item is very dirty, or has oil or grease smears (CDs etc),
then add a drop or two of standard washing up liquid into the
water to enhance the cleaning result. Other non-acidic based
cleaning agents can also be used, however it is advised to
check with James Products limited first.
EXTENSIVE CLEANING
If the item to be cleaned needs extensive cleaning or
sterilising, then use the "Enhanced Cleaning" procedure first,
then replace with clean water and add a drop or two of liquid
soap (eg: hand wash soap) into the tank and repeat the
cleaning procedure.
CLEANING LARGE ITEMS
If the item is too large to fit completely in the tank, then you
can use the ultrasonic cleaner with the item to be cleaned part
immersed, with the lid open. Ensure the "MAX" marking is not
exceeded when immersing the item.
HOW DO I USE THE ULTRA 2000 CLEANER
1
3
4
2

7
7
Ultra 2000
Ultra 2000
NEVER OPERATE THE UNIT WITHOUT WATER IN THE CLEANING TANK
- DAMAGE MAY OCCUR
NEVER USE BOILING WATER - DAMAGE MAY OCCUR
REMOVING TARNISH, CARBON & RUST
Made from a unique formula containing
natural products, mixing carefully balanced
quantities of SEAWEED, COCONUT OILS
and other FRUIT extracts to create a
powerful cleaning solution. Sea Clean is
non-toxic, non-flammable and
bio-degradable using renewable resources.
HOW CAN I CLEAN NON-PLATED (SOLID) METALS
When removing tarnish, carbon & rust from your non-plated (eg: solid silver)
metals, it is recommended to use a specialist cleaning solution when using your
ultrasonic cleaner, as ultrasonic cleaning alone may not achieve the results.
If in any doubt about your items to be cleaned, before use, contact your Jeweller or
James Products Ltd for information and advice on cleaning your items.
Sea Clean is designed for use with an ultrasonic cleaner, and will assist in the
removal of Tarnish, Carbon, Rust & Dirt from most non-plated metals, to return
items to a shiny condition.
The cleaning process should take only a matter of minutes and remove the need
for soaking.
Sea Clean is available at many stockists.
For more information on Sea Clean and find out where you can purchase, contact
James Products Ltd or visit our website www.jpl.uk.com
Available in
500ml & 1litre
bottles
sea
sea
clean
clean
CONCENTRATE
CONCENTRATE

www.jpl.uk.com
www.jpl.uk.com
8
NEVER OPERATE THE UNIT WITHOUT WATER IN THE CLEANING TANK
- DAMAGE MAY OCCUR
NEVER USE BOILING WATER - DAMAGE MAY OCCUR
USING THE OPTIONAL ACCESSORIES
WHATARE THEY FOR AND WHY DO I NEED THEM?
WATCH STAND / EARRING HOLDER (OPTIONAL)
Watches should only be used in ultrasonic cleaners that
are waterproof (30m or more). If your watch is not suitable
to be fully immersed, then the watch stand can be used to
only immerse the strap of the watch, and keep the watch
body clear of the water.
Earrings and other jewellery items which should not be
immersed for ultrasonic cleaning can be held in place on
the holder allowing only the metal parts to be immersed in
the water.
As the watch stand / earring holder absorbs about 30% of
the ultrasonic energy, it is recommended to use the
'Enhanced Cleaning' method mentioned earlier in this user
guide.
