Jandy AquaLink RS User manual

Sheet #6593, Rev. J
Operation Data
Owner's Manual
WARNING
FOR YOUR SAFETY - This product must be installed and serviced by a professional pool/
spa service technician. The procedures in this manual must be followed exactly. Failure to
follow warning notices and instructions may result in property damage, serious injury, or
death.
For use with Pool/Spa Combination,
Pool Only/Spa Only, and Dual Equipment
AquaLink®RS Systems.
OneTouchTM
Control Systems

Page 3
NOTE Some of the features described in this Manual DO NOT apply to allAquaLink® RS models.
Table of Contents
Section 1. Important Safety Instructions...........5
Section 2. Overview of the OneTouch™
Control Panel....................................7
Section 3. Using the Equipment On/Off
Menu.................................................8
Equipment On/Off............................8
Filter Pump.......................................8
Spa....................................................9
Pool Heat..........................................9
Spa Heat ...........................................10
Solar Heat.........................................10
Auxiliary Equipment........................11
Heat Pump........................................11
Chiller...............................................12
Laminar Light Pulse Control............12
Set Light Colors ...............................13
Section 4. Using the Equipment On/Off
Model Specific Menus......................14
TEMP1 (Pool or Spa Only) .............14
TEMP2 (Pool or Spa Only) .............14
Filter Pump (Dual Equipment).........14
Spa (Dual Equipment) .....................15
Two Speed Operation.......................15
Section 5. Using the OneTouch Menu...............16
Section 6. Using the Help Menu .......................17
Keys Menu ......................................17
Service Menu....................................17
Diagnostics Menu.............................17
Program Menu..................................18
Set Temperature Menu .....................19
Set Time Menu.................................20
AquaPure Menu................................20
Display Light Menu ........................20
Lockout Menu..................................21
Program Group Menu.......................21
System Setup Menu..........................22
Boost Menu......................................22
Section 7. Using the System Setup Menu.........23
OneTouch Menu...............................23
Label Auxiliary Menu ......................24
Boost Setup Menu............................24
Freeze Protection Menu ...................25
Air Temperature Menu.....................25
Degrees C/F Menu ...........................26
Daylight Savings Menu....................26
Temp Calibration Menu....................26
In Floor Cleaning Menu...................27
Solar Priority/Heat Pump Menu.......27
Pump Lockout Menu........................27
Assign JVA Menu.............................28
Set Dimmers Menu...........................28
Spa Side Switch Menu ........ ............29
SpaLink Menu..................................30
Dusk Setup Menu.............................31
All Off Time Menu...........................32
Product Info Menu ...........................32
Clear Memory Menu........................32
Set Color Lights Menu.....................33
Device Runtime Menu .....................33
Heat Pump Menu..............................34
Laminar Light Menu ........................34
Section 8. Glossaries.........................................35
Section 9. OneTouch Menu Flow Chart............37
Warranty ..........................................................40

Page 4

Page 5
Section 1. Important Safety Instructions
READ AND FOLLOW ALL INSTRUCTIONS
Lire la notice technique.
All electrical work must be performed by a licensed electrician and conform to all national, state, and local codes.
When installing and using this electrical equipment, basic safety precautions should always be followed, including the
following:
WARNING
Prolonged immersion in hot water may induce hyperthermia. Hyperthermia occurs when the internal temperature
of the body reaches a level several degrees above the normal body temperature of 98.6° F. The symptoms of
hyperthermia include dizziness, fainting, drowsiness, lethargy, and an increase in the internal temperature of the
body. The effects of hyperthermia include: 1) unawareness of impending danger; 2) failure to perceive heat; 3)
failure to recognize the need to exit spa; 4) physical inability to exit spa; 5) fetal damage in pregnant women; 6)
unconsciousness resulting in a danger of drowning.
DANGER
To reduce the risk of injury, do not remove the suction fittings of your spa or hot tub. Never operate a spa or hot
tub if the suction fittings are broken or missing. Never replace a suction fitting with one rated less than the flow rate
marked on the equipment assembly.
WARNING
To Reduce the Risk of Injury -
a) The water in a spa should never exceed 104°F (40°C). Water temperatures between 100°F (38°C) and
104°F (40°C) are considered safe for a healthy adult. Lower water temperatures are recommended for young
children and when spa use exceeds 10 minutes.
b) Since excessive water temperatures have a high potential for causing fetal damage during the early months of
pregnancy, pregnant or possibly pregnant women should limit spa water temperatures to 100°F (38°C).
c) Before entering a spa or hot tub, the user should measure the water temperature with an accurate
thermometer since the tolerance of water temperature-regulating devices varies.
d) The use of alcohol, drugs, or medication before or during spa or hot tub use may lead to unconsciousness with
the possibility of drowning.
e) Obese persons and persons with a history of heart disease, low or high blood pressure, circulatory system
problems, or diabetes should consult a physician before using a spa.
f) Persons using medication should consult a physician before using a spa or hot tub since some medication
may induce drowsines while other medication may affect heart rate, blood pressure, and circulation.
WARNING
Risk of electric shock - Install the power center at least five (5) feet (152.4cm) from the inside wall of the pool
and/or hot tub using non-metallic plumbing. Canadian installations must be at least three (3) meters from the
water.
Children should not use spas or hot tubs without adult supervision.
Do not use spas or hot tubs unless all suction guards are installed to prevent body and hair entrapment.
People using medications and/or having an adverse medical history should consult a physician before using a spa
or hot tub.
AVERTISSEMENT
Danger d'electrocution - Les installations canadiennes doivent se trouver à au moins trois (3) mètres de l’eau.
Ne pas laisser les enfants utiliser une cuve de relaxation sans surveillance.
Pour éviter que les cheveux ou une partie du corps puissent être aspirés, ne pas utiliser une cuve de relaxation si
les grilles de prise d'aspiration ne sont pas toutes en place.
Les personnes qui prennent des médicaments ou ont des problèmes de santé devraient consulter un médecin
avant d’utiliser une cuve de relaxation.

Page 6
CAUTION
A ground-fault circuit-interrupter must be provided if this device is used to control underwater lighting fixtures. The
conductors on the load side of the ground-fault circuit-interrupter shall not occupy conduit, boxes, or enclosures
containing other conductors unless the additional conductors are also protected by a ground-fault circuit-
interrupter. Refer to local codes for complete details.
CAUTION
A terminal bar marked "GROUND" is provided within the power center. To reduce the risk of electrical shock,
connect this terminal bar to the grounding terminal of your electric service or supply panel with a continuous
copper conductor having green insulation and one that is equivalent in size to the circuit conductors supplying this
equipment, but no smaller than no. 12 AWG (3.3mm). In addition, a second wire connector should be bonded with
a no. 8 AWG (4.115mm) copper wire to any metal ladders, water pipes, or other metal within five (5) feet (1.52m)
of the tub.
SAVE THESE INSTRUCTIONS
WARNING
People with infectious diseases should not use a spa or hot tub.
To avoid injury, exercise care when entering or exiting the spa or hot tub.
Do not use drugs or alcohol before or during the use of a spa or hot tub to avoid unconsciousness and possible
drowning.
Pregnant or possibly pregnant women should consult a physician before using a spa or hot tub.
Water temperature in excess of 100°F/38°C may be injurious to your health.
Before entering a spa or hot tub measure the water temperature with an accurate thermometer.
Do not use a spa or hot tub immediately following strenuous exercise.
Prolonged immersion in a spa or hot tub may be injurious to your health.
Do not permit any electric appliance (such as a light, telephone, radio, or television) within 5 feet (1.5 m) of a spa
or hot tub.
The use of alcohol, drugs or medication can greatly increase the risk of fatal hyperthermia in hot tubs and spas.
Water temperature in excess of 100°F/38°C may be hazardous to your health.
AVERTISSEMENT
Les personnes atteintes de maladies infectieuses ne devraient pas utiliser une cuve de relaxation.
Pour éviter des blessures, user de prudence en entrant dans une cuve de relaxation et en sortant.
Pour éviter l’évanouissement et la noyade éventuelle, ne prendre ni drougue ni alcool avant d’utiliser une cuve de
relaxation ni quand on s’y trouve.
Les femmes enceintes, que leur grossesse soit confirmée ou non, devraient consulter un médecin avant d’utiliser
une cuve de relaxation.
Il peut être dangereux pour la santé de se plonger dans de l’eau à plus de 38°C/100°F.
Avant d’utiliser une cuve de relaxation mesurer la témperature de l’eau à l’aide d’un thermomètre précis.
Ne pas utiliser une cuve de relaxation immédiatement après un exercice fatigant.
L’utilisation prolongée d’une cuve de relaxation peut être dangereuse pur la santé.
Ne pas placer d'appareil électrique (luminaire, téléphone, radio, téléviseur, etc) à moins de 1.5m de cette cuve de
relaxation.
La consommation d’alcool ou de drogue augmente considérablement les risques d’hyperthermie mortelle dans
une cuve de relaxation.
Il peut etrê dangereux pour la santé de se plonger dans de l’eau à plus de 38°C/100°F.
Attention installer: Install to provide drainage of compartment for electrical components.
WARNING
To avoid injury ensure that you use this control system to control only packaged pool/spa heaters which have built-
in operating and high limit controls to limit water temperature for pool/spa applications. This device should not be
relied upon as a safety limit control.

Page 7
Section 2. Overview of the OneTouch™ Control Panel
This document gives instructions for operating the Jandy AquaLink®RS OneTouch Indoor Control Panel. The
instructions must be followed exactly. Read through the instructions completely before operating the equipment.
2.1 Basic Functions
The AquaLink®RS OneTouch™ can turn your pool/spa equipment on and off in any of the following three ways:
1. Activate the equipment manually through the EQUIPMENT ON/OFF menu.
2. Program the equipment to turn on and off at specific times. See page 18 for a detailed explanation of how to
program equipment for automatic operation.
3. Use the OneTouch buttons to create scene settings with just "one touch" of a button. For example, you can
program the spa heater to heat to 101 degrees, spa light on, jets on, water features on, and then name the result
Romantic Scene.
NOTE The AquaLink®RS OneTouch™ has two default screens; the date/time/temp screen or the OneTouch quick operation
screen. The OneTouch will return to the last screen used after a 30 second delay.
2.2 Using the Buttons
Use the buttons as explained in the diagram below. For an on-screen description of the buttons, select MENU/HELP,
HELP, KEYS. When moving through the screens, you will have about 15 seconds before the controller will return to
the previous screen. If you keep the Up or Down arrow button depressed, it will automatically step through the menu
items in that direction.
2.3 Battery Back-Up
In the event of a power failure, Date and Time will be backed-up by the 9-volt battery located in the Power Center
enclosure. All other programs and menu setups do not require battery to store information. To determine if battery is
low, highlight MENU/HELP press SELECT, highlight HELP press SELECT, highlight DIAGNOSTICS and press
SELECT.
The battery is located behind the small door on the right side of the Power Center panel and should be checked, if
necessary replaced, once a year.
Default screen 1 Default screen 2
SPA MODE ON
CLEAN MODE OFF
ONETOUCH 3 OFF
SYSTEM
JANDY AquaLink RS
FILTER PUMP OFF
AIR 79°
06/02/03MON
6:00 PM
EQUIPMENT ON/OFF
MENU / HELP
ONETOUCH ON/OFF
SPA MODE ON
CLEAN MODE OFF
ONETOUCH3 OFF
SYSTEM
Up/Down Arrow
(Scroll) Keys
Heater LED
Spa Mode
Clean Mode
OneTouch3
Selects
Highlighted Item
ALL OFF
FILTER PUMP ON
SPA
POOL HEAT
SPA HEAT
SOLAR HEAT
AUX 1
AUX 2
AUX 3
AUX 4
AUX 5
AUX 6
OFF
ON
OFF
OFF
ON
OFF
ON
OFF
OFF
OFF
Page-down
Back
Page-up
2.4 Power Interruption
In the event there is a power interruption, and the AquaLink RS system is in Service or Time Out mode, the system
will default to Auto. In previous firmware versions, the system would default to last mode of operation.

Page 8
Section 3. Using the Equipment On/Off Menu
Equipment On/Off
Use this menu to manually turn a piece of equipment on or off. The ALL OFF mode will turn off equipment that
has been turned on by any means (manual or pre-programmed). This includes any of the heater enables that were on
(unless in use by the Maintain function).
To use Equipment On/Off
1. Highlight EQUIPMENT ON/OFF and press SELECT. To highlight an item, use the UP/DOWN arrow keys.
Use the SELECT button to turn the equipment on or off. Return to the main menu by using the BACK button,
or use the UP/DOWN arrow keys to highlight another device.
2. Highlight ALL OFF and press SELECT. After using ALL OFF, return to the main menu by using the BACK
button.
NOTE When a piece of equipment is on, the LCD Screen will switch between the main menu and an equipment status screen
that tells you what equipment is on.

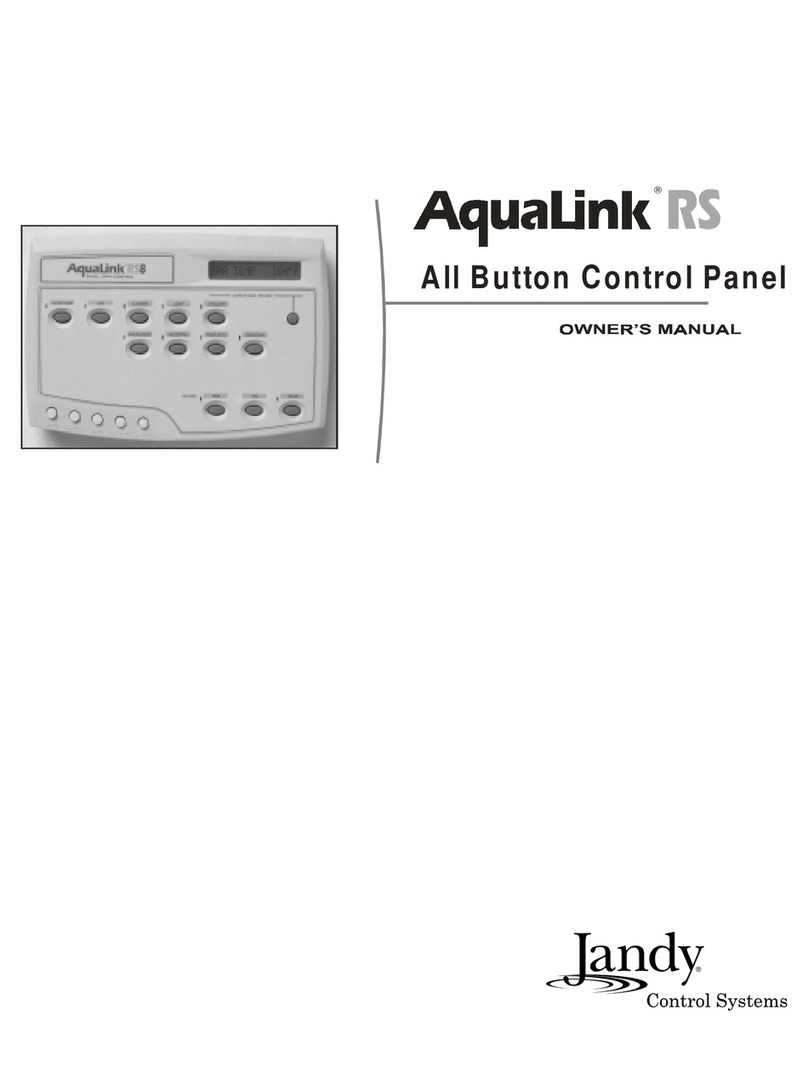

JANDY AquaLink RS
01/31/03 MON
6:00 PM
EQUIPMENT ON/OFF
ONETOUCH ON/OFF
MENU / HELP
79°FAIR
ALL OFF
FILTER PUMP
SPA
POOL HEAT
SPA HEAT
SOLAR HEAT
AUX 1
AUX 2
AUX 3
AUX 4
AUX 5
AUX 6
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
FILTER PUMP OFF
FILTER PUMP OFF
SPA
POOL HEAT
SPA HEAT
SOLAR HEAT
AUX 1
AUX 2
AUX 3
AUX 4
AUX 5
AUX 6
AUX 7
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
FILTER PUMP ON
SPA
POOL HEAT
SPA HEAT
SOLAR HEAT
AUX 1
AUX 2
AUX 3
AUX 4
AUX 5
AUX 6
AUX 7
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
Filter Pump
The FILTER PUMP selection turns the main filtration pump on or off for circulation to the pool. The filter pump also
activates if the spa is turned on, if the pool cleaner is turned on, or if the spa spill-over effect is activated. The main
filtration pump circulates the pool or spa water through the filter and heater. The pump must be on if you want to
display the pool temperature, or if you want to heat the pool.
For 2-speed operation, see page 15.
To use Filter Pump
Highlight FILTER PUMP and press SELECT. Use the SELECT button to turn the equipment on or off.

Page 9
FILTER PUMP * * *
POOL HEAT
SPA HEAT
SOLAR HEAT
AUX 1
AUX 2
AUX 3
AUX 4
AUX 5
AUX 6
AUX 7
SPA ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
FILTER PUMP OFF
POOL HEAT
SPA HEAT
SOLAR HEAT
AUX 1
AUX 2
AUX 3
AUX 4
AUX 5
AUX 6
AUX 7
SPA OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
SPA WILL
TURN ON
AFTER DELAY
Spa
The SPA mode switches water circulation from the pool to spa (pool/spa combination models only). Turning on the
spa also activates the filter pump (after a delay for valve rotation) and deactivates the pool cleaner if it is on. The SPA
mode must be on to display the spa temperature and/or to heat the spa. Activation takes place after a thirty second
delay (while valves are turning).
To use Spa
Highlight SPA and press SELECT. Use the SELECT button to turn the spa on or off.
Pool Heat
The POOL HEAT selection enables the heater for the pool. When the LED is green, the heater is enabled. When the
LED is red, the heater is on and firing. It uses the setting from SET TEMP menu, or you can increase/decrease when
enabling.
To use Pool Heat
Highlight FILTER PUMP and press SELECT. Highlight POOL HEAT and press SELECT. Use the UP/DOWN arrow
keys to set the desired temperature and press SELECT.
FILTER PUMP OFF
SPA
POOL HEAT
SPA HEAT
SOLAR HEAT
AUX 1
AUX 2
AUX 3
AUX 4
AUX 5
AUX 6
AUX 7
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
FILTER PUMP OFF
SPA
SPA HEAT
SOLAR HEAT
AUX 1
AUX 2
AUX 3
AUX 4
AUX 5
AUX 6
AUX 7
POOL HEAT
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
POOL HEAT
ENABLED
SET TO 80°F
Use ARROW KEYS
to set value.
Press SELECT
to continue.
FILTER PUMP ON
SPA
SPA HEAT
SOLAR HEAT
AUX 1
AUX 2
AUX 3
AUX 4
AUX 5
AUX 6
AUX 7
POOL HEAT
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
JANDY AquaLink RS
65°F
79°F
01/31/00 MON
6:00 PM
EQUIPMENT ON/OFF
ONETOUCH ON/OFF
MENU / HELP
POOL
AIR
FILTER PUMP ON
SPA
POOL HEAT
SPA HEAT
SOLAR HEAT
AUX 1
AUX 2
AUX 3
AUX 4
AUX 5
AUX 6
AUX 7
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF

Page 10
Solar Heat
The SOLAR HEAT selection controls solar heating. A solar heating system and optional solar sensor are required for
SOLAR HEAT selection to operate.
To use Solar Heat
Highlight SOLAR HEAT and press SELECT. Use the SELECT button to turn SOLAR HEAT on or off.
HEAT PUMP: If a Heat Pump is properly connected to this system, HEAT PUMP will appear on the screen in place of
SOLAR HEAT.
If a solar sensor is not installed, EXTRAAUX replaces SOLAR HEAT and may be used to control an auxiliary (see
"Auxiliary Equipment" to turn on or off EXTRAAUX).
For solar heating to take place, the SOLAR HEAT (in EQUIPMENT ON/OFF) must be enabled, also the filter pump
must be on. Solar temperature must be at least 5° F above the water temperature and the water must be cooler than the
thermostat setting.
If no Solar Sensor
is installed, EXTRA
AUX will appear as a
menu item.
FILTER PUMP ON
SPA
POOL HEAT
SPA HEAT
SOLAR HEAT
AUX 1
AUX 2
AUX 3
AUX 4
AUX 5
AUX 6
AUX 7
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
FILTER PUMP ON
SPA
POOL HEAT
SPA HEAT
AUX 1
AUX 2
AUX 3
AUX 4
AUX 5
AUX 6
AUX 7
SOLAR HEAT
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ENA
FILTER PUMP ON
SPA
POOL HEAT
SPA HEAT
AUX 1
AUX 2
AUX 3
AUX 4
AUX 5
AUX 6
AUX 7
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
AUXEXTRA
FILTER PUMP ON
SPA
POOL HEAT
SPA HEAT
SOLAR HEAT
AUX 1
AUX 2
AUX 3
AUX 4
AUX 5
AUX 6
AUX 7
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
SPA HEAT
ENABLED
SET TO 102°F
Use ARROW KEYS
to set value.
Press SELECT
to continue.
FILTER PUMP ON
SPA
POOL HEAT
SOLAR HEAT
AUX 1
AUX 2
AUX 3
AUX 4
AUX 5
AUX 6
AUX 7
SPA HEAT
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
FILTER PUMP * * *
POOL HEAT
SPA HEAT
SOLAR HEAT
AUX 1
AUX 2
AUX 3
AUX 4
AUX 5
AUX 6
AUX 7
SPA ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
FILTER PUMP OFF
POOL HEAT
SPA HEAT
SOLAR HEAT
AUX 1
AUX 2
AUX 3
AUX 4
AUX 5
AUX 6
AUX 7
SPA OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
SPA WILL
TURN ON
AFTER DELAY
Spa Heat
The SPA HEAT enables the heater for the spa. When the LED is green, the heater is enabled. When the LED is red,
the heater is on and firing. It uses the settings from SET TEMP menu, or you can increase/decrease when enabling.
To use Spa Heat
Highlight SPA and press SELECT. The spa will come on after a short delay. Highlight SPA HEAT and press SELECT.
Use the UP/DOWN arrow keys to set the desired temperature and press SELECT.

Page 11
Auxiliary Equipment
The AUX modes control each of the auxiliary devices plus an extraAUX. To assign a different name to an auxiliary
device, use the SYSTEM SETUP and LABELAUX menus.
To turn an Auxiliary on or off
Highlight an AUX and press SELECT. Use the SELECT button to turn the equipment on or off.
Heat Pump
NOTE This equipment may not be part of your system. Please check with your installer.
The HEAT PUMP selection controls the heat pump operation. In order to use the heat pump, the filter pump must be
turned on and the heat pump must be in HEAT MODE (see page 23, Using the System Setup Menu), and the switch
on the heat pump on the equipment pad must also be set to HEAT MODE.
NOTE HEAT PUMP takes the place of EXTRAAUX or SOLAR HEAT. It is not possible to have any two of these on the
EQUIPMENT ON/OFF menu at the same time.
To use Heat Pump
Highlight HEAT PUMP and press SELECT. Press the SELECT button to enable/disable the HEAT PUMP. The HEAT
PUMP uses the heater temperature set point.
HEAT PUMP
FILTER PUMP ON
SPA
POOL HEAT
SPA HEAT
HEAT
AUX 1
AUX 2
AUX 3
AUX 4
AUX 5
AUX 6
AUX 7
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
FILTER PUMP ON
SPA
POOL HEAT
SPA HEAT
AUX 1
AUX 2
AUX 3
AUX 4
AUX 5
AUX 6
AUX 7
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ENA
PUMP
FILTER PUMP ON
SPA
POOL HEAT
SPA HEAT
SOLAR HEAT
AUX 2
AUX 3
AUX 4
AUX 5
AUX 6
AUX 7
AUX 1
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
FILTER PUMP ON
SPA
POOL HEAT
SPA HEAT
SOLAR HEAT
AUX 2
AUX 3
AUX 4
AUX 5
AUX 6
AUX 7
AUX 1
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON

Page 12
Laminar Light Pulse Control
NOTE This equipment may not be part of your system. Please check with your installer.
The LAMINAR PULSE CONTROL menu is used to set the pulse rate of the Laminar Jets.
NOTE Prior to operating this feature, the Laminar Pulse Control must be labeled to an auxiliary (for example, AUX 2). See "Using
System Setup - Label Aux Menu" to label the laminar pulse control to an auxiliary control.
To use Laminar Light Pulse Control
Highlight AUX 2 (or auxiliary assigned to laminar light) and press SELECT. The most recently selected pulse control
function will be displayed. Use the UP/DOWN arrow keys to highlight the desired selection and press SELECT.
NOTE If the BACK key is pressed when on this screen, then the most recently selected pulse control function will be selected
again. If the SELECT key or the BACK key is not pressed, and if it has been 15 seconds since the UP/DOWN keys have
been pressed, then the most recently selected LPC4 function will be selected again.
NOTE From the EQUIPMENT ON/OFF menu, you can turn the item ON or OFF or change the current setting. If you turn the
Laminar Pulser (LAMINAR PLSR) ON, you have the option to change the current setting or it will come on using that
setting.
Chiller
NOTE This equipment may not be part of your system. Please check with your installer.
The CHILLER selection controls the chilling operation of the heat pump. In order to use the chiller, the filter pump
must be turned on and the heat pump must be in CHILL MODE (see page 23, Using the System Setup Menu), and the
switch on the heat pump on the equipment pad must also be set to CHILL MODE.
NOTE CHILLER takes the place of EXTRAAUX or SOLAR HEAT. It is not possible to have any two of these on the
EQUIPMENT ON/OFF menu at the same time.
To use Chiller
Highlight CHILLER and press SELECT. Press the SELECT button to enable/disable the CHILLER. The CHILLER
uses the desired chilling temperature set point. Press SELECT to accept the value.
CHILLER
FILTER PUMP ON
SPA
POOL HEAT
SPA HEAT
CHILLER
AUX 1
AUX 2
AUX 3
AUX 4
AUX 5
AUX 6
AUX 7
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
FILTER PUMP ON
SPA
POOL HEAT
SPA HEAT
AUX 1
AUX 2
AUX 3
AUX 4
AUX 5
AUX 6
AUX 7
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ENA
NOTE The system will force the Chiller set point to always be at least 5 degrees Fahrenheit higher than the Heater set point.
Important Information on Chiller
You must manually change the setting at your heat pump from Heat to Chiller.
Important Information
Do not activate this feature unless you are certain that a Laminar Pulse Control (LPC4) is installed on your system

Page 13
Set Light Colors
NOTE This equipment may not be part of your system. Please check with your installer.
The SET COLOR menu is used to set the color of a color light and then turn the light on.
NOTE Prior to setting the color of the light, the light must be assigned and controlled by an auxiliary (for example, AUX 1). See
"Using System Setup" to assign the light to an auxiliary control. Please note that the auxiliary control can be custom
labeled.
To use Set Colors
Highlight the auxiliary assigned to the color light and press SELECT. A list of available colors will be displayed. The
most recently selected color will be highlighted. Use the UP/DOWN arrow keys to highlight the desired color and
press SELECT.
FILTER PUMP ON
SPA
POOL HEAT
SPA HEAT
SOLAR HEAT
AUX 2
AUX 3
AUX 4
AUX 5
AUX 6
AUX 7
POOL LIGHT
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
SET COLOR
ALPINE WHITE
SKY BLUE
COBALT BLUE
CARIBBEAN BLU
SPRING GREEN
EMERALD GREEN
EMERALD RED
MAGENTA
GARNET RED
VIOLET
COLOR SPLASH
FILTER PUMP ON
SPA
POOL HEAT
SPA HEAT
SOLAR HEAT
LAMINAR PLSR
AUX 3
AUX 4
AUX 5
AUX 6
AUX 7
AUX 1
OFF
OFF
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
LAMINAR PULSE
WILL TURN OFF
IN 5 SECONDS. IF
YOU WANT TO
CHANGE
SETTING PRESS
SELECT NOW.
OFF
TIMED SLOW
TIMED MED
TIMED FAST
RANDOM GROUP
RANDOM SINGLE
PATTERN SLOW
PATTERN FAST
LAMINAR LIGHT
PULSE CONTROL PLEASE
WAIT...
CYCLING TO
CHOSEN
SETTING
Important Information
Do not activate this feature unless you are certain that color lights are installed on your system
NOTE If you select POOL LIGHT or SPALIGHT from the EQUIPMENT ON/OFF menu and the light is already ON, pressing
SELECT will display the message "LIGHT WILLTURN OFF IN 5 SECONDS. IF YOU WANT TO CHANGE THE COLOR
PRESS SELECT NOW”. If you press SELECT, the SET COLOR menu will open and allow you to select a different color. If
a different color is chosen, the light will reset toAlpine White, rotate to the selected color, and then automatically lock on to
that color. During the color rotation, the message “PLEASE WAIT…CYCLING TO CHOSEN COLOR” will be displayed.
When a pool or spa light is turned ON manually, by the OneTouch control panel, or by a program, the last used color will
automatically be chosen unless you press SELECT to change the color.
If you press the BACK key when in the EQUIPMENT ON/OFF menu, the light will turn on the last selected color. If
the SELECT key or the BACK key is not pressed, and if it has been 15 seconds since the UP/DOWN keys have been
pressed, then the most recently selected color will be selected again.
FILTER PUMP ON
SPA
POOL HEAT
SPA HEAT
SOLAR HEAT
AUX 2
AUX 3
AUX 4
AUX 5
AUX 6
AUX 7
POOL LIGHT
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
SET COLOR
ALPINE WHITE
SKY BLUE
COBALT BLUE
CARIBBEAN BLU
SPRING GREEN
EMERALD GREEN
EMERALD RED
MAGENTA
GARNET RED
VIOLET
COLOR SPLASH
PLEASE
WAIT...
CYCLING TO
CHOSEN
COLOR
POOL LIGHT
WILL TURN OFF
IN 5 SECONDS. IF
YOU WANT TO
CHANGE THE
COLOR PRESS
SELECT NOW.

Page 14
Section 4. Using the Equipment On/Off Model Specific Menus
TEMP1 (Pool or Spa Only)
TEMP1 is the priority temperature. It must be set higher than TEMP2, and it overrides TEMP2 whenever it is
enabled. Set temperature for TEMP1 before setting temperature for TEMP2.
To set TEMP1 (Pool or Spa Only)
Highlight TEMP1 and press SELECT twice. Use the UP/DOWN arrow keys to set the desired water temperature and
press SELECT to make that degree setting take effect. Return to the main menu by using the BACK button.
TEMP2 (Pool or Spa Only)
TEMP2 is the maintenance (low) temperature. It must be set lower than TEMP1. If TEMP2 is on and TEMP1 is
activated, TEMP2 will turn off and ENABLED will flash. When TEMP1 is turned off again, TEMP2 will reactivate.
To set TEMP2 (Pool or Spa Only)
Highlight TEMP2 and press SELECT twice. Use the UP/DOWN arrow keys to set the desired water temperature and
press SELECT to make that degree setting take effect. Return to the main menu by using the BACK button.
Filter Pump (Dual Equipment)
The FILTER PUMP selection turns the main filtration pump on or off for circulation to the pool. The filter pump also
activates if the spa is turned on, if the pool cleaner is turned on, or if the spa spill-over effect is activated. The main
filtration pump circulates the pool or spa water through the filter and heater. It must be on if you want to display the
pool temperature, or if you want to heat the pool.
To use Filter Pump (Dual Equipment)
Highlight FILTER PUMP and press SELECT. Use the SELECT button to turn the equipment on or off.
FILTER PUMP ON
TEMP 2
SOLAR HEAT
AUX 1
AUX 2
AUX 3
AUX 4
AUX 5
AUX 6
AUX 7
ALL OFF
TEMP 1 OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
TEMP 1
must be set
higher than
TEMP 2
press ANY key
to continue.
TEMP 1
ENABLED
SET TO 80°F
Use ARROW KEYS
to set value.
Press SELECT
to continue.
FILTER PUMP ON
TEMP 2
SOLAR HEAT
AUX 1
AUX 2
AUX 3
AUX 4
AUX 5
AUX 6
AUX 7
ALL OFF
TEMP 1 ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
FILTER PUMP ON
TEMP 2
SOLAR HEAT
AUX 1
AUX 2
AUX 3
AUX 4
AUX 5
AUX 6
AUX 7
ALL OFF
TEMP 1 OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
TEMP 1
must be set
higher than
TEMP 2
press ANY key
to continue.
TEMP 2
ENABLED
SET TO 80°F
Use ARROW KEYS
to set value.
Press SELECT
to continue.
FILTER PUMP ON
TEMP 2
SOLAR HEAT
AUX 1
AUX 2
AUX 3
AUX 4
AUX 5
AUX 6
AUX 7
ALL OFF
TEMP 1 OFF
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
FILTER PUMP OFF
SPA PUMP
POOL HEAT
SPA HEAT
AUX 1
AUX 2
AUX 3
AUX 4
AUX 5
AUX 6
AUXB1
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
MORE
FILTER PUMP ON
SPA PUMP
POOL HEAT
SPA HEAT
AUX 1
AUX 2
AUX 3
AUX 4
AUX 5
AUX 6
AUXB1
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
MORE

Page 15
Spa (Dual Equipment)
Turning on the spa activates the filter pump. The SPA mode must be on to display the spa temperature and/or to heat
the spa.
To use Spa (Dual Equipment)
Highlight SPA PUMP and press SELECT. Use the SELECT button to turn the spa on or off.
Two Speed Operation (*Not Available for Export Models*)
NOTE This equipment may not be part of your system. Please check with your installer.
Optional TWO SPEED RELAY required.
Two Speed Manual Operation
• For Pool and Spa Combination Units
If your control is a POOL and SPA combination with a 2-speed filtration pump, the control will operate
as follows: HIGH SPEED (Filter Pump) must be on before LOW SPEED. Filter Pump button, as well
as the Spa button, turns it to HIGH SPEED. LOW SPEED (AUX 2) button toggles back and forth from
LOW to HIGH.
• For Pool or Spa Only Units
To use HIGH/LOW Speeds, Filter Pump turns on HIGH SPEED, AUX 2 turns on LOW SPEED.
Whatever mode last used is the off button. To toggle, press whichever speed is not on.
• For Dual Equipment Units
AquaLink RS 2/6 operates the same as the Pool/Spa Only units; i.e., Filter Pump turns on HIGH
SPEED and AUX 2 turns on LOW SPEED. The mode last used is the off button. To toggle, press
whichever speed is not on. 2-speed works only on spa filter pump.
• Two Speed Programming forAll Units
When programming HIGH and LOW Speeds to operate together, think of HIGH SPEED (Filter Pump)
as total duration of filtration time, then set Low Speed (AUX 2) to operate within that duration. For
example, if you want High Speed on for 2 hours and Low Speed for 10 hours, program the Filter Pump
(High Speed) from 8 AM to 8 PM and Low Speed from 10 AM to 8 PM.
NOTE It is not necessary to program both HIGH and LOW Speeds, even with a Combo Control System. If only LOW SPEED is
programmed, HIGH SPEED will turn on at the LOW SPEED on time to prime the pump. After 3 minutes the system will
switch to LOW SPEED for the remainder of its programmed time.
OFFFILTER PUMP OFF
SPA PUMP
POOL HEAT
SPA HEAT
AUX 1
AUX 2
AUX 3
AUX 4
AUX 5
AUX 6
AUXB1
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
MORE
FILTER PUMP
SPA PUMP
POOL HEAT
SPA HEAT
AUX 1
AUX 2
AUX 3
AUX 4
AUX 5
AUX 6
AUXB1
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
MORE

Page 16
Section 5. Using the OneTouch Menu
OneTouch
Each individual OneTouch mood/scene setting will allow you to run multiple devices and heat to preset water
temperatures with the touch of one button (see OneTouch under System Setup menu).
To use OneTouch
Use this menu to turn on or off one of three mood/scene settings. Highlight ONETOUCH ON/OFF and press
SELECT. To activate a mood/scene setting, use the button directly opposite to select the proper mode.
TO
JANDY AquaLinkRS
06/02/04
6:00 PM
FILTER PUMP OFF
AIR 79° F
EQUIPMEN N/OFF
ONETOUCH ON/OFF
MENU / HELP SYSTEM
CLEAN MODE OFF
ONETOUCH 3 OFF
SPA MODE ON
SPA MODE
TURNED ON
SPA
SPAHEAT

Page 17
Section 6. Using the Help Menu
Keys Menu
In the HELP menu you will find the KEYS menu. The KEYS menu identifies the buttons on the control panel.
To use the Keys menu
Highlight MENU/HELP and press SELECT, highlight HELP and press SELECT. Highlight KEYS by using the
UP/DOWN arrow keys and pressing SELECT. Return to the main menu by highlighting CONTINUE and pressing
SELECT or use the BACK button.
Service Menu
In the HELP menu you will find the SERVICE menu. The SERVICE menu gives you the phone number (if entered)
for your local service company. See PRODUCT INFO menu, under SYSTEM SETUP, to enter your local service
company information.
To use the Service menu
Highlight MENU/HELP and press SELECT, highlight HELP and press SELECT. Highlight SERVICE by using the
UP/DOWN arrow keys and press SELECT.
Diagnostics Menu
In the HELP menu you will find the DIAGNOSTICS menu. The DIAGNOSTICS menu tells you the model, type,
firmware revision level, battery status, and time calibration. Also, the connection of temperature sensors is checked.
To use the Diagnostics menu
Highlight MENU/HELP and press SELECT, highlight HELP and press SELECT. Highlight DIAGNOSTICS by
using the UP/DOWN arrow keys and press SELECT. Select NEXT and a check of the remote(s) will be run. Select
CONTINUE and the system will check for errors.
KEYS
SERVICE
DIAGNOSTICS
GO BACK
HELP
Choose a topic
with arrow keys
and press select
MENU
HELP
PROGRAM
SET TEMP
SET TIME
DISPLAY LIGHT
LOCKOUTS
PROGRAM GROUP
SYSTEM SETUP
KEY HELP
PAGE UP
BACK
PAGE DOW N
UP
DOWN
CONTINUE
SERVICE HELP
CONTINUE
For Service call
Local Service Co
(XXX) XXX-XXXX
KEYS
SERVICE
DIAGNOSTICS
GO BACK
HELP
Choose a topic
with arrow keys
and press select
MENU
HELP
PROGRAM
SET TEMP
SET TIME
DISPLAY LIGHT
LOCKOUTS
PROGRAM GROUP
SYSTEM SETUP
ERRORS
CONTINUE
NO ERRORS
KEYS
SERVICE
DIAGNOSTICS
GO BACK
HELP
Choose a topic
with arrow keys
and press select
MENU
HELP
PROGRAM
SET TEMP
SET TIME
DISPLAY LIGHT
LOCKOUTS
PROGRAM GROUP
SYSTEM SETUP
MODEL
TYPE
FIRMWARE
BATTERY
TIME CAL
NEXT
6529
RS-8 Combo
I
LOW
02
WATER
AIR
SOLAR
OK
OK
OK
SENSORS
REMOTES
CONTINUE
ONETOUCH
LAARS LX HTR
SPA LINK
SPA SW BOARD
CONTROL PANEL
SERIAL ADAPTR
1
1
1
1
1
1

Page 18
Program Menu
The Program menu allows on and off times for any equipment controlled by theAquaLink RS. You can program
equipment to turn on or off all days, weekends, weekdays, or any specific day of the week. Each piece of equipment
can be programmed for multiple on/off times each day.
To add programs use the PROGRAM menu. HighlightADD PROGRAM, and press SELECT. Use UP/DOWN arrows
keys to set times, press SELECT to continue.
To delete programs, use the PROGRAM menu. Highlight DELETE PROGRAM, and press SELECT. Program to be
deleted must be displayed on screen. To scroll through multiple programs, use the UP/DOWN arrows keys to select
the program to be deleted.
To change programs, also use the PROGRAM menu. Highlight CHANGE PROGRAM, and press SELECT. Program
to be changed must be displayed on screen. To scroll through multiple programs, use the UP/DOWN arrows keys to
select the program to be changed.
To set automatic on and off times
Highlight MENU/HELP and press SELECT, highlight PROGRAM and press SELECT. While in the PROGRAM
menu, highlight the piece of equipment and press SELECT, highlight ADD PROGRAM and press SELECT, enter
the ON/OFF times and the day(s) by using the UP/DOWN arrow buttons to set values and the SELECT button to
continue. When the days have been selected, the screen will change to show the piece of equipment selected, number
of programs, on/off times, day(s) selected, a prompt to PAGE UP and PAGE DOWN to scroll between programs (if
more than one), and the chance to add, delete, or change any of the settings to a program. Use the BACK button to go
to the previous screen.
MENU
HELP
PROGRAM
SET TEMP
SET TIME
DISPLAY LIGHT
LOCKOUTS
PROGRAM GROUP
SYSTEM SETUP
PROGRAM
FILTER PUMP
SPA
POOL HEAT
SPA HEAT
SOLAR HEAT
AUX 1
AUX 2
AUX 3
MORE
PROGRAM
ADD PROGRAM
NO PROGRAMS
ENTERED
ON
OFF
ALL DAYS
FILTER PUMP
NEW PROGRAM
1:00 PM
1:00 PM
Use ARROW KEYS
to set value.
Press SELECT
to continue
PGM 1 of 3
FILTER PUMP
PgUp MORE PgDn
ON
OFF
ALL DAYS
7:00 AM
1:00 PM
ADD
DELETE
CHANGE
PROGRAM
PROGRAM
PROGRAM
ON
OFF
ALL DAYS
FILTER PUMP
CHANGE PROGRAM
1:00 PM
1:00 PM
Use ARROW KEYS
to set value.
Press SELECT
to continue
PGM 1 of 3
FILTER PUMP
PgUp MORE PgDn
ON
OFF
ALL DAYS
7:00 AM
1:00 PM
ADD
DELETE
CHANGE
PROGRAM
PROGRAM
PROGRAM
Page
Up
Page
Down
OR
OR

Page 19
Set Temperature Menu
The SET TEMP menu allows you to preset the pool and spa thermostats. The default pool temperature is 80°F. The
default spa temperature is 102°F. (The default TEMP1 temperature is 80º F. The default TEMP2 temperature is 60º F.)
SET TEMP will allow you to ENABLE the Maintain Temperature feature and adjust the hours to limit the time of day
the Maintain Temperature feature will be active.
To set Pool/Spa Temperatures
Highlight MENU/HELP and press SELECT, highlight SET TEMP and press SELECT. Inside the SET TEMP menu,
use the UP/DOWN arrow keys to highlight either POOL (TEMP1) or SPA (TEMP2) and press SELECT. Use the UP/
DOWN arrow keys to increase or decrease the temperature and press SELECT to apply.
MAINTAIN TEMP SETTING: highlight MAINTAIN and press SELECT to turn on (or off) this function. The
MAINTAIN feature will run the pump and heater as required to keep the water at the desired temperature. When this
feature is on, the system will periodically activate the pump, sample the water, and fire the heater to maintain the
preset temperature as required. Heater must be enabled at all times for this feature to maintain temperature.
HOURS: Highlight HOURS and press SELECT. Use the UP/DOWN arrow keys to change the HOURS the system
will maintain the preset temperature.
NOTE Only Dual Equipment models will maintain more than one body of water.
MENU
HELP
PROGRAM
SET TEMP
SET TIME
DISPLAY LIGHT
LOCKOUTS
PROGRAM GROUP
SYSTEM SETUP
SET TEMP
POOL HEAT
SPA HEAT
Highlight an
item and press
SELECT
80°F
104°F
MAINTAIN
HOURS
OFF
12AM-12PM
SET TEMP
POOL HEAT
SPA HEAT
Use ARROW KEYS
to set value.
Press SELECT
to continue
80°F
104°F
MAINTAIN
HOURS
OFF
12AM-12PM
SET TEMP
POOL HEAT
SPA HEAT
Highlight an
item and press
SELECT
80°F
104°F
MAINTAIN
HOURS
OFF
12AM-12PM
SET TEMP
POOL HEAT
SPA HEAT
Use ARROW KEYS
to set value.
Press SELECT
to continue
80°F
104°F
MAINTAIN
HOURS
OFF
12AM-12PM
SET TEMP
POOL HEAT
SPA HEAT
Use ARROW KEYS
to set value.
Press SELECT
to continue
80°F
104°F
MAINTAIN
HOURS
POOL
12AM-12PM
SET TEMP
POOL HEAT
SPA HEAT
Use ARROW KEYS
to set value.
Press SELECT
to continue
80°F
104°F
MAINTAIN
HOURS
SPA
12AM-12PM

Page 20
Display Light Menu
The DISPLAY LIGHT menu can be set to on, off, or with a two (2) minute time out. Pressing any button will turn
display light on (unless the display is set to off).
To change the Display Light
Highlight MENU/HELP and press SELECT, highlight DISPLAY LIGHT and press SELECT. Use the UP/DOWN
arrow keys to set values and the SELECT button to continue.
AquaPure™ Menu
NOTE This equipment may not be part of your system. Please check with your installer.
AquaPure Chlorine Generator systems exclusively communicate with the AquaLink RS. The AquaLink RS Control
Panel will display % of chlorine output. When interfaced with theAquaPure chlorine generator or PureLink, the
AquaLink RS allows for two different pool and spa set points for chlorine production.
This menu item will only appear when an AquaPure chlorine generator is connected to theAquaLink RS system.
To set the AquaPure Output Percentage (%)
Highlight MENU/HELP and press SELECT, highlight SETAQUAPURE and press SELECT. Inside the SET
AQUAPURE menu, select either the SET POOLTO: or SET SPA TO: and press SELECT. Use the UP/DOWN arrow
keys to set the percentage then press SELECT.
Set Time Menu
The SET TIME menu allows the correct time and date to be entered. The correct time and date ensures that
programming will work properly.
To set the Time
Highlight MENU/HELP and press SELECT, highlight SET TIME and press SELECT. Use the UP/DOWN arrow keys
to set values. Press the SELECT button to continue.
MENU
HELP
PROGRAM
SET TEMP
SET TIME
DISPLAY LIGHT
LOCKOUTS
PROGRAM GROUP
SYSTEM SETUP
SET TIME
03/01/00 WED
1:00 PM
Use ARROW KEYS
to set value.
Press SELECT
to continue
MENU
HELP
PROGRAM
SET TEMP
SET TIME
DISPLAY LIGHT
LOCKOUTS
PROGRAM GROUP
SYSTEM SETUP
DISPLAY LIGHT
LIGHT ON
LIGHT OFF
2MINTIMOUT
MENU
MENU
PROGRAM
SET TEMP
SET TIME
SETAQUAPURE
DISPLAY LIGHT
LOCKOUTS
PROGRAM GROUP
SYSTEM SETUP
BOOST POOL
SETAQUAPURE
SET POOL TO: 0%
SET SPA TO: 0%
Highlight an
item and press
SELECT
SETAQUAPURE
SET POOL TO: 50%
SET SPA TO: 0%
Use ARROW KEYS
to set value
Then SELECT
