Janser MASTER MOBIL II User manual

Stand: 02-2018 p int270218
Janser GmbH
Böblin er Straße 91
71139 Ehnin en
GERMANY
Phone +49 / 7034 / 127-0
Fax +49 / 7034 / 8838
E-mail: [e-mail]
Internet: www.janser.com
MASTER MOBIL II
ydraulic
USER INSTRUCTIONS
# 111 801 000
PRO FESS IONA L
FLOOR ING
TECHNOLOGY

3
USER INSTRUCTIONS MASTER MOBIL II (111 801 000) 2018-01
TABLE OF CONTENTS
1.1 Manual 4
1.2 Explanations of symbols and instructions 4
1.3 Intended use 5
1.4 Owner’s obligations 5
1.5 Operating personnel 6
1.6 Personal protective equipment 7
1.7 Signage 7
1.8 Safety installations 7
1.9 Occupational safety and special risks 8-11
2.1 Technical Description 12
2.2 Technical Specifications 12
2.3 Scope of delivery 12
2.4 Insertable tools, accessories 13-14
2.5 Controls and equipment 15
3.1 Raising 16
3.2 Load / unloading 16
3.3 Storage 16
4.1 Blade 17
4.2 Grip angle 18
4.3 Weights 18
4.4 Operating lever 18
5.1 Start-up 19
5.2 Application 19
5.3 Removing techniques 20
6.1 Sharpen blades 21
6.2 Regular maintenance 22
6.3 ydraulic oil 23 - 24
1 Safety
2 Product Information
3 Transport
4 Setup
5 Operation
6 aintenance

4USER INSTRUCTIONS MASTER MOBIL II (111 801 000) 2018-01
1 SAFETY
This manual guarantees the safe and efficient use of the machine. This manual is
part of the machine and has to always be kept near the machine and be accessible
for the operating personnel at all times.
The operating personnel have to have carefully read and understood this manual
before any work commences. Prerequisite for safe working is the compliance with
all the safety and handling instructions in this manual.
Furthermore, the local accident prevention regulations and the general safety
conditions for the use of the machine are applicable.
Illustrations in this manual are for the purpose of explanation and may differ from
the actual design of the machine.
When passing the machine on to third parties this manual must be included.
All of the instructions and technical specifications in this manual have been
written in compliance with current technical norms and regulations together with
our many years of knowledge and experience.
In the following cases the manufacturer does not accept any liability:
 Non-compliance with these instructions
 Improper use
 Operation by untrained personnel
 Unauthorized modifications
 Technical modifications
 Use of unauthorized replacement parts
1.1
anual
Safety instructions in this manual are marked by symbols. Instructions are
introduced by signal words which express the scale of the hazard.
It is essential that these instructions are adhered to and the machine is operated
with caution to avoid accidents, injuries and material damage.
WARNING!
…indicates a potentially dangerous situation which if not avoided can lead to death
or serious injuries.
CAUTION!
…indicates a potentially dangerous situation which if not avoided can lead to
minor or light injuries.
PROHIBITION!
…indicates an immediate dangerous situation which if not avoided can lead to
death or serious injuries.
ADVICE!
…emphasizes tips and recommendations as well as information for efficient and
failure-free operation.
1.2
Explanations of
symbols and
instructions

5
USER INSTRUCTIONS MASTER MOBIL II (111 801 000) 2018-01
1 SAFETY
The machine is used for the removal of all sorts of floorcoverings for example
UPVC, linoleum, carpets, rubber floors as well as tiles, coatings, adhesives
and parquet flooring!
The machine is NOT suited as tractor unit or for demolition work.
This includes the compliance with the manufacturer´s operating, maintenance
and servicing conditions!
Any use beyond the intended use or other types of use is considered misuse.
WARNING! Danger due to misuse!
Misuse can lead to dangerous situations.
- Operation outside the specified limit values of the technical data.
- Bypassing or overriding of safety installations.
- Remodelling, refitting or changing the construction or individual parts
with the intention to alter the area of application or use of the machine.
- Use of the machine when not in perfect technical condition.
- Use of the machine in potentially explosive areas.
Claims of any sort of damages following improper use.
1.3
Intended use
The owner is a person who operates the machine for commercial or economic
use or leaves it to a third person for use/application and during its use carries the
legal responsibility for the protection of the user, personnel or a third person.
The machine is used in the commercial sector. The owner of the machine is
therefore obliged to comply with the legal responsibilities for health and safety.
The local regulations of the place of use as well as accident prevention measures
of the local trade association must be adhered to.
It applies in particular that the owner:
- is informed about current health and safety regulations.
- determines during a risk assessment additional hazards which occur through
specific working conditions on the operating site of the machine.
- implements in a job control statement the necessary compliance requirements
for the operation of the machine on the operating site.
- regularly examines during the entire operating time that the operating
instructions comply with the current status of regulations.
- that the operating instructions-if necessary- are adjusted to new regulations,
standards and conditions of use.
- clearly regulates the responsibilities for the installation, operation, maintenance
and cleaning of the machine.
- ensures that all staff working near or with the machine have read and
understood the operating instructions. Furthermore he or she has to train all
personnel in regular intervals and inform them about possible hazards.
Additionally the owner is responsible for:
- the impeccable condition of the machine.
- the servicing of the machine in the recommended maintenance intervals.
- the regular inspection of all safety installations ensuring that they are complete
and in working order.
1.4
Owner’s
obligations

6USER INSTRUCTIONS MASTER MOBIL II (111 801 000) 2018-01
QUALIFICATION
The different tasks described in this manual request various qualifications from the
persons dealing with the machine.
WARNING! Danger for persons with insufficient qualifications!
Insufficiently qualified persons can not judge the risks when operating the
machine and put themselves and others at risk of serious injuries or death.
- All work must only be performed by qualified personnel.
- Insufficiently qualified persons must be kept away from the operating area.
In this manual the necessary qualifications for the persons and the different tasks
are listed:
OPERATOR:
the operator has been instructed by the owner and been given the assigned tasks
and has been informed about the possible hazards in case of improper behaviour.
Tasks which go beyond regular operation tasks can only be executed by the
operator if listed in this manual and have been explicitly authorized by the owner.
TRAINED PERSONS
have been instructed by the owner and been given the assigned tasks and have
been informed about the possible hazards in case of improper behaviour.
QUALIFIED PERSONNEL
Qualified personnel is able to carry out assigned tasks and recognize and avoid
independently possible hazards given their specialist training, knowledge and
experience as well as their knowledge of relevant norms and regulations.
MANUFACTURER
Certain work can only be carried out by trained personnel of the manufacturer.
Other personnel are not authorized to carry out this work. Please contact our
customer service for required work.
UNAUT ORIZED PERSONS
WARNING! Danger for unauthorized persons in the operating area!
– Unauthorized persons have to be kept away from the operating area.
– If in doubt remove persons from the operating area.
– Interrupt the work as long as unauthorized persons are in the operating area.
INSTRUCTION
The owner of the machine has to regularly instruct all personnel.
For better documentation an instruction protocol with the following
minimum content has to be kept:
- date, content of the instruction
- name of the instructor
- signatures of the instructed and instructor
1.5
Operating
personnel
1 SAFETY

7
USER INSTRUCTIONS MASTER MOBIL II (111 801 000) 2018-01

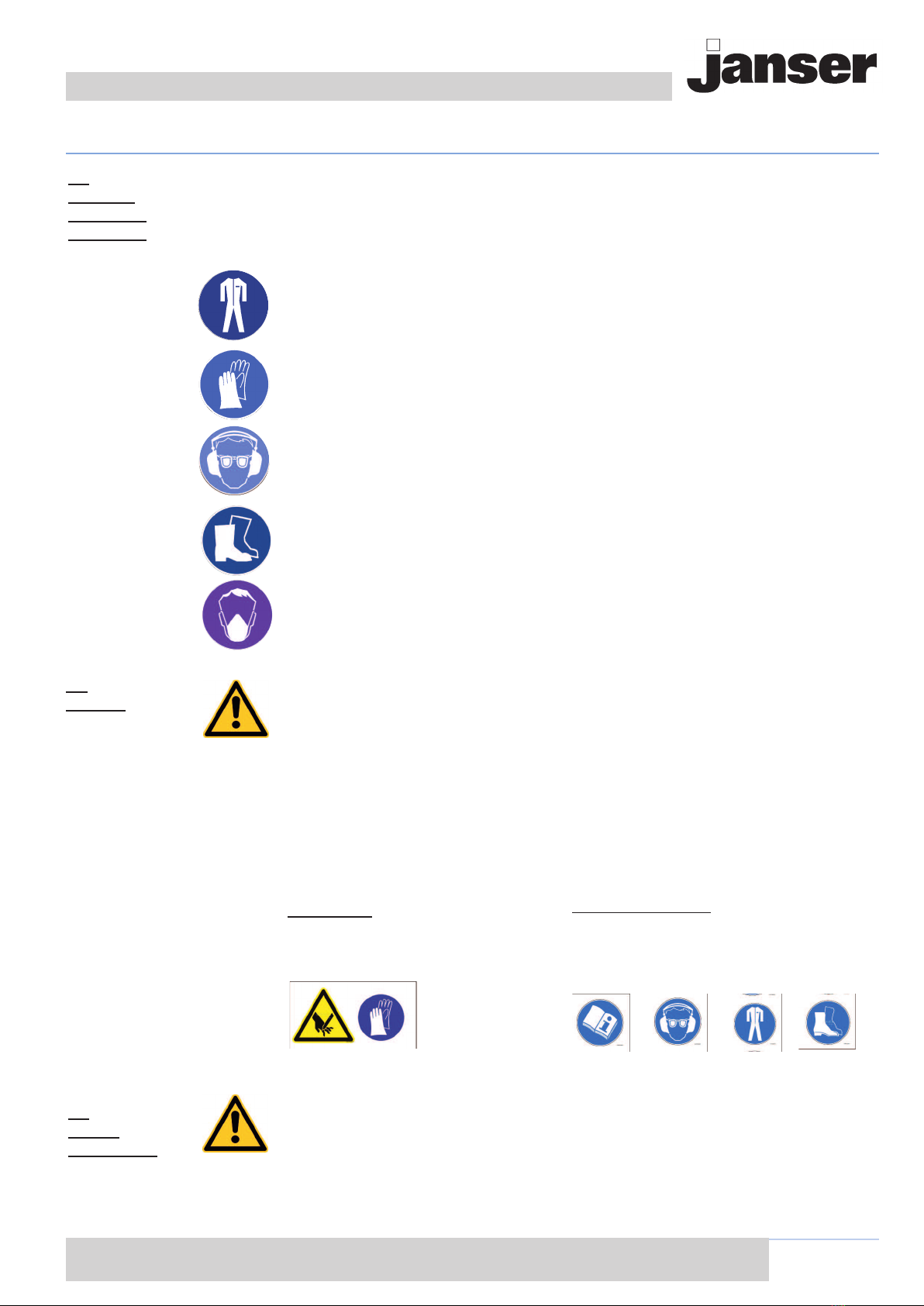

When operating the machine personal protective clothing has to be worn in order
to minimize health hazards.
The following protective clothing has to be worn by anybody in the operating
area.
Protective work clothing.
Wear appropriate work clothing! Work clothing should fit tightly and loose
garments should be avoided since they can get caught in the machine.
Protective gloves
Protective gloves to protect your hands when changing blades.
Ear protection + Protective goggles
Ear protection offers you protection from hearing damage through noise.
Protective goggles protect your eyes from floor covering flying around.
Safety shoes
Safety shoes protect your feet from bruising and from sharp objects and from
slipping on slippery ground.
Respirator mask
Dust can lead to breathing complaints. When working for a long time or on dusty
ground a respirator mask has to be worn to protect your respiratory tract from
dust and from small particles.
WARNING! Danger with illegible signage!
With time labels and signage can become dirty or illegible so that hazards can´t
be recognized and necessary instructions adhered to. This means an increased
risk of injury.
- Keep all safety, warning and operating instructions always in legible condition.
- Damaged labels or signage has to be replaced immediately.
The following symbols and signs can be found in the operating area.
They refer to the immediate area where they have been placed.
WARNINGS
sharp blade,
Wear protective gloves when
changing blades
COMMANDMENTS
Read and understand the user instructions
Wear ear protection and safety goggles
Wear appropriate work clothes
Wear safety shoes
1.6
Personal
protective
equipment
1.7
Signage
1 SAFETY
WARNING! Danger through defective safety installations!
Defective or suspended safety installations can cause severe injuries and death.
- Before work can start all safety installations have to be inspected to see
whether they are functioning properly and have been correctly installed.
- Never suspend safety methods or override them.
- Make sure that all safety methods are always accessible.
1.8
Safety
installations

8USER INSTRUCTIONS MASTER MOBIL II (111 801 000) 2018-01
1 SAFETY
The following paragraph explains residual risks which might be present
even if the machine is used correctly.
To reduce the risk for persons and material damages and to avoid dangerous
situations the listed safety information in this paragraph and in the remaining
manual has to be adhered to.
Improper use
WARNING! Danger through improper use!
ake sure:
– Only use machine when in perfect technical condition.
Defects are to be resolved immediately.
– Modifications to the machine are not permitted and can impair safety.
– Before regular maintenance, cleaning and repairs the power has to be switched
off and secured against unintentional start-up (switch off drives).
– Never override or switch off safety installations.
– All work on the machine and/or its electrical components has to be carried
out by trained personnel.
– Repair or maintenance work must only be carried out when the machine is
switched off. The machine has to be secured against unintentional start-up.
Axis movements
WARNING! Danger of injury through axis movements!
Collision of persons with the machine or its tools can lead to severe injury.
ake sure:
– Unauthorized persons in the operating area are strictly prohibited!
– Safety installations and/or functions must not be switched off or overridden.
- Do not hold any body parts between moving components.
- Blades must only be changed when the machine is idle.
- Wear personal protective gear in the operating area.
- Assistants must always keep a safety distance of a minimum radius
of 1 meter from the machine.
Removed materials
WARNING! Injuries through removed materials!
The removed floorcovering can fly around or be thrown around
unexpectedly and cause serious injury.
Make sure:
- Wear face protection or fully closed and tight fitting goggles, protective clothing,
protective gloves and safety shoes.
- Seek medical attention immediately if particles have entered your eyes.
- Assistants must always keep a safety distance of a minimum radius
of 1 meter from the machine.
1.9
Occupational safety
and special risks

9
USER INSTRUCTIONS MASTER MOBIL II (111 801 000) 2018-01
1 SAFETY
Sharp edges and sharp corners
CAUTION! Danger of injury from sharp edges and sharp corners!
Sharp edges and sharp corners can scratch and cut into your skin.
Make sure:
- Be careful when working near sharp edges and sharp corners.
- Wear protective gloves when in doubt.
Insertion tools (knifes/blades)
CAUTION! Danger of injury through improper use of tools!
Improper use of tools can cause bruising and cuts.
Make sure:
- Use tools carefully and as intended.
- Consider the weight of tools in transport.
- Wear protective gloves and safety shoes.
Working environment
CAUTION! Avoid dangerous conditions!
Do not operate machine in rain, stormy surroundings, humidity or wet areas or in
explosive environments (gaseous vapours, dust or flammable materials).
Remove materials and debris which can be ignited by sparks.
Keep your working area clean and well lit.
Untidy and dark working areas increase the danger of accidents.
Keep spectators away from the working area.
Children and spectators must keep a safety distance from the working area in
order not to distract the driver and not to come in contact with the machine.
The driver must always be aware of who is nearby.
Also protect other persons in the working area.
Provide safety screens and protective shields to protect others from the
movement of the machine and debris.
Always be aware of the position of your colleagues when the machine is in
operation. Close off working area.
Colleagues must never be in front or behind the running machine. Non-
compliance can lead to serious injuries or death.
Keep working area clean and tidy! Unsecured, scattered components and tools
are a potential source for accidents
1.9
Occupational safety
and special risks

10 USER INSTRUCTIONS MASTER MOBIL II (111 801 000) 2018-01
Start-up and operation
WARNING! Danger of injury through improper start-up and operation Improper
start-up and operation can lead to personal injury or material damage.
Make sure:
– Start-up and operation can only be executed by sufficiently trained personnel,
authorized and instructed by the owner of the machine.
– Before work commences all safety installations have to be inspected to check
whether they are functioning properly and have been correctly installed.
– Keep working area tidy and clean! Unsecured, scattered components
and tools are a potential source for accidents
WARNING! Non-stop work; alpositions, vibrations and machine movements
cause pain and fatigue
Make sure:
- observe regular breaks
aintenance and troubleshooting
WARNING! Danger of injury through improper maintenance and
troubleshooting! Improper maintenance and troubleshooting can lead to severe
personal injury and material damage.
Make sure:
– Any maintenance work and troubleshooting must only be carried out by
sufficiently qualified and instructed personnel.
– Secure machine from unintentional start-up. Switch off drive!
– Provide sufficient space before starting maintenance work.
– Keep working area clean and tidy! Unsecured, scattered components
and tools are a potential source for accidents.
When components need to be replaced:
- Contact manufacturer or authorized representative.
1.9
Occupational safety
and special risks
1 SAFETY

11
USER INSTRUCTIONS MASTER MOBIL II (111 801 000) 2018-01
ELECTRICAL CONNECTIONS / ELECTRICAL CO PONENTS
WARNING! Risk of death due to electric current!
Only connect the machine to the electrical values stated on the rating plate.
Check before startup.
Only connect the machine to an approved power cable and plug.
For Europe, approved power cables and plugs must be used.
Cable Type 07BQ-F3G2,5 length max 10 m, 230ASP/Kupp.
Using the machine with cables of insufficient average and / or excessive
length may result in personal injury or property damage.
ave electrical equipment such as a relay, protective circuit or power line
checked by an authorized electrician. If the circuit breaker trips or trips
repeatedly, it can cause electrocution.
Never work with a damaged cable or plug. Worn or damaged cables or plugs
should be replaced by an electrician or authorized service personnel.
Do not use the machine if the cable is damaged. Do not pull on the cable to
move the machine. Using the machine with a damaged cable can cause an
electric shock.
Never switch off the earthing cable or render it unusable. Using the machine
in a non-earthed circuit may result in electrocution. Consult an electrician if
the grounding wire is missing or if you believe that the circuit does not have
adequate grounding.
The machine may only be operated on circuits with a residual current device.
When working on the machine always unplug the power plug!
Maintenance, replacement or adjustment of the hydraulic fluid or components
may result in personal injury to the operator and / or bystanders when the
machine is plugged into the electrical outlet.
Work on electrical components of the machine may only be carried out by a
qualified electrician.
Keep the cable away from the lower part of the machine so that the blade
does not come into contact with it. Always keep the cable raised above the
machine.
Driving over or damaging the cable through the machine may result in
electric shock.
The machine is only suitable for indoor use. Risk of electric shock. Do not
expose the machine to water or rain.
1 SAFETY
1.9
Occupational safety
and special risks

12 USER INSTRUCTIONS MASTER MOBIL II (111 801 000) 2018-01

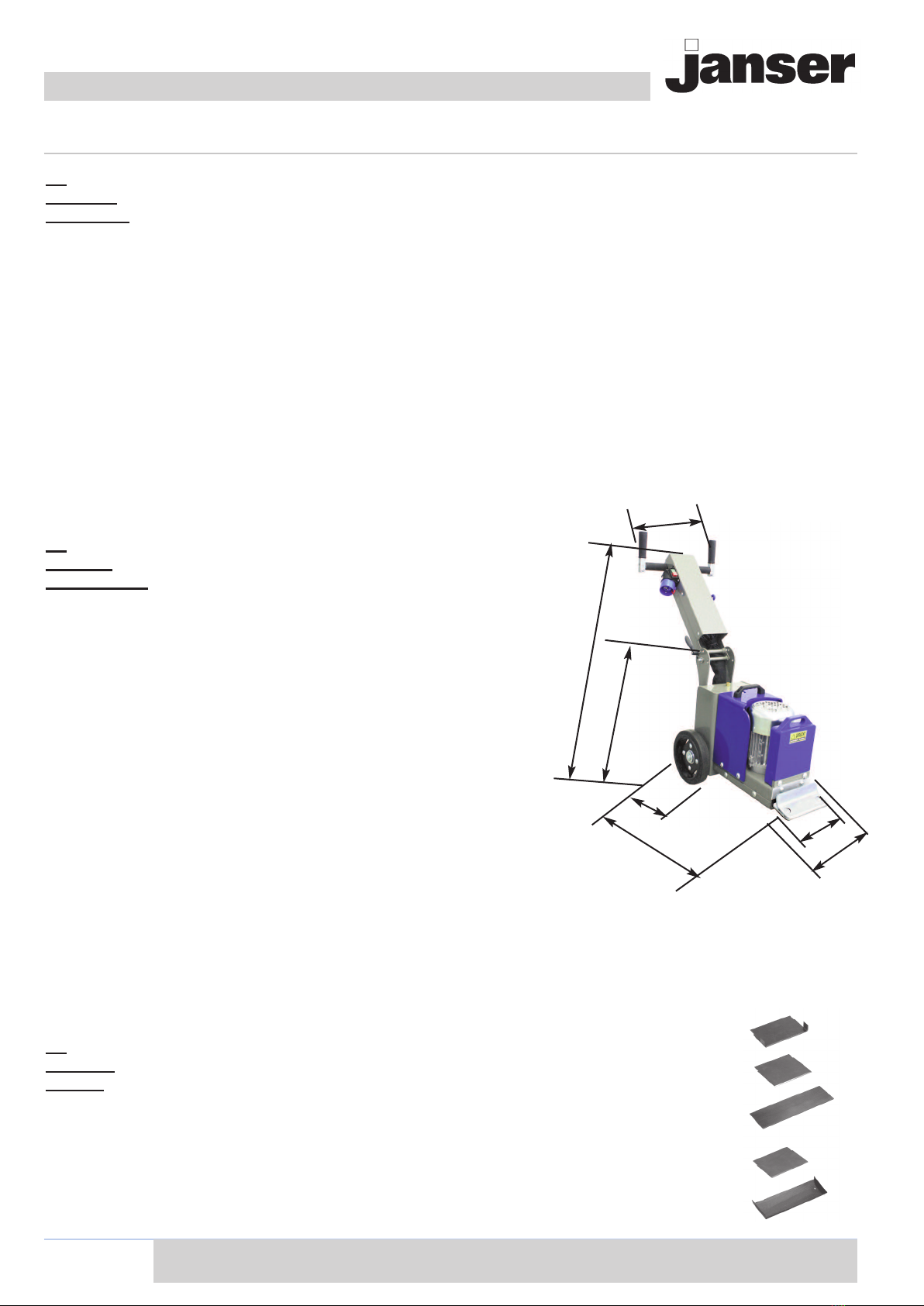

2 PRODUCT INFORMATION
2.1
Technical
Description
2.2
Technical
Specifications
SPECIAL FEATURES
The powerful motor combined with the revised YDRAULIC-
DIRECT-DRIVE ensures high forces and extremely low noise level.
The MASTER-MOBIl II is self-propelled (forward and reverse) with
infinitely adjustable speed.
Adjustable guide handle in six positions enables ergonomic
operation depending on body size or preferred working position.
Weights can be removed easily for transportation at reduced
net weight of the machine.
Vibration levels
and-arm vibration on the control lever 8,5 m/s²
Noise emissions standstill / operation
Sound pressure at the ear of the operator 2000/14/EG 73 dB(A) / 68 dB(A)
2.3
Scope of
delivery
delivery complete with 5 different spare blades,
- 111 800 101- 152 x 102 x 1,6 mm
- 111 700 102 - 152 x 127 x 1,6 mm
- 111 800 103 - 254 x 76 x 1,6 mm
- 111 800 104 - 145 x 102 x 1,6 mm
- 111 800 106 - 223 x 76 x 1,6 mm
- front weight
- extension cable and
- tool kit
Dimensions
eight 1 (handle) 67-108 cm
eight 2 (transport) 58 cm
Length L1 (total) 70 cm
Wheel Ø 22 cm
Width W1 (blade) 21 cm
Width W2 (wheels) 36 cm
Width W3 (handle) 42 cm
Weight
Weight incl.additional weight 105 kg
net weight 75 kg
electrical connection 230V/50 z
Motor Power 0,75 kW
L1
Ø
W1
W2
H1
H2
W3
#111 800 101
#111 700 102
#111 800 103
#111 800 104
# 111 800 106

13
USER INSTRUCTIONS MASTER MOBIL II (111 801 000) 2018-01

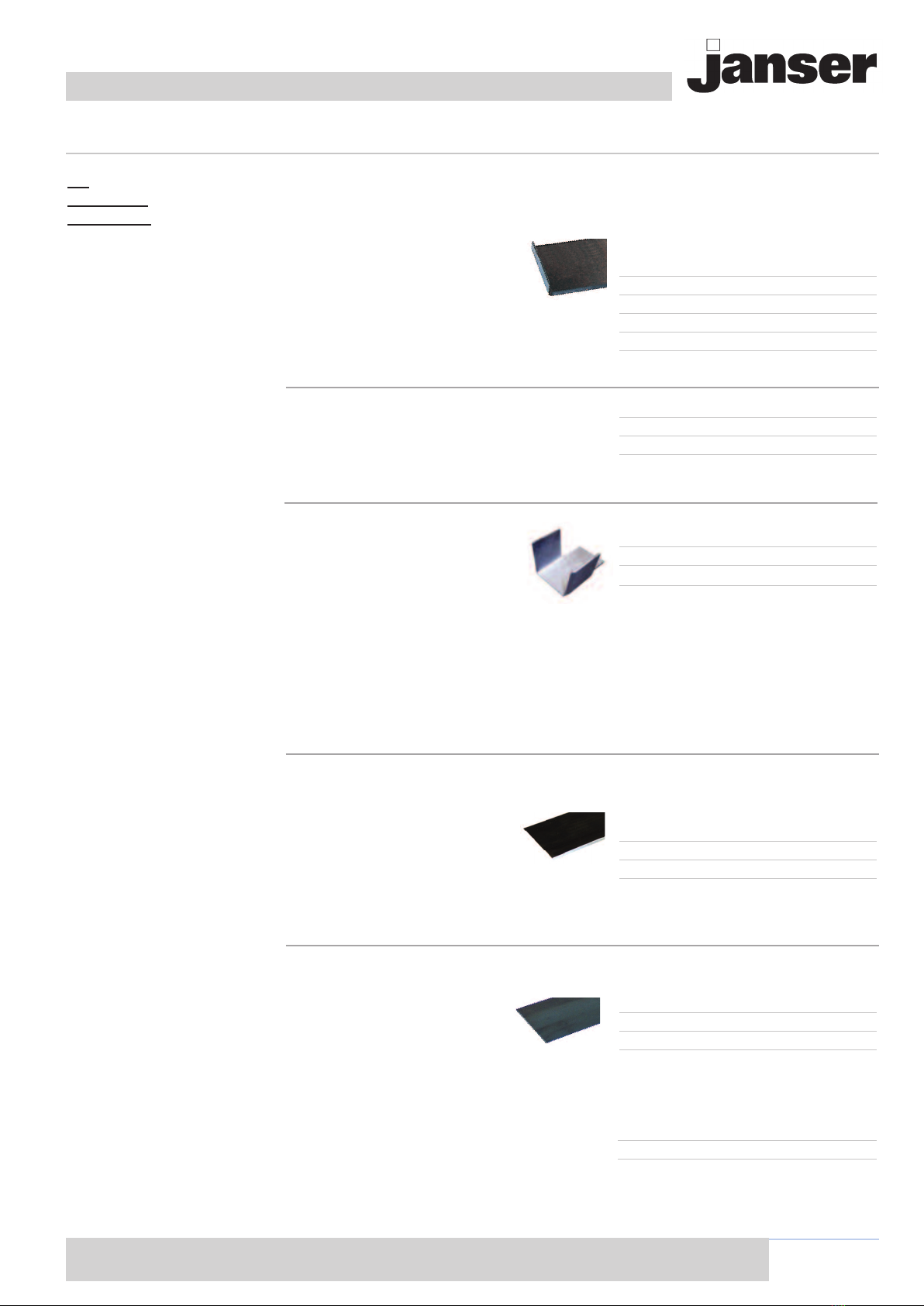

coverings or for pre-cutting.
For the second cut use wider
blades
Use in eg rubber flooring, sports surfaces,
multilayered structures, among others
Especially when these coverings have been adhered to
very stubborn adhesives, such as epoxy, 2K or contact
adhesive.
Self-scoring U-blades
Standard blades
Premium blades
Tough, long lasting, self-
scoring blades.
90° angled self scoring wings.
Works on vinyl back, soft to
medium PVC,
linoleum, carpet tiles.
Dimensi ns Thickness Item n .
152 x 102 mm 1,6 mm 111 800 101
223 x 76 mm 1,6 mm 111 700 108
305 x 76mm 1,6 mm 111 700 101
360 x 76 mm 1,6 mm 111 700 107
Dimensi ns Thickness Item n .
145 x 102 mm 1,6 mm 111 800 104
152 x 127 mm 1,6 mm 111 700 102
254 x 76 mm 1,6 mm 111 700 103
Dimensi ns Thickness Item n .
152 x 76 mm 1,6 mm 111 400 210
203 x 76 mm 1,6 mm 111 400 220
254 x 76 mm 1,6 mm 111 800 103
Dimensi ns Thickness Item n .
255 x 76 mm 2,4 mm 111 400 492
305 x 76 mm 2,4 mm 111 400 490
355 x 76 mm 2,4 mm 111 400 491
45° angle.
The thickness greatly reduces
breakage, especially on heavily
weighted machines.
Works on all glued down
carpets,VCT, VAT,
rubber tile, cork, re-scraping
adhesive, elastomeric
coatings.
Dimensi ns Thickness Item n .
40 x 40 x 40 mm 2,4 mm 111 700 495
40 x 80 x 40 mm 2,4 mm 111 700 496
Ultra high quality spring
steel is extra hard for
long blade life.
Works on all glued down carpets,VCT,
VAT,rubber tile, cork, re-scraping
adhesive, elastomeric coatings.
Dimensi ns Thickness Item n .
304 x 76 mm 1,6 mm 111 400 240
355 x 76 mm 1,6 mm 111 400 250
2 PRODUCT INFORMATION
2.4
Blades and
accessories

14 USER INSTRUCTIONS MASTER MOBIL II (111 801 000) 2018-01
Heavy duty blades
A heavy duty blade that still
has a littleflex.
Works on VCT, VAT, wood, tile,rubber
epoxy, thin-set, elastomeric coatings,
scraping thin-set, glued ceramic.
Dimensi ns Thickness Item n .
152 x 76 mm 2,4 mm 111 400 310
203 x 76 mm 2,4 mm 111 400 320
254 x 76 mm 2,4 mm 111 700 104
304 x 76 mm 2,4 mm 111 400 340
355 x 76 mm 2,4 mm 111 400 350
Dimensi ns Thickness Item n .
152 x 76 mm 4,5 mm 111 700 106
Dimensi ns Thickness Item n .
152 x 76 mm 6,35 mm 111 700 105
Extra heavy duty blades
Ultra tough coatings, ceramic
& hardwood
Extremely hard, high abrasion wood,
tile, lighter ceramic
2 PRODUCT INFORMATION
2.4
Blades and
accessories
Parquet blade
Weight 4,8 kg (10.6 lbs)
for Master Mobil & Strato Mobil
Item Item n .
Width 200 mm (7 7/8“) 111 800 620
Angle Shank Holder
and angle shank
for stripping glued or nailed parquet
flooring, as well for the removal of
ceramic tiles.
Item Item n .
Angle shank holde 111 820 110
Angle shank 111 820 120
Increased Angle Blade
Mainly used for VCT, but can be
used on most other applications.
Supplies more of an angle
when needed..
Dimensi ns Thickness Item n .
200 x 75 mm 1,6 mm 111 400 480
250 x 75 mm 1,6 mm 111 400 481

15
USER INSTRUCTIONS MASTER MOBIL II (111 801 000) 2018-01
2 PRODUCT INFORMATION
2.5

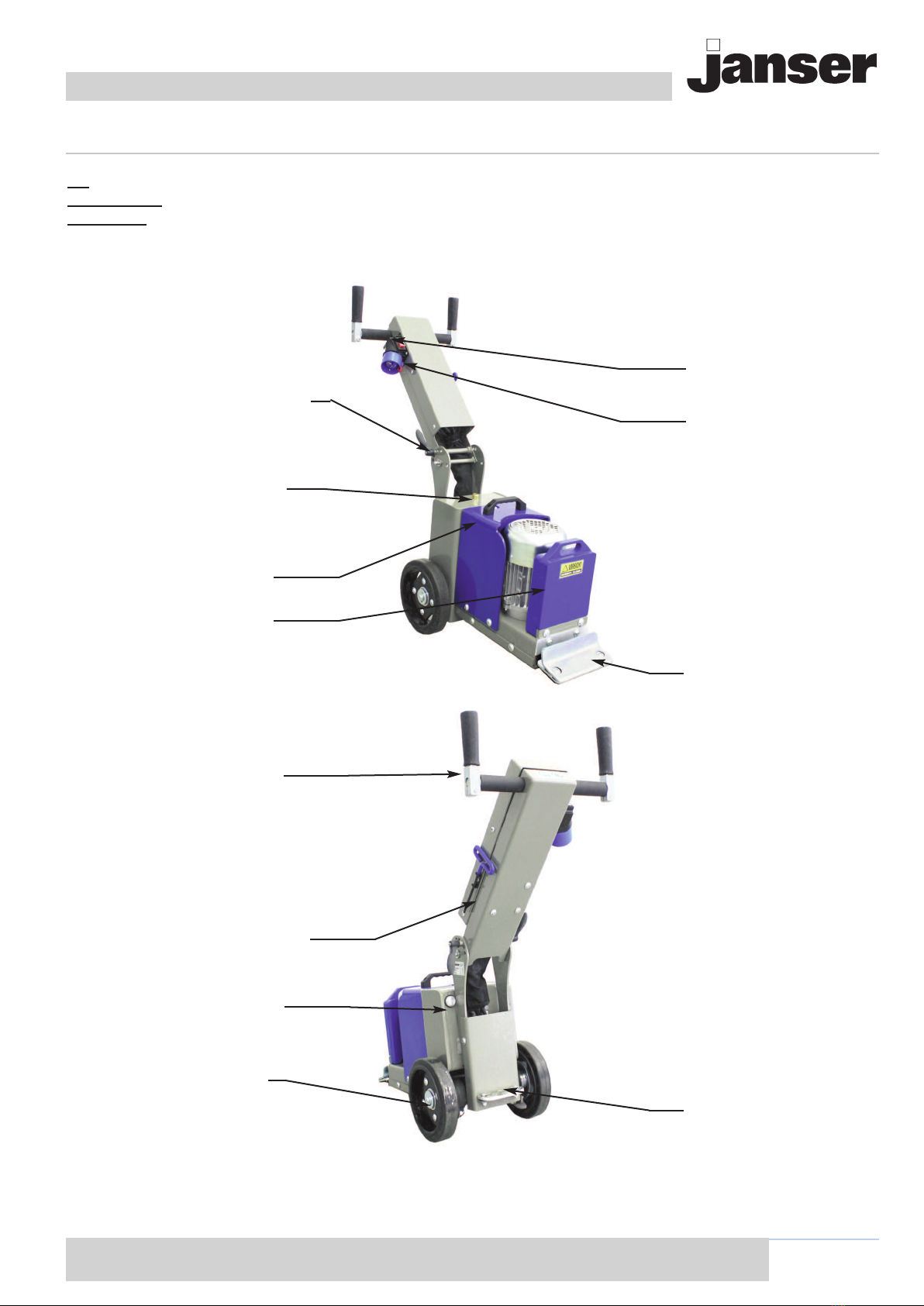

Controls and
equipment
ON / OFF switch
Power connection
Cutting head /
blade holder
easy and quick replacement of
the removal tools by the
clamping screws
Kick plate
to support the work process.
Handle adjustment
Adjust the grip angle in six
positions.
Hydraulic tank /
pressure valve
Upper weight
Front weight
Operating lever
ydraulic rotary handle
control with adjustable
comfort grip
Tool wrench
handy on the machine
for fast tool change.
Hydraulic tank /
Oil level plug
Drive wheels
Self-cleaning
industrial wheels.

16 USER INSTRUCTIONS MASTER MOBIL II (111 801 000) 2018-01

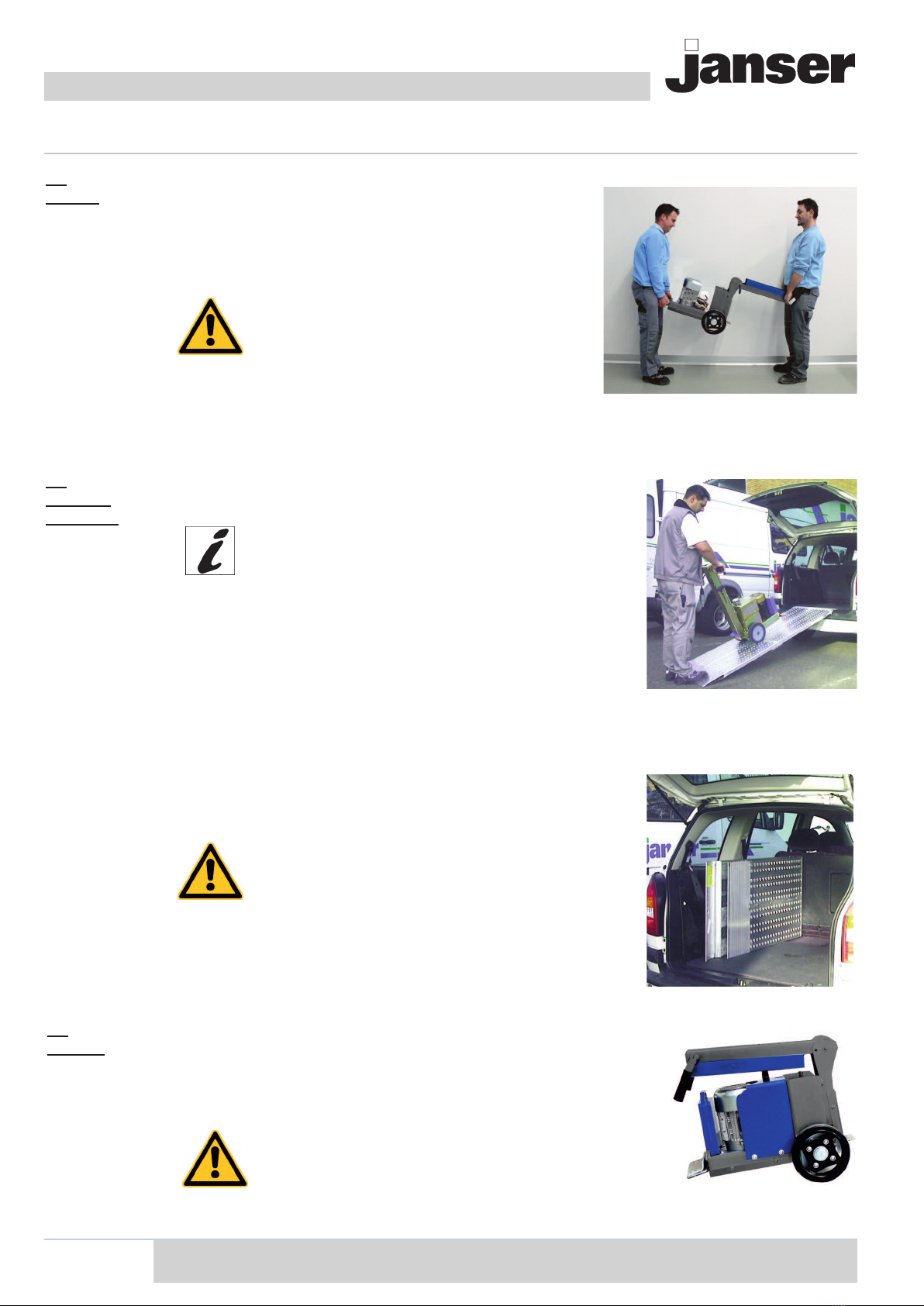

3 TRANSPORT
3.1
Raising
3.2
Loading/
unloading
3.3
Storage
Always remove all counterweights and blades
before loading or unloading.
Easy to lift if you can not drive the machine
or have no ramp available.
ATTENTION! machine weight
Carrying or lifting the machine always
with 2 people
Remove the weights -> see 4.3
Adjustment of the carrying position-> see 4.2
With the help of a ramp, the machine can be
transported over different levels
Make sure the ramp is clean and dry, free of
grease or oil.
1. Attach ramp securely to back of vehicle,
making sure there is good contact.
2. Position machine at back of ramp,
respectively at head of ramp.
3. Engage power switch and drive onto vehicle,
respectively drive out of vehicle.
Lowering handle may be necessary for proper
clearance into the back of smaller cars.
ATTENTION!
ake sure ramp is secure before using.
Failure to do so could cause ramp to fall away
from truck, causing damage to the machine
and/or injury to the operator.
For space-saving transport, the ramp
can be folded in half.
The machine can be stored in a space-saving manner
when out of service or for transport in vehicles
andle angle set in the storage position
( andle angle adjustment, see chapter 4.2)
ATTENTION ! Do not lift the machine by the handle
Improper transport can cause damage to the machine
and danger of falling. (Proper transport see above)

17
USER INSTRUCTIONS MASTER MOBIL II (111 801 000) 2018-01

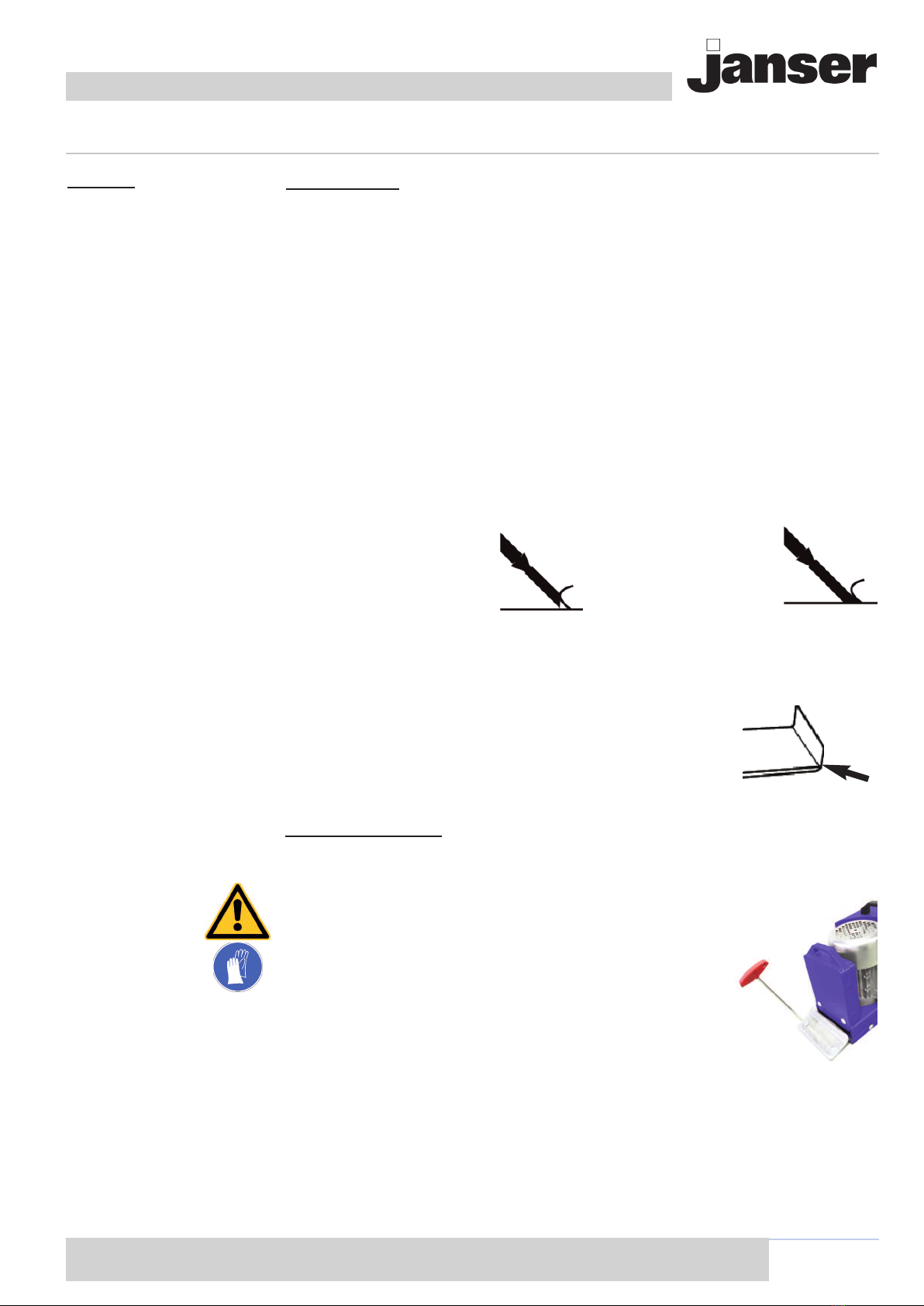

Choice of blade
The correct blade size and the correct attachment of the blades, according to the
respective floor covering or subfloor will provide the best performance of your
machine.
Die hier beschriebenen Grundsätze dienen dazu optimale Arbeitsergebnisse zu
erzielen und dem Benutzer die Ausführung seiner Aufgaben zu erleichtern.
Blade size
The harder a job is, you should select the narrowest blade
to achieve optimal results.
Narrow blades usually clean the floor faster, as the machine will
have less restistance as when compared to using a wider blade.
Start with a narrow blade, widen the blade around the optimize cut surface.
Blade bevel
Normally bevel up
blade is up for
concrete.
Self-scoring U-blades
When using self-scoring U-blades for soft floors, pre-cutting of the lining is
unnecessary. Depending on the type of product to be removed and the sharpness
of the blade, it will be more difficult to control the machine.
Therefore, you should always keep the blade and
the side wings/edges sharp.
Insert / replace blade
Blunt blades affect and reduce the capacity and cutting performance of the
machine. Sharpen or replace the blades as needed.
Remove the power plug
CAUTION ! sharp blade Wear protective gloves
Use supplied extended wrench to keep hand safely
away from the edge of the blade.
1. Place a bock under the front of the machine.
2. Loosen the two hex head bolts with the extended bolt
wrench and replace the blade.
It is not necessary to remove the bolts.
Be sure that the blade is far enough under the blade-holder,
to insure a secure hold.
USE ONLY ORIGINAL BLADES.
4 SETUP
4.1 Blade
Bevel down for wood
or soft sub-floors.

18 USER INSTRUCTIONS MASTER MOBIL II (111 801 000) 2018-01
4 SETUP
4.2
Handle angle The guide handle is adjustable in six positions
and can be individually adjusted to the desired
working position,
Pull out the mains plug!
old both clamping levers
Unscrew the left clamping lever and remove the
complete handle bolt (A).
Attention handle is not fixed !!
support with your body or by a second person
Set the handle to the desired position, push in the
handle bolt (B) and tighten the clamping lever again.
4.3
Weights
4.4
Operating
lever
For easier transport, the weights
should be removed.
To remove the rear weight, remove two
bolts with the wrench on both sides (A)
and remove the weight by the handle (B)
To remove the front weight, loosen the
two front bolts (C) with the wrench and
remove the weight by the handle.
ATTENTION Weights are heavy
caution when removing and mounting.
To carry, put handle backwards
see chapter 3.1
ATTENTION ! Never lift the complete machine by the weights.
The handles on the weights are only for removing and transporting the weights
themselves.
The angle of the operating lever can be
infinitely adjusted to the desired working
position.
Release lever clamp with ring spanner,
adjust and tighten again.
Levers must be set to the same position
on both sides.
Working positions
(A)(B)
(A)
(B)
(C)(D)
T
ransport position

19
USER INSTRUCTIONS MASTER MOBIL II (111 801 000) 2018-01
1. Insert the plug of the extension cable into
the socket on the guide handle of the machine.
2. Insert the plug of the extension cable into
the socket/ wall power supply.
3. Turn on the machine
GREEN - Start button
RED - Stop button
4. You control the machine by operating the lever
FORWARD -> Press the control lever forwards
REVERSE -> Push control lever backwards
For immediate shutdown of the machine
-> Release the control lever!
These automatically go to the neutral position
The pressure valve is factory set and should not be adjusted.
The hydraulic oil is filled at the factory ready for operation.
Filling / replacing the hydraulic fluid
-> see chapter 6 Maintenance
Clean work area
Loose components or tools lying around are sources of accident.
Pay attention to tidiness and cleanliness in the work area!
In case of very dusty environment and thus limiting visibility,
ensure suitable extraction / ventilation.
WARNING! Risk of injury!
Avoid collisions
Only use the machine in safe conditions.
Always keep an eye on obstacles, especially when running backwards.
Always place the power cord behind the machine on the cable holder and away
from the tool so that it does not come into contact with it. Driving over or
damaging the electric cable may result in electric shock.
Break / end of work
In order to avoid physical damage, regular breaks must be observed in
accordance with the Technical Regulation for the Noise and Vibration Safety
Regulations - TRLV.
ATTENTION! risk of injury
immobilize the machine when not in use, by pulling the power plug
5 OPERATION
5.1
Start-up
5.2
Safe operation
1.
2.
3. 4.

20 USER INSTRUCTIONS MASTER MOBIL II (111 801 000) 2018-01
Ceramic tiles
Before removing ceramic tile, tiles will have to be
pre-broke with a mallet or large hammer.
On small random block styles of tile, pre-breaking
may not be necessary.
Open an area large enough for machine or blade
to fit in, or start from a doorway.
Keep work area clean to keep good wheel contact
with floor. Use slow speed and small blades.
Vinyl-, Rubber, PVC, Direct Glued Carpet
Scribing coverings previously and cut into sheets.
Pre-scored carpet makes machine easier to control
and blades stay sharper longer.
For soft coverings, the self-scoring blade can
also be used.
For best results use the scoring device "JAMAS"
VCT tiles
Keep blades sharp! Keep your work area clean
and clear of debris.
Always wear eye- and ear- protection when
working with the machine.
Wear eye and ear protection when working
with the machine!
Never use a blade wider than the size of the tile
being removed. If goods being removed still do
not come up clean or the machine jumps on
top of goods, reduce blade size to a smaller
blade until proper blade size is found or use a
smaller portion of the blade.
5 OPERATION
5.3
Removal of floor
coverings
