Jawbone ERA User manual

1
ENGLISH/ESPAÑOL
USER GUIDE

23
JAWBONE ERA ANATOMY
POWER UP
GET COMFORTABLE
GET CONNECTED
GET TALKING & MORE
GET APPS & UPDATES
SPECS & CHEAT SHEET
SAFETY INFORMATION
CONTENTS
1
2
3
4
PAGE 4
8
10
13
16
21
24
26
WATCH TUTORIAL VIDEOS AT
JAWBONE.COM/ERA/VIDEOS

45
LED
RING
VOICE ACTIVITY SENSOR
ON/OFF SWITCH
JAWBONE ERA ANATOMY I F TH E L E D R I N G I S . . .
f L A S h I N G Wh I TE
Jawbone ERA™is trying to
connect to your phone.
f L A S h I N G R E D
Battery is low. Power up!
f L A S h I N G R E D + W h IT E
Jawbone ERA™is in pairing
mode and ready to connect to
your phone. Go to your phone’s
Bluetooth® settings to connect.
45
BUILT-IN
ACCELEROMETER
TALK BUTTON
MICRO USB

67

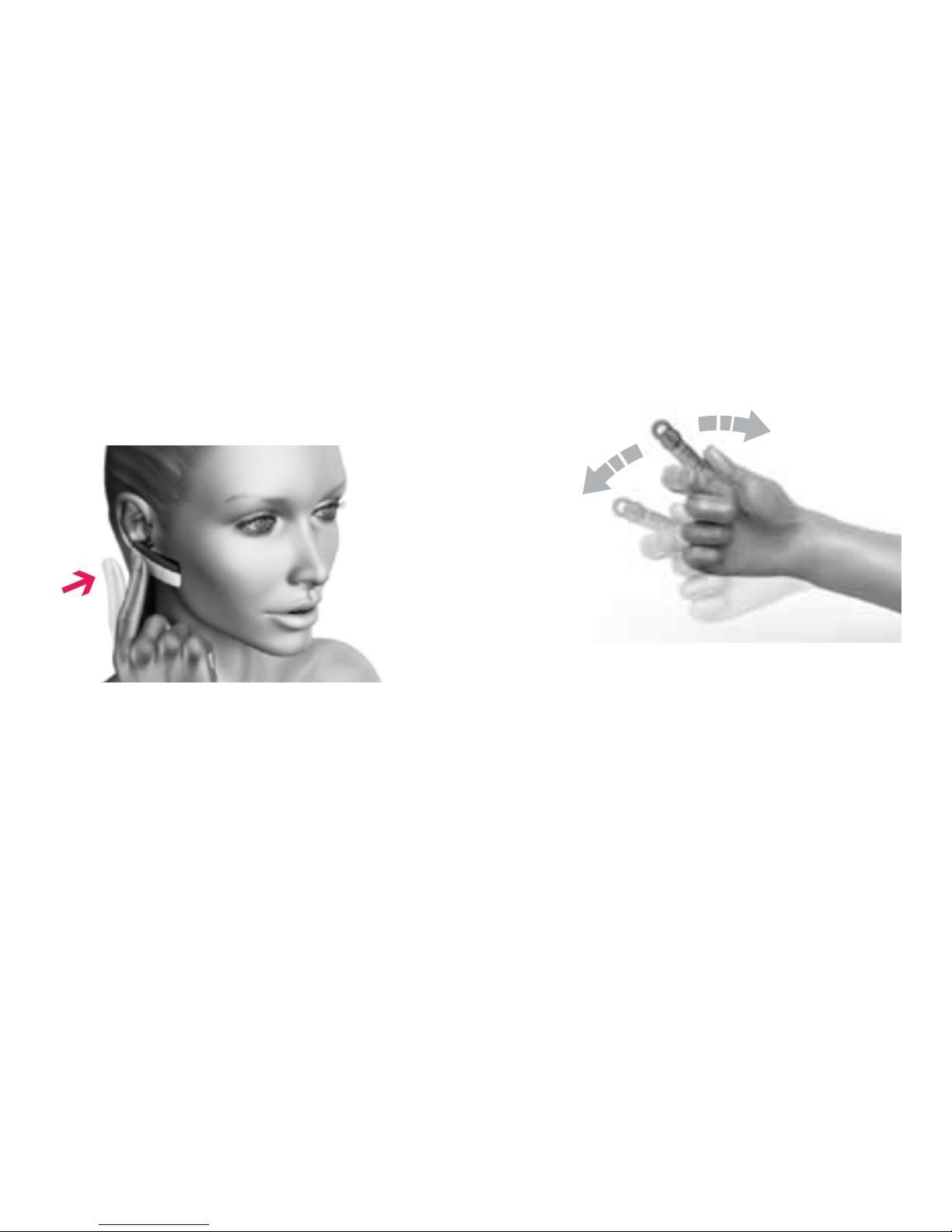

M O TI O N G L O S SA RY
TA P TA P ®
Tap the outer surface of your headset
2 times to answer, end & switch between calls.
S HAKE S HAKE ®
Shake your headset 2 times to answer
incoming calls when it’s not in your ear.
DOU B LE SH AK ES HAK E ®
Shake your headset 4 times to activate
pairing mode. The LED will flash red
& white.
2X or 4X
2X

89
POWER UP
Your Jawbone ERA™is partially charged and
ready to use right out of the box.
FO R A FULL CHA RGE
Plug your headset into the wall charger
or a USB port on your computer.
TO H E AR RE M AIN ING BATTE RY LIFE
Press the TA L K B U T T O N when not on
a call. When fully charged, the LED RING
will turn white.
WHE N BATTE RY IS LOW
The L E D R I N G flashes R E D.
NOTE It only takes 30 minutes to get your
headset 80% charged. A full charge takes
60 minutes.
B AT T E RY M E T E R O N YO U R P h O N E
IPHONE® Shows up automatically when
connected
OTHERS Go to MYTALK.JAWBONE.COM
LED RING

10 11
1 . 1 f I N D YO U R f I T
Mix and match earbuds with the optional
earloop to find the most comfortable and
secure option for you.
1 GET COMFORTABLE
EARLOOP
OPTIONAL
1 . 2 D R O P, T W I S T & P O I NT
1 For the most secure fit, place your
Jawbone ERA™in your ear pointing down.
2 Then twist it upwards so it points
directly at your mouth.
1 2

12 13
1 . 3 E N S U R E B E S T Q UA LI T Y
Your headset works regardless of position,
but you will get the best performance if
the Voice Activity Sensor physically
touches your cheek and points directly at
your mouth.
VO I C E
AC T I VIT Y
S E N S O R
2 . 1 P R E PA R E YO U R h E A D S E T
To activate pairing mode, Double
ShakeShake® your headset (shake 4 times).
2 GET CONNECTED
Watch video tutorials at JAWBONE .COM/fIT
4X

14 15
2 . 3 M A K E T h E CO N N E C T I O N
Go to your phone’s Bluetooth® settings.
ADD, SE A RCH OR SC AN FOR DE VICE S
When “Jawbone ERA” appears, select it.
IF ASKED FOR A PASSCODE
Enter “0000”
NOTE This is a one-time event per phone.
To pair Jawbone ERA™to another phone,
repeat steps 2.1 to 2.3.
2 . 2 P R E PA R E YO U R P h O N E
To turn on Bluetooth®.
ON AN I PHON E ®
Go to S E T T I N G S > G E N E R A L >
B L U ETOOTH and enable B L U E TO OTH
ON A BL AC KBERRY ®
Go to S E T T I N G S/O P T I O N S >
B L U ETOOTH and enable B L U E TO OT H
ON AN ANDR OID™PH O NE
Go to S E T T I N G S > W I R E L E S S
& N E T W O R K > B L U E T O OT H S E T T I N G S
and enable B L U ETO OT H
OTHE R C ELL P HONE S
Go to J AW B O N E . CO M / PA I R I N G or
review the instruction manual that
came with your phone.

16 17
3 . 1 A N S W E R / E N D A C A L L
Jawbone ERA™offers several ways to answer
and end a phone call.
TAP TAP ®
TA P the outer surface of your headset
2 times.
2X
3 GET TALKING & MORE
TAL K B U T TO N
Press the TA L K B U T T O N .
3 . 2 D E C L I N E A N I N C OM I N G C A LL
PRESS and HOLD the TALK BUTTON for
2 seconds.

18 19
3 . 4 S I M U LTA N E O U S C A L L S
To switch between calls, TA P 2 times
or press the TA L K B U T T O N . To end one
call and switch to the other, press the
TA L K B U T T O N 2 times. With Simultaneous
Multipoint, you can even switch between
calls from two different phones.
3 . 5 AU TO M AT I C V O LU M E C O N T RO L
NoiseAssassin® 3.0 intelligently adjusts
incoming call volume to your surroundings
so that you can hear better. Volume will
automatically increase when you enter a
noisy place and decrease when you enter
a quiet place.
3 . 3 M A K E A C A L L
Use your phone to dial as usual. Listen and
talk through your headset.
AC TIVATE D IAL APP / VOICE DIAL
Hold the TA L K B U T T O N until you hear a
beep, then release and follow the voice
prompts. Voice Dial is pre-loaded.
REDIA L L A ST NU M B E R
Press the TA L K B U T T O N 2 times to
redial the last number you called.

20 21
4 GET APPS & UPDATES
Jawbone® MYTALK lets you personalize and
update your Jawbone ERA™via the web.
Visit MYTALK.JAWBONE.COM
P E R S O N A LI Z E YO U R J AWB O N E E R A™
AUDIO APPS
Change the voice that tells you information
such as battery life and caller ID.
DIAL AP PS
Customize the TA L K B U T T O N to speed
dial your favorite number, or link directly
to 411, voice-to-text, and other voice
services.
3 . 6 A D J U S T Th E VO LU M E
Use the volume control on your phone. Or,
while on a call or listening to music, P R E S S
and H O L D the TA L K B U T T O N and the
volume level will cycle up and down. When
you find the most comfortable volume
level, release the button and your volume
will be set.
3 . 7 S T R E A M AU D I O W I T h A 2 D P
Listen to music, video, turn-by-turn
directions and other audio streamed
directly to your ear from any A2DP-
enabled Bluetooth® device.

22 23
E X T R A S
Did you know that Jawbone ERA™lets
you get more out of the apps you already
love? Watch videos in private, play games
without annoying the people around
you, even listen to sports on the go and
without anyone knowing that you’re
streaming audio.
We’ve assembled a list of some cool 3rd
party apps and services that get even
better when you’re wireless and hands free.
To learn more, sign into
MYTALK.JAWBONE.COM and click the
E X T R A S tab.
To access DialApps on your headset,
P R E S S and H O L D the TA L K B U T T O N ,
then follow the voice prompts.
CALLE R I D WITH N AMES
Hear caller ID with names by programming
your MYTALK address book and syncing
with your headset.
WI DEBA ND AUDIO
Jawbone ERA™ delivers high-definition
audio via wideband speaker. Your
music, video and calls have never
sounded better.
S O f T WA R E U P DAT E S
Update Jawbone ERA™with the latest software
by signing into MYTALK.JAWBONE.COM

24 25
S P E C I f I C AT I O N S
TALK TIME Up to 5.5 hours
STANDBY TIME Up to 10 days
CHARGING 30 minutes (80%); 60 Minutes (full)
WIRELESS RANGE 33ft (10m)
BLUETOOTH® 2.1 +EDR, HSP 1.1, HFP 1.5, A2DP 1.2
CONNECTIONS Supports up to 8 paired
devices and 2 active connections with Multipoint
WEIGHT 10.2 grams
DIMENSIONS 51.29mm X 14.49mm X 24.10 mm (LxWxD)
SPECS & CHEAT SHEET C h E AT S h E E T
AC TIO N
ACTIVATE PAIRING MODE*
ANSWER CALL
END CALL
SWITCH BETWEEN CALLS
END CALL &
ANSWER INCOMING
ADJUST VOLUME
ACTIVATE VOICEDIAL/
DIALAPPS*
REDIAL LAST NUMBER*
HEAR BATTERY STATUS*
*not during a call
HEADSET CONTR OL
Double ShakeShake®
TapTap® or Press TALK Button
TapTap® or Press TALK Button
TapTap® or Press TALK Button
Press TALK Button 2X
Hold TALK Button or
adjust on your phone
Hold TALK Button
Press TALK Button 2X
Press TALK Button

26 27
Jawbone Headset C are
• DonotexposeyourJawbone®headsettoliquid,moisture,humidity,orrain.
The Jawbone® headset is not waterproof.
• DonottamperwithorabusetheJawbone®headset.Forexample,without
limitation, do not drop, disassemble, open, crush, bend, deform, puncture, shred,
microwave, incinerate, paint, or insert foreign objects into the Jawbone® headset.
• DonotuseabrasivecleanerstocleanyourJawbone®headset.
• DonotexposeyourJawbone®headsettoextremelyhighorlowtemperatures.
• DonotleaveyourJawbone®headsetindirectsunlightforanextendedperiod
of time.
• DonotleaveyourJawbone®headsetnearopenflamessuchascookingburners.
• DonotdisposeofyourJawbone®headsetinafire.Thebatterycouldexplode.
• DonotbringyourJawbone®headsetintocontactwithanysharpobjects.Thiscan
cause scratches and damage.
• DonotinsertanythingintoyourJawbone®headsetunlessotherwisespecifiedin
the user manual. This may damage the internal components.
• DonotattempttodisassembleyourJawbone®headset,itdoesnotcontain
serviceable components.
• DonotwearyourJawbone®headsetwithoutaJawbone®approvedearbud.
Built-in Battery Care
• DonotattempttoreplaceyourJawbone®headset’sbattery.Itisbuilt-inand
not changeable.
• Chargethebatteryinaccordancewiththeinstructionssuppliedwiththisguide.
• UseonlythechargersuppliedbyJawbone®headset’soriginalmanufacturerto
charge the battery.
SAFETY INFORMATION
WA R N I N G
Failure to follow these safety instructions could
result in hearing damage or in fire, electric shock,
or other injury or damage.
Avoiding Hearing Damage
Permanent hearing loss may occur if the Jawbone® headset is used at a high volume.
Set the volume to a safe level. Even though you may become accustomed to a higher
volume of sound, and even though it may sound normal, any higher volume of sound can
be damaging to your hearing. If you experience ringing in your ears or muffled speech,
stop listening and have your hearing checked. The louder the volume, the less time is
required before your hearing could be affected. The Jawbone® headset has been initially
set at a medium volume for sound. Do not increase the level of volume unless you are in
conditions where you need a higher level for a short period of time. If this level of volume
is uncomfortably high for you, you should decrease this level.
h E A R I N G E X P E R T S S U G G E S T T h A T T O P R O T E C T YO U R h E A R I N G :
1 Limit the amount of time you use the Jawbone® headset including use at
high volume.
2 Avoid turning up the volume to block out noisy surroundings.
3 Turn the volume down if you can’t hear people speaking near you.

28 29
• DonotcleanyourJawbone®headsetwhileitisbeingcharged.Alwaysunplugthe
charger first before cleaning the Jawbone® headset.
• DonotattempttorepairormodifytheJawbone®headsetyourself.TheJawbone®
headset does not contain any user-serviceable parts. If the Jawbone® headset has
been submerged in water, punctured, or subjected to a severe fall, do not use it
until you take it back to your original place of purchase.
• Donotattempttoforceopenthebuilt-inbattery.
• DisposeofthebatteryintheJawbone®headsetaccordingtolocalregulations.
Do not dispose of the battery with household waste.
• DisposalofthepackagingandyourJawbone®headsetshouldbedonein
accordance with local regulations.
• Pleaseonlyusewiththepowersupplyadapterprovided,Jawbone®model
number S P A - K 9 0 1 .
• PleaseonlyusethesuppliedUSBcabletochargetheJawbone®headset,
Jawbone® model number J B G D M U S B - C C .
Charger Care
• UseonlythechargersuppliedbytheJawbone®headset ’soriginalmanufacturerto
charge your Jawbone® headset. Other chargers may look similar but using them could
be dangerous and could damage the Jawbone® headset.
• Donotattempttodisassemblethechargerasitmayexposeyoutodangerous
electric shock.
• Donotusethechargeroutdoorsorindampareas.
• OnlychargeyourJawbone®headset’sbuilt-inbatteryinaccordancewiththe
instructions described in this guide.
• AvoidchargingyourJawbone®headsetinextremelyhighorlowtemperatures.
• DonotuseyourJawbone®headsetwhileitischarging.
• DonotconnecttheJawbone®headsettothechargerwhileonanactivecall.
Safety Information
• Checkandobservelocallawsregardingtheuseofamobilephoneandheadsetwhile
driving. If you use the Jawbone® headset while driving, ensure that you maintain your
full attention and focus; it is your responsibility to drive safely. Consider pulling off
the road before making or answering a call.
• NeverallowchildrentoplaywiththeJawbone®headset;thesmallcomponentsofthe
headset may be a choking hazard.
• DonotleaveorstoretheJawbone®headsetoranyofitsaccessoriesintheareaover
the air bag or in the air bag deployment area of an automobile as serious injury may
result when an air bag deploys.
• ObserveallsignsanddisplaysthatrequireanelectricaldeviceorRFradioproductto
be switched off in designated areas.
• TurnoffyourJawbone®headsetpriortoboardingaircraft.DonotusetheJawbone®
headset inside an aircraft in flight unless allowed by your airline.
• NeverusetheJawbone®headsetwhiletakingabath.
• DonotusetheJawbone®headsetinasaunaorsteamroom.
• DonotkeepyourJawbone®headsetnearasinkorotherwetareas.

30 31
G E T M O R E h E LP ( I F YO U N E E D I T )
V I S I T J AW B O N E . CO M / S U P P O R T
for video tutorials
C A L L 1 - 8 77 - 2 5 4 - 74 2 6
G O TO J AW B O N E . CO M / WA R R A N T Y
for warranty info
P U R C H A S E the official Jawbone Cable
Kit, Jawbone ERA™Fit Kit and other
accessories at W W W. J AW B O N E . C O M
F O LL O W us on Facebook® & Twitter®
JAW B O N E . C O M / FAC E B O O K
JAW B O N E . C O M / T W I T T E R
All returns must be made to the original place of purchase.
© 2 0 1 0 J A W B O N E . A L L R I G H T S R E S E R V E D . 7 7 0 - 0 0 3 2 6 R E V A
This product is compliant with the CE directive.
Other Notes
P A C K A G I N G A N D P R O D U C T D I S P O S A L Dispose of the packaging and this product
in accordance with the latest provisions.
I C R S S - G E N This device complies with RSS 210 of Industry Canada. Operation is
subject to the following two conditions:
1This device may not cause interference, and
2This device must accept any interference, including interference
that may cause undesired operation of the device.
f C C N O T I C E This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
1This device may not cause harmful interference, and
2This device must accept any interference received, including interference
that may cause undesired operation.
C A U T I O N S
•Any changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate this equipment.
•This device and its antenna(s) must not be co-located or operating in
conjunction with any other antenna or transmitter.
f C C I D : V 3 J - J B f. I C : 7 5 8 9 A - J B f .
To locate the FCC and IC identification numbers, please remove the earbud from
the Jawbone headset.
Powered by MotionX™. US and foreign patents granted and pending. TapTap®
and ShakeShake® are registered trademarks of Fullpower Technologies, Inc.
©Copyright 2003-2010 Fullpower Technologies, Inc. All rights reserved.
iPhone® is a registered trademark of Apple Inc. BlackBerry® is a registered trademark
of Research In Motion Limited. Android is a trademark of Google Inc. Use of this
trademark is subject to Google Permissions www.google.com/permissions/index.html
