Jawbone Icon HD User manual

ENGLISH/ESPAÑOL
USER GUIDE
ICON HD™+THE NERD™

INTRODUCTION
POWER UP
GET COMFORTABLE
GET CONNECTED
GET TALKING & MORE
GET APPS & UPDATES
SPECS & CHEAT SHEET
SAFETY INFORMATION
CONTENTS
1
2
3
4
PAGE 4
10
12
15
20
22
24
28
WATCH VIDEO TUTORIALS AT
JAWBONE.COM/SUPPORT

45
INTRODUCTION

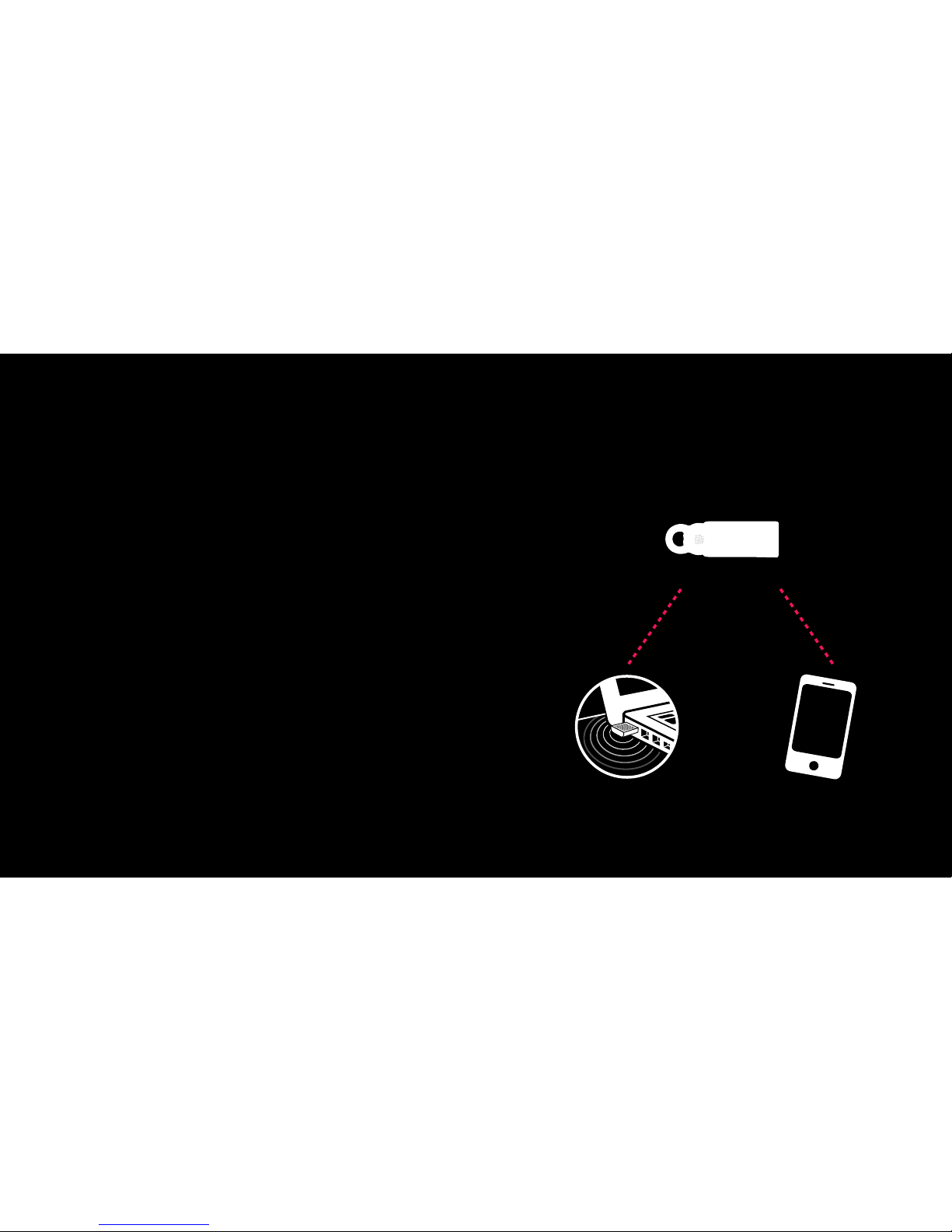

ICON HD™is a versatile headset that
wirelessly connects to all your favorite
Bluetooth devices: phones, tablets,
game consoles, laptops, and THE NERD™
(your Wire-Free USB Audio adapter for
use with any computer).
To begin using ICON HD with your
computer, you must first pair it with
THE NERD (see page 18).
After pairing your headset with THE NERD,
it will automatically work with any computer
when you plug in THE NERD. THE NERD is
a Wire-Free USB Audio adapter that
eliminates the need to fumble with your
computer’s Bluetooth settings.
To use ICON HD with other Bluetooth
devices, simply pair it directly with each
device you wish you use it with (see
page 16).
ICON HD
THE NERD BLUETOOTH
DEVICE

67
MICRO USB
LED RING
TALK BUTTON
VOICE ACTIVITY SENSOR
ON/OFF SWITCH

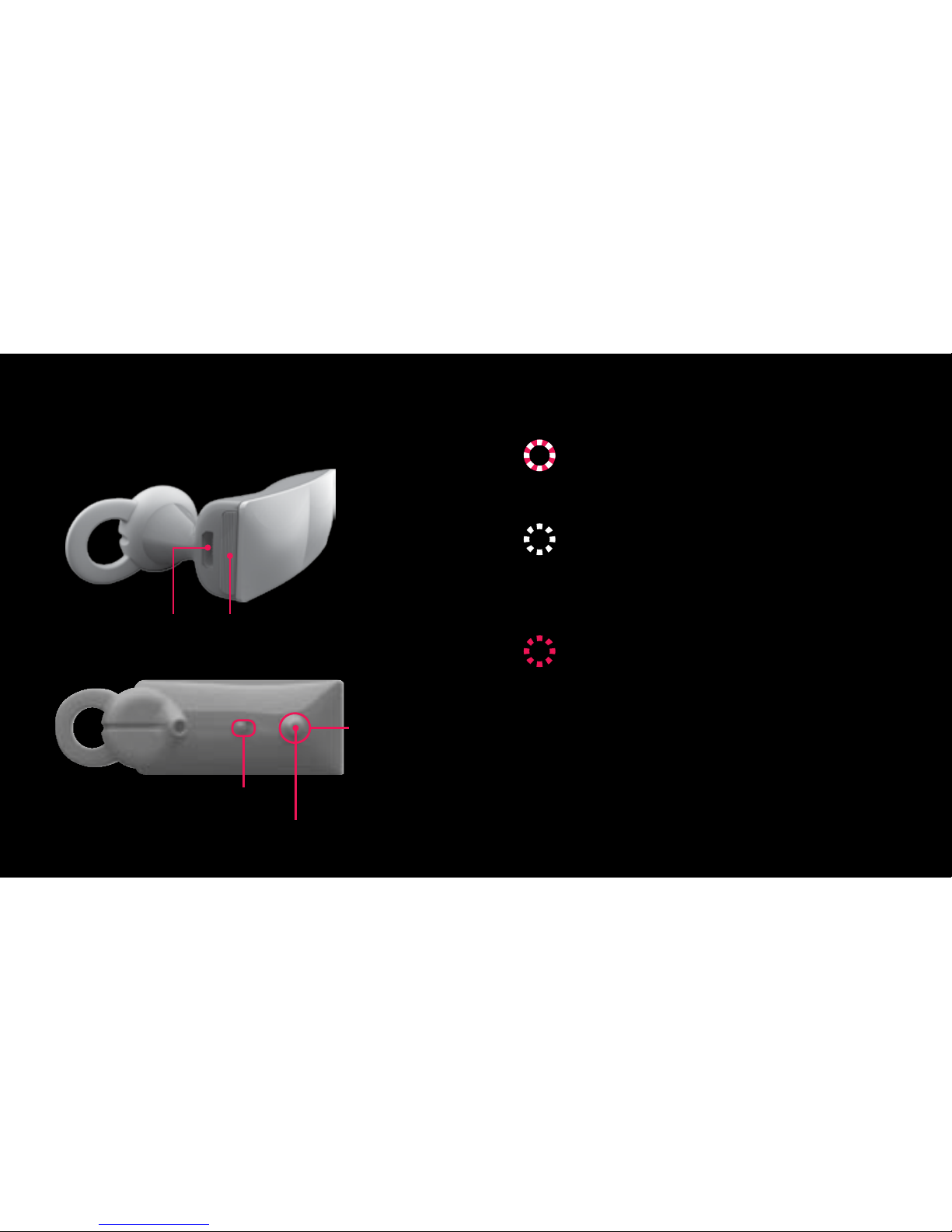

ICON HD ANATOMY I F T H E LE D R I N G I S . . .
f L A S H I N G R E D + W H I TE
ICON HD is in pairing mode.
f L A S H I N G WH I T E
ICON HD is trying to connect
to your phone or THE NERD™.
f L A S H I N G R E D
Battery is low. Power up!
67

89
89

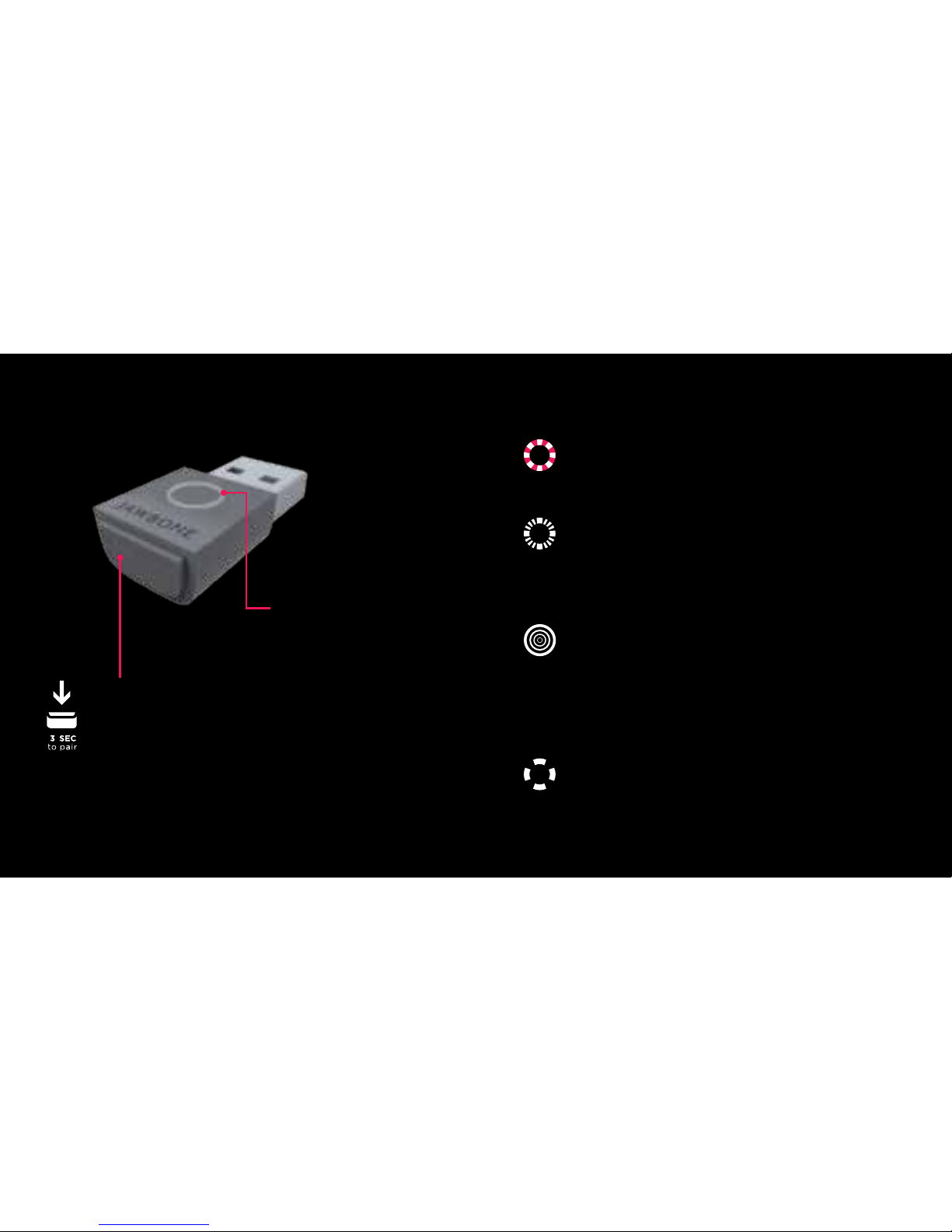

THE NERD ANATOMY
LED
B U T T O N
Press & hold for 3 seconds
to enter pairing mode.
I F TH E L E D IS . . .
f L A S H I N G R E D + W H I TE
THE NERD™is in pairing mode.
f L A S H I N G Q U I C K LY (3 B L I N K S )
THE NERD is trying to connect
to your ICON HD™.
P U L S I N G ( fA D E I N /O U T )
THE NERD is connected to
your ICON HD and waiting to
stream audio.
f L A S H I N G (1 O R 2 B L I N K S )
THE NERD is streaming audio
to your ICON HD.

10 11
POWER UP TO H E AR RE MAININ G BATTERY LIFE
Press the TA L K B U T T O N when not
on a call.
WHEN BATTERY I S LOW
The L E D R I N G on your ICON HD will
flash R E D .
BAT T E RY M E T E R O N YO U R P H O N E
IPHONE®
Shows up automatically when connected.
OTHERS (ANDROID™& BLACKBERRY®)
Go to MYTALK.JAWBONE.COM.

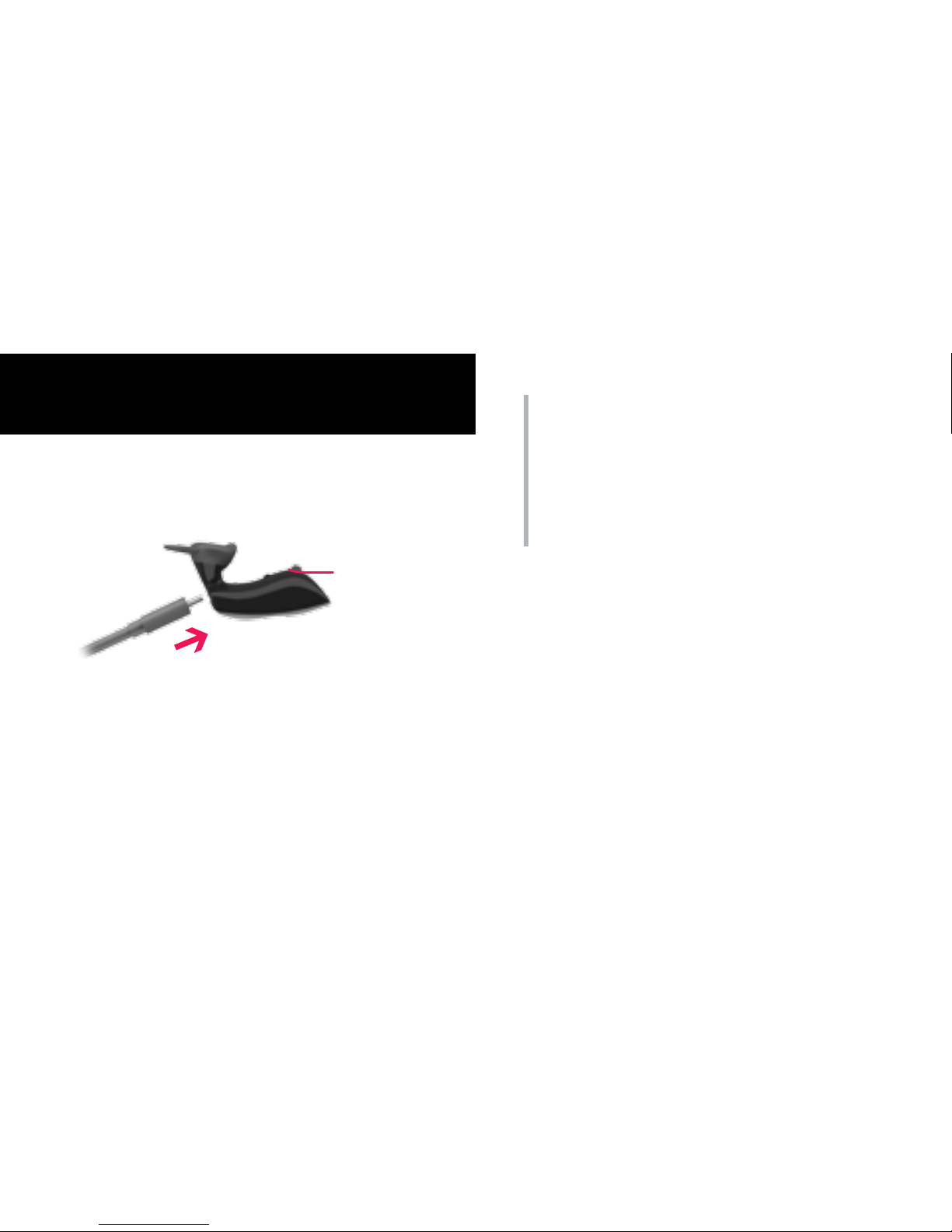

To charge, plug your headset into the wall
charger or USB port on your computer.
NOTE It takes 40 minutes to get your
ICON HD 80% charged. A full charge
takes 90 minutes. When fully charged, the
LED RING on your ICON HD will turn white.
LED RING

12 13
1 . 1 f I N D YO U R f I T

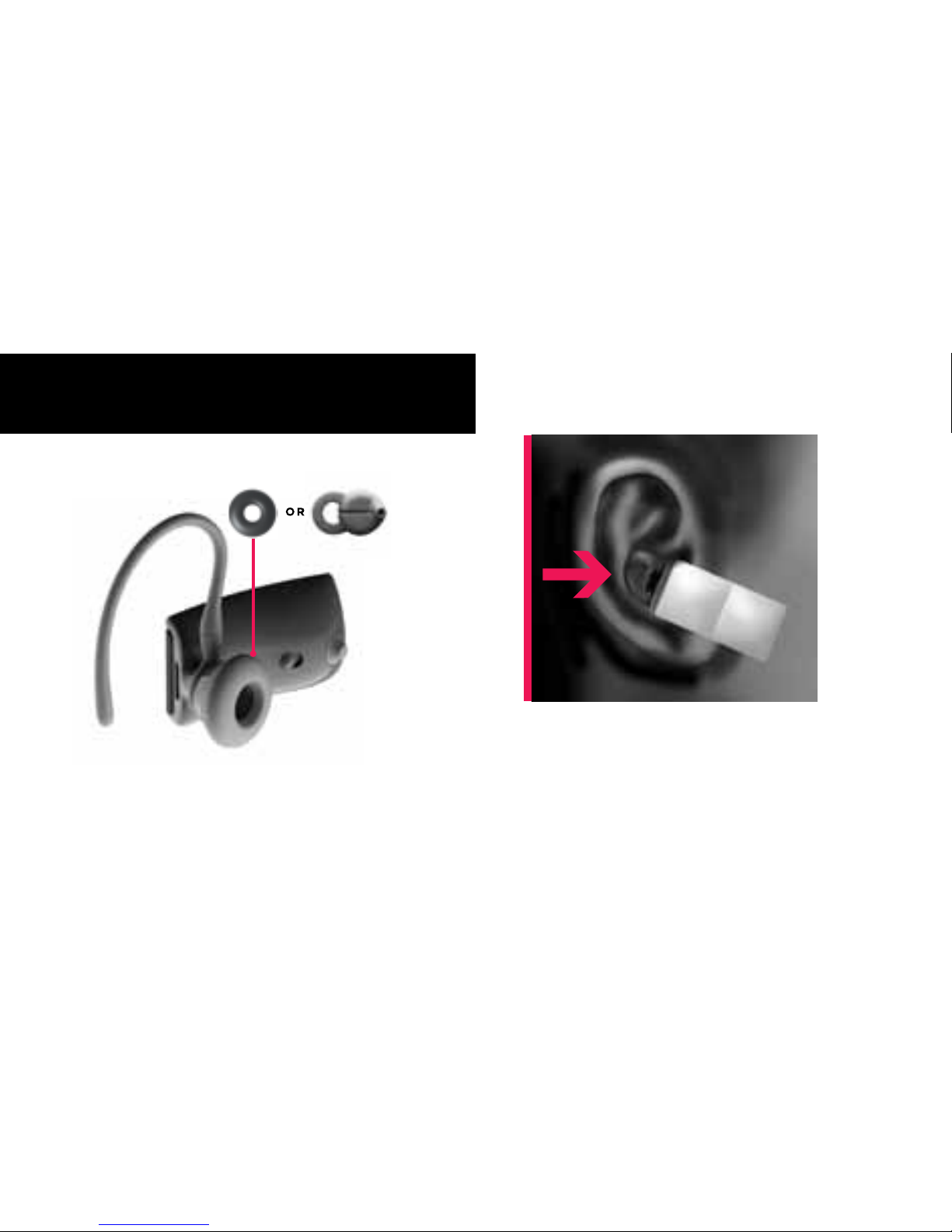

Mix and match earbuds with the optional
earloop to find the most comfortable and
secure fit option for you.
EARLOOP
OPTIONAL
If you try a Spout earbud, tuck the
tab behind this fold in your ear.
1 GET COMFORTABLE

14 15
1 . 2 E N S U R E B E S T Q UA LI T Y

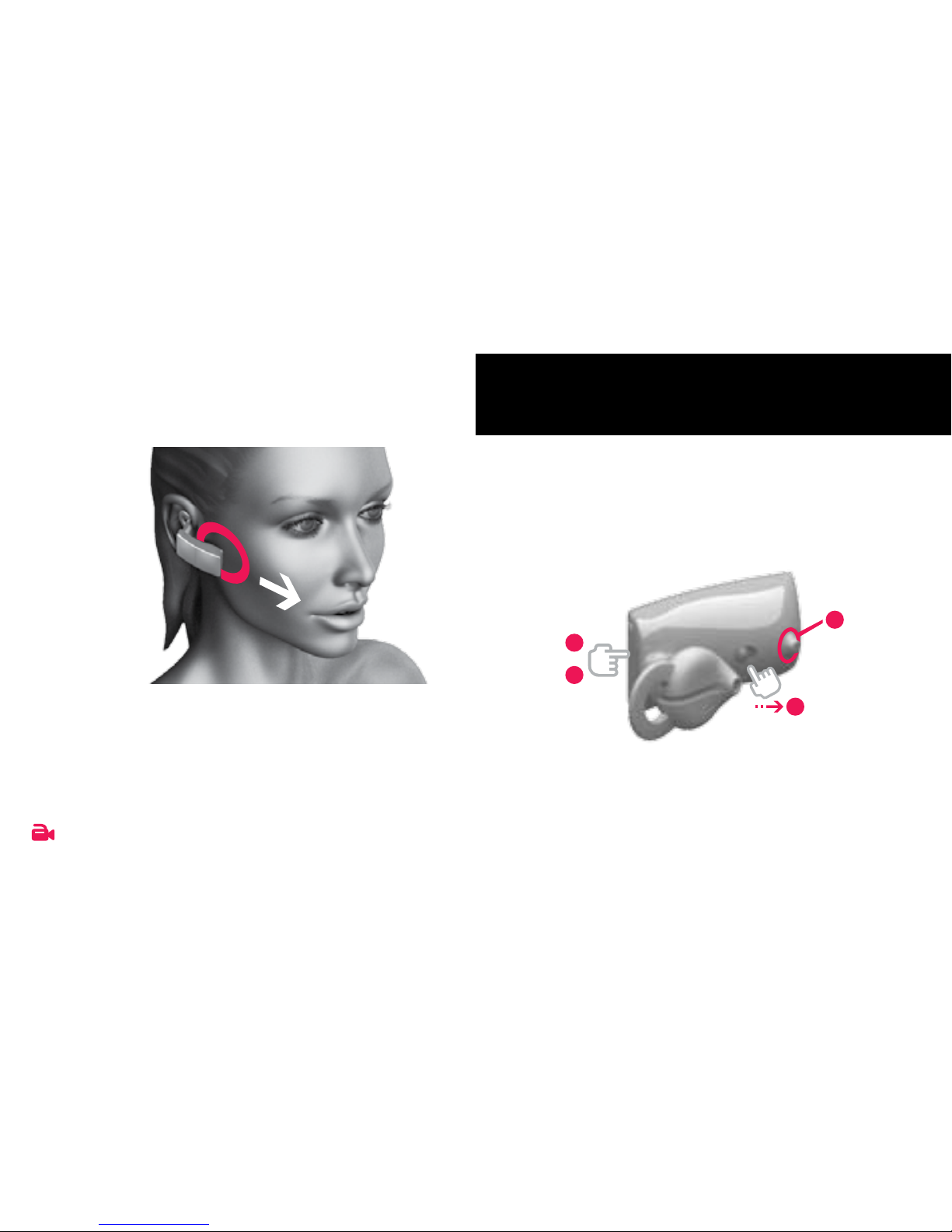

For best performance, the rubber Voice
Activity Sensor should touch your cheek
and the headset should point towards
your mouth.
VO I C E
AC T I VI T Y
S E N S O R
Watch video tutorials at JAWBONE.COM/fIT
Before you can begin using your ICON HD™,
you must pair it with your phone and/or
THE NERD™.
2 . 1 P R E PAR E YO U R I CO N H D
1 Press & hold the TA L K B U T T O N .
2 Slide the P O W E R S W I T C H on.
3 Wait for the LED R IN G to flash red & white.
4 Release the TA L K B U T T O N .
2 GET CONNECTED
1
4
2
3

16 17
3 Go to your phone’s Bluetooth® settings.
ADD OR SEARCH FO R D E V ICES
When “Jawbone ICON HD” appears,
select it.
IF ASKED FOR A PASSCODE
Enter “0000”.
This is a one-time event per phone.
To pair your ICON HD to another phone,
repeat 2.2.
2 . 2 PAIR ICON HD WITH YOUR PHONE
1 Activate pairing mode on your ICON HD.
See 2 . 1 .
2 Turn on Bluetooth®.
ON AN IPHONE ®
Go to S E T T I N G S > G E N E R A L >
and enable B L U E TO O TH .
ON A BL AC K B E RRY ®
Go to S E T T I N G S /O P T I O N S >
B L U ET OOT H and enable B L U E TO O TH .
ON AN ANDROID™PHON E
Go to S E T T I N G S > W I R E L E S S
& N E T W OR K > B L U E T O OT H S E T T I N G S
and enable B L U E TO O TH .
OTHE R C E LL PH ON E S
Go to J AW B O N E . CO M / PA I R I N G or
review the instruction manual that
came with your phone.

18 19
2 . 3 PA I R I CO N H D W I T H T H E N E R D
1 Activate pairing mode on your ICON HD.
See 2.1.
2 Plug THE NERD into your computer.
3 Press and hold THE NERD B U T T O N for
about three seconds until THE NERD
L E D flashes red & white. When pairing is
complete, THE NERD LE D and ICON HD
L E D will both turn white.
4 Go to the sound settings on your
computer and select “Jawbone NERD”
as the output/input device (Mac) or
playback/recording device (PC).
NOTE Do not adjust the Bluetooth settings
on your computer.
Your ICON HD is now paired with THE
NERD. To use ICON HD with any computer,
just plug in THE NERD.
To pair THE NERD with other Jawbone
devices, repeat step 2.3.

20 21
3 . 1 AN SWE R / E N D A C A LL (PHO N E O N LY )
Press the TA L K B U T T O N on your ICON HD
to both answer and end a call.
DECLI N E A N I N COMING CALL
Hold the TALK BUTTON for 2 seconds.
3 . 2 M A K E A C A L L
Use your phone or computer to dial as usual.
Listen and talk through your ICON HD.
ACTIVATE DIALAPP (PHONE ONLY )
Hold the TA L K B U T T O N until you hear
a beep, then release and follow the voice
prompts. VoiceDial is pre-loaded.
RE DIAL L A ST NU MB E R (PH ONE O N LY )
Press the TA L K B U T T O N twice.
3 GET TALKING & MORE 3 . 3 SIMULTANEOUS CALLS (PHONE ONLY)
To switch between calls, press the TA L K
B U T T O N . To end one call and switch to the
other, press the TA L K B U T T O N twice.
3 . 4 ADJ U S T T H E VO LU M E
Use the volume control on your phone or
computer. Or, while on a call or listening to
music, P R E S S + H O L D the TA L K B U T T O N .
The volume level will cycle up and down.
Release the button to set your volume.
3 . 5 CO N T RO L M E D I A ( P H O N E O N LY )
To pause streaming audio playing from
your mobile device, press the TA L K
B U T T O N once. To play, press three times.

22 23
Jawbone® MYTALK lets you personalize and
update your Jawbone via the web.
Visit MYTALK.JAWBONE.COM
P E R S O N A L I Z E YO U R I C O N H D
AU D IOAPPS
Change the voice that tells you
information such as battery life
and caller ID.
D IA L AP P S
Customize the TA L K B U T T O N to
speed dial your favorite number, or
link directly to 411, voice-to-text, and
other voice services.
INNOVATIONS
Try our newest software creations
designed exclusively for your
Jawbone ICON HD.
U P DAT E I C O N H D S O f T WA R E
Make sure you are using the latest version
of the Jawbone ICON HD software by
logging on to MYTALK.JAWBONE.COM.
E X T R A S
Extras is a collection of helpful apps that
can enhance your ICON HD experience.
They might just change the way you use
your ICON HD.
Check them out at MYTALK.JAWBONE.COM.
4 GET APPS & UPDATES

24 25
I C O N H D S P E C I f I C AT I O N S
TALK TIME Up to 4.5 hours
STANDBY TIME Up to 10 days
CHARGING 40 minutes (80%); 90 Minutes (full)
WIRELESS RANGE 33ft (10m)
BLUETOOTH® 2.1 +EDR, HSP 1.1, HFP 1.5,
A2DP 1.2, AVRCP 1.0
CONNECTIONS Supports up to 8 paired devices
and 2 active HFP and A2DP connections with
Multipoint
SPEAKER Larger, improved speaker (10mm)
AUDIO QUALITY HD Audio (16KHz)
WEIGHT 8.2 grams
DIMENSIONS 44 mm x 18 mm x 25 mm
SPECIFICATIONS &
CHEAT SHEET T H E N E R D S P E C I f I C AT I O N S
WIRELESS RANGE 33ft (10m)
BLUETOOTH® 2.1 +EDR, HSP 1.1, HFP 1.5,
A2DP 1.2, AVRCP 1.0
USB USB 2.0, Audio Device Interface
WEIGHT 3.1 g
DIMENSIONS 28 mm x 15 mm x 8 mm

27
26
I CO N H D C H E AT S H E E T
ACTION
ACTIVATE PAIRING
MODE*
ANSWER CALL
END CALL
SWITCH BETWEEN
CALLS
END CALL & ANSWER
INCOMING
REDIAL LAST NUMBER*
ADJUST VOLUME
PAUSE MEDIA*
PLAY MEDIA*
HE ADSET CO NTROL
Hold TALK Button + Switch On
(LED flashes Red + White)
Press TALK Button
Press TALK Button
Press TALK Button
Press TALK Button 2X
Press TALK Button 2X
Hold TALK button or
adjust on your device
Press TALK Button
Press TALK Button 3X
ACTIVATE VOICEDIAL/
DIALAPPS*
HEAR BATTERY STATUS*
RE-CONNECT TO
PAIRED DEVICE
T H E N E R D C H E AT S H E E T
ACTION
ACTIVATE PAIRING
MODE*
*not during a call
Hold TALK Button
Press TALK Button
Press TALK Button
HE ADSET CO NTROL
Hold THE NERD Button until
LED flashes Red + White

28 29
SAFETY INFORMATION
WA R N I N G
Failure to follow these safety instructions could
result in hearing damage or in fire, electric shock,
or other injury or damage.
Avoiding Hearing Damage
Permanent hearing loss may occur if the Jawbone® headset is used at a high volume.
Set the volume to a safe level. Even though you may become accustomed to a higher
volume of sound, and even though it may sound normal, any higher volume of sound
can be damaging to your hearing. If you experience ringing in your ears or muffled
speech, stop listening and have your hearing checked. The louder the volume, the less
time is required before your hearing could be affected. The Jawbone® headset has
been initially set at a medium volume for sound. Do not increase the level of volume
unless you are in conditions where you need a higher level for a short period of time.
If this level of volume is uncomfortably high for you, you should decrease this level.
H E A R I N G E X P E R T S S U G G E S T T H AT T O P R O T E C T Y O U R H E A R I N G :
1 Limit the amount of time you use the Jawbone® headset including use at
high volume.
2 Avoid turning up the volume to block out noisy surroundings.
3 Turn the volume down if you can’t hear people speaking near you.
Jawbone Headset Care
• DonotexposeyourJawbone®headsettoliquid,moisture,humidity,orrain.
The Jawbone® headset is not waterproof.
• DonottamperwithorabusetheJawbone®headset.Forexample,without
limitation, do not drop, disassemble, open, crush, bend, deform, puncture,
shred, microwave, incinerate, paint, or insert foreign objects into the
Jawbone® headset.
• DonotuseabrasivecleanerstocleanyourJawbone®headset.
• DonotexposeyourJawbone®headsettoextremelyhighorlowtemperatures.
• DonotleaveyourJawbone®headsetindirectsunlightforanextended
period of time.
• DonotleaveyourJawbone®headsetnearopenflamessuchas
cooking burners.
• DonotdisposeofyourJawbone®headsetinare.Thebatterycouldexplode.
• DonotbringyourJawbone®headsetintocontactwithanysharpobjects.
This can cause scratches and damage.
• DonotinsertanythingintoyourJawbone®headsetunlessotherwise
specified in the user manual. This may damage the internal components.
• DonotattempttodisassembleyourJawbone®headset,itdoesnotcontain
serviceable components.
• DonotwearyourJawbone®headsetwithoutanJawbone®approvedearbud.
Built-in Bat tery Care
• DonotattempttoreplaceyourJawbone®headset’sbattery.Itisbuilt-inand
not changeable.
• Chargethebatteryinaccordancewiththeinstructionssuppliedwith
this guide.
• UseonlythechargersuppliedbyJawbone®headset’soriginalmanufacturer
to charge the battery.

30 31
Charger Care
• UseonlythechargersuppliedbytheJawbone®headset’soriginalmanufacturer
to charge your Jawbone® headset. Other chargers may look similar but
using them could be dangerous and could damage the Jawbone® headset.
• Donotattempttodisassemblethechargerasitmayexposeyouto
dangerous electric shock.
• Donotusethechargeroutdoorsorindampareas.
• OnlychargeyourJawbone®headset’sbuilt-inbatteryinaccordancewiththe
instructions described in this guide.
• AvoidchargingyourJawbone®headsetinextremelyhighorlow
temperatures.
• DonotuseyourJawbone®headsetwhileitischarging.
• DonotconnecttheJawbone®headsettothechargerwhileonanactivecall.
Safety Information
• Checkandobservelocallawsregardingtheuseofamobilephoneand
headset while driving. If you use the Jawbone® headset while driving, ensure
that you maintain your full attention and focus; it is your responsibility to
drive safely. Consider pulling off the road before making or answering a call.
• NeverallowchildrentoplaywiththeJawbone®headset;thesmallcomponents
of the headset may be a choking hazard.
• DonotleaveorstoretheJawbone®headsetoranyofitsaccessoriesinthe
area over the air bag or in the air bag deployment area of an automobile as
serious injury may result when an air bag deploys.
• ObserveallsignsanddisplaysthatrequireanelectricaldeviceorRFradio
product to be switched off in designated areas.
• TurnoffyourJawbone®headsetpriortoboardingaircraft.Donotusethe
Jawbone® headset inside an aircraft in flight unless allowed by your airline.
• NeverusetheJawbone®headsetwhiletakingabath.
• DonotusetheJawbone®headsetinasaunaorsteamroom.
• DonotkeepyourJawbone®headsetnearasinkorotherwetareas.
• DonotcleanyourJawbone®headsetwhileitisbeingcharged.Alwaysunplug
the charger first before cleaning the Jawbone® headset.
• DonotattempttorepairormodifytheJawbone®headsetyourself.
The Jawbone® headset does not contain any user-serviceable parts. If the Jawbone®
headset has been submerged in water, punctured, or subjected to a severe fall, do
not use it until you take it back to your original place of purchase.
• Donotattempttoforceopenthebuilt-inbattery.
• DisposeofthebatteryintheJawbone®headsetaccordingtolocalregulations.
Do not dispose of the battery with household waste.
• DisposalofthepackagingandyourJawbone®headsetshouldbedonein
accordance with local regulations.
• Pleaseonlyusewiththepowersupplyadapterprovided,
Jawbone model number S P A - K 9 0 1 .
• TheshortwaveradiofrequencysignalsofaBluetoothdevicemayimpairthe 
operation of other electronic and medical devices.
• Switchoffthedevicewhereitisprohibited.Donotusethedeviceinmedical 
facilities, aircraft, refueling points, close to automatic doors, automatic fire alarms
or other automatically controlled devices.
• Keepthisdeviceatleast20cmfrompacemakersandothermedicaldevices. 
Radio waves may impair the operation of pacemakers and other medical devices.
Other Notes
P A C K A G I N G A N D P R O D U C T D I S P O S A L Dispose of the packaging and this product
in accordance with the latest provisions.
f C C N O T I C E : This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:

32
• Reorientorrelocatethereceivingantenna.
• Increasetheseparationbetweentheequipmentandreceiver.
• Connecttheequipmentintoanoutletonacircuitdifferentfromthatto
which the receiver is connected.
• Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
C A U T I O N S Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
f C C C O M P L I A N C E This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
1This device may not cause harmful interference, and
2This device must accept any interference received, including interference
that may cause undesired operation.
I C R S S - G E N Operation is subject to the following two conditions:
1This device may not cause interference, and
2This device must accept any interference, including interference that may
cause undesired operation of the device.
f C C I D : V 3 J - J B G . I C : 7 5 8 9 A - J B G .
To locate the FCC and IC identification numbers, please remove the earbud from
the Jawbone headset.
f C C I D : V 3 J - J B D . I C : 7 5 8 9 A - J B D .
To locate the FCC and IC identification numbers, please look on the underside
of the Jawbone device.
G E T M O R E H E L P ( I F YO U N E E D IT )
V I S I T JAW B O N E . CO M / S U P P O R T
for video tutorials
C A L L 1 - 87 7 - 2 5 4 - 74 2 6
G O T O J AW B O N E . C O M / WA R R A N T Y
for warranty info
P U R C H A S E the official Jawbone Cable
Kit, Jawbone ICON HD™Fit Kit and other
accessories at W W W. J AW B O N E . C O M
F O LL OW us on Facebook® & Twitter®
JAW B O N E . C O M / FAC E B O O K
JAW B O N E . C O M / T W I T T E R
All returns must be made to the original place of purchase.
© 2 0 1 1 J A W B O N E . A L L R I G H T S R E S E R V E D . 7 7 0 - 0 0 3 1 8 R E V C
This product is compliant with the CE directive.
©2011 Jawbone. Reproduction in whole or in part is prohibited. All rights reserved.
Jawbone®, NoiseAssassin®, ICON HD™, THE NERD™and Wire-Free™are trademarks of
Jawbone. The Bluetooth® word mark and logos are owned by Bluetooth SIG, Inc. and any
use of such marks by Jawbone is under license. iPhone® is a registered trademark of
Apple Inc. BlackBerry® is a registered trademark of Research In Motion Limited. Android
and Google Talk are trademarks of Google Inc. Use of these trademarks are subject to
Google Permissions. Other trademarks and trade names are those of their respective owners.

34
