Shed Alarm Kit
User Manual
INTRODUCTION

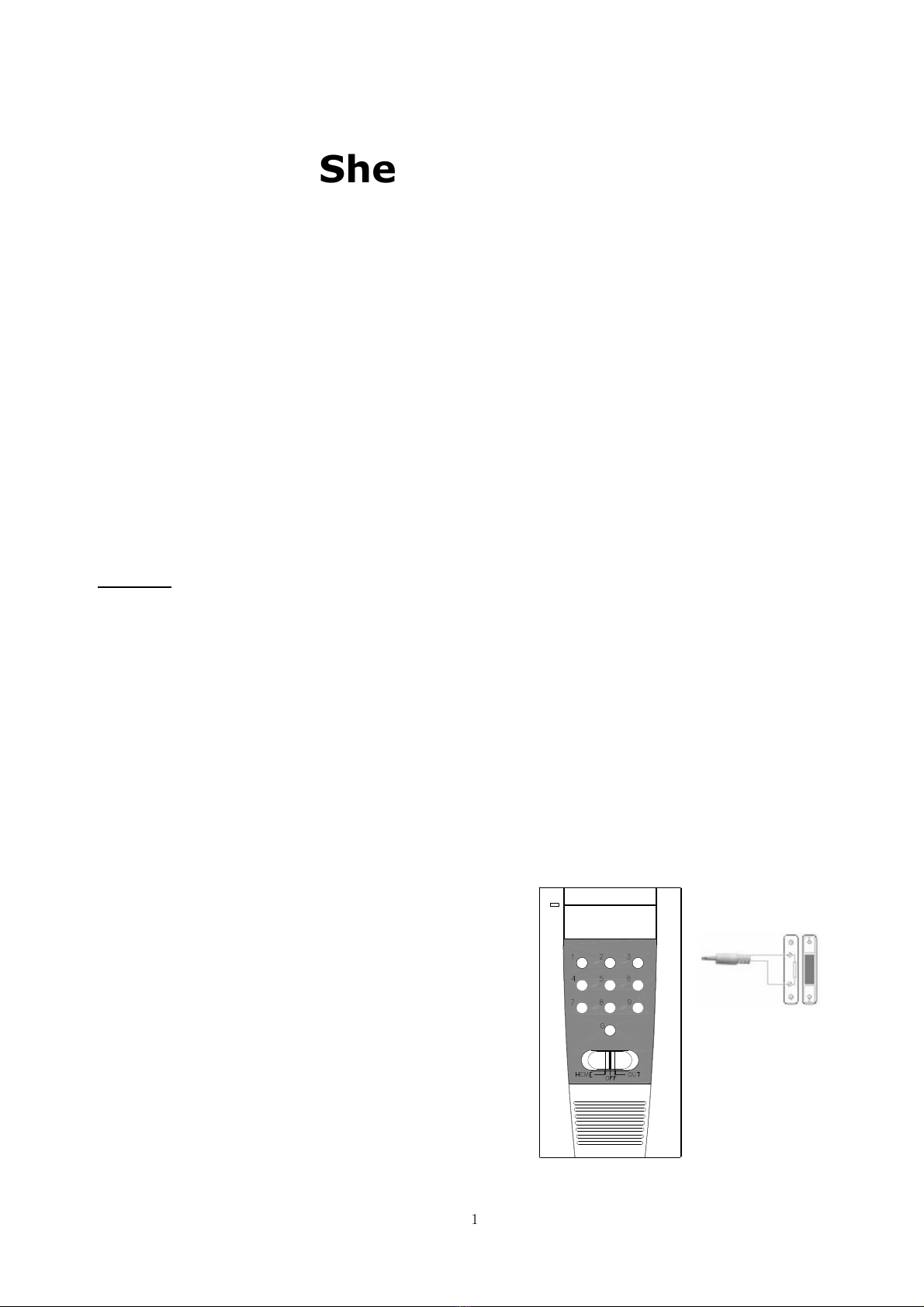

The Shed Alarm Kit is an intruder alarm and chime integrated system, designed to protect
your shed. It is a simple to use, easy to install unit.
Whats included in the pack : What you need to purchase :
1 x Shed Alarm 1 x 9V PP3 Alkaline Battery
1 x Door/Window Contact Detector fitted with 5m cable
Fixing Kit (cable clips, screws and wall plugs)
IMPORTANT – Please read this manual carefully, in full, before commencing installation. You
will find installation easier if you follow these steps in the sequence shown.
SAFETY
Before proceeding with the installation, please note the following safety warnings:
DO NOT connect the mains supply directly to the products, this will cause permanent damage
to the products.
Control panel and Door/Window contact are for indoor use only. Avoid mounting location which can
expose the product to splashing or dripping liquid.
Always follow the manufacturer’s advice when using power tools and wear suitable protective
equipment (e.g. safety goggles) when drilling holes, etc. Before drilling holes in walls, check for
hidden electricity cables and water pipes. The use of a cable/pipe locator is advisable if in doubt.
Batteries should not be exposed to excessive heat such as sunshine, fire or the like; danger of
damage if battery is incorrectly replaced. Replace only with the same or equivalent type. (Do not
mix batteries type).
1. Installation -------------P. 2-3
2. Working modes --------- P. 4-5
 Door chime
 Instant alarm
 Delay alarm
3. Panic alarm -------------P.6
4. Change password -------P.6
5. Alarm Hold -------------P.6
6. Indications -------------P.7

2
1. Installation

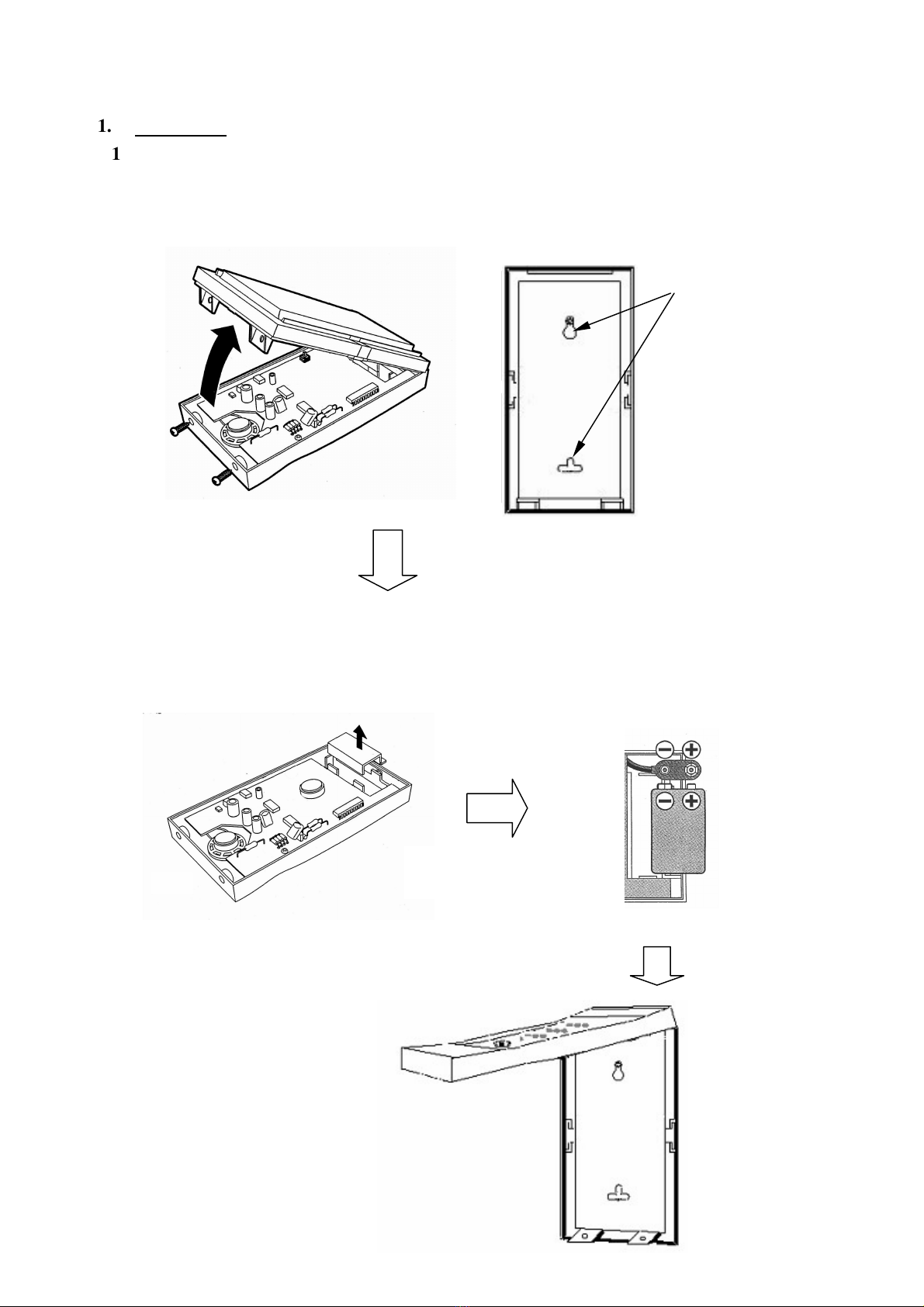

1.1) Mounting of back-plate
a. Mark holes on the wall near the door with the back-plate.
b. Then use the screws provided to hang on the back-plate.
1.2) Installation of Main Unit
a.Make sure the Slide Switch is on OFF position.
b. Install the 9V battery into the battery compartment of the main unit
.
c. Secure the Main Unit top case / PCB
onto the back-plate.
Mounting
Holes

3
1.3) Fix the Main Unit top case / PCB with
the two screws at the base.
1.4) Installation of Door Contact Magnetic Switch.
Fix the magnet on the door, align it with. the contact switch so that they are no more than 8
mm apart. The contacts should be fitted no more than 5m away from the man unit.

4
2. Working Modes
DOOR CHIME
INSTANT ALARM
DELAY ALARM
OFF
OFFOFF
OFF OUT
OUTOUT
OUT
OFF
OFFOFF
OFF
HOME
HOMEHOME
HOME
OUT
OUTOUT
OUT
HOME
HOMEHOME
HOME
OUT
OUTOUT
OUT
OFF
OFFOFF
OFF
HOME
HOMEHOME
HOME
Open door
20 seconds

5
1
11
1
JP
SW2
U1
T1
SW1
SP1
BATT
}
How to operate
Use the slide switch to select HOME, OFF, and OUT mode.
At HOME mode, the alarm will sound immediately when the door is opened.
At OUT mode, when the door is opened, there is a 20 seconds delay before the alarm sounds.
The user may enter the PIN within the delay time to avoid the alarm being activated. (There is
a short Beep to indicate the exit delay is over and the system is armed)
At OFF mode, an entry chime (2 “Ding-Dong”) will sound when the door is opened.
The user may disable this Chime function by pulling out the “JUMPER”. (As shown on the
PCB diagram) (Factory default setting is with the “Chime” on)
A) Turn on Alarm System while Exiting the Shed
1) Push the slide switch to “OUT” position.
2) Close the door and leave the shed within 20 seconds.
B) Switch off Alarm System when Entering the Shed
1) Enter your own four-digit PIN number within 20 seconds. (Note: The factory preset PIN no. is “1 2 3 4”. To
change the PIN, please see procedure “4”)
2) Push the slide switch to “OFF” position.
C) When Inside the Shed
1) Push the slide switch to “HOME” position.
2) Magnetic Switch is activated to protect your shed
Red LED
Numbers
Slide Switch
HOME
HOMEHOME
HOME OUT
OUTOUT
OUT
OFF
OFFOFF
OFF
2
22
2
3
33
3 4
44
4
HOME
HOMEHOME
HOME OFF
OFFOFF
OFF OUT
OUTOUT
OUT
OFF
OFFOFF
OFF
HOME
HOMEHOME
HOME OUT
OUTOUT
OUT
Jumper
JumperJumper
Jumper

6

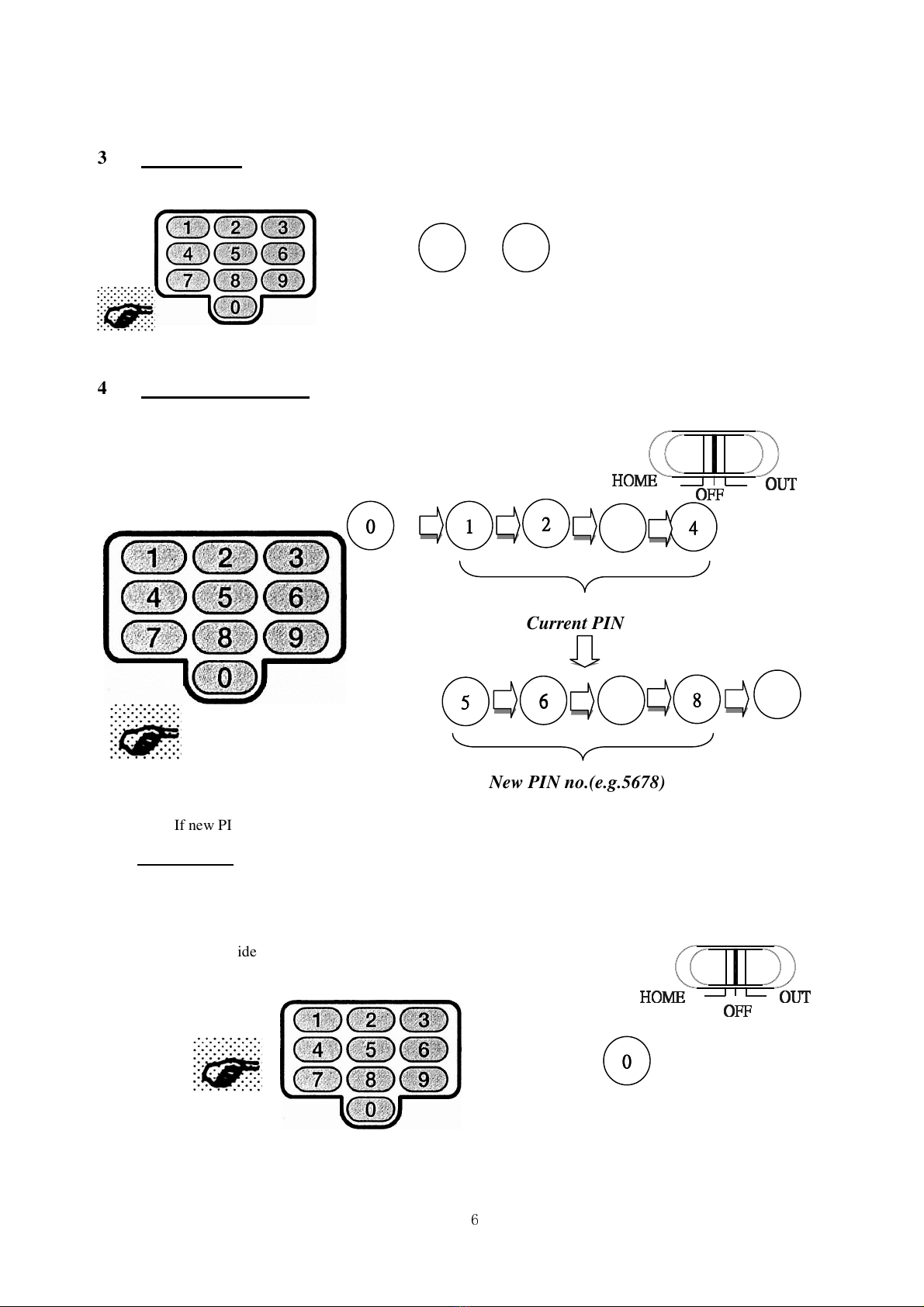

3) Panic Alarm
Press Buttons “7” and “9” together, alarm will sound immediately. (In case of emergency)
4) Change PIN Number
User is highly recommended to change the PIN number when using it for the first time.
1) Push the slide switch to “OFF” position.
2) Key in the PIN numbers as follows:
3) If new PIN is accepted, a short beep sounds. If the command is rejected, a long beep sounds.
5) Alarm Hold
After Magnetic Switch was triggered and continued sounding for 1.5 minutes, the Alarm Hold Light (Red
LED Indication) turns on. To turn off the Red LED Indication, do as follows
1) Push the slide switch to “OFF” position.
2) Press Button “0”. Then wait for 5 seconds.
9
99
9 7
77
7
+
++
+
HOME
HOMEHOME
HOME
OUT
OUTOUT
OUT
OFF
OFFOFF
OFF
HOME
HOMEHOME
HOME
OUT
OUTOUT
OUT
OFF
OFFOFF
OFF
0
00
0
3
33
3
7
77
7
2
22
2
8
88
8
0
00
0
5
55
5
1
11
1
6
66
6
4
44
4
Current PIN
New PIN no.(e.g.5678)
0
00
0

7
6. Indications:
·Alarm hold indication – Red led blinks once every second.
·Low battery indication – Red led blinks once every 4 seconds.
·Mode change – Red led blinks once
·Normal condition – No led on
·Negative response – One long beep
Note: 1. Pressing the valid four-digit PIN number can stop any alarm.
2. Red led blinks once per 4 seconds indicates that it is in low battery situation. Replace a new battery according to the
Installation section.
3. In case you forget the PIN number, take off the battery and replace it again after a couple of minutes. This restores the
PIN number to the factory default setting (1 2 3 4).
