Jazz DV150 Wiring and IR Mod.
1) Remove batteries from the camera
2) Remove the 6 screws which hold the case together. The two screws on the bottom of the
camera are located under the serial number label.
3) Open the batter door. GENTLY pr open the case from the bottom. Then push the front of
the case upward to dislodge the plastic case catches on the top of the camera
4) Now that the front of the case is removed, disconnect the microphone from the front of the
case. Simpl pull up on the rubber grommet to remove it from the mount hole. Remove the
screw which holds the record led in place and remove the led from under the holder

5) Pull the batter board out of its holder
6) Remove the two screws which hold the batter holder in place. Remove the batter holder
7) Remove the tape covering the speaker which is located under the batter holder, then remove
the speaker. No screws involved, it just pops out.

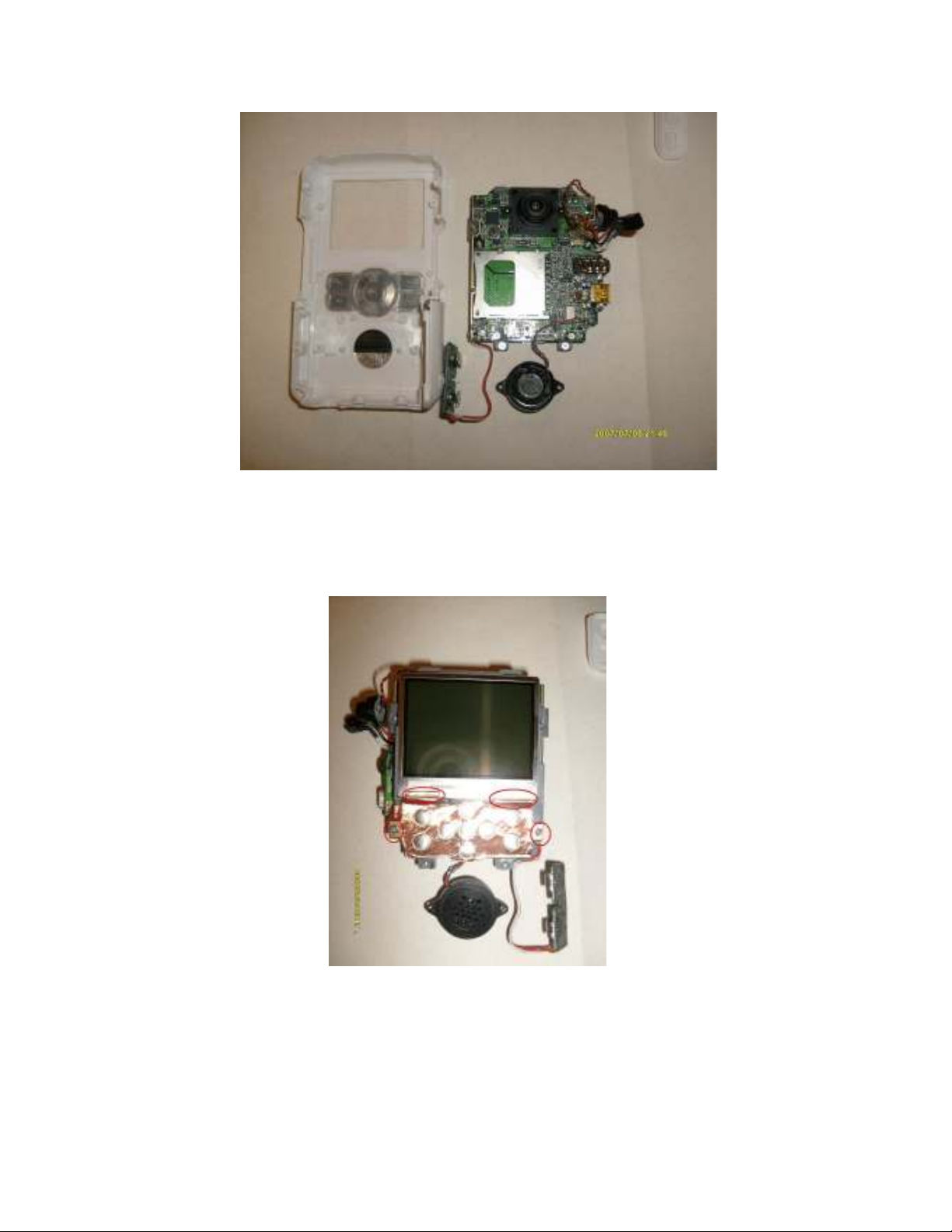

8) Remove the main board mounting screws. Shown in the red circles below.
9) Now gentl pull out the main board assembl and set to the side.

10) Flip the main board over and remove the two screws which hold the switch board in place.
Also, peel awa the copper film from the bottom of the LCD. Note: Directl above the left
screw, the copper film is soldered to the main board. Tr not to tear the copper from the main
board, but if it happens, it should be OK, the board will still operate. I think the copper film is
just for EMI noise emissions, not reall critical if it get torn.
11) Now, pull up on the switch board and it should come
right out. Flip it over. You will see the connector. The pin numbers are marked on the header,
Pin 1 is on the lower left, pin 2 the lower right, pin 9 the top left, pin 10 the top right.

12) Pins 1 and 4 are the power switch pins... pins 8 and 10 are the shutter pins. Solder the
wires as shown. MAKE SURE WHEN SOLDERING THE WIRE THAT YOU DO NOT
SHORT TO NEARBY PINS!!!
13) Next, we need to remove the lens from the camera and replace with a non IR coated lens.
First, pull the top of the LCD awa from the gra LCD holder. Under the holder, ou will see the
LCD ribbon cable. GENTLY pr open the left and right latch holders on the ribbon cable
connector and remove the LCD.

14)Now, flip the board over and remove the 4 screws which attach the gra lcd holder to the
main board.
15) Now ou will see the two screws that hold the lens holder in place. Remove them and
remove the lens. BE CAREFUL NOT TO SCRATCH THE CMOS SENSOR ELEMENT
WHICH IS UNPROTECTED!!!

16) Now simpl replace the old lens with the new lens. Be sure to use the screws that come with
the new lens because the are longer and hold the lens better.
17) The new lens is taller than the original, so then lens protector on the front case of the camera
will need to be removed. Also, the hole the lens hole in the case front will need to be widened to
allow the new lens to fit though. The last picture below shows the lens hole after it has been
widened

18) Now it is time to re-assemble the camera. Attach the gre lcd holder back onto the main
board.
19) Insert the LCD ribbon cable back into the connector and latch both ends. Place the lcd back
into the holder. Make sure ou clean the displa !
20) Install the switch board and screw down
21) Install the main board assembl back into the case and screw down. Be sure ou install the
USB cover onto the main board before re-installing the main board.
22) Install the SD card cover back into the case.
23) Install the speaker back into the mounts.
24) Install the batter contact board back into the case holder.
25) Now we need to add the 5
th
wire This is critical to the proper operation of the Jazz camera
You will solder this 5
th
wire to the Jazz Batter negative contact terminal

26)You can Run the control wires from the switch board as shown below. Remove the tripod
mount and exit the wires out of the tripod hole.
Or ou can drill a small hole just below the circuit board and attach the servo connector on the
back of the Case right below the Lcd screen and above the button pad.
Connecting the Jazz to the Bigfoot board

Wiring the Optional Sister Boards to the Bigfoot board
