Jazz HDV155 User manual

High Definition
Video Recorder with Camera
HDV155
User Manual

1
FCC statement
This device complies with part 15 of FCC rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.
Caution: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
- Consult the dealer or an experienced radio TV technician for help.
Pertinent testing documentation is available for verification.
This product also complies with Canada standard ICES 003.

2
CONTENTS
1. Parts of the video recorder..................................................................5
2. Preparing for using…………………………………………………………6
Installing the Battery............................................................................6
Inserting the Memory Card..................................................................7
Format the memory card .....................................................................8
Setting the Language...........................................................................9
Setting the date and time...................................................................10
Monitor screen display ...................................................................... 11
3. Using your video recorder.................................................................14
Turning the recorder ON and OFF ....................................................14
Change the MODE of the recorder....................................................14
Recording video clip ..........................................................................15
Taking still images .............................................................................16
Using the Self-timer and Burst snapshot.........................................17
Using the Zoom Function ..................................................................18

3
4. Using the Menu in recording mode...................................................18
Menu in video mode...........................................................................18
Menu in capture mode .......................................................................19
Setup menu / Internal setting ............................................................21
5. Playback..............................................................................................24
Playback still image ...........................................................................24
Playing back movie clips...................................................................24
Other functions in Playback mode ...................................................25
6. Making connections...........................................................................30
Connecting the Video Recorder to a TV...........................................30
Connecting the Video Recorder to a PC ..........................................31
7. Software Installation ..........................................................................33
Installing the Software .......................................................................33
8. Troubleshooting .................................................................................36
9. Technical Specifications....................................................................37

4
Thank you for purchasing this video recorder with camera. Please read
these operating instructions carefully in order to use the digital video
camera correctly and maximize your enjoyment. Keep the manual in a safe
place so that you can refer to the instructions later when necessary.
Precautions
Before using the video camera, please ensure that you carefully read and
understand the safety precautions described below.
• Do not try to open the case of the video camera or attempt to modify this
video camera in any way. If required, maintenance and repairs should be
carried out only by authorized service providers.
• Keep the video camera away from water and other liquids. Do not use the
video recorder if your hands are wet; keep your camera dry and clean.
• Use only recommended AAA alkaline batteries.

5
1. Parts of the video recorder
1：LCDscreen 6：USBconnector/cover
2：Modebutton 7：AVoutjack
3：Powerbutton 8：SDcardslot/cover
4：Shutter/OK button 9: Menu button
+ Up button/Zoom In 10: Display/Delete button
- Down button/Zoom Out 11: Busy LED
Left button/Change resolution 12: Lens
Right button/Self-timer 13: Microphone
5：Batterycover 14:Speaker

6
2. Preparing for using
Installing the Battery
1: Slide down and open the video recorder battery door.
2: Insert three AAA-size batteries with the positive (+) and negative (-)
poles matching the markings inside the battery compartment.
3: Slide and close the battery door as shown below.

7
Inserting the Memory Card
Camera does require SD Memory Card inserted to record and store video clips or
taken images.
1. Turn off the camera before inserting or removing the SD memory card. Grip with
fingernail to lift and swing open the SD card slot rubber cover.
2. Orient the card correctly and do not force the card when inserting
- The SD memory card has the LOCK protect switch used to protect data from
accidental deletion. Therefore, whenever you want to record, format or delete files
from the SD card, set the protect switch to the non-LOCKed position.
3. Locate the card slot on the bottom of the camera and insert the SD card as
illustrated. Press the card until the card is fully down and latched.
4. To remove; press SD card down, then it will pop up and be easily removed.
• Do not insert any other object except
the SD/SDHC memory card into the
camera SD card slot.
• Keep the camera turned OFF while
inserting or removing the SD card.

8
Format the memory card
Please format the SD card if it is new or if it was used with another device.
Download important files to your computer before formatting as the
formatting will erase all data from the SD Card.
1: Turn the power ON (when the card is inserted) and set the video
recorder to the Setup Menu. Press the RIGHT button to select
[Setup].
2: Press the UP or DOWN button to select [Format.] then press the
SHUTTER/ OK or RIGHT button to launch the submenu.
3: Press the UP or DOWN button to select the item [YES] and then press
the SHUTTER/ OK button to execute formatting the card.

9
Setting the Language
You have an option to select the Language used for displayed commands
and information; follow below steps if required:
1: Turn the power ON, and set the video camera to the Setup Menu. (See
details on Page 21). Press the RIGHT button to select [Setup].
2: Press the UP or DOWN button to select [Language] then press the
SHUTTER/ OK or RIGHT button to launch the submenu.
3: Press the UP or DOWN button to select the desired language and then
press the SHUTTER/ OK button to confirm the setting.
4: Press the MENU button to close the menu.

10
Setting the date and time
1: Turn the power on (hold button
down for 2 seconds) and set the
video recorder to the Setup Menu.
2: Press the UP or DOWN button to
select [Date&Time..] then press
the SHUTTER/ OK or RIGHT
button to launch the submenu.
3: Press the UP or DOWN button to change the highlighted value. Press
the LEFT or RIGHT button to move the cursor between settings.
4: Press the SHUTTER/ OK button to confirm the setting.
5: Press the MENU button to close the menu.
Note that after replacing batteries you need to reset the time / date
again.

11
Monitor screen display
Video mode

12
Capture mode

13

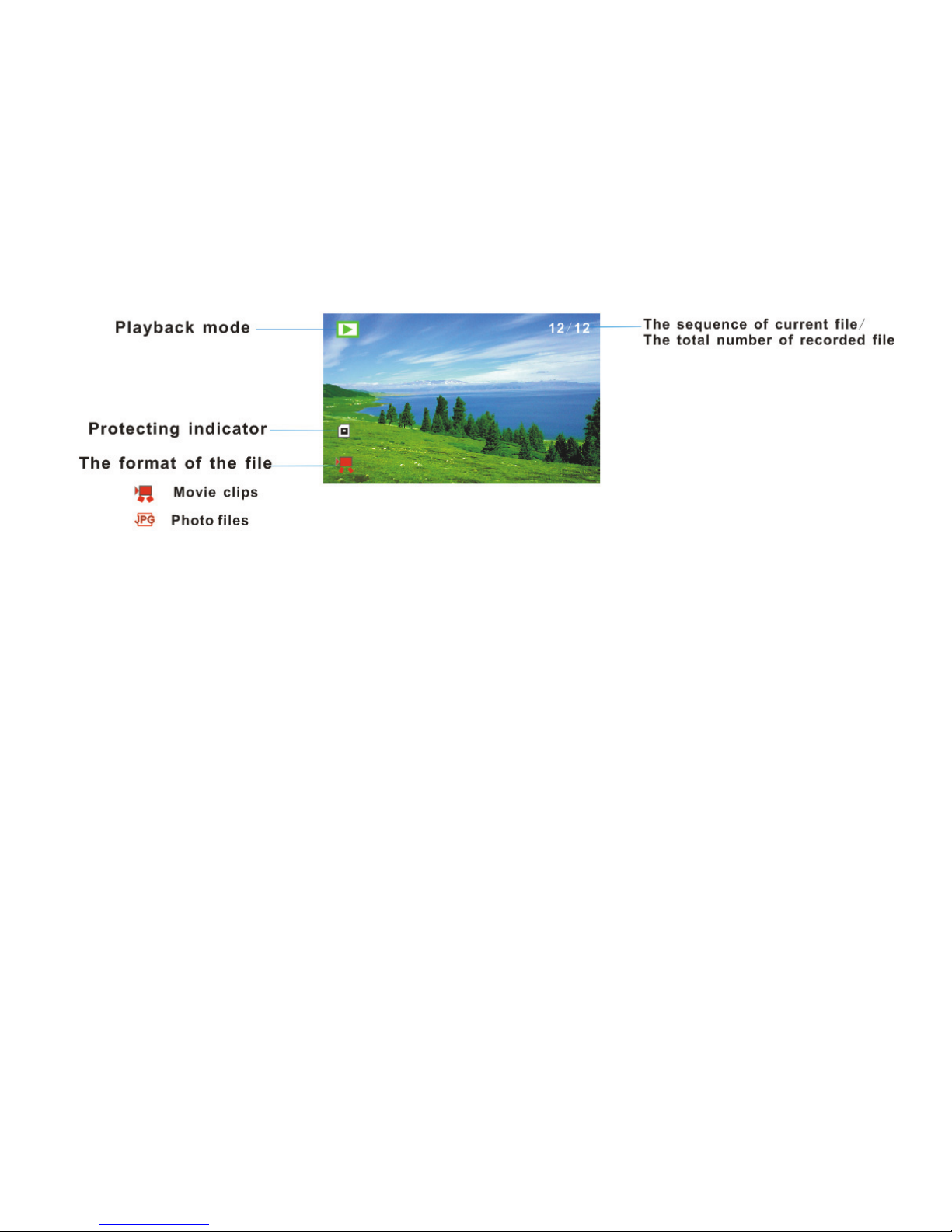

Playback mode
Display/ Delete Button (part 10) – Press this display button once in
video mode or Capture mode to display live image (no icons will be visible),
press button again to dim the image and press again to restore original
bright screen with icons. This button (10) is also used as quick delete
button in Playback mode to delete current image. See page 26 for details.

14
3. Using your video recorder
Turning the recorder ON and OFF
1. Press the POWER button for 2 seconds to turn ON video recorder.
2. Press the POWER button again to turn OFF the recorder.
To save battery power, the recorder automatically turns off after a short
period of time if no button is pressed. Press the POWER button to power
the camera back ON. You can change the power-OFF time by setting the
function [Power Save] in the Setup menu
Change the MODE of the recorder
Your video camera has three selectable modes: Video, Capture, and
Playback mode. Press Mode button to change modes sequentially.
1. Press the POWER button and the camera will become active and set
in Video Recording Mode.
2. Press the MODE button once to select the Capture mode for taking

15
still pictures.
3. Press button again to select the Playback Mode.
The icons – displayed on the LCD screen – will identify selected Mode.
Recording video clip
1: Turn on and set recorder to Video recording mode. Frame the scene in
LCD screen. To quickly change resolution setting press LEFT button.
2: Press the SHUTTER/ OK button to start recording. Press the RIGHT
button to pause and press it again to continue.
3: Press the SHUTTER/ OK button again to stop recording. If the memory
is full the video camera will stop recording automatically.
• The LCD monitor displays the recorded time during recording.
Display Title Description
Video mode Recording video clips.
Capture mode Taking still photos.
Playback mode Preview photos and video clips.

16
Taking still images
1: Turn ON the video camera.
2: Press the MODE button to set the video camera to capture mode,
the icon appears on the LCD screen.
3: Frame the scene or subject in LCD screen. To quickly change
resolution setting press LEFT button.
4: Hold the video recorder steady and press the SHUTTER/ OK button to
take a picture.
• The number displayed on the LCD screen will decrease with each
picture taken.
•No more pictures can be taken if the “Memory Full” message
appears on the LCD screen – replace the SD card or download
stored images into the computer.
• Make sure that your fingers do not cover the lens while recording
video or taking still images.
• Do not remove the memory card or batteries when camera is
saving the image, otherwise the data will be damaged.

17
Using the Self-timer and Burst snapshot
When the Self-timer is set and activated, the camera will auto-take a
picture after the selected delay time. Use the burst snapshot to take
pictures continuously.
1: Turn the power ON, and set the video camera to the Capture mode.
2: Press the RIGHT button to select the Self-Timer options; please note
icons and information displayed on left upper corner of the LCD screen.
2 seconds: The recorder will take picture with 2 seconds delay
10 Seconds: The recorder will take picture with 10 seconds delay
Continuous: Press the SHUTTER/ OK button once to take three
consecutive pictures.
3: Press the SHUTTER/ OK button to take picture.
• You can also set the self-timer and burst snapshot from the Capture
Menu. See the details on page 21.

18
Using the Zoom Function
This camera has a Digital Zoom function that allows you to zoom in (Tele)
or zoom out (Wide) subjects or recorded scene.
1: Turn the camera ON and set it to Capture or Video Recording mode.
2: Press the UP or DOWN buttons to compose the scene as required.
UP: zoom in for a telephoto shot.
DOWN : zoom out for a wide-angle shot.
4. Using the Menu in recording mode
Menu in video mode
Turn ON the video recorder and
set it to Video Recording mode.
1: Press the MENU button to display
the menu.
2: Use the UP or DOWN button to
select menu item.

19
3: Press the SHUTTER/ OK or RIGHT button to enter the sub-menu.
4: Use the UP or DOWN button to select the desired setting.
5: Press the SHUTTER/ OK button to confirm the setting.
6: Press the MENU button to close the menu.
Menu item Function
Movie
Resolution
Select smaller movie size (lower resolution) to record
for longer time. There are three settings to choose:
1280x720/640x480/320X240. To quickly change
resolution use the LEFT button
Frame Rate Select low frame rate to record longer time. There are
two settings to choose: High/ Low.
Metering See the details on page 20.
White Balance See the details on page 21.
Menu in capture mode
1: Turn ON the video recorder and
set it to capture mode.
