JBL Grand Touring GTO75.4 User manual

GTO Series
75.4
75.4II
4 CHANNEL POWER AMPLIFIER
SERVICE MANUAL
JBL Consumer Products
250 Crossways Park Dr.
Woodbury, New York 11797 Rev4vvv3/2009

- CONTENTS -
SPECIFICATIONS ………………………………….……..1
FEATURES/TEST CONDITIONS……..…………………2
INSTALLATION………………….……...……..…...…...…3
CONNECTIONS………………….……...……..…...…..…4
SET-UP/CONTROLS ……..………………..…….….…...5
INSTALLING NEON TUBES..…….…….………………..5
BASIC TROUBLESHOOTING..…….…….………………7
TYPICAL SYSTEM WIRING..…….…….……………..…8
EXPLODED VIEW/PARTS LIST…….….….…………....9
MECHANICAL PARTS LIST..…….…….…………….....10
AMPLIFIER BLOCK DIAGRAM…………………….……11

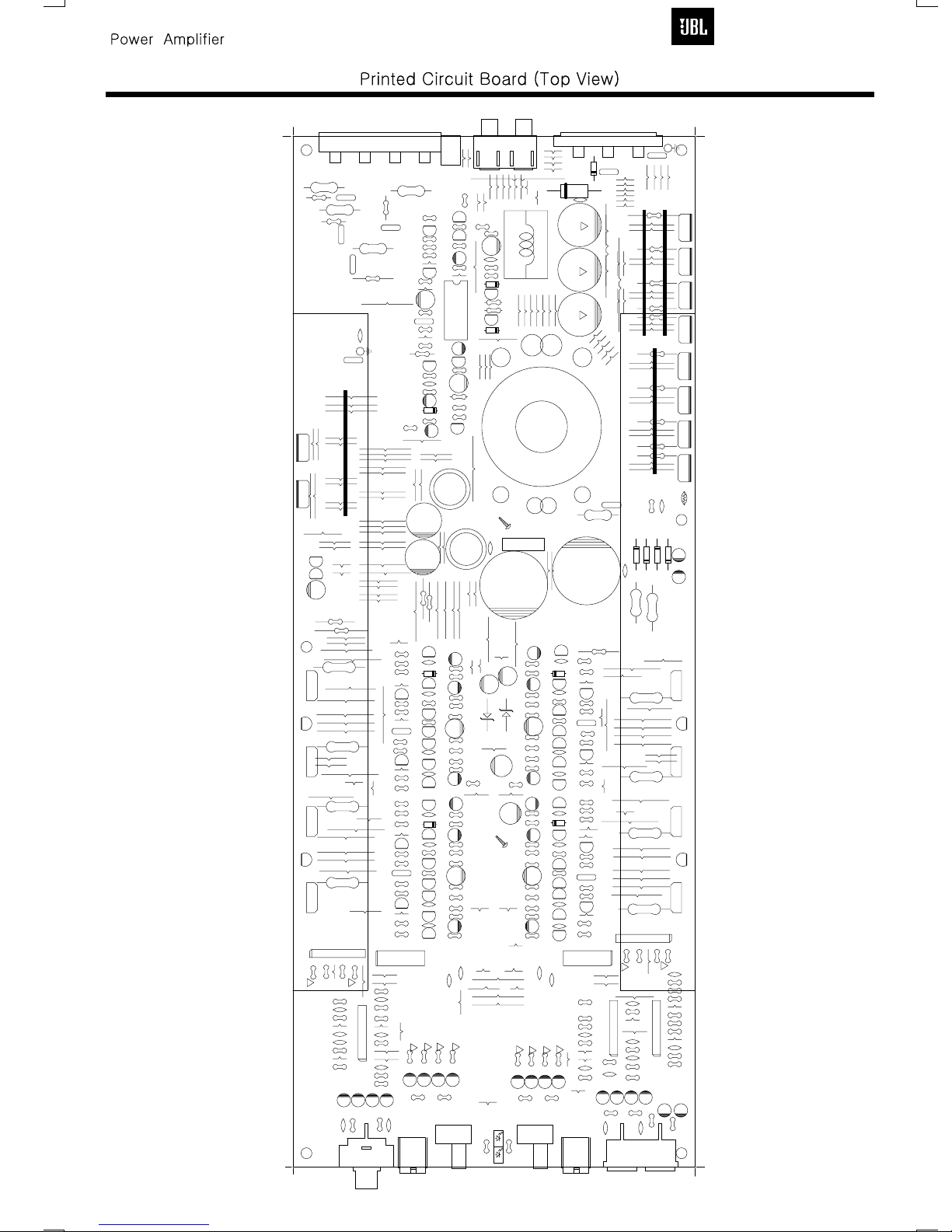

P.C.B. DRAWINGS….……………………………….…….12
ELECTRICAL PARTS LIST ..……….……….…….….…16
VERSION II ELECTRICAL PARTS LIST ADDENDUM….……….19
IC/TRANSISTOR PINOUTS..……..….…….….….….…..20
GTO 75.4 SCHEMATICS………..………………..……...23
GTO 75.4II SCHEMATICS………..……………………...26
PACKING……..…………………………………………....29
GTO 75.4/75.4II Specifications
Output Power: 104W RMS x 4 channels @ 4 ohms; ≤1% THD + N
(14.4V supply) 142W RMS x 4 channels @ 2 ohms; ≤1% THD + N
284W RMS x 2 channels @ 4 ohms; ≤1% THD + N
Signal-to-noise ratio: 80dBA (reference 1W into 4 ohms)
Dynamic power: 163W @ 2 ohms
Effective damping factor: 6.38 @ 4 ohms
Frequency response: 10Hz – 83kHz (–3dB)
Maximum input signal: 5.8V
Maximum sensitivity: GTO 75.4 - 230mV
GTO 75.4II - 75mV
DC Offset <50Mv (-50%)
Output regulation: .069dB @ 4 ohms
Idle Current 1.3A
Input Impedance 22kΩ
Max Current Draw 52A @ 4 ohms
83A @ 2 ohms
Dimensions: 15 1/8 x 12 5/16 x 2 3/8” (L x W x D)
(384mm x 313mm x 60mm)
Fuses: 30A x 2
JBL continually strives to update and improve existing products, as well as create new ones. The specifications and details in
this and related JBL publications are therefore subject to change without notice.
Power Amplifier GTO 75.4/75.4II
1

GTO 75.4/75.4II
2

INSTALLATION
2
WARNING: Playing loud music in an
automobile can hinder your ability to hear
traffic and permanently damage your
hearing. We recommend listening at low or
moderate levels while driving your car. JBL
accepts no liability for hearing loss, bodily
injury or property damage resulting from
the use or misuse of this product.
IMPORTANT: To get the best
performance from your JBL Grand Touring®
Series amplifiers, we strongly recommend
that installation be entrusted to a qualified
professional. Although these instructions
explain how to install GTO amplifiers in a
general sense, they do not show specific
installation methods that may be required
for your particular vehicle. If you do not
have the necessary tools or experience,
do not attempt the installation yourself.
Instead, please ask your authorized JBL
car audio dealer about professional
installation.
INSTALLATION
WARNINGS AND TIPS
•Always wear protective eyewear when
using tools.
•Turn off the audio system and other
electrical devices before you start.
Disconnect the (–) negative lead from
your vehicle’s battery.
•Check clearances on both sides of
a planned mounting surface before
drilling any holes or installing any
screws. Remember that the screws
can extend behind the surface.
•At the installation sites, locate and
make a note of all fuel lines, hydraulic
brake lines, vacuum lines and electrical
wiring. Use extreme caution when cut-
ting or drilling in and around these areas.
•Before drilling or cutting holes, use a
utility knife to remove unwanted fabric
or vinyl to keep material from snagging
in a drill bit.
•When routing cables, keep input-signal
cables away from power cables and
speaker wires.
•When making connections, make
certain they are secure and properly
insulated.
•If the amplifier’s fuse must be replaced,
use only the same type and rating as
that of the original. Do not substitute
another kind.
CHOOSING A LOCATION
AND MOUNTING THE
AMPLIFIER
Choose a mounting location in the trunk
or cargo area where the amplifier will not
be damaged by shifting cargo. Amplifier
cooling is essential for proper amplifier
operation. If the amplifier is to be installed
in an enclosed space, make sure there is
sufficient air circulation for the amplifier
to cool itself.
When mounting the amplifier under a
seat, ensure that it is clear of all moving
seat parts and does not affect the seat
adjustments. Mount the amplifier so it
is not damaged by the feet of backseat
passengers. Make sure that the amplifier
is mounted securely using nuts and bolts
or the supplied mounting screws.
Mount the amplifier so that it remains
dry – never mount an amplifier outside
the vehicle or in the engine compartment.
POWER CONNECTIONS
The GTO amplifiers are capable of
delivering extremely high power levels,
and require a heavy-duty and reliable
connection to the vehicle’s electrical system
in order to perform optimally. See Figure 1
for connection location. Please adhere to
the following instructions carefully:
Ground Connection
Connect the amplifier’s Ground (GND)
terminal to a solid point on the vehicle’s
metal chassis, as close to the amplifier
as possible. Refer to the chart below to
determine minimum wire-gauge size. Scrape
away any paint from this location; use a star-
type lock washer to secure the connection.
Power Connection
Connect a wire (see chart at right for
appropriate gauge) directly to the vehicle’s
positive battery terminal, and install an
appropriate fuse holder within 18" of the
battery terminal. Do not install the fuse at
this time. Route the wire to the amplifier’s
location, and connect it to the amplifier’s
Positive (+12V) terminal. Be sure to use
appropriate grommets whenever routing
wires through the firewall or other sheet
metal. Failure to adequately protect the
positive wire from potential damage may
result in a vehicle fire. When you are done
routing and connecting this wire, you may
install the fuse at the battery.
Remote Connection
Connect the amplifier’s Remote (REM)
terminal to the source unit’s Remote Turn-
On lead using a minimum of 18-gauge wire.
NOTE: When using the speaker level
inputs, connect the remote (REM) terminal
to the source unit. If your source unit does
not have a remote turn-on connection,
connect the amplifier’s (REM) terminal to
the vehicle’s accessory circuit.
Speaker Connections
Refer to the application guides on the
pages that follow. Speaker connections
should be made using a minimum of
16-gauge wire.
High-Level Input Connections
The GTO75.4 and GTO75.4II
amplifiers are equipped with speaker-level
inputs that allow you to add an amplifier
to head units that do not have RCA line
outputs. The speaker outputs for the
source unit should be connected to the
amplifier using the supplied connector
(square four-wire plug). Remember to
check for proper polarity. The GTO301.1,
GTO601.1 and GTO1201.1 amplifiers are
not equipped with high-level inputs.
NOTE: When using the high-level inputs,
the AUX outputs can be used to pass a
line-level signal to another amplifier.
Wire Gauge Chart
Amplifier Maximum Minimum
Model Current Draw Wire Gauge
GTO75.4 85A #8 AWG
G
AWG
AWG
These recommendations assume 7' – 10'
wire runs. If your installation differs mark-
edly, you will need to adjust the wire
gauge accordingly.
IMPORTANT NOTE: If you are planning
to use optional neon tubes, install them
before making any electrical connections
to the amplifier (refer to“Installing Neon
Tubes” on page 5).

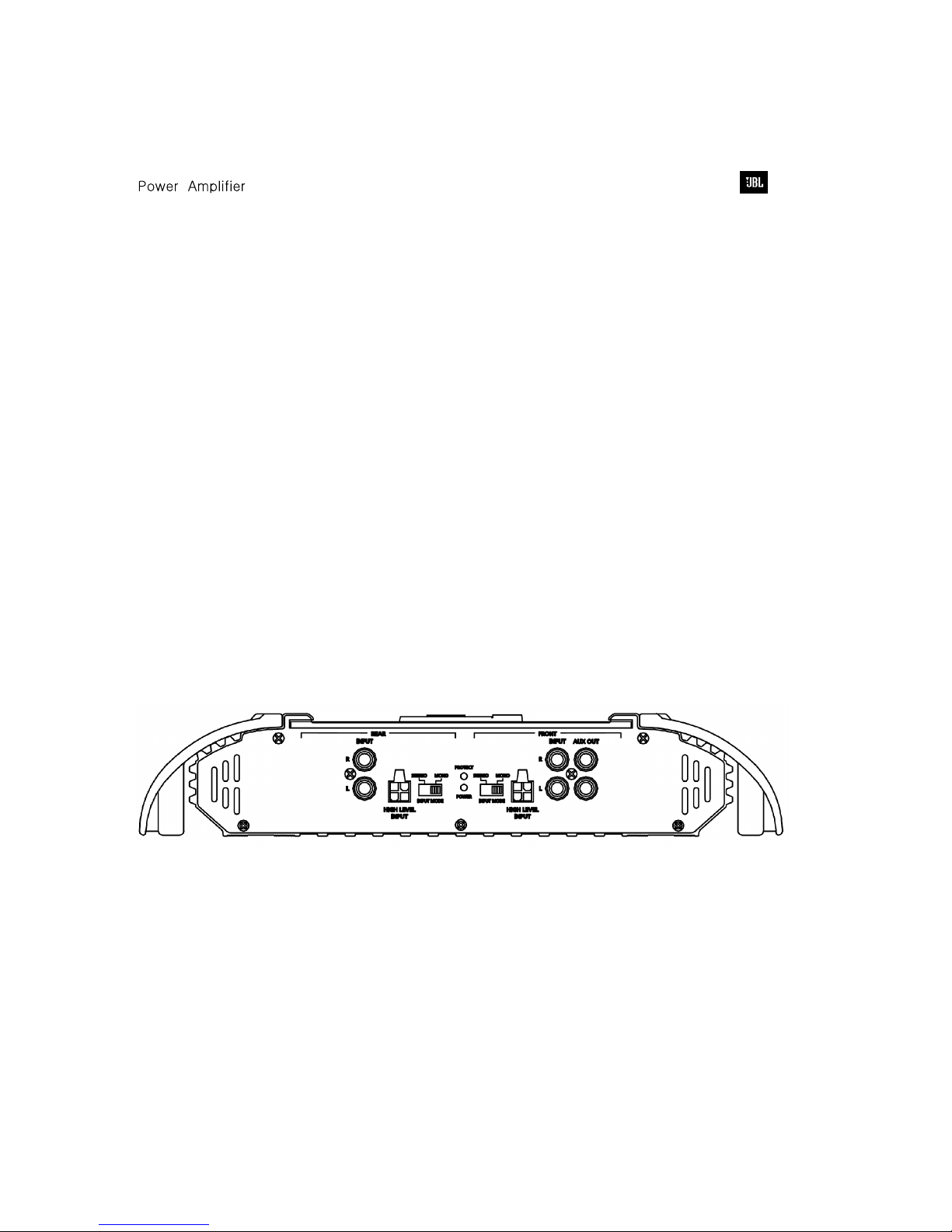

Figure 1. Terminal connection end plate.
GTO Amp OM 2/3/04 3:54 PM Page 2
GTO 75.4/75.4II
3

4
CONNECTIONS – GTO 75.4/75.4II
The GTO 75.4/75.4II can be set up for stereo
4-channel, 3-channel or bridged
2-channel operation, as shown in
Figures 6 through 8.
NOTE: For simplicity, Figures 6 through
8 do not show power, remote and input
connections.
NOTE: Minimum speaker impedance
for stereo operation is 2 ohms.
Minimum speaker impedance for
bridged operation is 4 ohms.
–
+
–
+
–
+
–
+
Figure 6.GTO 75.4/75.4II amplifier in 4-channel (stereo) operation to drive front and rear full-range speakers.
–
+
–
+
–
+
Figure 7.GTO 75.4/75.4II is set up for 3-channel operation to drive a set of full-range speakers and a subwoofer.
–
+
–
+
Figure 8.GTO 75.4/75.4II used in bridged 2-channel mode to drive a set of components or subwoofers.
GTO Amp OM 2/3/04 3:54 PM Page 4
GTO 75.4/75.4II
4

6
INSTALLATION AND SETUP
SETTING THE
CROSSOVER(S)
Determine your system plans and set the
crossover mode switch accordingly. If you
plan to use the GTO 75.4/75.4II to drive
full-range speakers, set the crossover
mode to FLAT and skip to “Setting Input
Sensitivity.”
Initially set the crossover frequency
control midway. While listening to music,
adjust the crossover for the least
perceived distortion from the speakers,
allowing them to reproduce as much
bass as possible.
Systems using a separate subwoofer set
the crossover mode to HP (high pass) for
your full-range speakers. Adjust the
crossover frequency to limit bass and
provide increased system volume with
less distortion.
For subwoofers, choose the highest
frequency that removes vocal information
from the sound of the subwoofer.
If using the GTO 75.4/75.4II to drive a
subwoofer(s), set the crossover mode to
LP (low pass).
SETTING INPUT
SENSITIVITY
1. Initially turn the INPUT LEVEL control(s)
to minimum (counter clockwise).
2. Reconnect the (–) negative lead to the
vehicle’s battery. Apply power to the
audio system and play a dynamic music
track.
3. On the source unit, increase the volume
control to 3/4 volume. Slowly increase
the INPUT LEVEL control(s) toward three
o’clock until you hear slight distortion
in the music. Then reduce the INPUT
LEVEL slightly until distortion is no
longer heard.
NOTE: After the source unit is on, red LEDs
(on the top panel) will light, indicating the
amplifier is on. If not, check the wiring,
especially the remote connection from the
source unit. Also refer to “Troubleshooting”
on the next page.
AUX OUTPUT
GTO 75.4/75.4II amplifiers are
equipped with full-range outputs that can
be used to connect additional amplifiers.
NOTE: When using the high-level inputs,
the AUX outputs can be used to pass a
line-level signal to another amplifier.
INSTALLING NEON TUBES
(OPTIONAL)
1. Using a Phillips screwdriver, remove all
screws on the amplifier’s output/power
end panel and set them aside.
2. Using a 3⁄32-inch Allen wrench, remove
only the screws on the amplifier’s (top)
clear cover and set them aside.
3. Remove the end panel and slide the
cover off. Set both parts aside.
4. Locate the enclosed hardware bag and
remove the four clips. Each clip has a
square end and a larger round end.
Using a round end, press two clips onto
each neon tube (e.g., Street Glow AN9
or equivalent), as shown in Figure 13.
5. For each tube, align both clips so the
square ends slide onto an exposed
extrusion edge, as shown in Figure 9.
Do not cover any screw holes. When
installed correctly, each neon tube will
sit under an extrusion and not be visible
when viewed from directly above.
6. Route each neon tube’s power cable
through its respective NEON hole on the
end panel (see Figure 13).
7. Slide the cover back into place and re-
install its screws. Then, replace the end
panel and reinstall its screws.
8. Finish the installation of the neon tubes
as instructed in their owner’s manual.
Figure 12.
GTO Amp OM 2/3/04 3:54 PM Page 6
GTO 75.4/75.4II
5

GTO 75.4/75.4II
6

7
INSTALLATION AND SETUP
To Neon
Power
Supply
To Neon
Power
Supply
Figure 13. Installing neon tubes in a JBL GTO amplifier.
TROUBLESHOOTING
SYMPTOM LIKELY CAUSE SOLUTION
No audio No voltage at BATT+ Check voltages at
(POWER LED or REM terminals, amplifier terminals
is off) or bad or no ground with VOM
connection
No audio DC voltage on Amplifier may need
(PROTECT LED amplifier output service; see enclosed
flashes every warranty card for
4 seconds) service information
No audio Amplifier is Make sure amplifier
(PROTECT overheated cooling is not blocked
LED is on) at mounting location;
verify speaker system
impedance is within
specified limits (see
“Specifications” on
the next page)
No audio Voltage less than 9V on Check vehicle
(PROTECT BATT+ connection charging system for
and POWER defective voltage
LEDs flash) regulator
SYMPTOM LIKELY CAUSE SOLUTION
No audio Voltage more than 16V Check vehicle
(PROTECT or less than 8.5V on charging system for
LED is on) BATT+ connection defective voltage
regulator
Distorted audio Input sensitivity is Check INPUT
not set properly, or LEVEL setting; or
amplifier or source check speaker wires
unit is defective for shorts or grounds
Distorted audio Short circuit in Remove speaker leads
and PROTECT speaker or wire one at a time to locate
LED flashes shorted speaker or
wire, then repair
Music lacks Speakers are not Check speaker
“punch” connected properly connections for
proper polarity
GTO Amp OM 2/3/04 3:54 PM Page 7
GTO 75.4/75.4II
7

Grand TouringGrand Touring
GTO 75.4/75.4II
8

71 2 3 4 5 6 8
A
B
C
D
E
GTO 75.4/75.4II
GTO 75.4/75.4II Exploded View
9

GTO 75.4/75.4II
Mechanical Parts List
10

GTO 75.4/75.4II BLOCK DIAGRAM
GTO 75.4/75.4II
11

GTO 75.4/75.4II
12

J61
15m/m
J26
7.5m/m
J14
17.5m/m
R45
47
J114
12.5m/m
J66
22m/m
C800
10/16V
C52
4700/50V"HC"
J150
7.5m/m
HI301
LAD1140-04PBK
HI101
LAD1140-04PBK
R307
1K
SW102
JSS2219
CON301-1
TM2501-DG-14P
BJ07
55m/m
SW302
JSS2219
J151
7.5m/m
R433
22
R236 47
C251
100P
R233
22
R243 22
R242
5.6K
J129
7.5m/m
R246
47
R2351K
R245 1K
R232
5.6K
R244
22
R234 22
R250
120
Q443
C3198GR
Q44
FQP50N06
Q431
C3198GR
Q442
A1266GR
Q233
A1266GR
R91 22K
Q232
C3198GR
Q231
C3198GR
C232
100P
C242
100P
R252
15K
D251
1SS133
R237
3.9K
C221
68P
Q241
A1266GR
C320
2.2/50V"SRE"
J12019m/m
R247
2.7K
R271
13.7KF
C240
473(M)
Q242
A1266GR
R272
1KF
R443 22
C191
220/16V
R160 0.1/3W
BJ0535m/m
D291
1N4744
J17919m/m
R03
10/0.5W
J172 7.5m/m
J11012.5m/m
R370
0.1/3W
D191
1N4744
J174 22m/m
Q243
C3198GR
J04
7.5m/m
J55 6m/m
J68
22m/m
J13422m/m
C291
220/16V
Q234
C1027Y
J8112.5m/m
C371
100/16V"SRE"
R442
5.6K
R350
120
Q244
A1023Y
J4412.5m/m
J79
7.5m/m
Q251
C3200GR
Q341
A1266GR
C332
100P
C342
100P
R451 1.5K
C451
100P
R15 10
J178 22m/m
D351
1SS133
R352 15K
J1416m/m
J143
6m/m
C301
102P
R337 3.9K
J152
6m/m
J153
6m/m
C321
68P
Q342
A1266GR
J155
6m/m
C141
2.2/50V
C401
102P
J148
10m/m
J166 20m/m
R446
47
J4912.5m/m
J149
10m/m
R181
56K
J222
7.5m/m
R431 1K
R435 1K
R347 2.7K
R170
0.1/3W
R131
1K
R141
1K
C340
473(M)"TL"
R4411K
Q331
C3198GR
R334 22
Q343
C3198GR
R344
22
R332
5.6K
J177 22m/m
R371
13.7KF
Q334
C1027Y
C261
104(M)
R372
1KF
J11212.5m/m
C461
104(M)
R345 1K
J75
15m/m
C471
100/16V
R465
1K
C131
2.2/50V
C192
330/16V
J07
17.5m/m
L01
CL-510
C62
4700/50V"HC"
J13812.5m/m
J73
15m/m
R321
22KF
R407
1K
R341 1K
J22
10m/m
Q344
A1023Y
Q335
TIP35C
J136
22m/m
Q345
TIP36C
C441
2.2/50V
Q351
C3200GR
J92
12.5m/m
J93
12.5m/m
C431
2.2/50V
C331
2.2/50V
J171 22m/m
J8212.5m/m
Q445
TIP36C
J10018m/m
C341
2.2/50V
C57
4.7/50V
R421 22KF
R56
47
Q435
TIP35C
R3351K
R365
1K
J156
6m/m
R331 1K
R445 1K
D52 FR154
WIRE
W1
60m/m
J97 20m/m
C404
10P
Q332
C3198GR
Q333
A1266GR
C405
22P
R472
1KF
C406
22P
J140
6m/m
J76
15m/m
C161
104(M)
R402
47KF
J113
12.5m/m
C171
100/16V"SRE"
C120
2.2/50V"SRE"
D53 FR154
D51 FR154
R403
47KF
R121
22KF
J117
15m/m
J154
7.5m/m
J118
20m/m
J1426m/m
J51
15m/m
J83
15m/m
J137
22m/m
R90 47K
Q434
C1027Y
C220
2.2/50V
R360
0.1/3W
J1117.5m/m
L02
CL-510 J65
10m/m
R406
47KF
J78
18m/m
J310
20m/m
J1017.5m/m
J64
10m/m
R405
47KF
J130 6m/m
C402
22/16V"SRE"
C60
104P
Q145
TIP36C
Q135
TIP35C
J176 22m/m
R172
1KF
C11
100/16V
R171
13.7KF
R346
47
J7720m/m
R471
13.7KF
C403
22/16V"SRE"
J139
6m/m
C140
473(M)"TL"
J98 20m/m
R147
2.7K
R137
3.9K
R432
5.6K
J122
22m/m
Q441
A1266GR
R444
22
D42
YG225D2
J91
12.5m/m
J16811m/m
R31
1K
C14
47/16V
J133
22m/m
R41
220/0.5W
R3511.5K
R02
4.7K
C15
10/25V
D41
YG225D2
R04 56K
J101
18m/m
Q340
C3200GR
C181
100/16V
J84
18m/m
C33 473P
R61 10K
R05
8.2K
J158 22m/m
R342
5.6K
R401
22KF
R16 820
C12 100/16V
C13
100/16V
R53
47
R12
3.9K
R343 22
R34 15K
J48
12.5m/m
Q440
C3200GR
J169 17.5m/m
R434
22
Q240
C3200GR
R33 33K
Q140
C3200GR
C21 102(M)
R14
10K
R35
15K
C420
2.2/50V
C22 104P
R01
4.7K
Q151
C3200GR
R11
4.7K
R333
22
C121
68P
Q53
FQP50N06
R32
22K
R336
47
C61
470/50V
J8518m/m
J71
12.5m/m
C63
473P
J99
18m/m
J145
6m/m
C304
10P
J1217.5m/m
Q54
FQP50N06
C53473P
J35
10m/m
U01
TL494CN
Q43
FQP50N06
J80
7.5m/m
R270 0.1/3W
R21 24K
R460
0.1/3W
J1717.5m/m
TH01
FTD5-350
R13 10K
R22 24K
R381
56K
R42
1K
J19
17.5m/m
R43
47
J2017.5m/m
D54 FR154
Q22
A1268GR
Q02
C3198GR
Q11
A1266GR
R51
220/0.5W
R152
15K
D03
1SS133
C351
100P
Q12 A1266GR
R447
2.7K
Q21
C3198BL
C440
473(M)
Q01A1023Y
R4373.9K
J12611m/m
R150
120
D151
1SS133
Q33
A1266GR
J63
17.5m/m
D04
1SS133
C361
104(M)
R45215K
C142
100P
R281 56K
C132
100P
Q23
A1266GR
Q433
A1266GR
J104
20m/m
R291
150/2W
C16 47/25V
J116
6m/m
Q432
C3198GR
R191
150/2W
Q281
C3198GR
J90
12.5m/m
Q181
C3198GR
C05
2200/25"WL"
Q144
A1023Y
R62
4.7KF
C42168P J147
10m/m
R161
4.7/0.5W
R450
120
Q134
C1027Y
C241
2.2/50V
J16711m/m
D451
1SS133
R134 22
C442
100P
C432
100P
Q451
C3200GR
R30
100/2W
Q143
C3198GR
Q142
A1266GR
R144
22
R132
5.6K
R1451K
R135
1K
C08
222(M)
J60
15m/m
R146
47
R151
1.5K
J121
22m/m
R142
5.6K
R143 22
R133
22
R136 47
J67
22m/m
J175 22m/m
R231
1K
Q141
A1266GR
C151
100P
R420
1KF
R220
1KF
R241
1K
R221
22KF
C231
2.2/50V
J135
22m/m
C306
22P
D01 1N5404
Q131
C3198GR
Q132
C3198GR
Q444
A1023Y
Q245
TIP36C
Q235
TIP35C
Q133
A1266GR
R251
1.5K
C305
22P
TER02
ST-11A-2-8P
R305
47KF
FH01
WF-9604
J74
15m/m
R303
47KF
C302
22/16V"SRE"
C303
22/16V"SRE"
U301
NJM2068LD
J39
10m/m
R302
47KF
R306
47KF
R301
22KF
U110
NJM2068LD
LED02
TOL-30aSBaCAa-B2
J170
6m/m
J123
22m/m
C67
4.7/50V
J115
12.5m/m
J323
7.5m/m
J173 22m/m
R260 0.1/3W
J125 22m/m
J0617.5m/m
R60
10.5KF
J87
18m/m
TER01
DST0013-00
R436 47
R165
1K
C101
102P
C201
102P
R265
1K
BJ03
55m/m
C271
100/16V
C03 104P
C04
2200/25V"WL"
R207
1K
R107
1K
R481
56K
C204
10P
C205
22P
C206
22P
R202
47KF
R206
47KF
J8818m/m
J103
20m/m
R203
47KF
J89
12.5m/m
R205
47KF
C203
22/16V"SRE"
C202
22/16V"SRE"
J94
12.5m/m
J321
15m/m
R201
22KF
C31
105(M)TL
C104
10P
J320 20m/m
BJ06
35m/m
R162
680/2W
BJ02
55m/m
C34
105(M)TL
C01
105(M)"TL"
C106
22P
J72
12.5m/m
J54
6m/m
J1817.5m/m
J53 6m/m
C105
22P
R461
4.7/0.5W
R105
47KF
R52
1K
RCA301
DJB-562D
3RD
C400
104P
WIRE
W2
60m/m
C200
104P
D02
IN4004
R362
680/2W
R462
680/2W
R262
680/2W
R106
47KF
J4712.5m/m
C102
22/16V"SRE"
RCA101
DJB-554A
J10817.5m/m
J165 7.5m/m
J52 6m/m
R361
4.7/0.5W
R129
100K
C128
4.7/50V"SRE"
C103
22/16V"SRE"
C228
4.7/50V"SRE"
U101
NJM2068LD
R102
47KF
R103
47KF
J86
18m/m
R101
22KF
R55
47
R46
47
Q56
FQP50N06
LED01
HNRD-3401L
Q90 C3198GR
R92 1K
R25 68K
SCREW
R54
47
J0817.5m/m
J09
17.5m/m
Q55
FQP50N06
R470
0.1/3W
J1617.5m/m
J15
17.5m/m
J13
17.5m/m
Q45
FQP50N06
R44
47
Q46
FQP50N06
BJ01
55m/m
J05
17.5m/m
L03
CL-310
J119
22m/m
J124
22m/m
J62
17.5m/m
J159 15m/m
J157 15m/m
J160 17.5m/m
J164 22m/m
C323
22/16V"SRE"
C324
22/16V"SRE"
C423
22/16V"SRE"
C424
22/16V"SRE"
C224
22/16V"SRE"
C223
22/16V"SRE"
C124
22/16V"SRE"
C123
22/16V"SRE"
R123
270K
R124
270K
R223
270K
R224
270K
R222
10K
R122
10K
U111
NJM2068LD
R166
1K
R466
1K
R266
1K
R366
1K
R125
10KF
R126
10KF
U310
NJM2068LD
R127
1K
R128
1K
C126
22P
R229
100K
C226
22P
R227
1K
R228
1K
R226
10KF
R225
10KF
R322
10K
R422
10K
R424
270K
R423
270K
R324
270K
R323
270K
J107
17.5m/m
3RD.
J337
12.5m/m
J336
12.5m/m
J332
10m/m
J333
10m/m
J334
10m/m
J335
10m/m
J322
7.5m/m
J331
7.5m/m
J27
7.5m/m
C51
470/50V
J10912.5m/m
J330
20m/m
J163 22m/m
J162 22m/m
J161 22m/m
J131
17.5m/m
J128
22m/m
J12711m/m
J10218m/m
J221
10m/m
J144
7.5m/m
J205
11m/m
J220
7.5m/m
J311
15m/m
J202
20m/m
J201
7.5m/m
C410 104P
C210
104P
J203
6m/m
J132
10m/m
J4612.5m/m
J219
6m/m
J218
6m/m
J209
10m/m
J213
15m/m
R261
4.7/0.5W
J207
20m/m
J206
20m/m
J228
12.5m/m
J229
6m/m
J215
10m/m
J223
10m/m
J224
10m/m
C06
2200/25"WL"
J227
10m/m
J69
22m/m
R320
1KF
J200
6m/m
J226
10m/m
R292
1K
J208
10m/m
J225
6m/m
J230
6m/m
R120 1KF
J231
6m/m
J146
6m/m
J214
6m/m
J30
7.5m/m
J31
7.5m/m
J32
7.5m/m
BJ04 35m/m
J34
10m/m
J38
10m/m J37
10m/m J36 10m/m
J42
7.5m/m
J43
7.5m/m
J212
6m/m
J211
6m/m
R63430K
J204
6m/m
J217
6m/m
J216
6m/m
CON101-1
TM2501-DG-14P
J210
10m/m
C32
473P
D11
1SS133
J59
25m/m
J11120m/m
R192
1K
J25
7.5m/m
J4512.5m/m
J28
7.5m/m
C292
330/16V
J03
7.5m/m
J02
7.5m/m
J01
7.5m/m
J5012.5m/m
J40 7.5m/m J41 7.5m/m
J58
10m/m
J57
10m/m
J56
10m/m
J33
6m/m
J29
7.5m/m
J70
23m/m
J21
10m/m
J23
10m/m
J24
10m/m
J300
6m/m
8
7
6
3 2
1
4
5
T01
44PHI
SCREW
22
2
2
2 2 2
2
2 2
2
1 1
1
1
FR-IN
FL-IN
+15V
GNDS
FL-OUT
FR-OUT
RR-OUT
RL-OUT
GNDS
-15V -15V
+15V
RR-IN
RL-IN
R-R-
R+R+ L+L+
L-L-
MONO MONOSTEREO STEREO
GTO75.4
L
RLL
RR
R/CH
L/CH REM GND
REV. 0
PAM631-01
FRONT
FRONT
REAR
REAR
4T:11T:8T:8T
(0.7x15):(0.7x4):(0.7x1):(0.7x1)
GTO 75.4/75.4II
13

J75
J150
R42
C105
C320
C52
J151
HI301 HI101
R433
SW102
CON301-1
BJ07
SW302
J129
R236
R233
C232
R243
R242
R246
J172
R235
R245
R232
R244
R234
R250
R91
Q431
Q53
Q442
Q233
Q232
R252
Q231
Q241
C242
C221
R237
D351
R247
C332
Q242
C141
J120
R271
R272
C340
Q243
R443
R442
C251
R160
D291
J179
R41
J71
R370
D191
J68
Q234
J79
J141
J134
J178
C371
Q244
C471
R350
R451 Q251
J222
Q341
Q342
C342
C451
R15
C301
R352
J177
D03
R337
J143
J152
C321
R446
J153
J155
C401
Q331
J156
C131
C404
J149
J97
R431
J112
R161
J154
R435
R347
R131
R170
R141
R441
R281
R334
Q343
R344
Q334 R332
R371
J136
R372
Q344
C32
R345
J138
C461
R465
J73
C171
R321
C441
C192
L01
C62
J92
J76
R407
R341
R421
J65
Q351
Q345
J171
Q445
C431
Q332
J81
C331
C191
J137
J113
Q435
J100
C57
C120
R335
R56
Q145
R365
R331
J140
R445
R472
D52
W1
J118
C405
Q333
Q434
C406
R402
C60
J142
J117
C140
R403
J91
C11
C220
D53
D51
R121
R90
J80
J310
J130
J83
J60
J176
R406
Q441
C402
R360
L02
J64
R405
J78
J77
J169
R172
J139
C403
Q135Q245
J122
R171
C181
R346
R471
J98
R147
C14
J145
C21
J104
R137
R432
R444
J133
Q340
R31
D42
J168
R351
C361
J158
R51
R04
R461
C420
D41
R61
J101
Q440
C15
J84
C22
R05
R342
J121
R401
R16
R12
C13
C271
R381
R343
R34
R434
Q240
R33
Q140
R14
Q151
C440
R35
R01
C16
C121
R11
Q22
R333
R32
C08
Q54
R336
R21
C61
J85
J90
C304
J99
J116
C53
Q43
C351
J147
U01
Q56
R270
R13
R460
TH01
R22
R152
C33
R43
J63
D54
Q02
Q11
Q12
J61
R447
D151
C142
Q21
R437
Q01
C161
Q33
R150
J126
R452
D04
Q23
D451
J119
R62
C132
R53
C421
Q433
Q432
J103
R291
C241
J170
Q281
R191
Q181
J115
Q144
C05
Q134
R450
C442
J160
R134
Q451
C231
J167
D11
R144
C432
C151
Q143
R30
Q142
Q141
R132
R145
R135
R146
C31
J74
R151
R142
J67
R143
R133
R136
R231
J175
J135
R420
Q131
C306
R220
R241
R221
R305
C302
J123
C305
D01
Q132
Q444
Q133
Q235
U301
Q90
R45
C201
TER02
R303
J321
R302
C303
C67
U110
R306
R301
R60
U101
J54
J173
C203
J89
J165
J125
R260
J132
R436
J87
TER01
R165 R265
R129
C01
R207
J55
Q443
C204
C04
R107 R202
R481
C205
C206
C104 R206
R203
J88
J320
R205
J94
R201
C202 C102
J72
J159
R105
C106
J330
R162
R307
C101
J53
J82
J52
R361
R106
R55
RCA301
3RD
W2
C126
D02
R362
R462
R262
C261
C128
RCA101
J203
R261
R102
C103
C228
C323
U111
R103
R101
J86
R92
R46
R54
Q55
C800
R25
R123
R44
Q45
R470
Q46 Q44
Q335
J62
L03
J124
J164
J174
J157
J311
J163
C324 C423 C424
C224
C223
C124
C123
R03
R124 R223
R224
R222
R122
R166
U310
R466
R266
R366
R125
R126
R127
C12
R128
R229
C226
R227
C410
R228
R226
R225
R322 R422
R424
R423
R324
R323
R320
J131
3RD.
C34
J221
R52
J144
C51
J202
J162
J161
J128
J114
J69
J127
J102
C341
J220
J205
J201
J213
J207
C210
J219
J209
J228
J218
J229
J215
D251
J166
J206
J200
J223
J224
J227
C06
J226
J70
R292
J225
J208
R120
J230
J231
R63
J146
J214
J212
C03
J210
J211
J204
R192
J217
J216
CON101-1
J51
R251
R02
J59
J66
C291
C292
C240
R181
J148
T01
GTO 75.4/75.4II
14

GTO 75.4/75.4II
15

TRS-00-00087 TRANSISTOR SMALL SIGNAL PNP KTA1023Y Q01,144,244,344,444 5
TRS-00-00088 TRANSISTOR SMALL SIGNAL NPN KTC1027Y Q134,234,334,434 4
TRS-00-00091 TRANSISTOR SMALL SIGNAL PNP KTA1268GR Q22 1
TRS-00-00111 TRANSISTOR SMALL SIGNAL NPN KTC3200GR Q151,251,351,451 4
TRS-00-00110 TRANSISTOR SMALL SIGNAL NPN KTC3198GR Q02,90,131,132,143,181,231,232,243,281 16
Q331,332,343,431,432,443
TRS-00-00090 TRANSISTOR SMALL SIGNAL PNP KTA1266GR Q11,12,23,33,133,141,142,233,241,242 16
Q333,341,342,433,441,442
TRS-00-00109 TRANSISTOR SMALL SIGNAL NPN KTC3198BL Q21 1
DIO-00-00108 DIODE FAST RECOVERY FR154 D51,52,53,54 4
DIO-00-00003 DIODE RECTIFIER IN4004 D02 1
DIO-00-00006 DIODE SWITCHING SIGNAL 1SS133 D03,04,11,151,251,351,451 7
RES-00-00437 RESISTOR METAL FILM 1/5WF 1K OHM R120,172,220,272,320,372,420,472 8
RES-00-00523 RESISTOR METAL FILM 1/5WF 4.7K OHM R62 1
RES-00-00402 RESISTOR METAL FILM 1/5WF 10K OHM R125,126,225,226 4
RES-00-00399 RESISTOR METAL FILM 1/5WF 10.5K OHM R60 1
RES-00-00417 RESISTOR METAL FILM 1/5WF 13.7K OHM R171,271,371,471 4
RES-00-00467 RESISTOR METAL FILM 1/5WF 22K OHM R101,121,201,221,301,321,401,421 8
RES-00-00537 RESISTOR METAL FILM 1/5WF 47K OHM R102,103,105,106,202,203,205,206,302,303 16
R305,306,402,403,405,406
RES-00-00610 RESISTOR CARBON FILM 1/5WJ 10 OHM R15 1
RES-00-00660 RESISTOR CARBON FILM 1/5WJ 22 OHM R133,134,143,144,233,234,243,244,333,334 16
R343,344,433,434,443,444
RES-00-00716 RESISTOR CARBON FILM 1/5WJ 47 OHM R43,44,45,46,53,54,55,56,136,146 16
R236,246,336,346,436,446
RES-00-00615 RESISTOR CARBON FILM 1/5WJ 120 OHM R150,250,350,450 4
RES-00-00756RESISTOR CARBON FILM 1/5WJ 820 OHM R16 1
RES-00-00633 RESISTOR CARBON FILM 1/5WJ 1K OHM R31,42,52,92,107,127,128,131,135,141 38
R145,165,192,207,227,228,231,235,241,245
R265,292,307,331,335,341,345,365,407,431
R435,441,445,465,166,266,366,466
RES-00-00598 RESISTOR CARBON FILM 1/5WJ 1.5K OHM R151,251,351,451 4
RES-00-00644 RESISTOR CARBON FILM 1/5WJ 2.7K OHM R147,247,347,447 4
RES-00-00676 RESISTOR CARBON FILM 1/5WJ 3.9K OHM R12,137,237,337,437 5
RES-00-00702 RESISTOR CARBON FILM 1/5WJ 4.7K OHM R01,02,11 3
RES-00-00720 RESISTOR CARBON FILM 1/5WJ 5.6K OHM R132,142,232,242,332,342,432,442 8
RES-00-00751 RESISTOR CARBON FILM 1/5WJ 8.2K OHM R05 1
RES-00-00608 RESISTOR CARBON FILM 1/5WJ 10K OHM R13,14,61,122,222,322,422 7
RES-00-00623 RESISTOR CARBON FILM 1/5WJ 15K OHM R34,35,152,252,352,452 6
RES-00-00658 RESISTOR CARBON FILM 1/5WJ 22K OHM R32,91 2
RES-00-00663 RESISTOR CARBON FILM 1/5WJ 24K OHM R21,22 2
RES-00-00687 RESISTOR CARBON FILM 1/5WJ 33K OHM R33 1
RES-00-00714 RESISTOR CARBON FILM 1/5WJ 47K OHM R90 1
RES-00-00730 RESISTOR CARBON FILM 1/5WJ 56K OHM R04,181,281,381,481 5
RES-00-00742 RESISTOR CARBON FILM 1/5WJ 68K OHM R25 1
RES-00-00604 RESISTOR CARBON FILM 1/5WJ 100K OHM R129,229 2
RES-00-00706 RESISTOR CARBON FILM 1/5WJ 430K OHM R63 1
RES-00-00664 RESISTOR CARBON FILM 1/5WJ 270K OHM R123,124,223,224,323,324,423,424 8
RES-00-00053 RESISTOR METAL FILM 1/2WJ 4.7 OHM R161,261,361,461 4
RES-00-00018 RESISTOR METAL FILM 1/2WJ 10 OHM R03 1
RES-00-00038 RESISTOR METAL FILM 1/2WJ 220 OHM R41,51 2
ELC-00-00223 CAPACITOR ELECTROLYTIC "SMS" 2.2/50V C131,141,220,231,241,331,341,420,431,441 10
ELC-00-00229 CAPACITOR ELECTROLYTIC "SMS" 4.7/50V C57,67 2
ELC-00-00195 CAPACITOR ELECTROLYTIC "SMS" 10/16V C800 1
ELC-00-00203 CAPACITOR ELECTROLYTIC "SMS" 10/25V C15 1
ELC-00-00198 CAPACITOR ELECTROLYTIC "SMS" 47/16V C14 1
ELC-00-00205 CAPACITOR ELECTROLYTIC "SMS" 47/25V C16 1
ELC-00-00199 CAPACITOR ELECTROLYTIC "SMS" 100/16V C11,12,13,181,271,471 6
ELC-00-00200 CAPACITOR ELECTROLYTIC "SMS" 220/16V C191,291 2
ELC-00-00201 CAPACITOR ELECTROLYTIC "SMS" 330/16V C192,292 2
GTO 75.4/75.4II
16

MYC-00-00020 CAPACITOR MYLAR 5% 100V 102(M) J C21 1
MYC-00-00031 CAPACITOR MYLAR 5% 100V 222(M) J C08 1
MYC-00-00038 CAPACITOR MYLAR 5% 100V 473(M) J C240,440 2
MYC-00-00094 CAPACITOR MYLAR 5% 100V 104(M) J C161,261,361,461 4
MYC-00-00090 CAPACITOR MYLAR 5% 63V "TL" 473(M) J C140,340 2
MYC-00-00085 CAPACITOR MYLAR 5% 63V "TL" 105(M) J C01,31,34 3
CEC-00-00077 CAPACITOR CERAMIC DISK 50V "NPO" 10P F C104,204,304,404 4
CEC-00-00090 CAPACITOR CERAMIC DISK 50V "NPO" 22P F C105,106,126,205,206,226,305,306,405,406 10
CEC-00-00108 CAPACITOR CERAMIC DISK 50V "NPO" 68P F C121,221,321,421 4
CEC-00-00073 CAPACITOR CERAMIC DISK 50V "NPO" 100P F C132,142,151,232,242,251,332,342,351,432 12
C442,451
CEC-00-00074 CAPACITOR CERAMIC DISK 50V 102P F C101,201,301,401 4
CEC-00-00102 CAPACITOR CERAMIC DISK 50V 473P F C32,33,53,63 4
CEC-00-00076 CAPACITOR CERAMIC DISK 50V 104P F C03,22,60,200,210,400,410 7
JUP-00-00043 JUMPER 0OHM JUMPER 6m/m J33,52,53,54,55,116,130,139,140,141 34
J142,143,145,146,152,153,155,156,170,200
J203,204,211,212,214,216,217,218,219,225
J229,230,231,300
JUP-00-00044 JUMPER 0OHM JUMPER 7.5m/m J01,02,03,04,25,26,27,28,29,30 31
J31,32,40,41,42,43,79,80,129,144
J150,151,154,165,172,201,220,222,322,323
J331
JUP-00-00045 JUMPER 0OHM JUMPER 10m/m J21,22,23,24,34,35,36,37,38,39 32
J56,57,58,64,65,132,147,148,149,208
J209,210,215,221,223,224,226,227,332,333
J334,335
JUP-00-00052 JUMPER 0OHM JUMPER 11m/m J126,127,167,168,205 5
JUP-00-00046 JUMPER 0OHM JUMPER 12.5m/m J44,45,46,47,48,49,50,71,72,81 27
J82,89,90,91,92,93,94,109,110,112
J113,114,115,138,228,336,337
JUP-00-00047 JUMPER 0OHM JUMPER 15m/m J51,60,61,73,74,75,76,83,117,157 14
J159,213,311,321
JUP-00-00048 JUMPER 0OHM JUMPER 17.5m/m J05,06,07,08,09,10,11,12,13,14 23
J15,16,17,18,19,20,62,63,107,108
J131,160,169
JUP-00-00066 JUMPER 0OHM JUMPER 18m/m J78,84,85,86,87,88,99,100,101,102 10
JUP-00-00074 JUMPER 0OHM JUMPER 19m/m J120,179 2
JUP-00-00049 JUMPER 0OHM JUMPER 20m/m J77,97,98,103,104,111,118,166,202,206 14
J207,310,320,330
JUP-00-00075 JUMPER 0OHM JUMPER 22m/m J66,67,68,69,119,121,122,123,124,125 28
J128,133,134,135,136,137,158,161,162,163
J164,171,173,174,175,176,177,178
JUP-00-00076 JUMPER 0OHM JUMPER 23m/m J70 1
JUP-00-00042 JUMPER 0OHM JUMPER 25m/m J59 1
ICO-00-00022 I.C P.W.M TL494CN U01 1
ICO-00-00112 I.C DUAL OP AMP "SIP-08P" NJM2068LD U101,110,111,301,310 5
FET-00-00023 F.E.T N-CH MOSFET FQP50N06 Q43,44,45,46,53,54,55,56 8
TRS-00-00188 TRANSISTOR AUDIO POWER NPN TIP35C Q135,235,335,435 4
TRS-00-00207 TRANSISTOR AUDIO POWER PNP TIP36C Q145,245,345,445 4
TRS-00-00111 TRANSISTOR SMALL SIGNAL NPN KTC3200GR Q140,240,340,440 4
DIO-00-00152 DIODE FAST RECOVERY YG225D2 D41,42 2
DIO-00-00048 DIODE RECTIFIER 1N5404 D01 1
DIO-00-00206 DIODE ZENER 1W 15V 1N4744A D191,291 2
ELC-00-00249 CAPACITOR ELECTROLYTIC "SRE" 2.2/50V C120,320 2
ELC-00-00250 CAPACITOR ELECTROLYTIC "SRE" 4.7/50V C128,228 2
ELC-00-00641 CAPACITOR ELECTROLYTIC "SRE" 22/16V C102,103,123,124,202,203,223,224,302,303 16
C323,324,402,403,423,424
ELC-00-00243 CAPACITOR ELECTROLYTIC "SRE" 100/16V C171,371 2
GTO 75.4/75.4II
17

RES-00-01046 RESISTOR MOR/S 2WJ (15m/m FORMING) 100 OHM R30 1
RES-00-01264 RESISTOR MOR/S 2WJ (15m/m FORMING) 150 OHM R291 1
RES-00-01265 RESISTOR MOR/S 2WJ (17.5m/m FORMING150 OHM R191 1
RES-00-01041 RESISTOR MOR/S 2WJ (15m/m FORMING) 680 OHM R162,262,362,462 4
RES-00-00895 RESISTOR WIRE WOUND 3WJ(FORMING 20m/m
0.1 OHM R160,170,260,270,360,370,460,470 8
THS-00-00013 THERMISTOR NTC RESISTOR FTD5-350 TH01 1
ELC-00-00234 CAPACITOR ELECTROLYTIC "SMS" 470/50V (12.5x20m/m) C51,61 2
DIO-00-00278 LED RED COLOR HNRD-3401L LED01 1
DIO-00-00303 LED BLUE COLOR TOL-30aSBaCAa-B2 LED02 1
ELC-00-00727 CAPACITOR ELECTROLYTIC "WL" 2200/25V (16x25m/m) C04,05,06 3
ELC-00-00714 CAPACITOR ELECTROLYTIC "HC" 4700/50V (25x30m/m) C52,62 2
COR-TF-00386 CORE 4(0.7x15):11(0.7x4):8(0.7x1):8(0.7x1) 44PHI MAGNETICS T01 1
COI-00-00093 INDUCTOR DRUM COIL CL-510 L01,02 2
COI-00-00028 INDUCTOR BAR COIL CL-310 L03 1
SWI-00-00024 SWITCH SLIDE SWITCH JSS-2219 SW102,302 2
JAC-00-00043 RCA JACK GOLD PLATED DJB-554A RCA101 1
JAC-00-00042 RCA JACK GOLD PLATED DJB-562D RCA301 1
TER-00-00241 TERMINAL GOLD PLATED DST0013-00 (3P) TER01 1
TER-00-00251 TERMINAL GOLD PLATED 2!8P ST-11A-2-8P TER02 1
JUP-00-00005 JUMPER METAL JUMPER 55m/m BJ01,02,03,07 4
JUP-00-00003 JUMPER METAL JUMPER 35m/m BJ04,05,06 3
HOD-00-00011 FUSE HOLDER WF-9604 FH01 1
CON-00-00128 WAFER LAD1140-04PBK HI101,301 2
WIR-00-00208 WIRE ASS'Y 300m/m CHD1140-04PBK ACCESSORY 2
WIR-00-00015 WIRE AWG #22 BK 3.2PHI RING LUG 60m/m W1,2 2
HED-00-00115 HEADER PIN SOCKET TM2501-DG-14P 14P CON101-1,301-1 2
TUB-00-00008 TEFLON TUBE 0.7PHI 10m/m TH01,Q140,240,340,440 6
TUB-00-00009 TEFLON TUBE 0.7PHI 15m/m LED02 2
TUB-00-00006 TEFLON TUBE 0.7PHI 20m/m LED01 2
FUS-AT-00006 AUTO FUSE 30A SET2+ACCESSORY2 4
PCB-00-01355 P.C.B FR-4 DOUBLE LAYER, 1Oz BROWN PAS319-01 148x92m/m 1
ICO-00-00113 I.C DUAL OP AMP "SOP-08" NJM2068M U102,103,104,105,302,303,304,305,306,307 10
RES-08-00239 RESISTOR SMD 0805 1/8WF 9.31K OHM R257,457 2
RES-08-00022 RESISTOR SMD 0805 1/8WF 15K OHM R155,255,355,455 4
RES-08-00088 RESISTOR SMD 0805 1/8WF 47K OHM R256,456 2
RES-08-00117 RESISTOR SMD 0805 1/8WF 91K OHM R156,356 2
RES-08-00225 RESISTOR SMD 0805 1/8WJ 820 OHM R108,208,308,408 4
RES-08-00148 RESISTOR SMD 0805 1/8WJ 1K OHM R391,392,491,492 4
RES-08-00201 RESISTOR SMD 0805 1/8WJ 5.6K OHM R113,115,213,215,313,315,413,415 8
RES-08-00210 RESISTOR SMD 0805 1/8WJ 6.8K OHM R396,496 2
RES-08-00132 RESISTOR SMD 0805 1/8WJ 10K OHM R110,111,112,114,210,211,212,214,310,311 16
R312,314,410,411,412,414
RES-08-00187 RESISTOR SMD 0805 1/8WJ 39K OHM R393,493 2
RES-08-00141 RESISTOR SMD 0805 1/8WJ 150K OHM R397,497 2
CEC-08-00009 CAPACITOR SMD 0805 12pF C156,356 2
CEC-08-00017 CAPACITOR SMD 0805 20pF C256,456 2
CEC-08-00042 CAPACITOR SMD 0805 47pF C111,211,311,393,411,493 6
CEC-08-00040 CAPACITOR SMD 0805 473pF C195,196,295,296,395,396,495,496 8
MYC-00-00157 CAPACITOR MYLAR 5% 63V "TL" 823J C113,115,213,215,313,315,413,415 8
MYC-00-00083 CAPACITOR MYLAR 5% 63V "TL" 104J C391,392,491,492 4
ELC-00-00241 CAPACITOR ELECTROLYTIC"SRE" 10/16V C125,155,225,255,325,355,425,455 8
SWI-00-00112 SWITCH SLIDE SWITCH JSS2301S120 SW101,301 2
VOL-00-00337 VOLUME V123H CO 20RS B20K (10%) 20KBx2 VR101,301,303 3
VOL-00-00338 VOLUME V124H CO 20RS C50K (10%) 50KCx4 VR102,302 2
HED-00-00245 PIN CONNECTOR TM2008-D81G-14P 14P CON101,301 2
GTO 75.4/75.4II
18

GTO 75.4/75.4II
19
GTO 75.4 Version II Electrical Parts List Addendum
The following chart below represents electrical parts differences in
Version I and II models:
MODEL PART NAME PART NO SPEC DESIGNATOR
GTO 75.4 RESISTOR RES-00-00437 1/5WF 1K OHM R120,220,320,420
1 GTO 75.4II RESISTOR RES-00-00545 1/5WF 5.6K OHM R120,220,320,420
GTO 75.4 RESISTOR RES-00-00417 1/5WF 13.7K OHM R171,271,371,471
2 GTO 75.4II RESISTOR RES-00-00508 1/5WF 33K OHM R171,271,371,471
GTO 75.4 RESISTOR RES-08-00225 SMD 0805 1/8WJ 820
OHM
R108,208,308,408
3 GTO 75.4II RESISTOR RES-08-00242 SMD 0805 1/8WF 240
OHM R108,208,308,408
GTO 75.4 RESISTOR RES-08-00022 SMD 0805 1/8WF 15K
OHM
R155,255,355,455
4 GTO 75.4II RESISTOR RES-08-00116 SMD 0805 1/8WF 9.1K
OHM R155,255,355,455
GTO 75.4 RESISTOR RES-08-00239 SMD 0805 1/8WF
9.31KOHM
R257,457
5 GTO 75.4II RESISTOR RES-08-00200 SMD 0805 1/8WJ 5.1K
OHM R257,457
GTO 75.4 CAPACITOR CEC-08-00009 SMD 0805 12PF C156,356
6 GTO 75.4II CAPACITOR CEC-08-00023 SMD 0805 22PF C156,356
GTO 75.4 CAPACITOR CEC-08-00017 SMD 0805 20PF C256,456
7 GTO 75.4II CAPACITOR CEC-08-00037 SMD 0805 39PF C256,456
GTO 75.4 POWER TERMINAL TER-00-00241 (3P) DST0013-00 TER01
8 GTO 75.4II POWER TERMINAL TER-00-00277 (3P) DK-03B03-AG-1-DN TER01
GTO 75.4 SPEAKER TERMINAL TER-00-00251 (8P) ST-11A-2-8P TER02
9 GTO 75.4II SPEAKER TERMINAL TER-00-00273 (8P) DK-0802-AG-1-DN TER02
GTO 75.4 CAPACITOR CEC-00-00004 Ceramic, 102pf 50v C101,201,301,401
10 GTO 75.4II CAPACITOR CCEA1CH100T Electrolytic, 10uf 16v C101,201,301,401
