JBL ESC 360 User manual

SPECIFICATIONS:
Audio Section
•Surround Formats: Dolby Digital - DTS - Dolby Pro Logic
•Frequency Response at 1W (+0dB, -3dB): 55Hz - 20 kHz
•Signal-to-Noise Ratio (IHF-A): 80 dB

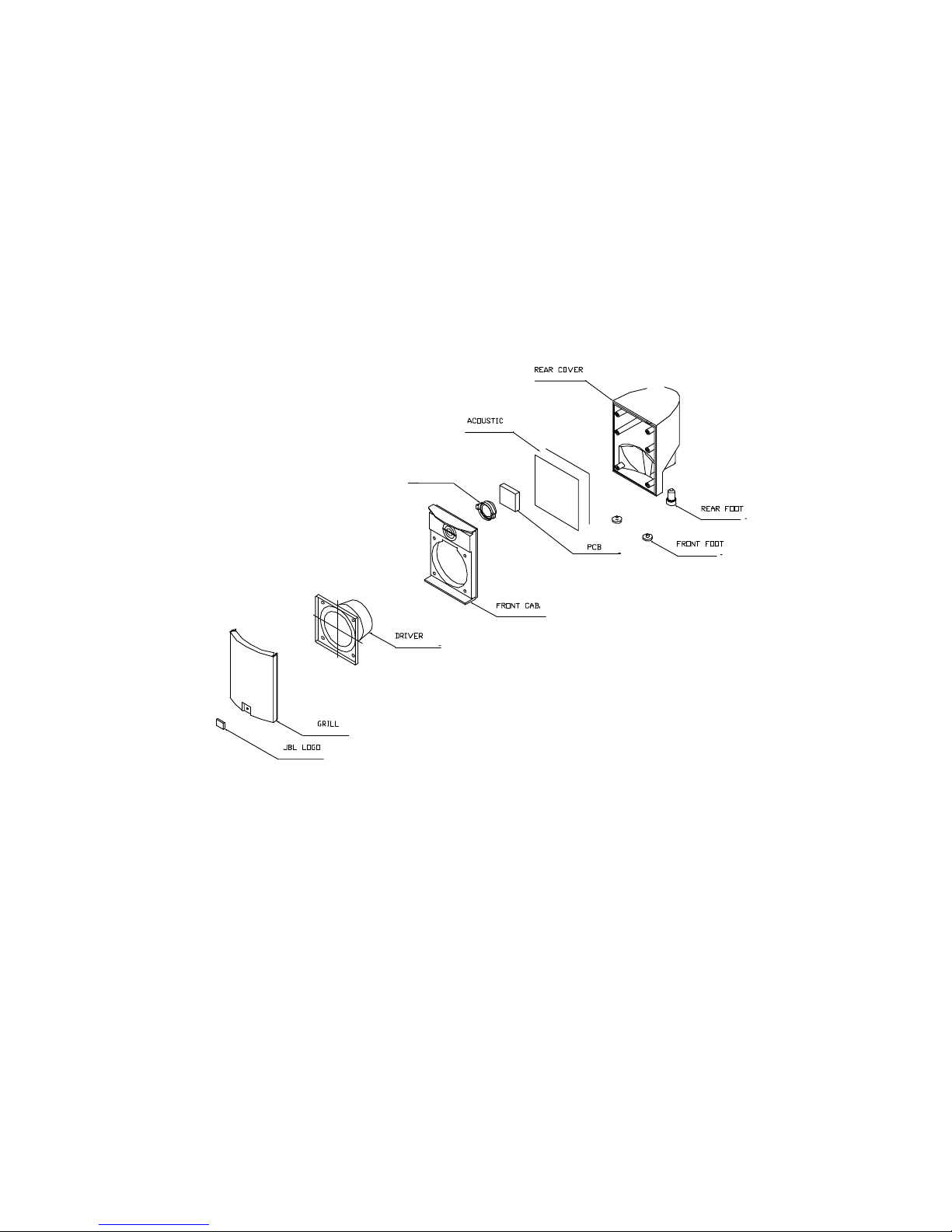

Satellite Section
•Frequency Response (-6db): 120 Hz-20 kHz
•Sensitivity (2.83V @ 1m): 84 dB
•Nominal Impedance: 4 Ohms
•Recommended Amplifier Power: 25 Watts RMS (in sub)
•Titanium Laminate HF: 12 mm
•Paper Cone Midrange : 75 mm
•Dimensions (H x W x D): 111 x 81 x 92 mm
•Weight: 0.5 kg
•Finish: silvergray
Center Section
•Frequency Response (-6db): 120 Hz-20 kHz
•Sensitivity (2.83V @ 1m): 86 dB
•Nominal Impedance: 4 Ohms
•Recommended Amplifier Power: 25 Watts RMS (in sub)
•Titanium Laminate HF: 12 mm
•Paper Cone Midrange : dual 75 mm
•Dimensions (H x W x D): 83 x 194 x 95 mm
•Weight: 0.8 kg
•Finish: silvergray
Subwoofer Section
•Low Frequency Cut-off: 40 Hz
•High Frequency Cut-off: 160 Hz
•Built-in Power Amplifier (RMS): 25 Watts x 5 + 60 Watts
•Paper Cone Long Throw Driver : 165 mm
•Dimensions (H x W x D): 315 x 300 x 310
•Weight: 7.2 kg
•Finish: silvergray
General Section
•Power Requirement: 230V/50-60Hz
•Power Consumption: 80 Watts
Service Manual
ESC 360

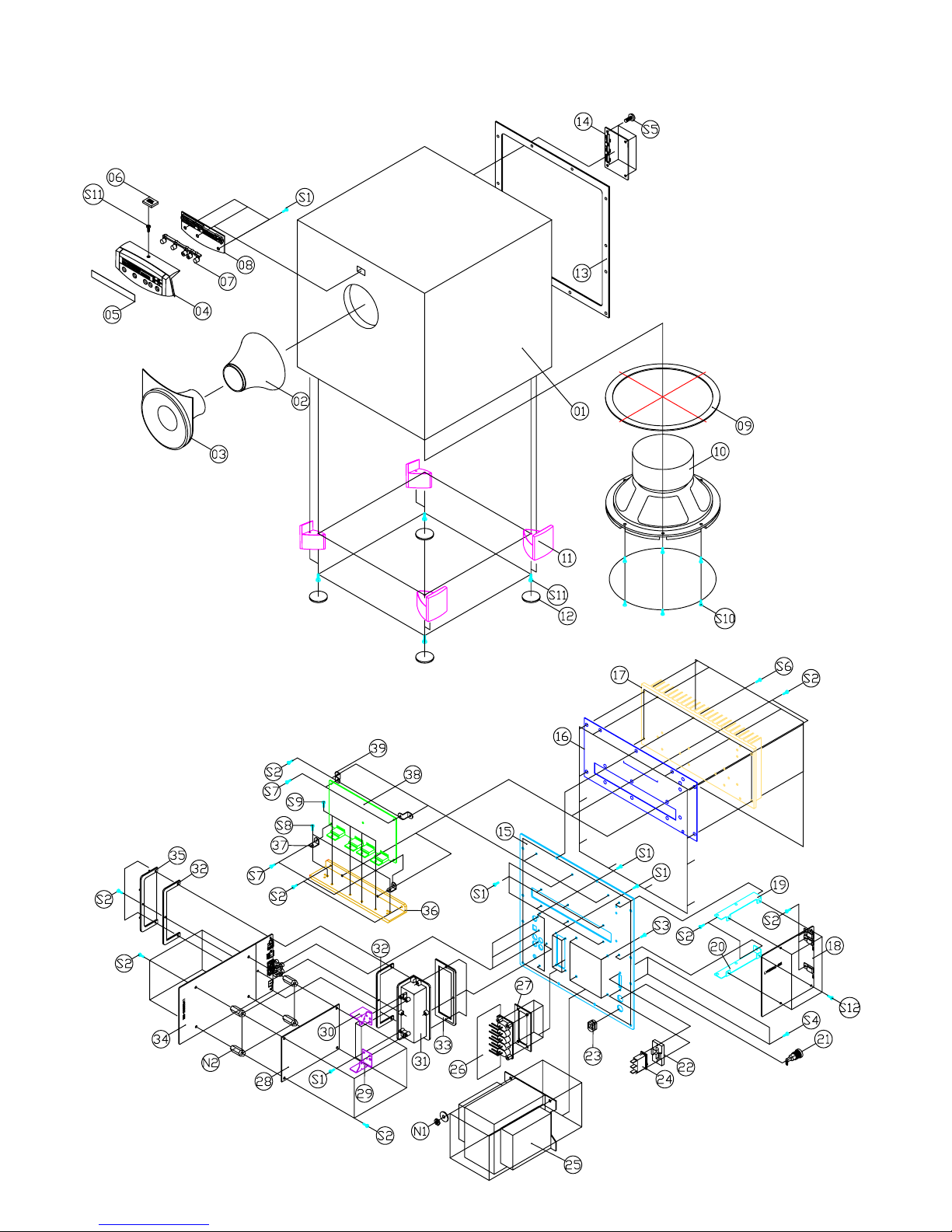

ITEM PART NUMBER MATERIAL DESCRIPTION
1 EVM200002-0001 WOOD BOX W300xH300xD300mm
2 BPR000020-0001 PORT EDGE ABS W/SPRAY MA4810
3 BPR000042-0BA0 PORT (F) ABS MA4810
4 BPF005056-0AY1 CNTL PANEL METALIC LIGHT GREY SILVER
5 BFP211001-0001 PVC PLATE
6 BPL000013-0001 LOGO PLATE 22.5xW18mm JBL
7 BPK005031-0000 CONTROL KNOB W/SPRAY MA4810
8 APE200140-4001 CNTL PCB ASSY (HI)
9 IVE200001-0001 SPONGE OD165xID143xT1.0mm
10 FSA226061-1401 SPK DRIVER 6.5" 4OHM 60W
11 BPE000005-0002 FOOT D25xL25 LIGHT GREY W/MA4810 SPRAY
12 BRF200001-0001 RUBBER FOOT NR3 BLACK 13.5xT2.0mm W/ADHE
13 IVE200002-0001 SPONGE L268xW268xT2.0mm
14 APE200065-4001 LED INTERFACE PCB ASSY HI
15 GSE200008-0001 REAR PANEL SECC T=2.0mm CEDCOATTING BLK
16 ICH209001-0001 SPONGE FIBER T0.5mm 268x120mm
17 GAL200004-0001 HEAT SINK L AL W/ANODIZING BLK
18 APE200063-5001 DC PCB ASSY CHASSIS
19 GSE200010-0001 PCB BKT R SECC T=1.0mm
20 GSE200011-0001 PCB BKT L SECC T=1.0mm
21 CFC021001-1001 FUSE HOLDR FUSE HOLDER FH-B02
22 BRB200001-0001 RUBBER BUSHING BLACK W/UL
23 DBU001002-0011 BUSHING AC LINE BUSHING HEAVY POWER 4K-4
24 MSW008004-0010 SW ROCKER 5A AC 250V TV-5
25 TTK223001-0001 PWR TRANS EI-96 230V
26 APE200064-5001 SPK JACK ASSY CHASSIS
27 IVE200010-0001 SPONGE A EVA
28 APE004710-4004 DECODER PCB ASSY AC3 DTS/DSP HI
29 GSE200020-0001 PCB BKT L SECC T=1.0mm
30 GSE200021-0001 PCB BKT R SECC T=1.0mm
31 BPC200001-0001 PCB COVER A ABS LIGHT GREY
32 IVE200004-0001 SPONGE B EVA
33 IVE200003-0001 SPONGE A EVA
34 APE200061-5001 MAIN PCB ASSY CHASSIS
35 BPC210001-0001 PCB COVER B ABS LIGHT GREY
36 GAL200003-0001 HEAT SINK AL W238xH32mm W/ANODIZING BLK
37 GSE200009-0001 PCB BKT L T=1.0mm
38 APE200062-5001 AMP. PCB ASSY CHASSIS
39 GSE200012-0001 PCB BKT Z SECC T=1.0mm
S1 HSP140054-3080 SCREW T3.0xL8xP1.06mm BLACK OXIDE
S2 HST140054-3100 SCREW T3.0xL10xP1.06mm BLACK OXIDE
S3 HSD143103-3200 SCREW M4.0xP0.7xL20 mm C
S4 HSP143083-3140 SCREW ;M3.0xP0.5xL14mm PAN HEAD BLAC
K
S5 HST140051-3220 SCREW T3xL22xP1.06mm BLACK OXIDE
S6 HSP140091-3200 SCREW T4xL20xP1.59mm BLACK OXIDE
S7 HST140054-3060 SCREW T3xL6xP1.06mm BLACK OXIDE
S8 HSP140074-3080 SCREW T3.5xL8xP1.41mm BLACK OXIDE
S9 HSP140054-3100 SCREW T3.0xL10xP1.06mm BLACK OXIDE
S10 HSP140091-3160 SCREW T4.0x1.59PxL16mm BLACK PAN HEAD
S11 HST140071-3140 SCREW T3.5xP1.41x14mm BLACK OXIDE
S12 HSP140054-3060 SCREW T3.0xL6xP1.06mm BLACK OXIDE
N
1HNT140700-1300 NUT M4.0xOD7.0xT3.0mm NICKEL
N
2HOT002006-0003 CU-SPACER M3.0xP0.5xL20mm HEXAGO
ESC360 PART LIST

Installation Point Qty. Description Material No.

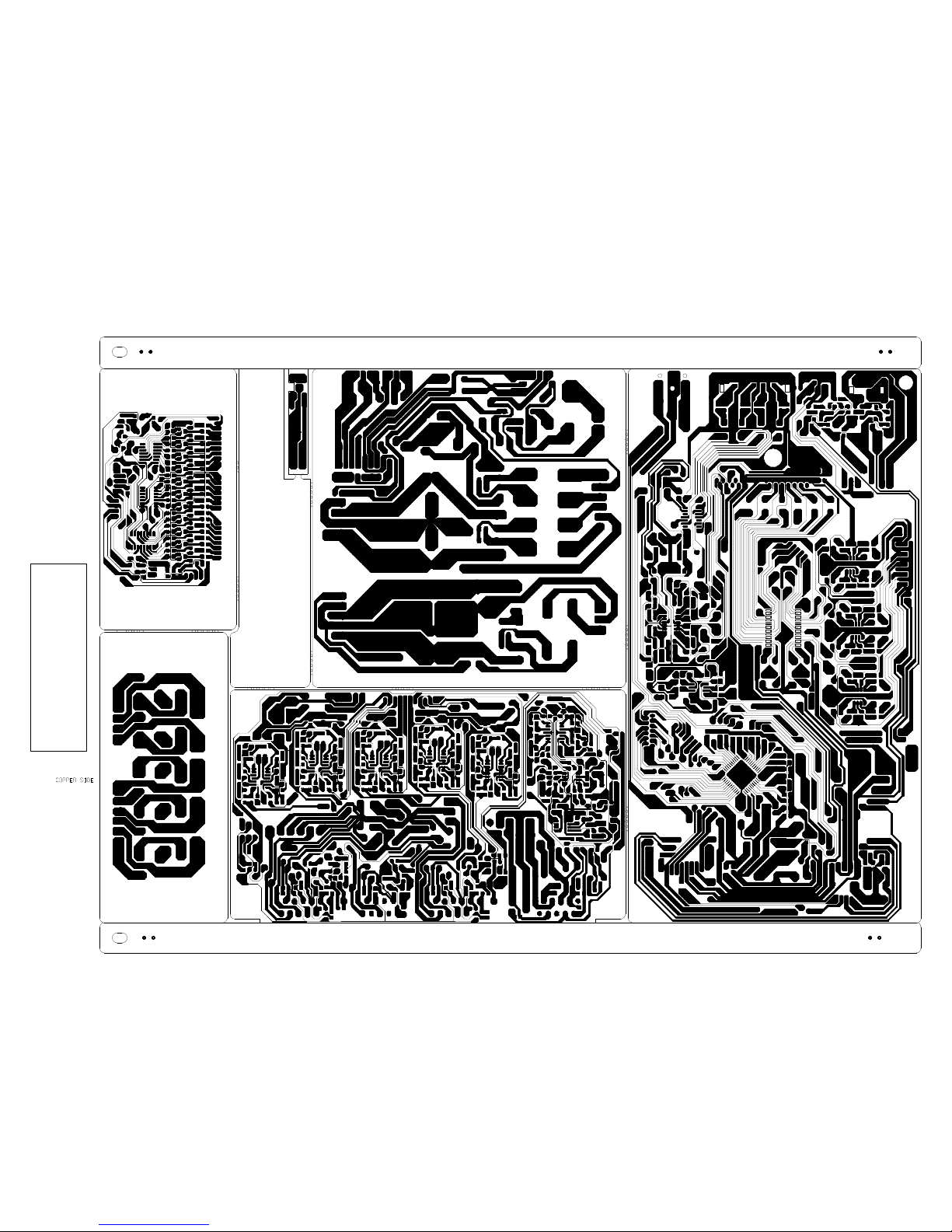

1 MAIN PCB ASSY HI APE200061-4001
IC302 1 IC 14 PIN TL074CD RCI000740-0001
IC621 IC622 IC623 IC701 4 IC 8 PIN TL072CD RCI000720-0001
IC620 1 IC 42 PIN M62446FP MITSUBISHI RCI062446-0001
IC301 1 IC 16 PIN TC4052BFN CHIP RCI004052-0001
IC201 1 IC 44 PIN TC9819 U-CON V2 MASK RCI870047-0082
Q101 Q102 Q103 Q104 Q301 Q302 Q505 7 XISTR NPN SMT (2SC945) RCN200945-0001
Q506 1 XISTR PNP 2SA812 hfe:200~400 RCP200733-0001
ZD601 ZD602 2 DIODE ZENR 6.9-7.2V 0.5W RAZ005007-0020
D201 D202 D203 D303 11 CHIP DIODE LL4148 TELEFUNKEN RCD104148-0010
D304 D305 D306 D307 D308 D601 D208
D650 1 DIODE;RECTIFIER 1N4002 RAD114001-0010
ZD301 1 DIODE ZENR 2.3-2.5V 0.5W RAZ005002-0020
ZD201 1 DIODE ZENR 5.6-5.9V 0.5W RAZ005006-0020
R832 JP01 R738 3 CHIP RES. 0 OHM JUMP WIRE QCF015020-0000
R383 R384 2 CHIP RES. 10 OHM 1/10W 5% QCF015020-1000
R880 R317 R318 R835 9 CHIP RES. 100 OHM 1/10W 5% QCF015020-1010
R876 R877 R878 R879 R881
R309 R310 R313 R314 14 CHIP RES. 1K OHM 1/10W 5% QCF015020-1020
R331 R373 R374 R846
R864 R865 R868 R869 R875 R336
R101 R103 R106 R108 23 CHIP RES. 10K OHM 1/10W 5% QCF015020-1030
R113 R214 R311 R312
R319 R320 R325 R326
R330 R333 R335 R337
R529 R542 R821 R101A R118 R119 R120
R380 R527 2 CHIP RES. 100K OHM 1/10W 5% QCF015020-1040
R107 R321 R322 R378 R379 5 CHIP RES. 1M OHM 1/10W 5% QCF015020-1050
R104 R109 R110 R327 R327A 5 CHIP RES. 150 OHM 1/10W 5% QCF015020-1510
R211 1 CHIP RES. 1.8K OHM 1/10W 5% QCF015020-1820
R833 R834 2 CHIP RES. 2.4K OHM 1/10W 5% QCF015020-2420
R332 1 CHIP RES. 22K OHM 1/10W 5% QCF015020-2230
R329 R334 R801 R803 R804 R805 R816 8 CHIP RES. 220K OHM 1/10W 5% QCF015020-2240
R802
R301 R302 R303 R304 9 CHIP RES. 24K OHM 1/10W 5% QCF015020-2430
R305 R306 R307 R308 R377
R862 R863 R866 R867 R873 R874 6 CHIP RES. 2.7K OHM 1/10W 5% QCF015020-2720
R210 R315 R316 3 CHIP RES. 3.3K OHM 1/10W 5% QCF015020-3320
R817 R818 R819 R828 R829 5 CHIP RES 3.6K OHM 1/10W 5% QCF015020-3620
R381 R382 2 CHIP RES. 470 OHM 1/10W 5% QCF015020-4710
R212 R213 R226 R236 15 CHIP RES. 4.7K OHM 1/10W 5% QCF015020-4720
R323 R324 R215 R216 R217 R218 R220
R221 R223 R224 R219
R105 R112 R225 R526 R528 5 CHIP RES. 47K OHM 1/10W 5% QCF015020-4730
R885 R886 2 RESISTOR 150 OHM 1W 5% MF HI QHM105000-1510
R375 R376 2 CHIP RES. 680 OHM 1/10W 5% QCF015020-6810
R830 R822 R827 R836 R837 R842 R843 9 CHIP RES. 8.2K OHM 1/10W 5% QCF015020-8220
R844 R845
R102 1 CHIP RES. 5.1K OHM 1/10W 5% QCF015020-5120
R372 1 RESISTOR 4.7K OHM 1/6W 5% CF QAF065000-4720
R810 R811 R812 3 RESISTOR 22K OHM 1/6W 5% CF QAF065000-2230
L301 1 CHOKE 10 uH 10% SAN001600-1000
R232 1 RESISTOR 100 OHM 1/6W 5% CF QAF065000-1010
C202 C203 2 CHIP CAP 18 pF 50V 5% PYL410370-1800
C317 C318 2 CHIP CAP 22 pF 50V 5% PYL410370-2200
C303 C304 C309 C310 18 CHIP CAP 47 pF 50V 5% PYL410370-4700
C328 C331 C363 C364
C769 C773 C777 C780
C781 C782 C358 C359 C360 C361
C301 C302 C307 C308 4 CHIP CAP 100 pF 50V 5% PYL410370-1010
C102 C106 C110 C111 13 CHIP CAP 0.1 uF 50V 5% PYL456370-1040
C206 C211 C325 C326 C703 C704 C321A
C322A C110A
C101 C105 2 CHIP CAP 0.01 uF 50V 5% PYL456370-1030
C208 C362 2 CHIP CAP 0.022 uF 50V 5% PYL456370-2230
C702A C752 C753 C755 11 COND ELECT 47uF 10V 20% PRE039530-4700
C766 C767 C783 C784 C786 C787 C788
C207 1 COND ELECT 47uF 16V 20% PRE039540-4700
Main

C109 C305 C306 C311 10 COND ELECT 47uF 25V 20% PRE039550-4700
C312 C315 C316 C319 C320 C327
C209 C527 C330 3 COND ELECT 10 uF 50V 20% PRE039570-1000
C104 C108 C201 C323 C324 5 COND ELECT 1uF 50V 20% PRE039570-1090
C765 C785 2 COND ELECT 100uF 10V 20% PRE039530-1010
C768 1 COND ELECT 100uF 16V 20% PRE039540-1010
C789 C795 C809 C811 8 COND ELECT 100uF 25V 20% PRE039550-1010
c810 c812 c815 c816
C313 C314 C321 C322 4 COND ELECT 220uF 25V 20% PRE039550-2210
C526 1 COND ELECT 2.2 uF 50V 20% PRE039570-2290
C204 1 COND ELECT 0.47 uF 50V 20% PRE039570-4780
C701A C703A C704A C705A C706A 5 COND ELECT 4.7 uF 50V 20% PRE039570-4790
C813 C814 2 COND ELECT 3.3 uF 50V 20% PRE039570-3390
C770 C776 2 COND METAL 0.82uF 63V 5% MINI SIZE PRN126380-8240
C772 C774 2 COND MYLAR 0.0047 uF 100V 5% PRM0373A0-4720
C771 C775 2 COND MYLAR 0.0056 uF 100V 5% PRM0373A0-5620
C205 C650 2 COND ELECT 2200 uF 10V 20% 85`C PVE039530-2220
JP400~JP466 L604 L605 JP467 JP468 71 WIRE BARE 22 GA TINNED XJP220000-0001
JP469(NEAR L604)
CN206 1 CONNECTOR 10 PIN PITCH=2.0mm CCN200000-0110
CON2 1 CONNECTOR B2B-XH-A 2 PIN CCN250000-0102
JK201 1 PHONE JACK D3.5 3 PIN BLK CJM035001-3010
CR201 1 CRYSTAL 4.194304 MHZ HC-49/U JQC013100-4151
CN8A 1 CONNECTOR 15 PIN TO2-3100-1150 CCH100060-0215
CN5A 1 CONNECTOR 9 PIN P1.25x2.5mm 180' FPC CCH125060-0209
CN6A 1 FPC CONNECTOR 15PIN P1.25x2.5mm 180' CCH125060-0215
JK301 1 RCA JACK 4P RED-RED/WHT-WHT CJR004101-0020
JK303 1 OPTICAL RECEIVER DLR1111 CJT200001-0005
JK302 1 RCA JACK 1P GREEN RJ-1081-05-0300A CJR001101-0030
CN601A 1 CON/WIRE 11P 250mm 2547&1007 A=2mm VWA200047-0005
RB1 1 CHIELD CABLE 3P L=70mm 2547#26 A=2.5mm VSW323122-0070
RB3 1 SHIELD CABLE 2P 120mm 1533#26 A=2.5mm VSW223122-0120
RB102B 1 CON/WIRE 7P 120mm 2547&1007 A=2mm VWA200047-0006
RB9A 1 CON/WIRE 2P 60mm A=2.5mm B=2512V VWA010091-0001
RB100 1 CON/WIRE 4P 290mm 1007#26 AWG FLAT A=2mm VWA200097-0001
RB906 1 FLAT WIRE 9P 380mm 1007#26 A=2.5mm VWA010091-0002
CN6A 1 FFC CABLE 15P 50mm 2896 P=1.25mm VFC150530-0500
CN5A 1 FFC CABLE 9P L=50mm 2896 P=1.25mm A=2.5 VFC090530-0500
CN8A 1 FFC CABLE 15P L=50mm 2896 P=1.0mm VFC150520-0500
RB102 1 CON/WIRE 3P 350mm 1007#26 FLAT VWA010090-0002
Installation Point Qty. Description Material No.
1 AMP. PCB ASSY (HI) APE200062-4001
IC421 IC501 IC502 3 IC 11 PIN TDA7265 SGS THOMSON RHI007265-0001
IC703 1 IC 11 PIN LM3886T RHI003886-0001
IC800 IC626 2 IC 8 PIN TL072CD RCI000720-0001
IC303 IC304 IC401 IC601 IC602 IC702 6 IC 14 PIN TL074CD RCI000740-0001
Q508 Q509 2 XISTR NPN 2SC2001L NEC RAN202001-0001
Q401 Q501 Q502 Q601 Q701 Q602 6 XISTR NPN 2SC2878-A (TE2,.M) RAN202878-0001
Q800 Q801 Q402 3 XISTR NPN 2SC945P RAN200945-0001
Q510 1 XISTR PNP 2SA733Q,P NEC RAP200733-0001
ZD501 1 DIODE ZENR 5.6-5.9V 0.5W RAZ005006-0020
D603 D800 D801 3 CHIP DIODE LL4148 TELEFUNKEN RCD104148-0010
CN100 1 CONNECTOR 4 PIN PITCH=2.0mm CCN200000-0104
CN505 1 CONNECTOR 2 PIN LEOCO 3951 CCN396020-0102
CN503 1 CONNECTOR 4 PIN CL3962WVO CCN396020-0104
CN501 1 CONNECTOR 6 PIN CL3962WVO CCN396020-0106
CN601 1 CONNECTOR 11 PIN PITCH=2.0mm CCN200000-0111
CN102 1 CONNECTOR B3B-XH-A 3 PIN CCN250000-0103
CN505 1 WIRE TERM 2P 340mm 1015#18 A=3.96VH VWT503221-0340
L701 1 RF COIL 1 uH MDEC T40818-08 SIL001003-1090
C336 C337 C338 C339 C403 C404 24 CHIP CAP 0.1 uF 50V 5% PYL456370-1040
C530 C531 C532 C533 C606 C637 C638
C605 C340 C342 C341 C343 C405 C406
C607 C608 C609 C610
C652 C714 C651 C334 C335 C402 c604 11 CHIP CAP 220 pF 50V 5% PYL410370-2210
C416 C507 C508 C603
C633 C634 C642 C644 C723 C724 C418A 10 CHIP CAP 0.1 uF 50V 5% PYL456370-1040
C419A C803 C804
Amplifier

C623 C624 2 CHIP CAP 0.0022 uF 50V 5% PYL456370-2220
C719 C507A C508A C416A C651A C652A 6 CHIP CAP 47 pF 50V 5% PYL410370-4700
C726 1 CHIP CAP 0.022 uF 50V 5% PYL456370-2230
C413 C501 C502 C352 C354 C353 C355 13 CHIP CAP 0.0022 uF 50V 5% PYL456370-2220
C411 C412 C620 C622 C619 C621
C722 1 CHIP CAP 0.027 uF 50V 5% PYL456370-2730
R713 R538 R436 R539 R663 R664 C401 J1 34 CHIP RES. 0 OHM JUMP WIRE QCF015020-0000
J2 J3 J4 J5 J6 J7 R536 R537 R530 R545
R351 R352 R613 R614
R407 R353 R354 R408
R615 R616 C601 C602 C332 C333 J8 J9
R631 R632 R711 R701 10 CHIP RES. 1K OHM 1/10W 5% QCF015020-1020
R416 R501 R502 R729 R02 R03
R635 R636 R637 R709 R710 R638 R524 32 CHIP RES. 10K OHM 1/10W 5% QCF015020-1030
R339 R340 R345 R346
R401 R535 R418 R419
R505 R506 R507 R508
R601 R602 R607 R608 R730 R06 R12
R07 R08 R10 R541 R633A R634
R404 R704 R706 R517 R518 5 CHIP RES. 15K OHM 1/10W 5% QCF015020-1530
R633 R634 R708 R420 8 CHIP RES. 100K OHM 1/10W 5% QCF015020-1040
R417 R503 R520 R504
R09 R660 2 CHIP RES. 1M OHM 1/10W 5% QCF015020-1050
R365 R366 R414 R627 R628 R05 6 CHIP RES. 2.2K OHM 1/10W 5% QCF015020-2220
R01 R04 R732 R525 R610 R609 R348 R347 9 CHIP RES. 22K OHM 1/10W 5% QCF015020-2230
R406
R341 R402 R342 R603 R604 5 CHIP RES. 27K OHM 1/10W 5% QCF015020-2730
R726 1 CHIP RES 3.6K OHM 1/10W 5% QCF015020-3620
R733 1 CHIP RES. 36K OHM 1/10W 5% QCF015020-3630
R737 R725 2 CHIP RES. 4.7K OHM 1/10W 5% QCF015020-4720
R11 1 CHIP RES. 470K OHM 1/10W 5% QCF015020-4740
R639 R434 R509 R510 R640 5 CHIP RES. 560 OHM 1/10W 5% QCF015020-5610
R343 R344 R605 R606 9 CHIP RES. 5.6K OHM 1/10W 5% QCF015020-5620
R367 R368 R629 R630 R403
R703 R705 R349 R350 R405 R611 R612 7 CHIP RES. 6.8K OHM 1/10W 5% QCF015020-6820
R727 1 CHIP RES. 68K OHM 1/10W 5% QCF015020-6830
R724 R731 2 CHIP RES. 220K OHM 1/10W 5% QCF015020-2240
R427 1 CHIP RES. 56K OHM 1/10W 5% QCF015020-5630
R543 1 CHIP RES. 2.7K OHM 1/10W 5% QCF015020-2720
R519 R540 R544 3 CHIP RES. 47K OHM 1/10W 5% QCF015020-4730
R702 1 CHIP RES. 12K OHM 1/10W 5% QCF015020-1230
R362 R364 R361 R363 R412 R413 R624 10 CHIP RES. 150K OHM 1/10W 5% QCF015020-1540
R626 R623 R625
R415 R734 2 CHIP RES. 1.2K OHM 1/10W 5% QCF015020-1220
C725 1 CHIP CAP 0.068 uF 50V 10% PYL456470-6830
C720 C721 2 CHIP CAP 0.018 uF 50V 10% PYL456470-1830
R717 1 RESISTOR 4.7 OHM 1/2W 5% CF QAF025000-4790
R641 R642 R435 R511 R512 5 RESISTOR 18K OHM 1/6W 5% CF QAF065000-1830
R712 1 RESISTOR 24K OHM 1/6W 5% CF QAF065000-2430
R428 R429 2 RESISTOR 10 OHM 1/4W 5% CF QAF045000-1000
C717 1 COND MYLAR 0.1 uF 100V 5% PRM0373A0-1040
C707 1 COND ELECT 10 uF 50V 20% PRE039570-1000
C708 1 COND ELECT 33uF 16V 20% PRE039540-3300
C715 C716 C515 C516 4 COND ELECT 100uF 50V 20% PRE039570-1010
C625 C626 C414 C503 C504 5 COND ELECT 1uF 50V 20% PRE039570-1090
C418 C419 2 COND ELECT 220uF 25V 20% PRE039550-2210
C801 1 COND ELECT 4.7 uF 50V 20% PRE039570-4790
C800 1 COND ELECT 10uF 50V 20.% PRE339570-1000
C711 C712 C713 3 COND DISC 0.1 uF 50V +80-20% PRD339670-1040
RB101 1 CON/WIRE 3P 130mm 1007#26 FLAT VWA010090-0001
RB905 1 CON/WIRE 5P 270mm 1007#18 A=3.96VH VWA310006-0011
RB904 1 CON/WIRE 4P 180mm 1007#18 AWG A=3.96VH VWA310006-0009
2 PCB BKT Z SECC T=1.0mm GSE200012-0001
49 WIRE BARE 22 GA TINNED JP300 - JP348 XJP220000-0001
2 BRACKET SECC T=0.8mm GSE100054-0001
Installation Point Qty. Description Material No.
1 DC PCB ASSY HI APE200063-4001
1 PWR TRANS EI-96 230V TTK223001-0001
IC904 1 IC 3 PIN AN7806 MATSUSHITA RHI007806-0001
DC PCB

IC901 1 IC 3 PIN 7815 15V 1A RHI007815-0001
IC902 1 IC 3 PIN AN7915T SAMSUNG RHI007915-0001
Q906 1 XISTR PNP 2SA733Q,P NEC RAP200733-0001
D913 1 DIODE 1N4002 1A 70VRMS RAD114002-0010
BD904 1 BRIDGE RECTIFIER;RS402L 4A 100V UL RHD204010-0010
BD901 1 BRIDGE KBU808 8A 800V UL RHD208080-0010
BD902 BD903 2 BRIDGE RS202L 2A 100V UL RHD202010-0010
ZD901 1 DIODE ZENR 4.7-4.9V 0.5W RAZ005005-0020
CN101 1 CONNECTOR B3B-XH-A 3 PIN CCN250000-0103
CN906 1 CONNECTOR B9B-XH-A 9 PIN CCN250000-0109
CN902 1 CONNECTOR 2 PIN LEOCO 3951 CCN396020-0102
CN904 1 CONNECTOR 4 PIN CL3962WVO CCN396020-0104
CN905 1 CONNECTOR 5 PIN CL3962WVO CCN396020-0105
CN901 1 CONNECTOR 6 PIN CL3962WVO CCN396020-0106
CN903 1 CONNECTOR 3 PIN CL3962WVO CCN396020-0103
F901 F902 F903 F904 F905 F906 F907 14 FUSE CLIP DIA5xL20mm FUSE CFC011000-1001
C919 1 COND ELECT 2200 uF 25V 20% 85`C PVE039550-2220
C913 C914 2 COND ELECT 2200 uF 35V 20% PVE039560-2220
C906 C908 2 COND ELECT 4700 uF 50V 20% PVE039570-4720
C939 C940 2 COND ELECT 3300 uF 50V 20% PVE039570-3320
R913 1 RESISTOR 10K OHM 1/6W 5% CF QAF065000-1030
R910 1 RESISTOR 3.3K OHM 1/6W 5% CF QAF065000-3320
R911 1 RESISTOR 4.7K OHM 1/6W 5% CF QAF065000-4720
R912 1 RESISTOR 47K OHM 1/6W 5% CF QAF065000-4730
C920 C922 C924 C925 C927 C933 6 COND DISC 0.1 uF 50V +80-20% PRD339670-1040
C901 C902 C903 C904 17 COND DISC 0.022 uF 50V +80-20% PRD249670-2230
C909 C910 C911 C912
C915 C916 C917 C918
C934 C935 C936 C937 C938
C932 1 COND ELECT 100uF 16V 20% PRE039540-1010
C921 1 COND ELECT 22 uF 25V 20% PRE039550-2200
C923 C926 2 COND ELECT 220uF 25V 20% PRE039550-2210
F903 F904 2 FUSE 1.6A 250V SLOW 5x20mm UL/CSA/T-MARK KSA020160-0010
F901 F902 2 FUSE 8A 250V SLOW KSA020800-0130
Main 1 FUSE ;4A 250V SLOW 5ST BEL KSA020400-0110
F906 F907 2 FUSE ;4A 250V SLOW 5ST BEL KSA020400-0110
F905 1 FUSH 2A 250V SLOW BLOW RUL/VDE/CSA5x20mm KSA020200-0120
2 SLEEVING FOR BD903 BD902 OD2xID1xL15mm DSL001002-0150
7 WASHER FOR POWER PCB OD6xID3xH2.5mm 602S-V0 DHU201001-0001
1 WIRE BARE 22 GA TINNED JP200 TO JP217 XJP220000-0001
4 SCREW DC PCB BKT TO PCB-4. T3.0xL6xP1.06mm HSP140054-3060
Installation Point Qty. Description Material No.
1 SPK JACK ASSY HI APE200064-4001
RB503 1 CON/WIRE 4P 220mm 1007#18 A=3.96VH VWA310006-0008
RB501 1 CON/WIRE 6P 220mm 1007#18 AWG A=3.96VH VWA310006-0010
L401 L501 L502 L601 L602 5 RF COIL 1 uH MDEC T40818-08 SIL001003-1090
JK501 1 TERMINAL IACK ASSY 5 SLOT ABS BLK COT080005-0001
C631 C632 C417 C509 C510 5 COND MYLAR 0.1 uF 100V 5% PRM0373A0-1040
C518 C519 C520 C521 C522 5 COND DISC 0.022 uF 50V +80-20% PRD249670-2230
R423 R513 R514 R643 R644 5 RESISTOR 4.7 OHM 1/2W 5% CF QAF025000-4790
Installation Point Qty. Description Material No.
1 CNTL PCB ASSY (HI) APE200140-4001
RB203 1 CON/WIRE 7P 300mm 1095#28 A=2mm B=2012V VWA200041-0002
RB201 1 CON/WIRE AY 10 COND 320mm P=2.0mm VWA200041-0003
RB202 1 CON/WIRE 8P 320mm 1095#28 A=2mm VWA200041-0004
RB204 1 CON/WIRE 5P 300mm 1095#28 A=2mm B=2512V VWA200041-0005
LD203 LD226 LD228 LD229 LD230 LD231 17 LED Green KED500042-0010
LD232 LD233 LD236 LD237 LD238 LD239
LD240 LD241 LD242 LD243 LD227
LD204 LD205 LD206 LD207 LD210 LD211 22 LED Red KED500525-0010
LD212 LD214 LD215 LD216 LD217 LD218
LD219 LD220 LD221 LD222 LD223 LD224
LD225 LD234 LD235 LD244
LD201 LD202 LD208 LD209 4 LED; 2x5mm RED HI-LIGHT St-by , Mute KED200052-0030
R245 1 RESISTOR 1.2K OHM 1/6W 5% CF QAF065000-1220
Jack pcb
Control pcb

R243 R244 2 RESISTOR 390 OHM 1/6W 5% CF QAF065000-3910
R242 1 RESISTOR 470 OHM 1/6W 5% CF QAF065000-4710
TA201 TA202 TA203 TA204 TA205 5 AI TACT SW SKHVBE3520 MAW060001-0010
1 LED HOLDER BPH000054-0000
Installation Point Qty. Description Material No.
1 LED INTERFACE PCB ASSY HI APE200065-4001
IC202 IC203 IC204 3 IC 16 PIN TC4094BFN TOSHIBA RCI004094-0001
Q251 Q252 Q253 Q254 24 XISTR NPN SMT (2SC945) RCN200945-0001
Q255 Q256 Q257 Q258
Q259 Q260 Q261 Q263
Q264 Q267 Q268 Q269
Q272 Q273 Q274 Q275
Q276 Q277 Q278 Q279
Q265 Q266 Q270 Q271 4 XISTR PNP 2SA812 hfe:200~400 RCP200733-0001
D204 D206 D207 3 CHIP DIODE LL4148 TELEFUNKEN RCD104148-0010
D205 1 DIODE;RECTIFIER 1N4001 RAD114001-0010
RB206 1 CON/WIRE 10P 380mm 1007#26 FLAT A=2mm VWA200097-0003
CN204 1 CONNECTOR 5 PIN PITCH=2.0mm CCN200000-0105
CN203 1 CONNECTOR 7 PIN PITCH=2.0mm CCN200000-0107
CN202 1 CONNECTOR 8 PIN PITCH=2.0mm CCN200000-0108
CN201 1 CONNECTOR 10 PIN PITCH=2.0mm CCN200000-0110
C210 1 COND ELECT 47uF 16V 20% PRE039540-4700
R237 R251 R253 R254 27 CHIP RES. 10K OHM 1/10W 5% QCF015020-1030
R255 R256 R257 R258
R259 R261 R263 R265
R267 R269 R271 R273
R275 R277 R279 R283
R285 R287 R289 R290 R291 R292 R252
R117 R288 2 CHIP RES. 1K OHM 1/10W 5% QCF015020-1020
R240 1 CHIP RES. 100K OHM 1/10W 5% QCF015020-1040
R248 R249 R260 R262 22 CHIP RES. 1.5K OHM 1/10W 5% QCF015020-1520
R264 R266 R268 R270
R272 R274 R276 R278
R280 R284 R286 R293
R294 R295 R296 R297 R298 R299
R247 1 CHIP RES. 470 OHM 1/10W 5% QCF015020-4710
R116 1 CHIP RES. 4.7K OHM 1/10W 5% QCF015020-4720
R238 R239 2 CHIP RES. 47K OHM 1/10W 5% QCF015020-4730
JP1 JP2 JP3 JP4 JP5 5 CHIP RES. 0 OHM JUMP WIRE QCF015020-0000
JP101 JP102 JP103 JP104 JP105 JP106 10 WIRE BARE 22 GA TINNED XJP220000-0001
JP107 JP108 JP109 JP110
Installation Point Qty. Description Material No.
1 DECODER PCB ASSY AC3 DTS/DSP HI APE004710-4004
XT1 1 OSCILLATOR 12.288MHZ 4 PIN JOC223100-1261
U1 U2 U3 U4 U5 U6 U7 U8 8 IC 8 PIN TL072CD RCI000720-0001
U15 1 IC 3 PIN REG1117 3.3V BUR-BRN RCI001117-0330
U13 1 IC 32 PIN SST27SF020-70-3C-NH RCI200000-0002
U14 1 IC 44 PIN CS4226 6 CH CODEC RCI004226-0001
U12 1 IC 44 PIN CS492604 AC3 DTS/DSP RCI492604-0001
U16 1 IC 14 PIN TC74HC125AFN TOSHIE QUAD BUS RCI740125-0002
U10 U11 2 IC 20 PIN TC74HC574AFW OCTAL D-TYPE F-F RCI740574-0001
Q14 Q5 2 XISTR PNP 2SA812 hfe:200~400 RCP200733-0001
Q1 Q2 Q6 Q7 Q8 Q9 Q10 Q11 Q12 Q13 10 XISTR NPN SMT (2SC945) RCN200945-0001
D1 1 CHIP DIODE LL4148 TELEFUNKEN RCD104148-0010
CN8 1 CONNECTOR 15 PIN P=1x2mm CCH100040-1415
CN9 1 CONNECTOR S2B-XH-A 2 PIN CCN250000-0502
CN5 1 CONNECTOR 9 PIN P:1.25x2.5mm CCH125030-0209
CN6 1 CONNECTOR 15 PIN P:1.25x2.5mm CCH125030-0215
J3 1 CONNECTOR B2B-XH-A 2 PIN CCN250000-0102
J1 1 CONNECTOR B3B-XH-A 3 PIN CCN250000-0103
J4 1 CON/WIRE 2P 60mm A=2.5mm B=2512V VWA010091-0001
L3 L4 L5 L6 L1 L2 6 CHIP BEAD 500 OHM 25% 0805 SCB008050-5010
C73A C73B 2 CHIP CAP 0.068 uF 50V 10% PYL456470-6830
C33 C36 C37 C40 C41 5 CHIP CAP 3300 pF 50V 20% PYL439570-3320
C72 C72A C72B 3 CHIP CAP 0.033 uF 50V 10% PYL456470-3330
C81 1 CHIP CAP 1500 pF 50V 10% PYL456470-1520
LED interface pcb
Decoder

C24 C25 2 CHIP CAP 0.0068 uF 50V 10% PYL456470-6820
C77 C78 2 COND ELECT 10uF 25V 20% PRE039550-1000
C79 1 COND ELECT 1uF 50V 20% PRE039570-1090
C76 1 COND ELECT 2.2 uF 50V 20% PRE039570-2290
C42 C43 C44 C45 C46 5 CHIP CAP 220 pF 50V 5% PYL410370-2210
C47 C48 C49 C50 C51 C52 6 CHIP CAP 330 pF 50V 5% PYL410370-3310
C61 1 CHIP CAP 470 pF 50V 5% PYL410370-4710
C1 C2 C22 C3 C4 C5 C56 C57 C58 C59 C60 16 CHIP CAP 0.1 uF 50V 5% PYL456370-1040
C67 C68 C69 C70 C71
C80 1 CHIP CAP 0.015 uF 50V 5% PYL456370-1530
C74 1 CHIP CAP 0.022 uF 50V 5% PYL456370-2230
C32 C34 C35 C38 C39 5 CHIP CAP 0.0047 uF 50V 5% PYL456370-4720
C75 1 CHIP CAP 0.22 uF 50V 5% PYL456370-2240
C73 1 CHIP CAP 0.082uF 50V 5% PYL456370-8230
C84 1 COND ELECT 470uF 10V 20% PRE039530-4710
C26 C27 C28 C29 C30 C31 6 COND ELECT 47uF 10V 20% PRE039530-4700
C10 C11 C12 C13 C14 19 COND ELECT 100uF 16V 20% PRE039540-1010
C15 C16 C17 C18 C19
C20 C21 C53 C54 C55 C6 C7 C8 C9
R99 1 CHIP RES 2 OHM 1/10W 5% QCF015020-2090
R98 1 CHIP RES 43K OHM 1/10W 5% 0805 SMT TYPE QCF015020-4330
RP1 1 RES ARRAY 10k X 4 QVP085090-1030
R94 1 CHIP RES. 33K OHM 1/10W 5% QCF015020-3330
R101 R123 2 CHIP RES. 0 OHM JUMP WIRE QCF015020-0000
R106 R68 R69 R97 4 CHIP RES. 10 OHM 1/10W 5% QCF015020-1000
R10 R11 R12 R124 R13 18 CHIP RES. 100 OHM 1/10W 5% QCF015020-1010
R14 R15 R16 R17 R18 R19 R3 R4 R5 R6 R7
R8 R9
R110 R114 R115 R120 R132 R40 R52 R53 14 CHIP RES. 1K OHM 1/10W 5% QCF015020-1020
R70 R71 R72 R73 R74 R75
R105 R125 R126 R127 30 CHIP RES. 10K OHM 1/10W 5% QCF015020-1030
R131 R23 R24 R25 R30
R31 R34 R35 R36 R37
R38 R39 R41 R42 R43
R44 R46 R47 R48 R49
R50 R51 R54 R55 R56 R61
R93 R95 2 CHIP RES. 100K OHM 1/10W 5% QCF015020-1040
R1 R2 R82 R83 R84 R85 R86 R87 8 CHIP RES. 18K OHM 1/10W 5% QCF015020-1830
R103 R128 R26 R28 4 CHIP RES. 2.2K OHM 1/10W 5% QCF015020-2220
R112 R113 R117 R118 8 CHIP RES. 22K OHM 1/10W 5% QCF015020-2230
R129 R130 R133 R134
R88 R89 R90 R91 R92 R96 6 CHIP RES. 2.7K OHM 1/10W 5% QCF015020-2720
R100 R135 2 CHIP RES. 33 OHM 1/10W 5% QCF015020-3300
R62 R63 R64 R65 4 CHIP RES. 330 OHM 1/10W 5% QCF015020-3310
R107 R109 R111 R116 R119 R121 R27 R29 8 CHIP RES. 390 OHM 1/10W 5% QCF015020-3910
R108 1 CHIP RES. 470 OHM 1/10W 5% QCF015020-4710
R76 R77 R78 R79 R80 R81 6 CHIP RES. 4.7K OHM 1/10W 5% QCF015020-4720
R66 1 CHIP RES. 75 OHM 1/10W 5% QCF015020-7500
R20 R21 R32 R33 R45 R57 R58 7 CHIP RES. 7.5K OHM 1/10W 5% QCF015020-7520
Installation Point Qty. Description Material No.
1 CARTON L439xW439xH596mm ICC200001-0001
1 OWN MANUAL 148x210mm missing part number
1 SAFETY MANUAL L210xH297mm YOM100183-1001
1 SPK DRIVER 6.5" 4OHM 60W woofer FSA226061-1401
1 LINE CORD 2P 1980mm BLK VDE VPE003012-0020
1 CONTROL KNOB W/SPRAY MA4810 BPK005031-0000
1 SW ROCKER 5A AC 250V TV-5 MSW008004-0010
1 COND SAFETY X2 CAP 0.1uF 250V L=20mm TO POWER SW PLX2705G0-1040
4 FOOT METALLIC GREY-SILVER FOR FOOT BPE400005-0102
8 RUBBER FOOT NR3 BLACK 13.5xT2.0mm W/ADHE FOR FEET BRF200001-0001
1 POLYFOAM TOP 430x430xH100mm ITF200008-0001
1 POLYFOAM BOTTOM 430x430xH100mm ITF200009-0001
1 POLY BAG FOR RCA WIRE L240xW355mm IVA000001-0048
1 SOFT SHEETFOR AC CORD PLUG L100xW80mm IVH002001-0006
1 POLY BAG FOR MAIN UNIT L600xW850xD100mm IVA000001-0026
1 POLY BAG L240xW355mm IVA000001-0048
1 POLY BAG L80xW220mm IVA000001-0019
1 POLY BAG L240xW180mm IVA000001-0088
mech and accessories

1 LOGO PLATE 22.5xW18mm JBL BPL000013-0001
1 PORT EDGE ABS W/SPRAY MA4810 BPR000020-0001
1 PORT (F) ABS MA4810 BPR000042-0BA0
1 BUSHING AC LINE BUSHING FOR BLACK FOR POWER WIRE DBU001002-0011
2 WIRE 22 GA 90mm RED 4-4 FOR POWER SW-2 VWR0333BB-0090
6 TUBING SRK DIA=6 L=20mm BLACK POWER SW TO POWER FUSE HOLDR DTB006000-0200
4 SCREW DRIVER TO WOOD BOX-4. T4.0x1.59PxL16mm HSP140091-3160
4 WASHER X'FORMER TO REAR PLT-4. OD8.5xID4.3xT0.6 mm HWT168543-1060
4 WASHER X'FORMER TO REAR PLT-4 OD16 ID4.5 T1.0 HWS11G045-1100
2 SPONGE L100xW30xT2mm IVE000085-0001
9 SCREW FOOT TO WOOD BOX-8,LOGO TO WOOD BOX-1. T3.5xP1.41x14mm HST140071-3140
4 RUBBER PAD DIA14.5mm ICH080007-0001
4 CU-SPACER M3.0xP0.5xL20mm HEXAGO HOT002006-0003
1 SPONGE T=2.0mm 26x78mm W/ADHESIVE IVE200010-0001
1 PCB BKT L SECC T=1.0mm GSE200020-0001
1 PCB BKT R SECC T=1.0mm GSE200021-0001
4 DIVIDER L250xW250mm EDGE SUPP. ICD000079-0001
1 SERIAL+BAR LABEL FOR SUB WOOFER. L42xW5mm MP (DVD UNIT) YLB118004-0001
1 SERIAL+BAR LABEL L85xW108mm MP(DVD UNIT) FOR GIFT BOX. YLB118002-0003
1 RUBBER PAD 23x8x12.8mm ICH080016-0001
1 SILICA GEL 3 g DOT040001-0003
2 WASHER FIB BETWEEN SCREW & AC3 PCB-1, TONE VOLUME 8.3x3.5 DIA .5 M
M
HWF118335-6050
1 PVC PLATE BFP211001-0001
20 SCREW CNTL PCB TO CNTL PANEL-3,REAR PLT TO T3.0xL8xP1.06mm HSP140054-3080
18 SCREW POWER PCB TO IC-3, T3.0xL10xP1.06mm HST140054-3100
4 NUT X'FORMER TO REAR PLT-4 M4.0xOD7.0xT3.0mm HNT140700-1300
4 SCREW X'FORMER TO H/SINK-4 M4.0xP0.7xL20 mm HSD143103-3200
2 SCREW SW ROCKER TO JACK PLT ;M3.0xP0.5xL14mm HSP143083-3140
4 SCREW TNFOIL PLT & WOOD BOX-4 T3xL22xP1.06mm HST140051-3220
12 SCREW REAR PLT TO WOOD BOX-12. T4xL20xP1.59mm HSP140091-3200
1 CNTL PANEL METALIC LIGHT GREY SILVER BPF005056-0AY1
1 PCB COVER A ABS LIGHT GREY BPC200001-0001
1 PCB COVER B ABS LIGHT GREY BPC210001-0001
1 SPONGE A EVA JACK ASS'Y-1 IVE200003-0001
2 SPONGE B EVA COVER-A,COVER-B IVE200004-0001
1 SPONGE FIBER FOR HEAT SINK T0.5mm 268x120mm ICH209001-0001
4 SPACER PINGOOD SRS3-8 DSS100020-0002
1 TUBE SHKNG DIA30xL70xT0.4mm UL BLACK TO POWER SW DTB130000-0700
1 TUBE SHKNG DIA=20 L=50 T=0.4 UL POWER SW TO POWER FUSE HOLDR DTB020000-0500
2 AC CONNTOR AC CONNTECOR (HW-C3) COT010002-0001
5 WIRE TIE GT-90M 90mm DWT000001-0900
1 SPONGE OD165xID143xT1.0mm FOR WOOD Box IVE200001-0001
1 REAR PANEL SECC T=2.0mm CEDCOATTING BLK GSE200008-0001
1 RUBBER BUSHING BLACK W/UL BRB200001-0001
1 FUSE HOLDR FUSE HOLDER FH-B02 TO FUSE CFC021001-1001
2 SLEEVING OD2xID1xL18mm DSL001002-0180
1 HEAT SINK AL W238xH32mm W/ANODIZING BLK GAL200003-0001
3 SI RUBBER W13xH18xT0.3 mm FOR IC902 HIS000001-0001
1 BEAD FERIT OD25.0xID15xH12.0 ADD TO POWER WIRE SFB001001-0060
4 WASHER OD6xID3xH2.5mm 602S-V0 FOR IC DHU201001-0001
4 SCREW T3xL6xP1.06mm AMP PCB BKT TO AMP PCB-4. HST140054-3060
2 SCREW T3.5xL8xP1.41mm AMP PCB BKT TO HEAT SINK-2. HSP140074-3080
4 MICA SHEET;L22xW26xT0.1mm (IC421 IC501 IC502 IC703)-1. HIM000001-0007
1 L-EXTRUSION AL W/ANODIZING BLK GAL200004-0001
4 SCREW T3.0xL10xP1.06mm FOR IC421 IC501 IC502 IC703-4. HSP140054-3100
1 GSB BKT R SECC T=1.0mm DC PCB GSE200010-0001
1 PCB BKT L SECC T=1.0mm DC PCB GSE200011-0001
1 FUSE LABEL T 2A 250V YLB003000-0004

U 12 CS4926

U14 CS4226

TDA7265A
LM3886
