JBL SB130 User manual

Service Manual
Rev. 1.1 Jan/2020
Released by Global Quality 2019 harman/kardon, Inc.
SB130 2.1CH Soundbar with Wired Subwoofer
SKU:
JBLSB130BLKIN
JBLSB130BLKAS
JBLSB130BLKEP
JBLSB130BLKUK
JBLSB130BLKAM
JBLSB130BLKBR
SPECIFICATIONS:
·
Power supply: 100 - 240V~, 50/60Hz
Total maximum power : 110 W
Soundbar maximum output power: 2 x 27 W
Subwoofer maximum power: 56 W
Max SPL: 82dB
Frequency response : 40Hz - 20KHz
Soundbar dimensions (W x H x D) : 900 x 67 x 63 mm / 35.4” x 2.6” x 2.5”
Soundbar weight: 1.5 kg
Subwoofer dimensions (W x H x D) : 150 x 320 x 220 mm / 6” x 12.6” x 8.7”
Subwoofer weight: 2.8 kg
CONTENTS
Safety Instruction ...................................................................................... 2
Special Information BGA IC & Flat Pack-IC................................................ 5
Software upgrade Instruction & Reset Procedure ....................................8
Disassembly Instruction ............................................................................ 9
Block Diagram.......................................................................................... 11
Circuit Diagarms & PCBA Layout ............................................................ 12
Mechanical Exploded View .................................................................... 16
Revision List ............................................................................................ 19
Spare Parts List ....................................................................................... 18

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings.Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one
wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the
third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles and the
point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket or table specified by the manufacturer or sold with the
apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged
in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, or the apparatus has been exposed to rain or moisture, does not operate normally or has been dropped.
15. Do not expose this apparatus to dripping or splashing and ensure that no objects filled with liquids, such as vases,
are placed on the apparatus.
16. To completely disconnect this apparatus from the AC Mains, disconnect the power supply cord plug from the AC
receptacle.
17. The mains plug of the power supply cord shall remain readily operable.
18. Do not expose batteries to excessive heat such as sunshine, fire or the like.
For Products That Transmit and
Receive RF Energy:
FCC Regulations (USA Only)
FCC Information For Users
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device
may not cause harmful interference; and (2) this device must
accept any interference received, including interference that
may cause undesired operation.
Radio and Television Interference
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause interference to radio
or television reception, which can be determined by turning
the equipment off and then on, the user is encouraged to try
to correct the interference by one or more of the following
measures:
•Increase the separation between the equipment and
receiver.
•Connect the equipment to a different outlet so that the
equipment and receiver are on different branch circuits.
•Consult the dealer or an experienced radio/TV technician
for help.
NOTE: Changes or modifications not expressly approved
by Harman could void the user’s authority to operate the
equipment.
IC Statement and Warning (Canada Only)
This Class B digital apparatus complies with Canadian ICES-
003. Cet appareil numérique de la classe B est conforme à la
norme NMB-003 du Canada.
For Canadian Model
This Class B digital apparatus complies with Canadian
ICES-003.
Modèle pour les Canadien
Cet appareil numérique de la classe B est conforme à la
norme NMB-003 du Canada.
For Products with Radio Receivers
That Can Use an External Antenna:
CATV or Antenna Grounding
If an outside antenna or cable system is connected to this
product, be certain that it is grounded so as to provide some
protection against voltage surges and static charges. Section
810 of the National Electrical Code, ANSI/NFPA No. 70-1984,
provides information with respect to proper grounding of the
mast and supporting structure, grounding of the lead-in wire
to an antenna discharge unit, size of grounding conductors,
location of antenna discharge unit, connection to grounding
electrodes and requirements of the grounding electrode.
Note to CATV System Installer:
This reminder is provided to call the CATV (cable TV) system
installer’s attention to article 820-40 of the NEC, which
provides guidelines for proper grounding and, in particular,
specifies that the cable ground shall be connected to the
grounding system of the building, as close to the point of
cable entry as possible.
For CD/DVD/Blu-ray Disc™Players:
Caution:
This product uses a laser system. To prevent direct exposure
to the laser beam, do not open the cabinet enclosure or defeat
any of the safety mechanisms provided for your protection.
DO NOT STARE INTO THE LASER BEAM. To ensure proper use
of this product, please read the owner’s manual carefully and
retain it for future use. Should the unit require maintenance
or repair, please contact your local Harman Kardon service
center. Refer servicing to qualified personnel only.
For Products That Include Batteries:
Instructions for Users on Removal and Disposal of
Used Batteries.
CAUTION
Risk of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
Alkaline batteries are considered nonhazardous.
Rechargeable batteries (i.e., nickel cadmium, nickel metal-
hydride, lithium and lithium-ion) are considered hazardous
household materials and may pose an unnecessary health
and safety risk.
In the European Union and other locations, it is illegal to
dispose of any battery with household trash. All batteries
must be disposed of in an environmentally sound manner.
Contact your local waste management officials for information
regarding the environmentally sound collection, recycling and
disposal of used batteries.
To remove the batteries from your equipment or remote
control, reverse the procedure described for inserting
batteries in the owner’s manual.
For products with a built-in battery that lasts for the lifetime of
the product, removal may not be possible for the user. In this
case, recycling or recovery centers handle the dismantling of
the product and the removal of the battery. If, for any reason, it
becomes necessary to replace such a battery, this procedure
must be performed by authorized service centers.
Important Safety Instructions
CAUTION
RISK OF ELECTRIC SHOCK. DO NOT OPEN.
THE LIGHTNING FLASH WITH AN ARROWHEAD SYMBOL,
WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED TO
ALERT THE USER TO THE PRESENCE OF UNINSULATED
“DANGEROUS VOLTAGE” WITHIN THE PRODUCT’S
ENCLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE TO
CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS.
THE EXCLAMATION POINT WITHIN AN EQUILATERAL
TRIANGLE IS INTENDED TO ALERT THE USER TO
THE PRESENCE OF IMPORTANT OPERATING AND
MAINTENANCE (SERVICING) INSTRUCTIONS IN THE
LITERATURE ACCOMPANYING THE PRODUCT.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR
MOISTURE.
2-1

Each precaution in this manual should be followed during servicing.
Components identified with the IEC symbol in the parts list are special significance to safety. When replacing a component identified with
, use only the replacement parts designated, or parts with the same ratings or resistance, wattage, or voltage that are designated in the
parts list in this manual. Leakage-current or resistance measurements must be made to determine that exposed parts are acceptably
insulated from the supply circuit before retuming the product to the customer.
Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field effect transistors and
semiconductor "chip" components.
The following techniques should be used to help reduce the incidence of component damage caused by static electricity.
1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on
your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device,
which should be removed for potential shock reasons prior to applying power to the unit under test.
2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to
prevent electrostatic charge build-up or exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.
4. Use only an anti-static solder removal device. Some solder removal devices not classified as "anti-static" can generate electrical charges
sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate electrical change sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement
ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material.)
7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the
chassis or circuit assembly into which the device will be installed.
Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together
or your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity sufficient to damage an ES devices.
CAUTION :
2-2

SAFETY PRECAUTIONS
The following check should be performed for the continued
protection of the customer and service technician.
LEAKAGE CURRENT CHECK
Measure leakage current to a known earth ground (water
pipe, conduit, etc.) by connecting a leakage current tester
between the earth ground and all exposed metal parts of the
appliance (input/output terminals, screwheads, metal
overlays, control shaft, etc.). Plug the AC line cord of the
appliance directly into a 120V AC 60Hz outlet and turn the
AC power switch on. Any current measured must not exceed
o.5mA.
ANY MEASUREMENTS NOT WITHIN THE LIMITS
OUTLINED ABOVE ARE INDICATIVE OF A
POTENTIAL SHOCK HAZARD AND MUST BE
CORRECTED BEFORE RETURNING THE APPLIANCE
TO THE CUSTOMER.
Device
under
test
Test all
exposed metal
surfaces
Also test with
plug reversed
(Using AC adapter
plug as required)

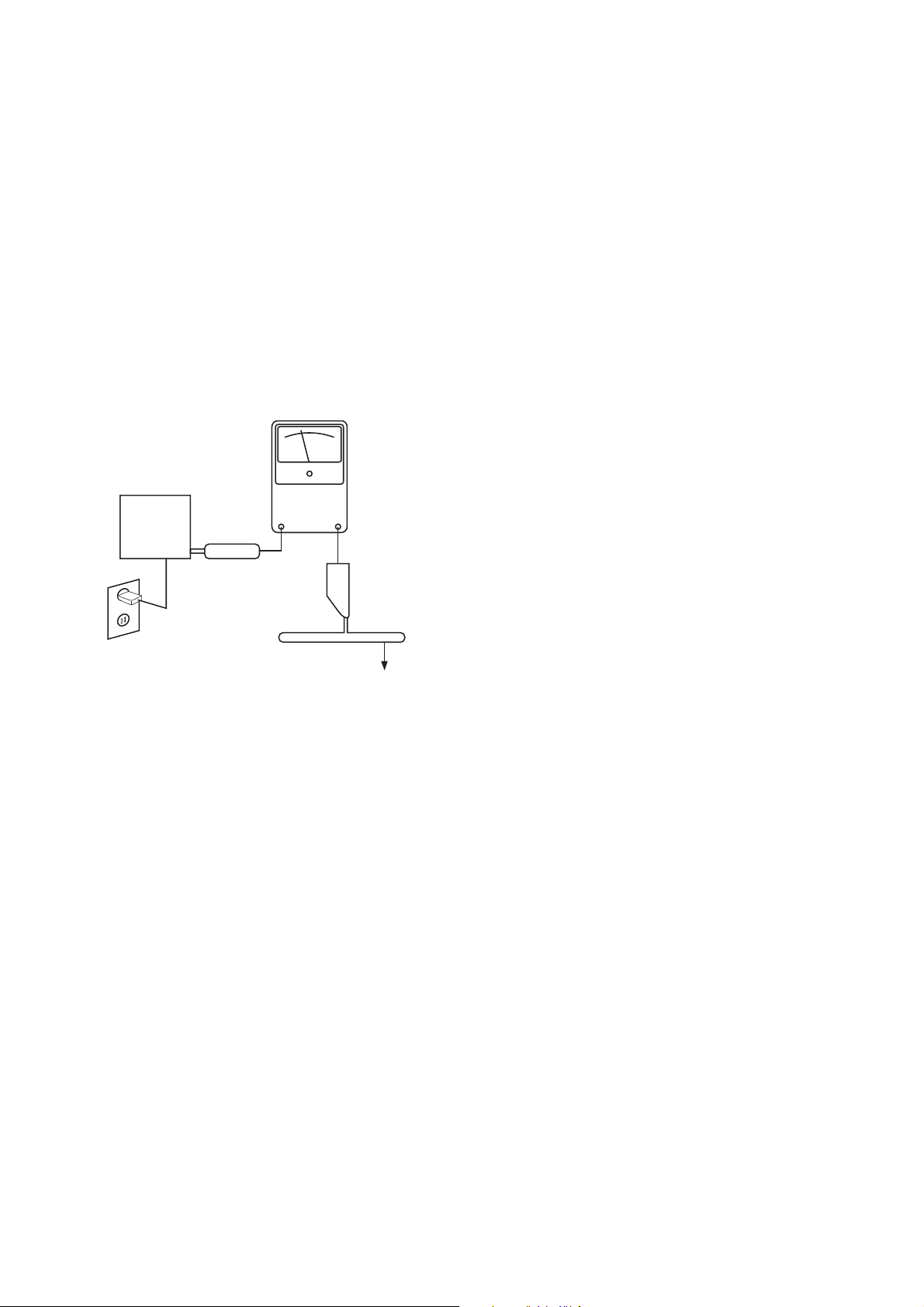

AC Leakage Test
Leakage
current
tester
Reading should
not be above
0.5mA
Earth
ground
2-3

3-1

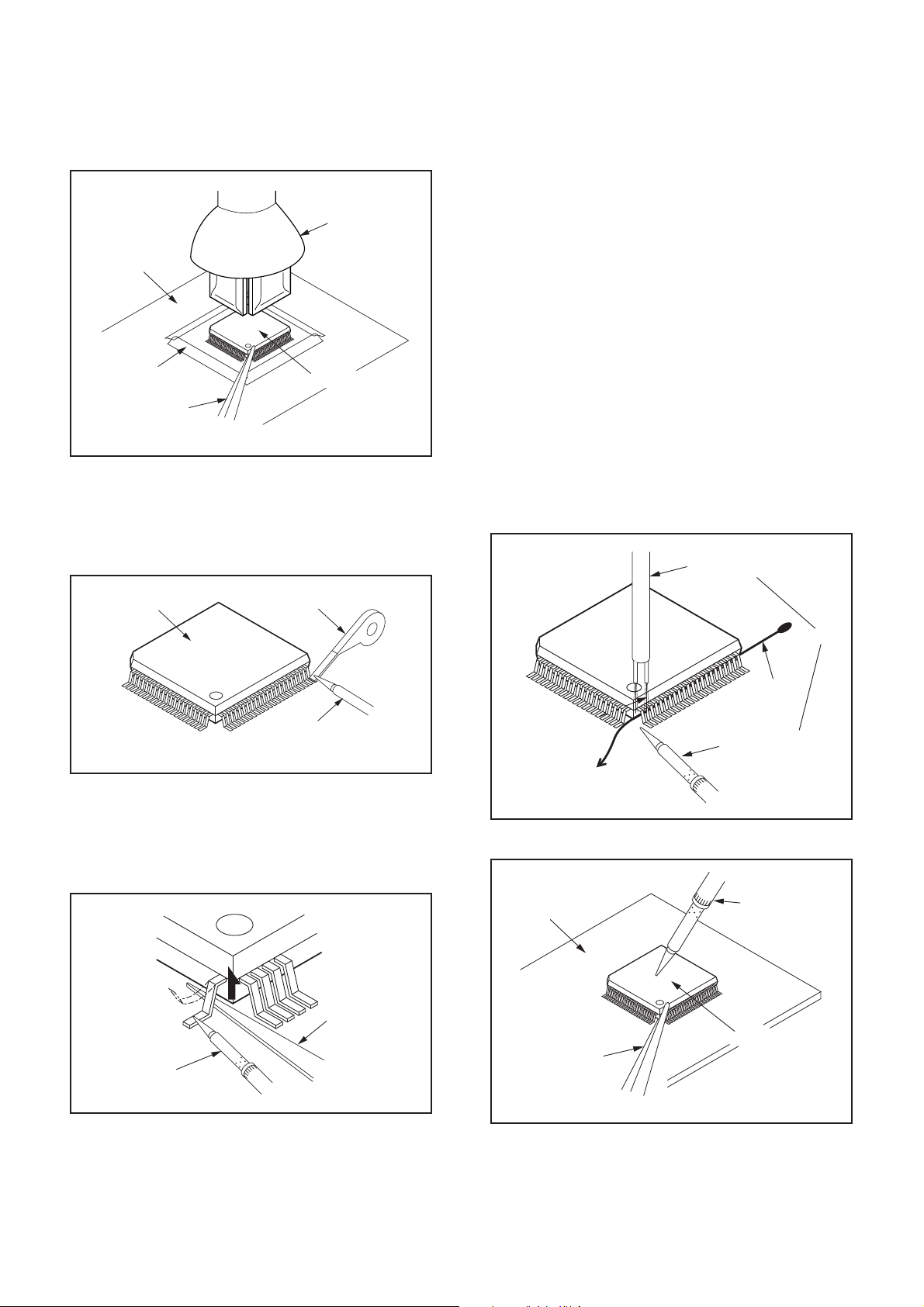

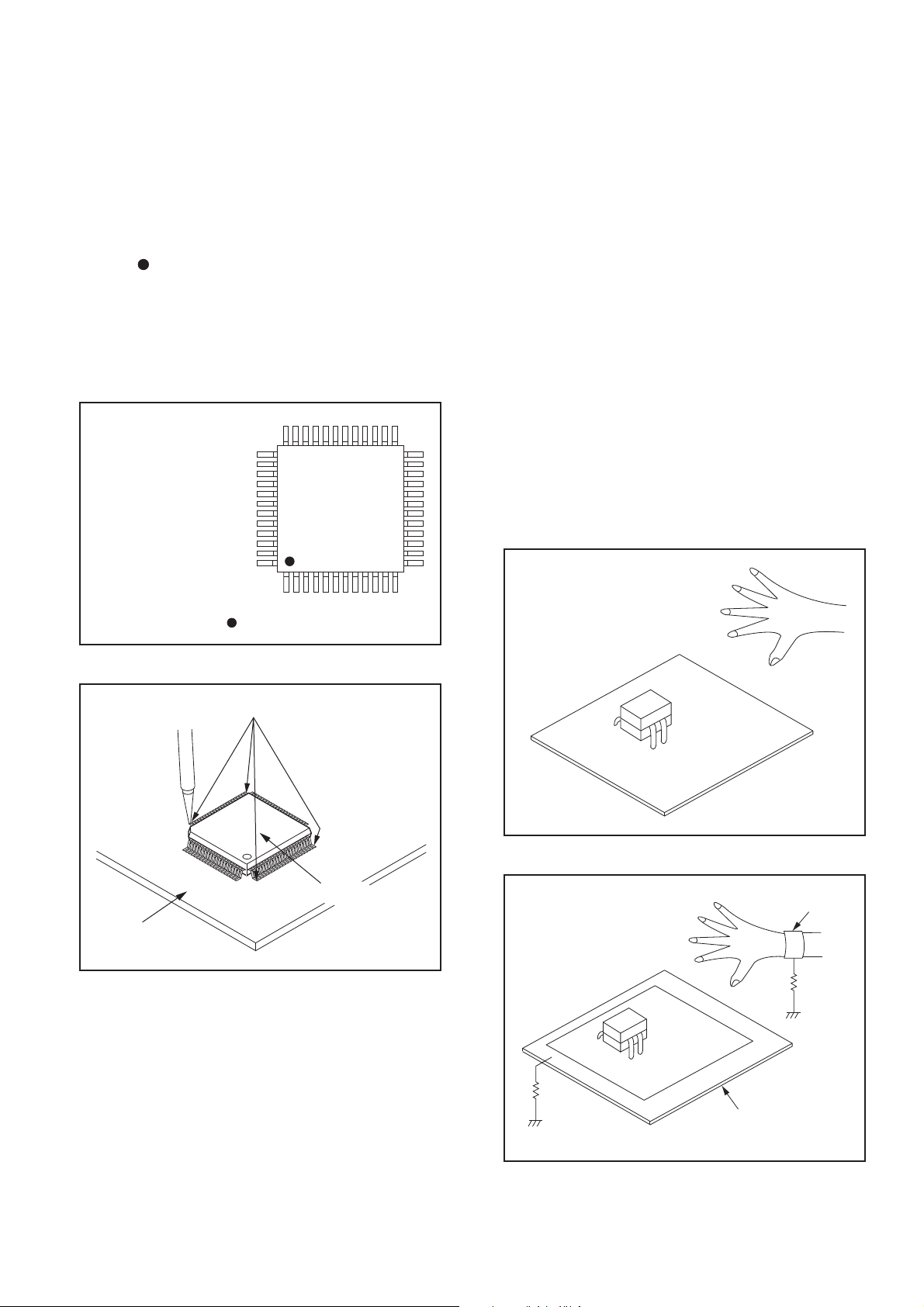

•Special information for BGA-ICs:
- lead free BGA-ICs will be delivered in so-called
'dry-packaging' (sealed pack including a silica gel
pack) to protect the IC against moisture. After
opening, dependent of MSL-level seen on indicator-
label in the bag, the BGA-IC possibly still has to be
baked dry. (MSL=Moisture Sensitivity Level). This
will be communicated via AYS-website.
Do not re-use BGAs at all.
• For sets produced before 1.1.2005 (except products
of 2004), containing leaded solder-alloy and
components, all needed spare-parts will be available
till the end of the service-period. For repair of such
sets nothing changes.
• Get the more information from website
• BGA-de-/soldering (+ baking instructions)
You will find this and more technical information within
the “magazine”, chapter “workshop news”.
For additional questions please contact your local
repair-helpdesk.
How to Remove / Install Flat Pack-IC
Special Information of BGA IC & Flat Pack-IC
1. Removal
With Hot-Air Flat Pack-IC Desoldering Machine:
1. Prepare the hot-air flat pack-IC desoldering
machine, then apply hot air to the Flat Pack-IC
(about 5 to 6 seconds). (Fig. S-1-1)
2. Remove the flat pack-IC with tweezers while
applying the hot air.
3. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
4. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)
CAUTION:
1. The Flat Pack-IC shape may differ by models. Use
an appropriate hot-air flat pack-IC desoldering
machine, whose shape matches that of the Flat
Pack-IC.
2. Do not supply hot air to the chip parts around the
flat pack-IC for over 6 seconds because damage
to the chip parts may occur. Put masking tape
around the flat pack-IC to protect other parts from
damage. (Fig. S-1-2)
Fig. S-1-1

3. The flat pack-IC on the CBA is affixed with glue, so
be careful not to break or damage the foil of each
pin or the solder lands under the IC when
removing it.
With Soldering Iron:
1. Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)
2. Lift each lead of the flat pack-IC upward one by
one, using a sharp pin or wire to which solder will
not adhere (iron wire). When heating the pins, use
a fine tip soldering iron or a hot air desoldering
machine. (Fig. S-1-4)
3. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
4. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)
With Iron Wire:
1. Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)
2. Affix the wire to a workbench or solid mounting
point, as shown in Fig. S-1-5.
3. While heating the pins using a fine tip soldering
iron or hot air blower, pull up the wire as the solder
melts so as to lift the IC leads from the CBA
contact pads as shown in Fig. S-1-5.
4. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
5. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)
Note: When using a soldering iron, care must be
taken to ensure that the flat pack-IC is not
being held by glue. When the flat pack-IC is
removed from the CBA, handle it gently
because it may be damaged if force is applied.
Hot-air
Flat Pack-IC
Desoldering
Machine
CBA
Flat Pack-IC
Tweezers
Masking
Tape
Fig. S-1-2
Flat Pack-IC Desoldering Braid
Soldering Iron
Fig. S-1-3
Fine Tip
Soldering Iron
Sharp
Pin
Fig. S-1-4
To Solid
Mounting Point
Soldering Iron
Iron Wire
or
Hot Air Blower
Fig. S-1-5
Fine Tip
Soldering Iron
CBA
Flat Pack-IC
Tweezers
Fig. S-1-6
3-2
Special Information of BGA IC & Flat Pack- IC

3-3
2. Installation
1. Using desoldering braid, remove the solder from
the foil of each pin of the flat pack-IC on the CBA
so you can install a replacement flat pack-IC more
easily.
2. The “ ” mark on the flat pack-IC indicates pin 1.
(See Fig. S-1-7.) Be sure this mark matches the 1
on the PCB when positioning for installation. Then
presolder the four corners of the flat pack-IC. (See
Fig. S-1-8.)
3. Solder all pins of the flat pack-IC. Be sure that
none of the pins have solder bridges.
Instructions for Handling Semi-
Special Information BGA IC & Flat Pack-IC
conductors
Electrostatic breakdown of the semi-conductors may
occur due to a potential difference caused by
electrostatic charge during unpacking or repair work.
1. Ground for Human Body
Be sure to wear a grounding band (1 MΩ) that is
properly grounded to remove any static electricity that
may be charged on the body.
2. Ground for Workbench
Be sure to place a conductive sheet or copper plate
with proper grounding (1 MΩ) on the workbench or
other surface, where the semi-conductors are to be
placed. Because the static electricity charge on
clothing will not escape through the body grounding
band, be careful to avoid contacting semi-conductors
with your clothing.
Example :
Pin 1 of the Flat Pack-IC
is indicated by a " " mark. Fig. S-1-7
Presolder
CBA
Flat Pack-IC
Fig. S-1-8
<Incorrect>
CBA
Grounding Band
Conductive Sheet or
Copper Plate
1MΩ
1MΩ
<Correct>
CBA

Reset and Firmware Upgrade Procedure
How to Reset/Factory restore?
Step1: Soundbar connect the power enter standby mode.
Step2: press and hold the “Power“ & "Source" buttons on the
soundbar at the same time.
Step3: waiting for 2~3 seconds, the Soundbar indicator will flash
and all the setting has being reset.
Step4: After reset action the soundbar will back to standby mode.
How to upgrade the firmware?
Step1: copy the upgrade file "jl_690x.bfu" to the root of USB disk.
Step2: Soundbar connect the power and set to the standby mode,
and insert the USB disk to the set.
Step3: press and hold the “Power“ & "Source" buttons on the
soundbar at the same time, the red led will flash 2 times
and then all the LED will light up for a while, indicates the
system is in upgrade procedure, please don’t remove the
power supply or do any operations.
Step4: Waiting for only the POWER (red) LED light up, it indicates
the upgrade procedure is success.
Step5:Then pull out the USB disk.

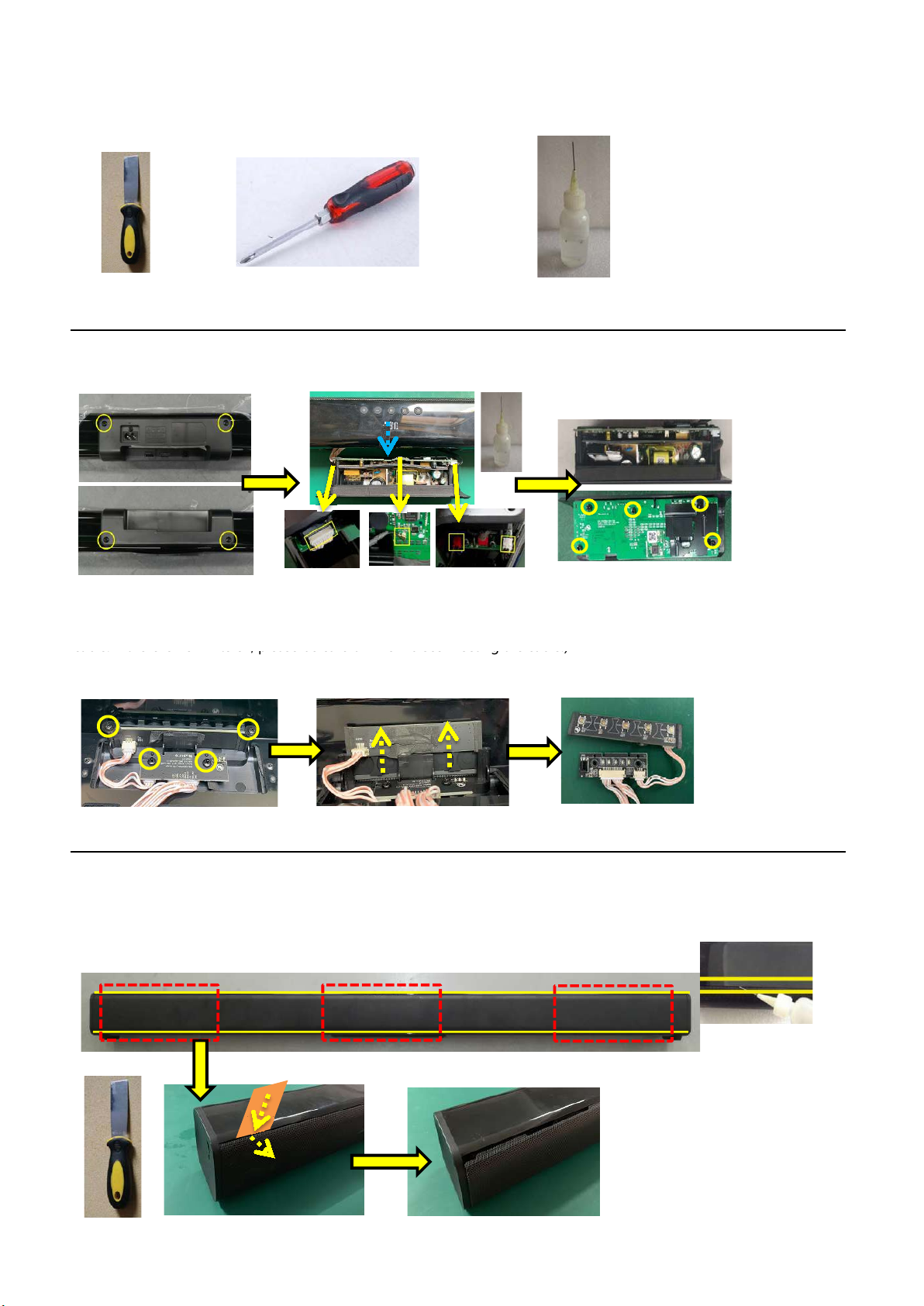

10-1

1. Loosen the 4pcs back panel screws, pull out the back panel;
2. Disconnect the cables which are connected with main board;
(add some white oil on the black glue and wait for 15 seconds of melting time, that will make it easier to disconnect the
cable. If there is no white oil, please be careful when disconnecting the cable.)
b1. Take out the Main board of
soundbar:
Disassembly procedure
a. Tools:
Screw driver White
oil
scraper knife
3. Loosen the 4pcs main board screws, and take out the Main PCB and the Power PCB.
cable. If there is no white oil, please be careful when disconnecting the cable.)
4. After loosen the 2pcs screws fixed on the key PCB, and 2Pcs on the LED PCB, then could take out the two PCBs.
Notice: Due to there have the risk of damage to the iron grill during the disassembly process, please make sure again
that the speaker needs to be replaced before this operation.
b2. Disassemble the iron grill :
4-1

After loosen the 4pcs screws fixed on the Speaker, then could take out it.
Follow above steps: pour some white oil in the Gap between the plastic and iron grill and wait for 15 seconds of melting
time, then use the scraper knife insert into the gap to prize up the iron grill.
b3. Disassemble the Speakers :
After loosen the 4pcs screws fixed on the subwoofer speaker, then could take out it.
b4. Disassemble the subwoofer boards and speaker:
4-2

SET BLOCK DIAGRAM
6-1 6-1
1
VCC
POWER BOARD
1
2
2.54/2P
GND
VCC 1
2
2
2.54/2P
SW
KEY*5
MCU_5V
IR &LED BOARD
AMP
TAS5825M
1 2 3 4 5 6 7 8 9 10
1.5/10P
REM
1GND 2Vcc 3
IR
BT Module
AC6901
Bluetooth 4.2
W25Q16
SPHE8109
DSP
MCU5V
HDMI-SPDIF
CEC
SPI FLASH
EUP3482A
DC/DC
IA6006-12
LDO
1.2V
MCU_5VVCC
POWER_ON/OFF
A5V
IA6003-33
LDO
A3.3V
SW 30W/4Ω@1%THD
A3.3V
A3.3V
VCC
I2S
I2S
AMP
TAS5825M
FL 15W/8Ω@1%THD
FR 15W/8Ω@1%THD
SPDIF
buffer
PW2014
AC IN~
LED
LED*5
MCU_3.3V IR LED2 LED3 LED4 ADKEY1 GND LED1 LED5
OPT SPDIF
OPTICAL IN
MCU_3.3VMCU_3.3v
UART TX/RX
1
2
3
1.5/3P
1
2
3
1.5/3P
KEY/GND
KEY BOARD
ADKEY2
A3.3V
A3.3V
1.2V
A3.3V
VCC

Main Board -- Circuit Diagram
7-1 7-1
OPTICAL
1
2
3
JK1
DQT(R)-021 C28
NC
C30
10u
CB2
104
MCU_3.3V
R19
0
R18
10
3
1
2
Q1
WPM3407
MCU_5V A5V
R2
4K7
R1
10K
V_OPTICAL
CE2
100u/10V
R3
4K7
1
2
CN1
2.5/2P/RED
VCC
L1
FB/DIP-50
C1
104
1
2
3
4
5
6
7
8
9
10
CN3
1.5/10P
VDD
IR
LED2/CS
LED3/CLK
LED4/DATA
ADKEY1
GND
1
2
JK2
NC
GND
COA_SPDIF
SPDIF
VCC2
94V0
标志CE3
100u/10V
CB1
104
CE1
100uF/35V
C21 NC
C22 NC AUX_LIN
AUX_RIN
1
2
3
4
5
6
USB1
USB
C91
NC
MCU_5V
C92
NC
USB&MCU Upgrade
R25
NC
C29
NC
C6 NC
C7 NC
COA_SPDIF
Display&IR&KEY
COAXIAL
OPTICAL
POWER
DC_DC
AUX-LIN
AUX-RIN R81 NC
R82 NC
R83
NC
R84
NC
C96
NC
C95
NC
R86 NC
LED1
LED5
C106
100P
C99
104
C100
104
C104
100P
C105
104
VDD
IR
LED4/DATA
ADKEY1
LED5
AUX
C5
104
C11
100P
C12
100P
LED1
LED2/CS LED3/CLK
COAXIAL
R7
10K 1%
R6
45.3K 1%
VCC
MCU_5V
CE4
470u/10V
C16
104
L2
10uH/2.5A
C9
103
R4
100K
C15
103
C107
332
BS 1
IN
2
SW 3
GND
4
FB 5
COMP 6
EN
7
SS
8
GND
9
U2
IC-EUP3482
C32
104
R108
2.2K
Vout=0.92*(R6+R7)/R7
R109
NC
无铅标志
2
AUX0R/PA2 30
SD_DAT/PB0/PB5 48
PC2SPI_DAT/TX0
18
USBDP
24
PA14/MSCL
21
BT_AVDD
10
RTCVDD
4
USBDM
23
AD5/CEC/PA10 26
LDO_IN
2
IR/PA11 25
MIC/PB13 32
VDDIO
3
BT_RF
11
AUX1R/AD1/PWM1/PA4 28
PC4/SPI_CS
16
BT_OSCI
13
OSC32KI
8
AUX0L/PWM0/PA1 31
PC0/TX1
22
AUX1L/AD0/PA3 29
FMIP 39
DACL34
DACR 33
PC3/SPI_CLK/RX0
17
FMVDD 40
AVSS
12
VSSIO
1
FMVSS 38
DACVDD 35
PR0/OSC32KO
9
PC1/RX1
19
AD4/PA9 27
12M/SD_CMD/PB1/PB6 47
PC5
15
AD8/TX2/DBG/PB9 44
AUX2R/AD11/PB12 41 AUX2L/AD10/PB11 42
AD6/SD_CLK/PB2/PB7 46
PR2/ADC13
6
PR3
7
BT_OSCO
14
PA15/MSDA
20
VCOM 36
AD7/PWM2/PB8 45
AD9/RX2/PB10 43
DACVSS 37
PR1/ADC12
5
U3
AC6901AN
C44 10u
C45 10u
C46 10u
C31 10u
C37
6.8P L3
NC
ANT1
BT_ANT
BT_AVDD
BT_RF
GND
Y2 24MHz
R48 15 R49 15
USBDM USBDP
ADKEY1
DACR
DACL
C49 10u
C50 10u MCU6_5V
MCU_3.3V
IR
AUX_LIN
AUX_RIN
R35 100 R36 100MSCL
MSDA
MCU_3.3V
R51 4K7 MSCL
MSDA
R52 4K7
C67
100P
C68
100P
R29 10K* ADKEY1
DBG
C47
10u
R28 10K IR
L9 FB/1K
R13FB/1K
R12 FB/1K
MCU_CEC
HDMI_DET
LED2/CS LED3/CLK LED4/DATA
R21 FB/1K R23 FB/1K R26 FB/1K R10 FB/1K
LED1 R11 FB/1K
LED5
L5 FB/1K
ECO POWER
/MUTE_5825
OSCI
OSCO
Y1
NC OSC32KI
OSC32KO
C38 NC
C43NC
L8 FB/1K
I2C_ON
L7 FB/1K
R8
0.47
MCU_5V
C17
47
MCU_5V USB_5V
R53
11K*
R5 4K7
IN
5
ISET
3
EN
4
GND 2
OUT 1
U6
WS4603E
USB_5V
C14
104
C36
10u
USBDM
C13
104USBDP
C35
10u
ECO POWERQ6
3904
R47
4K7
R54 0
R55 NC MCU_5V
MCU_3.3V
A1.25V
A3.3V
VIN
1
GND
2
EN
3NC 4
VOUT 5
U4
IA6006-ADJ
CB4
1u
C66
10u
HD_SPDIF
C10
104
R91
4K7*
R92
8.2K*
2A
3
GND
2
1A
11Y 6
2Y 4
VCC 5
U8
74LVC2GU04
R71 1K
C2
104
C33 47
L11 FB/600 A3.3V
R72
47K
C62
10u
SPDIF_IN
R78
1K
R32
100
SPDIF_IN1
SPDIF_IN1
B2
1
GND
2
B1
3A4
Vcc 5
S6
U5
NC
SW_DET
L6 NC
C48
NC
A3.3V
C34 103
R27
0
R30 0
R31 NC
COAXIAL
UART_TX UART_RX
RST_8109
R93
1K
A5V A3.3V
CE
1
GND
2
NC
3VIN 4
VOUT 5
U1
IA6003-3.3V
5
4
3
2
1
6
JK4
NC
GND
CE6
470u/10V
GPIO6
1
GND
2
GPIO7
3
I2S_IN_D0
4
I2S_IN_BCK
5
I2S_IN_MCLK
6
I2S_IN_LRCK
7
HDMI_CEC
8
VDD12
9
VDD33
10
TMDSTX_AVSS
11
TXCN
12
TXCP
13
TMDSTX_AVDD12
14
TXDN0
15
TXDP0
16
TXDN1
17
TXDP1
18
TXDN2
19
HEAC-
21
HEAC+
22
USB_DM23
USB_DP 24
USB_AVDD 25
SAR10B_ADI2 26
SAR10B_ADI1 27
PLLA_3V3 28
TXDP2
20
SD_D0
70
SD_CLK
71
SD_CMD
72
CARD_SENSE
69
AOUT_L 45
ADAC_VSS 46
I2S_OUT_MCK 51
I2S_OUT_LRCK 50
SPDIF_OUT 49
AUDIO_MUTE 48
ADAC_AVDD33 47
AOUT_R 44
VREF 43
PLL_VDD12 31
CLKIN 30
CLKOUT29 IR_IN
82
VDD12
83
UART0_TX
73
UART0_RX
74
VFD_CLK
79
VFD_STB
80
SPI_CE
75
SPI_DI/D1
76
SPI_CLK
77
SPI_DO/D0
78
SPDIF_IN1
68 SPDIF_IN2
67
GPIO31 66
UART2_RTS 65
AADC_VSS 42
AADC_AVDD33 41
MIC_BIAS 40
MIC_IN 39
AIN_L0 38
AIN_R0 37
AIN_L1 36
AIN_R1 35
EPAD
89
VFD_DAT
81
POWER_KEY
84
GPIO62
85
SPDIF_IN0
86
UART1_TX
87
UART1_RX
88
RESET_B34
I2C1_SCL/GPIO_88 32
I2C1_SDA/GPIO_89 33
VDD12 52
I2S_OUT_D2 56 I2S_OUT_D1 55 I2S_OUT_D0 54
I2S_OUT_BCK 53
UART2_CTS 64
UART2_RX 63 UART2_TX 62
GPIO22 61 GPIO21 60 GPIO20 59 GPIO19 58 GPIO18 57
U9
SPHE8109S
RST_8109
VCC33
C61
12P
C63
12P
R44 4K7
Y3 24.576MHz
VDD33 VDD12
CLKOUT CLKIN
UART_TX
UART_RX
VDD33_USB
PLL_VDD33
I2S_IN_DATA
CLKOUT
CLKIN
/CS
1
SO
2
/WP
3
GND
4SI 5
SCK 6
/HOLD 7
VDD 8
U7
W25Q16
SPI_CE
SPI_D0
SPI_CLK1
SPI_D1
CB8
104
A3.3V
VDD121
I2S_OUT_BCK
I2S_OUT_DATA0
SPI_WP
SPI_HOLD
L13FB/600
R16 3.3K
R17 10K
R20 10K
R22 10K
VCC33 VCC33
SPI_CLK1
SPI_WP
SPI_HOLD
SPI_CE
I2S_OUT_LRCK
A3.3V
R24 10K
R33 10K
R39 10K
R38 10K
UART_TX
UART_RX
UART0_TX
UART0_RX
UART0_TX
UART0_RX
VDD33_ADAC
1
2
3
CN2
1.5/3P
UART0_TX
UART0_RX
GND
DBG&Upgrade
TX2P TX2N TX1P TX1N TX0P TX0N TXCP TXCN
VDD121
SPI_D1
SPI_CLK1
SPI_D0
SPI_CE R40 100
R41 100
R42 100
R43 100
R15 10K
OPTICAL
VREF
VDD33_AADC
MIC_BIAS
PLL_VDD12
R69 NC
C58 NC
A3.3V
C57
NC
R68 NC
C60
104
TX_HEAC- TX_HEAC+ VDD12_TMDS
CB3
104
C75
10u
C79
10u
CB5
104
VREF MIC_BIAS
C4
104
C27
10u
L16
FB/600
VDD33
C8
104
C41
10u
L17
FB/600
VDD33_USB
C18
104
C42
10u
L18
FB/600
VDD33_AADC
C19
104
C51
10u
L19
FB/600
VDD33_ADAC
A3.3V
L14
FB/600 C20
104
C52
10u
PLL_VDD33
A3.3V
A3.3V
A3.3V
A3.3V
L15
FB/600
C25
104
C53
10u
L22
FB/600
VDD12
C23
104
C69
1u
L20
FB/600
PLL_VDD12
A1.25V C24
104
C70
1u
VDD12_TMDS
A1.25V A1.25V
SPDIF_IN
R70 1K
L31
FB/1K
R45 56
R50 56
R59 NC
R61 FB/1K R62 FB/1K R64 FB/1K
SW_DET
L23
FB/600
A1.25V C81
10u
C82
104
VDD121
L26 FB/1K
R87
FB/1K
R88
FB/1K
Q7
3904
R90
150K
OPTICAL
SW_DET
C87
104
D4
IN4148
R95
2.2K
C83
104
R96
NC
R97
FB/600
R113 NC I2S_OUT_DATA1
R114
0
L35
56
C115 NC
C116 NC
OUT_L
OUT_R
I2S_IN_BCK I2S_IN_MCLK I2S_IN_LRCK
ADKEY2
C122
104
ADKEY2
R119 10K* ADKEY2
L38 FB/1KADKEY2
CE7
NC
L39
FB/600
L40
FB/600
L41
FB/600
L42
FB/600
L43
FB/600
I2S_IN_DATA I2S_OUT_BCK I2S_OUT_LRCK
L50 FB/1K L49 FB/1K L48 FB/1K

Main Board -- Circuit Diagram
7-2 7-2
HDMI ARC
MCU_CEC TX_CEC
3
1
2
Q3
WNM6001
R111
27K
MCU_3.3V
Q2
3904
R94
4K7
R77
47K
TX_HPD
HDMI_DET
C80
103
I2C_ON
MSDA
I2C_ON
MSCL
R127
100
R128
100
3
1
2
Q4
WNM6001
3
1
2
Q5
WNM6001
TX_DDCSCL
TX_DDCSDA
R89
330K
D3
WSB5508L
SW+
SW- 1
2
JK3
AV-8.4-6
SW-
SW+
SW
+CAEH_XTFIDPS_DH C56
103
R9
75
C64
10P
C54
10u
C26
104
D2
IN4148
C59
1u
RX2-
3
RX2+
1
RX2_shld
2
RX1+
4
RX1-
6
SCL
15
SDA
16
RX0+
7
RX0-
9
RX1_shld
5
RXC_shld
11
UTIL/HEAC+
14
+5V
18
CEC
13
HPD/HEAC-
19
RXC+
10
RXC-
12
RX0_shld
8
GND
17
GND
20
GND
21
GND
22
GND
23
J1
HDMI_A
H_A5V
MCU_5V
TX2P
TX2N
TX1P
TX1N
TX0P
TX0N
TXCP
TXCN
TX_CEC
R76 10K
R79 10K TX_HEAC+
TX_HEAC-
TX_HPD
D1
WSB5508L
TXA_5VO
PIN1 1
PIN2 2
GND 3
PIN4 4
PIN5 5
OUT5
6
OUT4
7
GND
3
OUT2
8
OUT1
9
U11 NC
PIN1 1
PIN2 2
GND 3
PIN4 4
PIN5 5 OUT5
6
OUT4
7
GND
3
OUT2
8
OUT1
9
U10 NC
HDMI TX
R80 1
H_A5V
TX_DDCSDA
TX_DDCSCL
C55
103
ESD1
ESDA-LF
ESD2
ESDA-LF
L24
FB/DIP-50
L25
FB/DIP-50
L28
10uH/4A
PWM_SPKL+
C77 224
CB7
104
PWM_SPKR+
C98
684
VCC
CE5
220u/25V
VCC
CB9
104
PWM_SPKL-
PWM_SPKR-
BST_A+ 1
OUT_A+ 2
PVDD 3 PVDD 4
DGND 5 DVDD 6
VR_DIG 7
ADR 8
GPIO0
9
GPIO1
10
GPIO2
11
LRCLK
12
SCLK
13
SDIN
14
SDA
15
SCL
16
PDN
17
GVDD
18
AVDD
19
AGND
20
PVDD
21
PVDD
22
OUT_B+
23
BST_B+
24
PGND 25
PGND26
OUT_B- 27
BST_B- 28
BST_A-29
OUT_A- 30
PGND 31
PGND 32
GND33
U12
IC-TAS5825M
C84
224
C101
684
L29
10uH/4A
L30
10uH/4A
C85
224
C102
684
C78
224
C103
684
L32
10uH/4A
C72
1u
C71
1u
CB6
104
A3.3V
L21
FB/600
C40
1u
C65
1u
R107
0
R65 100
R46 100
R56 100
MSDA
MSCL
R103 220
R102 220
R101 220
/FAULT1_O
R14 100
R60 100
OUT_L-
OUT_L+
OUT_R-
OUT_R+
1
2
CN4
2.0/2P
1
2
CN5
2.0/2P/RED
/RST_AMP
/MUTE_5825
L34
4.7uH/4A
C113
474
CB11
104
C110
1u
C108
684
VCC
C111
1u
CE8
220u/25V
VCC
CB12
104
BST_A+ 1
OUT_A+ 2
PVDD 3 PVDD 4
DGND 5 DVDD 6
VR_DIG 7
ADR 8
GPIO0
9
GPIO1
10
GPIO2
11
LRCLK
12
SCLK
13
SDIN
14
SDA
15
SCL
16
PDN
17
GVDD
18
AVDD
19
AGND
20
PVDD
21
PVDD
22
OUT_B+
23
BST_B+
24
PGND 25
PGND 26
OUT_B- 27
BST_B- 28
BST_A- 29
OUT_A- 30
PGND 31
PGND32
GND 33
U13
IC-TAS5825M
L33
4.7uH/4A
C112 474
C109
684
C76
1u
C74
1u
CB10
104
A3.3V L27 FB/600
C39
1u
C73
1u
R37
4K7
R98 100
R57 100
R58 100
R106 220
R105 220
R104 220
R75 100
R34 100/FAULT2_O
MSDA
MSCL
/RST_AMP
/MUTE_5825
R85
10K
Q9
NC
Q8
NC
R63
NC
R112
NC
VCC A3.3V
R110
NC
/RST_AMP
I2S_OUT_LRCK
I2S_OUT_BCK
I2S_OUT_DATA0
I2S_OUT_LRCK
I2S_OUT_BCK
I2S_OUT_DATA1
R99
22
C93
331
R100
22
C97
331
R66
22
C86
331
R67
22
C88
331
R73
22
C89
331
R74
22
C90
331
/RST_AMP
/RST_AMP
R115 NC
R116 NC MSCL
MSDA
A3.3V
WF_RX
WF_TX
C114
NC
CB13
NC
1
2
3
4
CN6
NC
WF_3.3V
GND
WF_RX
WF_TX
Wireless GP4
2
ADC
3
BAT
4
LRCK
5
MCK
6
S_DI/M_DO
7
SCL 12
SDA 13
PWM 14
TXD 15
RXD 16
3.3V 17
GND 18
GP5
1
S_DO/M_DI
8
BCK
9
GND 20
BLED 11
RST
10
ANT 19
W1
NC
D5
NC
I2S_OUT_BCK
I2S_OUT_DATA1
I2S_OUT_LRCK
1
2
CN7
NC
VREF
1
AGND
2
VCC
3
VDD
4
DGND
5
SCKI
6
LRCK
7BCK 8
DOUT 9
MD0 10
MD1 11
FMT 12
VINL 13
VINR 14
U14
NC
CB15
NC
CB16
NC
L12
NC
A5V
CB14
NC
L10
NC
A3.3V
C121
NC
C120
NC
C119
NC
L36 NC
L37 NC
C117
NC
C118
NC
5V_1808
L4 NC
OUT_L
OUT_R
ADC R117 NC
R118 NC
WF_3.3V
I2S_IN_BCK
I2S_IN_MCLK
I2S_IN_LRCK
L47 FB/10
L46FB/10
L45 FB/10
L44FB/10
L51 NC I2S_IN_DATA
C94 474
C123 474
4
3
12L52
NC
4
3
1 2 L53
NC
43
1 2 L54
NC
43
12 L55
NC

Main Board -- Layout Diagram
7-37-3

Key Board & LED board -- Circuit & Layout Diagram
8-1 8-1
REM 1
GND 2
Vcc 3
IR400
REMOTE
IR
C401
104
MCU_3.3V
L400
FB/1K
LED400
LED-R
LED401
LED-B
LED402
LED-O
94V0标志
R406
470
R407
47
R408
100
R409
100
R410
100
无铅标志
1
LED403
LED-W
LED404
LED-R
C402
10u
C403
10P
L401
FB/1K
1
2
3
4
5
6
7
8
9
10
CN401
1.5/10P
GND
IR
MCU_3.3V
LED4
LED5
LED1
LED2
LED3
LED4 LED5 LED1 LED2 LED3
ADKEY2 1
2
3
CN402
1.5/3P
GND
ADKEY1
MCU_3.3V
ADKEY1
ADKEY2
LED BOARD
CB301
104
SW300
VOL+
SW301
VOL-
SW302
EQ
R312
1K*
R311
62K*
ADKEY1
SW303
SRC
SW304
POWER
R314
27K*
1
2
3
CN301
1.5/3P
ADKEY1
GND
94V0标志
ADKEY2
无铅标志
1
ADKEY2
CB302
104
R310
15K*
R313
62K*
KEYBOARD

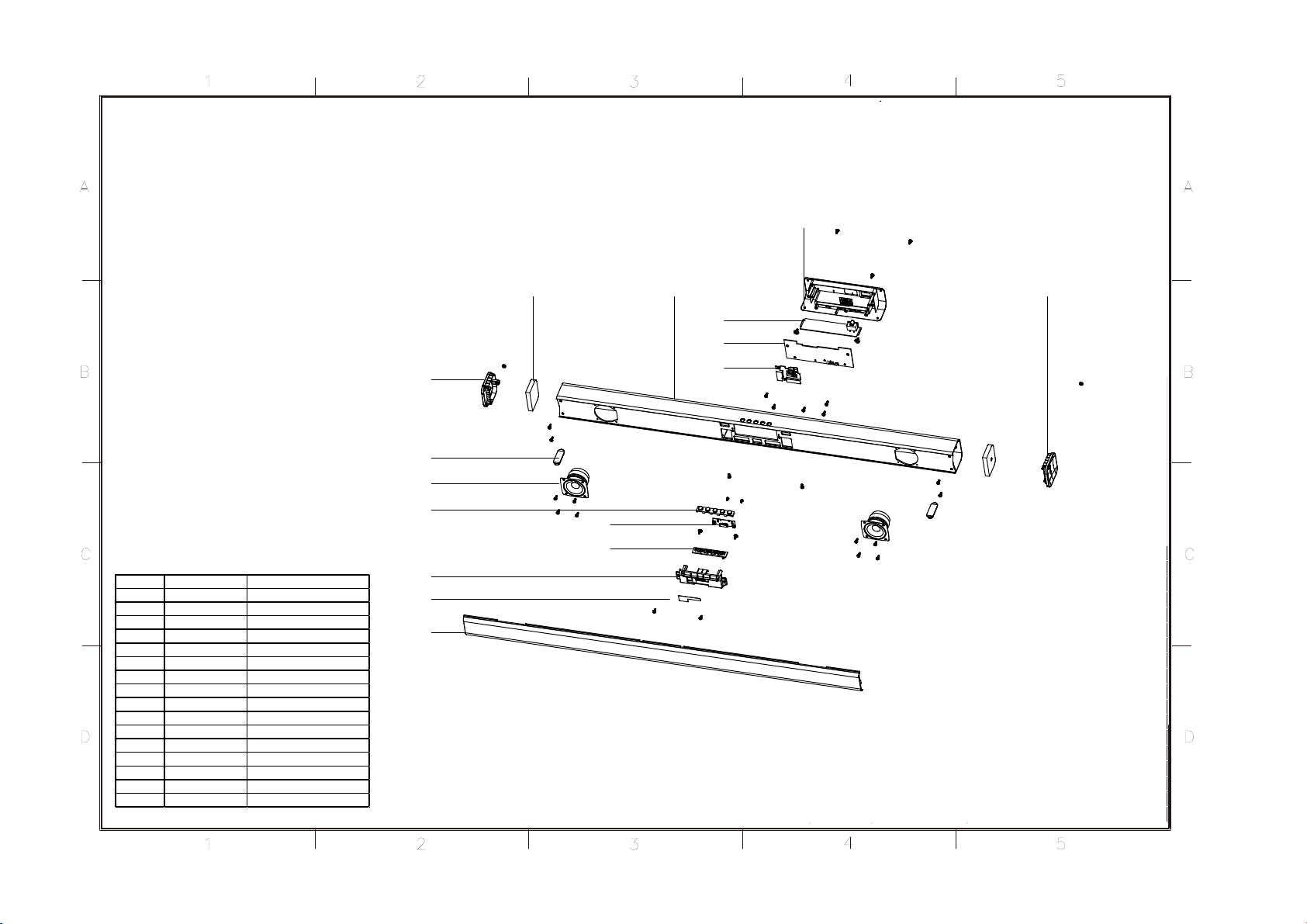

Soundbar Exploded View
5-1 5-1
M01
M02 M03
M04
E01
E02
M05
M06
M07
M08
M09
E03
E04
M10
M12
M11
POSITION PART NUMBER PART NAME
M01 201004569 LEFT SIDE COVER
M02 204001978 EVA PAD
M03 201004572 PC TUBE
M04 201004543 REAR CABINET
M05 200001957 COOLING FIN
M06 201004570 RIGHT SIDE COVER
M07 200001944 IRON GRILL
M08 204003560 INDICATOR FILTER
M09 201004571 PLASTIC KEY CABINET
M10 204003673 SILICONE BOTTON
M11 113000284 SPEAKER 2"8Ω20W
M12 204003556 SILICONE FOOT
E01 403000612 POWER PCBA
E02 404002447 MAIN PCBA
E03 402002230 KEY PCBA
E04 404002445 LED PCBA

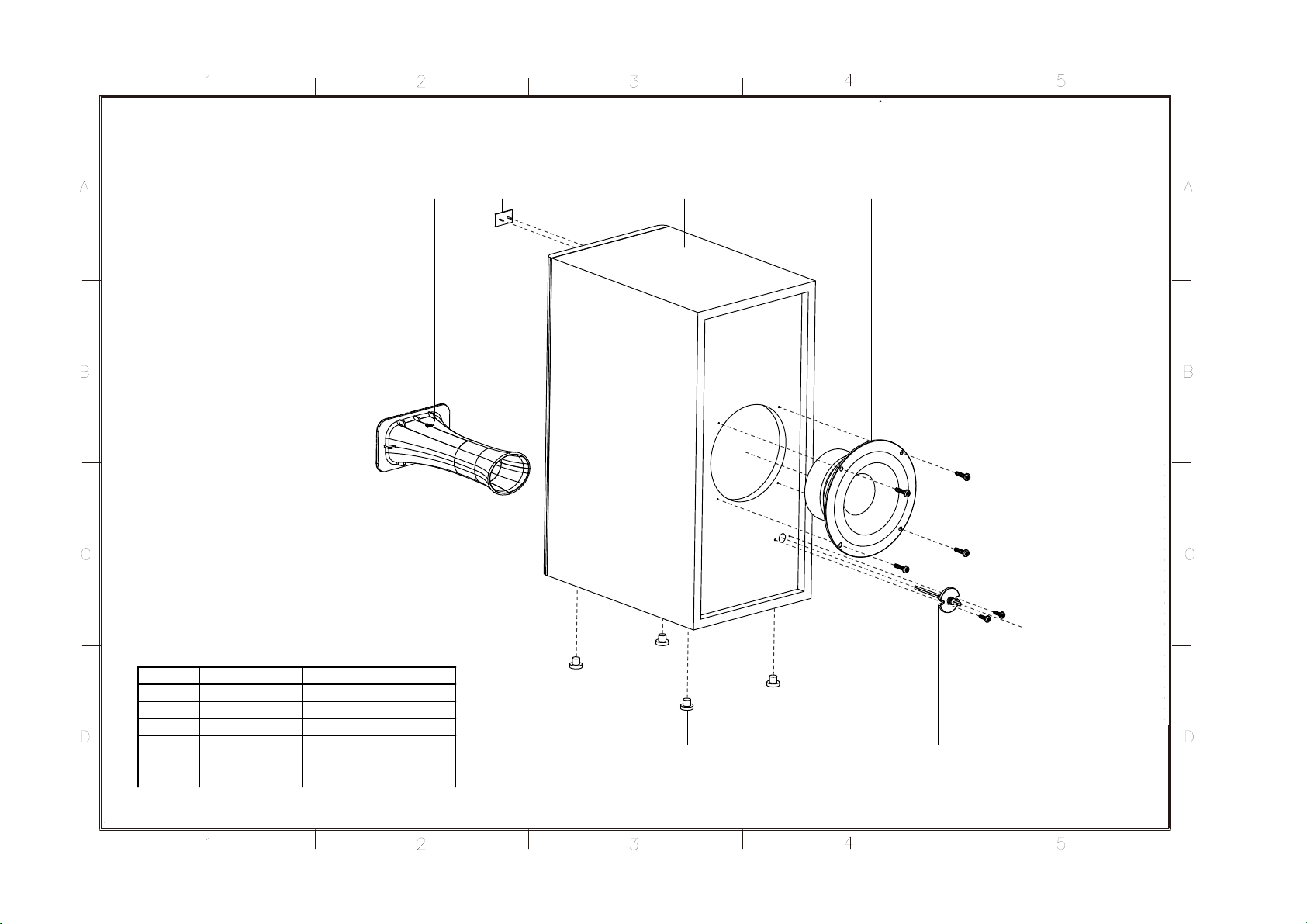

Subwoofer Exploded View
5-2 5-2
M13 M14 M15 M16
M17M18
POSITION PART NUMBER PART NAME
M13 201001928 AIR TUBE
M14 200001974 LOGO PANEL
M15 105001463 WOOD CASE
M16 113000270 SUBWOOFER 4"4Ω30W
M17 101000182 CONNETION CABLE
M18 204000600 SILICONE FOOT

JBLSB130‐SparePartsList
Part Number SAP Description Usage UoM Pos. No.
101000303 HDMI CABLE SB110/130 1 EA
112000422 #IC TAS5825M(QFN32) SB110/130 2 EA U1&U5 on Main PCBA
104000283 POWER CORD AM SB110/130/160 1 EA
104000395 POWER CORD UK SB110/130/160 1 EA
104000394 POWER CORD EP/AS SB110/130/160/260 1 EA
104000365 POWER CORD KO SB110/130/160 1 EA
104000440 POWER CORD THA SB110/130/160 1 EA
104000443 POWER CORD AU SB110/130/160 1 EA
104000467 POWER CORD BR SB110/130/160 1 EA
104000437 POWER CORD IN SB110/130/160 1 EA
105001435 REMOTE CONTROL SB110/130/160 1 EA
112000051 #IC 74LVC2GU04GW SB110/130/160 1 EA U8 IN MAIN PCBA
112000308 IC EUP3482A (SOP8) SB110/130/160 1 EA U2 IN MAIN PCBA
112000336 IC AC6901AN (QFP-48) SB110/130/160 1 EA U3 IN MAIN PCBA
112000361 IC IA6003-33S89F (SOT-89) SB110/130/160 1 EA U1 IN MAIN PCBA
112000373 IC IA6006-ADJ (SOT23-5) SB110/130/160 1 EA U4 IN MAIN PCBA
112000406 IC W25Q16JVSSIQ(208MIL) SB110/130/160 1 EA U7 IN MAIN PCBA
112000429 #IC SPHE8109S-A (QFN-88) SB110/130/160 1 EA U9 IN MAIN PCBA
100002472 22# MAIN PCBA TO LEFT SPEAKER SB130 1 EA
100002473 22# MAIN PCBA TO RIGHT SPEAKER SB130 1 EA
101000182 CONNECTION WIRE SB130 1 EA M17
105001463 WOOD CASE SB130 1 EA M15
113000270 SUBWOOFER 4"4Ω30W SB130 1 EA M16
113000284 SPEAKER 2"8Ω20W SB130 2 EA M11
201001928 AIE TUBE SB130 1 EA M13
201004543 REAR CABINET SB130 1 EA M04
201004572 PC TUBE SB130 1 EA M03
403000612 POWER PCBA PW2014C-37(PW2014C) SB130 1 EA E01
404002447 MAIN PCBA SB130 1 EA E02
405001038 GIFT BOX IN SB130 1 SY
405001330 GIFT BOX UK SB130 1 SY
405001329 GIFT BOX AM SB130 1 SY
405001328 GIFT BOX AS SB130 1 SY
100002513 28# MAIN TO LED PCBA CABLE SB130/160 1 EA
100002381 28# KEY PCBA TO LED PCBA SB130/160 1 EA
100002471 20# MAIN TO POWER PCBA CABLE SB130/160 1 EA
112000330 IC WS4603E LOAD SWITCH SB130/160 1 EA U6 IN MAIN PCBA
200001944 IRON GRILL SB130/160 1 EA M07
200001957 COOLIING FIN SB130/160 1 EA M05
200001974 LOGO BRAND SB130/160 1 EA M14
201004569 LEFT SIDE COVER SB130/160 1 EA M01
201004570 RIGHT SIDE COVER SB130/160 1 EA M06
201004571 PLASTIC KEY CABINET SB130/160 1 EA M09
204000600 WOOFER SILICONE FOOT SB130/160 4 EA M23(160), M18(130)
204003556 SILICONE FOOT SB130/160 2 EA M13(160),M12(130)
204003560 INDICATOR FILTER SB130/160 1 EA M08
204003673 SILICONE BUTTON SB130/160 1 EA M10
402002230 SOUNDBAR KEY PCBA SB130/160 1 EA E04
404002445 SOUNDBAR LED PCBA SB130/160 1 EA E03
405001039 ACCESSORY KIT SB130/160 1 SY

Revision List
Version 1.0
11-1
*Initial Release Apr. 2019
Version 1.1
*Update Spare Parts List for new SKU Jan. 2020
