JBL XTI-300 User manual

Service manual
SPECIFICATIONS:
General Section
•Frequency Response: 25Hz - 130Hz
•Built-in Amplifier: 300 Watts Class D
•Crossover Frequency: 40Hz - 130Hz, 24dB/octave
•Low-Frequency Driver: 12" Polylaminate
•Input / Outputs: Line- and high-level
•Finish: Beech or Brown Cherry Real Wood Veneer
•Dimensions (H x W x D): 550mm x 410mm x 500mm
•Weight: 28kg

4/3/02
BILL OF MATERIAL(MASTER P/L)
MODEL CODE: 91AM-K1000-01E
MODEL NAME: AMP-250
BUYER: JBL
DESTINATION: EUROPE
Date: 2002.03.18
ASS'Y CODE PARTS CODE DESCRIPTION SPECIFICATION Q'TY Loc. No

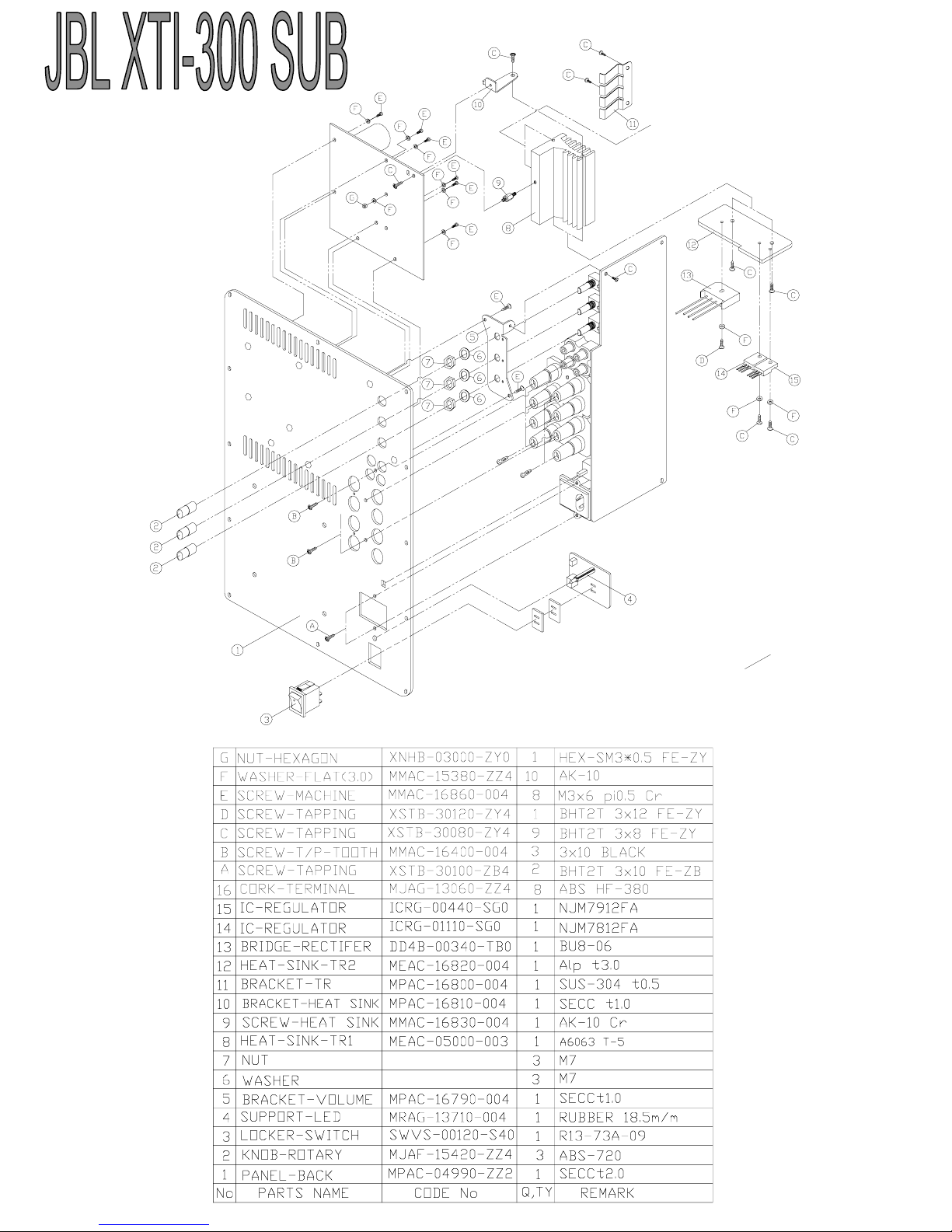

Ass'y Mecha
A2AMK1000A1E
DD4B00340TB0
BRIDGE RECTIFER
BU8-06
1
BR1
A2AMK1000A1E
FGFBS2002837
FUSE GLASS
2A 250V 50T
1
F101
A2AMK1000A1E
FIBA00020S6V
FUSE-COVER
L-A20
1
A2AMK1000A1E
ICRG00440SG0
IC REGULATOR
NJM7912FA TO-220
1
A2AMK1000A1E
ICRG01110SG0
IC REGULATOR
NJM7812FA 12V
1
A2AMK1000A1E
MEAC05000003
HEAT SINK-TR1
A6063 T-5
1
A2AMK1000A1E
MEAC16820004
HEAT SINK-TR2
ALP T3.0
1
A2AMK1000A1E
MJAF15420024
KNOB-ROTARY
AMP 250 ABS-720
3
A2AMK1000A1E
MJAG13060014
CORK-TERMINAL
AVR100READY ABS HF-380
8
A2AMK1000A1E
MMAC15380014
WASHER-FLAT(3.0)
A-900
10
A2AMK1000A1E
MMAC16400004
SCREW-T/P-TOOTH
3X10 BLACK
3
A2AMK1000A1E
MMAC16830004
SCREW-HEAT SINK
AK-10 CR
1
A2AMK1000A1E
MMAC16860004
SCREW-MACHINE
M3*6*PI0.5 CR WHITE
8
A2AMK1000A1E
MPAC04990012
PANEL-BACK
AMP 250 SECC T1.6 SPR
1
A2AMK1000A1E
MPAC16790004
BRACKET-VOLUME
SECC T1.0
1
A2AMK1000A1E
MPAC16800004
BRACKET-TR
SUS-304
1
A2AMK1000A1E
MPAC16810004
BRACKET-HEAT SINK
SECC T1.0
1
A2AMK1000A1E
PTAN03740YJV
POWER TRANSFORMER
A86-374Y-V(250V 50Hz)
1
A2AMK1000A1E
XNHB03000ZY0
NUT-HEXAGON
HEX-SM3*0.5 FE-ZY
1
A2AMK1000A1E
XSTB30080ZY4
SCREW-TAPPING
BHT2T 3x8 FE-ZY
9
A2AMK1000A1E
XSTB30100ZB4
SCREW-TAPPING
BHT2T 3x10 FE-ZB
2
A2AMK1000A1E
XSTB30120ZY4
SCREW-TAPPING
BHT2T 3x12 FE-ZY
1
A2AMK1000A1E
XSTB40080ZB8
SCREW-TAPPING
BHT3T 4x8 FE-ZB
4
A2AMK1000A1E
YGAP15350014
BOX-GIFT
AMP 250 DW-2 533*473*3
0.125
A2AMK1000A1E
YSAP01650001
CUSHION
EPS 530*470*195
0.25
A2AMK1000A1E
YVAP15360014
POLY-BAG
AMP 250 PE-LD 390*360*
1
A2AMK1000A1E
KDAC0012EPA8
CORD-AC
KKP-419C,KLCE-2F 2M
1
A2AMK1000A1E
777700000105
ROCKER S/W
SF-W101A-30BB
1

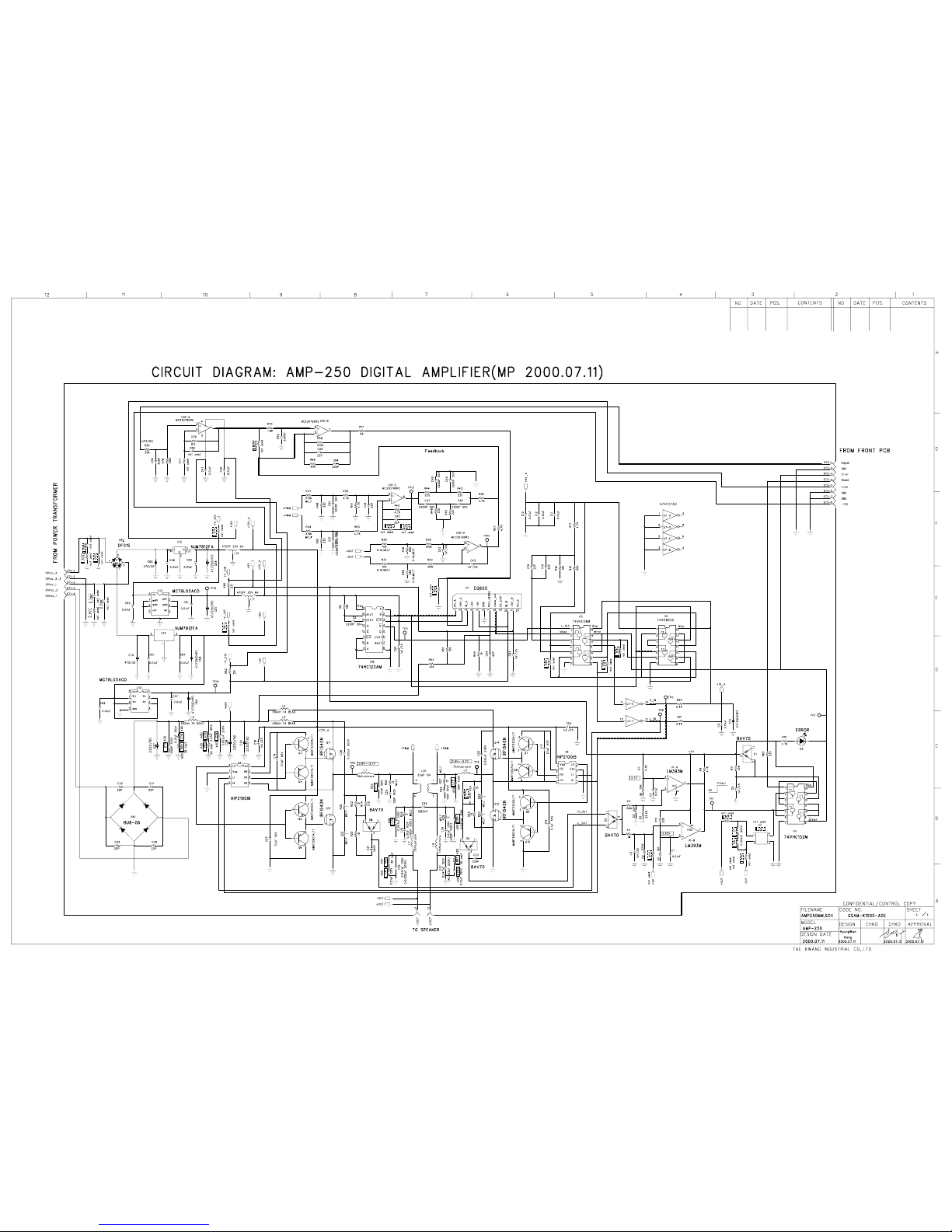

Ass'y Main
A2AMK1000A2E
BTEM00040470
T-FILTER
470PF 25V 6A
2
L15
A2AMK1000A2E
BTEM00040470
T-FILTER
470PF 25V 6A
2
L17
A2AMK1000A2E
CCMBF105Z0AJ
CAPACITOR CHIP/MONO
GRM42-6Y5V 105Z 25PE
8
C18
A2AMK1000A2E
CCMBF105Z0AJ
CAPACITOR CHIP/MONO
GRM42-6Y5V 105Z 25PE
8
C2
A2AMK1000A2E
CCMBF105Z0AJ
CAPACITOR CHIP/MONO
GRM42-6Y5V 105Z 25PE
8
C24
A2AMK1000A2E
CCMBF105Z0AJ
CAPACITOR CHIP/MONO
GRM42-6Y5V 105Z 25PE
8
C42
A2AMK1000A2E
CCMBF105Z0AJ
CAPACITOR CHIP/MONO
GRM42-6Y5V 105Z 25PE
8
C43
A2AMK1000A2E
CCMBF105Z0AJ
CAPACITOR CHIP/MONO
GRM42-6Y5V 105Z 25PE
8
C52
A2AMK1000A2E
CCMBF105Z0AJ
CAPACITOR CHIP/MONO
GRM42-6Y5V 105Z 25PE
8
C53
A2AMK1000A2E
CCMBF105Z0AJ
CAPACITOR CHIP/MONO
GRM42-6Y5V 105Z 25PE
8
C6
A2AMK1000A2E
CCMBJ103K0AH
CAPACITOR CHIP/MONO
GRM40 X7R 103 50PT
16
C1
A2AMK1000A2E
CCMBJ103K0AH
CAPACITOR CHIP/MONO
GRM40 X7R 103 50PT
16
C11
A2AMK1000A2E
CCMBJ103K0AH
CAPACITOR CHIP/MONO
GRM40 X7R 103 50PT
16
C12
A2AMK1000A2E
CCMBJ103K0AH
CAPACITOR CHIP/MONO
GRM40 X7R 103 50PT
16
C13
A2AMK1000A2E
CCMBJ103K0AH
CAPACITOR CHIP/MONO
GRM40 X7R 103 50PT
16
C4
A2AMK1000A2E
CCMBJ103K0AH
CAPACITOR CHIP/MONO
GRM40 X7R 103 50PT
16
C40
A2AMK1000A2E
CCMBJ103K0AH
CAPACITOR CHIP/MONO
GRM40 X7R 103 50PT
16
C41
A2AMK1000A2E
CCMBJ103K0AH
CAPACITOR CHIP/MONO
GRM40 X7R 103 50PT
16
C57
A2AMK1000A2E
CCMBJ103K0AH
CAPACITOR CHIP/MONO
GRM40 X7R 103 50PT
16
C58
A2AMK1000A2E
CCMBJ103K0AH
CAPACITOR CHIP/MONO
GRM40 X7R 103 50PT
16
C59
A2AMK1000A2E
CCMBJ103K0AH
CAPACITOR CHIP/MONO
GRM40 X7R 103 50PT
16
C60
A2AMK1000A2E
CCMBJ103K0AH
CAPACITOR CHIP/MONO
GRM40 X7R 103 50PT
16
C61
A2AMK1000A2E
CCMBJ103K0AH
CAPACITOR CHIP/MONO
GRM40 X7R 103 50PT
16
C62
A2AMK1000A2E
CCMBJ103K0AH
CAPACITOR CHIP/MONO
GRM40 X7R 103 50PT
16
C63
A2AMK1000A2E
CCMBJ103K0AH
CAPACITOR CHIP/MONO
GRM40 X7R 103 50PT
16
C64
A2AMK1000A2E
CCMBJ103K0AH
CAPACITOR CHIP/MONO
GRM40 X7R 103 50PT
16
C9
A2AMK1000A2E
CCMBJ104K0AH
CAPACITOR CHIP/MONO
GRM40 X7R 104K 50PE
4
C16
A2AMK1000A2E
CCMBJ104K0AH
CAPACITOR CHIP/MONO
GRM40 X7R 104K 50PE
4
C17
A2AMK1000A2E
CCMBJ104K0AH
CAPACITOR CHIP/MONO
GRM40 X7R 104K 50PE
4
C19
A2AMK1000A2E
CCMBJ104K0AH
CAPACITOR CHIP/MONO
GRM40 X7R 104K 50PE
4
C20
A2AMK1000A2E
CCMBJ220J0AH
CAPACITOR CHIP/MONO
GRM40 COG 220J 50PT
11
C14
A2AMK1000A2E
CCMBJ220J0AH
CAPACITOR CHIP/MONO
GRM40 COG 220J 50PT
11
C15
A2AMK1000A2E
CCMBJ220J0AH
CAPACITOR CHIP/MONO
GRM40 COG 220J 50PT
11
C3
1 OF 7

4/3/02
ASS'Y CODE PARTS CODE DESCRIPTION SPECIFICATION Q'TY Loc. No
A2AMK1000A2E
CCMBJ220J0AH
CAPACITOR CHIP/MONO
GRM40 COG 220J 50PT
11
C30
A2AMK1000A2E
CCMBJ220J0AH
CAPACITOR CHIP/MONO
GRM40 COG 220J 50PT
11
C31
A2AMK1000A2E
CCMBJ220J0AH
CAPACITOR CHIP/MONO
GRM40 COG 220J 50PT
11
C32
A2AMK1000A2E
CCMBJ220J0AH
CAPACITOR CHIP/MONO
GRM40 COG 220J 50PT
11
C33
A2AMK1000A2E
CCMBJ220J0AH
CAPACITOR CHIP/MONO
GRM40 COG 220J 50PT
11
C44
A2AMK1000A2E
CCMBJ220J0AH
CAPACITOR CHIP/MONO
GRM40 COG 220J 50PT
11
C45
A2AMK1000A2E
CCMBJ220J0AH
CAPACITOR CHIP/MONO
GRM40 COG 220J 50PT
11
C54
A2AMK1000A2E
CCMBJ220J0AH
CAPACITOR CHIP/MONO
GRM40 COG 220J 50PT
11
C55
A2AMK1000A2E
CCMBJ222J0AH
CAPACITOR CHIP/MONO
GRM40 X7R 222K 50PT
6
C46
A2AMK1000A2E
CCMBJ222J0AH
CAPACITOR CHIP/MONO
GRM40 X7R 222K 50PT
6
C47
A2AMK1000A2E
CCMBJ222J0AH
CAPACITOR CHIP/MONO
GRM40 X7R 222K 50PT
6
C48
A2AMK1000A2E
CCMBJ222J0AH
CAPACITOR CHIP/MONO
GRM40 X7R 222K 50PT
6
C49
A2AMK1000A2E
CCMBJ222J0AH
CAPACITOR CHIP/MONO
GRM40 X7R 222K 50PT
6
C5
A2AMK1000A2E
CCMBJ222J0AH
CAPACITOR CHIP/MONO
GRM40 X7R 222K 50PT
6
R52
A2AMK1000A2E
CCMBJ331J0AH
CAPACITOR CHIP/MONO
GRM40 COG 331J 50PT
4
C21
A2AMK1000A2E
CCMBJ331J0AH
CAPACITOR CHIP/MONO
GRM40 COG 331J 50PT
4
C23
A2AMK1000A2E
CCMBJ331J0AH
CAPACITOR CHIP/MONO
GRM40 COG 331J 50PT
4
C56
A2AMK1000A2E
CCMBJ331J0AH
CAPACITOR CHIP/MONO
GRM40 COG 331J 50PT
4
C84
A2AMK1000A2E
CCMBN101J0AJ
CAPACITOR CHIP/MONO
GRM40 COG 101J 100PT
4
C25
A2AMK1000A2E
CCMBN101J0AJ
CAPACITOR CHIP/MONO
GRM40 COG 101J 100PT
4
C26
A2AMK1000A2E
CCMBN101J0AJ
CAPACITOR CHIP/MONO
GRM40 COG 101J 100PT
4
C77
A2AMK1000A2E
CCMBN101J0AJ
CAPACITOR CHIP/MONO
GRM40 COG 101J 100PT
4
C78
A2AMK1000A2E
CCMBN102K0CG
CAPACITOR CHIP
1000pF 100V X7R 10%
1
C73
A2AMK1000A2E
CCMBN103K0CG
CAPACITOR CHIP
0.01uF 100V X7R
6
C35
A2AMK1000A2E
CCMBN103K0CG
CAPACITOR CHIP
0.01uF 100V X7R
6
C36
A2AMK1000A2E
CCMBN103K0CG
CAPACITOR CHIP
0.01uF 100V X7R
6
C74
A2AMK1000A2E
CCMBN103K0CG
CAPACITOR CHIP
0.01uF 100V X7R
6
C75
A2AMK1000A2E
CCMBN103K0CG
CAPACITOR CHIP
0.01uF 100V X7R
6
C81
A2AMK1000A2E
CCMBN103K0CG
CAPACITOR CHIP
0.01uF 100V X7R
6
C82
A2AMK1000A2E
CCMBN473K0CG
CAPACITOR CHIP
0.047uF 100V X7R 10%
4
C37
A2AMK1000A2E
CCMBN473K0CG
CAPACITOR CHIP
0.047uF 100V X7R 10%
4
C39
A2AMK1000A2E
CCMBN473K0CG
CAPACITOR CHIP
0.047uF 100V X7R 10%
4
C79
A2AMK1000A2E
CCMBN473K0CG
CAPACITOR CHIP
0.047uF 100V X7R 10%
4
C80
A2AMK1000A2E
CCMBR223K0AJ
CAPACITOR CHIP/MONO
GRM42-6 X7R 223K 200PE
5
C22
A2AMK1000A2E
CCMBR223K0AJ
CAPACITOR CHIP/MONO
GRM42-6 X7R 223K 200PE
5
C38
A2AMK1000A2E
CCMBR223K0AJ
CAPACITOR CHIP/MONO
GRM42-6 X7R 223K 200PE
5
C50
A2AMK1000A2E
CCMBR223K0AJ
CAPACITOR CHIP/MONO
GRM42-6 X7R 223K 200PE
5
C51
A2AMK1000A2E
CCMBR223K0AJ
CAPACITOR CHIP/MONO
GRM42-6 X7R 223K 200PE
5
C76
A2AMK1000A2E
CEEBE470MDX1
CAPACITOR E/ALUMINUM
47uF /16V (7SC1CAB476M)
5
C10
A2AMK1000A2E
CEEBE470MDX1
CAPACITOR E/ALUMINUM
47uF /16V (7SC1CAB476M)
5
C65
A2AMK1000A2E
CEEBE470MDX1
CAPACITOR E/ALUMINUM
47uF /16V (7SC1CAB476M)
5
C66
A2AMK1000A2E
CEEBE470MDX1
CAPACITOR E/ALUMINUM
47uF /16V (7SC1CAB476M)
5
C67
A2AMK1000A2E
CEEBE470MDX1
CAPACITOR E/ALUMINUM
47uF /16V (7SC1CAB476M)
5
C68
A2AMK1000A2E
CEETG471MHN4
CAPACITOR E/ALUMINUM
470uF/35v(1SG1VWM477M)
2
C69
A2AMK1000A2E
CEETG471MHN4
CAPACITOR E/ALUMINUM
470uF/35v(1SG1VWM477M)
2
C70
A2AMK1000A2E
CEETM222MPS1
CAPACITOR E/ALUMINUM
2200UF/80V(3HE1KVB228MHA)
3
C27
A2AMK1000A2E
CEETM222MPS1
CAPACITOR E/ALUMINUM
2200UF/80V(3HE1KVB228MHA)
3
C28
A2AMK1000A2E
CEETM222MPS1
CAPACITOR E/ALUMINUM
2200UF/80V(3HE1KVB228MHA)
3
C29
A2AMK1000A2E
CFMSJ684KKC0
MMK CAPACITOR
680NF 100V 10%
1
C34
A2AMK1000A2E
DDBP00010VX0
DUAL DIODE
BAV70(SMT)
4
D1
A2AMK1000A2E
DDBP00010VX0
DUAL DIODE
BAV70(SMT)
4
D2
A2AMK1000A2E
DDBP00010VX0
DUAL DIODE
BAV70(SMT)
4
D4
A2AMK1000A2E
DDBP00010VX0
DUAL DIODE
BAV70(SMT)
4
D5
A2AMK1000A2E
DD4B00350TB0
BRIDGE RECTIFER
DF01S(SMT)
1
BR2
A2AMK1000A2E
DPLT00821RR3
DOT-LED
LTL-1CHP RED R3.1
1
D3
A2AMK1000A2E
ICCM01530VX0
RETIG TIMER IC
MM74HC123AM
1
U16
A2AMK1000A2E
ICCM01540T20
AND GATE IC
74VHC08M
1
U5
A2AMK1000A2E
ICCM01550VX0
EX-OR GATE IC
74AC86SC
1
U6
A2AMK1000A2E
ICCM01560VX0
SCHMITT TRIGGER IC
74VHC132M
1
U4
A2AMK1000A2E
ICHY00390TS0
H-BRIDGE DROVER IC
HIP2100IB
2
U8
A2AMK1000A2E
ICHY00390TS0
H-BRIDGE DROVER IC
HIP2100IB
2
U9
A2AMK1000A2E
ICHY00410W70
EQUILOG MODULATOR
EQ 805
1
U11
A2AMK1000A2E
ICOP03200TC0
OP-AMP IC
MC33079DR2
1
U10
A2AMK1000A2E
ICOP03300T20
COMPARATOR IC
LM393MX
1
U1
A2AMK1000A2E
ICRG01070TC0
5V REGULATOR
MC78L05ACDR2
1
U13
A2AMK1000A2E
ICRG01080TC0
-5V REGULATOR
MC79L05ACD(SMD)
1
U15
A2AMK1000A2E
ICTT00430S70
INVERTER IC
N74F07AD
1
U7
A2AMK1000A2E
KIBK00310EH0
DUAL INDUCTOR
30uH 10A
1
L20
2 OF 7

4/3/02
ASS'Y CODE PARTS CODE DESCRIPTION SPECIFICATION Q'TY Loc. No
A2AMK1000A2E
KNCW009705T9
CONNECTOR-WAFER
JE202-1T-5P
1
ST1
A2AMK1000A2E
KORB00120C00
FERRIT BEAD
BL01RN1-A62-001
3
L1
A2AMK1000A2E
KORB00120C00
FERRIT BEAD
BL01RN1-A62-001
3
L2
A2AMK1000A2E
KORB00120C00
FERRIT BEAD
BL01RN1-A62-001
3
L5
A2AMK1000A2E
KORI00020000
AORCORE INDUCTOR
75nH
4
L3
A2AMK1000A2E
KORI00020000
AORCORE INDUCTOR
75nH
4
L4
A2AMK1000A2E
KORI00020000
AORCORE INDUCTOR
75nH
4
L6
A2AMK1000A2E
KORI00020000
AORCORE INDUCTOR
75nH
4
L7
A2AMK1000A2E
PCSA053101KB
PCB-(EPOXY 4 LAYER)
A1A-531,FR2(100x100x1.6t)
1
A2AMK1000A2E
RCPBBX009520
CHIP RESISTOR(SMT)
681 50PPM 0.1% (MMA0204)
2
R36
A2AMK1000A2E
RCPBBX009520
CHIP RESISTOR(SMT)
681 50PPM 0.1% (MMA0204)
2
R38
A2AMK1000A2E
RCPBBX010Z22
RESISTOR-CHIP C/FILM
33.2k 1/10W 1% B
2
R3
A2AMK1000A2E
RCPBBX010Z22
RESISTOR-CHIP C/FILM
33.2k 1/10W 1% B
2
R53
A2AMK1000A2E
RCPBB000J21C
RESISTOR-CHIP C/FILM
0ohm 1/10W 5% B
3
R76
A2AMK1000A2E
RCPBB000J21C
RESISTOR-CHIP C/FILM
0ohm 1/10W 5% B
3
R80
A2AMK1000A2E
RCPBB000J21C
RESISTOR-CHIP C/FILM
0ohm 1/10W 5% B
3
R82
A2AMK1000A2E
RCPBB102F21C
RESISTOR-CHIP C/FILM
1Kohm 1% CHIP
1
R54
A2AMK1000A2E
RCPBB103F21C
RESISTOR-CHIP C/FILM
10Kohm 1/10W 1% B
6
R1
A2AMK1000A2E
RCPBB103F21C
RESISTOR-CHIP C/FILM
10Kohm 1/10W 1% B
6
R11
A2AMK1000A2E
RCPBB103F21C
RESISTOR-CHIP C/FILM
10Kohm 1/10W 1% B
6
R16
A2AMK1000A2E
RCPBB103F21C
RESISTOR-CHIP C/FILM
10Kohm 1/10W 1% B
6
R6
A2AMK1000A2E
RCPBB103F21C
RESISTOR-CHIP C/FILM
10Kohm 1/10W 1% B
6
R61
A2AMK1000A2E
RCPBB103F21C
RESISTOR-CHIP C/FILM
10Kohm 1/10W 1% B
6
R8
A2AMK1000A2E
RCPBB104F21C
RESISTOR-CHIP C/FILM
100K 1/10W 1% B
5
R39
A2AMK1000A2E
RCPBB104F21C
RESISTOR-CHIP C/FILM
100K 1/10W 1% B
5
R40
A2AMK1000A2E
RCPBB104F21C
RESISTOR-CHIP C/FILM
100K 1/10W 1% B
5
R5
A2AMK1000A2E
RCPBB104F21C
RESISTOR-CHIP C/FILM
100K 1/10W 1% B
5
R58
A2AMK1000A2E
RCPBB104F21C
RESISTOR-CHIP C/FILM
100K 1/10W 1% B
5
R78
A2AMK1000A2E
RCPBB105J21C
RESISTOR-CHIP C/FILM
1Mohm 1/10W 5% B
1
R4
A2AMK1000A2E
RCPBB150F21C
RESISTOR-CHIP C/FILM
15ohm 1/10W 1% B
4
R22
A2AMK1000A2E
RCPBB150F21C
RESISTOR-CHIP C/FILM
15ohm 1/10W 1% B
4
R23
A2AMK1000A2E
RCPBB150F21C
RESISTOR-CHIP C/FILM
15ohm 1/10W 1% B
4
R24
A2AMK1000A2E
RCPBB150F21C
RESISTOR-CHIP C/FILM
15ohm 1/10W 1% B
4
R25
A2AMK1000A2E
RCPBB151F21C
RESISTOR-CHIP C/FILM
150ohm 1% CHIP
1
R74
A2AMK1000A2E
RCPBB182F21C
RESISTOR-CHIP C/FILM
1.8K 1% 1/10W chip
1
R70
A2AMK1000A2E
RCPBB203F21C
RESISTOR-CHIP C/FILM
20Kohm 1/10W 1% B
2
R12
A2AMK1000A2E
RCPBB203F21C
RESISTOR-CHIP C/FILM
20Kohm 1/10W 1% B
2
R69
A2AMK1000A2E
RCPBB221F21C
RESISTOR-CHIP C/FILM
220R 1% 1/10W chip
4
R43
A2AMK1000A2E
RCPBB221F21C
RESISTOR-CHIP C/FILM
220R 1% 1/10W chip
4
R44
A2AMK1000A2E
RCPBB221F21C
RESISTOR-CHIP C/FILM
220R 1% 1/10W chip
4
R45
A2AMK1000A2E
RCPBB221F21C
RESISTOR-CHIP C/FILM
220R 1% 1/10W chip
4
R46
A2AMK1000A2E
RCPBB224J21C
RESISTOR-CHIP C/FILM
220Kohm 1/10W 5% B
1
R2
A2AMK1000A2E
RCPBB242F21C
RESISTOR-CHIP C/FILM
2.4Kohm 1/10W 1% B
2
R20
A2AMK1000A2E
RCPBB242F21C
RESISTOR-CHIP C/FILM
2.4Kohm 1/10W 1% B
2
R21
A2AMK1000A2E
RCPBB283F21C
RESISTOR-CHIP C/FILM
28Kohm 1/10W 1% B
1
R34
A2AMK1000A2E
RCPBB331F21C
RESISTOR-CHIP C/FILM
330R 1% 1/10W chip
2
R48
A2AMK1000A2E
RCPBB331F21C
RESISTOR-CHIP C/FILM
330R 1% 1/10W chip
2
R50
A2AMK1000A2E
RCPBB332F21C
RESISTOR-CHIP C/FILM
3.3K 1/10W 1% B
1
R7
A2AMK1000A2E
RCPBB472F21C
RESISTOR-CHIP C/FILM
4.7K 1% 1/10W chip
9
R10
A2AMK1000A2E
RCPBB472F21C
RESISTOR-CHIP C/FILM
4.7K 1% 1/10W chip
9
R17
A2AMK1000A2E
RCPBB472F21C
RESISTOR-CHIP C/FILM
4.7K 1% 1/10W chip
9
R41
A2AMK1000A2E
RCPBB472F21C
RESISTOR-CHIP C/FILM
4.7K 1% 1/10W chip
9
R42
A2AMK1000A2E
RCPBB472F21C
RESISTOR-CHIP C/FILM
4.7K 1% 1/10W chip
9
R56
A2AMK1000A2E
RCPBB472F21C
RESISTOR-CHIP C/FILM
4.7K 1% 1/10W chip
9
R57
A2AMK1000A2E
RCPBB472F21C
RESISTOR-CHIP C/FILM
4.7K 1% 1/10W chip
9
R59
A2AMK1000A2E
RCPBB472F21C
RESISTOR-CHIP C/FILM
4.7K 1% 1/10W chip
9
R60
A2AMK1000A2E
RCPBB472F21C
RESISTOR-CHIP C/FILM
4.7K 1% 1/10W chip
9
R9
A2AMK1000A2E
RCPBB560F21C
RESISTOR-CHIP C/FILM
56R 1% 1/10W chip
2
R15
A2AMK1000A2E
RCPBB560F21C
RESISTOR-CHIP C/FILM
56R 1% 1/10W chip
2
R34
A2AMK1000A2E
RCPBF103F520
CHIP RESISTOR(SMT)
10K 50ppm 0.1% (MMA0204)
2
R35
A2AMK1000A2E
RCPBF103F520
CHIP RESISTOR(SMT)
10K 50ppm 0.1% (MMA0204)
2
R37
A2AMK1000A2E
RCPBF120F520
CHIP RESISTOR(SMT)
12R 50ppm 1%(SSM0204 MELF)
2
R26
A2AMK1000A2E
RCPBF120F520
CHIP RESISTOR(SMT)
12R 50ppm 1%(SSM0204 MELF)
2
R27
A2AMK1000A2E
RCPBF3R0F520
CHIP RESISTOR(SMT)
3R 50ppm 1%(SSM0204 MELF)
6
R28
A2AMK1000A2E
RCPBF3R0F520
CHIP RESISTOR(SMT)
3R 50ppm 1%(SSM0204 MELF)
6
R29
A2AMK1000A2E
RCPBF3R0F520
CHIP RESISTOR(SMT)
3R 50ppm 1%(SSM0204 MELF)
6
R64
A2AMK1000A2E
RCPBF3R0F520
CHIP RESISTOR(SMT)
3R 50ppm 1%(SSM0204 MELF)
6
R65
A2AMK1000A2E
RCPBF3R0F520
CHIP RESISTOR(SMT)
3R 50ppm 1%(SSM0204 MELF)
6
R66
3 OF 7

4/3/02
ASS'Y CODE PARTS CODE DESCRIPTION SPECIFICATION Q'TY Loc. No
A2AMK1000A2E
RCPBF3R0F520
CHIP RESISTOR(SMT)
3R 50ppm 1%(SSM0204 MELF)
6
R67
A2AMK1000A2E
RCPBF682F520
CHIP RESISTOR(SMT)
6K8 50ppm 1%(SSM0204 MELF)
2
R47
A2AMK1000A2E
RCPBF682F520
CHIP RESISTOR(SMT)
6K8 50ppm 1%(SSM0204 MELF)
2
R49
A2AMK1000A2E
RCPBH1R0F620
CHIP RESISTOR(SMT)
1R0 50ppm 1%(SSM0207 MELF)
4
R30
A2AMK1000A2E
RCPBH1R0F620
CHIP RESISTOR(SMT)
1R0 50ppm 1%(SSM0207 MELF)
4
R31
A2AMK1000A2E
RCPBH1R0F620
CHIP RESISTOR(SMT)
1R0 50ppm 1%(SSM0207 MELF)
4
R32
A2AMK1000A2E
RCPBH1R0F620
CHIP RESISTOR(SMT)
1R0 50ppm 1%(SSM0207 MELF)
4
R33
A2AMK1000A2E
TRBA01770TC0
TR
MMBT2222ALT1(SMT)
4
Q3
A2AMK1000A2E
TRBA01770TC0
TR
MMBT2222ALT1(SMT)
4
Q5
A2AMK1000A2E
TRBA01770TC0
TR
MMBT2222ALT1(SMT)
4
Q7
A2AMK1000A2E
TRBA01770TC0
TR
MMBT2222ALT1(SMT)
4
Q9
A2AMK1000A2E
TRBC01950TC0
TRANSISTOR
MMBT2907ALT1(SMT)
4
Q10
A2AMK1000A2E
TRBC01950TC0
TRANSISTOR
MMBT2907ALT1(SMT)
4
Q4
A2AMK1000A2E
TRBC01950TC0
TRANSISTOR
MMBT2907ALT1(SMT)
4
Q6
A2AMK1000A2E
TRBC01950TC0
TRANSISTOR
MMBT2907ALT1(SMT)
4
Q8
A2AMK1000A2E
TRSK00270W20
MOSFER(100V)
IRFI540N
4
Q11
A2AMK1000A2E
TRSK00270W20
MOSFER(100V)
IRFI540N
4
Q12
A2AMK1000A2E
TRSK00270W20
MOSFER(100V)
IRFI540N
4
Q14
A2AMK1000A2E
TRSK00270W20
MOSFER(100V)
IRFI540N
4
Q15
A2AMK1000A2E
KNCW0201008T
WAFER
LW0640-08
1
ST2
A2AMK1000A2E
KNCW0202001T
WAFER
35718-4410
1
J2
A2AMK1000A2E
KNCW0203001T
WAFER
35725-4410
1
J1

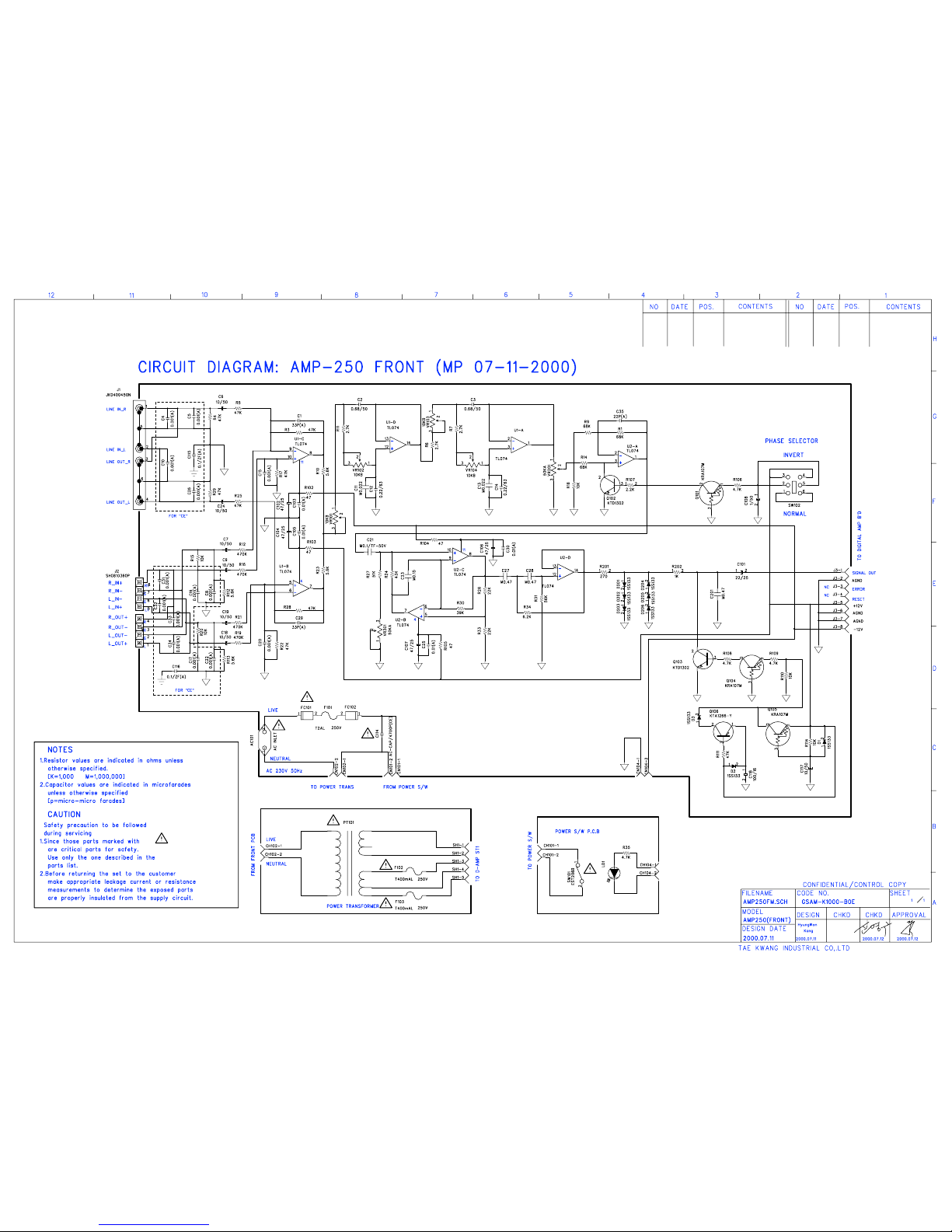

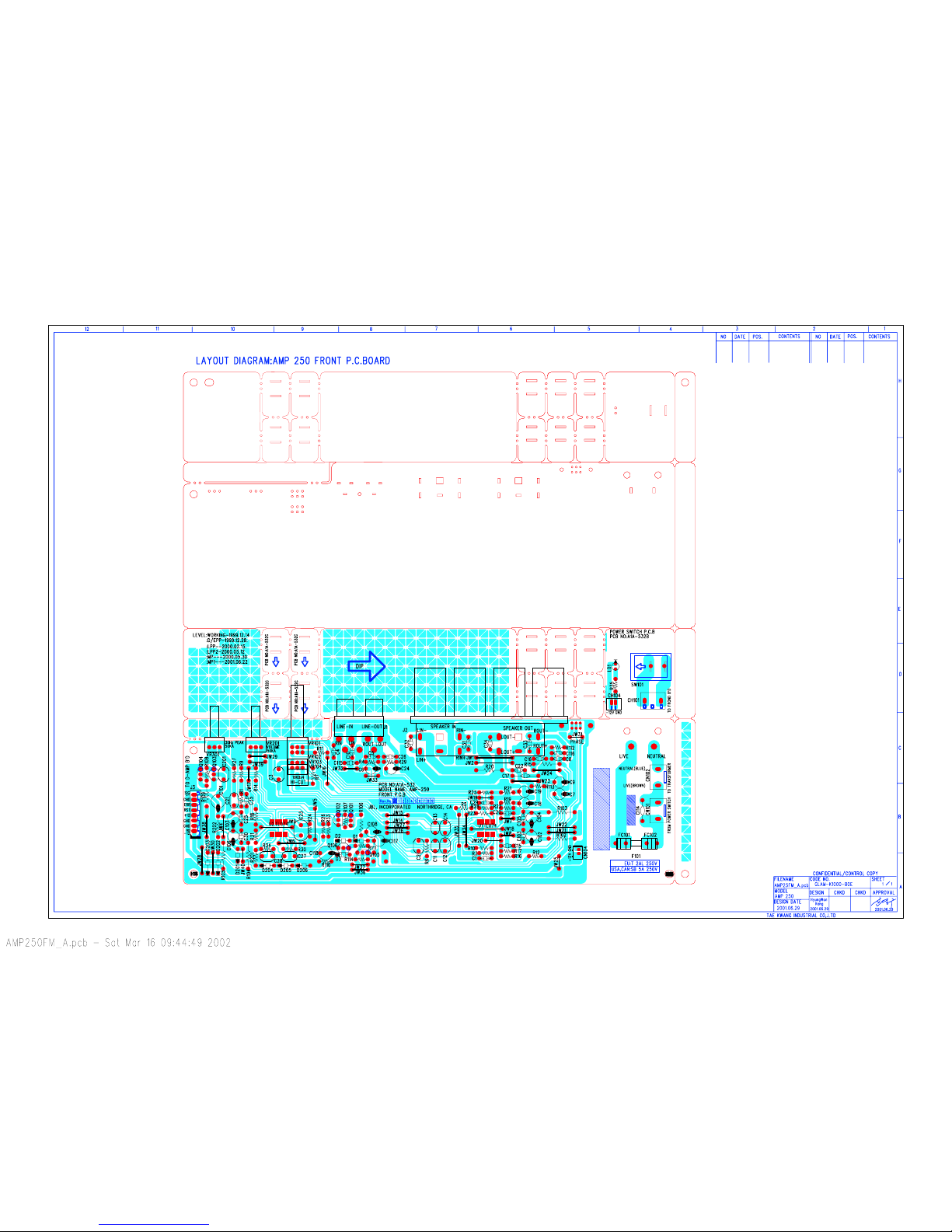

Ass'y Front
A2AMK1000A3E
CCATF103ZAAF
CAPACITOR CERAMIC
0.01uF Z 25V F T
4
C103
A2AMK1000A3E
CCATF103ZAAF
CAPACITOR CERAMIC
0.01uF Z 25V F T
4
C105
A2AMK1000A3E
CCATF103ZAAF
CAPACITOR CERAMIC
0.01uF Z 25V F T
4
C25
A2AMK1000A3E
CCATF103ZAAF
CAPACITOR CERAMIC
0.01uF Z 25V F T
4
C30
A2AMK1000A3E
CCATJ102KAAB
CAPACITOR CERAMIC
1000PF K 50V B T
14
C10
A2AMK1000A3E
CCATJ102KAAB
CAPACITOR CERAMIC
1000PF K 50V B T
14
C15
A2AMK1000A3E
CCATJ102KAAB
CAPACITOR CERAMIC
1000PF K 50V B T
14
C16
A2AMK1000A3E
CCATJ102KAAB
CAPACITOR CERAMIC
1000PF K 50V B T
14
C17
A2AMK1000A3E
CCATJ102KAAB
CAPACITOR CERAMIC
1000PF K 50V B T
14
C20
A2AMK1000A3E
CCATJ102KAAB
CAPACITOR CERAMIC
1000PF K 50V B T
14
C22
A2AMK1000A3E
CCATJ102KAAB
CAPACITOR CERAMIC
1000PF K 50V B T
14
C26
A2AMK1000A3E
CCATJ102KAAB
CAPACITOR CERAMIC
1000PF K 50V B T
14
C31
A2AMK1000A3E
CCATJ102KAAB
CAPACITOR CERAMIC
1000PF K 50V B T
14
C32
A2AMK1000A3E
CCATJ102KAAB
CAPACITOR CERAMIC
1000PF K 50V B T
14
C33
A2AMK1000A3E
CCATJ102KAAB
CAPACITOR CERAMIC
1000PF K 50V B T
14
C34
A2AMK1000A3E
CCATJ102KAAB
CAPACITOR CERAMIC
1000PF K 50V B T
14
C4
A2AMK1000A3E
CCATJ102KAAB
CAPACITOR CERAMIC
1000PF K 50V B T
14
C5
A2AMK1000A3E
CCATJ102KAAB
CAPACITOR CERAMIC
1000PF K 50V B T
14
C8
A2AMK1000A3E
CCATJ104ZAAF
CAPACITOR CERAMIC
0.1uF Z 50V F T
2
C115
A2AMK1000A3E
CCATJ104ZAAF
CAPACITOR CERAMIC
0.1uF Z 50V F T
2
C116
A2AMK1000A3E
CCATJ220JAAZ
CAPACITOR CERAMIC
22PF J 50V SL T
1
C35
A2AMK1000A3E
CCATJ330JAAZ
CAPACITOR CERAMIC
33PF J 50V SL T
2
C1
A2AMK1000A3E
CCATJ330JAAZ
CAPACITOR CERAMIC
33PF J 50V SL T
2
C29
A2AMK1000A3E
CEETE101MDI0
CAPACITOR E/ALUMINUM
100uF M 16V 6.3x11 T
1
C118
A2AMK1000A3E
CEETF220MCI0
CAPACITOR E/ALUMINUM
22uF M 25V 5x11 T
1
C101
A2AMK1000A3E
CEETF470MCI0
CAPACITOR E/ALUMINUM
47uF M 25V 5x11 T
4
C102
A2AMK1000A3E
CEETF470MCI0
CAPACITOR E/ALUMINUM
47uF M 25V 5x11 T
4
C104
A2AMK1000A3E
CEETF470MCI0
CAPACITOR E/ALUMINUM
47uF M 25V 5x11 T
4
C106
A2AMK1000A3E
CEETF470MCI0
CAPACITOR E/ALUMINUM
47uF M 25V 5x11 T
4
C107
A2AMK1000A3E
CEETJ1R0MCI0
CAPACITOR E/ALUMINUM
1.0uF M 50V 5x11 T
1
C108
A2AMK1000A3E
CEETJ100MCI0
CAPACITOR E/ALUMINUM
10uF M 50V 5x11 T
7
C117
A2AMK1000A3E
CEETJ100MCI0
CAPACITOR E/ALUMINUM
10uF M 50V 5x11 T
7
C18
A2AMK1000A3E
CEETJ100MCI0
CAPACITOR E/ALUMINUM
10uF M 50V 5x11 T
7
C19
A2AMK1000A3E
CEETJ100MCI0
CAPACITOR E/ALUMINUM
10uF M 50V 5x11 T
7
C24
A2AMK1000A3E
CEETJ100MCI0
CAPACITOR E/ALUMINUM
10uF M 50V 5x11 T
7
C6
A2AMK1000A3E
CEETJ100MCI0
CAPACITOR E/ALUMINUM
10uF M 50V 5x11 T
7
C7
A2AMK1000A3E
CEETJ100MCI0
CAPACITOR E/ALUMINUM
10uF M 50V 5x11 T
7
C9
A2AMK1000A3E
CFMTJ474JDF0
CAPACITOR F/POLYESTR
0.47uF J 50V 6x8 TL
3
C201
A2AMK1000A3E
CFMTJ474JDF0
CAPACITOR F/POLYESTR
0.47uF J 50V 6x8 TL
3
C27
A2AMK1000A3E
CFMTJ474JDF0
CAPACITOR F/POLYESTR
0.47uF J 50V 6x8 TL
3
C28
A2AMK1000A3E
CFMTL224JEF0
CAPACITOR F/POLYESTR
0.22uF J 63V 7.5x8.5 TL
2
C12
A2AMK1000A3E
CFMTL224JEF0
CAPACITOR F/POLYESTR
0.22uF J 63V 7.5x8.5 TL
2
C14
A2AMK1000A3E
CFMTL684JFI0
CAPACITOR F/POLYESTR
0.68uF J 63V 8x11.5 TL
2
C2
A2AMK1000A3E
CFMTL684JFI0
CAPACITOR F/POLYESTR
0.68uF J 63V 8x11.5 TL
2
C3
A2AMK1000A3E
CFMTN154JHH0
CAPACITOR F/POLYESTR
0.15uF J 100V 10.3x9.8 T
1
C23
4 OF 7

4/3/02
ASS'Y CODE PARTS CODE DESCRIPTION SPECIFICATION Q'TY Loc. No
A2AMK1000A3E
CFMTN223JEK0
CAPACITOR F/POLYESTR
0.022uF J 100V 7.4x13 T
2
C11
A2AMK1000A3E
CFMTN223JEK0
CAPACITOR F/POLYESTR
0.022uF J 100V 7.4x13 T
2
C13
A2AMK1000A3E
CFTTJ104JEC0
CAPACITOR F/TF
0.1uF J 50V ECQ-V1H104JL3
1
C21
A2AMK1000A3E
DDTS00070SO0
DIODE-SI
1SS133 (40V 0.11A) DO-40 T
9
D1
A2AMK1000A3E
DDTS00070SO0
DIODE-SI
1SS133 (40V 0.11A) DO-40 T
9
D2
A2AMK1000A3E
DDTS00070SO0
DIODE-SI
1SS133 (40V 0.11A) DO-40 T
9
D201
A2AMK1000A3E
DDTS00070SO0
DIODE-SI
1SS133 (40V 0.11A) DO-40 T
9
D202
A2AMK1000A3E
DDTS00070SO0
DIODE-SI
1SS133 (40V 0.11A) DO-40 T
9
D203
A2AMK1000A3E
DDTS00070SO0
DIODE-SI
1SS133 (40V 0.11A) DO-40 T
9
D204
A2AMK1000A3E
DDTS00070SO0
DIODE-SI
1SS133 (40V 0.11A) DO-40 T
9
D205
A2AMK1000A3E
DDTS00070SO0
DIODE-SI
1SS133 (40V 0.11A) DO-40 T
9
D206
A2AMK1000A3E
DDTS00070SO0
DIODE-SI
1SS133 (40V 0.11A) DO-40 T
9
D3
A2AMK1000A3E
DPLT00840MG3
DOT-LED
LTL-1CHG GRN R3.1
1
LD1
A2AMK1000A3E
ICOP03310TV0
IC OP AMP
TL074ACD
2
U1
A2AMK1000A3E
ICOP03310TV0
IC OP AMP
TL074ACD
2
U2
A2AMK1000A3E
KNCW002402T9
CONNECTOR-WAFER
53014-02 2.0mm WHT
1
CH104
A2AMK1000A3E
KNCW009902T9
CONNECTOR-WAFER
JE202A-1T-02
2
CN101
A2AMK1000A3E
KNCW009902T9
CONNECTOR-WAFER
JE202A-1T-02
2
CN102
A2AMK1000A3E
MPAC11620004
FUSE CLIP
5.2Pi TAPPING TYPE
2
FC101
A2AMK1000A3E
MPAC11620004
FUSE CLIP
5.2Pi TAPPING TYPE
2
FC102
A2AMK1000A3E
MRAG13710004
SUPPORT-LED
RUBBER 12.7m/m
1
A2AMK1000A3E
PCSA0532011B
PCB
A1A-532,FR1(247x247x1.6t)
1
PCB1
A2AMK1000A3E
RCFTE102J000
RESISTOR-CARBON FILM
1Kohm 1/5W 5% T
1
R202
A2AMK1000A3E
RCFTE103J000
RESISTOR-CARBON FILM
10Kohm 1/5W 5% T
5
R110
A2AMK1000A3E
RCFTE103J000
RESISTOR-CARBON FILM
10Kohm 1/5W 5% T
5
R114
A2AMK1000A3E
RCFTE103J000
RESISTOR-CARBON FILM
10Kohm 1/5W 5% T
5
R15
A2AMK1000A3E
RCFTE103J000
RESISTOR-CARBON FILM
10Kohm 1/5W 5% T
5
R18
A2AMK1000A3E
RCFTE103J000
RESISTOR-CARBON FILM
10Kohm 1/5W 5% T
5
R20
A2AMK1000A3E
RCFTE222J000
RESISTOR-CARBON FILM
2.2Kohm 1/5W 5% T
1
R107
A2AMK1000A3E
RCFTE223J000
RESISTOR-CARBON FILM
22Kohm 1/5W 5% T
2
R26
A2AMK1000A3E
RCFTE223J000
RESISTOR-CARBON FILM
22Kohm 1/5W 5% T
2
R33
A2AMK1000A3E
RCFTE271J000
RESISTOR-CARBON FILM
270ohm 1/5W 5% T
1
R201
A2AMK1000A3E
RCFTE272J000
RESISTOR-CARBON FILM
2.7Kohm 1/5W 5% T
3
R11
A2AMK1000A3E
RCFTE272J000
RESISTOR-CARBON FILM
2.7Kohm 1/5W 5% T
3
R6
A2AMK1000A3E
RCFTE272J000
RESISTOR-CARBON FILM
2.7Kohm 1/5W 5% T
3
R7
A2AMK1000A3E
RCFTE273J000
RESISTOR-CARBON FILM
27Kohm 1/5W 5% T
2
R25
A2AMK1000A3E
RCFTE273J000
RESISTOR-CARBON FILM
27Kohm 1/5W 5% T
2
R5
A2AMK1000A3E
RCFTE393J000
RESISTOR-CARBON FILM
39Kohm 1/5W 5% T
1
R30
A2AMK1000A3E
RCFTE433J000
RESISTOR-CARBON FILM
43Kohm 1/5W 5% T
1
R24
A2AMK1000A3E
RCFTE470J000
RESISTOR-CARBON FILM
47ohm 1/5W 5% T
4
R102
A2AMK1000A3E
RCFTE470J000
RESISTOR-CARBON FILM
47ohm 1/5W 5% T
4
R103
A2AMK1000A3E
RCFTE470J000
RESISTOR-CARBON FILM
47ohm 1/5W 5% T
4
R104
A2AMK1000A3E
RCFTE470J000
RESISTOR-CARBON FILM
47ohm 1/5W 5% T
4
R105
A2AMK1000A3E
RCFTE472J000
RESISTOR-CARBON FILM
4.7Kohm 1/5W 5% T
5
R106
A2AMK1000A3E
RCFTE472J000
RESISTOR-CARBON FILM
4.7Kohm 1/5W 5% T
5
R108
A2AMK1000A3E
RCFTE472J000
RESISTOR-CARBON FILM
4.7Kohm 1/5W 5% T
5
R109
A2AMK1000A3E
RCFTE472J000
RESISTOR-CARBON FILM
4.7Kohm 1/5W 5% T
5
R34
A2AMK1000A3E
RCFTE472J000
RESISTOR-CARBON FILM
4.7Kohm 1/5W 5% T
5
R35
A2AMK1000A3E
RCFTE473J000
RESISTOR-CARBON FILM
47Kohm 1/5W 5% T
7
R111
A2AMK1000A3E
RCFTE473J000
RESISTOR-CARBON FILM
47Kohm 1/5W 5% T
7
R17
A2AMK1000A3E
RCFTE473J000
RESISTOR-CARBON FILM
47Kohm 1/5W 5% T
7
R22
A2AMK1000A3E
RCFTE473J000
RESISTOR-CARBON FILM
47Kohm 1/5W 5% T
7
R28
A2AMK1000A3E
RCFTE473J000
RESISTOR-CARBON FILM
47Kohm 1/5W 5% T
7
R29
A2AMK1000A3E
RCFTE473J000
RESISTOR-CARBON FILM
47Kohm 1/5W 5% T
7
R3
A2AMK1000A3E
RCFTE473J000
RESISTOR-CARBON FILM
47Kohm 1/5W 5% T
7
R4
A2AMK1000A3E
RCFTE474J000
RESISTOR-CARBON FILM
470Kohm 1/5W 5% T
4
R12
A2AMK1000A3E
RCFTE474J000
RESISTOR-CARBON FILM
470Kohm 1/5W 5% T
4
R16
A2AMK1000A3E
RCFTE474J000
RESISTOR-CARBON FILM
470Kohm 1/5W 5% T
4
R19
A2AMK1000A3E
RCFTE474J000
RESISTOR-CARBON FILM
470Kohm 1/5W 5% T
4
R21
A2AMK1000A3E
RCFTE513J000
RESISTOR-CARBON FILM
51Kohm 1/5W 5% T
1
R27
A2AMK1000A3E
RCFTE562J000
RESISTOR-CARBON FILM
5.6Kohm 1/5W 5% T
4
R10
A2AMK1000A3E
RCFTE562J000
RESISTOR-CARBON FILM
5.6Kohm 1/5W 5% T
4
R112
A2AMK1000A3E
RCFTE562J000
RESISTOR-CARBON FILM
5.6Kohm 1/5W 5% T
4
R113
A2AMK1000A3E
RCFTE562J000
RESISTOR-CARBON FILM
5.6Kohm 1/5W 5% T
4
R23
A2AMK1000A3E
RCFTE563J000
RESISTOR-CARBON FILM
56Kohm 1/5W 5% T
1
R31
A2AMK1000A3E
RCFTE683J000
RESISTOR-CARBON FILM
68Kohm 1/5W 5% T
3
R1
A2AMK1000A3E
RCFTE683J000
RESISTOR-CARBON FILM
68Kohm 1/5W 5% T
3
R14
A2AMK1000A3E
RCFTE683J000
RESISTOR-CARBON FILM
68Kohm 1/5W 5% T
3
R9
5 OF 7

4/3/02
ASS'Y CODE PARTS CODE DESCRIPTION SPECIFICATION Q'TY Loc. No
A2AMK1000A3E
RJWT00000AA0
RESISTOR-JUMPER WIRE
60mm-TX123 F
35
JW1
A2AMK1000A3E
RJWT00000AA0
RESISTOR-JUMPER WIRE
60mm-TX123 F
35
JW14
A2AMK1000A3E
RJWT00000AA0
RESISTOR-JUMPER WIRE
60mm-TX123 F
35
JW15
A2AMK1000A3E
RJWT00000AA0
RESISTOR-JUMPER WIRE
60mm-TX123 F
35
JW16
A2AMK1000A3E
RJWT00000AA0
RESISTOR-JUMPER WIRE
60mm-TX123 F
35
JW17
A2AMK1000A3E
RJWT00000AA0
RESISTOR-JUMPER WIRE
60mm-TX123 F
35
JW18
A2AMK1000A3E
RJWT00000AA0
RESISTOR-JUMPER WIRE
60mm-TX123 F
35
JW19
A2AMK1000A3E
RJWT00000AA0
RESISTOR-JUMPER WIRE
60mm-TX123 F
35
JW2
A2AMK1000A3E
RJWT00000AA0
RESISTOR-JUMPER WIRE
60mm-TX123 F
35
JW20
A2AMK1000A3E
RJWT00000AA0
RESISTOR-JUMPER WIRE
60mm-TX123 F
35
JW21
A2AMK1000A3E
RJWT00000AA0
RESISTOR-JUMPER WIRE
60mm-TX123 F
35
JW22
A2AMK1000A3E
RJWT00000AA0
RESISTOR-JUMPER WIRE
60mm-TX123 F
35
JW23
A2AMK1000A3E
RJWT00000AA0
RESISTOR-JUMPER WIRE
60mm-TX123 F
35
JW24
A2AMK1000A3E
RJWT00000AA0
RESISTOR-JUMPER WIRE
60mm-TX123 F
35
JW25
A2AMK1000A3E
RJWT00000AA0
RESISTOR-JUMPER WIRE
60mm-TX123 F
35
JW26
A2AMK1000A3E
RJWT00000AA0
RESISTOR-JUMPER WIRE
60mm-TX123 F
35
JW27
A2AMK1000A3E
RJWT00000AA0
RESISTOR-JUMPER WIRE
60mm-TX123 F
35
JW28
A2AMK1000A3E
RJWT00000AA0
RESISTOR-JUMPER WIRE
60mm-TX123 F
35
JW29
A2AMK1000A3E
RJWT00000AA0
RESISTOR-JUMPER WIRE
60mm-TX123 F
35
JW30
A2AMK1000A3E
RJWT00000AA0
RESISTOR-JUMPER WIRE
60mm-TX123 F
35
JW31
A2AMK1000A3E
RJWT00000AA0
RESISTOR-JUMPER WIRE
60mm-TX123 F
35
JW32
A2AMK1000A3E
RJWT00000AA0
RESISTOR-JUMPER WIRE
60mm-TX123 F
35
JW33
A2AMK1000A3E
RJWT00000AA0
RESISTOR-JUMPER WIRE
60mm-TX123 F
35
JW34
A2AMK1000A3E
RJWT00000AA0
RESISTOR-JUMPER WIRE
60mm-TX123 F
35
JW35
A2AMK1000A3E
RJWT00000AA0
RESISTOR-JUMPER WIRE
60mm-TX123 F
35
JW36
A2AMK1000A3E
RJWT00000AA0
RESISTOR-JUMPER WIRE
60mm-TX123 F
35
JW37
A2AMK1000A3E
RJWT00000AA0
RESISTOR-JUMPER WIRE
60mm-TX123 F
35
JW38
A2AMK1000A3E
RJWT00000AA0
RESISTOR-JUMPER WIRE
60mm-TX123 F
35
JW39
A2AMK1000A3E
RJWT00000AA0
RESISTOR-JUMPER WIRE
60mm-TX123 F
35
JW4
A2AMK1000A3E
RJWT00000AA0
RESISTOR-JUMPER WIRE
60mm-TX123 F
35
JW40
A2AMK1000A3E
RJWT00000AA0
RESISTOR-JUMPER WIRE
60mm-TX123 F
35
JW5
A2AMK1000A3E
RJWT00000AA0
RESISTOR-JUMPER WIRE
60mm-TX123 F
35
JW6
A2AMK1000A3E
RJWT00000AA0
RESISTOR-JUMPER WIRE
60mm-TX123 F
35
JW7
A2AMK1000A3E
RJWT00000AA0
RESISTOR-JUMPER WIRE
60mm-TX123 F
35
JW8
A2AMK1000A3E
RJWT00000AA0
RESISTOR-JUMPER WIRE
60mm-TX123 F
35
JW9
A2AMK1000A3E
SKAO00220C50
AC POWER SOCKET
HJC-028
1
AC101
A2AMK1000A3E
SKRC00400041
SOCKET-RCA
JK0400450N
1
J1
A2AMK1000A3E
SWSL01000098
SLIDE SWITCH
SSAF122NB
1
SW102
A2AMK1000A3E
TESP0046008S
TERMINAL SPEAKER
SH0810361P 8P
1
J2
A2AMK1000A3E
TRTA0008YSD0
TRANSISTOR P-H FREQ
KTA1266-Y TO92
1
Q106
A2AMK1000A3E
TRTA00940SD0
TRANSISTOR P-H FREQ
KRA107M W/RESIST TO92M
3
Q101
A2AMK1000A3E
TRTA00940SD0
TRANSISTOR P-H FREQ
KRA107M W/RESIST TO92M
3
Q104
A2AMK1000A3E
TRTA00940SD0
TRANSISTOR P-H FREQ
KRA107M W/RESIST TO92M
3
Q105
A2AMK1000A3E
TRTD00200SD0
TRANSISTOR N-L FREQ
KTD-1302 TO92
2
Q102
A2AMK1000A3E
TRTD00200SD0
TRANSISTOR N-L FREQ
KTD-1302 TO92
2
Q103
A2AMK1000A3E
U20811713250
WIRE-ASS'Y
UL1007#26 BRN-130
1
A2AMK1000A3E
U3629B312480
WIRE-ASS'Y
UL1618#18 WHT 120 3P
1
A2AMK1000A3E
U82971613200
WIRE-ASS'Y
UL1007#24 VIT-130
1
A2AMK1000A3E
CACSS472M200
CAPACITOR AC
KH DE1310E 472M 250V P10mm
1
C114
A2AMK1000A3E
VRDED024B103
V/R RK09 10KB*4
RK0971410-10KBx4
1
VR101
A2AMK1000A3E
VRDED025A503
V/R RK09 50KA
RK0971110-50KA
2
VR201
A2AMK1000A3E
VRDED025A503
V/R RK09 50KA
RK0971110-50KA
2
VR301
Ass'y Sub
A2AMK1000AZE
ZBNG007004ZL
BOND-ADHESIVE
#575
0.5
A2AMK1000AZE
ZSBR00010060
SOLDER-BAR
SN60
15
A2AMK1000AZE
ZSWR00010F60
SOLDER-WIRE
D1.0 SN60
15
#
A2AMK1000AZE
ZZFX00010000
FLUX
ROSIN 28
7
#
A2AMK1000AZE
ZZTH00010000
DILUENT
ROSIN
2
A2AMK1000AZE
ZBNG004000ZL
BOND-ADHESIVE
SC-306
0.5
6 OF 7






