Jensen VM9216BT User manual

VM9216BT
VM9216BT Head Unit
External Microphone
Power / Speaker Harness
NAV104 / Microphone Harness
Hardware Bag
Single DIN Sleeve
Trim Ring
Owner’s Manual
Installation Guide
Tools and Supplies
You will need these tools and supplies to install your VM9216BT:
• Torx type, at-head and Philips screwdrivers
• Wire cutters and strippers
• Tools to remove existing radio (screwdriver, socket wrench set or other tools)
• Electrical tape
• Crimping tool
• Volt meter/test light
• Crimp connections
• 18 gauge wire for power connections
• 16 – 18 gauge speaker wire
What’s in the Box
WARNING! Never install this unit where operation and viewing could interfere
with safe driving conditions.
Installation Guide

2
VM9216BT
Disconnecting the Battery
To prevent a short circuit, be sure to turn o the ignition and remove the negative (-) battery cable prior to installation.
NOTE: If the VM9216BT is to be installed in a car equipped with an on-board drive or navigation computer, do not
disconnect the battery cable. If the cable is disconnected, the computer memory may be lost. Under these conditions, use
extra caution during installation to avoid causing a short circuit.
Pre-installation
1. Remove the four screws that attach the mounting sleeve to the
radio and remove the sleeve.
2. Install the mounting sleeve:
a. Install mounting sleeve into the dashboard or optional adapter.
Do not force the sleeve into the opening or cause it to bend
or bow.
b. Locate the series of bend-tabs along the top, bottom and sides
of the mounting sleeve. With the sleeve fully inserted into the
dashboard opening, bend as many of the tabs outward as
necessary so that the sleeve is rmly secured to the dashboard.
c. Install the support strap to make the unit more stable.
3. Place the radio in front of the dashboard opening so the wiring can
be brought through the mounting sleeve.
CAUTION! Be careful not to damage the car wiring.
TAB
DASHBOARD
DASHBOARD
TAB
EJECT
A/V
INPU T
2b
2c
2a

3
VM9216BT
Wiring
WARNING! Only connect the unit to a 12-volt power supply with proper grounding.
Complete wiring as illustrated in the wiring diagram on page 4. Once the wiring is complete, reconnect the battery
negative terminal. If there is no ACC available, connect the ACC lead to the power supply with a switch.
NOTE: When replacing a fuse, be sure to use correct type and amperage to avoid damaging the radio. The VM9216BT
uses one 15 amp fuse, located in the black lter box in-line with the main wire harness.

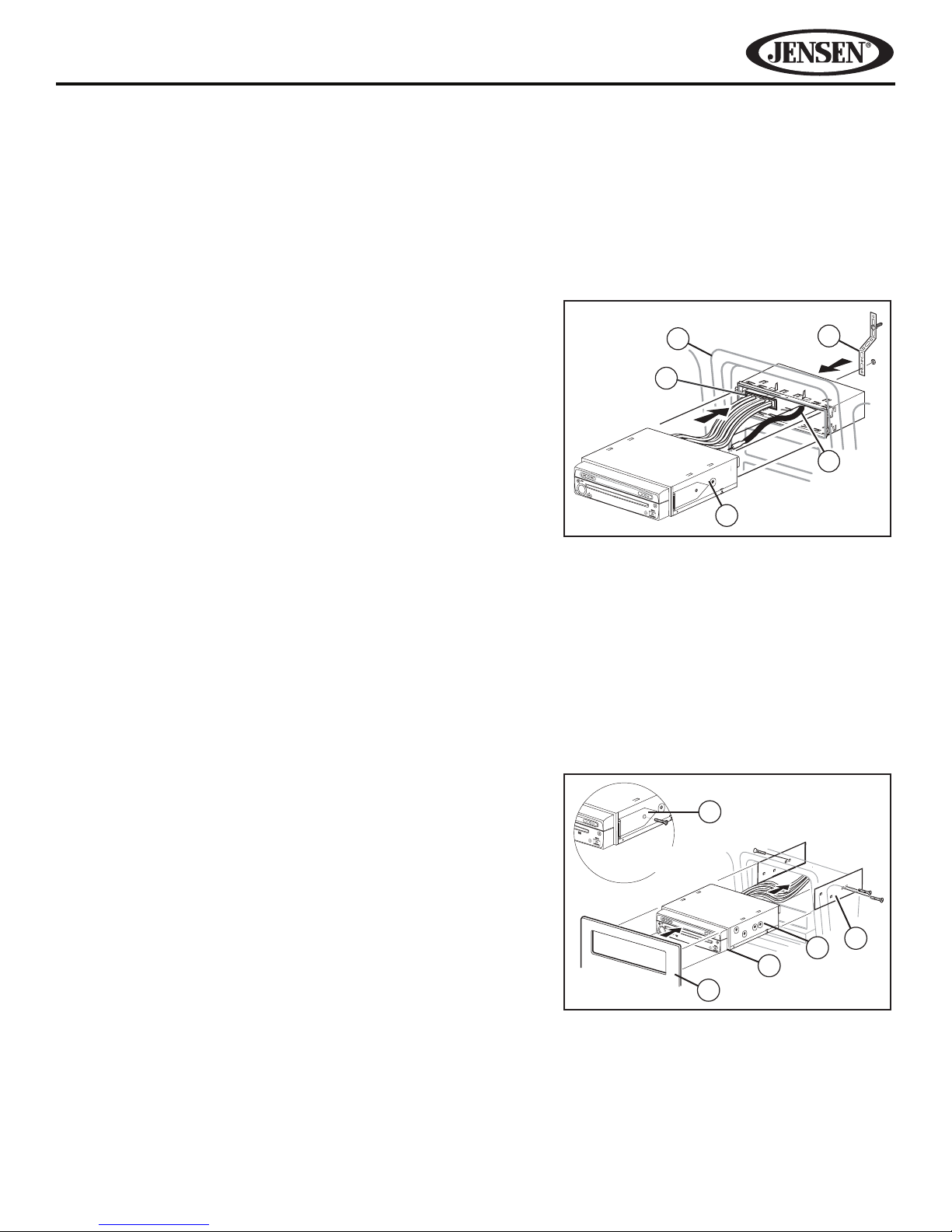

Final Installation
After completing the wiring connections, turn the unit on to conrm
operation (ignition switch must be on). If unit does not operate,
recheck all wiring until the problem is corrected. Once proper
operation is achieved, turn o the ignition switch and proceed with
nal mounting of the chassis.
1. Connect the wiring adapter to the existing wiring harness.
2. Connect the antenna lead.
3. Carefully slide the radio into the mounting sleeve, making sure it
is right-side-up, and secure with the original four screws.
4. Attach one end of the perforated support strap (supplied) to the
screw stud, which is screwed into the threaded insert on the back
of the unit, using the hex nut provided. Fasten the other end of
the perforated strap to a secure part of the dashboard either
above or below the radio using the screw and hex nut provided.
Bend the strap to position it as necessary.
5. Replace any items you removed from the dashboard.
ISO-DIN Installation
1. Remove the mounting sleeve brackets.
2. Remove the trim ring.
3. Mount the factory brackets on the new radio using the existing
screws from the old radio.
4. Slide the radio chassis into the dash opening and secure.
5. Re-install the dash panel.
EJECT
A/V
INPUT
1
2
3
4
5
CAUTION! The rear of the radio must be
supported with the strap to prevent damage
to the dashboard from the weight of the radio
or improper operation due to vibration.
EJECT
A/V
INPUT
EJECT
A/V
INPUT
Remove Mounting
Sleeve Brackets
1
2
3
4
5
NOTE: For proper operation of the CD/DVD
player, the chassis must be mounted within 20°
of horizontal. Make sure the unit is mounted
within this limitation.

4
VM9216BT
Wiring Diagram
IMPORTANT: Incorrect wiring connections can damage the unit. Follow the wiring instructions carefully, or have the
installation handled by an experienced technician.
For basic iPod® connectivity, you can use the white 30-pin to USB iPod® cable that came with your Apple device. For
iPod® video or photo playback, you must purchase the jLink-USB cable. Connect the iPod® cable to the rear chassis
iPod® inputs (USB / 3.5mm connectors) and route the iPod® cable to an accessible part of the dash area for easy
connectivity. For occasional iPod® use, keep an iPod® cable in your glove box and use it to connect the iPod® to the
front USB connector.
Harness Cord
Antenna control. Connect this lead
to a motorized antenna turn-on lead.
Maximum current draw 300mA.
External power amplifier control
Antenna Jack
REAR R
FRONT L
FRONT R
REAR L
BLUE
BLUE/WHITE
WHITE/BLACK -
GREEN/BLACK -
WHITE +
GREEN +
PURPLE +
PURPLE/BLACK -
GREY/BLACK -
GREY +
Car
Mute (leave open if not connected)
BROWN
Car Phone
FRONT L
FRONT R
REAR R
REAR L
MUTE
P.CONT
ANT.CONT
ACC
GREEN/WHITE
BLACK
YELLOW
RED
FUSE (15A)
Battery
Ignition Switch
Ground
Gearbox
Switch
BATTERY
BATTERY +
Ground
BATT
ACC
REVERSE +
GND
PINK
Rear View
Video Camera
YELLOW
External Power Amplifier
Antenna
VIDEO OUT
YELLOW
Rear Video
CAMERA
SUBWOOFER
NAV104 Connector
(optional equipment)
SWC
MICROPHONE
NAV BUS
Steering Wheel Control (SWC)
(Requires PAC SWI-PS Interface Adapter,
Sold Separately)
PRK SW
doPi
PARKING BRAKE
External Microphone
SiriusXM
Connector
SXM Bus
Need Help?
For technical assistance, call the Jensen
customer support line at 1-800-323-4815.
128-9183
