Jensen SMPV-4GBUA User manual

DIGITAL MEDIA PLAYER
USER MANUAL
SMPV-4GBUA
PLEASE READ THIS OPERATING MANUAL COMPLETELY
BEFORE OPERATING THIS UNIT AND RETAIN THIS
BOOKLET FOR FUTURE REFERENCE.

1
DEAR JENSEN®CUSTOMER
Selecting fine audio equipment such as the unit you've just purchased is only
the start of your musical enjoyment. Now it's time to consider how you can
maximize the fun and excitement your equipment offers. This manufacturer
and the Electronic Industries Association's Consumer Electronics Group want
you to get the most out of your equipment by playing it at a safe level. One
that lets the sound come through loud and clear without annoying blaring or
distortion and, most importantly, without affecting your sensitive hearing.
Sound can be deceiving. Over time your hearing "comfort level" adapts to
higher volumes of sound. So what sounds "normal" can actually be loud and
harmful to your hearing. Guard against this by setting your equipment at a
safe level BEFORE your hearing adapts.
To establish a safe level:
- Start your volume control at a low setting.
- Slowly increase the sound until you can hear it comfortably and clearly and
without distortion.

2
Once you have established a comfortable sound level:
- Set the dial and leave it there.
Taking a minute to do this now will help to prevent hearing damage or loss in
the future. After all, we want you listening for a lifetime.
We Want You Listening For a Lifetime
Used wisely, your new sound equipment will provide a lifetime of fun and
enjoyment. Since hearing damage from loud noise is often undetectable until
it is too late, this manufacturer and the Electronic Industries Association's
Consumer Electronics Group recommend you avoid prolonged exposure to
excessive noise.
Customer's Record:
The serial number of this product is found on the unit. You should note the
serial number of this unit in the space provided as a permanent record of your
purchase to aid in identification in the event of theft of loss.
Model Number: SMPV-4GBUA Serial Number:

3
WARNING
zDo not throw the product into fire to avoid danger of explosion.
zDo not immerse into water or get soaked since the battery charging
function will be lost.
zPlace the product far away from heat sources, and protect the product
from direct sunlight.
zDo not charge the internal rechargeable battery longer than specified
to prevent danger of fire. Overcharging rechargeable batteries may
shorten their life span.
zDo not unplug the unit during file transfer. It may
cause malfunction to your PC and the unit.
zDo not plug in the earbuds or audio cable during file transfer.
zDo not use the product where electric appliances are prohibited.
zProtect the product from violent impact and vibration.
zNo compensation responsibility for malfunctions caused by improper
use.
zIt is prohibited to conduct illegal audio recording.
zDownloading can be delayed if there are too many folders or files.

4
zDo not attempt to disassemble or alter any part of the unit that is not
expressly described in this guide. Internal inspections, alternations
and repairs should be conducted by qualified service personnel.
zSave the data in the memory of the product to
other storage device before repair. No compensation responsibility if
the data are lost during repair.
zPlease make sure that the version of the Direct X in the computer
must be Direct X 9.0 or above when converting the format of the video
file. For the update of DirectX, please visit www.microsoft.com and
read the relative information carefully.

5
COMPLIANCE WITH FCC REGULATIONS
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
NOTE : This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

6
CAUTION: Changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority to
operate the equipment.
BATTERY INFORMATION
For the first use of the product, you are recommended to fully charge your
unit. Connect the unit with the provided USB cable to the personal computer
correctly. Once the unit connects with the PC, it starts charging. Charge the
battery until the sign is fully displayed. The charging time is 3 hours
approximately.
NOTE:
zTo prolong the life of a rechargeable battery, completely discharge it
before fully charging it again.
zRecharge the unit when below status shows:
- Low battery;
- System auto off (without Auto power off function);
- Operation button not working.

7
Features
zSupport MP3,WMA,WAV music format
zSupport MTV video format(MTV video conversion software included in
the CD-Rom)
zSupport JPEG, BMP photo format
z6 pre-set plus 1 user custom EQ
zBuilt-in microphone for voice recording
zMulti-language support
zUSB2.0 interface
zE- book
zGames
zUSB mass storage device
zMicro SD card (TF card) support ( the maximal memory for the Micro
SD card (TF card) is 2GB)
zBuilt in lithium battery that charged by USB connection of your
computer.

8

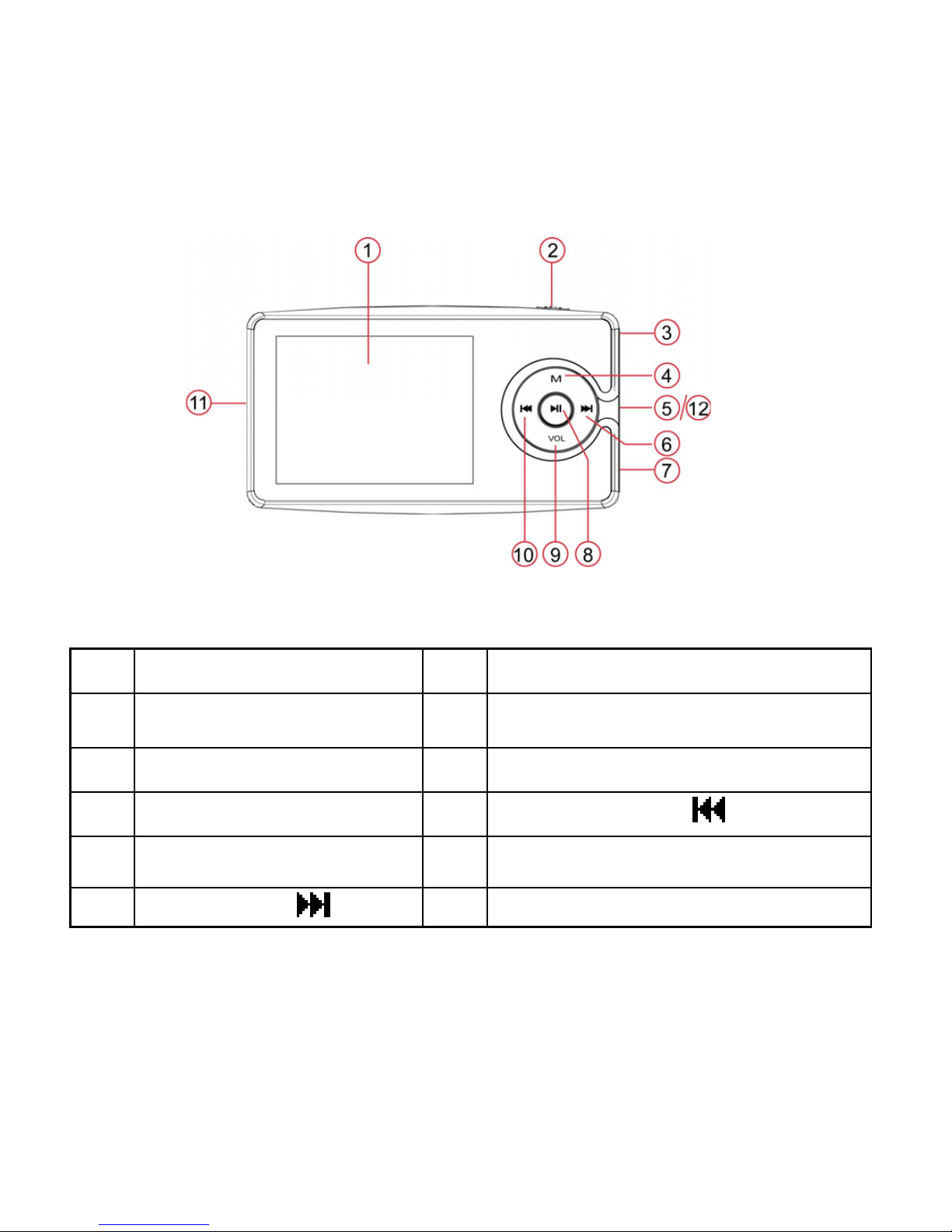

LOCATIONS OF CONTROLS
1 LCD Display 7 USB Port
2 Power ON/OFF switch 8 Play/Pause/ON/standy button
3 Earphone Jack 9 VOLUME (VOL) button
4 Menu button 10 Previous button ( )
5 Micro SD(TF) Card Slot 11 Strap eyelet
6 Next button ( ) 12 Built-in Microphone

9
Buttons and Switch
zPower ON/Power OFF switch: Turn the unit power ON/OFF.
zPlay/Pause button: play and pause; Power on/standby; enter/confirm
button
zMenu button: menu or working mode selection.
zNext button: Fast forward / skip to track. Volume up; Menu Scroll down
selection,
zPrevious: Fast backward / skip to previous tack. Volume down; Menu
Scroll up selection.
zVOL button: To enter the volume control mode; voice recording.
Note: You can Tap a button, Press and Hold or hold a button to enter different
menu mode, where:
Tap: You press the button and release it in less than two seconds.
Press and Hold: You press the button and release in more than two seconds.

10
Operation Manual
I. Turn unit on/off
- To turn on the unit, slide the Power Switch to the ON position, press the
Play/Pause button ►|| once to turn on the player.
- To turn off the unit, press and hold the Play/Pause button for few seconds
will turn the unit to standby mode. Slide the ON/OFF switch to turn the unit
off.
II. Music Mode
SETTINGS

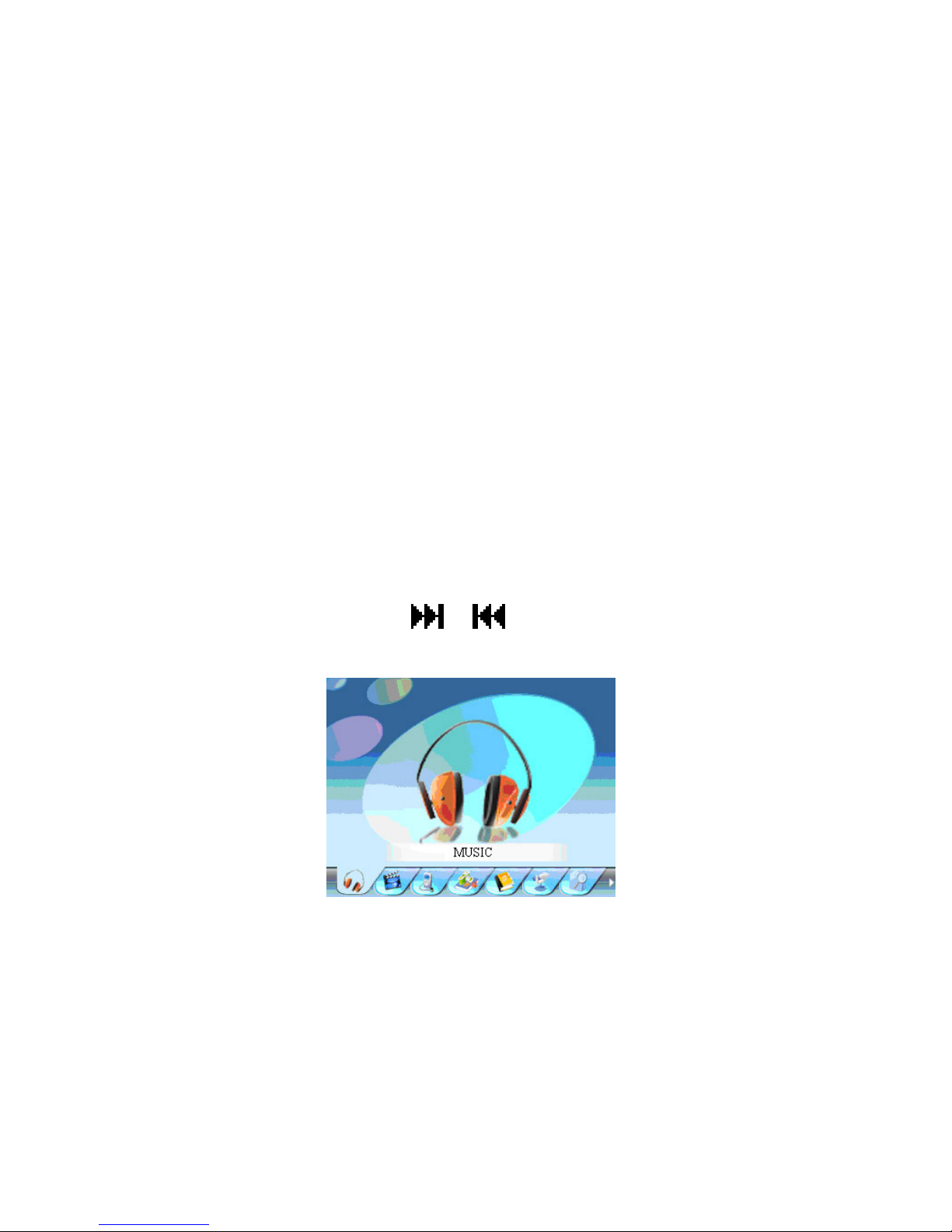

1. In the main menu，press the / button to select Music mode.

11
2. Tap the ►|| button to access music mode.
3. In the music mode, Tap the Mbutton to access the sub-menu of Music,
Tap the Mbutton again to return the music player screen.
Repeat mode
In the sub-menu of the music, press the / button to select
Repeat and short press the ►|| button to confirm.
In the repeat mode, press the / button to select the play mode
you want to set, and then tap the ►|| to confirm. After play mode set,
press the Mbutton again to return to music player screen.

12
Equalizer(EQ) mode
1. In the sub-menu of the music, press the / button to select
Equalizer.
2. Tap the ►|| button to enter EQ selection menu.
3. There are 6 pre-set EQ modes - Normal/Pop/Rock/Classic/Jazz/Bass
can be selected.
4. Press the / to select the equalizer mode you desired, and then
tap the ►|| to confirm.
5. You can also custom you own EQ.
1) Select Custom EQ under EQ menu.
2) Tap the ►|| button to enter Custom EQ setup.
3) Press the / button to select the bars to be adjusted.
4) Press the VOL button to adjust the bar level.
5) After all adjustment done, tap the ►|| button to confirm your setting
and exit EQ mode.
A3D mode
When the A3D mode is set ON, the display will show the icon
in the playing interface, if set to OFF, the display will show the
icon in the playing interface.

13
Play rate
You can set the playback speed in this mode.
File
In this mode, you can browse all the music files, and press the ►|| to play
the track selected.
Classified
Select the file according to the genre, artist, Album &Title.
Play List
Browse the file according to the list set by the user.
Slide Show
- This allows you to view the pictures (in SLS format) as a Slide Show on
your unit’s screen. Before using this feature you will need to convert your
photos on your PC using the included software.
1. Install the slideshow maker software in your PC.
2. Use the Slideshow Maker software included on the CD to covert the
photos in BMP, JPG format into .﹡. SLS format. Please see user
manual “Slide_Show_Maker_AP” in SlideShow Maker folder.

14
3. After conversion, connect the unit to the PC.
4. Create a new folder and rename it as SLS.DIR in the either the
internal storage or external storage (microSD – not included).
5. Use your PC to Copy the﹡. SLS file into SLS.DIR folder you just
created in the unit’s storage location.
6. Disconnect the unit from PC using Windows “Safe remove USB Mass
Storage” process.
7. Turn on the unit and enter the sub-menu of music, then select Slide
Show function.
8. There are 5 playback settings for the slideshow, 5 seconds, 10
seconds, 15seconds, 30 seconds, 60 seconds. The slide show will
begin once the music begins. To turn off slide show function, enter
slide show setting menu and select “Off”
IMPORTANT NOTE
1. The slide show conversion software only works on Windows
operating systems.
2. You will need to convert your photos into SLS format using the SLS
convert tool included on the CD enclosed.
3. If the slideshow is turned ON before the backlight timer, the slideshow
and will play, but the backlight timer will not activate and the screen
will not turn off. If the slideshow is turned ON after the backlight

15
timer, the slideshow and will play, but the screen will remain off while
playing.
OPERATION：
1. Enter Music mode, locate a music file you want to play, press
Play/Pause button to start playback.
2. Volume control
In music mode, press and hold VOL button to enter the volume adjust
mode, the volume icon will become pink . Press the /
buttons to increase or decrease the volume.
3. Fast forward & fast backward
During music playback, press and hold the / buttons to fast
forward or fast backward scan.
4. Lyrics Display
If lyric are available, the device will display the lyrics automatically and
simultaneously when the song is played.
5. A-B Repeat
In the music playback mode, press the VOL button to identify the A
point (starting) and LCD display will show “A- “, press the VOL button
again to identify the B point (ending) and LCD display will show “A-B”.
The Player will now repeat the selected segment. Press the VOL button
once to exit the A-B repeat mode.

16
III. VIDEO MODE
IMPORTANT NOTE
1. The video conversion software only works on Windows operating
systems.
2. The video file format for this player is MTV. The file formats that can be
converted directly into MTV are MPG, ASF, AVI, WMV using the
convert tooling located on the provided CD. (For the conversion details,
users can always refer to the instruction manual file in the attached
CD-ROM’s Video Convert Software folder.)
3. Please make sure that the source video file can be played on your
computer. If not, it cannot be played on the unit.
4. Install the video conversion software (CD-ROM\Video Convert
Software\Setup.exe) on your computer and in the MTV convert tooling
program, please click the to enter HELP mode, please read the
content before starting converting.
5. The optimum resolution for this unit is 320 x 240. Video clips with
resolutions other than 320 x 240 will not fit the display for video
playback.

17
SETTINGS

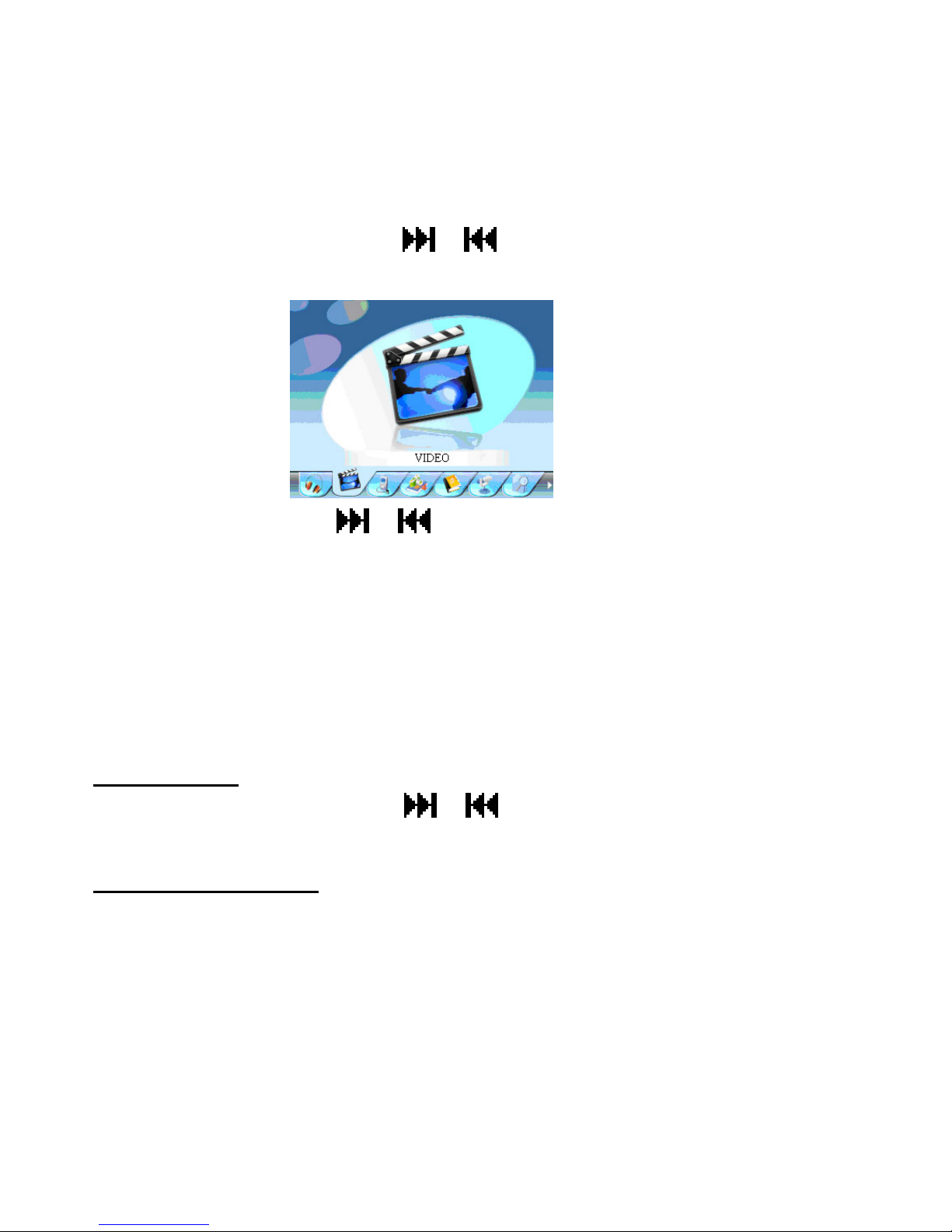

1. In the main menu, press the / buttons to select VIDEO and then
press the ►|| button to access.
2. In movie list, press the / button to select a movie you want to play
and then tap the ►|| button to start playback.
3. In video playback screen, tap the Mbutton to enter the sub-menu for play
mode and OSD color setting.
4. Tap the M button to exit.
5. To return to main menu from sub-menu, press and hold the Mbutton in
VIDEO mode, main menu will appear.
Repeat mode
In the repeat mode, press the / button to select the play mode you
wan to set, and then tap the ►|| button to confirm.
Video OSD Color set
In this mode, you can select different color for the progress bar and the
time displaying during playback.

18
OPERATIONS：
1. Select a movie from the list, tap the ►|| button to playback / pause the
movie.
2. Fast Forward / Fast Reverse
During normal play, press and hold the / button to fast forward or
reverse
3. Volume control
In video play/pause mode, tap the VOL button to enter the volume adjust
mode.
4. Press the / to increase & decrease the volume.

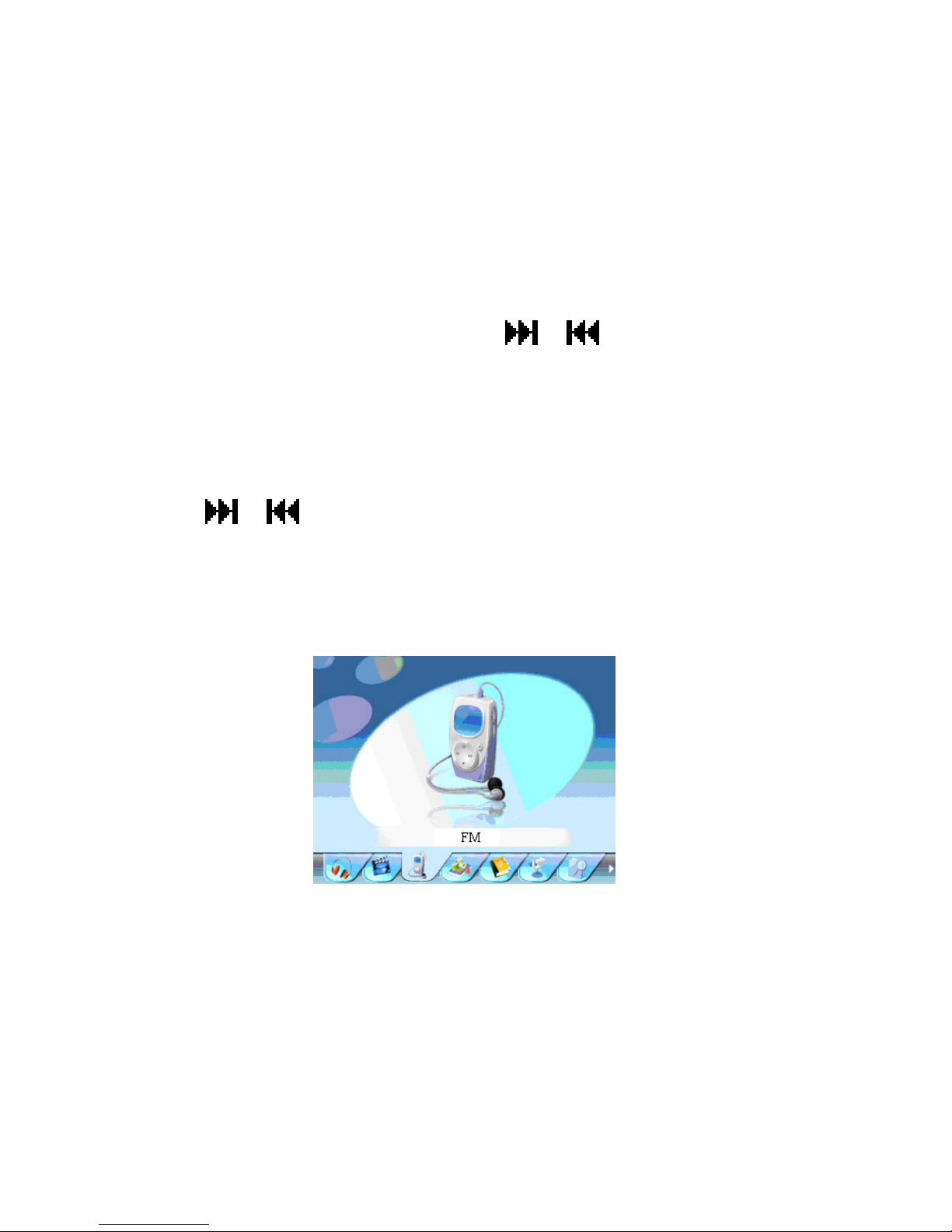

IV. FM RADIO
In main menu select “FM”, tap the ►|| button to enter FM Radio mode.

19
Manual Search
In FM mode, tap the ►|| button to toggle select between Normal and Preset
mode. In the “Normal” model, tap the / button to tune radio
frequency up/down manually.
Auto Search
1. In the FM Normal mode, tap the Mbutton, the “Save Preset / Auto Scan”
menu will pop up on the screen.
2. Press the / button to select “Auto Scan” and press the ►|| button
to confirm. It will search the radio stations automatically.
3. You can also use Auto scan in Preset mode.
Note: In the Preset mode, when auto scan finishes, tap the / button
to select the detected channels.
Save channels
1. In the FM “Normal” mode, tap the M button.
2. Press the / button to select “Save Preset” and then tap the ►||
button to enter.
3. Press the / to select the channel you want to save and tap the
►|| button.
