Jesco BATT-LI User manual

SAFETY INSTRUCTIONS
BATT-LI
Lithium-ion Recharable Battery Pack
www.jescolighting.com
[email protected]
Tech Support: 855.592.0029
Instruction sheet subject to change without prior notice.
15 Harbor Park Drive
Port Washington, NY 11050
Main Line: 800.527.7796
Fax Line: 855.265.5768
219 South 6th Ave
City of Industry, CA 91746
Main Line: 855.654.0110
Fax Line: 626.333.2955
Page 1 of 3
JW 06/20/2017
Please read and save these instructions. Read carefully before using product. Protect yourself and others by observing all safety information,
warnings and cautions. Failure to comply with instructions could result in personal injury and/or damage to product or property. Please retain
instruction sheet for future reference.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: Please read before charging or using battery
You must read these safety instructions and warnings before using or charging your batteries.
• Lithium Polymer batteries are volatile. Failure to read and follow the instructions below may result in re, personal injury and damage to
property if improperly charged or used.
• JESCO LIGHTING GROUP is not liable for failures to comply with these warnings and safety guidelines.
• JESCO LIGHTING GROUP is only responsible for the products we sell. We are not responsible for any damages and consequences by using
our products improperly.
• By purchasing this battery, the buyer assumes all risks associated with lithium batteries. If you do not agree with these
conditions, return the battery immediately before use.
1) Use provided charger only- Failure to do so may cause a re, which may result in personal injury and property damage.
2) Never leave charging batteries unattended. When charging Li-ion batteries you should always remain in constant observation to
monitor the charging process and react to potential problems that may occur.
3) If at any time you witness a battery starting to balloon or swell up, discontinue charging process immediately. Disconnect
the battery and observe it in a safe place for approximately 15 minutes. Continuing to charge a battery that has begun to swell
will result in a re. Likewise, never use a battery if you nd it swollen or ballooned upon purchase.
4) Since delayed chemical reaction can occur, it is best to observe the battery as a safety precaution. Battery observation should occur
in a safe area outside of any building or vehicle and away from any combustible material.
5) Shorts in wire leads can cause re! If you accidentally short the wires, the battery must be placed in a safe area for observation for
approximately 15 minutes. Additionally, if a short occurs and contact is made with metal (such as rings on your hand), severe injuries
may occur due to the conductibility of electric current.
6) If you accidentally cause the battery to short, place it in a safe open space and observe the battery for approximately 15 minutes. A
battery may swell or even possibly catch re after a short time.
7) Never store or charge a battery pack inside your car in extreme temperatures, since extreme temperature could cause re.
GENERAL GUIDELINES AND WARNINGS
BEFORE YOU CHARGE
1) Make a visual inspection of the pack. Look for any damaged leads & connectors, or other irregularities. Do not use if you nd any of the
above issues with your pack.
2) If any damage to the pack or leads is found, do not attempt to charge the pack; contact JESCO LIGHTING GROUP as soon as possible.
CHARGING PROCESS
1) Never leave charging batteries unattended.
2) Charge in an isolated area, away from other ammable materials on a concrete surface outside of buildings.
3) Let the battery cool down to ambient temperature before charging.

BATT-LI
Lithium-ion Recharable Battery Pack
www.jescolighting.com
[email protected]
Tech Support: 855.592.0029
Instruction sheet subject to change without prior notice.
15 Harbor Park Drive
Port Washington, NY 11050
Main Line: 800.527.7796
Fax Line: 855.265.5768
219 South 6th Ave
City of Industry, CA 91746
Main Line: 855.654.0110
Fax Line: 626.333.2955
Page 2 of 3
JW 06/20/2017
SAFETY INSTRUCTIONS
SAFETY INSTRUCTIONS
STORAGE & TRANSPORTATION
1) Store battery at room temperature between 23 and 80 degrees F for best results.
2) Do not expose battery pack to direct sunlight (heat) for extended periods.
3) When transporting or temporarily storing in a vehicle, temperature range should be greater than 20 degrees F but no more than 100
degrees F.
4) Storing battery at temperatures greater than 100 degrees F for extended periods of time (more than 2 hours) may cause
damage to battery and possibly re.
OPERATING TEMPERATURE
Charge: 32 to 95 degrees F
Discharge: 14 to 95 degrees F
1) Let battery cool down to ambient temperature before charging.
2) During discharge and handling of batteries, do not exceed 95 degrees F.
BATTERY LIFE
Batteries that lose 20% of their capacity should be removed from service and disposed of properly.
SAFE DISPOSAL OF LITHIUM ION BATTERIES
Dispose of battery following your state’s safety regulations. In the United States and Canada, a large network of over 30,000 battery drop-off
locations may be found at www.call2recycle.org.
PRODUCT WARRANTY
Product warranty is limited to original defects in material and workmanship. Warranty does not cover collateral damage.
Misuse, abuse, incorrect charging, failure to comply with the above warnings and guidelines, and other inappropriate use of this product are
not covered under warranty.
H
I
J
Included with BATT-LI-12V-(100/150/266)WH
12V I/O CABLE
Included with BATT-LI-24V-(100/150/266)WH
24V VOLTAGE REGULATOR WITH I/O CABLE
H
I
Included with BATT-LI-350mA-(100/150/266)WH
350mA VOLTAGE REGULATOR WITH I/O CABLE
110V-240V input 60W Max included with all models
UL LISTED 13V AC/DC CHARGER
J
K
A
B
C
D
E
F
G

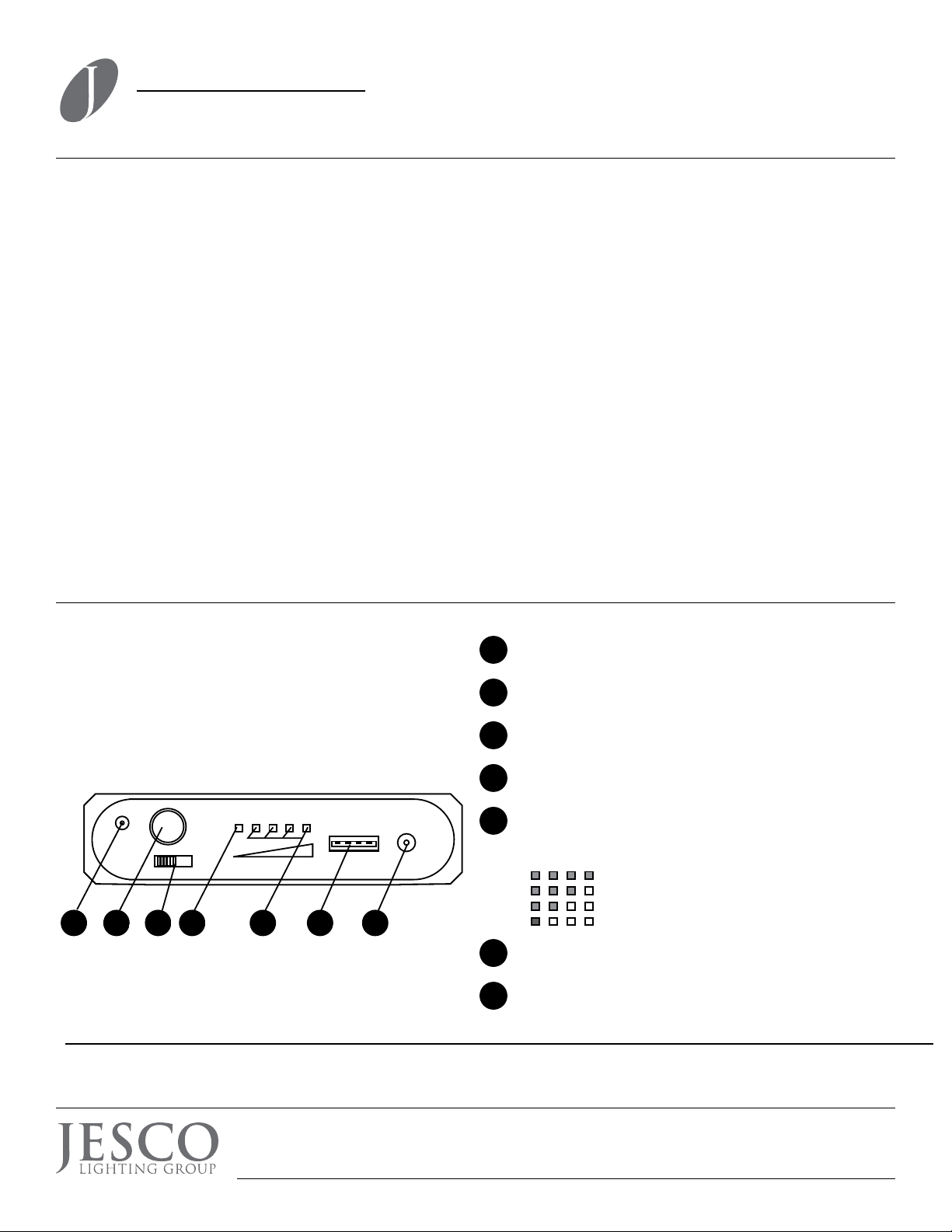

CHARGER INPUT 13V
Use With Provided Charger Only
TEST BUTTON FOR BATTERY CAPACITY
ON / OFF SWITCH
CAPACITY INDICATOR LIGHT
5V 2A USB PORT
On 100WH &150WH model audible warning tone
will sound off when capacity goes under 25%
Integral in 100WH and 150WH models
12V OUTPUT PORT
Use provide I/O cable or voltage regulator
with I/O cable only
STATUS LIGHT
RED - Charging or On
A
B
C
D
E
F
G
100%
75%
50%
25%
K
H
G
G
G
A
A
A
J
I
12V PRODUCT
CONSTANT VOLTAGE
24V PRODUCT
CONSTANT VOLTAGE
350mA PRODUCT
CONSTANT CURRENT
I/O - Input and Output
DC IN
DC OUT
INPUT OUTPUT
INPUT OUTPUT
OUTPUT
POLARIZED PLUG
INPUT OUTPUT
1A
1B
1C

BATT-LI
Lithium-ion Recharable Battery Pack
www.jescolighting.com
[email protected]
Tech Support: 855.592.0029
Instruction sheet subject to change without prior notice.
15 Harbor Park Drive
Port Washington, NY 11050
Main Line: 800.527.7796
Fax Line: 855.265.5768
219 South 6th Ave
City of Industry, CA 91746
Main Line: 855.654.0110
Fax Line: 626.333.2955
Page 3 of 3
JW 06/20/2017
H
I
J
Included with BATT-LI-12V-(100/150/266)WH
12V I/O CABLE
Included with BATT-LI-24V-(100/150/266)WH
24V VOLTAGE REGULATOR WITH I/O CABLE
H
I
Included with BATT-LI-350mA-(100/150/266)WH
350mA VOLTAGE REGULATOR WITH I/O CABLE
110V-240V input 60W Max included with all models
UL LISTED 13V AC/DC CHARGER
J
K
A
B
C
D
E
F
G
CHARGER INPUT 13V
Use With Provided Charger Only
TEST BUTTON FOR BATTERY CAPACITY
ON / OFF SWITCH
CAPACITY INDICATOR LIGHT
5V 2A USB PORT
On 100WH &150WH model audible warning tone
will sound off when capacity goes under 25%
Integral in 100WH and 150WH models
12V OUTPUT PORT
Use provide I/O cable or voltage regulator
with I/O cable only
STATUS LIGHT
RED - Charging or On
A
B
C
D
E
F
G
100%
75%
50%
25%
K
H
G
G
G
A
A
A
J
I
12V PRODUCT
CONSTANT VOLTAGE
24V PRODUCT
CONSTANT VOLTAGE
350mA PRODUCT
CONSTANT CURRENT
I/O - Input and Output
DC IN
DC OUT
INPUT OUTPUT
INPUT OUTPUT
OUTPUT
POLARIZED PLUG
INPUT OUTPUT
1A
1B
1C
H
I
J
Included with BATT-LI-12V-(100/150/266)WH
12V I/O CABLE
Included with BATT-LI-24V-(100/150/266)WH
24V VOLTAGE REGULATOR WITH I/O CABLE
H
I
Included with BATT-LI-350mA-(100/150/266)WH
350mA VOLTAGE REGULATOR WITH I/O CABLE
110V-240V input 60W Max included with all models
UL LISTED 13V AC/DC CHARGER
J
K
A
B
C
D
E
F
G
CHARGER INPUT 13V
Use With Provided Charger Only
TEST BUTTON FOR BATTERY CAPACITY
ON / OFF SWITCH
CAPACITY INDICATOR LIGHT
5V 2A USB PORT
On 100WH &150WH model audible warning tone
will sound off when capacity goes under 25%
Integral in 100WH and 150WH models
12V OUTPUT PORT
Use provide I/O cable or voltage regulator
with I/O cable only
STATUS LIGHT
RED - Charging or On
A
B
C
D
E
F
G
100%
75%
50%
25%
K
H
G
G
G
A
A
A
J
I
12V PRODUCT
CONSTANT VOLTAGE
24V PRODUCT
CONSTANT VOLTAGE
350mA PRODUCT
CONSTANT CURRENT
I/O - Input and Output
DC IN
DC OUT
INPUT OUTPUT
INPUT OUTPUT
OUTPUT
POLARIZED PLUG
INPUT OUTPUT
1A
1B
1C
H
I
J
Included with BATT-LI-12V-(100/150/266)WH
12V I/O CABLE
Included with BATT-LI-24V-(100/150/266)WH
24V VOLTAGE REGULATOR WITH I/O CABLE
H
I
Included with BATT-LI-350mA-(100/150/266)WH
350mA VOLTAGE REGULATOR WITH I/O CABLE
110V-240V input 60W Max included with all models
UL LISTED 13V AC/DC CHARGER
J
K
A
B
C
D
E
F
G
CHARGER INPUT 13V
Use With Provided Charger Only
TEST BUTTON FOR BATTERY CAPACITY
ON / OFF SWITCH
CAPACITY INDICATOR LIGHT
5V 2A USB PORT
On 100WH &150WH model audible warning tone
will sound off when capacity goes under 25%
Integral in 100WH and 150WH models
12V OUTPUT PORT
Use provide I/O cable or voltage regulator
with I/O cable only
STATUS LIGHT
RED - Charging or On
A
B
C
D
E
F
G
100%
75%
50%
25%
K
H
G
G
G
A
A
A
J
I
12V PRODUCT
CONSTANT VOLTAGE
24V PRODUCT
CONSTANT VOLTAGE
350mA PRODUCT
CONSTANT CURRENT
I/O - Input and Output
DC IN
DC OUT
INPUT OUTPUT
INPUT OUTPUT
OUTPUT
POLARIZED PLUG
INPUT OUTPUT
1A
1B
1C
Slide ON/OFF switch to the
right and to the ON position to
power the connected xture.
Connect input jack to battery pack’s DC out port, then connect 12V product to output jack
Connect input jack to battery pack’s DC out port, then connect 24V product to output jack
Connect input jack to battery pack’s DC out port, then connect 350mA product to output jack

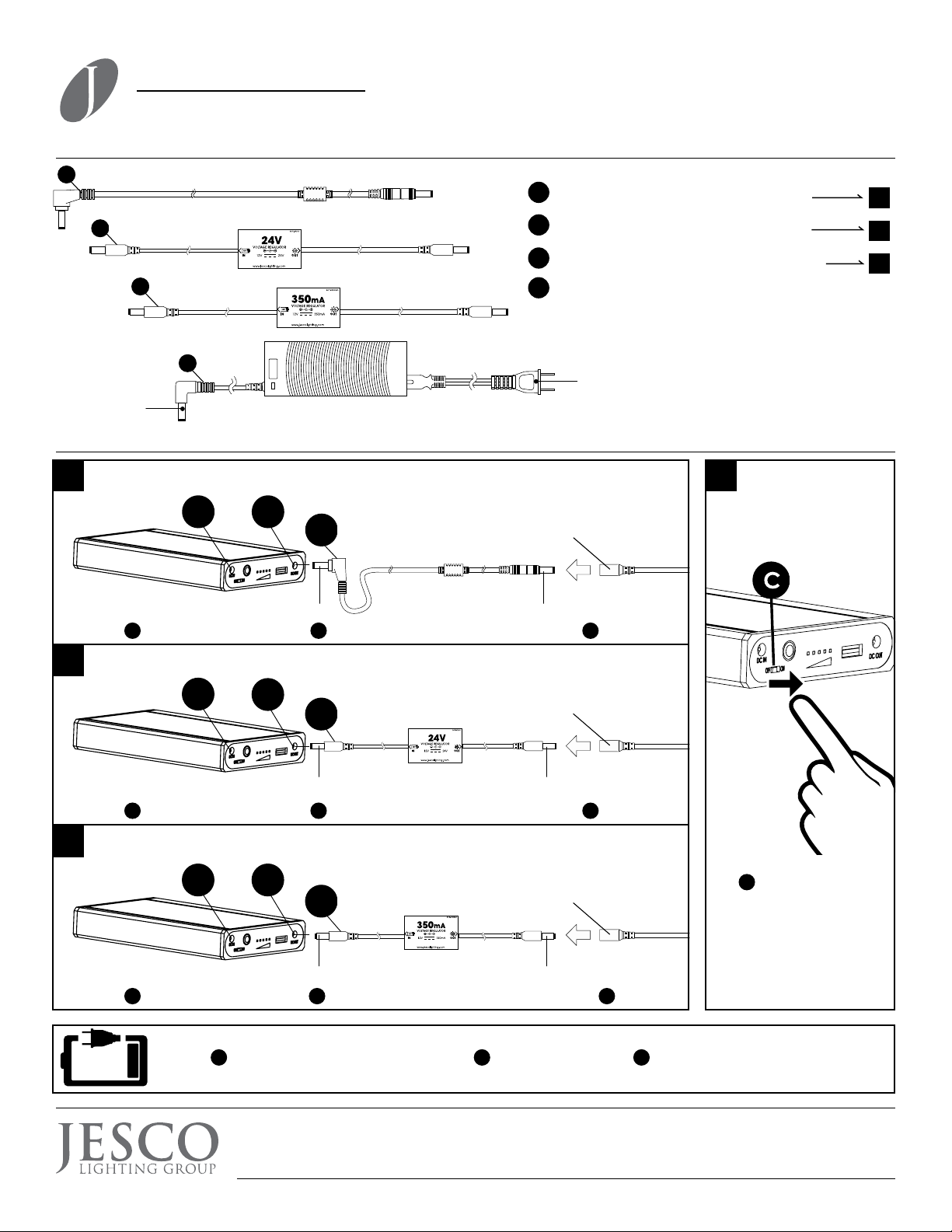

INCLUDED COMPONENTS (Varies by Battery Pack Model)
BASIC OPERATIONS
H
I
J
Included with BATT-LI-12V-(100/150/266)WH
12V I/O CABLE
Included with BATT-LI-24V-(100/150/266)WH
24V VOLTAGE REGULATOR WITH I/O CABLE
H
I
Included with BATT-LI-350mA-(100/150/266)WH
350mA VOLTAGE REGULATOR WITH I/O CABLE
110V-240V input 60W Max included with all models
UL LISTED 13V AC/DC CHARGER
J
K
A
B
C
D
E
F
G
CHARGER INPUT 13V
Use With Provided Charger Only
TEST BUTTON FOR BATTERY CAPACITY
ON / OFF SWITCH
CAPACITY INDICATOR LIGHT
5V 2A USB PORT
On 100WH &150WH model audible warning tone
will sound off when capacity goes under 25%
Integral in 100WH and 150WH models
12V OUTPUT PORT
Use provide I/O cable or voltage regulator
with I/O cable only
STATUS LIGHT
RED - Charging or On
A
B
C
D
E
F
G
100%
75%
50%
25%
K
H
G
G
G
A
A
A
J
I
12V PRODUCT
CONSTANT VOLTAGE
24V PRODUCT
CONSTANT VOLTAGE
350mA PRODUCT
CONSTANT CURRENT
I/O - Input and Output
DC IN
DC OUT
INPUT OUTPUT
INPUT OUTPUT
OUTPUT
POLARIZED PLUG
INPUT OUTPUT
1A
1B
1C
1A
1B
1C
2
TO RECHARGE BATTERY PACK
Connect AC/DC charger’s output jack to battery’s DC IN port, then plug in AC/DC charger’s polarized plug to a
wall outlet to charge the battery.
H H
C
I I
J J
K KA
BATT-LI-12V-(100/150/266)WH
BATT-LI-24V-(100/150/266)WH
BATT-LI-350mA-(100/150/266)WH
G
G
G
