Jet DC-3500 User manual

DC-3500
DUST COLLECTOR
Original:
GB
Operating Instructions
Walter Meier (Tool) AG
Tämperlistrasse 5
CH-8117 Fällanden
Switzerland
Phone [phone]
Fax [phone]
[email protected]
www.jettools.com
M-10001056T 2013-04

1
•WARNING!
Please read this manual carefully before assembly, testing and operating.
•WARNING!
Do not operate this unit until the hose is connected to the inlet port.
•WARNING!
This machine is for woodworking machinery use only, and prohibited for other
purposes. The collection equipment (machine) is used for dry woodworking
debris/chips/swarfs collection purpose. Any other application is prohibited. No
explosive proof design is used.
The Operator must thoroughly
Read and understand this
Manual before operating the
Dust collector or commencing
Any servicing. Care should be
Taken to follow all safety rules
And warning instructions.
CAUTION:
READ THE INSTRUCTION CAREFULLY BEFORE ASSEMBLY, TESTING & OPERATING.

2
CONTENTS:
Important Safety Rules ....................................................................................2
Safety Labels...................................................................................................6
Grounding Instructions.....................................................................................8
Specifications...................................................................................................9

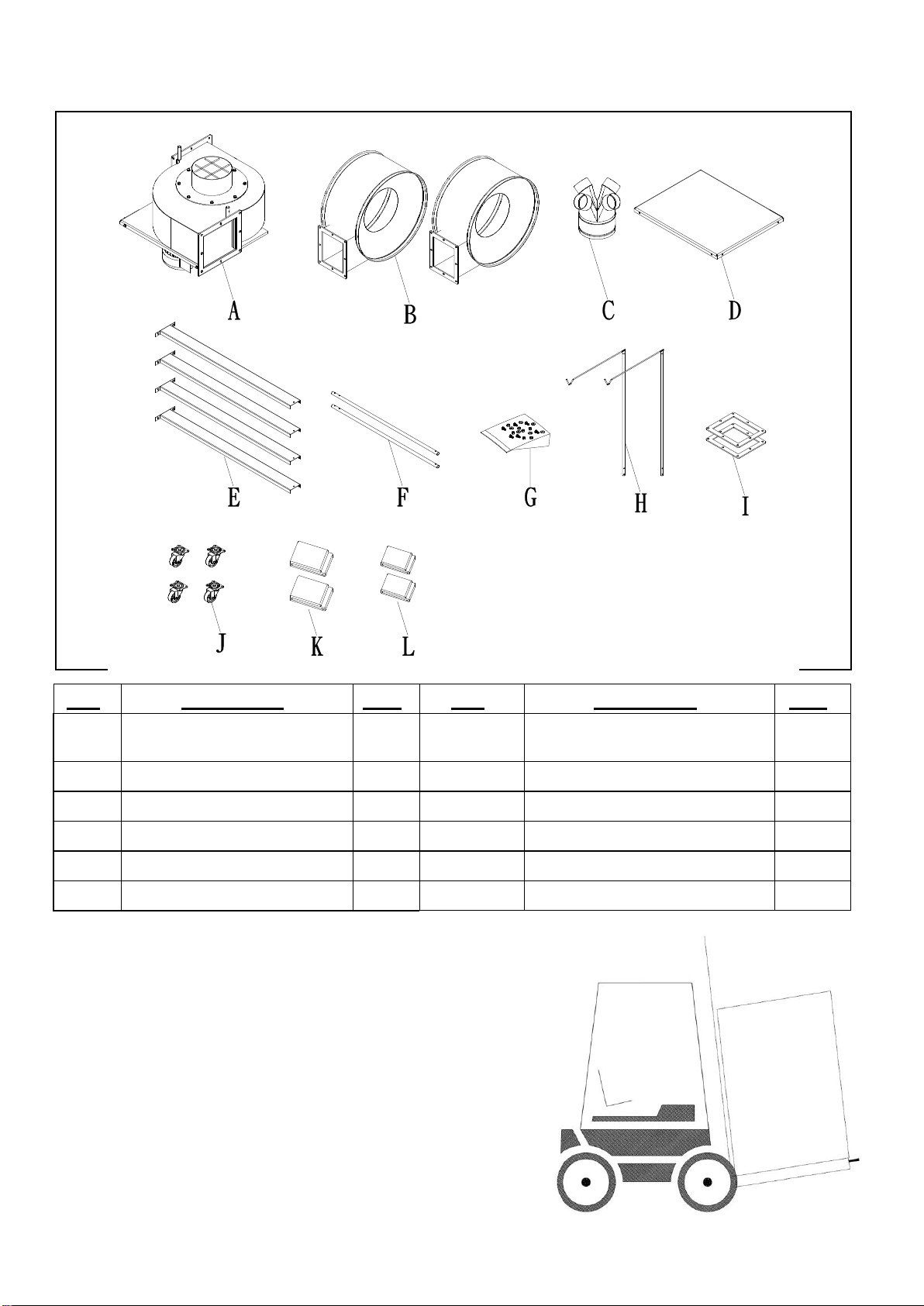

Contents of Package & Transportation ..........................................................10

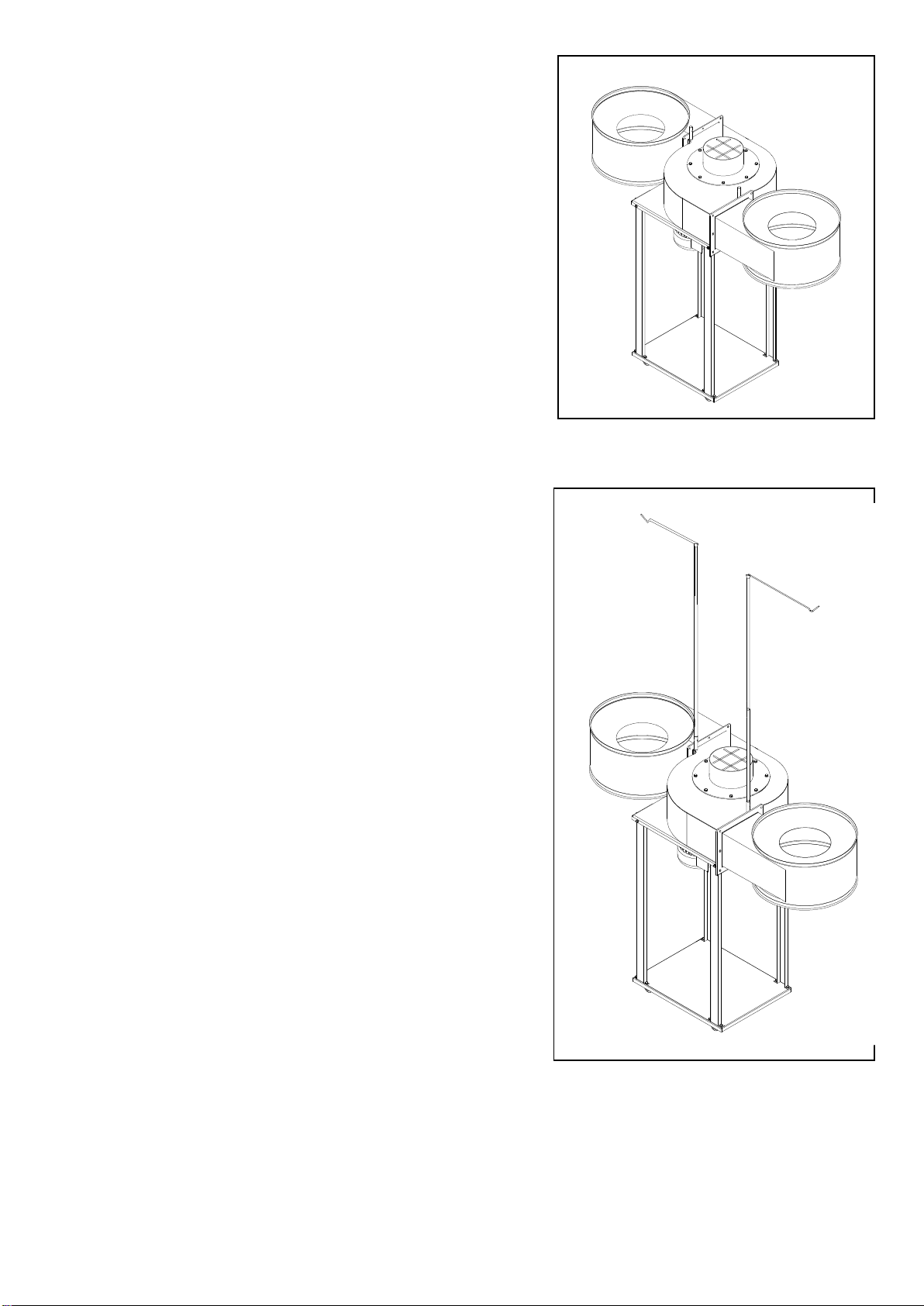

Assembly Instruction......................................................................................11
Outside Dimension.........................................................................................15

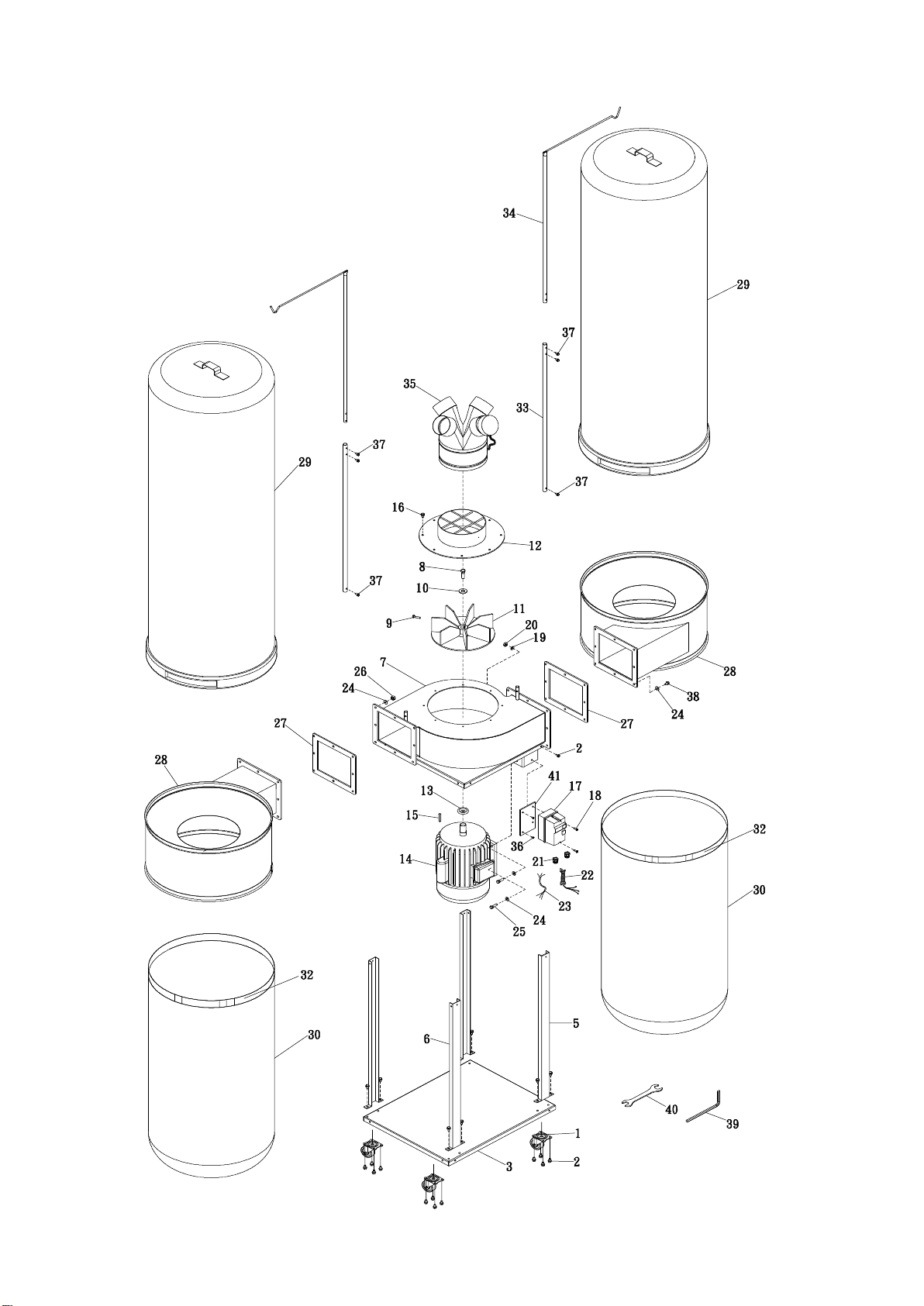

Explore Diagram............................................................................................16
Parts List........................................................................................................17
Wiring Diagram..............................................................................................18
Maintenance / Service ...................................................................................19

3
IMPORTANT SAFETY RULES
Wood working can be dangerous if safe and proper operating procedures are not followed. As with all
machinery, there are certain hazards involved with the operation of the product. Using the machine with
respect and caution will considerably lessen the possibility of personal injury. However, if normal safety
precautions are overlooked or ignored, personal injury to the operator may result.
Safety equipment such as guards, push sticks, hold-downs, feather boards, goggles, dust masks and
hearing protection can reduce your potential for injury. But even the best guard won’t make up for poor
judgment, carelessness or inattention. Always use common sense and exercise caution in the workshop.
If a procedure feels dangerous, don’t try it. Figure out an alternative procedure that feels safer. REMEMBER:
Your personal safety is your responsibility.
WARNING
: FAILURETO FOLLOW THESE RULES MAY RESULT
IN SERIOUS PERSONAL INJURY
1. FOR YOUR OWN SAFETY, READ INSTRUCTION
MANUAL BEFORE OPERATING THE TOOL. Learn
the tool’s application and limitations as well as the
specific hazards peculiar to it.
2. KEEP GUARDS IN PLACE and in working order
3. ALWAYS WEAR EYE PROTECTION
4. GROUND ALL TOOLS. If tool is equipped with
three-prong plug, it should be plugged into a
three-hole electrical receptacle. If an adapter is used
to accommodate a two-prong receptacle, the
adapter plug must be attached to a known ground.
Never remove the third prong.
5. REMOVE ADJUSTING KEYS AND WRENCHES.
Form habit of checking to see that keys and
adjusting wrenches are removed from tool before
turning it “ON”.
6. KEEP WORK AREA CLEAN. Cluttered areas and
benches invite accidents.
7. DON’T USE IN DANGEROUS ENVIRONMENT.
Don’t use power tools in damp or wet locations, or
expose them to rain. Keep work area well lighted.
8. KEEP CHILDREN AND VISITORS AWAY. All
children and visitors should be kept a safe distance
from work area.
9. MAKE WORKSHOP CHILDPROOF –with padlocks,
master switches, or by removing starter keys.
10. DON’T FORCE TOOL. It will do the job better and be
safer at the rate for which it was designed.
15. DON’T OVERREACH. Keep proper footing and
balance at all times.
16. MAINTAIN TOOLS IN TOP CONDITION. Keep tools
sharp and clean for best and safest performance.
Follow instructions for lubricating and changing
accessories.
17. DISCONNECT TOOLS before servicing and when
changing accessories such as blades, bits, cutters,
etc.
18. USE RECOMMENDED ACCESSORIES. The use of
accessories and attachments not recommended by
us may cause hazards or risk of injury to persons.
19. REDUCE THE RISK OF UNINTENTIONAL
STARTING. Make sure switch is in “OFF” position
before plugging in power cord.
20. NEVER STAND ON TOOL. Serious injury could
occur if the tool is tipped or if the cutting tool is
accidentally contacted.
21. CHECK DAMAGED PARTS. Before further use of
the tool, a guard or other part that is damaged
should be carefully checked to ensure that it will
operate properly and perform its intended function –
check for alignment of moving parts, binding of
moving parts, breakage of parts, mounting, and any
other conditions that may affect its operation. A
guard or other part that is damaged should be
properly repaired or replaced.
22. DIRECTION OF FEED. Feed work into a blade or
cutter against the direction of rotation of the blade or
cutter only.

4
11. USE RIGHT TOOL. Don’t force tool or attachment to
do a job for which it was not designed.
12. WEAR PROPER APPAREL. No loose clothing,
gloves, neck-ties, rings, bracelets, or other jewelry to
get caught in moving parts. Non-slip footwear is
recommended. Wear protective hair covering to
contain long hair.
13. ALWAYS USE SAFETY GLASSES. Wear safety
glasses. Everyday eyeglasses only have impact
resistant lenses; they are not safety glasses. Also
use face or dust mask if cutting operation is dusty.
14. SECURE WORK. Use clamps or a vise to hold work
when practical. It’s safer than using your hand and
frees both hands to operate tool.
23. NEVER LEAVE TOOL RUNNING UNATTENDED.
TURN POWER OFF. Don’t leave tool until it comes
to a complete stop.
24. DRUGS, ALCOHOL, MEDICATION. Do not operate
tool while under the influence of drugs, alcohol or
any medication.
25. MAKES SURE TOOL IS DISCONNECTED FROM
POWER SUPPLY while motor is being mounted,
connected or reconnected.
26. WARNING: The dust generated by certain woods
and wood products can be injurious to your health.
Always operate machinery in well ventilated areas
and provide for proper dust removal. Use wood dust
collection systems whenever possible.
Safety Contents:
1. CAUTION: This appliance is not suitable for picking up hazardous dust.
2. CAUTION: This appliance is for dry use only and is not to be used or stored outdoors in wet conditions.
3. Regularly examine the supply cord for damage. If damaged, replace the cord specified, before further
use.
4. Only replace the supply cord with the type specified In the Instructions.
5. Only use the socket outlet/or plug on the appliance for purposes specified in the instruction manual
6. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
7. The appliance is to disconnected from its power source during cleaning or maintenance and when
replacing parts or converting the appliance to another function.
8. WARNING: This appliance contains wood debris/dust hazardous to health. Operating emptying and
maintenance operations, including removal of the dust collecting means, must only be carried out by
authorized personnel wearing suitable personal protection. Do not operate without a good personal
respiration device wearing or without a good ventilation system acc. to national health code/regulation.
9. When carrying out service or repair operations, all contaminated items which cannot be satisfactorily
cleaned, are to be disposed of; such items shall be disposed of in impervious bags in accordance with
any current regulation for the disposal of such waste.
10. It is necessary to provide for an adequate air change rate ∠in the room if the exhaust air is returned
to the room. Reference to National Regulations is necessary.

5
IMPORTANT SAFETY RULES FOR
DUST COLLECTORS
WARNING: Basic precautions should always be
followed when using your dust collector. To reduce the
risk of injury, electrical shock or fire, comply with the
safety rules listed below:
1. READ and understand the instruction manual before
operating the dust collector.
2. DO NOT leave the dust collector plugged into the
electrical outlet. Unplug dust collector from outlet
when not in use and before servicing, changing bags,
unclogging and cleaning.
3. ALWAYS turn the power switch “OFF” before
unplugging the dust collector.
4. WARNING: TO REDUCE THE RISK OF
ELECTRICAL SHOCK do not use outdoors or on wet
surfaces. Use for dry pickup only!
5. FOLLOW all electrical and safety codes, including
the National Electric Code (NEC) and the
Occupational Safety and Health Regulations
(OSHA). All electrical connections and wiring should
be made by qualified personnel only.
6. DO NOT use the dust collector to pick up flammable
or combustible liquids, such as gasoline. NEVER use
the dust collector near any flammable or combustible
liquids.
7. USE the dust collector to pick up wood materials
only. DO NOT use the dust collector to pick up metal
shavings, dust, water, or parts.
8. NEVER use the dust collector to dissipate fumes or
smoke. NEVER pick-up anything that is burning or
smoking, such as cigarettes, matches or hot ashes.
9. USE only as described in this manual.
10. DO NOT pull the dust collector by the power cord.
NEVER allow the power cord to come in contact with
sharp edges, hot surfaces, oil or grease.
11. DO NOT unplug the dust collector by pulling on the
power cord. ALWAYS grasp the plug, not the cord.
12. DO NOT handle the plug or dust collector with wet
hands.
13. REPLACE a damaged cord immediately. DO NOT
use a damaged cord or plug. If the dust collector is
not operating properly, or has been damaged, left
outdoors or has been in contact with water, return it
to an Authorized Service Center for service.
14. DO NOT use the dust collector as a toy. DO NOT
use near or around children.
15. DO NOT insert fingers or foreign objects into the
dust intake ports. Keep hair, loose clothing, fingers,
and all body parts away from openings and moving
parts of the dust collector.
16. DO NOT use the dust collector without a filter bag
and dust collection bag in place and properly
secured.
17. DO NOT operate the dust collector with unused
dust intake ports uncapped.ALWAYS cover
exposed dust intake ports.
18. PERIODICALLY INSPECT dust and filter bags for
any cuts, rips or tears. NEVER operate the dust
collector with a damaged bag or vacuum hose.
19. The dust collector is designed for home use or light
commercial duty ONLY!
20. CONNECT dust collector to a properly grounded
outlet only. See Grounding Instructions.
MAINTENANCE:
1. Please unplug the plug and turn off the power supply before doing maintenance &
change the filters/filter bags & cleaning & repair.
2. Please clean the filters/filter bags after daily work and also maintain the appliance in a period
of time.
- - SAVE THESE INSTRUCTIONS - -

6

7

8
GROUNDING INSTRUCTIONS
The appliance must be grounded, if it should malfunction or breakdown, grounding provides a path of least
resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord
having equipment-ground conductor and grounding plug. The plug must be inserted into an appropriate
outlet that is properly installed and grounded in accordance with all local codes and ordinances.
WARNING –Improper connection of the equipment-grounding conductor can result in a risk of electric
shock. Check with a qualified electrician or service person if you are in doubt as to whether the outlet is
properly grounded. Do not modify the plug provided with the appliance –if it will not fit the outlet; have a
proper outlet installed by a qualified electrician.
For grounded, cord-connected appliances:
This appliance is for use on a circuit having a normal rating more than 120 volt and is factory-equipped with
a specific electric cord and plug to permit connection to a proper electric circuit. Make sure that the
appliance is connected to an outlet having the same configuration as the plug. No adaptor should be used
with this appliance. If the appliance must be reconnected for use on a different type of electric circuit,
qualified service personnel should make the reconnection.
For a permanently connected appliance:
This appliance must be connected to a grounded metal, permanent wiring system; or an
equipment-grounding conductor must be run with the circuit conductors and connected to the equipment
grounding terminal or lead on the appliance.
Operation Conditions:
Voltage Steady state voltage: 0,9 to 1,1 of nominal voltage.
Frequency 0, 99 to 1, 01 of nominal frequency continuously; 0, 98 to 1,02 short time.
Harmonics Harmonic distortion not exceeding 10% of the total r.m.s. voltage between live conductors for
the sum of the 2nd through to the 5th harmonic.
Voltage interruption Supply interrupted or at zero voltage for not more than 3 ms at any random time in the
supply cycle with more than 1 s between successive interruption.
Voltage dips Voltage dips not exceeding 20% of the peak voltage of the supply for more than one cycle with
more than 1 s between successive dips.
The minimum requirement for all electrical equipment is correct operation between air temperature of +5℃
and +45℃.
Electrical equipment is capable of operating correctly when the relative humidity does not exceeding 50% at
a maximum temperature of +45℃.
Electrical equipment is capable of operating correctly at altitude up to 1000 m.
Electrical equipment is designed to withstand to protected against the effects of transportation, and storage
temperature within a range of -25℃to +55℃and for short periods not exceeding 24h at up to +70℃.
Avoid exposing to vibration environment.
Avoid exposing to direct sunlight or heat rays.
Have to connect to the factory grounding system correctly away from electric magnetic interference source
sites, such welding, discharge machine.

9
Specifications:
Motor--------------------------------------------------------------------------------------- 5HP/380V/50Hz/ 3 Phase
AMP---------------------------------------------------------------------------------------- 8A
Motor Speed------------------------------------------------------------------------------ 2850 RPM
Power cord ------------------------------------------------------------------------------- VDE 1.5mm2X4CX3.6M
Motor cord -------------------------------------------------------------------------------- VDE 1.5mm2X4CX50CM
Switch--------------------------------------------------------------------------------------- Magnetic Switch
Suction Capacity------------------------------------------------------------------------- 3482 CFM / 5933 m3/h
Static Pressure--------------------------------------------------------------------------- 310mmAq / 12.3 Inch H2O
Flow Velocity ----------------------------------------------------------------------------- 37.5 m/sec
Impeller Size------------------------------------------------------------------------------ 13”
Inlet Size------------------------------------------------------------------------------------ 9”
Overall Dimensions of Unit------------------------------------------------------------- 2200 x 660 x 2620mm
N.W. ----------------------------------------------------------------------------------------- 122 KGS
G.W. ----------------------------------------------------------------------------------------- 172 KGS
CUFT----------------------------------------------------------------------------------------- 25’
Noise:
Average A weighted sound pressure level of DC-3500: 78.3 dB (A)
Associated uncertainty K = 4 dB
Measured made in accordance with EN ISO 3746

10
CONTENTS OF PACKAGE:
TRANSPORTATION:
Packing handling must be carried out exclusively
using a forklift truck.
Position the forks keeping the package properly
balanced.
Place the package on the floor.
Remove package enveloping the machine.
NO.
Description
QTY
NO.
Description
QTY
A
Collector Body & Fan /
Motor Assembly
1
G
Nuts, Screws, Washer,
Spring Washers, and Wrench
B
Collector Body
2
H
Hanger
2
C
Inlet
1
I
Gasket
1
D
Main Base
1
J
Casters
4
E
Right and Left Side Legs
4
K
Upper Filter Bag
2
F
Bag Support
2
L
Bottom Plastic Bag
2

11
ASSEMBLY INSTRUCTION:
STEP 1:
To assemble, position the main base upside down
and locate the casters so they are with in easy reach.
Mounting the casters to the main base using sixteen
5/16”x 1/2”hex. bolts provided. (See FIG. 1)
(FIG.1)
STEP 2:
Place the collector body and fan motor assembly
upsidedown. Laying up the four legs to the double
side byusing eight 5/16”x 1/2”hex. bolt provided.
Tighten all screws fasten and securely. (See FIG. 2)
(FIG.2)
STEP 3:
Connecting the collector body and fan motor assembly
with the main base together by using four 5/16”x 1/2”
hex. bolts provided. Fasten the screws tightly.
(See FIG. 3)
(FIG.3)

12
STEP 4:
Mounting the gasket to the outlet of collector body.
Connecting the collector body and fan and motor assembly
by using sixteen 5/16”x 1”hex. head screws. Fasten the
screws tightly. (See FIG. 4)
(FIG.4)
STEP 5:
Connecting the upper bag support and hanger by using
four 1/4”x 1/2”hex. head bolts provided. Then, mounting
the upper bag support on the hole provided at the top of
collector body by using two 1/4”x 1/2”hex. head bolts
provided. (See FIG. 5)
(FIG. 5)

13
STEP 6:
Hook the top loop of the upper bag over the
support bracket. Place the upper bag and
bottom bag over the top edge of the collector
and pull the strap tight to secure. Slip the bag
clamp around the filter bag and tighten down.
(See FIG. 6)
(FIG. 6)
STEP 7:
Press the four to one inlet onto the inlet cover
flange. The inlet is secured to the collector
body by a press on fit. (See FIG. 7)
(FIG. 7)
STEP 8:
Now your dust collector is finished assembly and ready
to be used. Before connecting to a power source, please
be sure the power source is properly grounded and is the
correct voltage and amperage. (See FIG. 8)
(FIG. 8)

14
OUTSIDE DIMENSION:

15
EXPLODED DIAGRAM:

16
Part List:
Index No. Part No. Description Size Qty
1............. DC-3500-01.......... Caster ..........................................................3 “ .......................................8
2............. DC-3500-02.......... Hex. Soc. Set Screw ....................................5/16”x 1/2”........................56
3............. DC-3500-03.......... Base.........................................................................................................1
4............. ............................. ...................................................................................................................
5............. DC-3500-05.......... Right Support...........................................................................................2
6............. DC-3500-06.......... Left Support..............................................................................................2
7............. DC-3500-07.......... Housing ..................................................................................................1
8............. DC-3500-08.......... Hex. Soc. Head Screw.................................M6 x 20mm.........................1
9............. DC-3500-09.......... Hex. Head Screw .........................................3/8”x 1................................1
10........... DC-3500-10.......... Washer.....................................................................................................1
11........... DC-3500-11.......... Impeller........................................................13” ......................................1
12........... DC-3500-12.......... Inlet Cover................................................................................................1
13........... DC-3500-13.......... Gasket......................................................................................................1
14........... DC-3500-14.......... Motor............................................................5HP/380V/50Hz/3Ph...........1
15........... DC-3500-15.......... Key...............................................................8 x 8 x 50............................1
16........... DC-3500-16.......... Hex. Soc. Set Screw ....................................5/16”x 3/4”..........................8
17........... DC-3500-17.......... Magnet Switch..........................................................................................1
18........... DC-3500-18.......... Hex. Head Screw .........................................3/16”x 3/4”..........................2
19........... DC-3500-19.......... Washer.........................................................3/16”...................................2
20........... DC-3500-20.......... Nut ...............................................................3/16”...................................2
21........... DC-3500-21.......... Wire Protection.........................................................................................3
22........... DC-3500-22.......... Power Cord..................................................VDE 1.5mm2X4CX12M ..........1
23........... DC-3500-23.......... Motor Cord...................................................VDE 1.5mm2X4CX50CM ........1
24........... DC-3500-24.......... Washer .......................................................5/16”x 23mm....................40
25........... DC-3500-25.......... Hex. Head. Screw ........................................5/16”x 1”.............................4
26........... DC-3500-26.......... Nut ...............................................................5/16”.................................20
27........... DC-3500-27.......... Gasket......................................................................................................2
28........... DC-3500-28.......... Collector Body..........................................................................................2
29........... DC-3500-29.......... Upper Filter Bag.......................................................................................2
30........... DC-3500-30.......... Bottom Plastic Collecting Bag ..................................................................2
31........... DC-3500-31.......... Switch Plate .............................................................................................1
32........... DC-3500-32.......... Band Clamp .............................................................................................4
33........... DC-3500-33.......... Hanger Support........................................................................................2
34........... DC-3500-34.......... Hanger.........................................................M8.......................................2
35........... DC-3500-35.......... Inlet Port.......................................................(4) 4” ...................................1
36........... DC-3500-36.......... Round Head Screw......................................3/16”x 3/4”..........................2
37........... DC-3500-37.......... Hex. Head Screw .........................................1/4”x 1/2”............................6
38........... DC-3500-38.......... Hex. Head Screw .........................................5/16”x 1”...........................16
39........... DC-3500-39.......... Hex. Wrench ................................................5mm....................................1
40........... DC-3500-40.......... Open End Wrench........................................10 x 12mm..........................1

17
WIRING DIAGRAM:

18
MAINTENANCE / SERVICE:
1. All maintenance / service work are carried out under the power supply being interrupted.
2. The work of damaged external power cord is carried out by the qualified electrical technician. Never
doing it by yourself.
3. Replace the filter or bags: Please wear the suitable personal protection equipment (e.g. respiratory
mask)
4. Never use spare part, which is not supplied by original manufacturer, or which electric specification is not
same as original one, which could cause risk during operation.
