Oscillating Horizontal/Vertical Edge Sander
The JET® Oscillating Edge Sander showcases a unique oscillating
feature. Oscillation of the belt means the sandpaper never runs a
true straight line, which allows the unit to sand with more of the
usable sandpaper and eliminates sanding lines. With a large sanding
surface, you can process both the edge and surface of many
different board sizes. Contour sanding is also an option when
using the large built-in table around the drum over the motor.
STOCK NO. 900816
5M 07/05
©2005 WMH TOOL GROUP, Inc. All Rights Reserved.

jettools.com
5
YEAR
WARRANTY

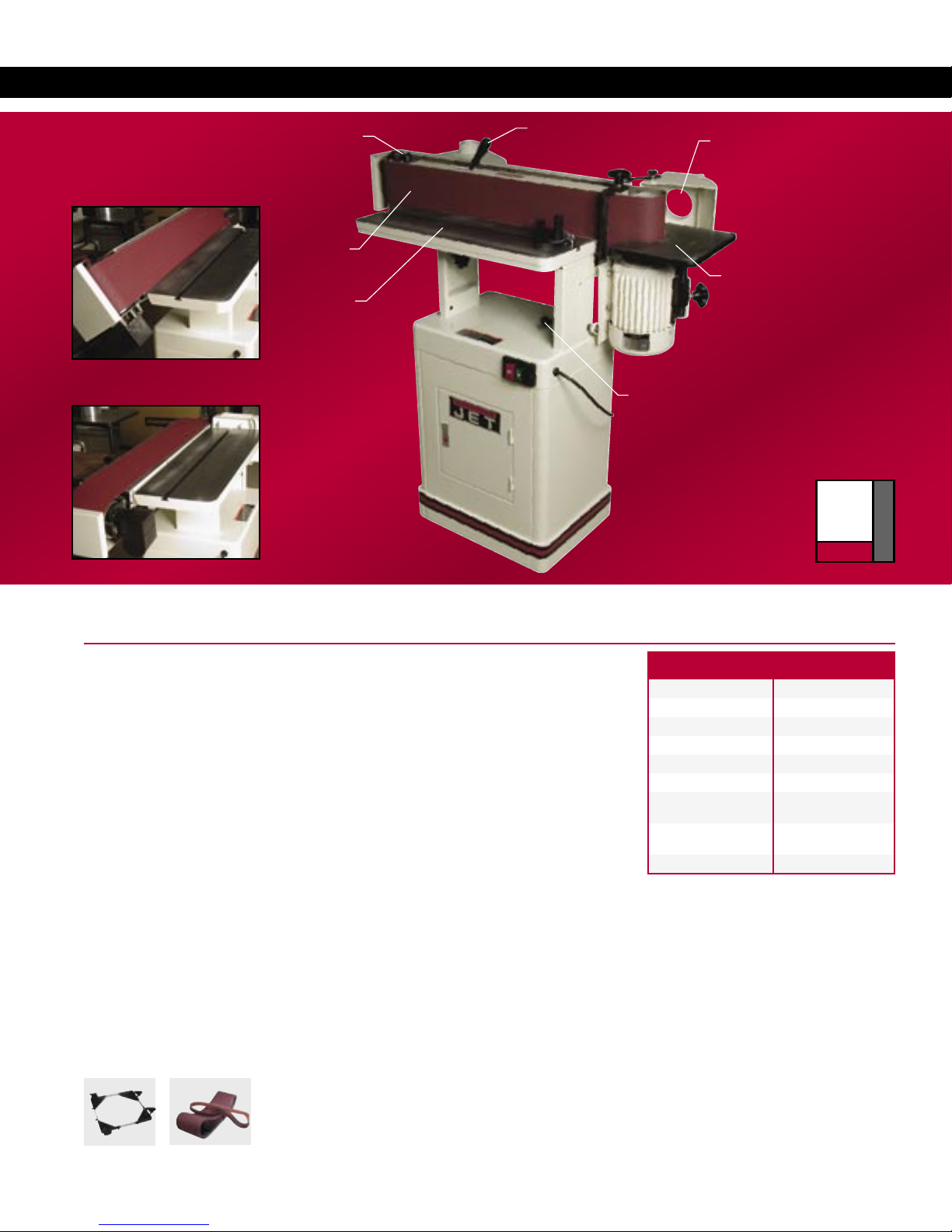

OSCILLATING HORIZONTAL/VERTICAL EDGE SANDER
Outer Drum
Support
Table
Oscillating
Drum
Tracking
Control
Belt Tension Release
Worktable
Pivot
Release
Lever
4" Dust port
■ NEW oscillating feature reduces heat build-up on sanding belt
to reduce loading and burning
■ Sanding belt can be locked in at vertical, horizontal and any
angle in between
for optimum nishing of your workpiece
■ Quick release lever and tracking control dial are conveniently
located
for replacing and tracking belts
■ Belt platen is made from precision-ground steel plate
for accurate and true sanding results
■ Cast iron table moves up or down
to provide exact workpiece positioning
■ 4" dust port
hooks up to your dust collection system for efcient dust removal
■ Adjustable outer drum support table
enables contour sanding
■ Tilting sanding head
for sanding bevels, angles, and at surfaces
OSCILLATING HORIZONTAL/VERTICAL EDGE SANDER
STOCK
NUMBER 708447
Model OES-80CS
Fence (L x H/in.) 24 x 4
Belt Size (L x W/in.) 89 x 6
Table Size (L x W/in.) 32 x 7
Table Tilt (deg.) 90
Belt Speed (SFPM) 3900
Overall Dimensions
(L x W x H/in.) 46 x 18 x 38
Motor (TEFC) 1-1/2HP, 1Ph, 115/230V,
Prewired 115V
Net Weight (lbs.) 270
Mobile Base
708118
OPTIONAL ACCESSORIES
Includes:
■ Miter Gauge
■ Removable Fence
■ Horizontal Backstop
■ Heavy-duty Stand
■ Sanding Belt
Abrasives
Sanding belt can be locked in at
vertical, horizontal and any angle in
between
