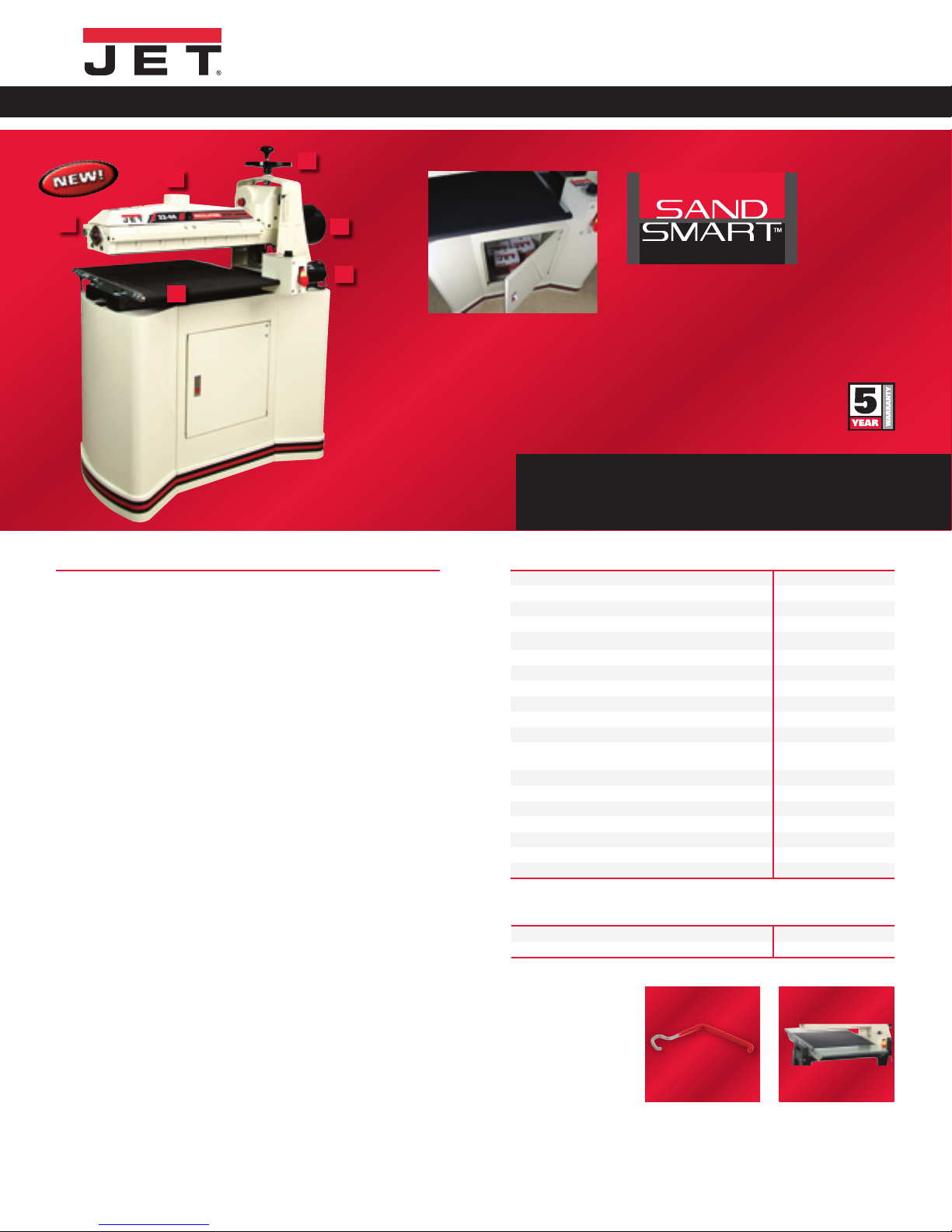

22-44 OSCILLATING
DRUM SANDER
The new model 22-44 OSC Drum Sander has an exclusive oscillating feature, with the push of
a button the 22-44OSC sander can be operated as a simple sander or as an oscillating sander.
When operating as a linear sander, the sander drum rotates as the conveyor feeds the workpiece
through. When in the oscillating mode, in addition to the linear sanding operation, the sanding
drum head oscillates from left to right and lowers heat build-up on the sanding belt to reduce
loading and burning. Additional features include a built-in cabinet door for easy access to
storage, patented conveyor TRACKERS™ that reduce the need for manual belt adjustments
and our Exclusive SandSmart™ infinitely variable feed control that produces the ultimate finish
to your woodworking project.
jettools.com
FEATURING:
Variable Feed
control produces
the ultimate finish
Built-in cabinet door
for easy access
to storage

22-44 OSCILLATING
DRUM SANDER
jettools.com
Variable Feed
control produces the
ultimate finish
Built-in cabinet door
for easy access
to storage
98-0060 98-2201
Height Adjustment Handwheela.
1-3/4HP TEFC Motorb.
Exclusive Sand Smartc. ®Variable
Speed
Conveyor Bedd.
Self Cooling Drume.
4" Dust Portf.
B
C
A
D
F
Features
Oscillating feature reduces heat build-up on sanding belt to reduce
•
loading and burning
Our EXCLUSIVE SandSmart™ infinitely variable-feed control
•
produces the ultimate finish at a rate from 0 to 10 feet per minute
and prevents machine overload
Patented conveyor belt TRACKERS™ dramatically reduce the need
•
for manual belt adjustments
22" wide suspended drum is supported on both ends with a cast iron
•
carriage arm for greater strength and easy alignment to the table
surface for consistent performance
Sealed and permanently lubricated drum ball bearings for longer life
•
Precision-flattened reinforced steel conveyor bed and no-give power
•
feed belt provide a constant smooth sanding action for better results
Adjustable drum height and downward pressure feature virtually
•
eliminates snipe
Large cast-iron handwheel adjusts height at 3/32" per turn for
•
precise sanding thickness control
Patented abrasive take-up fasteners make changing abrasives quick
•
and easy
Depth gauge has locking stop to ensure accuracy
•
On/off switch with overload protection is front-mounted for
•
operator's convenience
One feed and one drive motor for superior sanding control
•
Continuous-duty, 1-3/4HP motor is designed for heavier use for
•
longer periods of time
aCCessOrIes
Infeed/Outfeed Tables 98-2201
Tuf Tool 98-0060
speCIFICatIOns
Stock Number 659006K
Model Number 22-44 OSC
Style Closed Stand
Max. Board Width (in.) 44
Max. Board Thickness (in.) 4
Min. Board Length (in.) 2-1/4
Min. Board Thickness (in.) 1/32
Drum Diameter (in.) 5
Drum Length (in.) 22
Drum Speed (RPM) 1700
Conveyor Speed (SFPM) 0 to 10
Conveyor Motor 43 in.-lbs. torque, direct
drive, dc
Dust Port Diameter (OD/in.) 4
Amps 9
Motor HP 1-3/4
Motor Phase 1
Motor Voltage 115
Prewired 115V
Net Weight (lbs.) 360
E
© 2008 WMH TOOL GROUP, INC. All rights reserved. The color WHITE is a registered trademark of WMH Tool Group, Inc.
Stock No. 901301 7/2008
