Jet XACTA Fence II Homeshop 30/52 User manual

Owner's Manual
XACTA®Fence II Homeshop 30/52
JET
427 New Sanford Road
LaVergne, Tennessee 37086 Part No. M-708928Z
Ph.: 800-274-6848 Revision D1 03/2019
www.jettools.com Copyright © 2015 JET

2
Warranty and Service
JET warrants every product it sells against manufacturers’ defects. If one of our tools needs service or repair, please
contact Technical Service by calling 1-800-274-6846, 8AM to 5PM CST, Monday through Friday.
Warranty Period
The general warranty lasts for the time period specified in the literature included with your product or on the official
JET branded website.
 JET products carry a limited warranty which varies in duration based upon the product. (See chart below)
 Accessories carry a limited warranty of one year from the date of receipt.
 Consumable items are defined as expendable parts or accessories expected to become inoperable within a
reasonable amount of use and are covered by a 90 day limited warranty against manufacturer’s defects.
Who is Covered
This warranty covers only the initial purchaser of the product from the date of delivery.
What is Covered
This warranty covers any defects in workmanship or materials subject to the limitations stated below. This warranty
does not cover failures due directly or indirectly to misuse, abuse, negligence or accidents, normal wear-and-tear,
improper repair, alterations or lack of maintenance. JET woodworking machinery is designed to be used with Wood.
Use of these machines in the processing of metal, plastics, or other materials outside recommended guidelines may
void the warranty. The exceptions are acrylics and other natural items that are made specifically for wood turning.
Warranty Limitations
Woodworking products with a Five Year Warranty that are used for commercial or industrial purposes default to a
Two Year Warranty. Please contact Technical Service at 1-800-274-6846 for further clarification.
How to Get Technical Support
Please contact Technical Service by calling 1-800-274-6846. Please note that you will be asked to provide proof
of initial purchase when calling. If a product requires further inspection, the Technical Service representative will
explain and assist with any additional action needed. JET has Authorized Service Centers located throughout the
United States. For the name of an Authorized Service Center in your area call 1-800-274-6846 or use the Service
Center Locator on the JET website.
More Information
JET is constantly adding new products. For complete, up-to-date product information, check with your local distributor
or visit the JET website.
How State Law Applies
This warranty gives you specific legal rights, subject to applicable state law.
Limitations on This Warranty
JET LIMITS ALL IMPLIED WARRANTIES TO THE PERIOD OF THE LIMITED WARRANTY FOR EACH PRODUCT.
EXCEPT AS STATED HEREIN, ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE EXCLUDED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN
IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
JET SHALL IN NO EVENT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY, OR FOR
INCIDENTAL, CONTINGENT, SPECIAL, OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OF OUR
PRODUCTS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
JET sells through distributors only. The specifications listed in JET printed materials and on official JET website are
given as general information and are not binding. JET reserves the right to effect at any time, without prior notice,
those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason
whatsoever. JET® branded products are not sold in Canada by JPW Industries, Inc.
Product Listing with Warranty Period
90 Days – Parts; Consumable items
1 Year – Motors; Machine Accessories
2 Year – Metalworking Machinery; Electric Hoists, Electric Hoist Accessories; Woodworking Machinery used
for industrial or commercial purposes
5 Year – Woodworking Machinery
Limited Lifetime – JET Parallel clamps; VOLT Series Electric Hoists; Manual Hoists; Manual Hoist
Accessories; Shop Tools; Warehouse & Dock products; Hand Tools; Air Tools
NOTE: JET is a division of JPW Industries, Inc. References in this document to JET also apply to JPW Industries,
Inc., or any of its successors in interest to the JET brand.

3
Table of Contents
Warranty and Service .................................................................................................................................... 2
Table of Contents .......................................................................................................................................... 3
Warnings ....................................................................................................................................................... 4
Unpacking ..................................................................................................................................................... 6
Contents of the Shipping Containers ......................................................................................................... 6
Tools Required for Assembly & Adjustment .............................................................................................. 6
Installation ..................................................................................................................................................... 7
Tools required ............................................................................................................................................ 7
Front Rail Installation ................................................................................................................................. 7
Back Rail Installation ................................................................................................................................. 8
Wooden Extension Table .............................................................................................................................. 8
Installation ................................................................................................................................................. 8
Guide Tube ................................................................................................................................................. 10
XACTA Fence ............................................................................................................................................. 10
Fence Adjustments .................................................................................................................................. 11

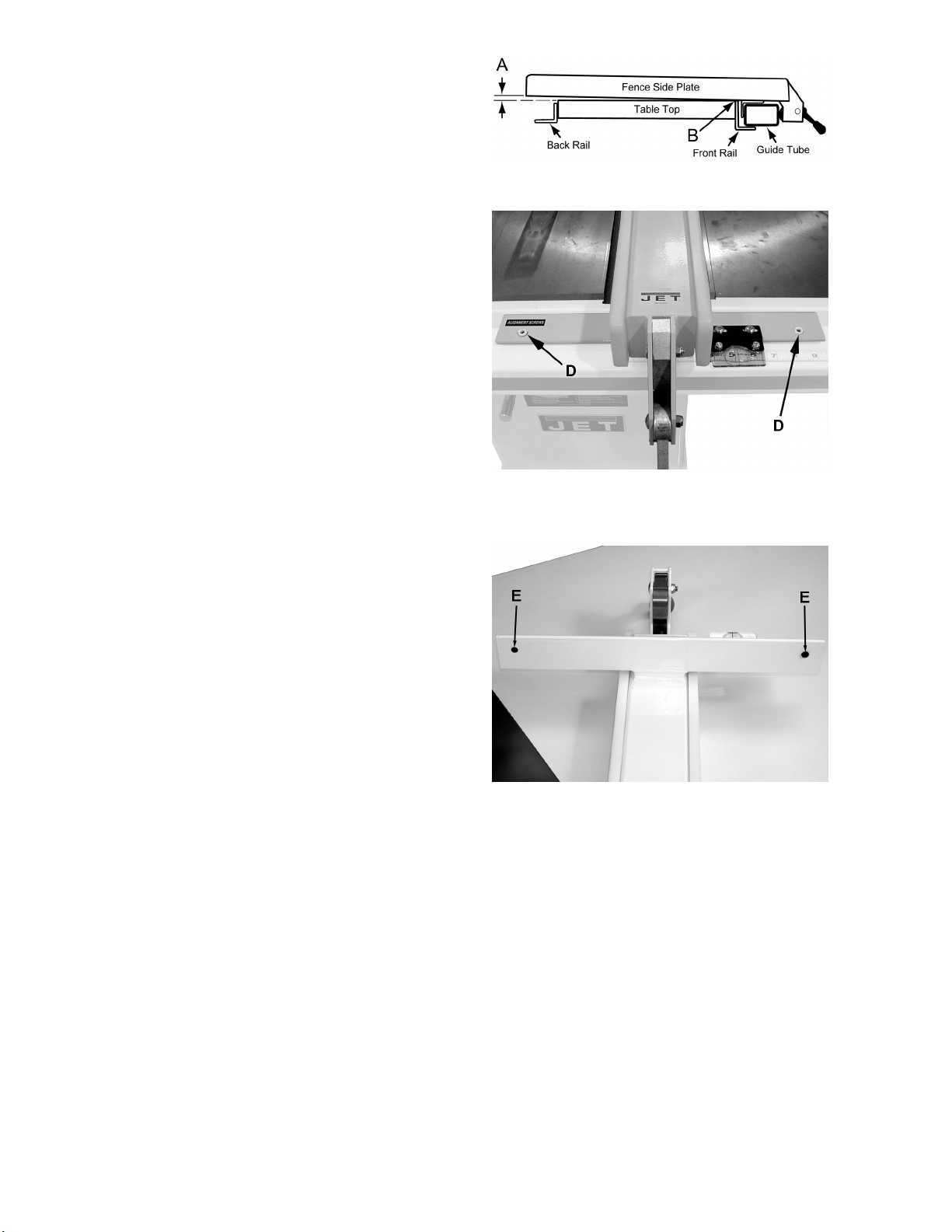

Leveling Fence to the Saw Table ........................................................................................................ 11
Adjusting Fence Parallel to the Miter Slot ............................................................................................ 11
Clamping Pressure Adjustment ........................................................................................................... 11
90 to the Table Adjustment ................................................................................................................ 12
Cursor Adjustment ............................................................................................................................... 12
Rail Installation on a non-JET Table Saw ................................................................................................... 12
Trouble-Shooting for XACTA Fence II Homeshop 30/52 ............................................................................ 12
Parts ............................................................................................................................................................ 13
Ordering Replacement Parts....................................................................................................................... 13

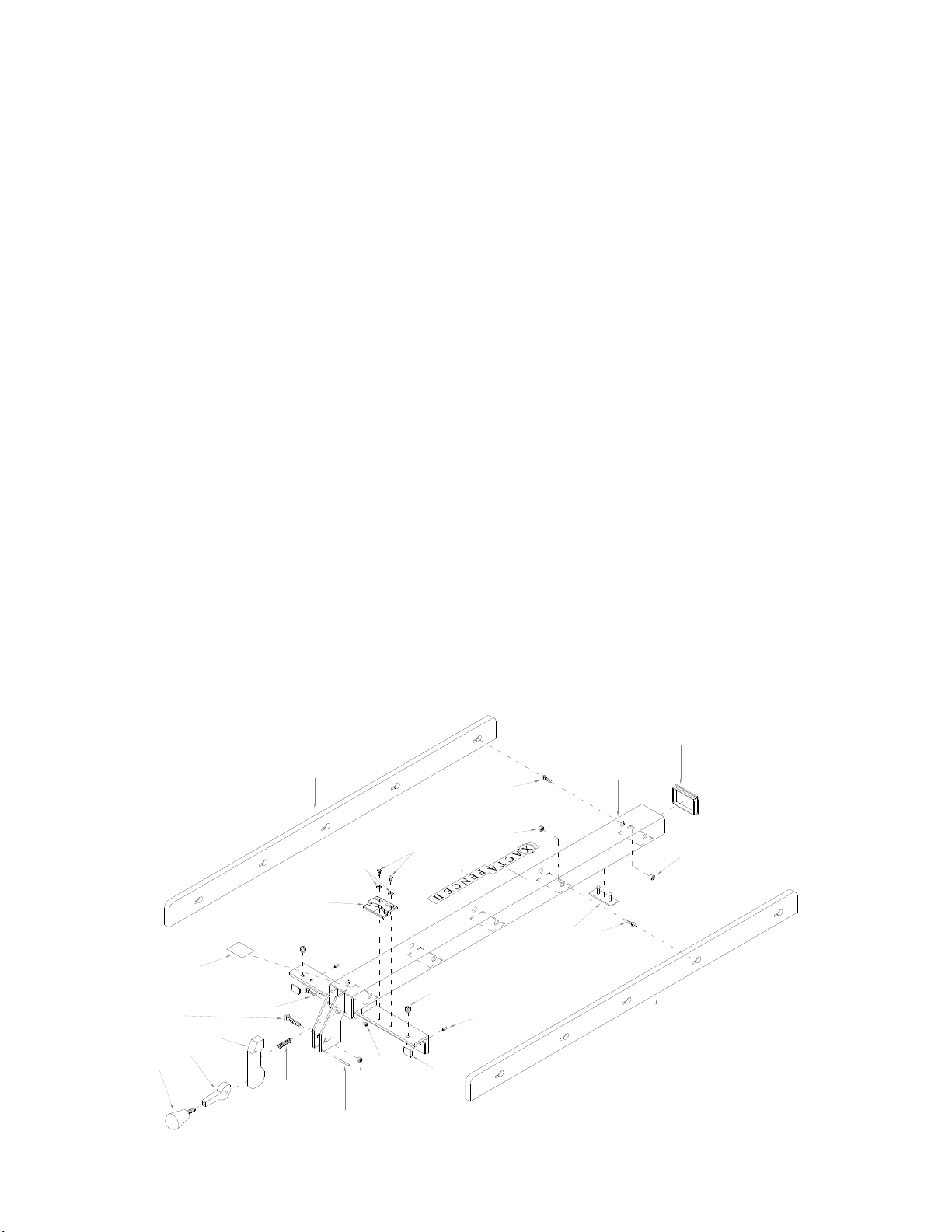

Parts for XACTA Fence II Homeshop 30/52 Fence Assembly ................................................................... 13
Parts for XACTA Fence II Homeshop 30/52 Rail Assembly ....................................................................... 14
Parts for the XACTA Fence II Homeshop 30/52 Leg Assembly ................................................................. 15
The specifications in this manual are given as general information and are not binding. JET reserves the
right to effect, at any time and without prior notice, changes or alterations to parts, fittings, and accessory
equipment deemed necessary for any reason whatsoever.

4
Warnings
1. Read and understand the entire owner’s manual before attempting assembly or operation.
2. Read and understand the warnings posted on the machine and in this manual. Failure to comply with
all of these warnings may cause serious injury.
3. Replace the warning labels if they become obscured or removed.
4. The Table Saw on which the XACTA Fence II is used is designed and intended for use by properly
trained and experienced personnel only. If you are not familiar with the proper and safe operation of a
Table Saw, do not use until proper training and knowledge have been obtained.
5. Do not use this Table Saw on which the XACTA Fence II is used for other than its intended use. If
used for other purposes, JET disclaims any real or implied warranty and holds itself harmless from
any injury that may result from that use.
6. Always wear approved safety glasses/face shields while using this Table Saw. Everyday eyeglasses
only have impact resistant lenses; they are not safety glasses.
7. Before operating the Table Saw, remove tie, rings, watches and other jewelry, and roll sleeves up
past the elbows. Remove all loose clothing and confine long hair. Non-slip footwear or anti-skid floor
strips are recommended. Do not wear gloves.
8. Wear ear protectors (plugs or muffs) during extended periods of operation.
9. Do not operate this machine while tired or under the influence of drugs, alcohol or any medication.
10. Make certain the switch is in the OFF position before connecting the machine to the power supply.
11. Make certain the machine is properly grounded.
12. Make all machine adjustments or maintenance with the machine unplugged from the power source.
13. Remove adjusting keys and wrenches. Form a habit of checking to see that keys and adjusting
wrenches are removed from the machine before turning it on.
14. Keep safety guards in place at all times when the machine is in use. If removed for maintenance
purposes, use extreme caution and replace the guards immediately.
15. Make sure the Table Saw is firmly secured to the floor or bench before use.
16. Check damaged parts. Before further use of the machine, a guard or other part that is damaged
should be carefully checked to determine that it will operate properly and perform its intended
function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting
and any other conditions that may affect its operation. A guard or other part that is damaged should
be properly repaired or replaced.
17. Provide for adequate space surrounding work area and non-glare, overhead lighting.
18. Keep the floor around the machine clean and free of scrap material, oil and grease.
19. Keep visitors a safe distance from the work area. Keep children away.
20. Make your workshop child proof with padlocks, master switches or by removing starter keys.
21. Give your work undivided attention. Looking around, carrying on a conversation and “horse-play” are
careless acts that can result in serious injury.
22. Maintain a balanced stance at all times so that you do not fall into the blade or other moving parts. Do
not overreach or use excessive force to perform any machine operation.
23. Use the right tool at the correct speed and feed rate. Do not force a tool or attachment to do a job for
which it was not designed. The right tool will do the job better and safer.
24. Use recommended accessories; improper accessories may be hazardous.
25. Maintain tools with care. Keep saw blades sharp and clean for the best and safest performance.
Follow instructions for lubricating and changing accessories.

5
26. Turn off the machine before cleaning. Use a brush or compressed air to remove chips or debris — do
not use your hands.
27. Do not stand on the machine. Serious injury could occur if the machine tips over.
28. Never leave the machine running unattended. Turn the power off and do not leave the machine until it
comes to a complete stop.
29. Remove loose items and unnecessary work pieces from the area before starting the machine.
Familiarize yourself with the following safety notices used in this manual:
This means that if precautions are not heeded, it may result in minor injury and/or
possible machine damage.
This means that if precautions are not heeded, it may result in serious injury or possibly
even death.
WARNING: Drilling, sawing, sanding or machining wood products generates wood dust and other
substances known to the State of California to cause cancer. Avoid inhaling dust generated from wood
products or use a dust mask or other safeguards for personal protection.
Wood products emit chemicals known to the State of California to cause birth defects or other
reproductive harm. For more information go to http://www.p65warnings.ca.gov/wood.
WARNING: This product can expose you to chemicals including lead which is known to the State of
California to cause cancer and birth defects or other reproductive harm. For more information go to
http://www.p65warnings.ca.gov.

6
Unpacking
Open shipping cartons and check that all parts are
intact. Report any damage immediately to your
distributor. Read the instruction manual thoroughly
for assembly, alignment, and maintenance
instructions.
Contents of the Shipping Containers
Box One:
1 XACTA Fence II
1 Lock Lever Knob
Box Two:
1 Front Rail
1 Back Rail
1 Guide Tube
3 Black Plastic End Caps
1 Hardware Bag containing:
00014 ea 1/4-20 x 1-1/2 Hex Cap Screws
00007 ea 1/4-20 x 3/4 Hex Cap Screws
00035 ea 1/4 Flat Washers
00021 ea 1/4 Lock Washers
00014 ea 1/4 Hex Nuts
Notes: The hardware should be packed in the
guide rail along with the end caps.

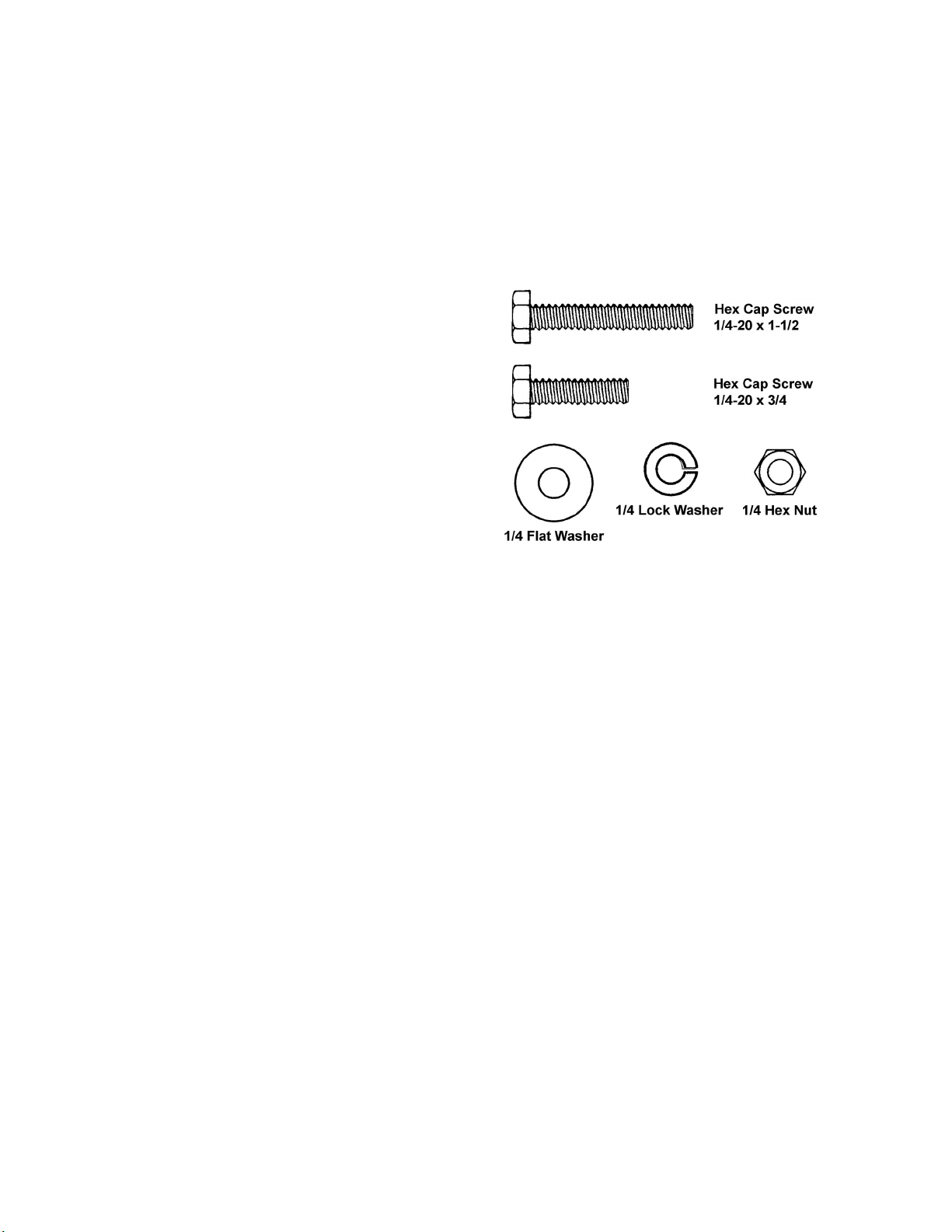

The contents of the hardware bag (shown at right)
are drawn full scale.
Note 1: Quantities for items in the hardware bag
are for the 52" rail system. If you purchased the
30" rail system, there will be extra hardware.
Note 2: If the optional wooden extension table is
not used, there will be extra hardware.
Tools Required for Assembly &
Adjustment
1 #3 Cross Point Screwdriver
2 10mm Open End Wrenches
1 Combination Square & Straight Edge
1 Electric Drill
1 1/4”, 3/16, 5/16” Drill Bits
2 4”-6” C-Clamps
1 5mm, 6mm Hex Wrenches
Contents of Hardware Bag

7
Installation
Tools required
Drill with 5/16" drill bit
10mm open end wrenches
Cross point screwdriver
Adjustable square
Hammer (or rubber mallet)
Straight edge
The following instructions are for installing the
XACTA Fence II and Rail System on JET Models
JWCS-10 and JWTS-10 series table saws.

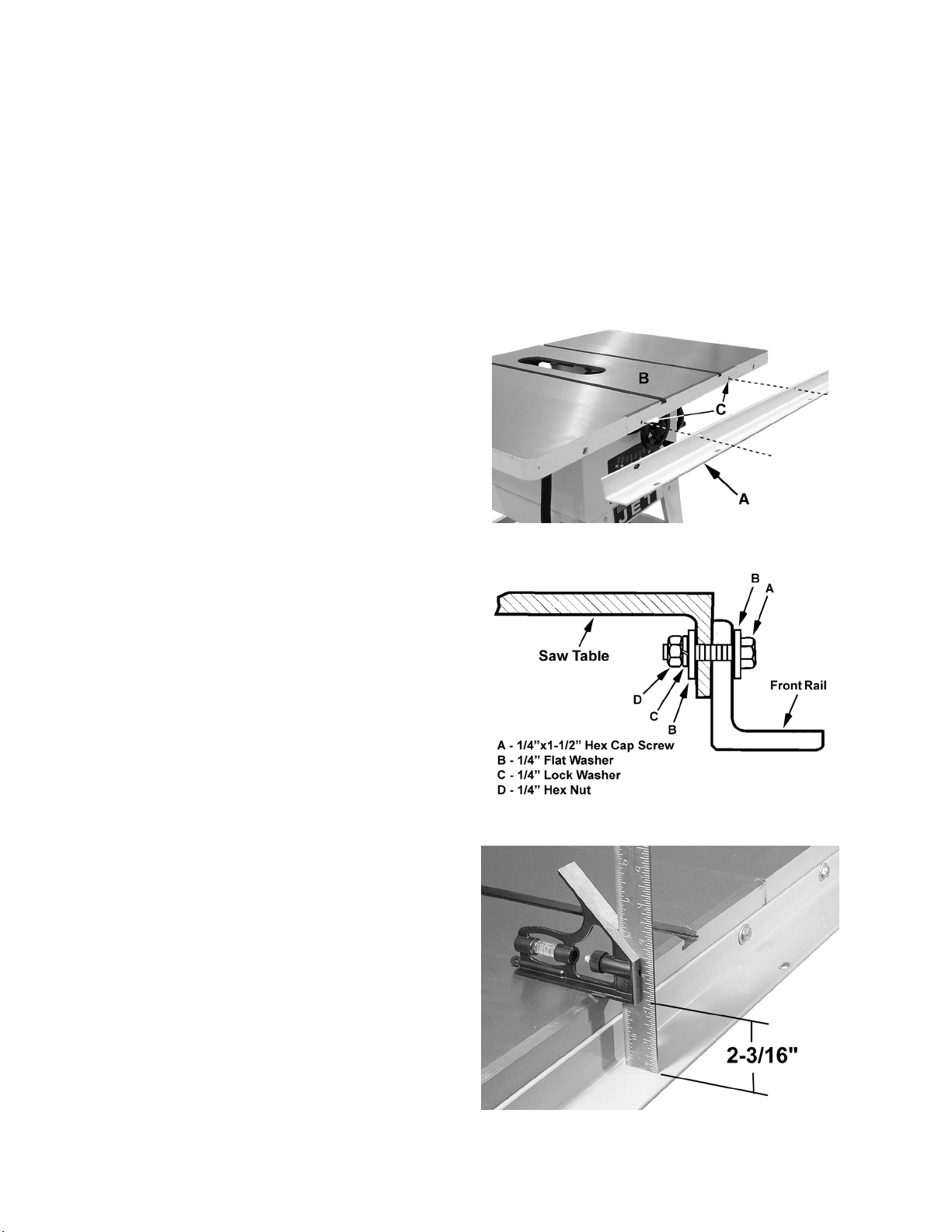

Front Rail Installation
Referring to Figures 1:
1. With a 5/16” drill bit, drill out the two threaded
holes on the table front (C).
Note: By drilling out the threads you will gain
the needed room for adjustment of the front
rail.
2. Identify the front rail (A), which is 2” x 2” with
slots running along each side.
3. Align the slots on the front rail to the four holes
in the front edge of the saw table (Figure 1).
Referring to Figure 2:
4. Lightly secure the front rail to the saw table
and extension wings with four 1/4-20 x 1-1/2
hex cap screws, eight 1/4” flat washers, four
1/4” lock washers, and four 1/4” hex nuts.
Tighten just enough to hold the rail next to the
table but keep loose enough to allow height
adjustment.
The front rail must be 2-3/16" down from the table
top in order to function properly.
5. Place an adjustable square on the table as
shown in Figure 3.
6. Check the height of the front rail at several
locations along the surface of the saw table.
The front rail must be parallel with the table
top.
7. When the front rail has been correctly
positioned, tighten all mounting screws
securely with two 10mm wrenches.
Figure 1
Figure 2
Figure 3

8
Back Rail Installation
1. Locate the back rail which is 1-1/2" x 1-1/2"
with holes running along one side only. The
height of the back rail when attached to the
saw is not critical.
2. Align the holes in the back rail to the holes in
the table top, as shown in Figure 4.
3. Secure the back rail to the holes in the saw
table with four 1/4-20x 1-1/2 hex cap screws,
eight 1/4 flat washers, four 1/4 lock washers,
and four 1/4 hex nuts as shown in Figure 5.
Tighten screws securely with two 10mm
wrenches.
Note: If you are installing an optional wood
extension table on your saw, it should be installed
first before mounting the guide tube. This will
prevent having to mount and align the guide tube
twice.
If you are not mounting an optional wood table,
skip the following section and proceed to Guide
Tube section.
Wooden Extension Table
The wooden extension table is an optional
accessory.
Tools required
Electric drill
Cross point screwdriver
10mm open end wrenches
Four clamps
Straight edge
Hammer (or rubber mallet)
Installation
The optional wood extension table (including the
optional router table) sits flush against the saw
table and along the inside of the rails. The Warning
label on the router table should face outward. The
extension table is not bolted to the saw table; it is
bolted only to the rails.
The extension table and saw table must be aligned
properly so the XACTA Fence II will slide smoothly
from one to the other.
1. Place the extension table between the rails
and up against the saw table, leaving the
extension table raised just slightly above the
saw table.
Clamp the extension table to the front and
back rails as shown in Figure 6. Clamping
pressure should be enough to secure the table
yet allow minor adjustments.
Figure 4
Figure 5
Figure 6
2. Use a hammer and block of wood (or a rubber
mallet) to tap the extension table up flush
against the cast iron saw table (Figure 6).

9
3. Tap down the extension table at various points
along its edge where it meets the saw table,
until it is level with the saw table (Figure 7). As
one part of the edge becomes level with the
table, tighten the clamp on that side. Then
move to the other side and repeat, until the full
length of the edge is level with the saw table.
Lay a straight edge across both extension
table and saw table to ensure proper leveling.
When extension table is properly aligned, holes
need to be drilled into the wood table using the
holes in the rails as your guide (Figure 8).
Note: For the following step, you may wish to drill
3/32" pilot holes first.
4. Drill 1/4" holes into the front edge of the table
using the holes in the front rail as a guide.
Note: Drill through the center of the slots – this
will provide lateral adjustment of the rail if
needed later.
5. Drill 1/4" holes into the back edge of the table
using the holes in the back rail as a guide.
6. Referring to Figure 9: Install hex cap screws
(A), flat washers (B), lock washers (C) and
hex nuts (D) into the holes in the front and rear
edges of the extension table as shown.
Finger-tighten only.
7. Re-check the table for alignment, make further
adjustments if necessary, then tighten all
screws and nuts with two 10mm wrenches.
8. Mount the two legs to the inside corners of the
extension table as shown in Figure 10. Secure
with the eight screws provided with the legs.
Note: If you are using a mobile base under your
saw, you may need to shift the placement of the
legs so they rest properly upon the shelves of the
base.
9. Adjust the footpads on the legs
counterclockwise until they reach the floor,
then tighten the nut.
Figure 7
Figure 8
Figure 9
Figure 10

10
Guide Tube
Referring to Figure 11:
The guide tube (A) is placed on top of the front rail
(B) and is mounted with the scale facing toward
the operator.
1. Align the holes in the bottom of the guide
tube (A) with the holes in the front rail (B).
2. Fasten the guide tube (A) to the rail (B) from
beneath with 1/4-20 x 3/4 hex cap screws (C),
1/4 lock washers (F) and 1/4 flat washers (G).
Finger-tighten only.
3. Measure from the guide tube to the table top in
several places, to ensure it is parallel with the
table top. Adjust as needed, and tighten all
screws. Adjust as needed, and tighten all
screws with a 10mm wrench.
XACTA Fence
Screw the lock lever knob into the threaded handle
on the XACTA Fence II as shown in Figure 12.
The lock lever has three functional positions as
shown in Figure 13:
 The upright position permits mounting and
removal of fence from the saw.
 The unlock position permits easy fence
positioning.
 The lower position locks the fence to the
front rail. The cam handle should be
pushed down firmly against the pin.
Figure 11
Figure 12
Figure 13

11
Fence Adjustments
Note: Fence adjustments should be performed in
the order given.
Leveling Fence to the Saw Table
1. Place the fence on the table and lock it.
2. View the fence from the left side of the saw
(Figure 14). Look for the space between the
table and the fence bottom to be equal along
the entire length of the fence (A, B, Fig. 14).
If adjustment is necessary:
3. Unlock the fence.
4. Raise or lower two nylon adjustment screws
(D, Fig. 15) the same number of turns until the
space between the bottom of the fence and the
table is the same. Care must be taken to raise
or lower the fence on each side equally or the
fence may not be 90 to the table after the
height adjustment is performed.
Adjusting Fence Parallel to the Miter Slot
1. Place the fence next to the outside edge of the
right miter slot and lock it.
2. The fence should be even with the miter slot
from front to back.
3. If the fence is not even along the length of the
miter slot, unlock the fence, remove it and turn
upside down (Figure 16).
4. Adjust one of the two setscrews (E, Fig. 16)
until the fence is even with the miter slot edge
along its entire length when locked.
Note: You may need to re-adjust the clamping
pressure after aligning the fence.
Clamping Pressure Adjustment
The XACTA Fence II has been adjusted at the
factory to lock securely when the lock handle is
pushed down. If adjustment is needed:
1. Unlock the fence.
2. Remove the fence from the guide rail.
3. Turn the fence over.
4. Adjust each of the two setscrews (E, Fig. 16)
exactly the same number of rotations until the
fence is held securely when the lock handle is
pushed down.
A clockwise rotation of the setscrews will increase
the cam pressure. Counterclockwise rotation will
decrease cam pressure.
Figure 14
Figure 15
Figure 16

12

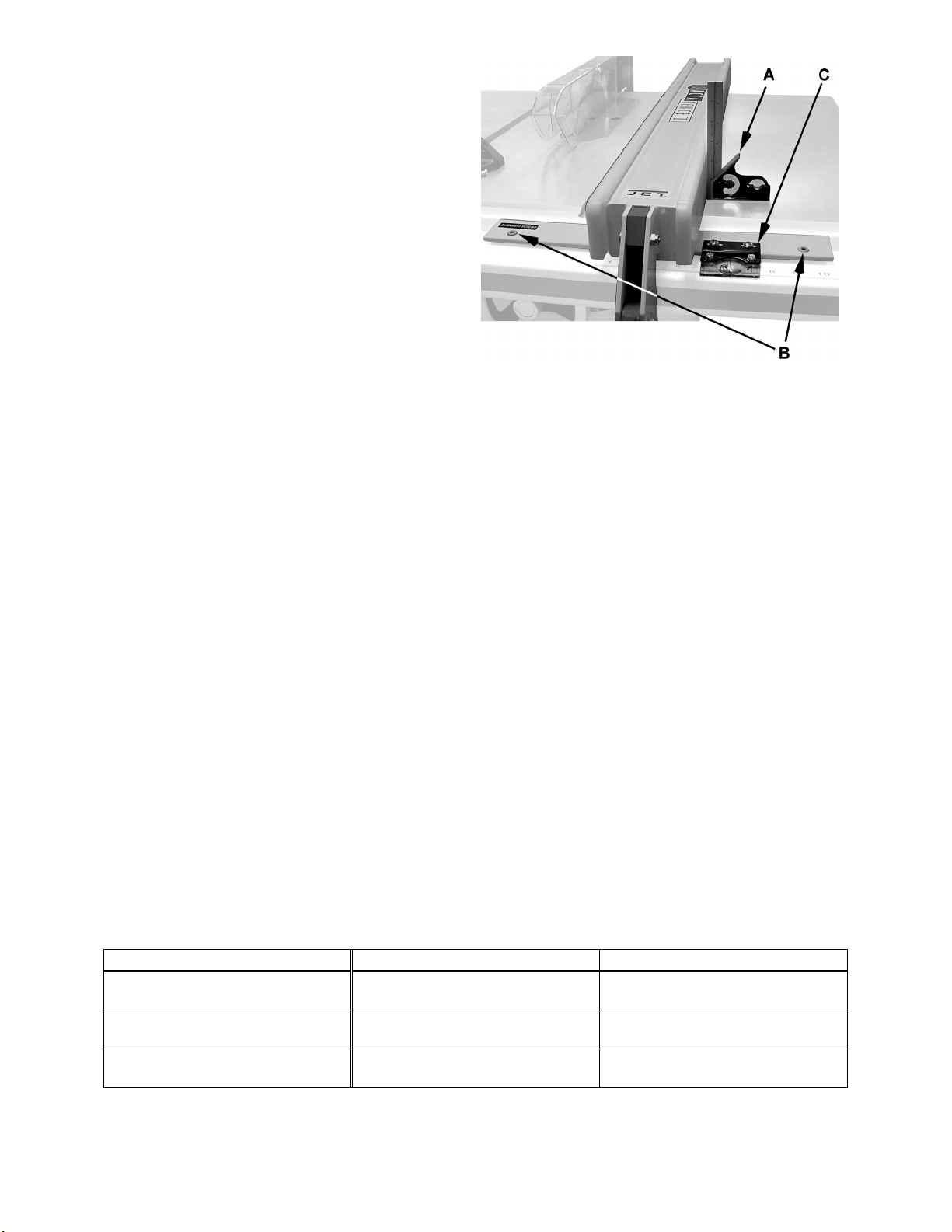

90 to the Table Adjustment
1. Place the fence on the saw table and lock it.
2. Place a square (A, Fig. 17) on the table next to
the fence. The fence should be 90 to the
table.
3. If adjustment is necessary, unlock the fence,
and turn one of the two nylon adjustment
screws (B, Fig. 17) until the fence is 90 to the
table.
4. Lock the fence and check the adjustment
again.
Cursor Adjustment
1. Disconnect the table saw from the power
source.
2. Raise the saw blade above the tabletop.
3. Unlock the fence and slide it to approximately
four inches from the saw blade.
4. Lock the fence.
5. Measure the distance between the saw blade
and the inside of the fence.
6. Adjust the cursor (C, Fig. 17) to read the
distance just measured and tighten the cursor
assembly to the fence.
7. Take a test cut and confirm that the adjustment
is correct.
Note: If the cursor does not have enough travel to
give the correct measurement loosen the guide rail
and adjust as needed. If you still do not get the
correct measurement loosen the front rail and
adjust as needed. If you have to adjust the front
rail you will need to go through the front rail
assembly instructions again.
This adjustment must be checked whenever a
different blade is installed.
After installing the XACTA Fence II press the black
plastic end caps into the openings of the guide rail.
There is also an end cap for the fence, but this
should already be installed.
Figure17
Rail Installation on a non-JET
Table Saw
The XACTA Fence II Homeshop 30/52 Fence and
Rail System can be installed on a non-JET table
saw. Instructions for the rail and fence installation
as well as the optional extension table are provided
in Manual No. M-2195075EZ and is available on-
line or a copy can be obtained by contacting
customer service.
Trouble-Shooting for XACTA Fence II Homeshop 30/52
Problem Possible Cause Solution
Lock lever won't go down, or
requires excessive force.
Too much pressure against
guide tube. Back out set screws.
Fence scrapes table, won't slide
smoothly.
Fence height not adjusted
properly. Adjust nylon screws.
Fence "hangs" or binds while
sliding. Front rail not level. Readjust rail.

13
Parts
Ordering Replacement Parts
To order parts or reach our service department, call 1-800-274-6848 Monday through Friday (see our
website for business hours, www.jettools.com). Having the Model Number and Serial Number of your
machine available when you call will allow us to serve you quickly and accurately.
Parts for XACTA Fence II Homeshop 30/52 Fence Assembly
Index No. Part No. Description Size Qty
................. 708928Z ................... XACTA Fence II Homeshop Fence (includes #1-24)..................................
1 ............... HF2-101N ................ Left Side Plate ...................................................... .................................... 1
2 ............... HF2-102 ................... Fence Body Assembly ......................................... .................................... 1
3 ............... HF2-103 ................... Tube Plug ............................................................. .................................... 1
4 ............... HF2-104N ................ Right Side Plate ................................................... .................................... 1
5 ............... TS-0640071 ............. Lock Nut ............................................................... 1/4” -20 ..................... 10
6 ............... TS-0271031 ............. Socket Set Screw ................................................. 3/8”-16 x 3/8” ............... 2
7 ............... 3575081 ................... Fluoroway Pad ..................................................... .................................... 2
8 ............... XF2-108 ................... Pad Set ................................................................ .................................... 1
9 ............... XF2-9 ....................... Carriage Bolt ........................................................ 1/4”-20 x 3/4” ............. 10
10 ............. TS-081D022 ............. Pan Head Machine Screw ................................... 10-32 x 3/8” ................. 2
11 ............. TS-0680021 ............. Flat Washer .......................................................... 1/4” .............................. 2
12 ............. HF2-112 ................... Cursor .................................................................. .................................... 1
13 ............. HF2-113 ................... XACTA Fence Label ............................................ .................................... 1
14 ............. XF2-129 ................... JET Label ............................................................. .................................... 1
15 ............. TS-0640071 ............. Lock Nut ............................................................... 1/4”-20......................... 1
16 ............. TS-0640081 ............. Lock Nut ............................................................... 5/16”-18 ...................... 1
17 ............. XF2-117 ................... Spring Pin ............................................................. 4mm x 28 .................... 1
18 ............. 6813042 ................... Compression Spring ............................................ .................................... 1
19 ............. TS-0151041 ............. Carriage Bolt ........................................................ 1/4”-20 x 1-1/2” ........... 1
20 ............. TS-0152031 ............. Carriage Bolt ........................................................ 5/16”-18 x 1-1/2” ......... 1
21 ............. 3215302 ................... Foot Cam ............................................................. .................................... 1
22 ............. 3076232 ................... Lock Cam ............................................................. .................................... 1
23 ............. 6430055 ................... Knob w/stud ......................................................... 3/8”-16 x 5/8” .............. 1
24 ............. XF-5 ......................... Nylon Adjustment Screw ...................................... .................................... 2
12
3
4
5( ) 5
( )
55
9( ) 5
8
9( ) 5
( )
210
11
12
62
( )
24 2
( )
19
20
21
22
23 15
18
17
16
2
( )
7
( )
2
13
14

14
Parts for XACTA Fence II Homeshop 30/52 Rail Assembly
Index No. Part No. Description Size Qty
................. 708929Z ................... XACTA 30” Homeshop Rail Set (includes #1-11) ......................................
................. 708952Z ................... XACTA 52” Homeshop Rail Set (includes #1-11) ......................................
1 ............... HF2-201 ................... Front Fence Rail - Standard ................................. .................................... 1
................. HF2-201A ................. Front Fence Rail - Long Table ............................. .................................... 1
2 ............... TS-0050071 ............. Hex Head Cap Screw (30" Table) ........................ 1/4”-20 x 1-1/2” ......... 12
................. TS-0050071 ............. Hex Head Cap Screw (52" Table) ........................ 1/4”-20 x 1-1/2” ......... 14
3 ............... TS-0680021 ............. Flat Washer (30" Table) ....................................... 1/4” ............................ 30
................. TS-0680021 ............. Flat Washer (52" Table) ....................................... 1/4” ............................ 35
4 ............... TS-0720071 ............. Lock Washer (30" Table) ..................................... 1/4” ............................ 18
................. TS-0720071 ............. Lock Washer (52" Table) ..................................... 1/4” ............................ 21
5 ............... TS-0561011 ............. Hex Nut(30" Table) .............................................. 1/4”-20....................... 12
................. TS-0561011 ............. Hex Nut (52" Table) ............................................. 1/4”-20....................... 14
6 ............... TS-0050031 ............. Hex Head Cap Screw (30" Table) ........................ 1/4”-20 x 3/4” ............... 6
................. TS-0050031 ............. Hex Head Cap Screw (52" Table) ........................ 1/4”-20 x 3/4” ............... 7
7 ............... XF2-207 ................... Scale (52”) ............................................................ .................................... 1
................. XF2-207A ................. Scale (30”) ............................................................ .................................... 1
8 ............... HF2-208 ................... Front Fence Guide – Standard ............................ 30” ............................... 1
................. HF2-208A ................. Front Fence Guide – Long Table ......................... 52” ............................... 1
9 ............... HF2-209 ................... Back Fence Rail – Standard ................................ 30” ............................... 1
................. HF2-209A ................. Back Fence Rail – Long Table ............................. 52” ............................... 1
10 ............. HF2-103 ................... Tube Plug ............................................................. .................................... 2
11 ............. HF2-211 ................... Hardware Kit (Standard – 30”) – not shown ........ .................................... 1
................. HF2-211A ................. Hardware Kit (Long Table – 52”) – not shown ..... .................................... 1

15
Parts for the XACTA Fence II Homeshop 30/52 Leg Assembly
Index No. Part No. Description Size Qty
1 ............... XF2-301 ................... Leg ....................................................................... .................................... 2
2 ............... TS-0561031 ............. Hex Nut ................................................................ 3/8”-16......................... 2
3 ............... XF2-303 ................... Adjusting Foot ...................................................... .................................... 2
4 ............... TS-1533052 ............. Machine Screw .................................................... M5×16 ......................... 8
5 ............... XF2-305 ................... Metal Insert .......................................................... 30 x 30 x 3/8” .............. 2

16
427 New Sanford Road
LaVergne, Tennessee 37086
Phone: [phone]
www.jettools.com
