Operating Instructions and Parts Manual

14-inch Woodworking Band Saw

Models JWBS-14SF and JWBS-14SF-3



JET

427 New Sanford Road

LaVergne, Tennessee 37086 Part No. M-714500

Ph.: 800-274-6848 Revision B 04/2014

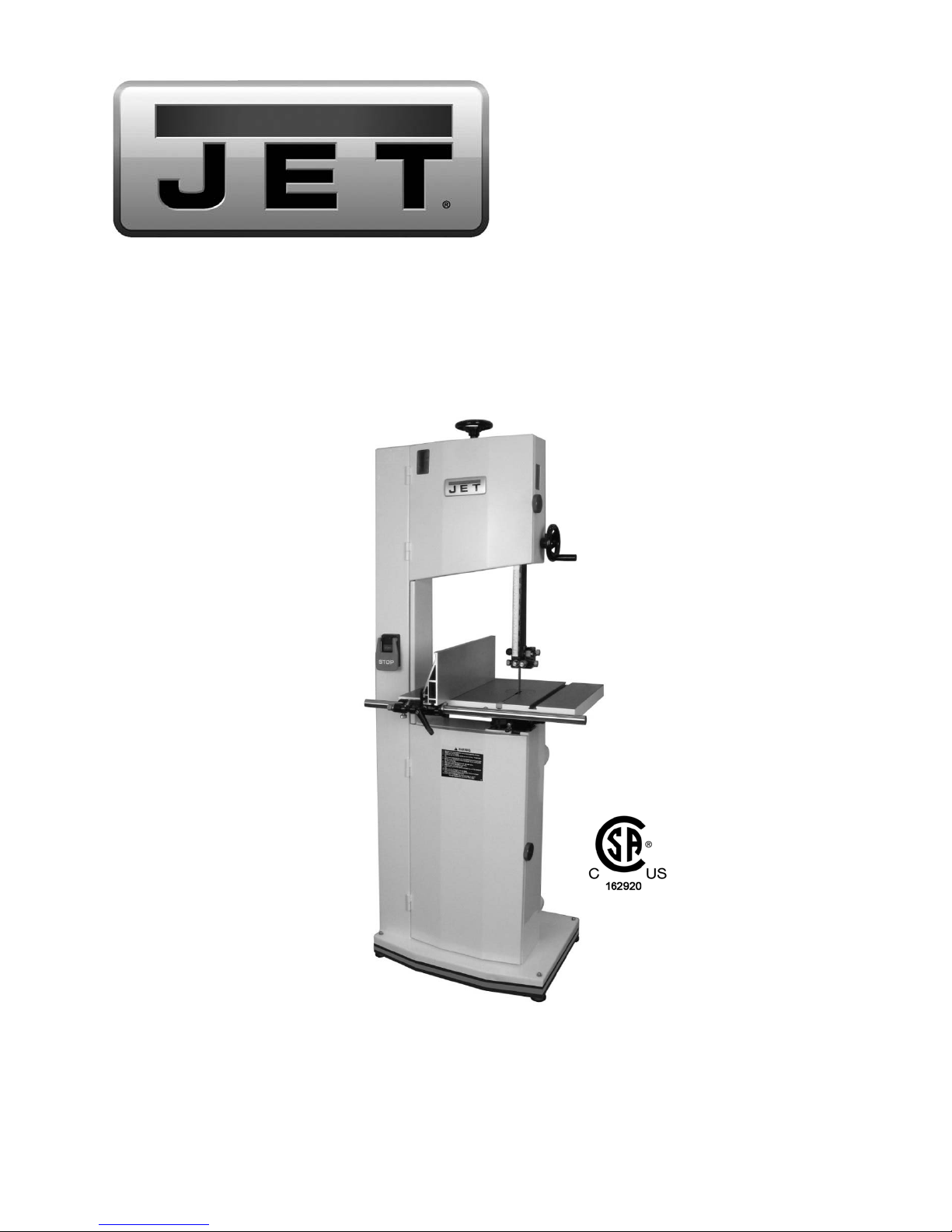

Model#714500shown



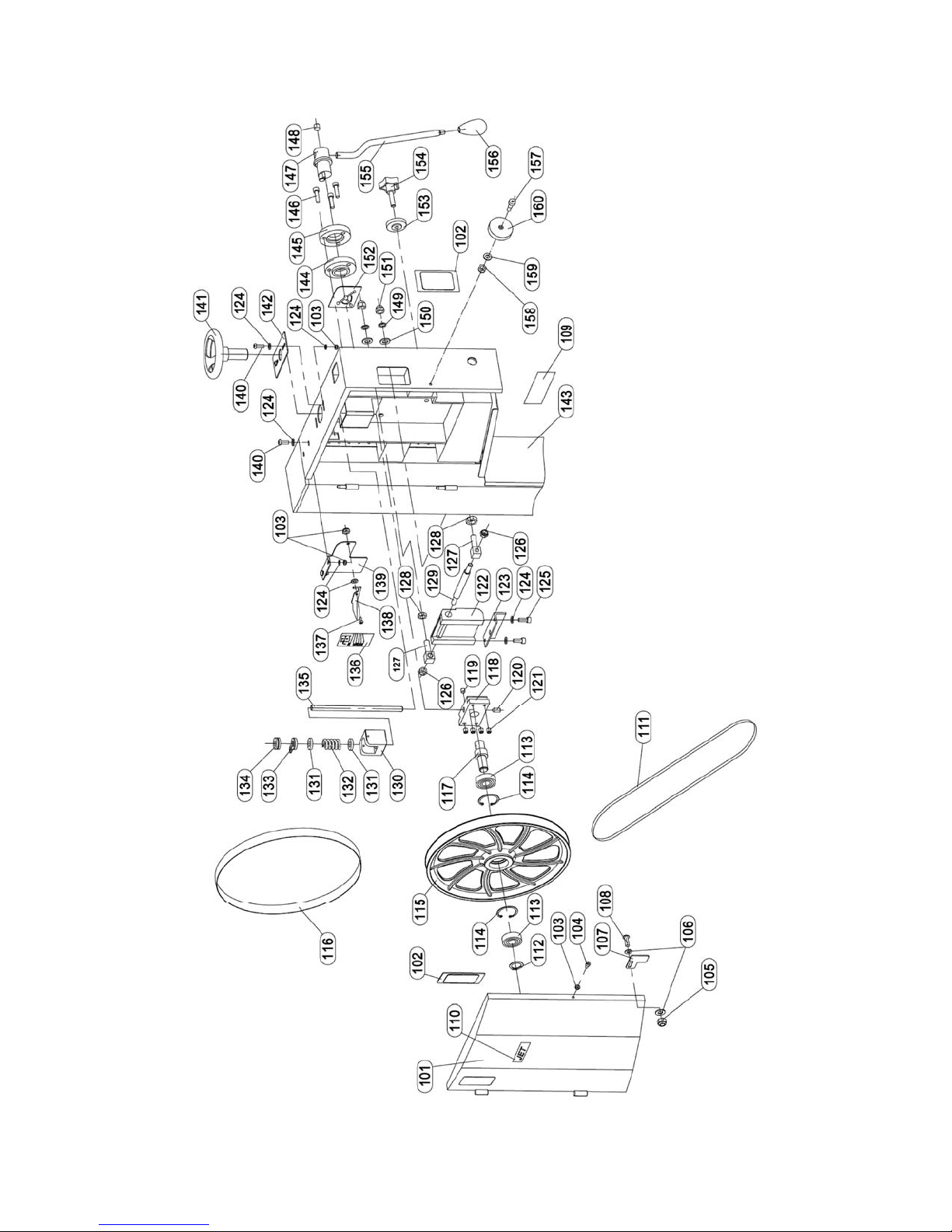

16.1.1 JWBS-14SF (#714500) – Upper Wheel Assembly – Exploded View



16.1.2 JWBS-14SF (#714500) – Lower Wheel & Motor Assembly – Exploded View



16.1.3

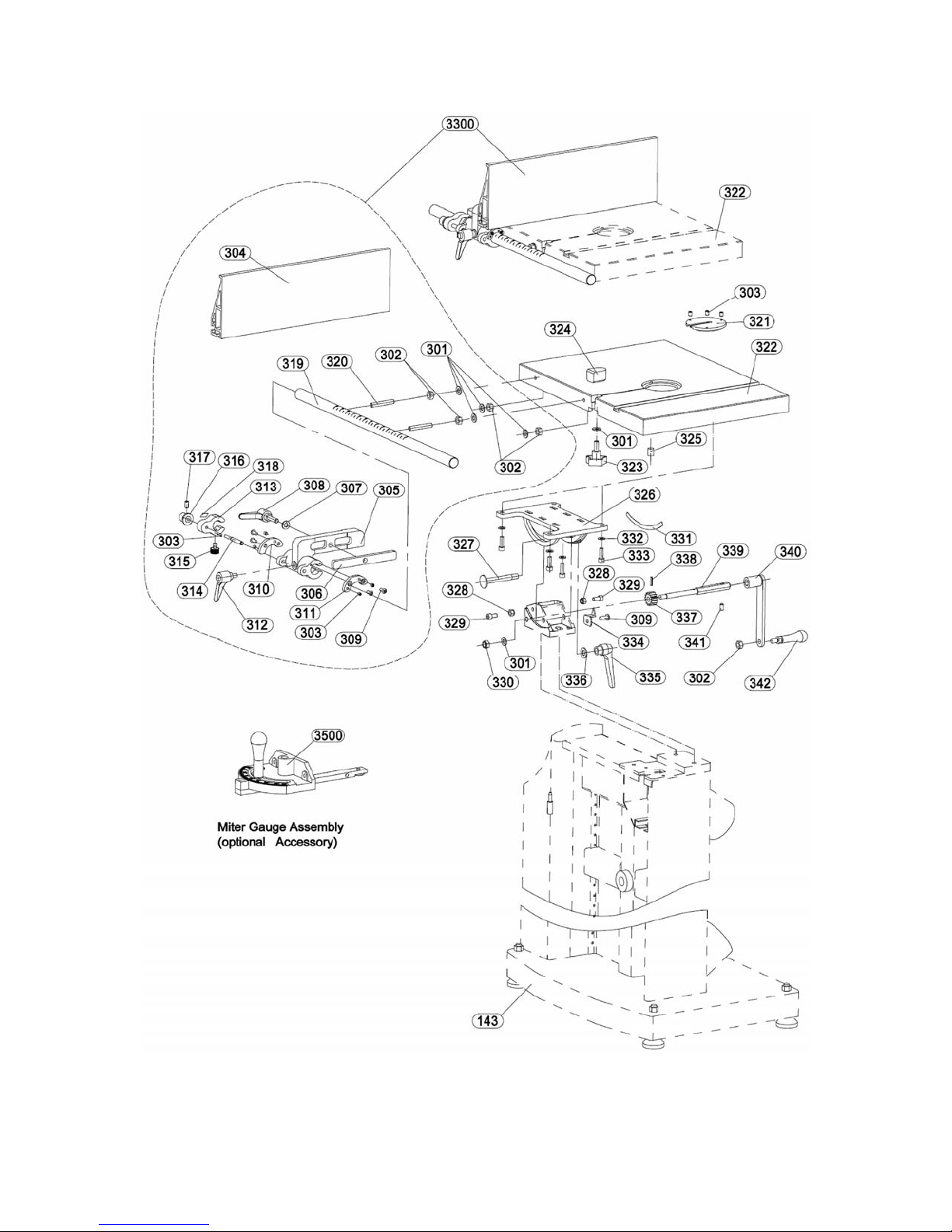

JWBS-14SF (#714500) – Table and Miter Gauge* Assembly – Exploded View

* optional accessory – see your dealer to order.





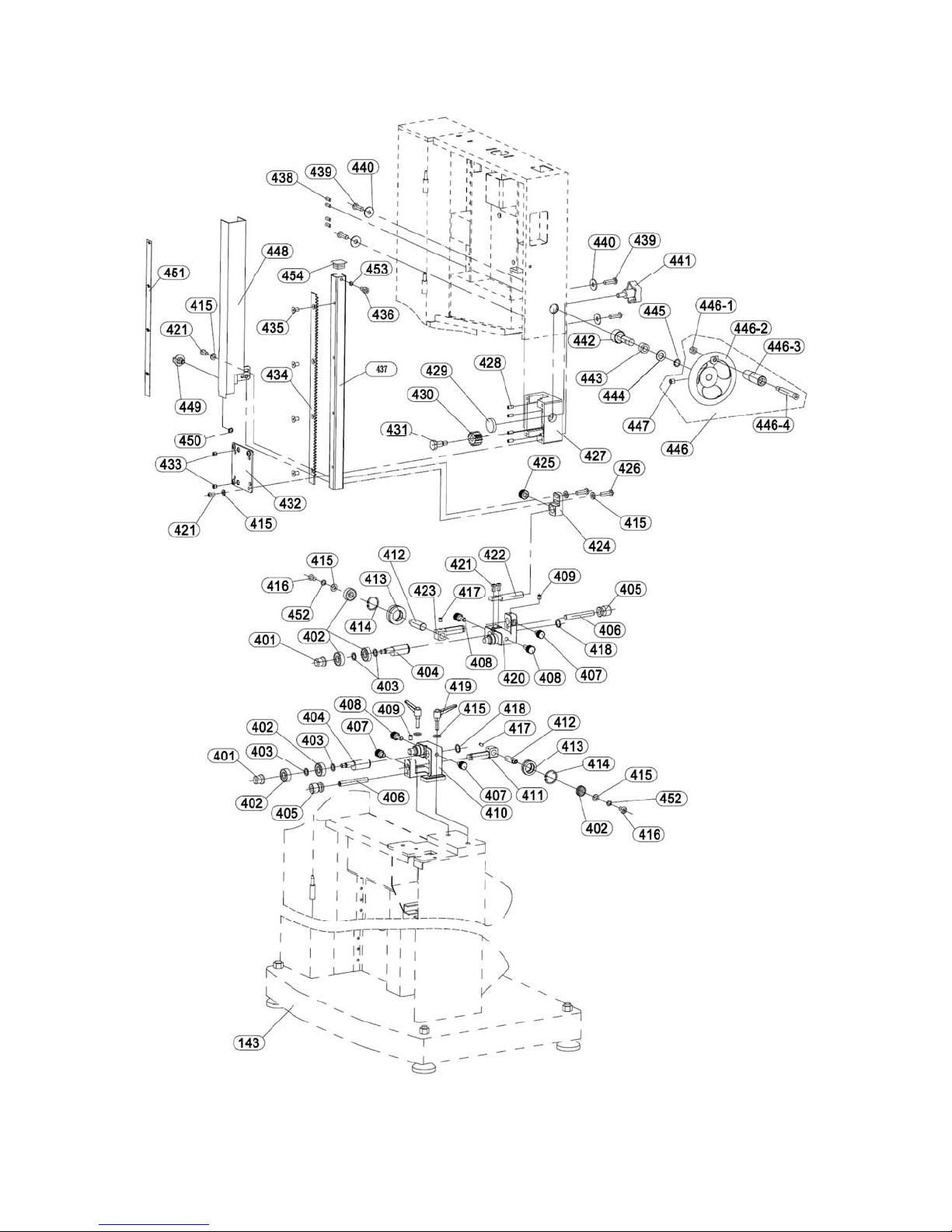

16.1.4 JWBS-14SF (#714500) – Blade Guide Assembly – Exploded View



16.1.5 JWBS-14SF (#714500) – Parts List

Index No Part No Description Size Qty

101 ............JWBS14SF-101 ........ Upper Front Door..................................................... ......................................1

102 ............JWBS14SF-102 ........ Sight Glass .............................................................. ......................................2

103 ............TS-1541021 ............ Nylon Insert Lock Hex Nut.......................................M6.................................6

104 ............TS-1503021 .............. Socket Head Cap Screw..........................................M6x10...........................1

105 ............TS-1541001 .............. Nylon Insert Lock Hex Nut.......................................M4.................................1

106 ............TS-1550021 .............. Flat Washer .............................................................4 mm.............................2

107 ............JWBS14SF-107 ........ Guide Pointer........................................................... ......................................1

108 ............TS-1501031 .............. Socket Head Cap Screw..........................................M4x10...........................1

109 ............JWBS14SF-109 ........ I.D. Label ................................................................. ......................................1

110 ............JET-138..................... Jet Logo...................................................................138 x 57mm..................1

111 ............JWBS14SF-111 ........ Blade........................................................................1/2” x 125” ...................1

112 ............JWBS14SF-112 ........ Retaining Ring.........................................................R20 ...............................1

113 ............BB-6204ZZ................ Bearing ....................................................................6204/P6-2RZ.................2

114 ............JWBS14SF-114 ........ Retaining Ring.........................................................R47 ...............................2

115 ............JWBS14SF-115 ........ Upper Wheel............................................................ ......................................1

116............JWBS14SF-116 ........ Tire........................................................................... ......................................1

117 ............JWBS14SF-117 ........ Upper Wheel Shaft.................................................. ......................................1

118 ............JWBS14SF-118 ........ Slide Pad ................................................................. ......................................1

119 ............TS-1523021 .............. Socket Set Screw....................................................M6x8.............................1

120 ............TS-1524041 .............. Socket Set Screw....................................................M8x16.....……………….1

121 ............JWBS14SF-121 ........ Fixed Screw.............................................................M8x10...........................4

122 ............JWBS14SF-122 ........ Dovetail Base........................................................... ......................................1

123............JWBS14SF-123 ........ Bracket..................................................................... ......................................1

124 ............TS-1550041 .............. Flat Washer .............................................................6 mm...........................11

125 ............TS-1503041 .............. Socket Head Cap Screw..........................................M6x16...........................2

126 ............TS-1541041 .............. Nylon Insert Lock Hex Nut.......................................M10...............................2

127 ............JWBS14SF-127 ........ Square Head Screw................................................. ......................................2

128 ............TS-2311121 .............. Hex Nut....................................................................M12...............................2

129 ............JWBS14SF-129 ........ Rotating Shaft.......................................................... ......................................1

130............JWBS14SF-130 ........ Block........................................................................ ......................................1

131............JWBS14SF-131 ........ Washer .................................................................... ......................................2

132............JWBS14SF-132 ........ Spring ...................................................................... ......................................1

133 ............JWBS14SF-133 ........ Tensioning Washer.................................................. ......................................1

134 ............JWBS14SF-134 ........ Bearing ....................................................................51201 (ø12-ø28-h11)....1

135 ............JWBS14SF-135 ........ Blade Adjusting Screw............................................. ......................................1

136 ............JWBS14SF-136 ........ Blade Tension Indicator Label................................. ......................................1

137 ............TS-1503031 .............. Socket Head Cap Screw..........................................M6x12...........................1

138 ............JWBS14SF-138 ........ Tension Pointer........................................................ ......................................1

139 ............JWBS14SF-139 ........ Tension Indicator Plate............................................ ......................................1

140 ............TS-1503041 .............. Socket Head Cap Screw..........................................M6x16...........................4

141 ............JWBS14SF-141 ........ Handwheel............................................................... ......................................1

142 ............JWBS14SF-142 ........ Limit Plate................................................................ ......................................1

143............JWBS14SF-143 ........ Saw Body................................................................. ......................................1

144............JWBS14SF-144 ........ Collar ....................................................................... ......................................1

145 ............JWBS14SF-145 ........ Support Collar.......................................................... ......................................1

146 ............TS-1504061 .............. Socket Head Cap Screw..........................................M8x30...........................3

147 ............JWBS14SF-147 ........ Cam Shaft................................................................ ......................................1

148 ............TS-1524021 .............. Socket Set Screw....................................................M8x10...........................1

149 ............TS-2361121 .............. Lock Washer............................................................12 mm...........................2

150 ............TS-2360121 .............. Flat Washer .............................................................12 mm...........................2

151 ............TS-2331121 .............. Cap Nut....................................................................M12...............................2

152 ............JWBS14SF-152 ........ Blade Quick Release Label..................................... ......................................1

153 ............JWBS14SF-153 ........ Adjusting Nut ........................................................... ......................................1

154 ............JWBS14SF-154 ........ Handle .....................................................................M10X45.........................1

155 ............JWBS14SF-155 ........ Tension Handle........................................................ ......................................1

156 ............JWBS14SF-156 ........ Tension Handle Knob.............................................. ......................................1

157 ............JWBS14SF-157 ........ Hex Head Shoulder Screw ......................................M6x10...........................2

158 ............TS-1541011 .............. Nylon Insert Lock Hex Nut.......................................M5.................................2

159 ............TS-1550031 .............. Flat Washer .............................................................5 mm.............................2



Index No Part No Description Size Qty

160 ............JWBS14SF-160 ........ Door Lock Knob....................................................... ......................................2

201 ............JWBS14SF-201 ........ Lower Front Door..................................................... ......................................1

202 ............TS-1541021 ............ Nylon Insert Lock Hex Nut.......................................M6.................................6

203 ............TS-1503021 .............. Socket Head Cap Screw..........................................M6x10...........................1

204............JWBS14SF-116 ........ Tire........................................................................... ......................................1

205 ............JWBS14SF-112 ........ Retaining Ring.........................................................R20 ...............................1

206 ............BB-6204ZZ................ Bearing ....................................................................6204/P6-2RZ.................2

207 ............JWBS14SF-114 ........ Retaining Ring.........................................................R47 ...............................2

208 ............JWBS14SF-208 ........ Lower Wheel............................................................ ......................................1

209 ............JWBS14SF-209 ........ V-Belt.......................................................................HM38–9.5×965La.........1

210 ............JWBS14SF-210 ........ Lower Wheel Shaft.................................................. ......................................1

211 ............STRIPE-1-3/4............ Jet Stripe..................................................................1-3/4” W......... sold per ft.

212 ............JWBS14SF-212 ........ Motor Assembly (#212-1 thru 212-14).....................1.75HP, 115V/230V......1

212-1.........JWBS14SF-212-1..... Motor Body .............................................................. ......................................1

212-2.........JWBS14SF-212-2..... Soft Mat ................................................................... ......................................1

212-3.........JWBS14SF-212-3..... Capacitor Box.......................................................... ......................................1

212-4.........JWBS14SF-212-4..... Running Capacitor ..................................................80μF, 450V ...................1

212-5.........JWBS14SF-212-5..... Wiring Diagram........................................................ ......................................1

212-6.........JWBS14SF-212-6..... Capacitor Box Cover................................................ ......................................1

212-7.........JWBS14SF-212-7..... Motor Label.............................................................. ......................................1

212-8.........TS-2284202 .............. Pan Head Machine Screw.......................................M4x20...........................4

212-9.........TS-2284082 .............. Pan Head Machine Screw.......................................M4x8.......……………….8

212-10.......JWBS14SF-212-10... Starting Capacitor…………………………….400~480MFD/250VAC..............1

212-11.......JWBS14SF-212-11... Strain Relief Bushing............................................... ......................................1

212-12.......JWBS14SF-212-12... Motor Fan ................................................................ ......................................1

212-13.......JWBS14SF-212-13... Motor Fan Cover...................................................... ......................................1

212-14.......JWBS14SF-212-14... Centrifugal Switch.................................................... ......................................1

213 ............JWBS14SF-213 ........ Power Cord.............................................................. ......................................1

214 ............JWBS14SF-214 ........ Plug Warning Label ................................................. ......................................1

215 ............JWBS14SF-215 ........ Motor Cord............................................................... ......................................1

216 ............JWBS14SF-216 ........ Key...........................................................................6x35 mm.......................1

217 ............JWBS14SF-217 ........ Motor Pulley............................................................. ......................................1

218 ............TS-1523021 .............. Socket Set Screw....................................................M6x8.............................1

219 ............JWBS14SF-219 ........ Adjustable Handle.................................................... ......................................1

220............JWBS14SF-220 ........ Washer .................................................................... ......................................1

221............JWBS14SF-221 ........ Handle ..................................................................... ......................................1

222 ............TS-1492021 .............. Hex Cap Screw .......................................................M12x30………..….........1

223 ............JWBS14SF-223 ........ Nylon Washer.......................................................... ......................................1

224 ............JWBS14SF-224 ........ Motor Bracket.......................................................... ......................................1

225 ............TS-2248202 .............. Socket Head Button Screw......................................M8x20...........................4

226 ............TS-1532032 .............. Pan Head Machine Screw.......................................M4x10...........................1

227 ............TS-1550021 .............. Flat Washer .............................................................4 mm.............................3

228 ............JWBS14SF-228 ........ R-Type Cable Clamp............................................... ......................................1

229............JWBS14SF-212-11... Strain Relief Bushing............................................... ......................................2

230 ............TS-1534042 .............. Pan Head Machine Screw.......................................M6x12...........................6

231............JWBS14SF-231 ........ Plate......................................................................... ......................................1

232 ............JWBS14SF-232 ........ Switch Assembly (#232-1 thru 232-6)...................... ......................................1

232-1.........JWBS14SF-232-1..... Paddle Button.......................................................... ......................................1

232-2.........JWBS14SF-232-2..... STOP Button............................................................ ......................................1

232-3.........JWBS14SF-232-3..... START Button.......................................................... ......................................1

232-4.........JWBS14SF-232-4..... Support.................................................................... ......................................1

232-5.........JWBS14SF-232-5..... Panel........................................................................ ......................................1

232-6.........JWBS14SF-232-6..... Push Button Switch.................................................. ......................................1

233 ............TS-2284302 .............. Pan Head Machine Screw.......................................M4x25...........................2

234 ............JWBS14SF-234 ........ Grounding Symbol................................................... ......................................2

235 ............TS-2284302 .............. Pan Head Machine Screw.......................................M4x25...........................2

236 ............JPS10TS-345............ External Tooth Lock Washer ...................................4 mm.............................4

237 ............TS-2361041 .............. Lock Washer............................................................4 mm.............................2

238 ............TS-1540021 .............. Hex Nut....................................................................M4.................................2

239 ............TS-1550061 .............. Flat Washer .............................................................8 mm.............................2

240 ............TS-1504031 .............. Socket Head Cap Screw..........................................M8x16...........................2



Index No Part No Description Size Qty

241 ............TS-1550041 .............. Flat Washer .............................................................6 mm.............................4

242 ............JWBS14SF-242 ........ Pan Head Tapping Screw........................................ST3x13..........................4

243 ............TS-1550011 .............. Flat Washer .............................................................3 mm.............................4

244............JWBS14SF-244 ........ Brush ....................................................................... ......................................2

245 ............JWBS14SF-245 ........ Brush Plate.............................................................. ......................................2

246 ............JWBS14SF-246 ........ Kneading Screw.......................................................M8x20...........................1

247 ............TS-1550061 .............. Flat Washer .............................................................8 mm.............................1

248 ............JWBS14SF-248 ........ Lower Blade Guard.................................................. ......................................1

249 ............JWBS14SF-249 ........ Retaining Ring.........................................................R6 .........................……1

250 ............TS-149105 ................ Hex Cap Screw........................................................M10x35.........................2

251 ............TS-1523041 .............. Socket Set Screw....................................................M6x12...........................4

252 ............JWBS14SF-252 ........ Trunnion Support Bracket........................................ ......................................1

253 ............TS-1482051 .............. Hex Cap Screw........................................................M6x25...........................1

254 ............TS-2311061 .............. Hex Nut....................................................................M6.................................1

255 ............TS-1550061 .............. Flat Washer .............................................................8 mm.............................2

256 ............JWBS14SF-256 ........ Support Plate........................................................... ......................................1

257 ............TS-1541031 .............. Nylon Insert Lock Hex Nut.......................................M8.................................1

258 ............JWBS18-141............. Warning Label.......................................................... ......................................1

259............JWBS14SF-259 ........ Washer .................................................................... ......................................1

260 ............TS-2361081 .............. Lock Washer............................................................8 mm.............................1

261 ............TS-1504051 .............. Socket Head Cap Screw..........................................M8x25...........................1

262 ............JWBS14SF-262 ........ Dust Guard .............................................................. ......................................2

263 ............TS-2342121 .............. Hex Nut....................................................................M12...............................4

264 ............JWBS14SF-264 ........ Bolt With Leveling Pad.............................................M12x70.........................4

265 ............JWBS14SF-265 ........ Wood Insert .............................................................59x75x13 mm...............1

266............JWBS14SF-266 ........ Plug.......................................................................... ......................................2

3300 ..........JWBS14SF-3300 ...... Fence Assembly (#301 thru 320)............................. ......................................1

301 ............TS-1550071 .............. Flat Washer .............................................................10 mm...........................6

302 ............TS-1540071 .............. Hex Nut....................................................................M10.........……………….5

303 ............TS-1521011 .............. Socket Set Screw....................................................M4x5.............................7

304............JWBS14SF-304 ........ Fence....................................................................... ......................................1

305 ............JWBS14SF-305 ........ Fence Body.............................................................. ......................................1

306............JWBS14SF-306 ........ Lock Bar................................................................... ......................................1

307 ............TS-1550071 .............. Flat Washer .............................................................10 mm...........................1

308 ............JWBS14SF-308 ........ Adjustable Handle....................................................M10x40.........................1

309 ............TS-1532032 .............. Pan Head Machine Screw.......................................M4x10...........................5

310 ............JWBS14SF-310 ........ Fence Collar LH....................................................... ......................................1

311 ............JWBS14SF-311 ........ Fence Collar RH...................................................... ......................................1

312 ............JWBS14SF-312 ........ Adjustable Handle....................................................M10x15.........................1

313 ............JWBS14SF-313 ........ Fine Adjust Collar .................................................... ......................................1

314 ............JWBS14SF-314 ........ Fine Adjust Rod....................................................... ......................................1

315 ............JWBS14SF-315 ........ Knurled Locking Knob.............................................. ......................................1

316 ............JWBS14SF-316 ........ Fine Adjust Knob ..................................................... ......................................1

317 ............TS-1521031 .............. Socket Set Screw....................................................M4x8.............................1

318 ............JWBS14SF-318 ........ Fine Adjust Label..................................................... ......................................1

319 ............JWBS14SF-319 ........ Guide Bar................................................................. ......................................1

320 ............JWBS14SF-320 ........ Fence Bolt................................................................ ......................................2

321 ............JWBS14SF-321 ........ Table Insert.............................................................. ......................................1

322............JWBS14SF-322 ........ Table ....................................................................... ......................................1

323 ............JWBS14SF-323 ........ Handle .....................................................................M10x25.........................1

324 ............JWBS14SF-324 ........ Table Locking Block................................................. ......................................1

325............JWBS14SF-325 ........ Roll Pin .................................................................... ......................................1

326............JWBS14SF-326 ........ Trunnion................................................................... ......................................1

327 ............JWBS14SF-327 ........ Locking Shaft........................................................... ......................................1

328 ............TS-1541031 .............. Nylon Insert Lock Hex Nut.......................................M8.................................2

329 ............JWBS14SF-329 ........ Locating Shaft.......................................................... ......................................2

330 ............TS-2342101 .............. Nylon Insert Lock Hex Nut.......................................M10...............................1

331 ............JWBS14SF-331 ........ Tilt Degree Scale..................................................... ......................................1

332 ............TS-1550061 .............. Flat Washer .............................................................8 mm.............................4

333 ............TS-1504051 .............. Socket Head Cap Screw..........................................M8x25...........................4

334............JWBS14SF-334 ........ Pointer ..................................................................... ......................................1



Index No Part No Description Size Qty

335 ............JWBS14SF-335 ........ Adjustable Handle....................................................M12x20………..............1

336 ............TS-2360121 .............. Flat Washer .............................................................12 mm...........................1

337............JWBS14SF-337 ........ Gear......................................................................... ......................................1

338 ............JWBS14SF-338 ........ Spring Pin................................................................4x22 mm.......................1

339 ............JWBS14SF-339 ........ Table Shaft .............................................................. ......................................1

340 ............JWBS14SF-340 ........ Table Tilt Handle...................................................... ......................................1

341 ............JWBS14SF-341 ........ Screw.......................................................................M8x16...........................1

342............JWBS14SF-342 ........ Handle ..................................................................... ......................................1

401 ............JWBS14SF-401 ........ Front Bearing Fixed Knob........................................ ......................................4

402 ............BB-608ZZ.................. Bearing ....................................................................608ZZ..........................10

403 ............JWBS14SF-403 ........ Bushing Washer ...................................................... ......................................8

404 ............JWBS14SF-404 ........ Eccentric Shaft......................................................... ......................................4

405 ............JWBS14SF-405 ........ Upper Knob.............................................................. ......................................2

406 ............JWBS14SF-406 ........ Set Screw................................................................M8x55...........................2

407 ............JWBS14SF-407 ........ Knurled Locking Knob, Short................................... ......................................3

408 ............JWBS14SF-408 ........ Knurled Locking Knob, Long.................................... ......................................3

409 ............JWBS14SF-409 ........ Screw.......................................................................5x12..............................2

410 ............JWBS14SF-410 ........ Lower Guide Bracket............................................... ......................................1

411 ............JWBS14SF-411 ........ Lower Guide Shaft................................................... ......................................1

412 ............JWBS14SF-412 ........ Rear Bearing Guide Shaft ....................................... ......................................2

413 ............JWBS14SF-413 ........ Bearing bracket........................................................ ......................................2

414 ............JWBS14SF-414 ........ Retaining Ring.........................................................22 mm...........................2

415 ............TS-1550041 .............. Flat Washer .............................................................6 mm...........................12

416 ............JWBS14DP-134........ Pan Head Machine Screw.......................................M6x8.............................2

417 ............TS-1523011 .............. Socket Set Screw ...................................................M6x6.............................2

418 ............JWBS14SF-418 ........ Retaining Ring.........................................................15 mm...........................4

419 ............JWBS14SF-419 ........ Adjustable Handle....................................................M6x20...........................2

420 ............JWBS14SF-420 ........ Upper Guide Bracket............................................... ......................................1

421 ............TS-1534042 .............. Pan Head Machine Screw.......................................M6x12...........................8

422 ............JWBS14SF-422 ........ Locking Shaft........................................................... ......................................1

423 ............JWBS14SF-423 ........ Upper Guide Shaft................................................... ......................................1

424 ............JWBS14SF-424 ........ Guide Bracket.......................................................... ......................................1

425 ............JWBS14SF-425 ........ Knurled Locking Knob.............................................. ......................................1

426 ............TS-2286202 .............. Pan Head Machine Screw.......................................M6x20...........................2

427 ............JWBS14SF-427 ........ Guide Bar Bracket ................................................... ......................................1

428 ............TS-1523041 .............. Socket Set Screw....................................................M6x12...........................4

429 ............JWBS14SF-429 ........ Rack Lock Block...................................................... ......................................1

430............JWBS14SF-430 ........ Gear......................................................................... ......................................1

431............JWBS14SF-431 ........ Shaft........................................................................ ......................................1

432............JWBS14SF-432 ........ Plate......................................................................... ......................................1

433 ............JWBS14SF-121 ........ Set Screw................................................................M8x10...........................2

434............JWBS14SF-434 ........ Rack......................................................................... ......................................1

435 ............TS-1534041 .............. Flat Head Machine Screw........................................M5x10...........................4

436 ............TS-1503031 .............. Socket Head Cap Screw..........................................M6x12...........................1

437 ............JWBS14SF-437 ........ Guide Post............................................................... ......................................1

438 ............TS-1523051 .............. Socket Set Screw....................................................M6x16...........................4

439 ............JWBS14SF-439 ........ Flat Head Machine Screw........................................M8x25...........................4

440 ............TS-1550061 .............. Flat Washer .............................................................8 mm.............................4

441............JWBS14SF-441 ........ Lock Knob................................................................ ......................................1

442............JWBS14SF-442 ........ Worm....................................................................... ......................................1

443............JWBS14SF-443 ........ Sleeve...................................................................... ......................................1

444............JWBS14SF-444 ........ Washer .................................................................... ......................................1

445 ............JWBS14SF-445 ........ Retaining Ring.........................................................14 mm...........................1

446 ............JWBS14SF-446 ........ Handwheel Assembly (#446-1 thru 446-4)..............14x125 mm...................1

446-1.........TS-1541031 .............. Hex Nut....................................................................M8.................................1

446-2.........JWBS14SF-446-2..... Handwheel............................................................... ......................................1

446-3.........JWBS14SF-446-3..... Handle Body............................................................ ......................................1

446-4.........JWBS14SF-446-4..... Handle ..................................................................... ......................................1

447 ............TS-1524021 .............. Socket Set Screw....................................................M8x10...........................1

448 ............JWBS14SF-448 ........ Blade Guard............................................................. ......................................1
