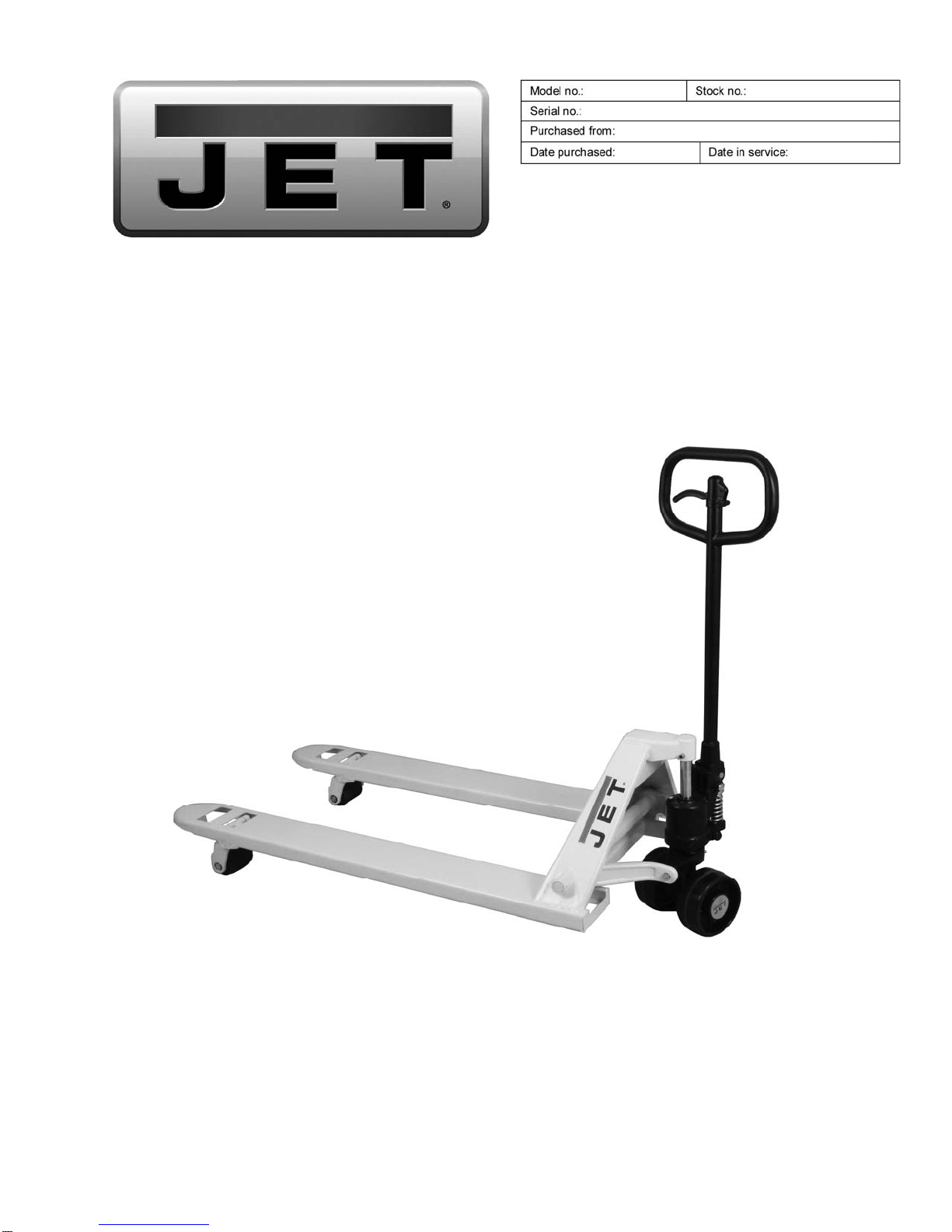

Jet PT-1636J Service manual

Operating Instructions and Parts Manual
PTJ Series Pallet Trucks
JET
427 New Sanford Road
LaVergne, Tennessee 37086 Part No. M-151003
Ph.: 800-274-6848 Revision B 08/2014
www.jettools.com Copyright © 2014 JET

2
1.0 Warranty and Service
JET warrants every product it sells against manufacturers’ defects. If one of our tools needs service or repair, please
contact Technical Service by calling 1-800-274-6846, 8AM to 5PM CST, Monday through Friday.
Warranty Period
The general warranty lasts for the time period specified in the literature included with your product or on the official
JET branded website.
•JET products carry a limited warranty which varies in duration based upon the product. (See chart below)
•Accessories carry a limited warranty of one year from the date of receipt.
•Consumable items are defined as expendable parts or accessories expected to become inoperable within a
reasonable amount of use and are covered by a 90 day limited warranty against manufacturer’s defects.
Who is Covered
This warranty covers only the initial purchaser of the product from the date of delivery.
What is Covered
This warranty covers any defects in workmanship or materials subject to the limitations stated below. This warranty
does not cover failures due directly or indirectly to misuse, abuse, negligence or accidents, normal wear-and-tear,
improper repair, alterations or lack of maintenance. JET woodworking machinery is designed to be used with Wood.
Use of these machines in the processing of metal, plastics, or other materials may void the warranty. The exceptions
are acrylics and other natural items that are made specifically for wood turning.
Warranty Limitations
Woodworking products with a Five Year Warranty that are used for commercial or industrial purposes default to a
Two Year Warranty. Please contact Technical Service at 1-800-274-6846 for further clarification.
How to Get Technical Support
Please contact Technical Service by calling 1-800-274-6846. Please note that you will be asked to provide proof
of initial purchase when calling. If a product requires further inspection, the Technical Service representative will
explain and assist with any additional action needed. JET has Authorized Service Centers located throughout the
United States. For the name of an Authorized Service Center in your area call 1-800-274-6846 or use the Service
Center Locator on the JET website.
More Information
JET is constantly adding new products. For complete, up-to-date product information, check with your local distributor
or visit the JET website.
How State Law Applies
This warranty gives you specific legal rights, subject to applicable state law.
Limitations on This Warranty
JET LIMITS ALL IMPLIED WARRANTIES TO THE PERIOD OF THE LIMITED WARRANTY FOR EACH PRODUCT.
EXCEPT AS STATED HEREIN, ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE EXCLUDED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN
IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
JET SHALL IN NO EVENT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY, OR FOR
INCIDENTAL, CONTINGENT, SPECIAL, OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OF OUR
PRODUCTS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
JET sells through distributors only. The specifications listed in JET printed materials and on official JET website are
given as general information and are not binding. JET reserves the right to effect at any time, without prior notice,
those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason
whatsoever. JET®branded products are not sold in Canada by JPW Industries, Inc.
Product Listing with Warranty Period
90 Days – Parts; Consumable items; Light-Duty Air Tools
1 Year – Motors; Machine Accessories; Heavy-Duty Air Tools; Pro-Duty Air Tools
2 Year – Metalworking Machinery; Electric Hoists, Electric Hoist Accessories; Woodworking Machinery used
for industrial or commercial purposes
5 Year – Woodworking Machinery
Limited Lifetime – JET Parallel clamps; VOLT Series Electric Hoists; Manual Hoists; Manual Hoist
Accessories; Shop Tools; Warehouse & Dock products; Hand Tools
NOTE: JET is a division of JPW Industries, Inc. References in this document to JET also apply to JPW Industries,
Inc., or any of its successors in interest to the JET brand.

3
2.0 Table of contents
Section Page
1.0 Warranty and Service.....................................................................................................................................2
2.0 Table of contents............................................................................................................................................3
3.0 Safety warnings..............................................................................................................................................4
4.0 Introduction ....................................................................................................................................................5
5.0 Specifications.................................................................................................................................................5

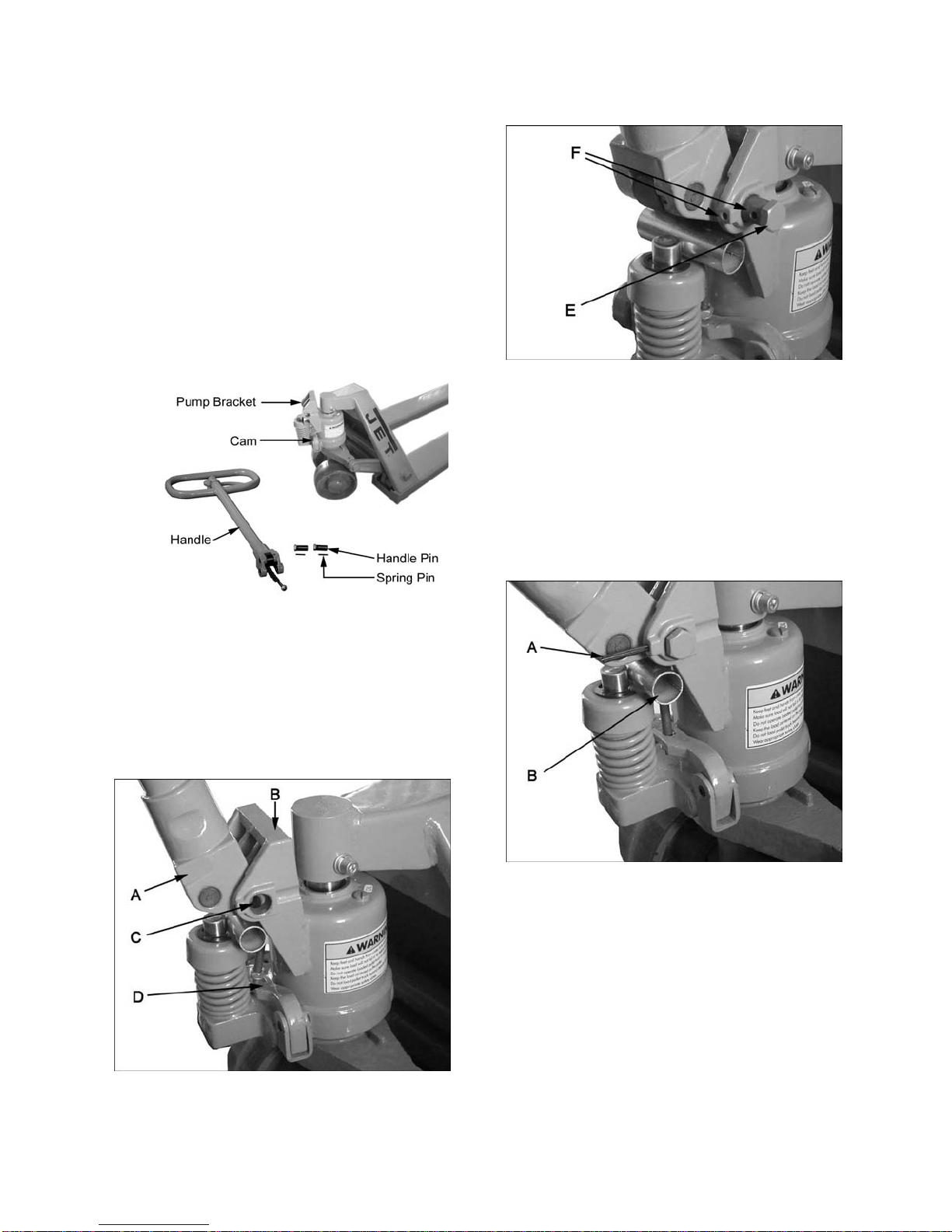

6.0 Setup and assembly.......................................................................................................................................6
7.0 Operations......................................................................................................................................................6

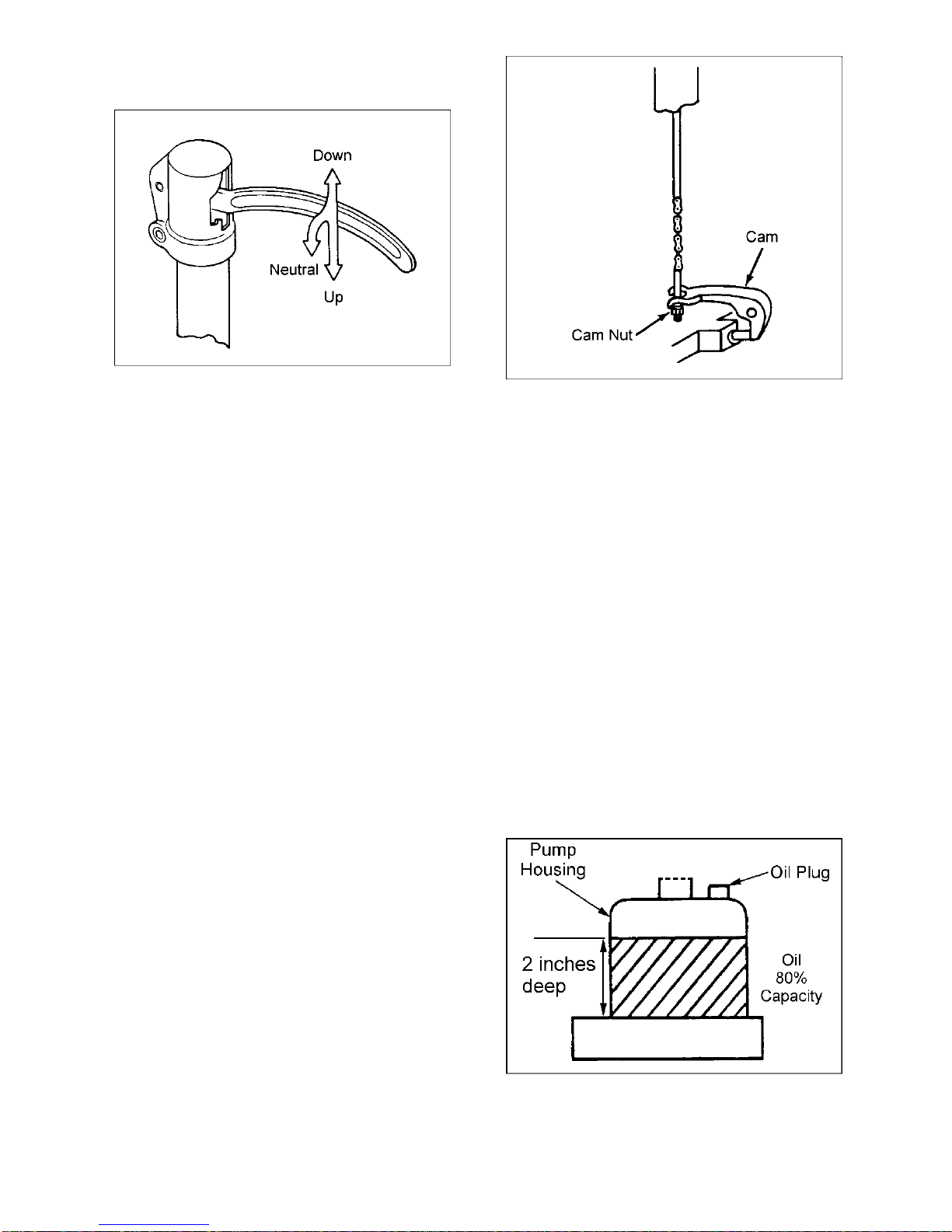

7.1 Lifting Load.................................................................................................................................................7
7.2 Moving Load...............................................................................................................................................7
7.3 Lowering Load............................................................................................................................................7
7.4 Up-Down Cam Adjustment.........................................................................................................................7
8.0 Maintenance...................................................................................................................................................7
8.1 Cleaning Release Valve.............................................................................................................................7
8.2 Lubrication..................................................................................................................................................7
8.3 Piston Seal/O-Ring Replacement...............................................................................................................8
9.0 Troubleshooting the PTJ Series Pallet Trucks...............................................................................................9
10.0 Replacement Parts.......................................................................................................................................9

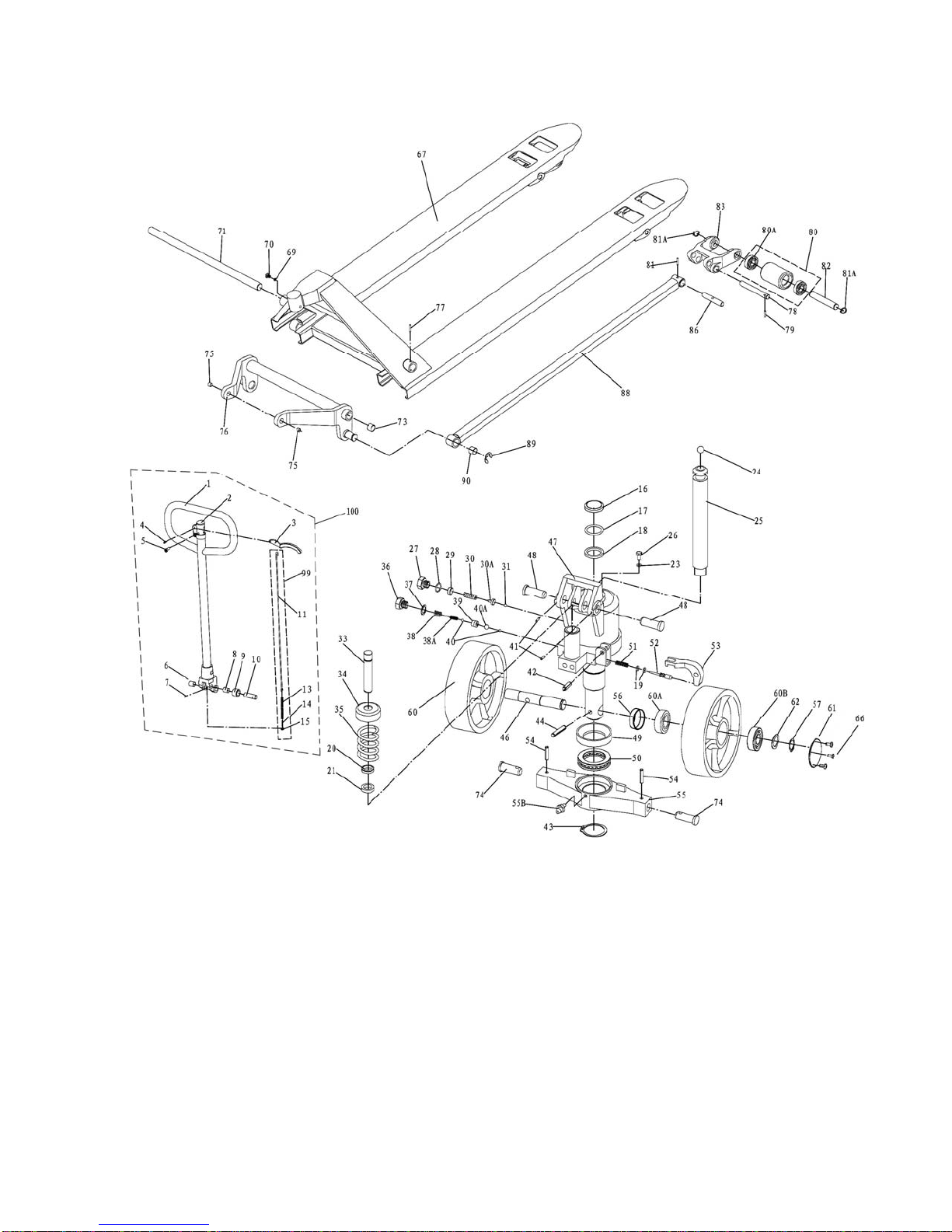

10.1.1 PTJ-Series Pallet Trucks – Exploded View.........................................................................................10
10.1.2 PTJ-Series Pallet Trucks – Parts List..................................................................................................11

4
3.0 Safety warnings
1. Read and understand the entire owner's manual before attempting assembly or operation of the pallet
truck.
2. Read and understand the warnings on the pallet truck and in this manual. Failure to comply with all of
these warnings may cause serious injury.
3. Replace the warning labels if they become obscured or removed.
4. Do not use this pallet truck for other than its intended use. If used for other purposes, JET disclaims any
real or implied warranty and holds itself harmless from any injury that may result from that use.
5. Do not place hands or feet under the pallet truck at any time.
6. Do not operate a loaded pallet truck on ramps or inclines.
7. Do not tip load pallet truck forks. This may cause damage to the forks and personal injury if the rear of the
pallet truck suddenly pops up.
8. Never leave a loaded pallet truck unattended in the raised position. Always lower load to the floor.
9. Do not load pallet truck beyond its rated capacity of 5,000 lbs.
10. Secure load before transporting.
11. To prevent accidental tipping, make sure load is centered on the forks.
12. Do not move a loaded pallet truck by other than manual force.

5
4.0 Introduction
To better understand the proper use and safe operation of this pallet truck, please take a few minutes to
carefully read and follow the instructions contained in this manual. When finished reading and understanding
the manual, please file in a safe and convenient location for the life of the pallet truck. If the pallet truck
transfers ownership, the manual should accompany it.
This pallet truck is designed to push and pull palletized material loads up to 5,000 pounds only.
You will notice several important features about your JET Pallet Truck. For example, its 2-1/2” lowered height
and tapered fork tips allow easy entry into pallets. The heavy-gauge steel frame is reinforced with cross-welded
steel plates to prevent forks from bending and solid steel push rods are used for added strength. The pump
features top-of-the-stroke and overload by-pass valve systems. A durable powder coat finish provides long
lasting steel protection. Extra wide polyurethane covered steel steer wheels and nylon load wheels feature
lifetime lubricated, double sealed bearings to provide smooth, quiet rolling and added stability.
If there are questions or comments, please contact your local supplier or JET. JET can also be reached at our
web site: www.jettools.com.
5.0 Specifications
Figure 1
The specifications in this manual were current at time of publication, but because of our policy of continuous
improvement, JET reserves the right to change specifications at any time and without prior notice, without incurring
obligations.
Model # Stock # W1 W2 L1 L2 H1 H2 A (dxw) B (dxw) C
Net
Wt.
(lb.)
PT-1636J 151003 16” 6” 36” 51” 6-1/4” 2-1/2” 6-1/4”x2-3/4” 2-1/2”x3-3/4” 45-1/8” 135
PT-2036J 151004 20-1/2” 6” 36” 51” 6-1/4” 2-1/2” 6-1/4”x2-3/4” 2-1/2”x3-3/4” 45-1/8” 150
PT-2042J 151005 20-1/2” 6” 42” 57” 6-1/4” 2-1/2” 6-1/4”x2-3/4” 2-1/2”x3-3/4” 45-1/8” 161
PT-2048J 151006 20-1/2” 6” 48” 63” 6-1/4” 2-1/2” 6-1/4”x2-3/4” 2-1/2”x3-3/4” 45-1/8” 172
PT-2742J 151008 27” 6” 42” 57” 6-1/4” 2-1/2” 6-1/4”x2-3/4” 2-1/2”x3-3/4” 45-1/8” 185
PT-2748J 151009 27” 6” 48” 63” 6-1/4” 2-1/2” 6-1/4”x2-3/4” 2-1/2”x3-3/4” 45-1/8” 196
