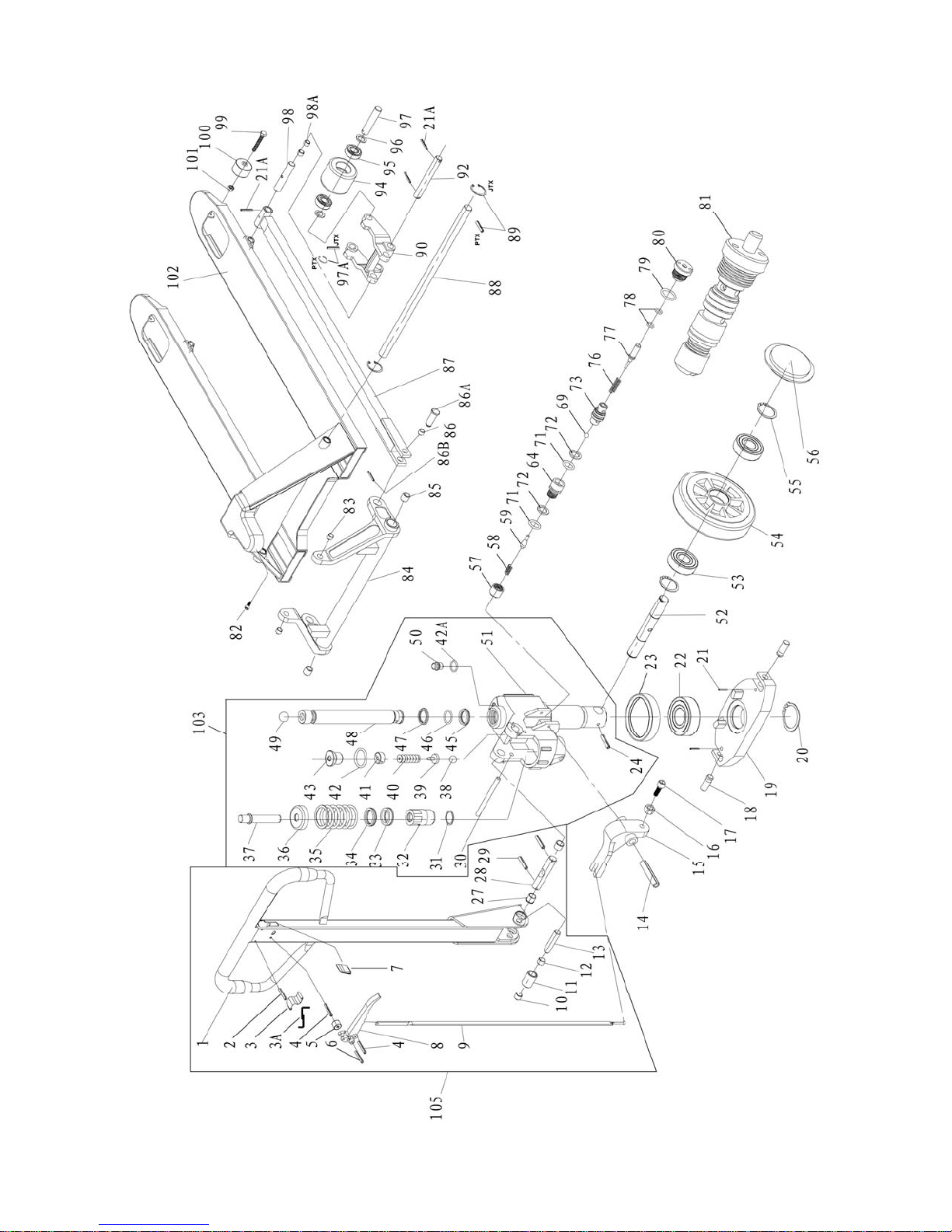

Parts List: PTX Pallet Trucks
Index No. Part No. Description Size Qty

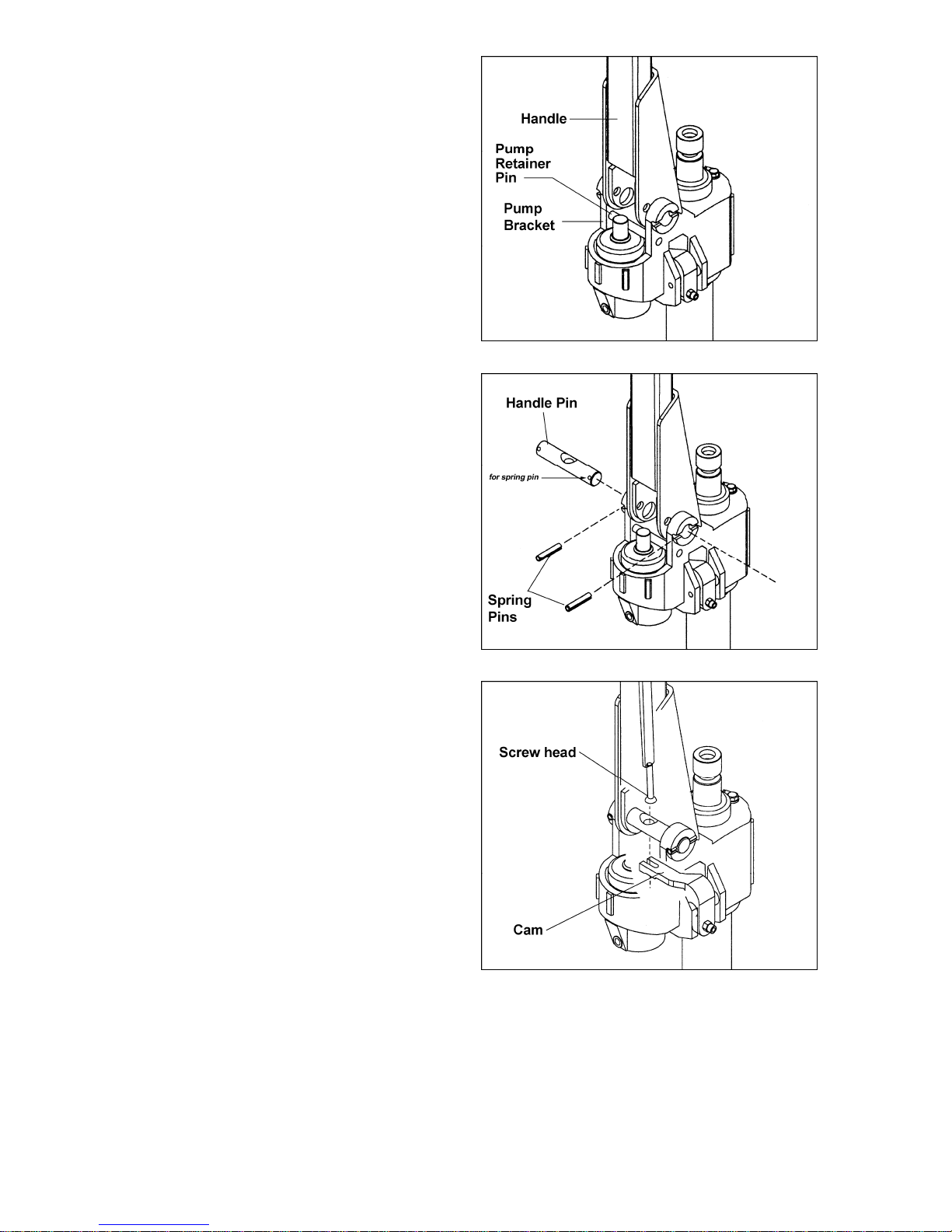

1 ...............PTX2748-001...........Handle.......................................................................................................1
2 ...............PTX2748-002...........Spring Pin.......................................................Ø4 x 30 mm.......................1
3 ...............PTX2748-003...........Block Spring..............................................................................................1
3A.............PTX2748-003A ........Torsional Spring........................................................................................1
4 ...............5509313...................Spring Pin.......................................................Ø4 x 16 mm.......................2
5 ...............PTX2748-005...........Roller..............................................................Ø12 x 10 mm.....................1
6 ...............PT1636J-054 ...........Spring Pin.......................................................Ø6 x 30 mm.......................1
7 ...............PTX2748-007...........Lever Mat..................................................................................................1
8 ...............PTX2748-008...........Control Lever.............................................................................................1
9 ...............PTX2748-009...........Release Rod .............................................................................................1
10 .............PTX2748-010...........Oil Lite Bushing..............................................Ø15 x Ø17 x 17 mm..........1
11 .............PTX2748-011...........Roller..............................................................Ø24 x 36 mm.....................1
12 .............PTX2748-010...........Oil Lite Bushing..............................................Ø15 x Ø17 x 17 mm..........1
13 .............PTX2748-013...........Roller Pin........................................................Ø15 x 60 mm.....................1
14 .............PTX2748-014...........Spring Pin.......................................................Ø8 x 50 mm.......................1
15 .............PTX2748-015...........Cam...........................................................................................................1
16 .............TS-1540061 .............Hex Nut..........................................................M8 .....................................1
17 .............TS-1504041 .............Socket Head Cap Screw................................M8 x 20..............................1
18 .............PTX2748-018...........Table Pin........................................................Ø16 x 47 mm.....................2
19 .............PTX2748-019A ........Table.........................................................................................................1
20 .............PTX2748-020A ........Snap Ring ......................................................50 mm ...............................1
21 .............PT1636J-054 ...........Spring Pin.......................................................Ø6 x 30 mm.......................2
21A...........PT2748J-081 ...........Spring Pin.......................................................Ø5 x 30 mm.......................4
22 .............PTX2748-023...........Ball Bearing....................................................51110 ................................1
23 .............PTX2748-022...........Bearing Base.............................................................................................1
24 .............PT2748A-044...........Spring Pin.......................................................Ø8 x 40 mm.......................1
27 .............PTX2748-027A ........Oil Lite Bushing..............................................Ø20 x Ø22 x 15 mm..........2
28 .............PTX2748-028...........Handle Pin......................................................Ø20 x 100 mm...................1
29 .............PTX2748-029...........Spring Pin.......................................................Ø5 x 40 mm.......................2
30 .............PTX2748-030...........Pump Retainer Pin.........................................Ø8 x 100 mm.....................1
31 .............PTX2748-031A ........Washer * ........................................................Ø27 mm.............................1
32 .............PTX2748-032...........Plunger Housing .......................................................................................1
33 .............PTX2748-033A ........U-Packing *....................................................Ø26 x Ø18 x 5 mm............1
34 .............PTX2748-034A ........Dust Seal Ring *.............................................Ø26 x Ø18 x 6 mm............1
35 .............PTX2748-035...........Spring........................................................................................................1
36 .............PTX2748-036...........Spring Cap................................................................................................1
37 .............PTX2748-037A ........Plunger Piston................................................Ø18 x 101 mm...................1
38 .............SB-6MM...................Steel Ball........................................................6 mm .................................1
39 .............PT2748A-030...........Spring Base...............................................................................................1
40 .............PT2748A-030A ........Spring........................................................................................................1
41 .............PTX2748-041...........Release Screw..........................................................................................1
42 .............PT2748J-101B-8......O-Ring * .........................................................11.8 x 2.65 mm
..................2
42A...........PT2748J-101B-7......O-Ring * .........................................................6 x 1.9 mm.........................2
43 .............PT2748A-027...........Pressure Adjust Screw..............................................................................1
45 .............PTX2748-045A ........U-Packing *....................................................Ø32 x Ø40 x 6 mm............1
46 .............PTX2748-046...........O-Ring * .........................................................31.7 x 3.5 mm....................1
47 .............PTX2748-047...........Dust Seal Ring *.............................................Ø32 x Ø40 x 6.5 mm.........1
48 .............PTX2748-048A ........Ram Piston.....................................................Ø32 x 270 mm...................1
49 .............SB-19.......................Steel Ball........................................................19 mm ...............................1
50 .............PT2748A-026...........Oil Plug......................................................................................................1
51 .............PTX2748-051A ........Pump Housing ..........................................................................................1
52 .............PTX2748-052...........Wheel Shaft (s/n 11090001 and higher)........Ø25 x 175 mm...................1
53 .............BB-6205...................Ball Bearing (s/n 11090001 and higher)........6205 ..................................4
54 .............PTX2748-054...........Steering Wheel ..............................................Ø180 O.D. x 50w mm........2
55 .............PTX2748-055...........Snap Ring ......................................................25 mm ...............................2
56 .............PTX2748-056...........Dust Seal Cap...........................................................................................2
57 .............PTX2748-057...........Valve Cap..................................................................................................1
