JETStream PI-123 Instruction sheet

Read these instructions thoroughly before installing, connecting, or using the
TUBE SPINNING NOZZLE. If any questions remain, call JETSTREAM at (800) 231-
8192 or [phone]. Also read the yellow JETSTREAM SAFETY WARNING
pamphlet included with the shipment of your new TUBE SPINNING NOZZLE and
reproduced inside this publication. This product is sold with the understanding
that the purchaser agrees to thoroughly train all operators and maintenance per-
sonnel in the correct and safe installation, operation and maintenance of the prod-
uct and to provide adequate supervision of personnel at all times. Retain these
instructions for future reference. If this product is resold or otherwise conveyed,
purchaser must pass on the instructions to the new user.
PRODUCT INSTRUCTIONS

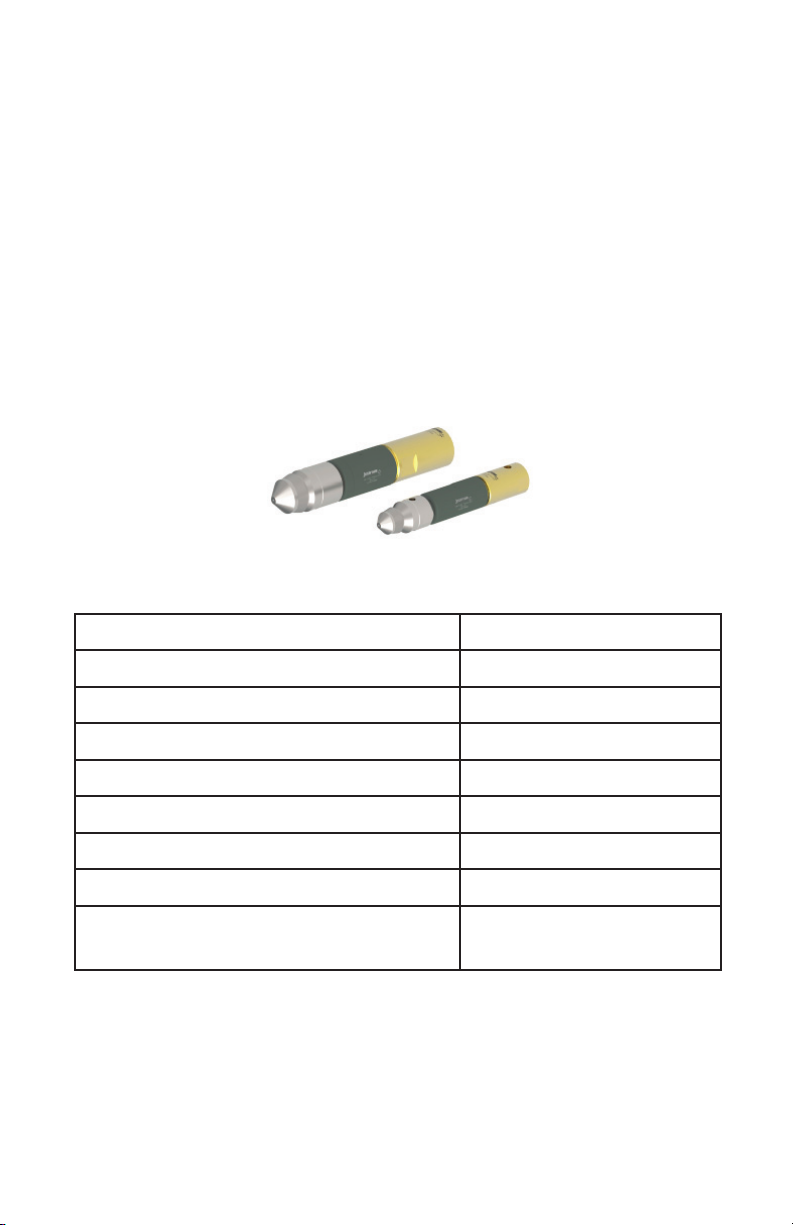

TUBE SPINNING NOZZLE 15K/22K
PI-123

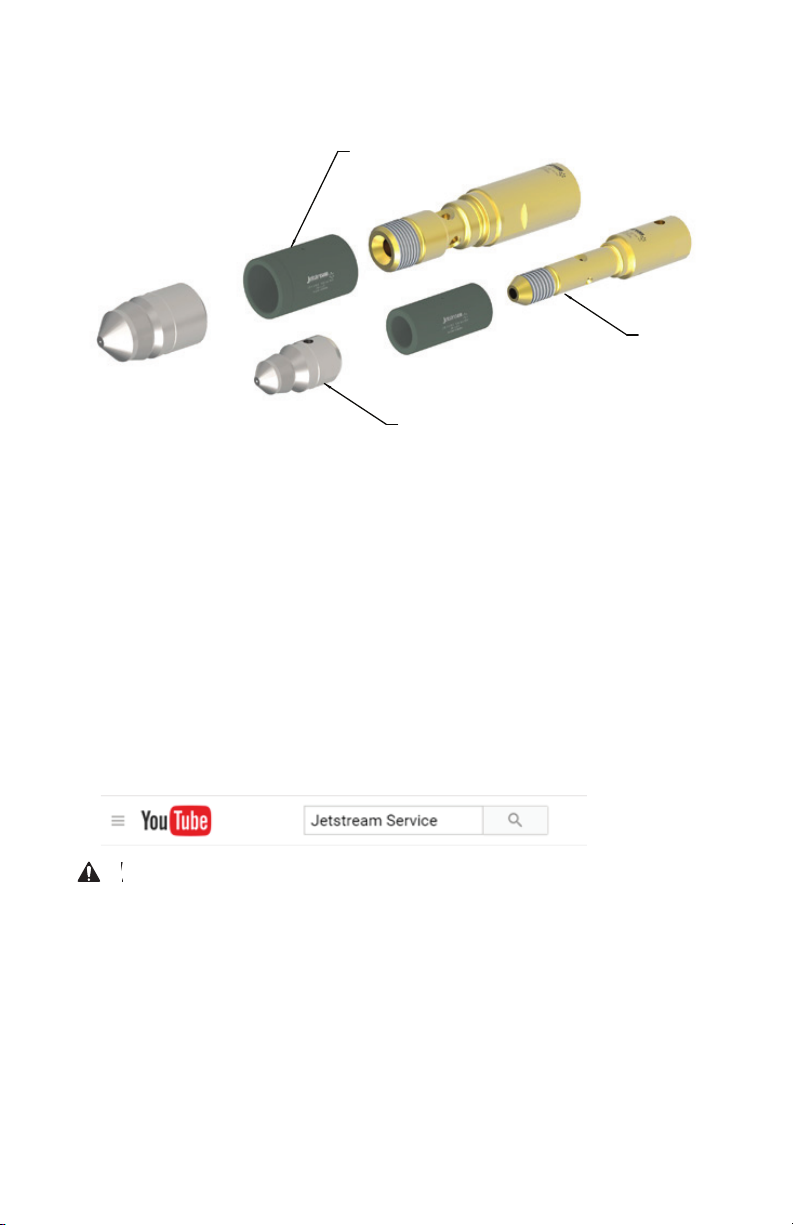

The Tube Spinning Nozzle is assembled from three components: the
nozzle body, the sleeve, and the front nozzle (multiple types available).
The sleeve spins at an ultra-high rpm to provide streak-free cleaning and
polishing in a single pass. The front nozzle blasts free large deposits and
provides propulsion. The nozzle is self-propelling and can be used on
both rigid and flexible tube cleaning lances.

2PI-123May2017
Table of Contents
Section 1: Safety ...........................................................................3
Section 2: Product Description ....................................................14
Section 3: Preparation for Use .....................................................15
Section 4: Setup ..........................................................................16
Section 5: Operation ....................................................................18
Section 6: Service........................................................................20
Section 7: Troubleshooting ...........................................................21
Appendix A
Exploded View .............................................................................22
Appendix B
Tube Spinning Nozzle Options......................................................23
Tube Spinning Nozzle Flow Chart .................................................24
Cap Nozzle Flow Chart.................................................................25
Accessories .................................................................................26
Cap Nozzle ..................................................................................26
Warranty......................................................................................38

3PI-123May 2017
Section 1: Safety
This section includes all the same information included in the yellow
JETSTREAM SAFETY WARNING pamphlet.
This information was prepared to aid in the identification of potentially
unsafe conditions when using high pressure waterblast equipment. It
should be noted that other potential hazards may exist which might have
not been mentioned in this brochure.
In all cases, JETSTREAM products are sold with the understanding that
the purchaser agrees to thoroughly train all operating and maintenance
personnel in the correct and safe installation, operation of maintenance of
waterblast equipment and to provide adequate supervision of personnel
at all times.
Read the following in its entirety before connecting, operating or repair-
ing equipment. Purchasers and operators also should be familiar with
the current version of the “Industry Best Practices for the Use of High
Pressure Waterjetting Equipment” published by the Waterjet Technology
Association, as well as any applicable OSHA regulations, standards and
guidelines.
Should any questions arise concerning safe and proper procedure,
contact JETSTREAM prior to the installation or use at [phone] or
[phone].
D
ANGER
Incorrect Use of High Pressure Waterblast
Equipment May Cause Serious Injury
Read these instructions in their entirety
before using any JETSTREAM products.

4PI-123May2017
GENERAL WATERBLAST
1. Use only clear, clean water in high pressure system.
2. Place barricades with warning signs or barricade tape around work
area.
3. Outfit all operators with Personal Protective Equipment (PPE). Hard hat
with plastic face shield, rainsuit, non-skid knee boots with metatarsal
protection, gloves, ear protection and body armor rated for operating
pressures are considered minimum safety equipment. Proper respiratory
protection is required where dangerous fumes or dust is present or
created by the waterblasting operation. Follow applicable OSHA
regulations, standards and guidelines regarding the use of respiratory
protection if harmful fumes or dust is present during, or created by the
waterblasting operation
4. Use products intended for high pressure waterblasting only.
5. No product should be altered without written consent of the
manufacturer.
6. Read and follow all manufacturer’s instructions prior to using any
waterblast product. Contact manufacturer.
7. Thoroughly review alternative methods before initiating any potentially
dangerous waterblasting operation. Fully automated, semi-automated,
and/or mechanized methods should all be considered first. Contact the
applicable waterblasting manufacturers for assistance and recommenda-
tions.
8. The operator handling the cleaning device (with nozzle) must always
have control of water pressure. A surface cleaning operator should
operate a trigger style control gun capable of instantaneously stopping
pressure to nozzle. A tube cleaning lance operator should operate a foot
gun capable of instantaneously stopping pressure to the lance.
9. Inspect the condition of all components prior to use. Use no items
which are in questionable condition.
10. Check the condition of thread connections prior to the make-up of any
high pressure connection. Use Teflon tape and anti-seize on male pipe
(NPT) thread for sealing purposes. Do not let tape overlap the male pipe
thread end. Tape fragments may enter system water stream and clog
nozzle’s orifices.
Do Not use a component with missing or damaged threads on the
high pressure connections.

5PI-123May 2017
11. Properly tighten all high pressure connections. All NPT connections
must have a minimum engagement of four (4) threads. Pipe (NPT)
connections should be made up hand tight plus two (2) full wrenched
turns. Do not tighten NPT threads past two (2) wrenched turns.
CAUTION
Use wrench flats (when available) or a properly adjusted
smooth jaw plier wrench (JS PN 64119) for tightening components.
Avoid using pipe wrench as wrench marks will cause high pressure
components to crack and fail.
12. All high pressure hose connections require a hose restraint (whip
check), including connection at fluid end discharge.
13. Before attaching a nozzle to the control gun or tube cleaning lance,
operate the pump at low speed to purge dirt and debris from system.
Dirt and debris can clog nozzle orifice(s) and cause excessive
system pressure which could lead to a lance failure.
14. With nozzle installed, operate the pump at a low speed (low
pressure) for test. Should system repairs or adjustments be necessary,
stop pump and relieve all pressure before making required repairs or
adjustments. The pump operator should watch the nozzle operator at all
times in case any difficulty arises and it becomes necessary to depressur-
ize system. If the pump operator does not have a clear line of sight to the
nozzle operator, it may be necessary to have another employee available
to communicate between the nozzle and pump operators.
15. With the system operating properly, increase pump speed slowly
until operating pressure is reached and adjusted. Pressure adjust-
ments should always be made slowly. The nozzle operator shall be
warned before any pressure adjustment is made by the pump operator.
A sudden change in reaction force may cause the nozzle operator to lose
balance.
16. Use minimum pressure required for cleaning. Do not exceed the
operating pressure of the system’s lowest pressure-rated component.
All equipment pressure rating markers and warning tags should be left
intact.
17. Waterblast operators must be made aware that the cleaning nozzle’s
discharge jets(s) can inflict serious body wounds. Supervisors should
demonstrate the potential danger of discharge jet(s) by showing all new
operators the effect of a waterjet by cutting a scrap piece of wood such
as a 2” x 4”.

6PI-123May2017
18. If equipment malfunctions or a system malfunction is suspected,
immediately stop cleaning activity and relieve the pressure in the system
before attempting any repairs. Always follow the manufacturer’s repair
instructions.
19. Only trained persons should be authorized to perform any mainte-
nance or repair.
20. Following any repairs, the system should be operated at low pressure
for test. Bring equipment up to operating pressure slowly.
21. For shutdown in freezing conditions, even for brief periods, drain
water from all components. Prior to starting operations in freezing
conditions, the operation of all equipment components must be checked
carefully to make sure components are not frozen and can be operated.
22. Store components properly by protecting them from damage when
not in use. Be sure all safety warning tags and markers remain intact.
CONTROL GUNS AND DEVICES
1. Read General Safety section before connecting or using control guns
or control devices.
2. Thoroughly review alternative methods before initiating any potentially
dangerous shotgunning or hand lancing operation. Fully automated,
semi-automated, and/or mechanized methods should all be considered
first. Contact the applicable waterblasting manufacturers for assistance
and recommendations.
W
ARNING
WW
As described in the Industry Best Practices for the Use
of High Pressure Waterblasting Equipment published by the Waterjet
Technology Association, the standard shotgun barrel length shall be a
minimum length of 48” to minimize the risk of nozzle discharge
accidentally striking the operator’s feet, legs, or body. See Section
11.10.6. The WJTA has recognized that deviations or variances from
these best practices may be acceptable under certain circumstances.
See Section 2.7. If users believe deviation from this 48” standard is ac-
ceptable, they should follow procedures outlined in Section 2.7 to
minimize risk to the operator. Among other things, users should ensure
that other measures to perform the work have been considered and
exhausted, senior safety management and customers have considered
and approved the deviation, operators have been properly trained and
warned about any increased risk associated with the deviation, and
operators are wearing all appropriate PPE, including body armor rated for

7PI-123May 2017
the operating pressure.
3. Prior to use, thoroughly check control gun or control device for smooth
and proper operation. Control guns and control devices should also be
checked for proper operation before each operating shift. Do not use
any control gun or control device that has not been checked before your
operating shift.
4. A control gun operator using a hand-held gun should position and
brace his body for the gun’s rearward reaction force before depressing
gun trigger. Gun’s rearward reaction should be a maximum force of 40 to
50 lbs. (or 1/3 body weight of operator.) The control gun operator should
maintain firm, solid footing to counter gun’s rearward reaction.
5. The use of a Safety Shroud and a Safety Whip Hose with handheld
control guns is strongly recommended for additional operator protec-
tion against a burst occurring in the high pressure hose connected to the
gun. Use of Hand Grip and Shoulder Stock in hand-held control guns will
provide greater operator comfort and safety.
6. Fall protection should be provided when blasting on scaffolding or
sloping surface per OSHA guidelines. Do not operate a hand-held gun
while standing on slippery surfaces.
7. The control gun operator should always start blasting with a low
system pressure and slowly increase blasting pressure. Depress and
release control gun trigger/pedal several times at operating pressure to
check the control gun’s operation before starting cleaning operations.
8. A dump type control gun should always open fully and reduce the
system pressure to near zero immediately when its trigger/pedal is
released. If this type of control gun does not relieve system pressure
immediately or system pressure does not fall below 200 psi when trigger/
pedal is released, do not use the control gun.
9. The control gun operator should never pass a control gun to another
operator without first stopping the pump and water flow to the control
gun. Passing off a control gun without first stopping system waterflow is
dangerous because of possible accidental trigger actuation.
10. Do not use a control gun or control device that has malfunctioned or
you suspect malfunctioned without having it repaired and/or thoroughly
checked for proper operation by a qualified high pressure maintenance
mechanic or your supervisor.
11. Do not use a control gun that does not have a trigger guard.
12. Never tie, wedge or clamp a control gun’s trigger in the closed
position.

8PI-123May2017
13. All electric throttle control cords should be rated for wet conditions.
All cord connections and switches should be kept out of water.
14. Any hose used for transporting dump water back to pump should
have a large enough diameter and short enough length so that potentially
dangerous back pressure is kept low. Protect hose from traffic.
15. Hand-operated control guns should never be used as foot-operated
devices.
PRESSURE RELIEF DEVICES
1. Read General Safety section prior to installing Relief Valve and/or
Pressure Relief Devices.
2. A waterblast system should include both primary and secondary
pressure relief protection:
A. For primary protection a primary rupture disc assembly or spring-
loaded relief set at 1.2 times, maximum operating pressure is
recommended (i.e. relief valve is set at 12,000 psi if maximum
operating pressure is 10,000 psi)
B. For secondary protection a rupture disc assembly containing a
manufacturer’s approved disc having a burst rating of 1.4 times
maximum operating pressure is recommended.
W
ARNING
WW
Only use a rupture disc holder which will NOT permit the
use of coins or other objects in place of discs.
3. Relief devices should never be mounted so the discharge could strike
personnel.
4. Never install a shut-off valve between the pump and relief device.
5. “Set pressure” must be prominently displayed on all relief devices.
Never install or use a relief device unless its “set pressure” is known.
6. Do not attempt to correct a leaking relief valve by increasing spring
tension as this will increase its set pressure.
7. Do not use a pressure relief valve as a combination relief and throttling
device.
8. Keep relief valve dry during freezing conditions.
NOTE: Pressure relief devices are imperative for the protection of both
operator and equipment from dangerous over-pressurization.

9PI-123May 2017
HIGH PRESSURE HOSE
1. Read General Safety section prior to connecting high pressure hose.
2. Do not use a high pressure hose with a burst rating less that 2.5 time
the pressure at which it will operate. 10,000 psi operating pressure high
pressure must have a minimum 25,000 psi burst rating. 8,000 psi
operating hose must have a minimum 22,500 psi burst rating.
3. Do not use a high pressure hose that has an unknown burst rating or
manufacturer’s operating pressure rating.
4. Use of a Safety Shroud is strongly recommended for added safety
where hose connects to control gun.
5. Use of hose restraint (whip check) is required at all hose connections,
including connections at fluid end.
6. Always apply wrench to wrench flats when making threaded
connections. Do not apply wrench on the end fitting ferrule (collar).
7. Remove hose from service if:
A. Cover is damaged and reinforcing wires are exposed to rust and
corrosion;
B. Cover is loose, has blisters or bulges;
C. Hose has been crushed or kinked;
D. End fitting shows evidence of damage, slippage, or leakage.
E. Hose has been exposed to pressures greater than 50% of burst
rating; or
F. Hose is three or more years old, regardless of condition.
8. Disconnect, drain, coil and store hose properly after use.
9. Never attempt to repair or recouple high pressure hoses in field. High
pressure hose end fittings are the permanently crimped type and can only
be properly installed with hydraulic crimping equipment.
NOZZLES
1. Read General Safety section. Read the appropriate Safety Warning
(i.e. Flexible Tube Cleaning Lances or Rigid Tube Cleaning Lances) prior
to installing nozzle on lance.
2. Nozzle flow ratings must be compatible with pump discharge and
pump pressure rating. A flow rating is stamped on the side of
JETSTREAM’S nozzles. (See Nozzle Flow Rating Chart in JETSTREAM
Catalog.)
3. Use only nozzles with a manufacturer’s pressure rating of at least the
operating pressure or a burst rating or no less than 3.0 times the desired
operating pressure.

10 PI-123 May 2017
4. Prior to installation, make sure the nozzle has no clogged orifices.
5. For 15,000 psi models - Apply 3 - 4 wraps of Teflon tape to male
connection thread on the barrel. Apply anti-seize compound over the
sealant tape for additional protection against galling in connection
threads. Wrench connection 1 1/2 - 2 turns past hand tight. A minimal
thread engagement of four (4) threads should exist on all Jetstream NPT
pipe connections.
For 22,500 psi models - Apply anti-gall compound to the gland threads
and male cone on control gun front barrel. DO NOT use Teflon tape.
Check blast nozzle size before installing the nozzle. Make sure the nozzle
orifices are not too small in order to prevent excessive system pressure
when the gun’s control valve trigger/pedal is depressed.
6.
CAUTION
Use wrench flats (when available) or a properly adjusted
smooth jaw plier wrench (JS PN 64119) to tighten nozzle. Avoid using
pipe wrench as wrench marks will cause nozzles to crack and fail.
7. Special nozzles requiring a thread locking pin must have the pin
installed prior to use or the nozzle may unscrew from the lance while in
service and cause the lance to blow back toward the operator.
8. With nozzles requiring adjustment, always read applicable instructions.
9. Blocked orifice(s) can cause excessive system pressure and failure. If
orifice(s) appear clogged or partially blocked with dirt or debris, remove
nozzle from control gun or lance and clean immediately.
10. Remove nozzle from service if:
A. Nozzle is split or damaged;
B. Nozzle sidewall is worn by more than 25% at any point;
C. Nozzle’s ability to hold pressure is questionable
D. Threads are missing or damaged
FLEXIBLE TUBE CLEANING LANCES
1. Read General Safety section and Nozzle Safety Warnings prior to
connecting flex lances.
2. Do not use a flex lance with a burst rating less than 2.25 times the
pressure at which it will operate. 10,000 psi operating pressure flex
lances must have a minimum 22,500 psi burst rating. 8,000 psi operat-
ing pressure flex lances must have a minimum 18,000 psi burst rating.
3. Do not use a flex lance that has an unknown burst or unknown
manufacturer’s operating pressure rating.
4. Never use a lance which is kinked, worn, frayed or whose abilities
to hold pressure is questionable.

11PI-123May 2017
5. Do not use a lance which has damaged or missing threads.
6. Clearance between lance and tube deposits must be sufficient to
allow unrestricted backflow of water and debris. With tubes containing
hard deposits this clearance should be 1/8” minimum on the diameter
(or 1/16” per side) of the lance. With tubes containing soft, pliable
deposits this clearance should be greater. Insufficient side clearance
may cause lance to blow back toward operator.
7.
ay cause lance
y
W
ARNING
WW
Serious injury may occur should a lance with live nozzle
exit tube. Use anti-withdrawal device to prevent lance from exiting tube
unexpectedly.
8. The following JETSTREAM lance accessories are strongly
recommended for safer lance operation:
A. Lance Strain Relief - Helps prevent lance inlet end fitting failure.
B. Lance Stinger - Affords the operator greater control of nozzle.
Establishes a “safety zone” so operator knows when nozzle is about to
exit tube; will eliminate possibility of nozzle and lance “double back”
toward operator within large diameter pipe.
C. Anti-withdrawal device prevents the lance from exiting the tube
or pipe. Contact JETSTREAM for additional information regarding these
products.
9. Use only nozzles designed for use with flex lances (i.e. nozzle
drilled with sufficient rearward orifices so nozzle pulls lance through
tube.)
10. If lance end fittings do not have wrench flats, use properly adjusted
smooth jaw plier wrench (JS PN 64119) to connect lance to pressure
source and nozzle onto lance. Apply wrench on lance and fitting directly
behind end fitting thread (not on fitting ferrule or collar) when
installing nozzle on lance. Do not clamp on the lance hose itself with vise
when installing nozzle.
11. Avoid rough handling, stretching or straining of lance.
12. Never attempt to “ramrod” flex lance through blockages or to repair
or recouple lances.
13. After use, drain, coil and store lance properly. Be sure safety tags
remain intact.
RIGID TUBE CLEANING LANCES
1. Read General Safety section and Nozzle Safety Warnings prior to
connecting rigid lances.
2. Do not use a rigid lance with a burst rating less that 3.0 times the

12 PI-123 May 2017
pressure at which it will operate. 10,000 psi operating pressure rigid
lances must have a minimum 30,000 psi burst rating. Do not use a rigid
lance that has an unknown burst or unknown manufacturer’s operating
pressure rating.
3. Clearance between lance and tube must be sufficient to permit the
unrestricted backflow of water and debris. With tubes containing hard
deposits this clearance should be 1/8” minimum on the diameter (or
1/16” per side) of the lance. With tubes containing soft, pliable deposits
this clearance should be greater. Insufficient side clearance may cause
lance to blow back toward operator.
4. Be sure nozzle, lance and adapter thread sizes are compatible before
installing nozzle and adapter on lance. Do not use a rigid lance that has
damaged or missing threads.
5. Use wrench flats (when available) or a properly adjusted smooth jaw
plier wrench (JS PN 64119) to connect lance. Do not use pipe wrench as
wrench marks will cause high pressure components to crack and fail.
6. A rigid lance over 4 ft long requires two men for support and safe
operation. Operator at tube should use a foot control gun so he can
instantly relieve system pressure in case of emergency.
7. When using and moving lance, support it in a manner to avoid stress
and possible breakage at inlet end connection.
8. Never ”ramrod” lance into tube blockage.
9. Transport and store lances in tubes or racks to avoid bending,
corrosion or other damage. Damaged lances (bends, mars) should be
removed from service.
HIGH PRESSURE FITTINGS
1. Read General Safety section prior to installing fittings in system.
2. Use non-brass or non-cast iron fittings which are made for high
pressure waterblast use.
3. Use only high pressure fittings which are clearly marked with the
operating pressure.
4. High pressure fittings should have a known burst rating of not less than
3.0 times system operating pressure. Never use a damaged or corroded
fitting or one with damaged or missing threads.
5. Use only high pressure rated fittings and hose in the waterblast
system. For 10,000 psi waterblast service all fittings and hose should
have a minimum burst rating of 25,000 psi; for 15,000 psi service they
should have a minimum burst rating of 37,500 psi; for 20,000 psi service

13PI-123May 2017
they should have a minimum burst rating of 50,000 psi.
6. Use wrench flats (when available) or a properly adjusted smooth jaw
plier wrench (JS PN 64119) to tighten fittings. Avoid using pipe wrench as
wrench marks will cause high pressure fittings to crack and fail.
REPLACEMENT PARTS
1. Read General Safety section prior to repairing equipment and
installing replacement parts.
2. Only trained persons should be authorized to perform maintenance or
repairs to equipment.
3. Read and follow all manufacturer’s repair instructions. All tool, torque,
clearance and lubrication recommendations should be followed.
4. During replacement of any part, inspect mating part for wear and
replace if necessary.
5. Do not attempt to install or use a part whose dimensions, clearances,
function or use are suspect.
6. Test repaired equipment carefully and thoroughly before putting it into
service. Do not put any piece of repaired equipment into service if its
performance is questionable. If repaired equipment performance is
questionable, call manufacturer of repair parts for assistance.
This section concludes all the same information included in the yellow
JETSTREAM SAFETY WARNING pamphlet (PI-082).

14 PI-123 May 2017
Section 2: Product Description
The Tube Spinning Nozzle is assembled from three components: the
nozzle body, the sleeve, and the front nozzle (multiple types available).
The sleeve spins at an ultra-high rpm to provide streak-free cleaning and
polishing in a single pass. The front nozzle blasts free large deposits and
provides propulsion. The nozzle is self-propelling and can be used on
both rigid and flexible tube cleaning lances. Optional thrusters are
available for NPT connection tube spinning nozzles to provide additional
thrust for pulling through tubes. Depending on the connection type, the
Tube Spinning Nozzle is rated to 15,000 psi (NPT, M7, and BSPP),
20,000 psi (5/16-24 x ¼ MP), or 22,000 psi (MP LH/RH).
Product Specifications
Model Name Tube Spinning Nozzle
Maximum Operating Pressure (psi) 15K / 20K / 22K
Minimum Operating Pressure (psi) 3000
Maximum Flow (gpm) 35
Maximum Operating Pressure (bar) 1000 / 1400 / 1500
Minimum Operating Pressure (bar) 200
Maximum Flow (l/min) 132
Inlet Connection BSPP, M7, MP, NPT, 5/16-24
Cap Nozzles Accepted FB, FM, FP, HPEL, HPER,
HPFR, HPFL
NOTE: See Appendix B for list of PNs and accessories.

15PI-123May 2017
Section 3: Preparation for Use
3.0 BEFORE PUTTING TUBE SPINNING NOZZLE INTO SERVICE
NEW TUBE SPINNING NOZZLE
3.1 Check the Tube Spinning Nozzle carefully upon removal from its ship-
ping container for damage.
PREVIOUSLY USED TUBE SPINNING NOZZLE
3.2 Inspect all components.
3.3 The Tube Spinning Nozzle body, sleeve, and front nozzle should be
inspected and cleaned to ensure no debris has entered the orifice that
could plug the nozzle and over-pressurize the system.
3.4 Remove the Tube Spinning Nozzle from service if the body, sleeve,
thruster, or front nozzle show signs of cracking or excessive abrasion.
3.5 Review Flow Charts in Appendix B to decide on nozzle configuration
and proper flows for application.
15K Tube Spinner with FP Nozzle
Nozzle Sleeve Body
22K Tube Spinner with HPF Nozzle
Nozzle Sleeve Body

16 PI-123 May 2017
Section 4: Setup
4.0 CONNECTING TUBE SPINNING NOZZLE
Prior to the start of any job, make sure that the use of only high pressure
rated fittings and hoses are in the waterblasting system.
Connect the body to the system according the appropriate connection
rating below. DO NOT ASSEMBLE SLEEVE OR FRONT NOZZLE AT THIS
STAGE. Once body is connected, engage the pump and purge the lines
for a minute to clear any possible debris. Disengage pump once lines are
purged.
4.1 15K PSI RATED TUBE SPINNING NOZZLES
NOTE: When using a thruster, follow the steps below, repeating twice,
to assemble body to thruster then thruster to lance or stinger.
FOR NPT CONNECTIONS:
1. Apply 3-4 wraps of Teflon thread sealant tape to the male threads
on the mating lance or stinger.
2. Apply anti-seize compound over the sealant tape for additional
protection against galling in connection threads.
3. Install the nozzle bodies by using appropriate open-end wrench on
flats found on body and tighten 1-2 turns past hand-tight. All NPT
pipe connections should have a minimum thread engagement of (4)
threads.
FOR BSPP AND M7 FLAT SEAL CONNECTIONS:
1. BSPP and M7 flat seal connections required a copper crush washer
between the male and female connections.
2. Seat copper crush washer in female BSPP or M7 connection on
tube spinning nozzle body.
3. Apply anti-seize compound to male threads of mating lance or
stinger.
4. Install the nozzle bodies by using appropriate open-end wrench on
flats found on body and tighten to 20 lb-ft..
4.2 22K PSI RATED TUBE SPINNING NOZZLES
1. Apply anti-seize compound to the male threads and cone of the
mating lance or stinger.
NOTE: DO NOT use Teflon tape on 22K PSI connections.
2. Install the nozzle bodies by using appropriate open end wrench on
flats found on body and tighten until firmly snug.
NOTE: Do NOT OVERTIGHTEN; damage to coned sealing surface
could result.

17PI-123May 2017
4.3 SLEEVE AND FRONT NOZZLE
Assemble the sleeve and the appropriate front nozzle to the previously
connected body. For proper sleeve assembly on debris exclusion Tube
Spinning Nozzles, ensure that the debris exclusion step feature faces the
inlet end of body. Assemble front nozzle according to appropriate con-
nection rating below.
4.4 15K PSI MODELS
1. Slide sleeve over male end of body.
FOR NPT CONNECTIONS:
2. Apply 3-4 wraps of Teflon thread sealant tape to the available male
threads found on the body.
3. Apply anti-seize compound over the sealant tape for additional
protection against galling.
4. Install appropriate FP front nozzle using smooth jaw plier wrench
(PN 64119).
5. Tighten 1-2 turns past hand-tight. All NPT pipe connections should
have a minimum thread engagement of (4) threads.
FOR BSPP AND M7 FLAT SEAL CONNECTIONS
2. Seat copper crush washer in female BSPP or M7 connection on
appropriate FB or FM cap nozzle.
3. Apply anti-seize compound to male threads of tube spinning
nozzle body.
4. Install the cap nozzle by using appropriate open-end wrench on
flats found on cap nozzle and tighten to 20 lb-ft.
4.5 22K PSI MODELS
1. Slide sleeve over male end of body.
2. Apply anti-seize compound to the available male threads found on
the body.
NOTE: DO NOT use Teflon tape on 22K PSI connections.
3. Install appropriate HPFR/HPFL/HPER/HPEL front nozzle by using
appropriate open-end wrench on flats found on cap nozzle and
tighten until firmly snug.
NOTE: DO NOT OVERTIGHTEN; damage to coned sealing surface
could result.
NOTE: There should be approximately 1/16” to 1/8” clearance between the sleeve and
the front nozzle. With a knife or other sharp object, clear any Teflon tape or exposed
compound between the nozzle and sleeve. Confirm that sleeve spins freely.

18 PI-123 May 2017
Section 5: Operation
5.0 OPERATING TUBE SPINNING NOZZLES
As per the WJTA-IMCA Recommended Practices, all operators shall
follow the OSHA regulations for personal protective equipment. (OSHA
guidelines for Personal Protective Equipment are available in document
number 3151-12R 2004, which can be obtained from www.osha.gov.)
All operators shall be issued suitable head protection, eye protection,
hearing protection, body protection, hand and foot protection and respira-
tory protection (if needed). For detailed specifications on all protections
required, refer to the WJTA-IMCA ‘Recommended Practices for the Use of
High Pressure Waterjetting Equipment’ Section 6, Protective Equipment
For Personnel.
DANGER
Operators and crew need to be clear of spray area as
high water pressure is dangerous. The person controlling the cleaning
nozzle must be the operator and must have control of the pressure. Do
not allow a secondary or remote operator have control of pressure. Use
only thoroughly trained operators.
5.1 The Tube Spinning Nozzle can now be used like any standard tube
cleaning nozzle. Periodically inspect the nozzle for damage or excessive
wear.
NOTE: For improved reliability and longer life, it is recommended that a
filter of at least 10 microns be used on the water supply inlet. A strainer
(100 mesh minimum) must also be used in the water tank (if equipped
with tank).
DANGER
Failure to follow the following instructions will cause
unsafe conditions, severe injury can result.

19PI-123May 2017
• DO NOT operate the Tube Spinning Nozzle above specified pressure
rating.
• When used on a flex lance and in a tube much larger than the nozzle
diameter, the Tube Spinning Nozzle must be used with a stinger to
prevent
the nozzle from “doubling back” for operator safety.
• Operator must wear ear protection due to the noise generated by the
spinning nozzle.
• Never stand in the plane of blasting.
• A Lance Safety Grip is recommended to minimize the risk of a live
nozzle exiting the tube unexpectedly back at the lance operator.
• At high-pressure, the water can be hot. Wear gloves and use
precaution to prevent scalding.
• DO NOT use Teflon tape on 22K PSI connections.
• DO NOT over tighten connections to prevent sealing surface damage.
• Place barricades with warning signs or barricade tape around work
area. This includes the waterblast unit and all high-pressure hoses.
• Operator must be outfitted with proper safety apparel (refer to yellow
JETSTREAM SAFETY WARNING pamphlet). Body armor is strongly
recommended.

20 PI-123 May 2017
Section 6: Service
Figure A
NOTE: See Appendix B for list of PNs and accessories.
6.0 TUBE SPINNING NOZZLE MAINTENANCE
When not in use, store nozzle in a dry place. If nozzle is to be stored more
than a few days, disassemble and apply WD-40® or other penetrating oil
to nozzle body and sleeve. Reassemble Tube Spinning Nozzle per installa-
tion instructions.
See YouTube channel for videos on various Jetstream products.
W
ARNING
WW
Remove the nozzle from service if:
a) The body, sleeve, or front nozzle shows signs of cracking or other
damage.
b) The wall thickness of these parts is reduced by 25% at any point.
c) The nozzle can no longer hold pressure at water flow rate for which it
was sized.
Nozzle
Sleeve
Body
