Jetter JetViewMobile 104 User manual

User Manual
JVM-104-O16
HMI
60884479_01
We automate your success.

This document has been compiled by Jetter AG with due diligence based on the state of the art as
known to them. Any revisions and technical advancements of our products are not automatically made
available in a revised document. Jetter AG shall not be liable for any errors either in form or content, or
for any missing updates, as well as for any damage or detriment resulting from such failure.
Jetter AG
Graeterstrasse 2
71642 Ludwigsburg
Germany
Phone
Switchboard [phone]
Sales [phone]
Technical hotline [phone]
E-mail
Technical hotline [email protected]
Sales [email protected]
www.jetter.de
Translation of the german original User Manual
Revision 4.12.1
Date of issue 4/3/2023

Jetter AG Table of contents
User Manual – JVM-104-O16 iii
Table of contents
1 Introduction ....................................................................................................................................... 6
1.1 Information on this document .................................................................................................. 6
1.2 Typographical conventions...................................................................................................... 6
2 Safety................................................................................................................................................ 7
2.1 General Information................................................................................................................. 7
2.2 Purpose ................................................................................................................................... 7
2.2.1 Intended use................................................................................................................ 7
2.2.2 Usage other than intended .......................................................................................... 7
2.3 Warnings used in this document.............................................................................................. 8
3 Product description ........................................................................................................................... 9
3.1 Design...................................................................................................................................... 9
3.2 Product features ...................................................................................................................... 9
3.3 Nameplate ............................................................................................................................... 10
3.4 Scope of delivery ..................................................................................................................... 10
4 Technical data................................................................................................................................... 11
4.1 Dimensions .............................................................................................................................. 11
4.2 Mechanical specifications........................................................................................................ 11
4.3 Electrical properties ................................................................................................................. 12
4.3.1 Ports and interfaces..................................................................................................... 12
4.4 Environmental conditions......................................................................................................... 14
4.5 Display ..................................................................................................................................... 14
4.6 Acoustic signal generator ........................................................................................................ 14
4.7 EMI values............................................................................................................................... 15
5 Mechanical installation...................................................................................................................... 16
5.1 Requirements for the installation location................................................................................ 17
5.2 Preparing for installation.......................................................................................................... 18
5.3 Installing the HMI..................................................................................................................... 19
6 Electrical connection ......................................................................................................................... 21
6.1 Pin assignment ........................................................................................................................ 21
6.1.1 Deutsch connector – voltage supply, CAN, USB, RS-232........................................... 21
6.1.2 M12 plug – Ethernet .................................................................................................... 22

Jetter AG Table of contents
User Manual – JVM-104-O16 iv
7 Identification and Configuration ........................................................................................................ 23
7.1 Operating system..................................................................................................................... 23
7.1.1 Operating system update of the HMI........................................................................... 23
7.2 File system............................................................................................................................... 30
7.2.1 Changing the boot screen ........................................................................................... 31
7.2.2 Features ...................................................................................................................... 31
8 Programming .................................................................................................................................... 33
8.1 Abbreviations, module register properties and formats ........................................................... 33
8.2 CANopen STX API .................................................................................................................. 34
8.2.1 STX Functions ............................................................................................................. 34
8.2.2 Heartbeat monitoring ................................................................................................... 35
8.2.3 CANopen object directory............................................................................................ 36
8.3 SAE J1939 STX API................................................................................................................ 37
8.3.1 STX Functions ............................................................................................................. 37
8.4 Serial interface RS-232............................................................................................................ 39
8.4.1 Operating principle ...................................................................................................... 39
8.4.2 Registers - Description ................................................................................................ 42
8.4.3 Programming ............................................................................................................... 48
8.5 Real-time clock ........................................................................................................................ 50
8.6 FTP server ............................................................................................................................... 51
8.7 Storage options - Overview ..................................................................................................... 52
8.7.1 Operating system memory .......................................................................................... 52
8.7.2 File system memory .................................................................................................... 52
8.7.3 Application program memory....................................................................................... 52
8.7.4 Special registers .......................................................................................................... 53
8.7.5 Flag.............................................................................................................................. 53
8.7.6 Storing registers and variables .................................................................................... 54
8.8 Control elements...................................................................................................................... 54
8.8.1 Input keys .................................................................................................................... 54
8.8.2 Digipot ......................................................................................................................... 55
8.9 User-programmable IP interface.............................................................................................. 57
8.10 Monitoring interface activities .................................................................................................. 58
8.11 Automatic copying of controller data........................................................................................ 59
8.11.1 Loading the Autostart function..................................................................................... 60
8.11.2 Executing the AutoStart function ................................................................................. 60
8.11.3 Terminating the AutoStart mode.................................................................................. 60

Jetter AG Table of contents
User Manual – JVM-104-O16 v
8.11.4 autostart.bat - Structure............................................................................................... 60
8.11.5 Example of a command file ......................................................................................... 61
8.11.6 Data files...................................................................................................................... 62
8.12 Saving and loading an application program ............................................................................ 63
9 Registers - Overview......................................................................................................................... 64
10 Maintenance ..................................................................................................................................... 72
10.1 Repairs .................................................................................................................................... 72
10.2 Return and disposal................................................................................................................. 72
10.3 Storage and shipment.............................................................................................................. 73
11 Service .............................................................................................................................................. 74
11.1 Customer service..................................................................................................................... 74
12 Spare parts and accessories ............................................................................................................ 75
12.1 Accessories ............................................................................................................................. 75

Jetter AG Introduction | 1
User Manual – JVM-104-O16 6
1 Introduction
1.1 Information on this document
This document forms an integral part of the product and must be read and under-
stood prior to using it. It contains important and safety-related information for the
proper use of the product as intended.
Target groups This document is intended for specialists with appropriate qualifications.
Only competent and trained personnel is allowed to put this device into operation.
During the whole product life cycle, safe handling and operation of the device
must be ensured. In the case of missing or inadequate technical knowledge or
knowledge of this document any liability is excluded.
Availability of
information Make sure this document is kept at the ready in the vicinity of the product
throughout its service life.
For information on new revisions of this document, visit the download area on our
website. This document is not subject to any updating service.
Start | Jetter - We automate your success.
For further information refer to the following information products:
■JetSym software Online Help
Detailed description of software functions with application examples
■Application-oriented manuals
Cross-product documentation
■Version updates
Information about new versions of software products or of the operating sys-
tem of your device
1.2 Typographical conventions
This manual uses different typographical effects to support you in finding and
classifying information. Below, there is an example of a step-by-step instruction:
üThis symbol indicates requirements which have to be met before executing
the following action.
►This sign or a numbering at the beginning of a paragraph marks an action in-
struction that must be executed by the user. Execute the instructions one af-
ter the other.
ðThe target after a list of instructions indicates reactions to, or results of these
actions.
INFO Further information and practical tips
In the info box you will find helpful information and practical
tips about your product.

Jetter AG Safety | 2
User Manual – JVM-104-O16 7
2 Safety
2.1 General Information
When placed on the market, this product corresponds to the current state of sci-
ence and technology.
In addition to the operating instructions, the laws, regulations and guidelines of
the country of operation or the EU apply to the operation of the product. The op-
erator is responsible for compliance with the relevant accident prevention regula-
tions and generally accepted safety rules.
RoHS 2 The device conforms to the EU directive 2011/65/EU (RoHS 2).
2.2 Purpose
2.2.1 Intended use
The JVM-104-O16 is intended for installation in commercial vehicles and self-pro-
pelled machines. It is an HMI with integrated controller for exchange of data with
peripheral devices.
Operate the device only in accordance with the intended conditions of use, and
within the limits set forth in the technical specifications.
Intended use of the product includes its operation in accordance with this man-
ual.
SELV/PELV If this device is not used in a vehicle or mobile machine, a SELV or PELV power
supply unit must be used to supply the device.
2.2.2 Usage other than intended
This device must not be used in technical systems which to a high degree have
to be fail-safe.
Machinery Directive This device is no safety-related part as per Machinery Directive 2006/42/EC, and
must, therefore, not be used for safety-relevant applications. This device is NOT
intended for the purpose of personal safety, and must, therefore, not be used to
protect persons.

Jetter AG Safety | 2
User Manual – JVM-104-O16 8
2.3 Warnings used in this document
DANGER
High risk
Indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING
Medium risk
Indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION
Low risk
Indicates a hazardous situation which, if not avoided, could
result in minor or moderate injury.
NOTICE
Material damage
Indicates a situation which, if not avoided, could result in mal-
functions or material damage.

Jetter AG Product description | 3
User Manual – JVM-104-O16 9
3 Product description
The JVM-104-O16 is a graphical HMI. Thanks to its compact design and in-
tegrated controller, the HMI is versatile and has been specially developed
for harsh applications in commercial vehicles and self-propelled machines.
3.1 Design
114
12
93
48
10 2
67 5 13
11
11 11
11

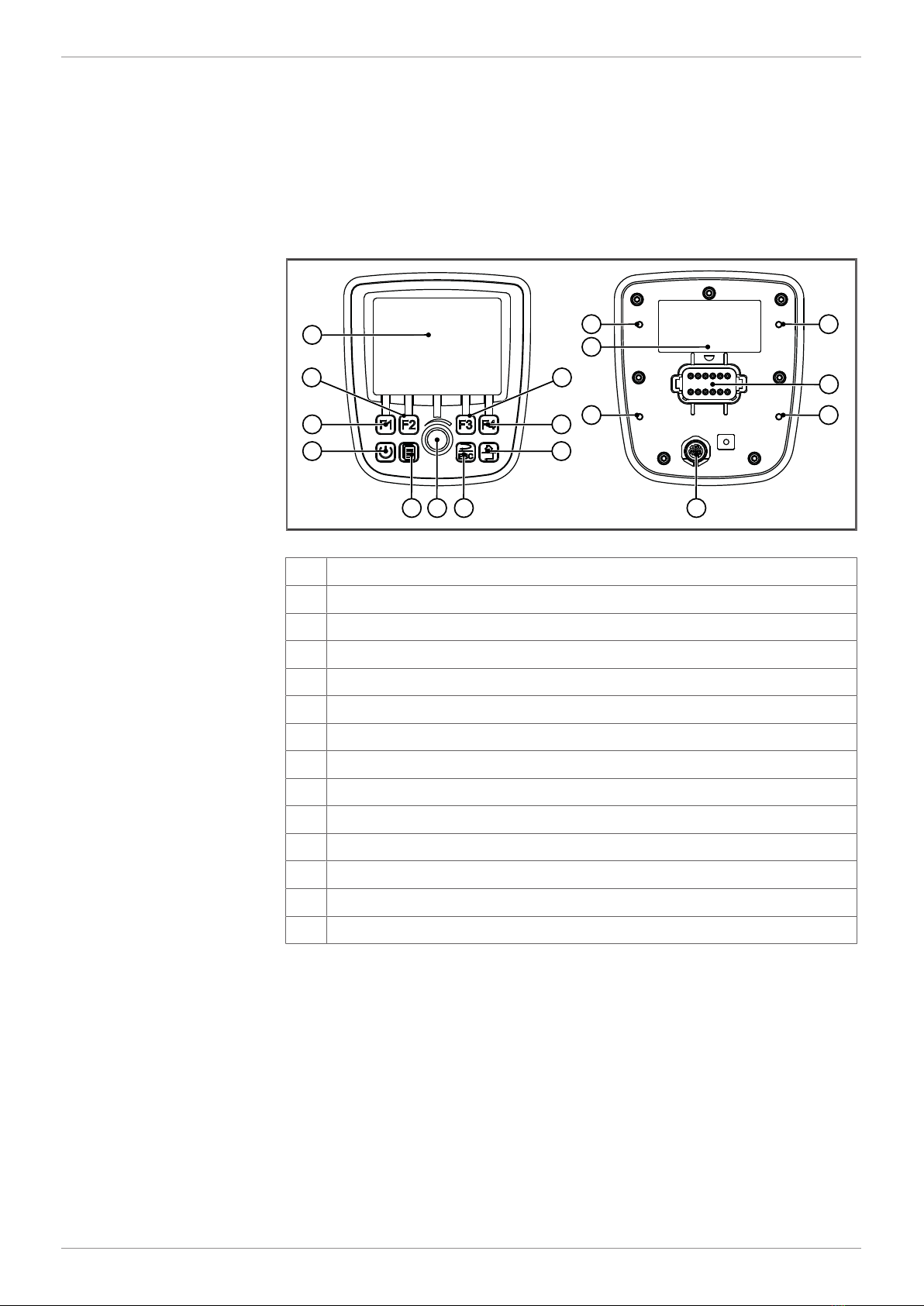

Fig.1: Design
1 TFT display
2 F3 key
3 F4 key
4 Home key
5 ESC key
6 Digipot
7 Scroll key
8 Power key
9 F1 key
10 F2 key
11 Screw hole
12 Deutsch connector
13 M12 male connector
14 Nameplate
3.2 Product features
■Display: 3.5” TFT, 320x240px
■CPU: ARM11, 500MHz, 128MB RAM, 512MB Flash
■Flush mount model with connector Deutsch DT06-12S
■Input: 8 keys, 1 DigiPot
■Ports and interfaces: 2x CAN, 1x USB, 1x RS-232 (all in Deutsch con-
nector), as well as Ethernet port in separate M12 connector
■Front/rear degree of protection: IP65/IP65

Jetter AG Product description | 3
User Manual – JVM-104-O16 10
3.3 Nameplate
2
3
4
1
5
Fig.2: Nameplate
1 Logo
2 Serial number
3 Barcode
4 Article number and hardware revision
5 Model code number
3.4 Scope of delivery
Scope of delivery Item number Quantity
JVM-104-O16 10001824 1

Jetter AG Technical data | 4
User Manual – JVM-104-O16 11
4 Technical data
This chapter contains electrical, mechanical data and operating data of the
JVM-104-O16.
4.1 Dimensions
66.8
67.4
107.5
O3.1
4 x
83
17.6 27.9
24.5
55 32
8
113
128

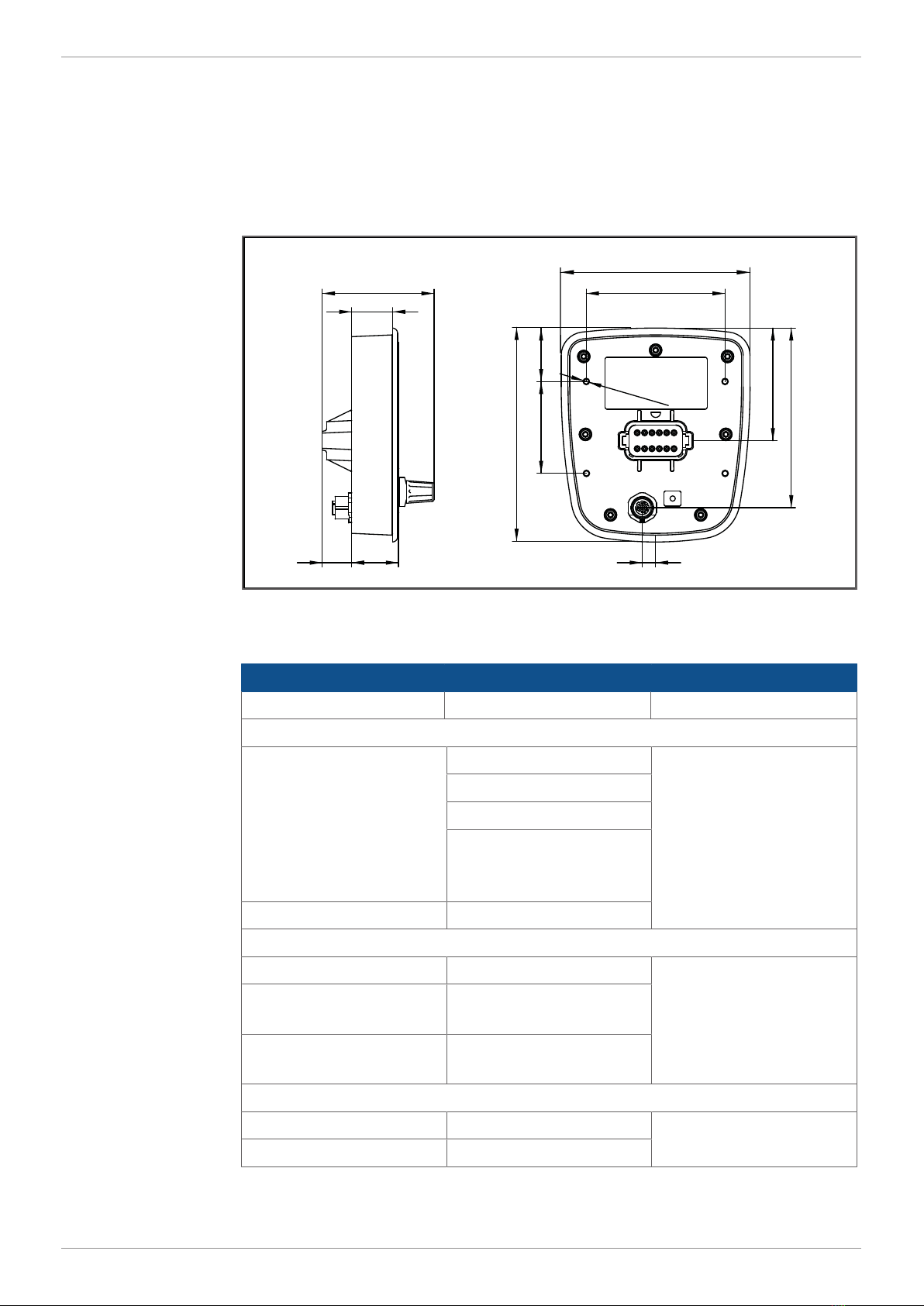

Fig.3: Dimensions in mm
4.2 Mechanical specifications
Parameter Description Standards
Weight 350g
Vibration
Broadband noise 10Hz / 0.005(m/s2)2/Hz DINEN60068-2-64
200Hz / 0.02(m/s2)2/Hz
300Hz / 0.01(m/s2)2/Hz
350Hz / 0.002(m/s2)2/
Hz
Duration 3x 24h
Shock resistance
Type of shock Half-sine wave DINEN60068-2-27
Intensity and duration 30g (300m/s2) for
18ms
Number and direction 18shocks in all 6direc-
tions
Degree of protection
Front panel IP65 DINEN60529
Rear panel IP65
Tab.1: Mechanical specifications

Jetter AG Technical data | 4
User Manual – JVM-104-O16 12
4.3 Electrical properties
Power supply
VBAT_ECU Parameter Description
Nominal voltage DC12V or 24V
Maximum current 2A
Typical logic current con-
sumption (VBAT_ECU)
170mA at DC12V
90mA at DC24V
Power consumption Approx 2W
Integrated protective
functions
Reverse polarity protection, overvoltage, short volt-
age pulses
Permissible voltage
range VBAT_ECU
DC8V...32V
Tab.2: Power supply VBAT_ECU
4.3.1 Ports and interfaces
CAN interfaces Parameter Description
Quantity 2 CAN_1 and CAN_2
Baud rate 125kBaud, 250kBaud, 500kBaud
Protocols CANopen
SAEJ1939
Default node ID on the
CANopen bus
127(0x7F)
Bus terminating resistor CAN 1 Not built in
CAN 2 Built in (120Ω)
External bus termination Required for CAN 1 120Ω
Cable specification Twisted pair conductors, unshielded
Tab.3: CAN interfaces
CAN bus cable Parameter Description
Wire cross-section 500kBaud: 0.34mm²…0.50mm2
250kBaud: 0.34mm²…0.60mm2
Cable capacitance 60pF/m max.
Resistivity 500kBaud: Max. 60Ω/km
250kBaud: Max. 60Ω/km
Number of cores 2
Twisting CAN_L and CAN_H cables are twisted pairwise
Tab.4: Specification - CAN bus cable

Jetter AG Technical data | 4
User Manual – JVM-104-O16 13
The maximum permitted cable length depends on the baud rate being used and
the number of CANopen devices being connected.
Baud rate Max. cable length Max. stub length Total cable length
500kBaud 100m 5m 30m
250kBaud 250m 10m 60m
Tab.5: Cable lengths
USB port NOTICE
The USB port does not meet the immunity requirements
relevant for KBA E1 approval.
►Use the USB port for service purposes only.
►Do not use the USB port while the unit is in operation.
Parameter Description
Supply unit 5V, max. 500mA
Data rate USB2.0
High-speed type 480MBaud max.
Protocol USB host interface
Line length limitation 30cm
Tab.6: USB port
Ethernet interface Parameter Description
Socket M12 connector (female), 4-pin, D-coded
Bit rate 10Mbit/s, 100Mbit/s
Number of ports 1
Auto cross-over Yes
Connection topology Single connector (M12)
Tab.7: Ethernet interface specification
RS-232 interface Parameter Description
Baud rates Up to 115,200Baud 8N1
Connection topology 1x Deutsch connector socket
Tab.8: RS-232 interface specification

Jetter AG Technical data | 4
User Manual – JVM-104-O16 14
4.4 Environmental conditions
Parameter Description Standards
Operating temperature -20°C...+65°C ISO16750-4
Climatic conditions Humid heat
Storage temperature -20°C...+70°C ISO16750-4
DINEN60068-2-1
DINEN60068-2-2
Relative humidity 10% … 95% DINEN61131-2
Pollution degree 2 DINEN61131-2
Tab.9: Environmental conditions
4.5 Display
Parameter Description
Type TFT LCD flat screen monitor
Resolution 320 x 240Pixel
Size 3.5"
Backlighting LED, typ. 350cd/m2 , dimmable
Horizontal viewing angle 70° to each side
Vertical viewing angle 50° from above, 70° from below
Tab.10: Technical data – display
4.6 Acoustic signal generator
Parameter Description
Type Loudspeaker Adjustable frequency
and volume.
Volume 83dB 10cm distance and
resonance frequency
2,670Hz
Tab.11: Acoustic signal generator

Jetter AG Technical data | 4
User Manual – JVM-104-O16 15
4.7 EMI values
The JVM-104-O16 has E1 approval according to ECE R10 Rev. 5 and CE
conformity according to ISO 14982.
NOTICE
The USB port does not meet the immunity requirements
relevant for KBA E1 approval.
►Use the USB port for service purposes only.
►Do not use the USB port while the unit is in operation.
Pulses ISO7637-2 Test pulse Values Function class
1 -450V C
2a +37V A
2b +20V C
3a -150V A
3b +150V A
4 Ua1: -12V / 50ms
Ua2: -5V / 500ms
A (24V systems)
Ua1: -6V / 15ms
Ua2: -2.5V / 1,000ms
C (12V systems)
5b Load dump, capped
70V / 2Ω
A
Tab.12: Pulses ISO7637-2
Irradiation ISO11452 Parameter Values Function class
Irradiation 20MHz ... 2GHz 30V/m A
Tab.13: Irradiation ISO11452
ESDEN61000-4-2 Parameter Values Function class
Contact discharge ±4 kV (to conductive sur-
faces)
A
Discharge through air ±8 kV (to insulating sur-
faces)
A
Tab.14: ESDEN61000-4-2

Jetter AG Mechanical installation | 5
User Manual – JVM-104-O16 16
5 Mechanical installation
NOTICE
Damages to material or functional impairment due to
welding
Welding on the chassis may damage the device material, or
impair device functions.
►Before you start welding, disconnect all connections be-
tween the device and the electric system of the vehicle.
►Protect the device from flying sparks and welding beads
(splatter).
►Do not touch the device with the welding electrode or
earth clamp.
NOTICE
Dirt and moisture can affect the electrical connections
►Protect unused pins using blanking plugs.
►Protect all electrical connections with appropriate single
wire seals.
►Clean the area around a connector prior to removing the
mating connector.

Jetter AG Mechanical installation | 5
User Manual – JVM-104-O16 17
5.1 Requirements for the installation location
The device can directly be fastened to the vehicle or to a mounting plate.
The installation location must meet the following requirements:
■The installation location must allow air to circulate.
■The installation location must be of sufficient size.
■The device must be easily accessible to allow for service work.
■The installation surface must be level.
■The installation surface should be no more than 5 mm thick.
Space required for
installation and
service
It should be possible to disconnect the connectors at any time.
70

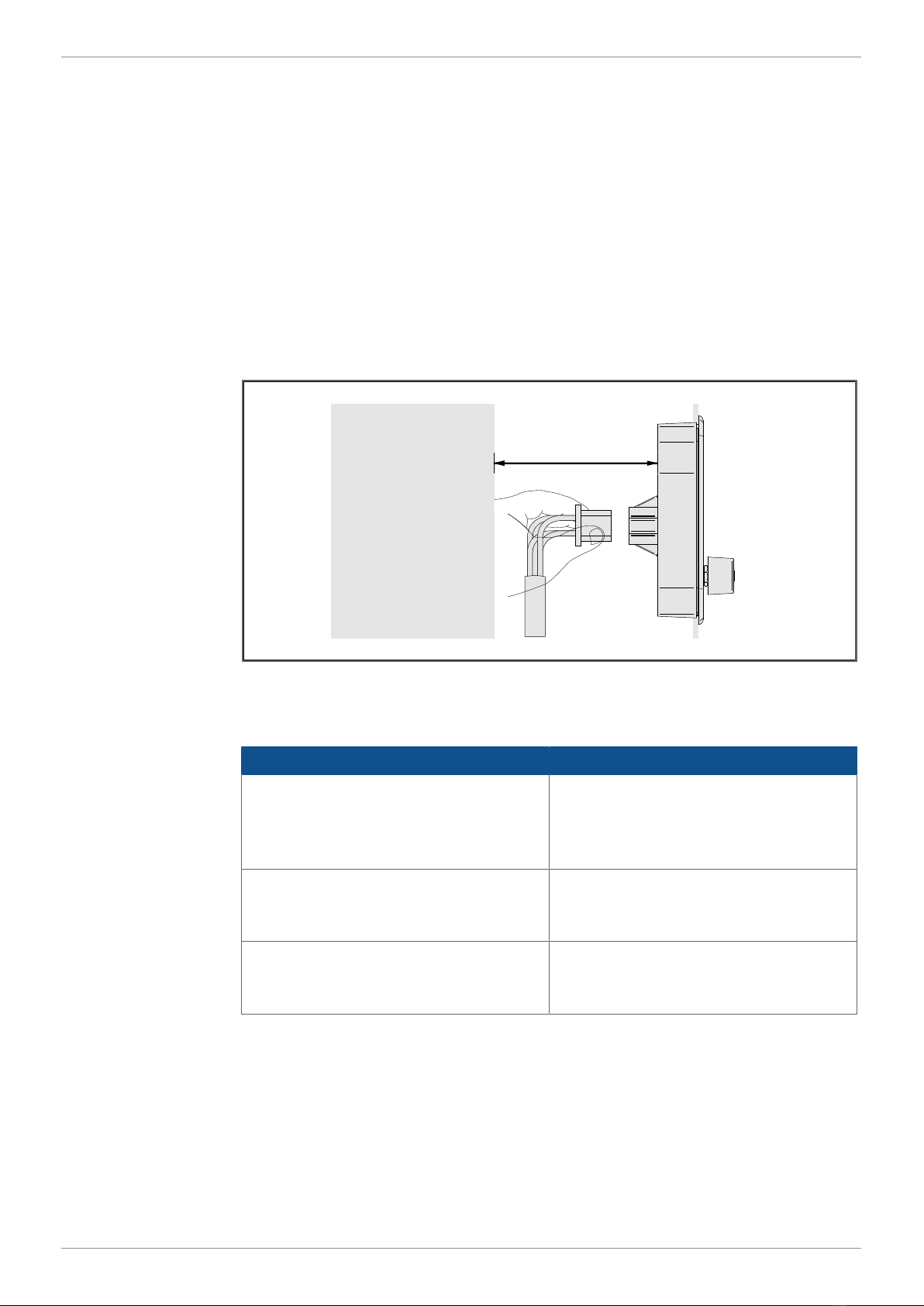

Fig.4: Space requirements for installation work (in mm)
Avoiding unsuitable
installation locations The following installation locations are unsuitable for mounting the device:
Unsuitable installation location Reason
Outdoor installation The device must not be exposed to
rain or a jet of water. Do not use a
steam jet or other such devices to
clean the device.
Installation location close to heat-sen-
sitive materials
The materials could become warped
or misshapen as a result of heat pro-
duced by the device.
Installation surfaces are uneven. The installation surface could become
misshapen when fitting the device.
Fastening is unstable and precarious.
Tab.15: Unsuitable installation locations

Jetter AG Mechanical installation | 5
User Manual – JVM-104-O16 18
5.2 Preparing for installation
Mounting
accessories Use the following accessories for installation:
Accessories Item number
Mounting kit for JVM-104-O16 in flush-mount housing
consisting of mounting bracket and fixing screws
10001371
Mounting surface Prepare the mounting surface for the JVM-104-O16 as follows:
►Make a fitting opening in the panel.
42.5
105 .2 + 0.3
26.6
21.9
r = 9.9
r = 9.9
r = 19.9
r = 399.9
r = 399.9
120.1 + 0.3
88.8
r = 19.9
12.2
31.3

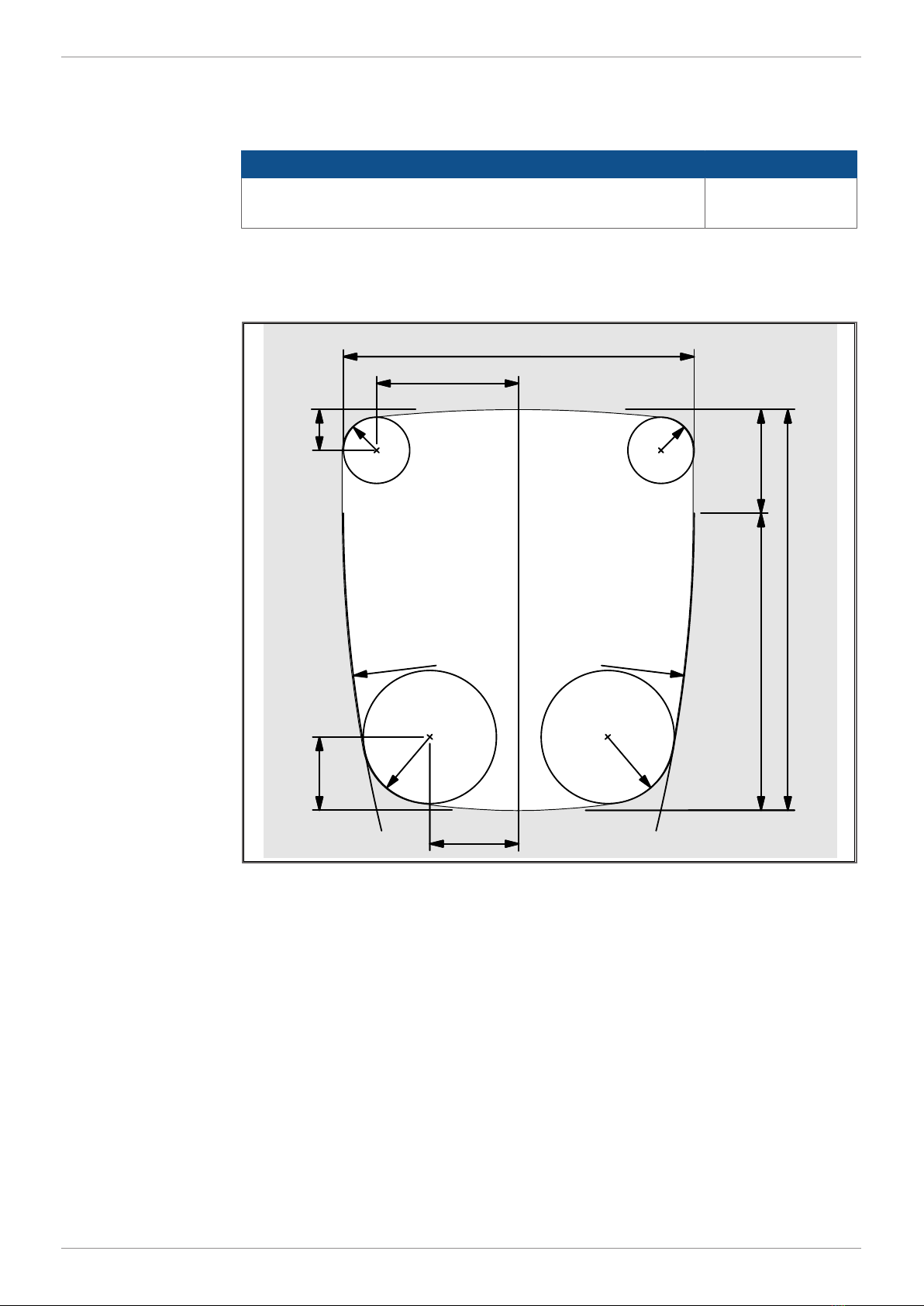

Fig.5: Mounting surface dimensions in mm

Jetter AG Mechanical installation | 5
User Manual – JVM-104-O16 19
5.3 Installing the HMI
The illustration below shows how to install the device:
1
2
3
4
Fig.6: Installation drawing
1 4x nut M4, self-locking, galvanized
2 Mounting bracket
3 4x bolts EJOT 40x11/M4x23, galvanized with self-tapping thread
4 Front panel gasket
1. Screw the 4 bolts with the self-tapping thread into the holes provided for
mounting the JVM-104-O16. The stud torque is 1.6 Nm ± 10 %.
2. Place the gasket around the rear of JVM-104-O16.
3. Insert the JVM-104-O16 from the front into the opening of the mounting
plate.
4. Hold the mounting bracket to the mounting plate from the rear.
5. Screw the HMI together with the mounting bracket onto the mounting plate
using the 4 nuts. The stud torque is 1.6 Nm ± 10 %.

Jetter AG Mechanical installation | 5
User Manual – JVM-104-O16 20
Mounted HMI – top
view The illustration shows the mounted HMI:

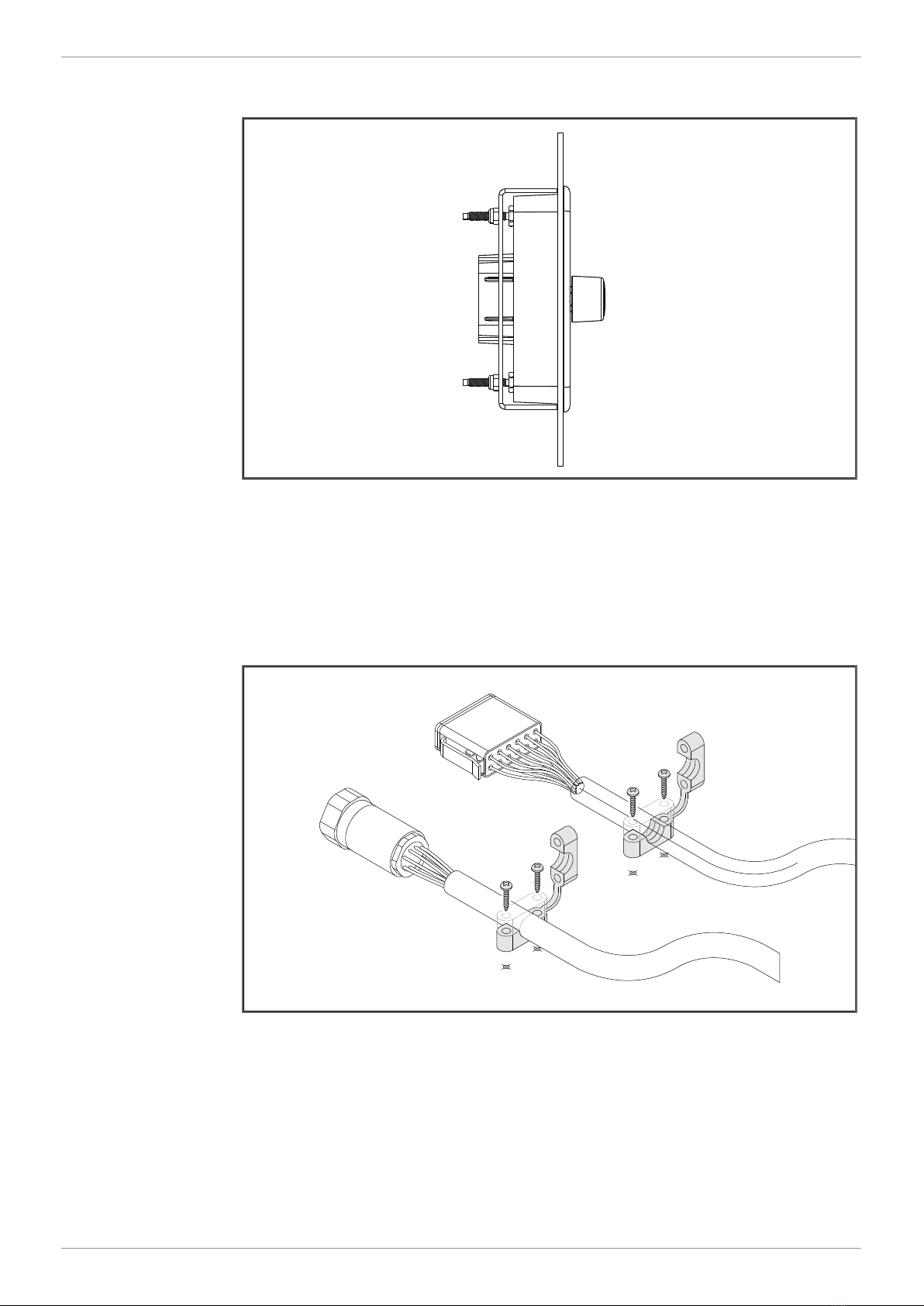

Fig.7: Mounted HMI – top view
Installing the strain
relief Install strain reliefs for the connecting cables.
■Ensure that there is sufficient clearance between the strain reliefs and the
connectors.
■Connectors must not be obstructed, so that they can be removed in the
event of service.
Fig.8: Installing the strain relief
