JLA SD35 Administrator Guide

SD35 / SD50 / SD80
Installation/Operator Manual
Part No. 113538-7
JLA Limited
Meadowcroft Lane, Halifax Road
Ripponden
West Yorkshire, England
HX6 4AJ
Telephone: [phone] / Fax: [phone]
AVERTISSEMENT: Assurez-vous de
bien suivre les instructions données dans
cette notice pour réduire au minimum le
risque d’incendie ou d’explosion ou pour
éviter tout dommage matériel, toute
blessure ou la mort.
—Ne pas entreposer ni utiliser d’essence
ni d’autres vapeurs ou liquides
inflammables à proximité de cet
appareil ou de tout autre appareil.
—QUE FAIRE SI VOUS SENTEZ UNE
ODEUR DE GAZ:
●Ne pas tenter d’allumer d’appareils.
●Ne touchez à aucun interrupteur. Ne
pas vous servir des téléphones se
trouvant dans le bâtiment.
●Évacuez la pièce, le bâtiment ou la
zone.
●Appelez immédiatement votre
fournisseur de gaz depuis un voisin.
Suivez les instructions du fournisseur.
●Si vous ne pouvez rejoindre le
fournisseur de gaz, appelez le service
des incendies.
—L’installation et l’entretien doivent être
assurés par un installateur ou un
service d’entretien qualifié ou par le
fournisseur de gaz.
WARNING: For your safety the
information in this manual must be
followed to minimize the risk of fire or
explosion and to prevent property
damage, personal injury or death.
— Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS:
●Do not try to light any appliance.
●Do not touch any electrical switch;
do not use any phone in your
building.
●Clear the room, building or area of
all occupants.
●Immediately call your gas supplier
from a neighbor’s phone. Follow
the gas supplier’s instructions.
●If you cannot reach your gas
supplier, call the fire department.
— Installation and service must be
performed by a qualified installer,
service agency or the gas supplier.

2 JLA Limited 113538-7
“IMPORTANT NOTE TO PURCHASER”
Information must be obtained from your local gas supplier on the
instructions to be followed if the user smells gas. These
instructions must be posted in a prominent location near the dryer.
We have tried to make this manual as complete as possible and hope you will find it useful. The manufacturer
reserves the right to make changes from time to time, without notice or obligation, in prices, specifications,
colors, and material, and to change or discontinue models. The illustrations included in this manual may
not depict your particular dryer exactly.
IMPORTANT
For your convenience, log the following information:
DATE OF PURCHASE ________________________________________________ MODEL NO. _____________________
RESELLER’S NAME __________________________________________________________________________________
Serial Number(s) _____________________________________________________________________________________
____________________________________________________________________________________________________
____________________________________________________________________________________________________
Replacement parts can be obtained from your distributor or JLA. When ordering replacement parts, you can FAX
your order to JLA at 01422 824390 or telephone your order directly to the JLA Parts Department at 01422 822282.
Please specify the dryer model number and serial number in addition to the description and part number, so that your
order is processed accurately and promptly.
These instructions are only valid if the following country code is on the appliance… If this code is not present on the
appliance, it is necessary to refer to the technical instructions which will provide the necessary information concerning
the modification of the appliance to the condition of use for the country.
In accordance with EN ISO 3166-1, the names of countries shall be represented by the following codes:
GB United Kingdom
IE Ireland
Retain This Manual in a Safe Place for Future Reference
This product embodies advanced concepts in engineering, design, and safety. If this product is properly
maintained, it will provide many years of safe, efficient, and trouble free operation.
Only qualified technicians should service this equipment.
OBSERVE ALL SAFETY PRECAUTIONS displayed on the equipment or specified in the installation
manual included with the dryer.
The following “FOR YOUR SAFETY” caution must be posted near the dryer in a prominent location.
FOR YOUR SAFETY
Do not store or use gasoline
or other flammable vapors
and liquids in the vicinity of
this or any other appliance.
POUR VOTRE SÉCURITÉ
Ne pas entreposer ni utiliser d’essence
ni d’autres vapeurs ou liquides
inflammables à proximité de cet
appareil ou de tout autre appareil.

113538-7 Telephone [phone]
IMPORTANT
You must disconnect and lockout the electric supply
and the gas supply or the steam supply before any
covers or guards are removed from the machine to
allow access for cleaning, adjusting, installation, or
testing of any equipment per OSHA standards.
Please observe all safety precautions displayed on
the equipment and/or specified in the installation
manual included with the dryer.
Before installation, check that the local distribution
conditions, nature of gas and pressure, and
adjustment of the appliances are compatible.
CAUTION
Dryer(s) should never be left unattended while in
operation.
When discarding or storing your old clothes
dryer, remove the door.
Lorsque vous entreposez ou mettez votre
sécheuse au rebut, enlevez-en la porte.
“Caution: Label all wires prior to disconnection when
servicing controls. Wiring errors can cause
improper operation.”
«Attention: Au moment de l’entretien des
commandes, étiquetez tous les fils avant de les
débrancher. Des erreurs de câblage peuvent
entraîner un fonctionnement inadéquat et
dangereux.»
WARNING
Children should not be allowed to play on or near
the dryer(s). Children should be supervised if near
dryer(s) in operation.
Under no circumstances should the dryer door
switch(es), lint door/drawer switch(es), or heat
safety circuit(s) ever be disabled.
DO NOT MODIFY THIS APPLIANCE.
The dryer must never be operated with any of the
back guards, outer tops, or service panels removed.
Personal injury or fire could result.
The dryer must never be operated without the lint
filter/screen in place, even if an external lint
collection system is used.
If the hi-limit switch trips, a service call is required
to investigate the reason and resolve the issue.
FOR YOUR SAFETY
Do not dry mop heads in the dryer. Do not use
dryer in the presence of dry cleaning fumes.
The dryers must not be installed or stored in an
area where it will be exposed to water and/or
weather.
The wiring diagram for the dryer is located behind
the control panel.
Table of Contents _______________
List of Acronyms _____________________________
DSI Direct Spark Ignition
HVAC Heating, Ventilating, and Air-Conditioning
in WC Inches of Water Column
L.C.D. Liquid Crystal Display
L.E.D. Light Emitting Diode
L.P. Liquid Propane
OSHA Occupational Safety and Health Administration
UL Underwriters Laboratory
Safety Precautions ........................................... 4
SD35 Specifications ......................................... 6
SD50 Specifications ......................................... 8
SD80 Specifications ....................................... 10
Installation Procedures .................................. 12
Location Requirements ................................................... 12
Unpacking / Setting Up ................................................... 12
Dryer Enclosure Requirements ...................................... 13
Fresh Air Supply Requirements ...................................... 13
Exhaust Requirements.................................................... 14
Electrical Information ...................................................... 18
Gas Information .............................................................. 22
Converting from One Family of Gas to Another ............. 24
Gas Pressure Testing...................................................... 25
Water Information ........................................................... 25
Preparation for Operation / Start-Up ............................... 26
Preoperational Test ......................................................... 26
Preoperational Instructions ............................................. 27
Shutdown Instructions..................................................... 27
Service / Parts Information ............................ 27
Service ............................................................................ 27
Parts ................................................................................ 27
Warranty Information ..................................... 28
Returning Warranty Cards .............................................. 28
Warranty .......................................................................... 28
Routine Maintenance ..................................... 28
Procedure for Functional Check
of Replacement Components ........................ 29
Rating Plate Information ................................ 29

4 JLA Limited 113538-7
Safety Precautions ____________________
!WARNING
For your safety, the information in this manual must
be followed to minimize the risk of fire or explosion
and to prevent property damage, personal injury, or
loss of life.
The dryer must never be operated with any of the back
guards, outer tops, or service panels removed.
Personal injury or fire could result.
Failure to properly install, maintain, and/or operate
dryer according to this manual and operator’s
manuals included with dryer may result in conditions
which can cause serious injury, death and/or property
damage.
Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
Do not spray aerosols in the vicinity of this appliance while it
is in operation.
Purchaser and user should consult the local gas supplier for
proper instructions to be followed in the event the user smells
gas. The instructions should be posted in a prominent location.
What To Do If You Smell Gas:
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Clear the room, building, or area of all occupants.
• Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire
department.
Installation and service must be performed by a qualified
installer, service agency, or gas supplier.
Dryers must be exhausted to the outdoors.
Although the manufacturer produces a very versatile dryer,
there are some articles that, due to fabric composition or
cleaning method, should not be dried in it.
!WARNING
Dry only water washed fabrics. Do not dry articles
spotted or washed in dry cleaning solvents,
combustible detergents, industrial chemicals, or “all
purpose” cleaner. Explosion could result.
Do not dry rags or articles coated or contaminated
with gasoline, kerosene, oil, paint, or wax. Explosion
could result.
Items that have been spotted or soaked with vegetable
or cooking oil constitute a fire hazard and should not
be placed in a tumble dryer.
Do not dry mop heads. Contamination by wax or
flammable solvents will create a fire hazard.
Do not use heat for drying articles that contain plastic,
foam, sponge rubber, or similarly textured rubber
materials. Drying in a heated tumbler may damage
plastics or rubber and also may be a fire hazard.
The possible presence of residual quantities of aggressive or
decomposed chemicals in the load may produce damage to
the machine and harmful fumes.
A program should be established for the inspection and
cleaning of lint in the burner area, exhaust ductwork, and area
around the back of the dryer. The frequency of inspection
and cleaning can best be determined from experience at each
location.
!WARNING
The collection of lint in the burner area and exhaust
ductwork can create a potential fire hazard.
For personal safety, the dryer must be electrically grounded
in accordance with local and/or country codes. In the absence
of these codes use the National Electrical Code ANSI/NFPA
NO. 70-LATEST EDITION or in Canada, the Canadian
Electrical Codes Parts 1 & 2 CSA C22.1-1990 or LATEST
EDITION.
NOTE: Failure to electrically ground the dryer properly will
void the warranty.
!WARNING
Personal injury or fire could result should the dryer
door switch, lint door/drawer, or heat safety circuit
ever be disabled.
Remove articles from the dryer as soon as the drying cycle
has been completed.
!WARNING
Articles left in the dryer after the drying and cooling
cycles have been completed can create a fire hazard.
For safety, proper operation, and optimum performance, the
dryer must not be operated with a load less than 66% of its
rated capacity.
!WARNING
You must disconnect and lockout the electric supply
and the gas supply or the steam supply before any
covers or guards are removed from the machine to
allow access for cleaning, adjusting, installation, or
testing of any equipment per OSHA standards.
IMPORTANT: The dryer must be installed in a location/
environment, which the ambient temperature remains
between 40° F (4.44° C) and 130° F (54.44° C).
The operation of this appliance may affect the operation of
other types of gas appliances, which take their air for safe
combustion from the same room. If in doubt, consult the
appliance manufacturer(s).
Use this dryer only for its intended purpose, drying fabrics.
The “cool down” cycle of tumble dryers should be used to
reduce the temperature of the items. They should not be
removed from the tumble dryer or piled or stacked while hot.

113538-7 Telephone [phone]
NOTES ______________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
_____________________________________________________________
Fabric softeners or similar products should not be used in a
tumbler dryer to eliminate the effects of static electricity unless
this practice is specifically recommended by the manufacturer
of the fabric softener or product.
!WARNING
To reduce the risk of personal injury, install lockable
doors to prevent public access to the rear of the
dryers.
Exhaust duct outlet should be checked periodically for
blockages, and if any found, removed.
IMPORTANT: A means of restraint must be used to prevent
straining of the gas line when the appliance is moved and to
keep the appliance upright when a load great enough to
topple it is applied to the open main door. An attachment
point has been provided in the outer top of the dryer for the
attachment of a restraint.
An external means of power removal (disconnect device)
must be provided by the installer.
IMPORTANT: This appliance must only be installed and
operated in the country of destination indicated on the
dryer’s rating plate. If the appliance is to be installed and
operated in a country other than the one indicated on the
rating plate, a new rating plate must be obtained from JLA
Limited.
IEC335 applies.
!WARNING
This appliance must only operate with the gas type
indicated on the dryer’s rating plate. If the appliance
is converted (gas type is changed), a new rating plate
must be obtained from JLA Limited.
This appliance may cause spillage of products of
combustion from an open-flue appliance fitted in the
same room, and that such an appliance shall be tested
for clearance of products with the appliance in
operation and all windows and doors closed.
Disconnect power before attempting to reset any
manual hi-limit!
This dryer is equipped with two manual reset hi-limit
thermostats. The burner hi-limit is located in the top
center of the dryer behind the control door. The
exhaust hi-limit is located in the duct above the lint
trap. The exhaust thermostat must be removed to be
reset.

6 JLA Limited 113538-7
MAXIMUM CAPACITY (DRY WEIGHT) 35 lb 15.87 kg
TUMBLER DIAMETER 30” 76.2 cm
TUMBLER DEPTH 29-3/8” 74.61 cm
TUMBLER VOLUME 12.0 cu ft 339.80 L
TUMBLER / DRIVE MOTOR 1/2 hp 0.37 kW
BLOWER / FAN MOTOR 1/2 hp 0.37 kW
CABINET WIDTH 31-7/8” 80.96 cm
CABINET DEPTH 43” 109.22 cm
CABINET HEIGHT 67-7/8” 172.40 cm
DOOR OPENING (DIAMETER) 21-1/2” 54.61 cm
DOOR SILL HEIGHT 30-9/16” 77.62 cm
WATER CONNECTION 3/4” B.S.P.T.
AIRBORNE SOUND LEVEL 63 dB(A)
DRYERS PER 20’/40’ CONTAINER 10 / 22
DRYERS PER 48’/53’ TRUCK 32 / 36
VOLTAGE AVAILABLE 220-416V 1,3ø 2,3,4w 50 Hz
APPROXIMATE NET WEIGHT 552 lb 250.38 kg
APPROXIMATE SHIPPING WEIGHT 585 lb 265.35 kg
AIRFLOW 340 cfm 9.62 cmm
HEAT INPUT 70,000 Btu/hr 17,639 kcal/hr
EXHAUST CONNECTION (DIAMETER) 6” / 8” 15.24 cm / 20.32 cm
INLET PIPE CONNECTION 1/2” B.S.P.T.
(Female)
VOLTAGE AVAILABLE 220-416V 1,3ø 2,3,4w 50 Hz
APPROXIMATE NET WEIGHT 557 lb 252.65 kg
APPROXIMATE SHIPPING WEIGHT 590 lb 267.62 kg
AIRFLOW 280 cfm 7.93 cmm
EXHAUST CONNECTION (DIAMETER) 6” / 8” 15.24 cm / 20.32 cm
OVEN SIZE
kW Btu/hr kcal/hr
13.5 46,074 11,611
12.4 42,310 10,662
11.3 38,557 9,716

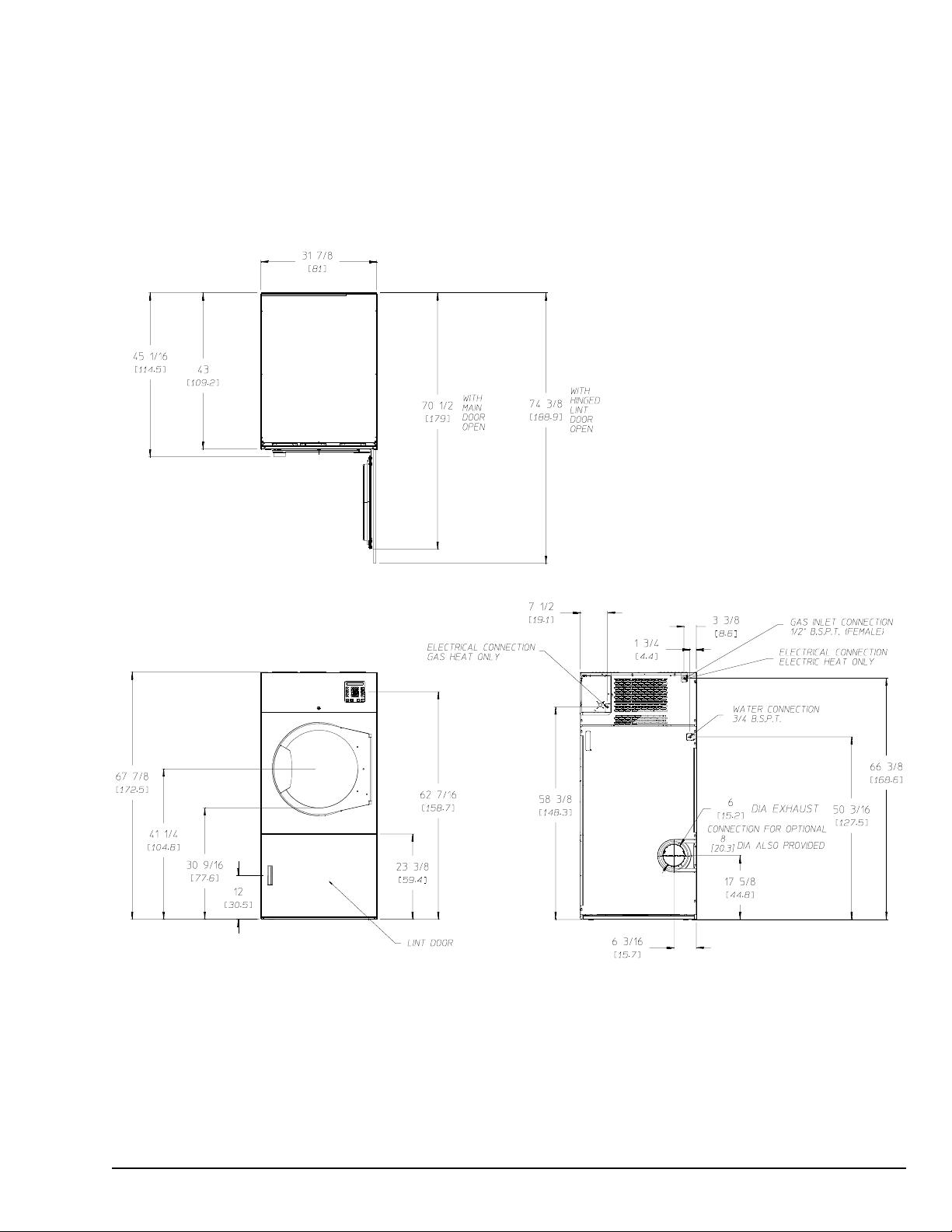

SD35 Specifications _______________________________________________________________
NOTE: The manufacturer reserves the right to make changes in specifications at any time without notice or obligation.
GAS
Shaded areas are stated in metric equivalents 4/20/17
ELECTRIC

113538-7 Telephone [phone]
NOTE: The manufacturer reserves the right to make changes in specifications at any time without notice or obligation.
SD35 Specifications _______________________________________________________________

8 JLA Limited 113538-7
MAXIMUM CAPACITY (DRY WEIGHT) 50 lb 22.67 kg
TUMBLER DIAMETER 32-3/4” 83.18 cm
TUMBLER DEPTH 37-1/2” 95.25 cm
TUMBLER VOLUME 18.3 cu ft 518.19 L
TUMBLER / DRIVE MOTOR 1 hp 0.75 kW
BLOWER / FAN MOTOR 3/4 hp 0.56 kW
CABINET WIDTH 34-1/2” 87.63 cm
CABINET DEPTH 49-3/8” 125.41 cm
CABINET HEIGHT 73-5/8” 187.1 cm
DOOR OPENING (DIAMETER) 27” 68.58 cm
DOOR SILL HEIGHT 29-1/8” 74 cm
AIRBORNE SOUND LEVEL 64 dB(A)
WATER CONNECTION 3/4” B.S.P.T.
DRYERS PER 20’/40’ CONTAINER 10 / 20
DRYERS PER 48’/53’ TRUCK 25 / 28
VOLTAGE AVAILABLE 220-416V 1,3ø 2,3,4w 50 Hz
APPROXIMATE NET WEIGHT 655 lb 297.10 kg
APPROXIMATE SHIPPING WEIGHT 710 lb 322.05 kg
AIRFLOW 810 cfm 22.93 cmm
HEAT INPUT 125,000 Btu/hr 31,500 kcal/hr
EXHAUST CONNECTION (DIAMETER) 8” 20.32 cm
INLET PIPE CONNECTION 1/2” B.S.P.T.
(Female)
VOLTAGE AVAILABLE 220-416V 1,3ø 2,3,4w 50 Hz
APPROXIMATE NET WEIGHT 660 lb 299.37 kg
APPROXIMATE SHIPPING WEIGHT 715 lb 324.31 kg
AIRFLOW 714 cfm 20.21 cmm
EXHAUST CONNECTION (DIAMETER) 8” 20.32 cm
OVEN SIZE
kW Btu/hr kcal/hr
18.5 63,125 15,907
20.4 69,608 17,541
22 75,067 18,917
SD50 Specifications _______________________________________________________________
NOTE: The manufacturer reserves the right to make changes in specifications at any time without notice or obligation.
GAS
Shaded areas are stated in metric equivalents 4/20/17
ELECTRIC

113538-7 Telephone [phone]
SD50 Specifications _______________________________________________________________
NOTE: The manufacturer reserves the right to make changes in specifications at any time without notice or obligation.

10 JLA Limited 113538-7
MAXIMUM CAPACITY (DRY WEIGHT) 80 lb 36.28 kg
TUMBLER DIAMETER 37” 93.98 cm
TUMBLER DEPTH 35-7/16” 90.01 cm
TUMBLER VOLUME 22.05 cu ft 624.39 L
TUMBLER / DRIVE MOTOR 1 hp 0.74 kW
BLOWER / FAN MOTOR 3/4 hp 0.56 kW
CABINET WIDTH 39” 99.06 cm
CABINET DEPTH 52-3/8” 133.03 cm
CABINET HEIGHT 77-7/8” 197.80 cm
DOOR OPENING (DIAMETER) 31-3/8” 79.69 cm
DOOR SILL HEIGHT 29” 73.66 cm
WATER CONNECTION 3/4” B.S.P.T.
AIRBORNE SOUND LEVEL 64 dB(A)
DRYERS PER 20’/40’ CONTAINER 8 / 16
DRYERS PER 48’/53’ TRUCK 22 / 26
VOLTAGE AVAILABLE 220-416V 1,3ø 2,3,4w 50 Hz
APPROXIMATE NET WEIGHT 700 lb 317.52 kg
APPROXIMATE SHIPPING WEIGHT 720 lb 326.59 kg
AIRFLOW 880 cfm 24.91 cmm
HEAT INPUT 135,000 Btu/hr 34,019 kcal/hr
EXHAUST CONNECTION (DIAMETER) 8” 20.32 cm
INLET PIPE CONNECTION 1/2” B.S.P.T.
(Female)
VOLTAGE AVAILABLE 220-416V 1,3ø 2,3,4w 50 Hz
APPROXIMATE NET WEIGHT 710 lb 322.05 kg
APPROXIMATE SHIPPING WEIGHT 730 lb 331.12 kg
AIRFLOW 770 cfm 21.80 cmm
EXHAUST CONNECTION (DIAMETER) 8” 20.32 cm
OVEN SIZE
kW Btu/hr kcal/hr
18.5 63,125 15,907
20.4 69,608 17,541
22 75,067 18,917
SD80 Specifications _______________________________________________________________
NOTE: The manufacturer reserves the right to make changes in specifications at any time without notice or obligation.
GAS
Shaded areas are stated in metric equivalents 4/20/17
ELECTRIC

113538-7 Telephone [phone]
SD80 Specifications _______________________________________________________________
NOTE: The manufacturer reserves the right to make changes in specifications at any time without notice or obligation.

12 JLA Limited 113538-7
Installation Procedures _______________
Installation should be performed by competent professional
in accordance with local, state, and country codes. In the
absence of these codes, the installation must conform to
applicable American National Standards: ANSI Z223.1-
LATEST EDITION (National Fuel Gas Code) or ANSI/NFPA
NO. 70-LATEST EDITION (National Electrical Code).
Location Requirements _______________
Before installing the dryer, be sure the location conforms to
local, state, and country codes. In the absence of such codes
or ordinances the location must conform with the National Fuel
Gas Code ANSI.Z223.1 LATEST EDITION.
The dryer must be installed on a sound level floor capable of
supporting its weight. Carpeting must be removed from the
floor area that the dryer is to rest on.
The dryer must not be installed or stored in an area where it
will be exposed to water and/or weather.
Provisions for adequate air supply must be provided as noted
in this manual (refer to Fresh Air Supply Requirements
section).
Clearance provisions must be made from combustible
construction as noted in this manual (refer to Dryer Enclosure
Requirements section).
Provisions must be made for adequate clearances for servicing
and for operation as noted in this manual (refer to Dryer
Enclosure Requirements section).
The dryer must be installed with a proper exhaust duct
connection to the outside as noted in this manual (refer to
Exhaust Requirements section).
The dryer must be located in an area where correct exhaust
venting can be achieved as noted in this manual (refer to
Exhaust Requirements section).
IMPORTANT: The dryer should be located where a
minimum amount of exhaust ducting will be necessary.
The dryer must be installed with adequate clearance for air
openings into the combustion chamber.
CAUTION: This dryer produces combustible lint and
must be exhausted to the outdoors. Every 6 months,
inspect the exhaust ducting and remove any lint
buildup.
IMPORTANT: The dryer must be installed in a location/
environment, which the ambient temperature remains
between 40° F (4.44° C) and 130° F (54.44° C).
Unpacking / Setting Up ________________
Remove protective shipping material (i.e., plastic wrap and
optional shipping box) from the dryer.
IMPORTANT: Dryer must be transported and handled in an
upright position at all times.
The dryer can be moved to its final location while still attached
to the skid or with the skid removed. To remove the skid from
the SD35, SD50, or SD80, locate and remove the 2 bolts
securing the base of the dryer to the wooden skid. One is
located at the center rear and the other is at the center front
and is accessed by opening the lint door.
With the skid removed, use caution and assure all four leveling
legs are fully retracted if the dryer is to be slid into its final
position.
Leveling Dryer
The dryer is equipped with four leveling legs, one at each
corner of the base. For optimum performance the dryer should
be level front-to-back and side-to-side.
Reversing the Main Loading
and Lint Door Hinge Side
The dryer is shipped with the main and lint door hinges on the
right-hand side as standard. The swing of the doors is field
reversible. If required, the front panel can reversed so that
the doors hinge on the left-hand side.
Procedure for reversing the Front Panel:
1. Disconnect the power to the dryer.
2. Remove the main loading door from the front panel by
removing the top hinge block. A 3/16” Allen wrench is
required. Support the door while removing the top hinge
block so that it does not fall. Now lift the door off the
bottom hinge.
3. Remove the bottom hinge block. Remove the plastic
washer from the bottom hinge block and place it in the
same location on the top hinge block.
4. Remove the lint door from the dryer. Open the lint door
and remove the four screws retaining the lint door hinges.
5. Remove the three screws retaining the front panel at the
bottom. Swing the bottom of the front panel away from
the dryer about three inches. Reach behind the front
panel and disconnect the door switch plug located in the
lower right corner.
6. Open the control door and remove the four screws
retaining the front panel at the top. Be careful that the
front panel does not fall when the last screw is removed.
7. Remove the front panel from the machine and place it
face down on a flat surface.
8. There is a trim piece at the bottom of the front panel.
Remove the four screws retaining the trim piece.
Reposition the trim piece on the top of the panel and install
the retaining screws.
9. Back on the dryer there is a second plug for the door
switch, located inside the upper left corner of the dryer.
This plug is similar to the one in the power right
disconnected earlier, except there is a jumper on this plug.
Remove the jumper and install it on the plug in the lower
right.
10. Reinstall the front panel on the dryer with the trim piece
on the bottom. Check that the mounts for the door hinge
are on the left-hand side. Be sure to connect the door
switch plug now in the upper left corner of the dryer.
11. Reinstall the retaining screws, top and bottom.
12. Reinstall the lint door with the hinges on the left-hand
side.

113538-7 Telephone [phone]
Fresh Air Supply Requirements _______
This appliance may only be installed in a room that meets the
appropriate ventilation requirements specified in the national
installation regulations.
When the dryer is operating, it draws in room air, heats it,
passes this air through the tumbler, and exhausts it out of the
building. Therefore, the room air must be continually
replenished from the outdoors. If the make-up air is
inadequate, drying time and drying efficiency will be adversely
affected. Ignition problems and sail switch “fluttering” problems
may result, as well as premature motor failure from
overheating. The dryer must be installed with provisions for
adequate combustion and make-up air supply.
Air supply (make-up air) must be given careful consideration
to ensure proper performance of each dryer. As a general
rule, an unrestricted air entrance from the outdoors of 70 inch2
(451 cm2) for each SD35, 125 inch2(806 cm2) for each SD50,
and 135 inch2(870 cm2) is required for each SD80. (Based
on 1-inch2[6.5 cm2] per 1,000 Btu [252 kcal].)
It is not necessary to have a separate make-up air opening
for each dryer. Common make-up air openings are acceptable.
However, they must be set up in such a manner that the make-
up air is distributed equally to all the dryers.
To compensate for the use of registers or louvers used over
the openings, this area must be increased by approximately
33%. Make-up air openings should not be located in an area
directly near where exhaust vents exit the building.
Allowances must be made for remote or constricting
passageways or where dryers are located at high altitudes or
predominantly low pressure areas.
NOTE: Component failure due to dry cleaning solvent
fumes will void the warranty.
EXAMPLE: For a bank of four SD35 dryers, two unrestricted
openings measuring 12-inches by 12-inches (30.5 cm by 30.5
cm) are acceptable.
IMPORTANT: Make-up air must be free of dry cleaning
solvent fumes. Make-up air that is contaminated by dry
cleaning solvent fumes will result in irreparable damage to
the motors and other dryer components.
A = 12-inches (30.5 cm)
B = 12-inches (30.5 cm)
A The requirement to allow the lint door to open completely for the
SD35 is 33-inches (83.8 cm), SD50 is 36” (91.4 cm), SD80 is
40-inches (101.6 cm).
B A minimum overhead clearance of 12-inches (30.48 cm) is required.
18-inches (45.72 cm) is recommended.
C Dryer should be positioned a minimum of 12-inches (30.48 cm)
away from the nearest obstruction. 24-inches (60.96 cm) is
recommended for ease of installation, maintenance, and service.
D 1/16” (1.5875 mm) minimum is required.
E Flooring in front of the dryer must be lower than the dryer cabinet to
allow the lint door to open.
F Dryers may be positioned sidewall to sidewall, however a 1/16”
(1.5875 mm) minimum allowance must be made for the opening
and closing of the lint door, along with the removal of panels during
maintenance.
G Dryer must protrude 1-inch (2.54 cm) from the surface of any
bulkhead or partition around the dryer to allow the control door to
open.
H The maximum thickness of any bulkhead or partition from the header
down to the top of the dryer is 1-inch (2.54 cm).
I The minimum clearance from the top of the dryer to the header of
any bulkhead or partition located directly above the dryer is
4-inches (10.16 cm).
J The maximum thickness of any bulkhead or partition above the
header is 4-inches (10.16 cm).
13. Reinstall the bottom main door hinge block. This was
the top hinge block and now has the plastic washer on it.
14. Reinstall the main loading door, and the top hinge block.
The top hinge block was the bottom hinge block, with no
plastic washer.
15. Check that the doors swing properly.
16. Close all doors and panels. Then reconnect the power to
the dryer.
17. Check that the dryer starts with no errors.
18. Check that the dryer stops when either door is opened.
NOTE: Some doors have a custom logo bar inside. While
the door is off the dryer, the door pan can be removed (6)
1/4 nuts, to access the logo bar. The bar can then be
removed and flipped. Reinstall the door pan.
Dryer Enclosure Requirements _______
Commercial Type II (SD35, SD50, SD80)
Bulkheads and partitions should be made of noncombustible
material.
NOTE: Allowances must be made for opening the control door.

14 JLA Limited 113538-7
Exhaust Requirements ________________
Exhaust ductwork should be designed and installed by a
qualified professional. Improperly sized ductwork will create
excessive back pressure, which results in slow drying,
increased use of energy, and shutdown of the burner by the
airflow (sail) switch, burner hi-limits, or lint chamber hi-limit
protector thermostat. The dryer must be installed with a proper
exhaust duct connection to the outside.
The dryer shall not be exhausted into any gas vent, chimney,
wall, ceiling or concealed space of a building.
The design of the flue system shall be such that any
condensate formed when operating the appliance from cold
shall either be retained and subsequently re-evaporated or
discharged.
CAUTION: This dryer produces combustible lint and
must be exhausted to the outdoors.
Improperly sized or installed exhaust ductwork can
create a potential fire hazard.
The ductwork should be laid out in such a way that the
ductwork travels as directly as possible to the outdoors with
as few turns as possible. There should be a minimum
6-inch (15.24 cm) clearance between the back guard and the
first bend in the ductwork for ease of servicing. Single or
independent dryer venting is recommended. It is suggested
that the use of 90° turns be avoided; use 30° and/or 45° bends
instead. The radius of the elbows should preferably be 1-1/2
times the diameter of the duct. All ductwork should be smooth
inside with no projections from sheet metal screws or other
obstructions, which will collect lint. When adding ducts,
overlap the duct being connected. All ductwork joints must
be taped to prevent moisture and lint from escaping into the
building. Back draft dampers must be installed in all commonly
ducted systems. Inspection doors should be installed at
strategic points in the exhaust ductwork for periodic inspection
and cleaning of lint from the ductwork.
IMPORTANT: Exhaust back pressure measured by a
manometer/magnehelic in the exhaust duct must be no less
than 0 and must not exceed 0.6 in WC (1.5 mb).
NOTE: It is recommended that exhaust or booster fans not
be used in the exhaust ductwork system except where
necessary to maintain exhaust back pressure (in the
exhaust duct) between zero and 0.6 inch water column.
Where employed, booster fans must not activate the dryer
airflow proving switch (sail switch) when the dryer is not in
operation.
NOTE: When the exhaust ductwork passes through a wall,
ceiling, or roof made of combustible materials, the opening
must be 2-inches (5.08 cm) larger than the duct (all the way
around). The duct must be centered within this opening.
As per the National Fuel Gas Code, “Exhaust ducts for type
2 clothes dryers shall be constructed of sheet metal or other
noncombustible material. Such ducts shall be equivalent in
strength and corrosion resistance to ducts made of
galvanized sheet steel not less than 26 gauge
(0.0195-inches [0.50 mm]) thick.”
The ductwork for this appliance must be suitable for the
appliance category in accordance with national installation
regulations of the country of destination.
Outside Ductwork Protection
To protect the outside end of the horizontal ductwork from the
weather, a 90° elbow bent downward should be installed where
the exhaust exits the building. If the ductwork travels vertically
up through the roof, it should be protected from the weather
by using a 180° turn to point the opening downward. In either
case, allow at least twice the diameter of the duct between
the duct opening and the nearest obstruction (refer to the
diagram).
IMPORTANT: Do not use screens, louvers, or caps on the
outside opening of the exhaust ductwork.
Single Dryer Venting (SD35)
IMPORTANT: For the SD35, a minimum exhaust duct size
of 6-inches (15.24 cm) must be used.
For a 6-inch (15.24 cm) horizontal run where a maximum of
one elbow is used, the ductwork from the dryer outlet must
not exceed dimension “A” in the following illustration.
SD35 ONLY
HORIZONTAL SINGLE DRYER VENTING
6-INCH (15.24 CM) DUCTING
If the length of the duct run or quantity of elbows used exceeds
the above noted specifications, the cross-sectional area of
the ductwork may need to be increased.
IMPORTANT: For extended ductwork runs, the cross
section area of the ductwork can only be increased to an
extent. When the ductwork approaches the maximum limits
noted in this manual, a professional HVAC firm should be
consulted for proper venting information.
Single Dryer Venting (SD35, SD50, SD80)
IMPORTANT: A minimum exhaust duct size of 8-inches
(20.32 cm) must be used.
For an 8-inch (20.32 cm) horizontal run where a maximum of
one elbow is used, the ductwork from the dryer outlet must
not exceed dimension “A” in the following illustration on the
next page.

113538-7 Telephone [phone]

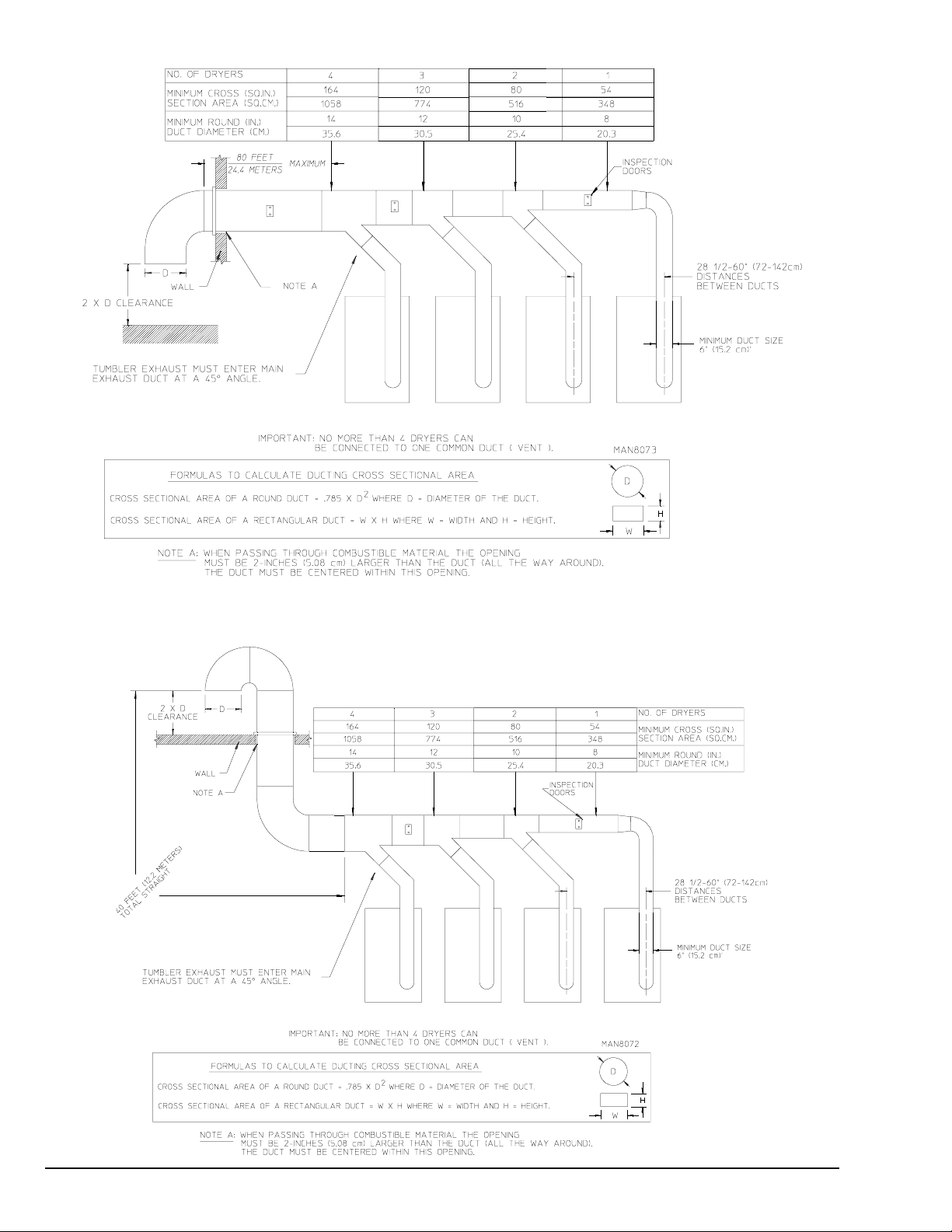

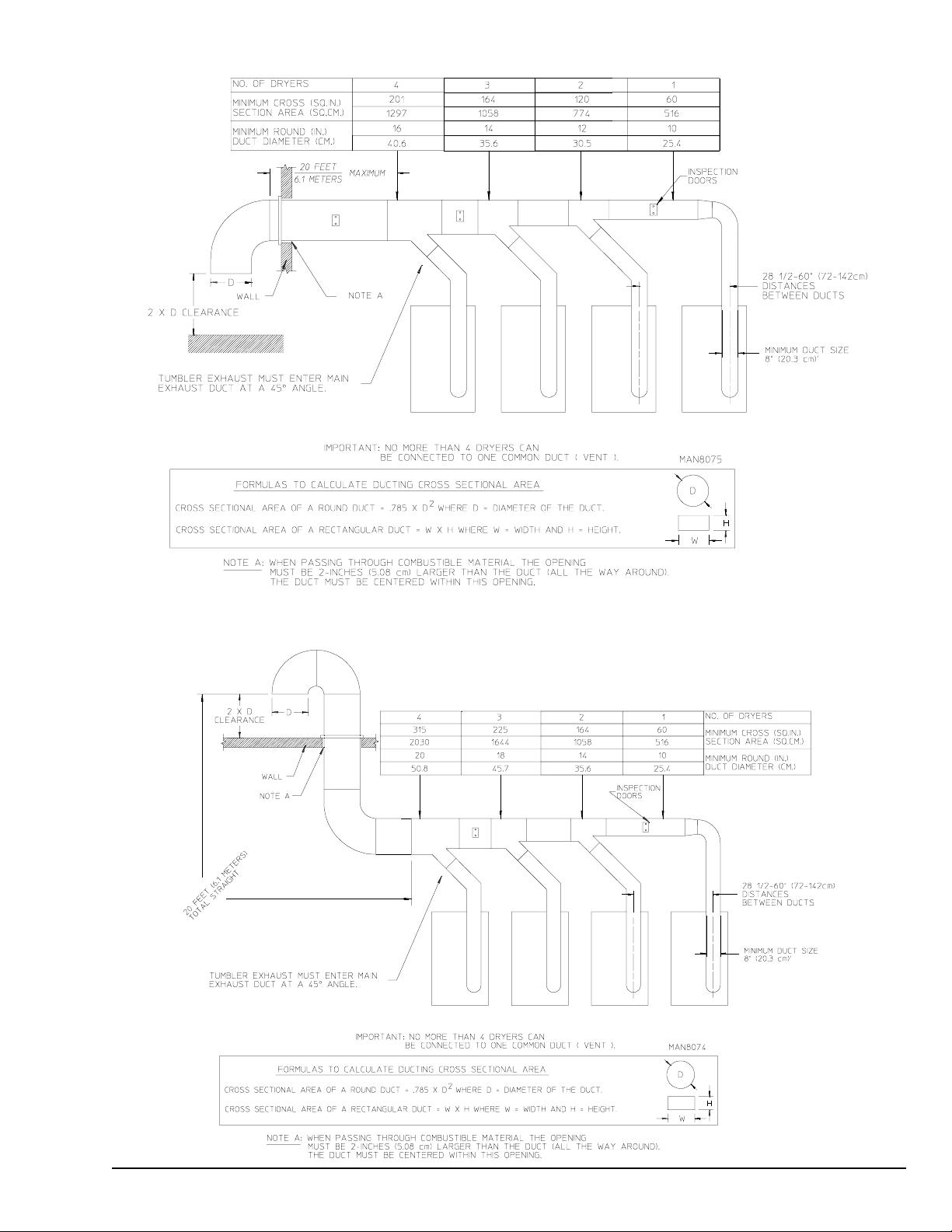

Multiple Dryer (Common) Venting
IMPORTANT: For extended ductwork runs, the cross-
sectional area of the ductwork can only be increased to an
extent. When the ductwork approaches the maximum limits
as noted in this manual, a professional HVAC firm should
be consulted for proper venting information.
If it is not feasible to provide separate exhaust ducts for each
dryer, ducts from individual dryers may be channeled into a
“common main duct.” The individual ducts should enter the
bottom or side of the main duct at an angle not more than 45º
in the direction of airflow. The main duct should be tapered,
with the diameter increasing before each individual duct is
added.
Combined Vertical
and Horizontal Dryer Venting
For an 8-inch (20.32 cm) combined vertical and horizontal
run, the dryer to the outside outlet cannot exceed the sum of
dimensions “A” and “B” in the following illustration.
This calculation of “A” and “B” compensates or allows for the
use of a maximum of 3 elbows including one elbow which is
the outside outlet protection. Refer to the illustration below.

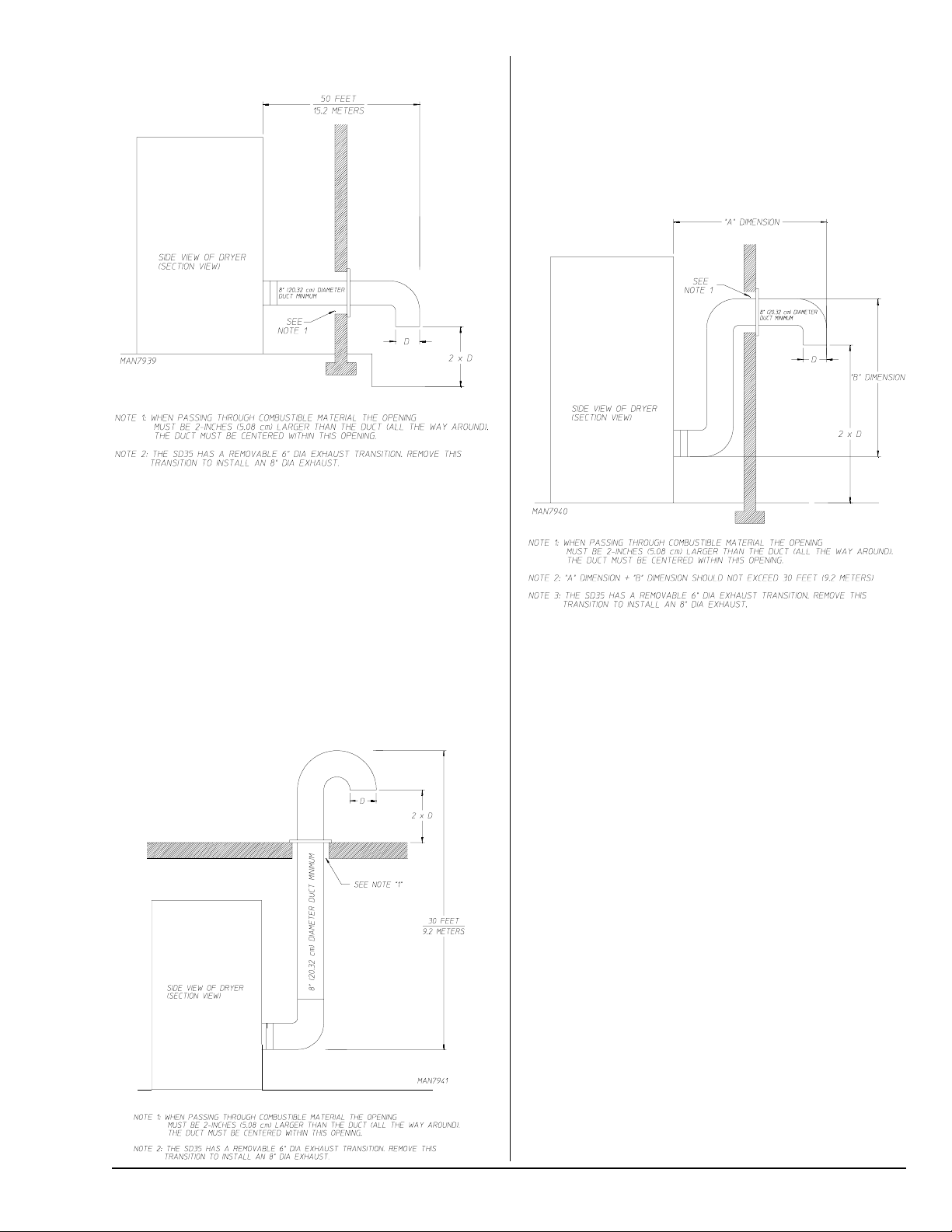

HORIZONTAL SINGLE DRYER VENTING
8-INCH (20.32 CM) DUCTING
If the length of the duct run or quantity of elbows used exceeds
the above noted specifications, the cross-sectional area of
the ductwork may need to be increased.
IMPORTANT: For extended ductwork runs, the cross
section area of the ductwork can only be increased to an
extent. When the ductwork approaches the maximum limits
noted in this manual, a professional HVAC firm should be
consulted for proper venting information.
For an 8-inch (20.32 cm) vertical run, the ductwork from the
dryer to the outside outlet cannot exceed dimension “A” in the
following illustration.
VERTICAL SINGLE DRYER VENTING

16 JLA Limited 113538-7
SD35

113538-7 Telephone [phone]
SD50, SD80

18 JLA Limited 113538-7

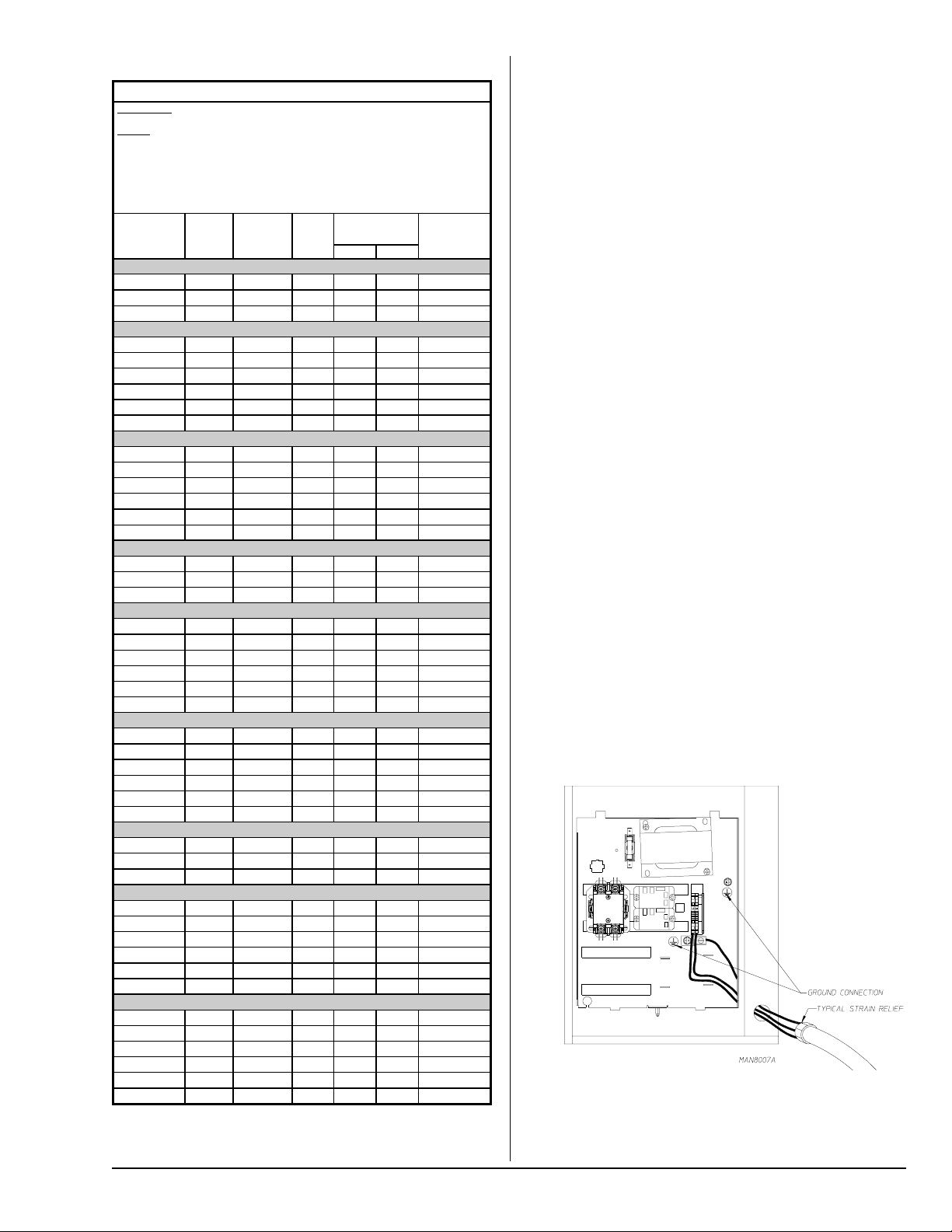

ELECTRICAL SERVICE SPECIFICATIONS (PER POCKET)
IMPORTANT:
NOTES: A.
B.
C.
When ordering, specify exact voltage.
When fuses are used they must be dual element, time delay,
current limiting, class RK1 or RK5 ONLY. Calculate/determine
correct fuse value, by applying either local and/or National
Electrical Codes to listed appliance amp draw data.
Circuit breakers are thermal-magnetic (industrial) motor curve type
ONLY. For others, calculate/verify correct breaker size according
to appliance amp draw rating and type of breaker used.
Circuit breakers for 3-phase (3ø) dryers must be 3-pole type.
SERVICE
VOLTAGE PHASE WIRE
SERVICE
APPROX.
AMP DRAW CIRCUIT
BREAKER
60 Hz 50 Hz
SD35
220 1ø 2 —6.6 15
230 1ø 2 —6.6 15
240 1ø 2 —6.6 15
220 3ø 3 —315
230 3ø 3 —315
240 3ø 3 —315
380 3ø 3 —2.5 15
400 3ø 3 —2.5 15
416 3ø 3 —2.5 15
SD50
220 1ø 2 —515
230 1ø 2 —515
240 1ø 2 —515
220 3ø 3 —4.45 15
230 3ø 3 —4.45 15
240 3ø 3 —4.45 15
380 3ø 3 —2.73 15
400 3ø 3 —2.73 15
416 3ø 3 —2.73 15
SD80
220 1ø 2 —515
230 1ø 2 —515
240 1ø 2 —515
220 3ø 3 —4.45 15
230 3ø 3 —4.45 15
240 3ø 3 —4.45 15
380 3ø 3 —2.73 15
400 3ø 3 —2.73 15
416 3ø 3 —2.73 15
Electrical Information _________________
Electrical Requirements
All electrical connections must be made by a properly licensed
and competent electrician. This is to ensure that the electrical
installation is adequate and conforms to local, state, and
national regulations or codes of the country of origin. In the
absence of such codes, all electrical connections, materials,
and workmanship must conform to the applicable requirements
of the National Electrical Code ANSI/NFPA NO. 70-LATEST
EDITION.
IMPORTANT: Failure to comply with these codes or
ordinances, and/or the requirements stipulated in this
manual can result in personal injury or component failure.
NOTE: Component failure due to improper installation will
void the warranty.
Each dryer should be connected to an independently protected
branch circuit. The dryer must be connected with copper wire
only. Do not use aluminum wire, which could cause a fire
hazard. The copper conductor wire/cable must be of proper
ampacity and insulation in accordance with electric codes for
making all service connections.
NOTE: The use of aluminum wire will void the warranty.
An individual ground circuit must be provided to each dryer,
do not daisy chain.
Component failure due to improper voltage application will
void the warranty.
The manufacturer reserves the right to make changes in
specifications at any time without notice or obligation.
IMPORTANT: A separate protected circuit must be provided
to each dryer.
The dryer must be connected to the electric supply shown
on the rating plate. The supply voltage must match the
electric service specifications of the rating plate exactly.
The wire size must be properly sized to handle the related
current.
!WARNING
Any damage done to dryer components due to
improper voltage connections will automatically void
the warranty.
Electrical Service Specifications
Gas Models Only
Check your national and local codes for breaker and wire sizes. 10/15/15

113538-7 Telephone [phone]
ELECTRICAL SERVICE SPECIFICATIONS (PER POCKET)
IMPORTANT:
NOTES: A.
B.
C.
When ordering, specify exact voltage.
When fuses are used they must be dual element, time delay, current
limiting, class RK1 or RK5 ONLY. Calculate/determine correct fuse
value, by applying either local and/or National Electrical Codes to listed
appliance amp draw data.
Circuit breakers are thermal-magnetic (industrial) type ONLY. For
others, calculate/verify correct breaker size according to appliance amp
draw rating and type of breaker used.
Circuit breakers for 3-phase (3ø) dryers must be 3-pole type.
SERVICE
VOLTAGE PHASE WIRE
SERVICE
OVEN
kW
APPROX.
AMP DRAW CIRCUIT
BREAKER
60 Hz 50 Hz
SD35 SINGLE-PHASE HEAT, SINGLE-PHASE MOTOR
220 1ø 2 11.3 — 58 70
230 1ø 2 12.4 — 60.5 80
240 1ø 2 13.5 — 62.9 80
SD35 THREE-PHASE HEAT, SINGLE-PHASE MOTOR
220 3ø 3 11.3 — 34.3 50
230 3ø 3 12.4 — 35.7 50
240 3ø 3 13.5 — 37.1 50
380 3ø 3*11.3 — 23.3 30
400 3ø 3*12.4 — 24 30
416 3ø 3*13.5 — 24.8 40
SD35 THREE-PHASE HEAT, THREE-PHASE MOTOR
220 3ø 3 11.3 — 35 50
230 3ø 3 12.4 — 36 50
240 3ø 3 13.5 — 38 50
380 3ø 3 11.3 — 21 30
400 3ø 3 12.4 — 21 30
416 3ø 3 13.5 — 22 30
SD50 SINGLE-PHASE HEAT, SINGLE-PHASE MOTOR
220 1ø 2 18.5 — 89 125
230 1ø 2 20.4 — 93.6 125
240 1ø 2 22 — 96.6 125
SD50 THREE-PHASE HEAT, SINGLE-PHASE MOTOR
220 3ø 3 18.5 — 53.4 70
230 3ø 3 20.4 — 56.1 80
240 3ø 3 22 — 57.8 80
380 3ø 3*18.5 — 34.7 50
400 3ø 3*20.4 — 36.1 50
416 3ø 3*22 — 37.2 50
SD50 THREE-PHASE HEAT, THREE-PHASE MOTOR
220 3ø 3 18.5 — 55 70
230 3ø 3 20.4 — 58 80
240 3ø 3 22 — 59 80
380 3ø 3 18.5 — 33 50
4003ø320.4—3450
4163ø322—3550
SD80 SINGLE-PHASE HEAT, SINGLE-PHASE MOTOR
220 1ø 2 18.5 — 89 125
230 1ø 2 20.4 — 93.6 125
240 1ø 2 22 — 96.6 125
SD80 THREE-PHASE HEAT, SINGLE-PHASE MOTOR
220 3ø 3 18.5 — 53.4 70
230 3ø 3 20.4 — 56.1 80
240 3ø 3 22 — 57.8 80
380 3ø 3*18.5 — 34.7 50
400 3ø 3*20.4 — 36.1 50
416 3ø 3*22 — 37.2 50
SD80 THREE-PHASE HEAT, THREE-PHASE MOTOR
220 3ø 3 18.5 — 55 70
230 3ø 3 20.4 — 58 80
240 3ø 3 22 — 59 80
380 3ø 3 18.5 — 33 50
4003ø320.4—3450
4163ø322—3550
Grounding
A ground (earth) connection must be provided and installed
in accordance with local, state, and national regulations or
codes of the country of origin. In the absence of these codes,
grounding must conform to applicable requirements of the
National Electrical Code ANSI/NFPA NO. 70-LATEST
EDITION.
For added personal safety, when possible, it is suggested that
a separate ground wire (size per local codes) be connected
from the ground connection of the dryer to a grounded cold
water pipe. Do not ground to a gas pipe or hot water pipe.
The grounded cold water pipe must have metal-to-metal
connection all the way to the electrical ground. If there are
any nonmetallic interruptions, such as, a meter, pump, plastic,
rubber, or other insulating connectors, they must be jumped
out with a wire (size per local codes) and securely clamped to
bare metal at both ends.
IMPORTANT: For personal safety and proper operation, the
dryer must be grounded.
Provisions are made for ground connection in each dryer at
the electrical service connection area.
Electrical Connections
A wiring diagram is located behind the control panel for
connection data.
If local codes permit, power to the dryer can be made by the
use of a flexible UL listed power cord/pigtail (wire size must
conform to rating of dryer), or the dryer can be hard wired
directly to the service breaker panel. In both cases, a strain
relief must be installed where the wiring enters the dryer.
The means for disconnection from the supply must be
incorporated into wiring having a minimum contact separation
of 3.0mm in all poles.
Single-Phase (1ø)
Wiring Connections / Hookup
The electrical input connections on all single-phase (1ø) gas
dryers are made into the rear service box located at the upper
left area of the dryer.
Check your national and local codes for breaker and wire sizes. 4/17/17
* If configuration ordered is one phase motor, three phase heat dryer will be
4-wire.
Electric Models Only

20 JLA Limited 113538-7
SINGLE-PHASE ELECTRICAL LEAD CONNECTIONS
Black
+
Positive
or L1
White or Red
+
Neutral
or L2
Green
+
Ground
For 220-240V Applications
CAUTION: The dryer must be grounded. A ground
lug has been provided for this purpose.
Input connection wiring must be sized properly to handle the
dryer’s current draw. This information is printed on the dryer’s
rating plate.
SINGLE-PHASE ELECTRICAL LEAD CONNECTIONS
Red
+
Positive
or L1
Blue
+
Neutral
or L2
Green / Yellow
+
Ground
For 220-240V Applications CE
Three-Phase (3ø)
Wiring Connections / Hookup
The electrical input connections on all single-phase (1ø) gas
dryers are made into the rear service box located at the upper
left area of the dryer.
IMPORTANT: A strain relief must be used where the input
wiring enters the electric box.
