JMP Skan 1.0 User manual

Skan 1.0
Battery charger
JM-No. 609 01 96
EN Battery charger
PL Ładowarka do akumulatorów
ES Cargador de baterías
IT Caricatore batteria
CZ Nabíječka baterií
Thank you very much for choosing a JMP Skan battery charger. The JMP Skan 1.0 charger is suitable for both daily
use involving rapid charging of a battery and long-term trickle charging (e.g. where vehicles are in winter storage).
Technical data:
6/12 V 1 A, for batteries from 2 Ah to 50 Ah
Dimensions: 180 x 80 x 40 mm, weight: 0.5 kg, mains power cable: 2 m, connection cable: 2.10 m
Suitable for:
• Standard lead acid
• Gel
• AGM
• EFB
• Lithium (LiFePO4)
Safety instructions:
• Read the operating instructions carefully prior to using the charger.
• The charger is intended for charging lead acid, gel, AGM, EFB and lithium (LiFePO4) batteries. It should not
be used for any other purposes.
• Disposable batteries should not be charged. Do not charge any frozen batteries.
• Battery acid is caustic. In the event of unintentional contact between the skin or eyes and acid, rinse the skin
off and the eyes out immediately under owing water and consult a doctor.
• Always wear protective goggles when connecting and disconnecting the battery and keep the battery away
from the face.
• Keep out of reach of children. This device is not a toy and should not be used as such.
• This device should not be used by persons (including children) with limited physical, sensory or mental apti-
tude or lacking in adequate knowledge and experience if these persons are not being supervised or have not
received comprehensive instruction.
• Potentially explosive gases can be created during charging. Sparking and naked ames should be avoided as
a result. Do not smoke.
• Realise charging in a ventilated and dry environment.
• Never deposit the charger on the battery during charging.
• Interventions in the device for the purpose of repair and maintenance should only be undertaken by skilled
personnel.
• No warranty claims will be entertained in the event of improper use of or interventions in the device.
Scope of delivery:
JMP Skan 1.0, adapter cable with terminals, adap-
ter cable with eyelets for permanent connection to
the battery

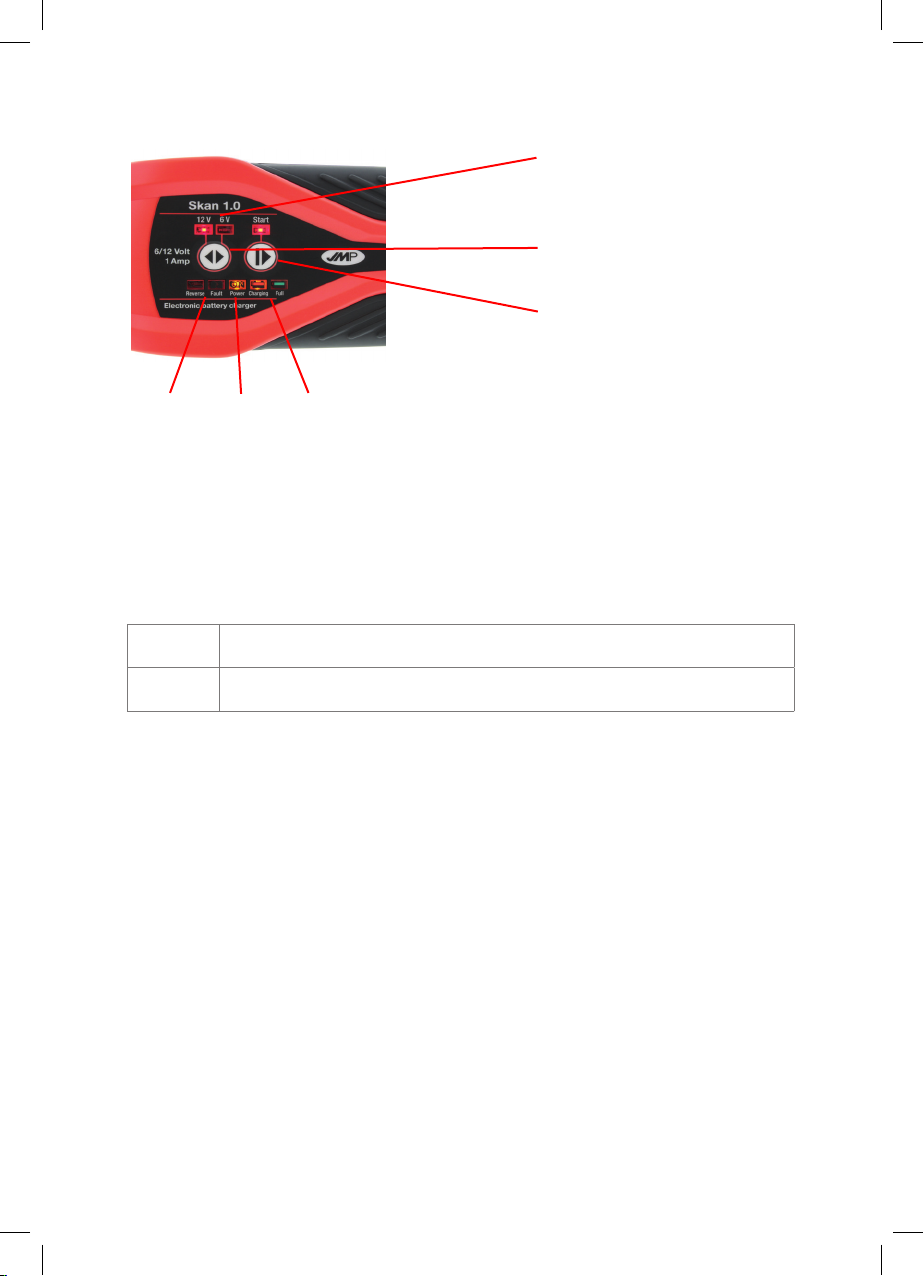

User interface:
Charging voltage
Selection button
Start button
Fault
Adjustable charging mode:
6 V Charging of 6 V batteries from 2 Ah to 32 Ah
Charge retention of 6 V batteries from 2 Ah to 50 Ah
12 V Charging of 12 V batteries from 2 Ah to 32 Ah
Charge retention of 12 V batteries from 2 Ah to 50 Ah
Charge level:
• Charging LED flashes: Battery test
• Charging LED illuminated: Charging
• Full LED illuminated: Fully charged
(trickle charging of battery commences)
Power
Charger use:
Connection
1. Connect the charger power supply unit to the socket.
2. First connect the red terminal to the positive terminal on the battery.
3. Then connect the black terminal to either the negative terminal on the battery or the earth terminal on
the vehicle body.
4. Select the desired charging mode based on the battery using the selection button. Then acknow-
ledge with the start button.
It is recommended that the optional eyelets be used for sustained connection to the charger (e.g. for
battery trickle charging).
Disconnection
1. Following use of the charger, disconnect the link to the mains socket.
2. Then disconnect the black terminal from the negative/earth terminal.
3. Disconnect the red terminal from the positive terminal on the battery.

Battery analysis and fault signals:
Chargers are capable of checking the battery status prior to and during charging and indicating any connec-
tion faults between the charger and the battery to be charged. The following indications can appear in the
event of faults during charging:
Display message Cause Solution
Terminals are not connected
correctly to the battery. Possible
reverse polarity.
Connect the terminals correctly and
restart charging (see “Charger use”).
Battery voltage too high (attempt to
charge a 24 V battery).
Check battery voltage range.
Battery charge capacity too high. Use a charger with a greater charge
capacity.
Battery is incapable of retaining a
good charge level.
Battery may be faulty.
Heavily discharged battery is not
rechargeable.
Battery may be faulty.
Battery voltage too weak, not
rechargeable. Charging of batteries
under 0.8 V is impossible.
Battery may be faulty.
Cable disconnected or short
circuited.
Connect the terminals correctly and
restart charging (see “Charger use”)
Complete short circuit on battery. Battery may be faulty.

Charge cycles:
The charge cycles of new battery chargers have been specially developed to optimise charging of all
commercially available batteries. The variety of technologies employed in batteries available today in retail
demand different charging characteristics to ensure correct and complete charging. JMP Skan chargers
guarantee the right charge cycle for every type of battery, thus extending the life of your batteries.
1. First diagnostic step: “Diagnostic I”
(initial diagnosis)
The charger analyses the battery charge level and
the voltage with which it should be charged.
2. First charging step: “Repair Mode”
(desulfation)
Charging with pulse current until the battery achieves
the optimum voltage and current values to com-
mence the second charging step.
3. Second charging step: “Initial Charge”
(battery activation)
Charging with reduced, constant current.
4. Third charging step: “Bulk Charge”
(charge with constant current)
Charging with constant current until maximum
battery voltage is achieved.
5. Fourth charging step: “Absorption Charge”
(charge with constant voltage)
Charging with stabilised voltage until current
reaches minimum values.
6. Second diagnostic step: “Diagnostic II”
(second diagnosis)
The charger checks the status of the charged
battery.
7. Sixth charging step: “Float Mode”
(trickle charging with constant voltage)
Trickle charging with constant, reduced voltage.
8. Seventh charging step: “Trickle Mode”
(trickle charging with pulse current)
Trickle charging with pulse current (constantly
available).
Safety precautions:
JMP Skan chargers are equipped with protective features that ensure maximum safety during operation
and use of the device.
• Complete protection against sparking
• Protection against short circuiting
• Voltage compensation
• Overheating protection
• Protection against reverse polarity
• Protection against weather conditions
(IP65: Protected against total dust ingress and low pressure water jets from any direction)
JM-Products
Hammerbrookstr. 97
20097 Hamburg
Deutschland
Tel.: + 49 (0) 40 2 37 21-0
www.jmproducts.eu
