John Bean 410E6M User manual

JUNE 2005
READ and SAVE THIS
INSTRUCTION MANUAL
INSTALLATION and
OPERATION MANUAL
INSTALLATION and
OPERATION MANUAL
MID RISE
MODEL 410E6M / 410A6M
6,000 LB. CAPACITY
MID RISE
MODEL 410E6M / 410A6M
6,000 LB. CAPACITY
309 EXCHANGE AVENUE, CONWAY, ARKANSAS, 72032
TEL: [phone] FAX: [phone]
6-1339

TABLE OF CONTENTS PAGE
1. GENERAL SPECIFICATION 2
2. TOOLS REQUIRED 2
3. SHIPPING CONTENTS 2
4. INSTALLATION INSTRUCTIONS 3
4.1 Unpacking Procedure
4.2 Assembly Instructions
4.3 Hydraulic System Installation
4.4 Hydraulic System Bleeding Procedure
5. POSITIONING INSTRUCTIONS 4
6. OPERATING INSTRUCTION 5
7. SAFETY INSTRUCTIONS 6
8. MAINTENANCE INSTRUCTIONS 7
8.1 Daily Maintenance
8.2 Monthly Maintenance
9. SAFETY AWARENESS 8
10. PARTS MANUAL 9
a. Mid-Rise Main Frame Assembly 10
b. Mid-Rise Main Frame Assembly - Part List 11
c. Hydraulic Cylinder Assembly 12
d. Hydraulic Cylinder - Part List 13
e. Power Pack Tow Cart 14
f. Power Pack Tow Cart - Part List 15
g.PowerPack 16
h. Power Pack - Part List 16
i.PumpAssembly 17
j. Pump Assembly – Part List 17
i. Power Pack Tow Cart Air 18
j. Power Pack Tow Cart Air - Part List 19

2

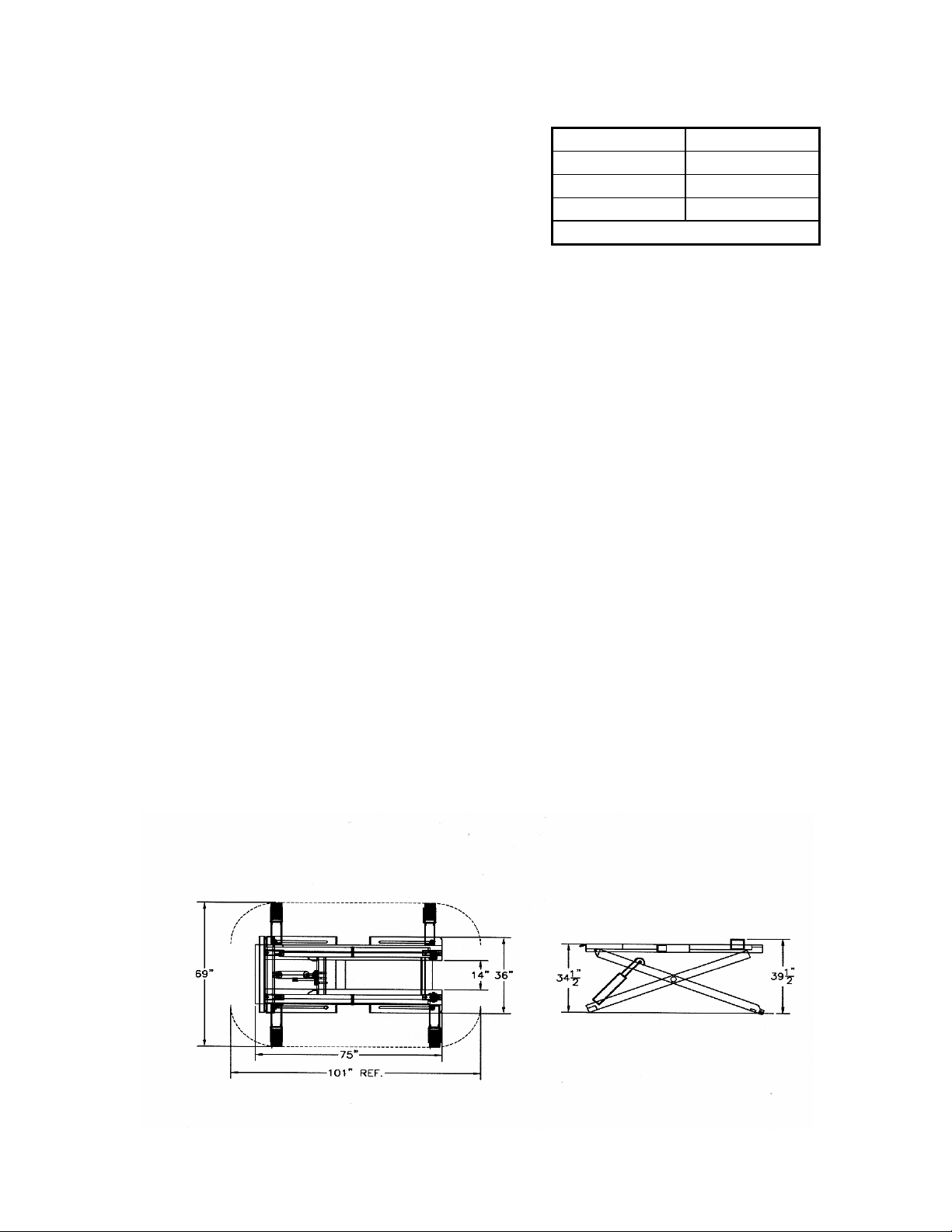

1. GENERAL SPECIFICATIONS
Maximum Capacity: 6,000 lbs. 2720 kg.
Maximum Lift Height: 39.5” 1000mm
Down Position Height: 5” 127mm
Shipping Weight: 950 lbs. 430 kg.
Lift Time 1. Electric Power Pack 30 seconds
2. Air Hydraulic Power Pack
Electric 115 V 1 H.P. Motor, 1 PH
Air Motor, 100 P.S.I
Unique Automatic Mechanical Safety Hydraulic Velocity Fuse
2. TOOLS REQUIRED
7/16” wrench
5/16” wrench
5/8” wrench
Side cutters
3. SHIPPING CONTENTS
The complete Mid-Rise Lift series is contained in two (2) packages. The main structure is
packaged onto a shipping skid. The main structure comes fully assembled with lifting
arms, main rollers and hydraulics. The remaining items come
in an accessory box.
Accessory Box Items:
1 Power Pack Tow Cart (with power pack and wheels)
1 “T” Handle
4 Rubber Lift Blocks
2 Truck Adapters (Optional)

3
4. INSTALLATION INSTRUCTIONS
When lift arrives on site, please read the owner’s manual and check for any freight
damages. Also, check the contents to make sure no parts are missing before starting
assembly.
4.1 UNPACKING PROCEDURE
Remove the metal strapping from the main structure package and slide the lift off the
shipping skid. Open the accessory box and check the contents of the box.
NOTE: The Power Pack is already installed on the Tow Cart
4.2 ASSEMBLY INSTRUCTIONS
Install the handle onto the Power Pack Tow Cart. Align the hole and fasten together using
the 1/4”-20UNC x 3/4” LG. hex head bolt and washer supplied.
4.3 HYDRAULIC SYSTEM INSTALLATION
1. Remove filler breather cap.
2. Add 3 liters of ISO 32 (10 Hydraulic weight) hydraulic oil to the Power Pack.
3. Add oil until it reaches the bottom of the filler neck.
4. Reinstall the filler breather cap onto the Power Pack.
5. Connect the 3/8” NPT-M end of the 12ft. long hydraulic hose to the 3/8” 90
degree fitting that is already installed on the short hydraulic hose at the front of
the lift.
6. Install the ¼” JIC female swivel end of the 12’ long hydraulic hose to the outlet
fitting on the power pack.
7. Plug the power pack utility cord into an approved 110V outlet.
4.4 HYDRAULIC SYSTEM BLEEDING PROCEDURE
NOTE: Make certain lift area is clear from debris and any obstructions.
1. Press the “UP” button on the power pack and raise the lift a few inches off the
floor. Check for any hydraulic leaks.
Lower the lift by pushing on the down control lever on the power pack.
2. Lower completely.
3. Repeat this procedure.
4. Raise the lift to engage the mechanical safety lock.
5. Lower onto safety.
6. Raise the lift up a few inches and the mechanical safety will automatically
disengage.
7. Lower lift completely.
8. Cycle the lift up and down completely a few times.
9. The hydraulic system is a self bleeding system.

4
5. POSITIONING INSTRUCTIONS
NOTE: Please review ALI safety card attached to tow cart and inspect lift
for mechanical fitness before using.
NOTE: Lifts must only be installed on “level” concrete floors, with a minimum
thickness of five (5) inches. Concrete must have a minimum strength of
4,000 psi, and should be aged 30 days prior to installation and use of the lift
in this area.
1. To move, insert the lifting tab of the Power Tow Cart to the lifting bracket on the
Mid-Rise. Tilt the cart back and move the Mid-Rise into position in the center of
the work area or bay.
2. Remove the Power Tow Cart from the lifting bracket of the Mid-Rise and roll the
cart to the front of the bay.
3. Plug the electric utility cord into an approved 110V outlet or an air line to the
optional Air Motor.
4. With the lifting arms in the stowed position, in line with the main frame, drive a
vehicle over the lift.
NOTE: When positioning a vehicle over the lift take time to equalize the load
front-to-rear and side-to-side.
NOTE: The Mid-Rise lift may be used as a frame contact lift or as a platform lift,
depending on the type of vehicle being worked on and the manufacturer
recommended lifting points for that vehicle.
NOTE: Obstructions hanging down from the vehicle may be damaged when lifting.
Always check between the vehicle and the contact points on the lift.
5. When in use as a frame contact lift, slide the lifting arms freely along the length
of the arm support to the desired position. The flip up lift pads have three (3)
positions, select and position as recommended to contact the correct lifting points
for this vehicle.
NOTE: Some pickup trucks may require an optional riser adapter to clear running boards
or other accessories.
When in use as a platform lift, move the lifting arms into the stowed position, in
line with the main frame. Position the four (4) rubber lifting blocks on top ramp
of the Mid-Rise.

5
6. OPERATING INSTRUCTIONS
1. Raise the lift by pressing the “UP” button on the front face of the Power Pack
Motor.
2. Continue raising the lift until the mechanical safety “CLICKS” into position.
Always lower the lift in order to fully engage the mechanical safety lock.
NOTE: All Mid-Rise lifts are equipped with dual safety locking devices, one (1)
automatic mechanical safety bar, and second, a hydraulic velocity fuse to protect
against hydraulic failure.
3. To disengage the safety and lower the lift, first press the “UP” button on the
Power Pack Motor to raise the lift off of the mechanical safety. Continue to raise
until automatic mechanical safety release device trips.
4. Lower the lift to the fully down position.
5. Reposition the lifting arms to the stowed position and/or remove the rubber lift
blocks.
6. Drive the vehicle straight back off the lift.
7. If the Mid-Rise lift will not be used for any given period of time unplug the
power cord.
7. SAFETY INSTRUCTIONS
DANGER: If the lift should become stuck at any
raised position, do not attempt to lower the lift by
loosening any hydraulic fittings. Contact technical
services at 1-800-268-7959.
1. CAUTION
The Midrise lift is designed for tire, brake and
body work. It is not recommended for under vehicle
work. If this type of work is being done, use (4)
adequate capacity & height safety stands at (4)
appropriate lifting point on the vehicle. Safety stands are
available from your lift dealer.
2. Inspect your Mid-Rise lift daily. Do not operate if it malfunctions or has damaged
parts.

6
3. Never attempt to overload the lift. The manufacturer’s rated capacity is shown on
the serial number tag.
4. Operating controls, DO NOT OVERRIDE the automatic safety devices
incorporated into the Mid-Rise lift. Press the “UP” button on the front face of the
power pack motor to go up. Work on vehicle when the mechanicalsafety lock on
the lift is activated.. To lower, raise the lift up until the automatic safety release
device trips, then press down on the control lever.
5. Only trained and authorized personnel should operate the lift. Do not allow
customers or bystanders to operate the lift or be in the work area.
6. Position the lifting arms of rubber lift blocks to contact the vehicle manufacturer’s
recommended lifting points. Raise the lift until the pads contact the vehicle.
Check pads for secure contact with the vehicle, then raise the lift to the
mechanical safety working height.
7. Always keep the lift area free of obstruction and debris. Grease and oil spills
should be cleaned up immediately.
NOTE: When positioning a vehicle over the lift, take time to center the load front-to-rear
and side-to-side. The removal or installation of some vehicle parts may cause a
critical shift in the center of gravity and may cause the vehicle to become
unstable.
8. Before driving on or off the lift make certain that the lift is completely in the
down position, the lifting arms are in the stowed position and that the lifting pads
are in the down position.
NOTE: DO NOT ATTEMPT TO OPERATE THE LIFT IF ANY PART IS
NOT WORKING PROPERLY OR IF YOU HAVE NOT READ THE
COMPLETE OPERATING INSTRUCTION MANUAL.

7
8. RECOMMENDED MAINTENANCE MID-RISE
8.1 DAILY MAINTENANCE
1. Check general operation of lift.
2. Check operation of automatic mechanical safety lock engaging and disengaging.
3. Check condition of floor in roller area for cracks and debris.
4. Check position of hydraulic hose, ensure that a vehicle positioned on the lift or
the lift itself will not damage the hose.
5. Check condition of electrical cord before plugging into an approved 110V power
supply.
8.2 MONTHLY MAINTENANCE
1. Check all hydraulic hoses, fittings and cylinder for leaks.
2. Check level of oil in power pack reservoir when hoist is in the lowered position.
Add more if required.
3. Check and grease all hinge points.
4. Check and lubricate automatic safety release device.
5. Inspect 110V plug end and cable.
6. Inspect rollers on tow cart and main structure.
7. Inspect lift area for debris and concrete condition.

8
9. SAFETY AWARENESS - AUTOMOTIVE LIFT INSTITUTE (ALI)

9

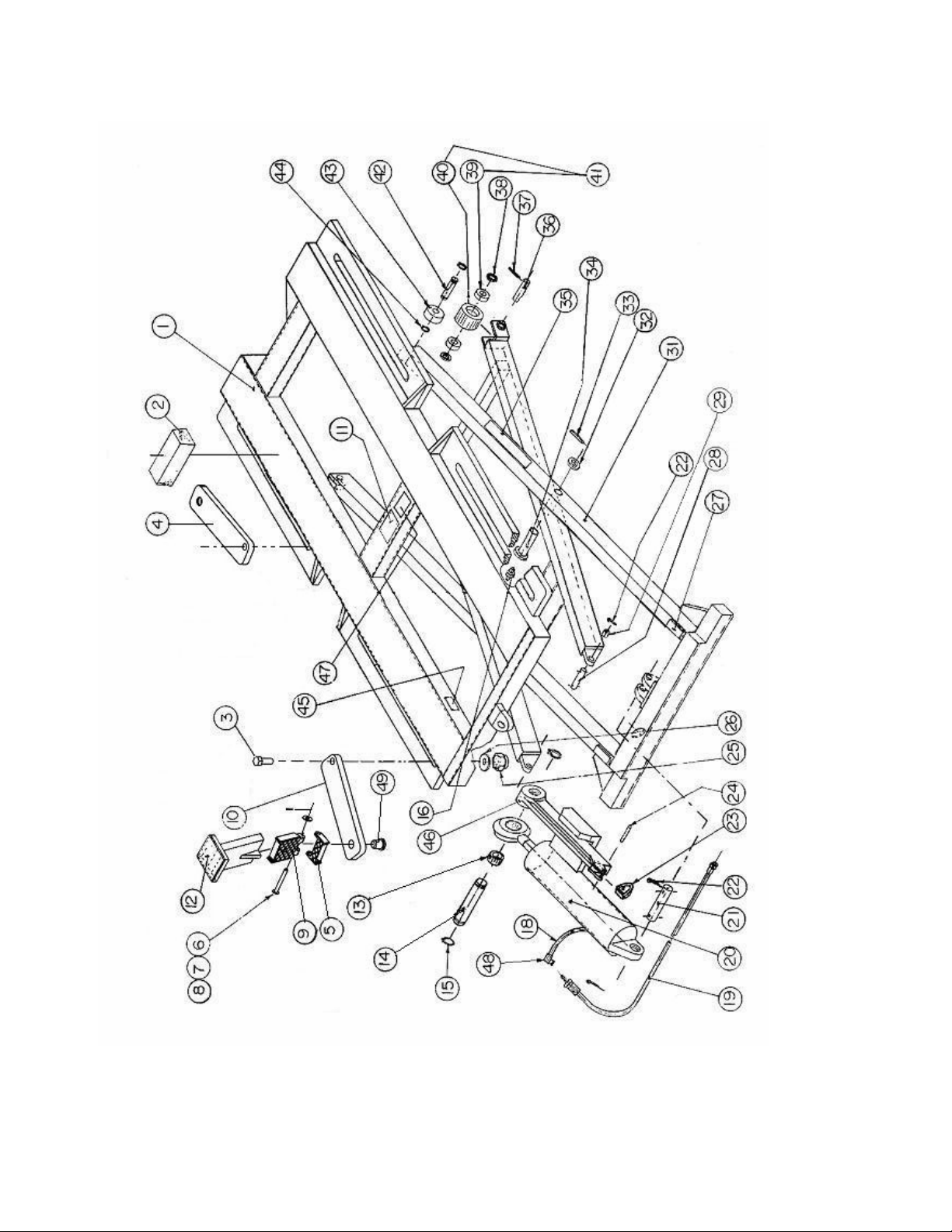

MID-RISE MAIN FRAME ASSEMBLY

10
MID-RISE MAIN FRAME ASSEMBLY - PARTS LIST
ITEM NO. QTY. DESCRIPTION PART NO.
11TOP RAMP ASSEMBLY 4-0200
24RUBBER BLOCK 6-1074
34ARM BOLT 1-1076
42ARM ASSEMBLY L.H. 2-1809
54LOW ADAPTER 3-0583
64CENTER PIN 1-1099
74FLAT WASHER 1/2" I.D. 6-0063
84COTTER PIN 1/8" X 1" LG. 6-0267
94HIGH STEP ADAPTER 3-0582
10 2ARM ASSEMBLY R.H. 2-1808
11 1SERIAL PLATE 6-0763
12 2TRUCK PAD ADAPTER (OPTIONAL) 2-1159
13 1BUSHING 6-0976
14 1SHAFT CYLINDER MOUNT 1-0814
15 2CIRCLIP 6-0340
16 3GREASE NIPPLE 6-0000
18 1HYDRAULIC HOSE 19" LG. 1-0858
19 1HYDRAULIC HOSE 12 FT LG. 2-0602
20 1HYDRAULIC CYLINDER ASSEMBLY 4-0199
21 1CYLINDER PIN 1-0861
22 6COTTER PIN 1/8"-1 1/2" LG. 6-0978
23 1OVERRIDE SAFETY CAM 2-0819
24 1SPRING PIN 1/4" X 1 1/2" LG. 6-0745
25 4UNI-TORQUE LOCK NUT 1”-8UNC 1-1385
26 4FLAT WASHER 1” I.D. 6-1106
27 4NEOPRENE STRIP 6-0993
28 2HINGE PIN 1-0857
29 2BUSHING 6-0795
31 1SCISSOR ASSEMBLY 4-0203
32 2KEEPER WASHER 1-0725
33 2SPRING PIN 3/16" X 2" LG. 6-0146
34 2SCISSOR PIN 1-0838
35 1DECAL 6-0762
36 2PIN 1-0837
37 2SPRING PIN 3/16" X 1 1/4" LG. 6-0749
38 4WASHER 7/8" I.D. 6-0725
39 4BEARING 6-0751
40 2ROLLER 1-0807
41 2ROLLER ASSEMBLY KIT 0-0191
42 2TRACK ROLLER SHAFT 1-0823
43 2TRACK ROLLER (UPPER) 6-0750
44 4CIRCLIP 6-0752
45 1ALI PLATE 6-0398
46 1SAFETY LOCK MECHANISM 3-0352
47 1 ETL/ALI STICKER 6-0996
48 1 3/8” NPT-F 90 DEGREE HYDRAULIC STEEL FITTING 6-0006
49 4 ADAPTER PIN 1-1091

11

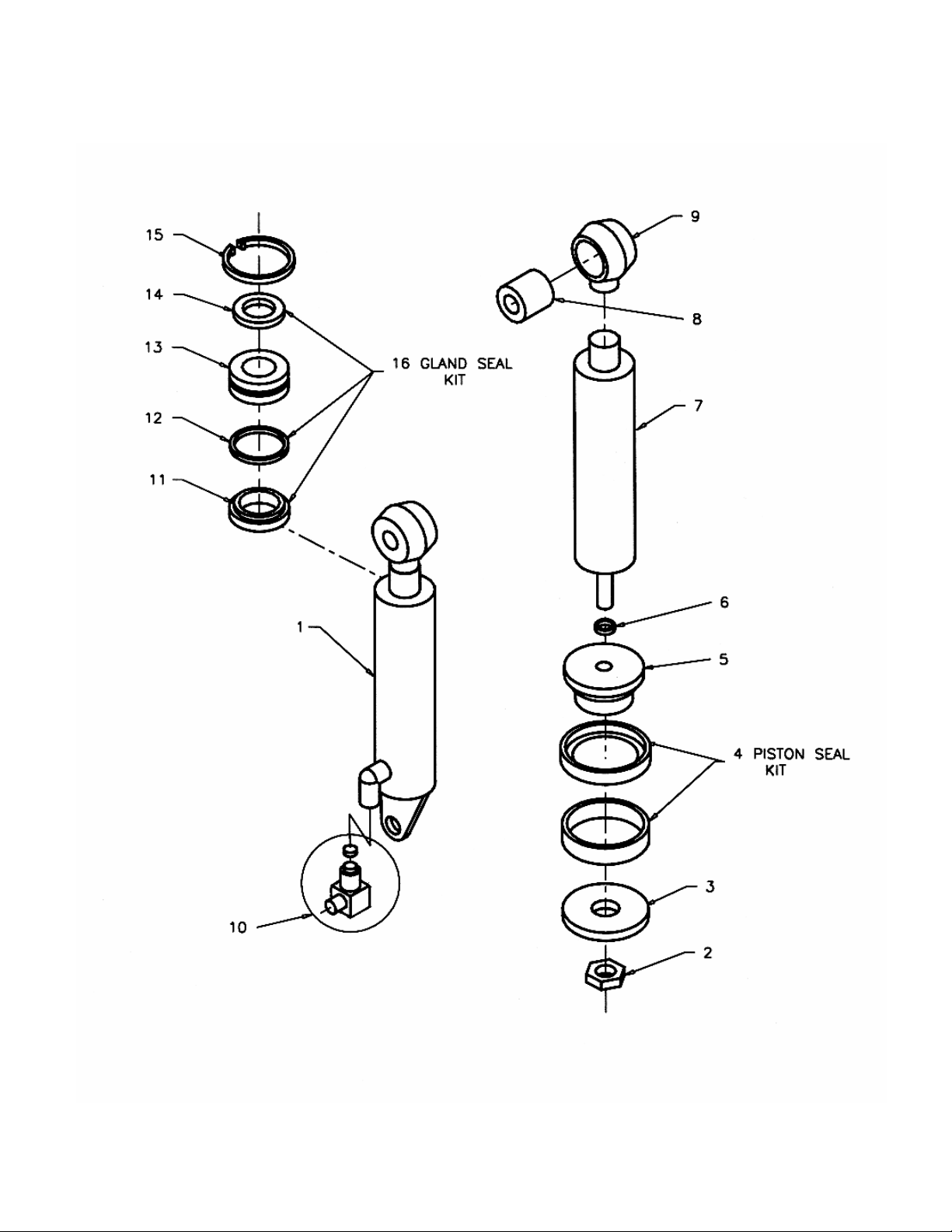

HYDRAULIC CYLINDER ASSEMBLY

12
HYDRAULIC CYLINDER ASSEMBLY - PARTS LIST
ITEM NO. QTY. DESCRIPTION PART NO.
11CYLINDER TUBE WELDMENT 3-0350
217/8"-9UNC HEX LOCKNUT 6-0631
31WASHER, 7/8” I.D. 1-0809
41PISTON SEAL KIT 0-0181
51PISTON 2-0586
61"O" RING 6-0656
71PISTON ROD 2-0832
81BEARING 6-0976
91ROD CLEVIS 2-0833
10 190º VELOCITY FUSE ASS’Y 1-1726
11 1ROD SEAL 6-0754
12 1"O" RING 6-0756
13 1GLAND 2-0587
14 1WIPER 6-0001
15 1CIRCLIP 6-0755
16 1GLAND SEAL KIT 0-0183

13
POWER PACK TOW CART
1
3
11
6
7
8
9
2
5
4
10

14
POWER PACK TOW CART - PARTS LIST
ITEM NO. QTY. DESCRIPTION PART NO.
11STAND (WITH WHEELS AND HUB CAP NUTS) 4-0207-01
21ADAPTER-MACHINED W/ ORIFICES (.035”DIA) 1-1063
3 1POWER PACK 115/230V 1PH 60HZ 1 HP 6-2249
42GRIP HANDLE 6-0758
51 PLUG 6-1711
6 4HEX BOLT 1/4"-20UNC 6-0028
7 4LOCKWASHER 1/4" I.D. 6-0056
84FLAT WASHER 5/16" I.D. 6-0295
94HEX NUT 1/4"-20UNC 6-0032
10 1DECAL "OPERATING INSTRUCTIONS" 6-0759
11 1ALI PLACARD 6-0990
*1 COMPLETE TOWCART W/ ELECTRIC POWER PACK 4-0206
-SEE NEXT PAGE FOR THE POWER PACK ASSEMBLY

15
POWER PACK: #6-2249 (AB-1425) 115-230V/1PH/60Hz

16
POWER PACK PARTS LIST: #6-2249 (AB-1425) 115-230V/1PH/60Hz
ITEM QTY. DESCRIPTION PART #
1 2 BOLT 5/16”-24 x 2 ¾” TORX G8 6-2298
2 1 COUPLING SAE 9T-20/40 1.260” 6-0774
3 1 SEAL SHAFT 0.500” x 1.00” x 0.25” 6-2158
4 1 MOTOR AC PSC #613000 115/230 1 HP 1PH BLK 6-2299
5 1 WASHER 0.338” x 0.625” x 0.060” STEEL 6-2159
6 1 CORDSET 16/3 SJO 8FT 115V PLUG 6-2300
7 1 PACKAGE PLUG 9/16” SAE 6-2301
8 1 PLUMBING MAGNET 6-2162
9 1 RELIEF VALVE CAP ASSEMBLY 6-1089
10 1 PLUMBING CLAMP HOSE ADJ INLET 6-2166
11 2 ELECTRIC STAKE-ON NUT 6-2302
12 1 COVER ASS’Y SUCTION 6-2165
13 2 SCREW TAPTITE M6x1.0 12MM TORX 6-2164
14 1 NAMEPLATE, SERIAL
15 1 ENDHEAD UNIVERSAL AUTOHOIST 6-2155
16 1 ELECTRIC CORD GRIP ¾” NPT 6-2303
17 1 ELECTRIC PIPENUT ¾” 6-2304
18 1 VALVE CARTRIDGE CHECK 6-1087
19 1 VALVE LOAD DELAY 6-2305
20 1 NUT ¾”-16 x 1”HEX x 0.250 STEEL 6-2167
21 1 WASHER ¾” INT. TOOTH LOCK 6-2168
22 1 BRACKET HANDLE ASS’Y REL BLACK 6-0776
23 1 COMPRESSION TUBE NUT 6-2153
24 4 BOLT M6 x 1.0 35MM SOC HD 6-2169
25 4 WASHER ¼” LOCK HI-COLLAR 6-2170
26 4 BOLT #12-24 x .50 HEX WSHRHD 6-1091
27 1 O-RING 2-348 BUNA 6-0875
28 1 COVER ASSY SUCTION 6-2165
29 1 PUMP ASS’Y 0.8 SHORT SPLINE 6-2306
30 1 TANK PLASTIC 6.7 CT 11.0” BLACK 6-2307
31 1 SPRING 0.480” x 0.063” x 0.42” COMP 6-2151
32 1 PLUMBING PLUG 5/16” SAE 6-2157
33 1 CABLE TIE 8” LONG WHITE 6-1846
34 1 PLUMBING ASS’Y INLET 6.61 (3) 6-2308
35 1 VALVE CARTRIDGE RELEASE MANUAL 6-0880
36 1 RELIEF ASSEMBLY FIXED 260 BAR 6-1326
37 1 COMPRESSION TUBE SLEEVE 6-2154
38 1 RETURN HOSE 3/8” OD x 10.0” 6-2310
39 1 PLUMBING PLUG 3/8”NPT 6-2161
40 2 ELECTRIC REDUCER WASHER 6-2311
41 1 WIRING ASSEMBLY AC 1PH FENNER 6-2156
42 1 LABEL INSTALLATION AUTOHOIST 6-2136
43 1 BREATHER CAP & BLADDER 6-1376

17
AIR POWER PACK

18
AIR POWER PACK - PARTS LIST
ITEM NO. QTY. DESCRIPTION PART NO.
11AIR HYDRAULIC PUMP“AC-10TC UTILIZING VA-4S VANE AIR MOTOR” 6-0919
2 1 HYDRAULIC HOSE - 12FT. 2-0602
31 BALL VALVE 6-0940
41 3/8” STEEL NIPPLE 6-0953
51 REDUCER 3/4” M PIPE/ 3/8” F PIPE 6-0285
6 1 EXHAUST MUFFLER 6-0958
*1 COMPLETE TOWCART W/ AIR POWER PACK 4-0274
