Jonix cube User manual

JONIX cube
USE AND MAINTENANCE MANUAL
AIR PURIFICATION DEVICE
WITH ADVANCED COLD PLASMA TECHNOLOGY

These instructions are the translation of the italian original ones. No liability is taken for translations into other languages that
do not conform to the original meaning. JONIX S.p.A. reserves every right concerning this manual, including the right to
make any necessary change or improvement to its products and to the manual at any time and without notice. It is forbidden
to reproduce in full or in part this manual without JONIX S.p.A.’s consent.

3- 40
cube
TABLE OF CONTENTS
1 - GENERAL INFORMATION 5
1.1 - CE PLATE AND SERIAL NUMBER 5
1.2 - RESPONSIBILITY 5
1.3 - GENERAL SAFETY INDICATIONS, SYMBOLS AND DEFINITIONS 6
1.3.1 - General safety information 6
1.3.2 - Symbols 6
1.3.3 - Definitions 7
2 - WARNINGS AND GENERAL PROHIBITIONS 8
3 - THE OPERATING SYSTEM 11
4 - TECHNICAL DATA JONIX cube 12
4.1 - COMPONENTS DESCRIPTION JONIX cube 12
4.1.1 - Technical characteristics JONIX cube 13
4.1.2 - Spare parts available on order 13
5 - RECEPTION, TRANSPORT AND STORAGE 14
5.1 - PACKAGING 14
5.2 - HANDLING AND TRANSPORT 15
5.3 - INSPECTION UPON RECEPTION 15
5.4 - STORAGE 15
5.5 - HANDLING DEVICE IN OPERATING CONDITIONS 15
6 - INSTALLATION AND COMMISSIONING 16
6.1 - SAFETY INSTRUCTIONS 16
6.2 - GETTING STARTED 18
6.3 - OPERATING SITE CHARACTERISTICS 19
6.3.1 - Position of the operator 19
6.4 - ELECTRICAL CONNECTIONS 20
6.5 - ELECTRIC POWER SUPPLY 20
6.6 - USING THE DEVICE 21
6.7 - CONTROL PANEL 22
6.7.1 - Operating levels 23
6.7.2 - Ventilation function 23
6.8 - FIRST START CHECKS 24
7 - MAINTENANCE 24
7.1 - WARNINGS 24
7.2 - ROUTINE MAINTENANCE 25
7.2.1 - Cleaning the ionising tubes 25
7.2.2 - Cleaning the filter 29
7.2.3 - External cleaning of the device 31
7.2.4 - Replacing ionising tubes 31
7.2.5 - Replacement of the protection fuse 34
7.3 - SPECIAL MAINTENANCE 34
8 - OPERATIONAL CHECK AND TROUBLESHOOTING (DIAGNOSTICS) 35
8.1 - DIAGNOSTICS 35
8.2 - GENERAL DIAGNOSTIC PROVISIONS 36
9 - DISPOSAL 37

4- 40
cube
Thank you purchasing the JONIX cube device.
This manual contains the information and anything deemed necessary for the transport,
installation, use and maintenance of the active sanitizing and air purification device JONIX cube.
Improper installation of the device and/or failure to comply with the instructions in this manual,
may void the warranty that the Manufacturer issues for its products.
This device has been designed for use in civil environments only. The Manufacturer is not liable for
any direct and/or indirect damage caused by incorrect installation. At the time of purchase, check
that the device is intact and complete.
The Manufacturer declines any liability in case of personal injury or property damage resulting
from any improper use of the device or from the failure to observe the use and safety instructions
specified in this manual. In any such case, any warranty claim will be void.
Any complaints must be submitted in writing within 8 days of receiving the goods.

5- 40
cube
Jonix
MADE IN ITALY
JONIX S.p.A. S.B.
Product name
Model
Serial number
Power supply
Power consumptions
Year of production
cube
10 W
220V-240V/~1/50/60 Hz
2021
JONIX
70WHITECUBE
00000100001
REF
SN
Viale Spagna, 31/33
35020 - Tribano (PD)
1.2 RESPONSIBILITY
Failure to comply with the instructions contained in this Use and Maintenance Manual releases
JONIX S.p.A. from any liability. For any data not included or not deducible from the following
pages it is recommended to consult JONIX S.p.A. directly.
JONIX S.p.A. Benefit Corporation
Viale Spagna 31/33
35020 Tribano - PD - Italy
http://www.jonixair.com
In particular, if the maintenance of the device is carried out in a manner that does not comply with
the instructions provided, or in any case in such a way as to compromise its integrity or modify
its characteristics, JONIX S.p.A. will be relieved of any responsibility regarding the safety of
persons, property, animals and the faulty operation of the devices.
The device described in this manual is
provided with a nameplate identifying it and the
Manufacturer.
IMPORTANT WARNING
The JONIX cube device is designed and made to sanitise the air in civil environments
that are incompatible with toxic and flammable gases. It is therefore strictly forbidden
to use the device in environments where the air is mixed with and/or altered by
other gaseous compounds and/or solid particles. Using the device for purposes other
than those intended and that do not comply with those described in this manual will
immediately relieve Manufacturer and its distributors from any direct and/or indirect
liability.
1 - GENERAL INFORMATION
1.1 CE PLATE AND SERIAL NUMBER

6- 40
cube
OBLIGATION TO USE PROTECTIVE GLOVES
Use adequate hand protection in addition to other personal protective equipment
suitable for the place and the operations to be carried out.
WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT.
The crossed-out bin symbol on the label on the appliance indicates that this product
complies with the regulations on waste electrical and electronic equipment. The
abandonment of the equipment in the environment or its unauthorised disposal is
punishable by law.
HIGH VOLTAGE HAZARD!
Do not open or remove any doors or protections before disconnecting the voltage
supply.
OBLIGATION: This symbol draws attention to a specific obligation or action to be
implemented with obligation.
FORBIDDEN: This symbol refers to operations that must be avoided under any
circumstances, and hence forbidden.
WARNING: It refers to integrations or suggestions concerning the proper use of the
device.
HAZARD: It refers to dangerous situations that may result from the use of the device, in
order to ensure personal safety.
1.3.2 Symbols
Please pay utmost attention to the following symbols and their meaning. They emphasise specific
information, such as:
1.3.1 General safety instructions
Any intervention, of whatever nature, on the device must be carried out by prior and careful
reading of this manual in all its parts, with particular reference to SAFETY.
It is essential, therefore, that the device is used in accordance with its intended use and with this
manual. This manual has been drawn up to provide the necessary information for the use and
maintenance of the device, until its sale or disposal. Before using the device, please read this
entire manual carefully and keep it for future references.
1.3 GENERAL SAFETY INSTRUCTIONS, SYMBOLS AND DEFINITIONS

7- 40
cube
1.3.3 Definitions
Below are the definitions of the main terms used in the user manual.
MANUFACTURER
Individual or juridical person who designs and/or manufactures the device and is responsible
for its conformity for the purpose of placing it on the market under his own name or trademark.
SUPPLIER/DEALER
Professional operator in the marketing chain.
USER
Person, organisation or company who or which has purchased or rented the device and is going
to use it for the intended purposes.
USER/OPERATOR
Individual who has been authorised by the user to operate the device.
QUALIFIED STAFF AUTHORIZED BY JONIX S.p.A.
Individuals who, on the basis of their professional training, experience, knowledge of relevant
regulations and accident prevention regulations, are able to assess the work entrusted to them
and recognize and avoid any hazards. The assignment to carry out certain activities derives from
the authorization of JONIX S.p.A..
ROUTINE MAINTENANCE
Type of maintenance interventions during the life cycle, suitable for:
- maintain the original integrity of the goods;
- maintain or restore the efficiency of the goods;
- contain the normal degradation of use;
- ensure the useful life of the goods;
- cope with accidental events.
SPECIAL MAINTENANCE
Type of non-recurring and high cost interventions, compared to the replacement value of the
goods and the annual cost of routine maintenance of the same.
NON THERMAL PLASMA GENERATOR NTP (Non Thermal Plasma) or IONIZING TUBE
Electric field generator that transforms gas into plasma with high chemical oxidation power able
to oxidize and break down pollutants, bacteria, moulds, viruses and odours.

8- 40
cube
This device is not a toy, make sure it is placed out of the reach of children and take
precautions so that children do not play with the device.
Cleaning and maintenance intended to be carried out by the user must not be
carried out by unsupervised children.
This device is not intended for use by people with reduced physical, mental or
sensory abilities or lack of experience and knowledge.
Any liability of JONIX S.p.A. is excluded for damage caused to persons, animals
or property, whether due to transportation, installation, adjustment, maintenance,
decommissioning or misuse.
The transport, handling, installation, commissioning and decommissioning of
this product must only be performed in accordance with the requirements and
instructions specified in this manual.
Please note that the use of products that require electricity involves the observance of some
crucial safety rules such as:
READ THE INSTRUCTIONS BEFORE ANY OPERATION
Before starting any operation, it is mandatory to read this manual and apply all its
instructions.
2 - WARNINGS AND GENERAL PROHIBITIONS
It is the user's responsibility to ensure that, if this document is modified by JONIX
S.p.A., only the updated versions of the Manual are actually present at the points
of use.
Repair or unscheduled maintenance work must be carried out by specialised
personnel authorised by JONIX S.p.A.. Do not alter or tamper with the device as
it can lead to hazards and the manufacturer shall not be liable for any damage
caused.
This Use and Maintenance Manual is an integral part of the device and must
therefore be kept with care and must ALWAYS accompany the device even if it
is transferred to another owner or user or transferred to another facility. In case
of damage or loss, request another copy from JONIX S.p.A. or download the
document from www.jonixair.com.

9- 40
cube
It is forbidden to use the device outdoors or on wet surfaces. Do not expose to
water, rain or weathering.
It is forbidden to spray or throw water or other liquids directly inside the device,
even in case of fire.
It is forbidden to get on and/or sit on the device. It is forbidden to place objects,
animals or people on the device.
Do not pull, detach or twist the electrical wires coming out of the device, even when
it is disconnected from the mains.
It is forbidden to modify the safety and/or adjustment devices.
Any maintenance or cleaning operation before disconnecting the device from the
power supply is prohibited.
Do not touch the device if you are barefoot and with parts of the body that are wet
or damp.
It is forbidden to open the access panels to the internal parts of the unit without
removing the power supply and making sure that the unit cannot be accidentally
powered.
It is forbidden to use the device with a damaged cable or plug.
It is forbidden to use the device if it does not work properly, has received a strong
blow, has been accidentally dropped, has been damaged or left outdoors or has
fallen into water.
It is forbidden to insert objects into the openings of the device.
Do not dispose of or leave the packaging material within reach of children because
it can be potentially dangerous.

10 - 40
cube
For all maintenance operations it is good practice to use work gloves to protect
your hands.
• It is the duty of the user to perform all the maintenance operations on the device reported in
this manual.
• If a malfunction not indicated in this manual occurs, disconnect the power supply to the device
and consult your dealer and/or JONIX S.p.A..
• Only specialised personnel authorized by JONIX S.p.A., can perform maintenance operations
other than those specified in this manual.
ATTENTION!
BEFORE CARRYING OUT ANY MAINTENANCE OPERATION MAKE SURE THAT
THE DEVICE IS NOT AND CANNOT ACCIDENTALLY BE POWERED ELECTRICALLY.
YOU MUST THEREFORE UNPLUG THE DEVICE BEFORE CARRYING OUT ANY
MAINTENANCE.
• Clean the ionising tubes every time it is shown on the display.
• Do not put back the mesh on the ionising tube if it is even partially wet.
• Check that the earthing spring is in contact with the outer mesh once the ionising tube have
been screwed back into place. Otherwise contact the manufacturer.
• Do not use liquid cleaners, sprays, soap or other products directly on the device.
For the maintenance and cleaning operations (see chapter 7 "Maintenance") of the device we
remind you that:

11 - 40
cube
e+
ion+
ion
R
3 - THE OPERATING SYSTEM
Among the wide range of air ionisers available on the market, the JONIX cube ioniser is a top
of the range device that combines high performance and a modern and attractive design.
This sanitizing device, exploiting the physical phenomenon of ionization, promotes the controlled
formation of particular electrically charged species in the air through an electrostatic field. The
latter simulates a natural process that normally occurs through solar radiation, mechanically or
by other physical phenomena.
The particular ionic species produced are proven to be particularly effective as sanitizing agents
in air and on surfaces, moreover they are scientifically and historically proven to be beneficial on
people, especially the negatively electrically charged species (i.e. those derived from single or
small groups of molecules receiving an electron).
JONIX cube:
• constantly reduces and eliminates bacterial loads in the air and on indoor surfaces;
• constantly decomposes volatile organic compounds (VOCs);
• it eliminates odours;
• is suitable for environments that need to reduce air contamination.
The sanitizing activity of JONIX cube is compatible with the presence of people and animals.
No chemicals are used and no harmful residual substances are generated.
Immediately operational, it does not require any set-up for its installation; it is the ideal solution
to improve the hygiene of air and of surfaces, the environmental comfort of professional activities
with high attendance such as pharmacies, medical clinics, hairdressing salons and beauty centres
and schools and is suited to all those environments where it is necessary to guarantee continuous
sanitisation activities even during the activities.
The device has a safety switch, positioned in such a way that when the protection cover (also
accidental) is opened, the power supply to the ionizing units and the fan is removed.
Electrical
field
< 3000W
Gas Molecule
[ O2, O3, NO, NO2 ]
Neutral Molecule
[ O2, CO2, H2O ]
[ H20, O3, VOC ]
Free
electron
Negative ion
stable
[O, O2, O3]
[ OH, HO2, HO2- •]
Free
radical
FUNGI
BACTERIA
MOULDS AND
YEASTS
M
I
C
R
O
B
I
C
I
D
E
A
C
T
I
O
N
Staphilococcus
Aureus
Aspergillus
Niger
Saccharomyces
Cerevisiae

12 - 40
cube
2
1
4
8
9
7
11
10
6
5
3
2
4
4 - TECHNICAL DATA JONIX cube
4.1 COMPONENT DESCRIPTION JONIX cube
Fig. 1
1 Protection lid
2 Ionizing generator
3 Earthing spring
4 Top cover opening safety
switch
5 Guides for correct positioning
of the ionizing tube
6 Power cable socket
7 Main switch
8 Control Panel
9 Filter cover
10 Power cable (provided)
11 Protection fuses

13 - 40
cube
Model
Dimensions
(W x D x H)
[mm]
Power supply Consumption
[W]
Electrical
absorption
[mA]
(*) Lp eq according
to UNI-EN 3746
[dB(A)]
Weight
[kg]
JONIX cube 238 x 238 x 260 230 V / ~1 / 50Hz 10 51 33 4
(*): Equivalent sound pressure values (Lp eq) at a distance of 1m according to UNI-EN 3746 (Determination of sound
power levels and sound energy levels of noise sources by measuring sound pressure - Control method using an enveloping
surface over a reflecting plane), obtained starting from the values of sound power (Lw) determined with the tests in a
reverberation room.
4.1.1 Technical features JONIX cube
4.1.2 Spare parts available on order
Code Description Notes
71KT000001 CUBE GENERATORS SPARE PART KIT 2 Ionising generators
JX40000001 CUBE POWER CABLE 3x0.75 cable, SP8848 schuko plug
and 90° IEC60320 C13 connector
JX40000002 PROTECTION FUSE 1 quick blow glass fuse 5x20 1A ‘F’

14 - 40
cube
Fig. 2

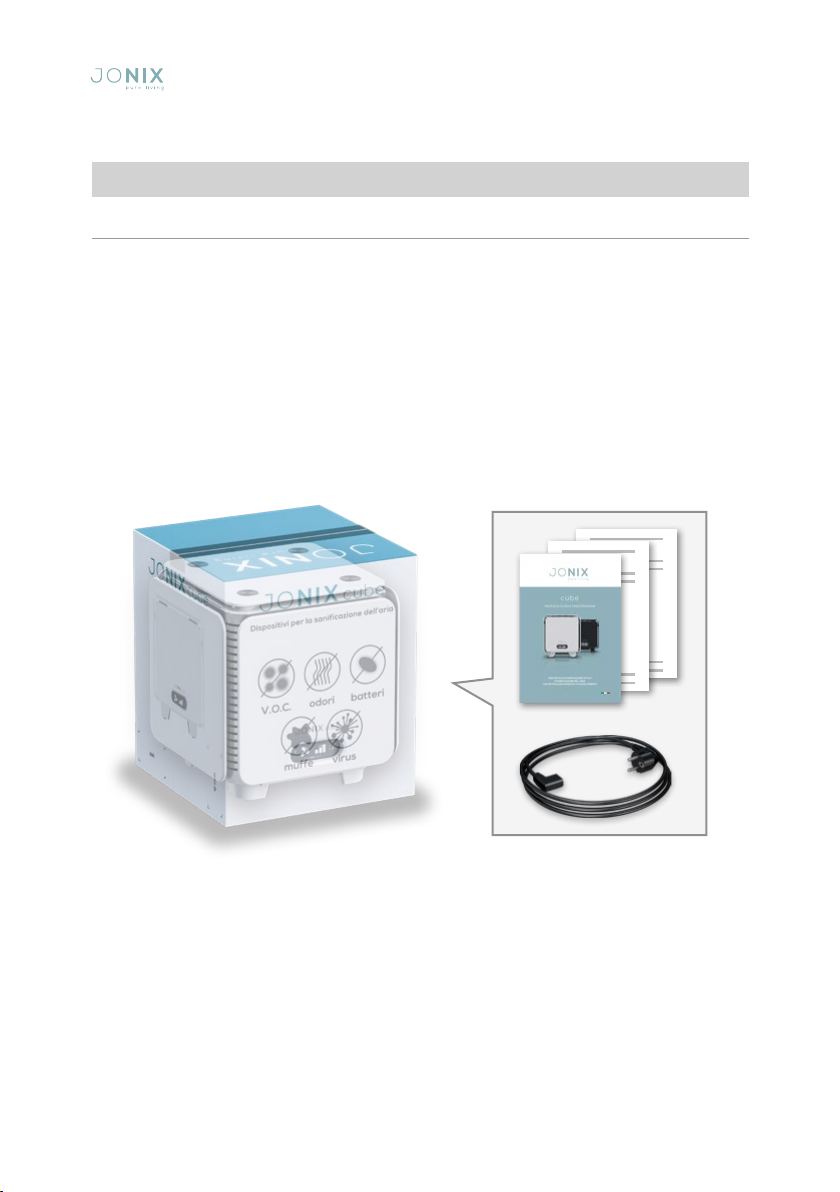

5 - RECEPTION, TRANSPORT AND STORAGE
The JONIX cube device is shipped in special protective packaging that must be kept intact
until installation. The materials that were not installed for technical requirements are supplied with
suitable enclosure secured to the inside or outside of the device itself.
The package includes:
- JONIX cube (with 2 ionizing tubes already installed).
- Power cord.
- Operating and maintenance manual.
- Declaration of CE Conformity.
- Warranty Terms and Conditions.
5.1 PACKAGING

15 - 40
cube
To handle the device, use appropriate means, in good condition and suitable
capacity, depending on the weight, as required by Directive 89/391/EEC and
subsequent amendments.
The carrier is responsible for securing the load on the means of transport.
JONIX S.p.A. declines any responsibility in case of damage caused by loads
poorly transported by the carrier.
Unless otherwise agreed in writing in advance, no other material or goods shall be placed on top
of the devices.
5.2 HANDLING AND TRANSPORT
Please take great care while unloading and positioning the devices, to prevent
damaging the casing or components. Always make sure that the load is stable.
Avoid uncontrolled rotations. Lifting assistance must, if necessary, be carried out
with rods, levers, grappling hooks without ever using hands alone.
During lifting and/or transport and/or handling operations, provide for appropriate
signalling and confinement of the dangerous zone, signalling the prohibition of
access to the dangerous zone by unauthorised personnel.
In case of prolonged storage before installation, the device must be protected from
dust, weather and kept away from heat and vibration. Do not allow the device to
come into contact with corrosive substances.
JONIX S.p.A. declines all liability for damage due to poor handling, transportation and
storage.
5.4 STORAGE
Any type of complaint must be sent in writing within eight days from receiving the
goods.
When you receive the device please check all its parts, in order to make sure that it has not been
damaged during transport.
Any damage must be reported to the carrier, by filling in the relevant section on the delivery note
and specifying the type of damage.
5.3 INSPECTION UPON RECEPTION
JONIX cube device is easy movable in various environments, because it is provided with
reduced dimensions (see Chapter 4 "Technical Data").
5.5 HANDLING DEVICE IN OPERATING CONDITIONS

16 - 40
cube
• The device must be installed in strict accordance with the instructions contained in this
manual.
• While performing installation, operate in full safety and in a clean environment clear of
obstructions.
• During each phase of use and/or maintenance it is forbidden to operate wearing loose or
dangling clothes, long loose hair, jewellery, chains and anything that could be a danger of
entanglement.
• Before switching the device on check the integrity of the various components and of the
electrical mains to which it is connected, making sure that it is fitted with a circuit breaker
upstream of the power line.
• Before putting the device into operation, check that the electrical system to which it is to
be connected has an effective earthing system.
• Do not service or clean the device without first unplugging it from the mains.
• Perform routine maintenance following the instructions in this manual or contact JONIX
S.p.A. for assistance.
• Unscheduled maintenance and the replacement of damaged or worn parts must only be
carried out by specialist personnel authorised by JONIX S.p.A..
• Spare parts must meet the requirements defined by JONIX S.p.A..
• Do not insert objects of any kind into the device, as coming into contact with live parts or
electrical terminals may cause fires or electric shocks. In case of maintenance, check that you
have removed all tools and objects before closing the panels and restarting the device.
• Comply with the laws in force in the country in which the device is installed, regarding the use
and disposal of the packaging and products used for cleaning and servicing the device; you
should also observe the recommendations given by the manufacturers of such products.
• In the event of decommissioning or disposing of the MIC device, follow the anti-pollution
regulations set out by the country in which the device is installed.
• Use only the power supply indicated on the nameplate. If you are not sure about the type
of power supply available, ask your local retailer or electricity provider for assistance.
• Do not spill water or other liquids on the device.
• Place the device so that the power cable cannot be stepped on and/or does not cause tripping.
• Do not connect the device to power supply outlets connected to any other electric utilities or
devices.
6.1 SAFETY INSTRUCTIONS
JONIX S.p.A. disclaims any liability for failure to comply with the safety and
prevention standards as described below.
The Manufacturer also disclaims any liability for damage caused by improper use
of devices and/or alterations carried out without prior authorisation.
6 - INSTALLATION AND COMMISSIONING

17 - 40
cube
• Do not touch the inside of the device, unless otherwise specified in the instructions contained
in this manual.
• Never force the components when installing or performing maintenance operations: although
it is built with high strength materials, the parts of the device can be damaged if handled
incorrectly.
• Do not try to perform maintenance work on the device, except where specified in this manual.
Opening or removing the outer casing may expose you to dangerous live parts or may involve
other risks. All maintenance work must be carried out by specialized personnel authorized by
JONIX S.p.A., except where specified in this manual.
• Do not tamper with or modify the device.
• Do not perform maintenance or other operations in low light and visibility conditions.
• Do not modify the functional and performance components of the device.
• Do not tamper with the safety devices.
• Do not use the device after maintenance without making sure it is safe. Check that all
components are correctly restored before restarting it.
• Do not remove or make illegible the safety, hazard, and mandatory signs on the device.
• Do not use water or liquids to put out a fire.
• The device has slots and openings for ventilation, do not obstruct or cover them, even partially.
• Always leave the necessary space for ventilation in front of cracks and openings, as indicated
in this manual.
• Do not pull the power cord and make sure it is not too taut when connecting the device.
• Keep the cord and device away from hot surfaces.
• Do not cover the cord with rugs or other similar items.
• Place the cord in a position away from trafficked areas to avoid the risk of tripping.
• Do not remove the plug by pulling on the cord. To perform this operation, hold the plug, not
the cord.
• Extensions should not be used.
• Do not tamper with or modify the power cord.
• Use the power cord supplied with the device, do not use third party power cords.
• Switch off the device before disconnecting the plug.
• Unplug when the device is not used for a long time and rewind the cord securely to avoid the
risk of tripping.
• Do not use the device near ovens, fireplaces, stoves or other high temperature heat sources.
• Do not use the device near naked flames.
• Place the device on a stable surface (avoid beds, sofas, blankets, carpets and so on).

18 - 40
cube
• Do not rest weights or tools on the device, or place it on an unstable surface.
• Check that the various components of the device are fully intact.
• Check that the documentation and all components for installation are contained in
the package.
6.2 GETTING STARTED
ATTENTION!
Any use other than that specified herein shall be deemed to be
incorrect.
• When using the product together with gas appliances in operation (such as gas stoves, gas
water heaters, gas hobs, etc.), adequately ventilate the environment to avoid carbon monoxide
poisoning.
• Do not use the device near air fresheners, essential oils, chemical additives and similar
products.
• Disconnect the device from the power supply and contact JONIX S.p.A. or a dealer for
service when any of the following cases occur:
- the internal parts of the device have come into contact with water or other liquids of any
kind;
- a malfunction persists despite all the installation and/or maintenance procedures having
been performed properly;
- the power supply cable is damaged or worn.
Fig. 3
Do not pull the power
cord.
Do not place it near heat
sources.
Do not use naked flames.
IMPORTANT: Take into account and solve all the other types of risk that may be
present. For example, risks arising from foreign bodies getting into the device or
risks due to dangerous flammable or toxic gases at high temperature.

19 - 40
cube
04
6.3 OPERATING SITE CHARACTERISTICS
The device must not be installed in an explosive environment due to the presence
of electrical and electronic equipment not specially designed.
Do not place the device in environments where there are flammable gases, acidic,
aggressive and corrosive substances that could damage it.
The environment in which the device is placed must have the following characteristics:
- air temperature between 0°C and 40°C;
- relative air humidity below 80%.
Ensure free spaces around
the device for the purposes of
correct ventilation.
• Do not place the device outside.
• Do not move the device by pulling the power cord.
• Turn off and unplug the device before moving it.
6.3.1 Position of the operator
During operation, the presence of the
operator in the vicinity of the device is not
required.
For maintenance, the operator must access
the top cover as shown in the figure.
Fig. 4: Position of the operator for
maintenance operations.

20 - 40
cube
6.5 ELECTRIC POWER SUPPLY
The JONIX cube device is ready for connection to the civil power supply network,
230V/~1/50Hz. The device is equipped with a cable with a Schuko plug.
Do not use the device if the plug and/or power cord are damaged.
Connect the plug only to a socket with the same technical characteristics.
Periodically check the condition of the power cord.
ATTENTION!
It is recommended to check that the energy delivered is stable. Otherwise a voltage
stabilizer must be installed upstream.
Before making any connections, ALWAYS make sure the mains voltage complies
with what is shown on the plate.
ATTENTION! BEFORE STARTING ANY OPERATION, MAKE SURE THAT THE GENERAL
POWER SUPPLY LINE IS DISCONNECTED AND THAT THE DEVICE CANNOT BE
ACCIDENTALLY POWERED!
6.4 ELECTRICAL CONNECTIONS
• Connect the device to an effective earthing outlet.
• The electrical connections must be carried out following the instructions provided in this
manual.
• Make sure that voltage and frequency of the electric line correspond to those provided on
the name plate.
ATTENTION!
Using a power supply that does not meet the requirements of the device may result
in damage to the device or some of its parts.
