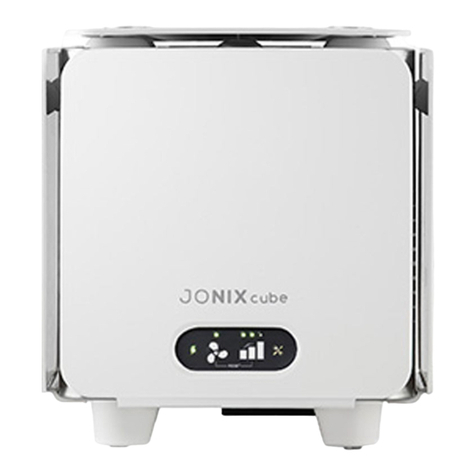

Jonix cube User manual

MADE IN ITALY
AIR PURIFICATION DEVICE
WITH ADVANCED COLD PLASMA TECHNOLOGY
USE AND MAINTENANCE MANUAL

These instructions are translated from Italian (the original language).
JONIX srl reserves every right concerning this manual, including the right to make any necessary change or improvement
to its products and to the manual at any time and without notice. It is forbidden to reproduce in full or in part this manual
without JONIX srl’s consent.

3
TABLE OF CONTENTS
1 - GENERAL INFORMATION 5
1.1 - SERIAL NUMBER PLATE 5
1.2 - LIABILITY 5
1.3 - SYMBOLS 6
2 - WARNINGS AND GENERAL PROHIBITIONS 6
3 - THE OPERATING SYSTEM 8
4 - TECHNICAL DATA 9
4.1 - COMPONENT DESCRIPTION 9
4.2 - TECHNICAL FEATURES 9
4.3 - SPARE PARTS AVAILABLE ON ORDER 9
5 - RECEPTION, TRANSPORT AND STORAGE 10
5.1 - PACKAGING 10
5.2 - HANDLING AND TRANSPORT 10
5.3 - INSPECTION UPON RECEPTION 10
5.4 - STORAGE 10
5.5 - HANDLING DEVICE IN OPERATING CONDITIONS 10
6 - INSTALLATION AND COMMISSIONING 11
6.1 - SAFETY STANDARDS 11
6.2 - GETTING STARTED 12
6.3 - CHOOSING THE INSTALLATION SITE 12
6.4 - ELECTRICAL CONNECTIONS 13
6.5 - ELECTRIC POWER SUPPLY 13
6.6 - USING THE DEVICE 13
6.7 - CONTROL PANEL 14
7 - MAINTENANCE 16
7.1 - WARNINGS 16
7.2 - ROUTINE MAINTENANCE 16
7.2.1 - Cleaning the ionising generators 16
7.2.2 - Cleaning the filter 20
7.2.3 - External cleaning of the equipment 20
7.3 - SPECIAL MAINTENANCE 21
7.3.1 - Replacing the ionising generators 21
8 - OPERATIONAL CHECK AND TROUBLESHOOTING 24
9 - DISPOSAL 25
WARRANTY CONDITIONS 26
EC DECLARATION OF CONFORMITY 27

4
Thank you for choosing JONIX cube.
This manual contains information and what is deemed necessary for transporting, installing,
using and maintaining the JONIX cube.
Improper installation of the device and/or failure to comply with the instructions in this manual,
may invalidate the warranty that the Manufacturer issues for its products.
The Manufacturer is not liable for any direct and/or indirect damage caused by incorrect installation
or damage caused by the units installed by inexperienced and/or unauthorised staff. At the time of
purchase, check that the device is intact and complete.
The Manufacturer declines any liability in case of personal injury or property damage resulting
from any improper use of the device or from the failure to observe the use and safety instructions
specified in this manual. In any such case, any warranty claim will be void.
Any complaints must be submitted in writing within 8 days of receiving the goods.
For more information, download of the manual or video tutorial, we invite you to visit
www.jonixair.com.

5
A
B
C
D
E
A Trade name
B Item code
C Serial Number
D Electric power supply type
E Electric power consumption
1.1 SERIAL NUMBER PLATE
1 - GENERAL INFORMATION
The equipment described in this manual is provided with a plate containing the equipment and
Manufacturer data:
The JONIX cube ioniser is in compliance with Directives: 2006/42/CE, 2011/65/UE, 2014/30/
UE, 2014/35/UE and subsequent amendments.
IMPORTANT WARNING
The JONIX cube ioniser is designed and made to sanitise the air in
residential environments (homes, offices, shops) that are incompatible
with toxic and flammable gases. It is therefore strictly forbidden to use the
device in environments where the air is mixed with and/or altered by other
gaseous compounds and/or solid particles. Using the device for purposes
other than those intended and that do not comply with those described in
this manual, will immediately relieve the manufacturer and its distributors
from any direct and/or indirect liability.
Failure to comply with the instructions contained in this Use and maintenance manual relieves the
Manufacturer from any liability. For any information not included or that cannot be deduced from
the Manual, consult the Manufacturer directly.
JONIX srl
Viale Spagna 31/33
35020 Tribano - PD - Italy
http://www.jonixair.com
In particular, if equipment maintenance is carried out in a way that is not in compliance with
the instructions supplied, or in a way to jeopardise integrity or modify features, JONIX srl is
relieved from any liability inherent to safety of persons and faulty operation of the equipments.
1.2 LIABILITY

6
This instruction manual is an integral part of the device and therefore must be kept
carefully and must ALWAYS accompany the device, even in the event that it is sold
to another owner or user. In the event that it is damaged or lost contact JONIX srl
for another copy or download the document from www.jonixair.com.
Repairs and maintenance work must be carried out by JONIX srl authorised staff
or by qualified staff according to the provisions set out by this manual. Do not alter
or tamper with the device as it can lead to hazards and the manufacturer of the
device shall not be liable for any damage caused.
After removing the packaging check that the contents are intact and complete. In
the event of a noncompliance please contact the Company that sold you the device.
2 - WARNINGS AND GENERAL PROHIBITIONS
HAZARD: It refers to dangerous situations that may result from the use of the device,
in order to ensure personal safety.
WARNING: It refers to integrations or suggestions concerning the proper use of the
device.
FORBIDDEN: This symbol refers to operations that must be avoided under any
circumstances, and hence forbidden.
HIGH VOLTAGE HAZARD!
Do not open or remove any doors or protections before disconnecting the voltage
supply.
WARNING!
It is mandatory to use protective gloves.
Please pay utmost attention to the following symbols and their meaning. They emphasise specific
information, such as:
1.3 SYMBOLS
WASTE FROM ELECTRICAL AND ELECTRONIC EQUIPMENT.
The crossed-out wheelie bin symbol on the equipment label indicates that the
equipment is compliant with the Waste Electrical and Electronic Equipment (WEEE)
Directive. Disposing of the equipment freely in the environment or illegally disposing of
the equipment are punishable by law.

7
This device is not intended for use by people (including children) with reduced
physical, mental or sensory capabilities or without experience and knowledge,
unless they are supervised or are given instructions to use the appliance by a
person responsible for their safety. Take suitable precautions to prevent children
from playing with the device.
Do not carry out any maintenance or cleaning operations without having first
disconnected the device from the mains, by turning the main system switch to
“OFF”.
Do not touch the device if you are barefoot and with parts of the body that are wet
or damp.
Do not alter the safety or adjustment devices without prior authorisation and
instructions from the manufacturer of the device.
Please note that the use of products that require electricity, involves the observance of some
crucial safety rules such as:
When installing and operating this product, it is mandatory to observe the
requirements and instructions specified in this manual.
JONIX srl disclaims any liability for damage caused to people, animals or
property due to installation, adjustment and maintenance errors or by improper
use.
Do not pull, detach or twist the electrical wires coming out of the device, even
when it is disconnected from the mains.
Do not open the panels for accessing the internal parts of the device without
having first turned the system switch to “OFF”.
Do not stand, sit and/or rest any type of object on the device.
Not dispose of or leave the packaging materials within reach of children because
it can be potentially dangerous.
Do not spray or throw water or other liquids directly onto the device.

8
H2O, O3, VOC
Among the wide range of air ionisers available on the market, the JONIX cube ioniser is a
top of the range device that combines high performance and a modern and attractive design.
This air ioniser promotes the controlled formation of particular ionic species (electrically charged
species) in the air, through an electrostatic field that simulates the natural process that normally
occurs through solar radiation, mechanically or by means of other physical phenomena. The
particular ionic species produced are historically and scientifically proven to be beneficial in
people, especially those with a negative electrical charge (arising from individual or small groups
of molecules that receive an electron).
The feature that makes the JONIX cube stand
out compared to similar products is the use of
next generation ionising units, characterised
by high efficiency and selectivity, which do not
produce any significant increase of undesirable
sub-products in irritating or even toxic amounts.
Other important features of the device are:
-
Low power consumption.
- Strong deodorising action: it fights odours caused by smoke, cooking food, pets, footwear,
sportswear, etc., giving the room an intense scent of fresh air.
- Natural process :it does not use or produce chemicals.
3 - THE OPERATING SYSTEM
electric
field
< 3000W
free electron
Staphilococcus
Aureus
Aspergillus
Niger
Saccharomyces
Cerevisiae
neutral molecule
(O2, CO2, H2O)
gas molecule
(O2, O3, NO, NO2)
stable negative
ion
(O, O2, O3)
BACTERIA
FUNGI
MOLDS AND YEASTS
M
I
C
R
O
B
I
C
I
D
A
L
A
C
T
I
O
N
free radical
OH, HO2, HO2- •
The device has a safety switch, positioned in such a way that when the protection cover (also
accidental) is opened, the power supply to the ionizing units and the fan is removed.

9
02
03
05
09
04
02
01
03
06
07
08
4 - TECHNICAL DATA
01 Protection lid 04 Power cable socket 07 Filter cover
02 Ionizing generator 05 Main switch 08 Power cable (provided)
03 Earthing spring 06 Control Panel 09 Protection fuses
4.1 COMPONENT DESCRIPTION
Model Dimensions
(WxDxH) [mm] Power Supply Consumption [W]
Electrical
Absorption [mA]
Weight
[Kg]
JONIX cube 238 x 238 x 260 230 V / ~1 / 50Hz 10 51 4
4.2 TECHNICAL FEATURES
Code Description Notes
71KT000001 CUBE GENERATORS SPARE PART KIT 2 Ionising generators
JX40000001 CUBE POWER CABLE 3x0.75 cable, SP8848 schuko plug and 90° IEC60320 C13 connector
JX40000002 PROTECTION FUSE 1 quick blow glass fuse 5x20 1A ‘F’
4.3 SPARE PARTS AVAILABLE ON ORDER

10
5 - RECEPTION, TRANSPORT AND STORAGE
5.2 HANDLING AND TRANSPORT
To handle the device use appropriate means, depending on the weight, as required
by Directive 89/391/EEC and subsequent amendments.
Please take great care while unloading and positioning the devices, to prevent
damaging the casing or components. Avoid uncontrolled rotations.
The JONIX cube device, together with the accessories, is shipped in special protective
packaging. The materials that were not installed for technical requirements are supplied packed
with suitable packaging secured to the inside or outside of the device itself.
The packaging contains:
- JONIX cube.
- Schuko type power plug.
- Operating and maintenance manual (with Declaration of Conformity).
5.1 PACKAGING
Any type of complaint must be sent in writing within eight days from receiving the
goods.
When you receive the device please check all its parts, in order to make sure that it has not been
damaged during transport.
Any damage must be reported to the carrier, by filling in the relevant section on the delivery note
and specifying the type of damage.
5.3 INSPECTION UPON RECEPTION
The Manufacturer disclaims any liability for damage due to incorrect unloading
failure to protect the device from the elements.
In the event of extended storage keep the devices away from dust and sources of vibration and
heat.
5.4 STORAGE
ìJONIX cube device is easy movable in various environments, because it is provided with
reduced dimensions (see Chapter 4 "Technical Data").
5.5 HANDLING DEVICE IN OPERATING CONDITIONS

11
• The device must be installed in strict accordance with the instructions contained in this
manual.
• Complywiththelawsinforceinthecountryinwhichthedeviceisinstalled,regardingtheuse
and disposal of the packaging and products used for cleaning and servicing the device; you
should also observe the recommendations given by the manufacturer of such products.
• Before switching the device on check the integrity of the various components and of the
electrical mains to which it is connected, making sure that it is fitted with a circuit breaker
upstream of the power line as shown in this manual.
• Neverinsert objectsofanykindintothedevice, ascomingintocontact withlivepartsor
electrical terminals may cause fires or electric shocks.
• Donotserviceorcleanthedevicewithoutfirstunpluggingitfromthemains.
• Wornordamagedpartsmustonlyberepairedorreplacedbyqualifiedstaffandbyfollowing
the instructions given in this manual.
• ThesparepartsmustbeapprovedbytheManufacturer.
• Intheeventofdecommissioningordisposingofthedevice,followtheanti-pollutionregulations
set out by the country in which the device is installed.
• Donotpourwateroranykindofliquidsonthedevice.
• Placethedevicesothatthepowercablecannotbesteppedon.
6 - INSTALLATION AND COMMISSIONING
ATTENTION! Before carrying out any operation on the devices read ALL the
instructions in this manual carefully.
6.1 SAFETY STANDARDS
The Manufacturer disclaims any liability for failure to comply with the safety and
prevention standards as described below.
The Manufacturer also disclaims any liability for damage caused by improper use
of sanitisers and/or alterations carried out without prior authorisation.
Definitions:
USER:
Person, organisation or
company who or which
has purchased or
rented the device and
is going to use it for the
intended purposes.
USER/OPERATOR:
Individual who has been
authorised by the user to
operate the device.
QUALIFIED STAFF:
Individuals who have completed a
specific course and are therefore
able to recognise the hazards
arising from the use of this device
and are able to prevent them.

12
• Use the type of power supply shown on the label. If you are not sure about the type of
power supply available, ask your local retailer or electricity provider for assistance.
• Donottouchtheinsideofthedevice,unlessspecifiedotherwiseintheinstructionscontained
in this manual.
• Never force the components when assembling: although it is made with high strength
materials, the parts of the device can be damaged if handled incorrectly.
• Donottrytoperformmaintenanceworkonthedevice,exceptwherespecifiedinthismanual.
Opening or removing the outer casing may expose you to dangerous live parts or may involve
other risks. All maintenance work must be carried out by authorised staff, except where
specified in this manual.
• Unplug the device from the mains and contact qualified staff for assistance in one of the
following cases:
- The device has come into contact with water or liquids of any kind.
- The device has been exposed to the elements.
- A malfunction persists despite all the installation and/or maintenance procedures have been
performed properly.
• Thedevicecomeswithslotsandopeningsforventilation;donotblockorcovertheseslots.
• Makesurethatyoualwaysleaveenoughspaceforadequateventilationatthebottomand
around the side slots of the device.
• Placethedeviceonastablesurface(avoidbeds,sofas,blankets,carpetsandsoon).
IMPORTANT The installer and the user, when using the JONIX cube device, must
take into account and solve all the other types of risk associated with the system.
For example, risks arising from foreign bodies getting into the device or risks due
to dangerous flammable or toxic gases at high temperature.
6.2 GETTING STARTED
6.3 CHOOSING THE INSTALLATION SITE
• Checkthatthevariouscomponentsofthedevicearefullyintact.
• Checkthatthedocumentationandanyaccessoriesforinstallationarecontainedin
the package.
• Carrythedeviceinitspackagingascloseaspossibletotheinstallationsite.
• Donotrestweightsortoolsonthedevice,orplaceitonanunstablesurface.
• Donotputthedeviceinplaceswherethereareflammablegases,acidic,aggressive
and corrosive substances that can damage the various components beyond repair.
• Provideaminimumclearance,inordertoinstallthedeviceandcarryoutroutineand
special maintenance.

13
01
02
• Make sure that the voltage and frequency shown on the plate match those of the electrical
mains to which the device is connected.
• TheelectricalmainsoftheJONIX cube device must be used for the device only, there must
be no other devices connected to the same power line. It is forbidden to use adapters or power
strips.
6.4 ELECTRICAL CONNECTIONS
ATTENTION! BEFORE STARTING ANY OPERATION, MAKE SURE THAT THE MAIN
POWER SUPPLY IS DISCONNECTED!
The JONIX cube device leaves the factory fully wired and only requires connection to a
residential power socket as specified on the plate. Before making any connections make sure the
mains voltage complies with what is shown on the label.
6.5 ELECTRIC POWER SUPPLY
Fig. 01: Connect the device to the mains
using the power cable provided.
6.6 USING THE DEVICE
Fig. 02: The ON/OFF switch is located at
the bottom of the device (see chapter 4).
To switch the device on press the red 0/I
button, switching it to I; you will hear a
slight hissing sound coming from inside the
device and the LED on the control panel will
light up, indicating that the unit is switched
on.
The presence of high voltage inside the
device is indicated by the relevant light,
located on the front panel, when the device
is switched on.
Fixed green LED: the device is on

14
01 04
02 03
05
6.7 CONTROL PANEL
The device control panel consists of:
• 2controlkeys.
• 6statusindicationLEDs.
The integrated control electronics allows operating the device at 3 different timing levels.
01 Power indicator LED Device On
Device Off
02 Enable / disable the fan Fan on
Fan off
03
Timing level key
Remark: the operating level is indicated by
the corresponding led. To switch to the next
level, press the push-button .
Enabling level 1 (minimum): 2’ On – 8’ Off
Enabling level 2 (average): 4’ On – 6’ Off
Enabling level 3 (maximum): 7’ On – 3’ Off
04 Maintenance Warning LED
No warning
Device cleaning required warning
(every 840 of actual operation of actuators)
Ioniser replacement required warning
(every 8740 of actual operation of actuators)
05 Maintenance Warning Reset Key
To reset, keep the keys and pressed for
5”: all the LEDs will go off and the timer will be
reset. When both keys are released, standard
operation is resumed.

15
The operating level can be selected to meet the following requirements:
• Thequantityofpollutantsorodourspresentorproducedintheroom;
• Ifcookingisinprogress;
• Ifsomeoneissmoking;
• Incaseofodours;
• Iftherearemorepeoplethanusual;
• Toquicklydispelanyunpleasantsmell;
• Dependingonthesizeoftheroom:thetableherebelowshowstherecommendedoperating
levels:
Floor area (m2)
For rooms up to 2.7 m high Level Temporary settings to quickly dispel odours and pollutants
> 10 1 Set level 3 for 10'
11 ÷ 20 1 Set level 3 for 20'
21 ÷ 30 2 Set level 3 for 30'
31 ÷ 40 2 Set level 3 for 40'
41 ÷ 50 2 Set level 3 for 60'
51 ÷ 60 3 Set level 3
61 ÷ 70 3 Set level 3
71 ÷ 80 3 Set level 3
The fan can be disabled using the dedicated push-
button : this will reduce the noise without affecting
operation.
Ventilation improves air movement in
the rooms: this maximises the beneficial
effects of the device.

16
03
7.1 WARNINGS
7 - MAINTENANCE
BEFORE CARRYING OUT ANY MAINTENANCE OPERATION MAKE SURE THAT THE
DEVICE IS NOT AND CANNOT ACCIDENTALLY BE POWERED ELECTRICALLY.
YOU MUST THEREFORE UNPLUG THE DEVICE BEFORE CARRYING OUT ANY
MAINTENANCE.
• Itisthedutyoftheusertoperformallthemaintenanceoperationsonthedevicelistedbelow.
• Ifyouexperienceamalfunction,unplugthedevicefromthemainsandcontactqualifiedstaff
(retailer, the Manufacturer).
Fig. 03: Switch the ioniser off by switching
the On/Off button to O.
The JONIX cube device requires little maintenance, consisting in periodically and regularly
cleaning the ionising generators and mesh filter to protect the fan.
The device signals the need for maintenance of the generators, through the indicator light shown
on the display, every 900 hours of operation.
However, when operating in highly contaminated environments, the electronics of the device
could intervene even if this time has not yet elapsed.
7.2 ROUTINE MAINTENANCE
7.2.1 Cleaning the ionising generators
The frequency of the operations to be performed to ensure proper maintenance of the sanitising
devices depends mainly on the quality of the treated air. Failure to perform adequate and
systematic maintenance over time can result in a structural and functional deterioration of the
device and of its performance.
Clean the ionising generators whenever the
corresponding LED starts blinking.
Flashing LED: maintenance required

17
05
04
06
07
Fig. 05: Remove the lid by pulling it
upwards.
Fig. 04: Put the device on a flat surface.
Remove the plug connected to the mains.
Fig. 06: Gently unscrew the ionising
generators by acting on the glass surface
that can be reached by hand through
the special slots. Remove the mesh
surrounding the tube.
If this is too difficult, turn the
mesh slightly around the glass.
Fig. 07: Clean the glass using a damp
cloth.
Do not use liquid cleaners or
sprays, soap or the like.
Check that the ionizing generator is in good conditions: there must not be any cracks
or other damage; otherwise it must be replaced.
As soon as you notice a whitish layer on the perforated metal plate inside the glass it
means that the ionising generator needs replacing.
The ionizing generators must usually be replaced within 18 months of use.

18
08
09
MIN
3 mm
10
Fig. 08: Wash the mesh under running hot
water and dry it thoroughly with a cloth.
Attention: ensure that the mesh is
perfectly dry before putting it back!
Fig. 09: Put the outer metal mesh back on
the glass tube so that it fully overlaps the
internal plate.
In any case ensure a minimum
distance of at least 3 mm from
the base of the generator.
Fig. 10: Screw the ionizing generators
back into place by acting again on the
glass surface that can be reached by hand
through the special slots.
ATTENTION: do not overtighten the screw
after reaching its end stop.
Check that the earthing spring
is in contact with the outer
mesh once the ionising tubes
have been screwed back into
place. Otherwise contact the
manufacturer.
The manufacturer is not liable
for any damage to the device
caused by the presence of hu-
midity or water on the outer
mesh.

19
12
11
13
5"
14
CLICK!
CLICK!
CLICK!
CLICK!
Device LED on
Fig. 11: Put the lid back on the device by
pushing it until the parts are locked in place.
Fig. 12: Reconnect the plug. Switch the
ionising device on by switching the On/Off
button to I.
Fig. 13: To reset, keep the keys and
pressed for 5" until maintenance LED will
go off.
Check that the device works, you should
hear a slight hissing sound.
Failure to clean the ionising generators when indicated by the device leads to a
drop in system performance.
The ionising generators can be
re-enabled only after the light
has gone off.
Fig. 14: Remove the filter cover by
pressing the sides and pulling towards you.
Clean the filter at the bottom of the device during every tube maintenance operation. However, we
suggest checking periodically the filter status and quickly removing any dust residues and any
other residues that may block the air flow.
7.2.2 Cleaning the filter

20
15
16
17
CLICK!
Fig. 15: Wash the mesh filter under
running water and dry it with a cloth.
Fig. 17: Put the filter back into the filter
cover.
Reassemble the filter cover with the snap
fastening. Press it onto the bottom of the
device until the parts are locked in place.
Fig. 16: Using a damp cloth, wipe the
plastic filter cover and the finger guard grille
fitted at the bottom of the device.
Clean the outside of the device with a damp cloth.
7.2.3 External cleaning of the equipment
Do not use liquid cleaners or sprays, soap or the like.
