Jotto Desk 425-5603 User manual

SCREEN SUPPORT
Model 425-5999
The Screen Support is designed
to keep your screen in place while
you use your computer. It attaches
directly to the desk and adjusts in
height and tilt angle.
GLO-WRITER™
Model 425-3500
Illuminating quick-note pad. Hand
held for convenience. Illuminates in
Red or Amber. Removable mounting
options. Jot notes down, day or night...
anywhere!
BRACE KIT
Model 425-5238
The Brace Kit attaches to the stand
providing additional support. It can
be adjusted in length and mounts to
at, vertical or angled surfaces.
‘12+ FORD EXPLORER
Computer Mount - No Holes
425-5603
PLEASE CHECK ALL BOX
FLAPS AND INSERTS
FOR PARTS STORED
UNDERNEATH BEFORE
DISCARDING BOX.
THANK YOU.
WARNING: Do not install or use this product in any manner which would interfere
with any of the vehicles controls, air bags or safety devices. Follow vehicle owner’s
manual instructions should a dash warning light come on after installation of this desk.
Do not install or use this product in any manner which causes a safety hazard for
vehicle and/or occupants.
To avoid serious injury do not place this desk or any objects between the air bags
and yourself or any passengers. If necessary remove the desk before driving. Store
in trunk or other safe place.
We recommend that you do not work on the Jotto Desk while driving!
Park safely, then use. Remember, driving safely comes rst.
WARNING: Make sure of and check on a regular basis that all knobs, fastening
devices and handles are tight and secure. Repair or replace any faulty or worn
parts. All equipment, such as computers, printers, phones, etc. must be safely
secured when vehicle is in motion.
DISCLAIMER: The manufacturer of this product may not be held liable for
any accidents, injuries or problems caused by the use or installation of this
product.
Specications subject to change without notice.
Jotto Desk® is a patented product and registered trademark of Assembled Products® Corporation
425-5603II 10/15

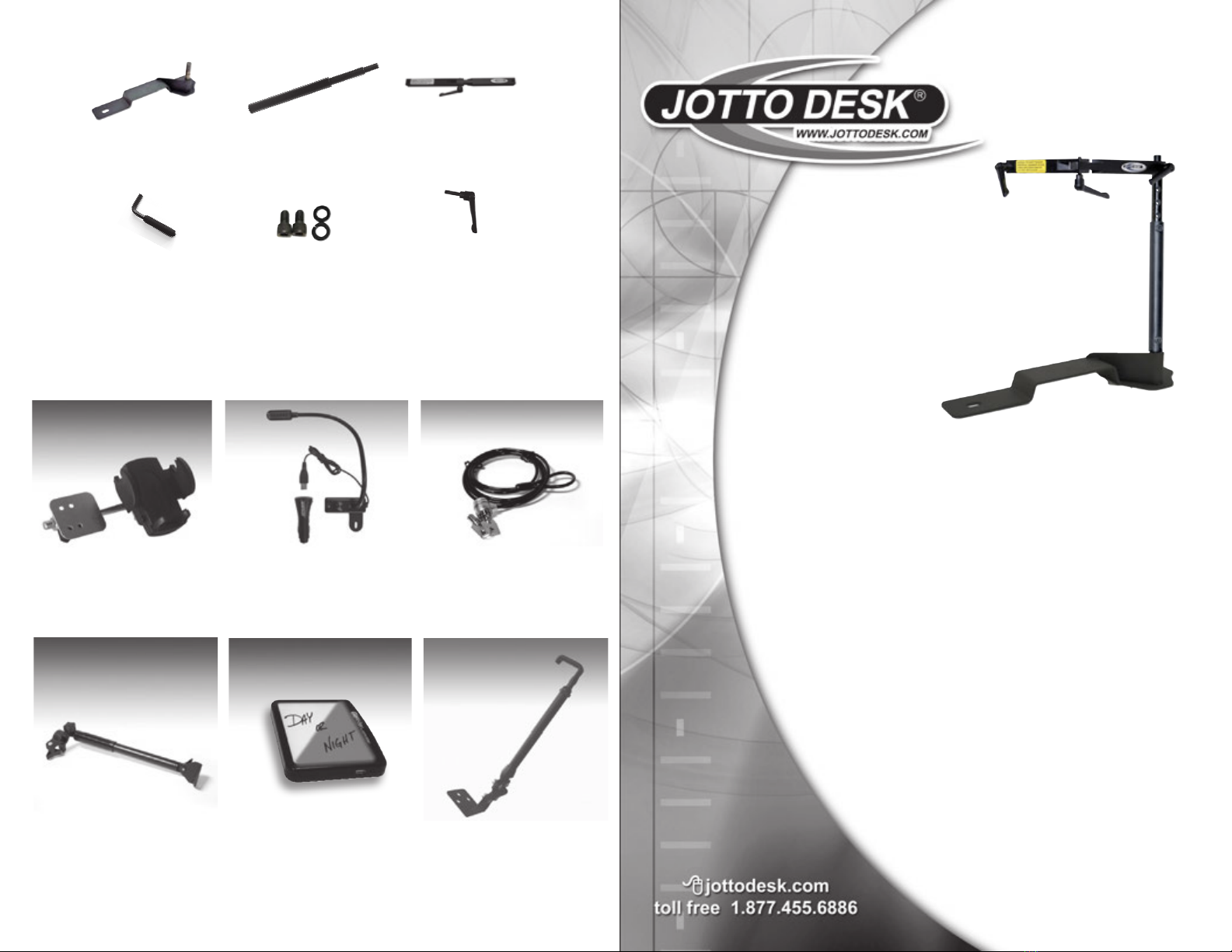

JOTTO DESK ACCESSORIES
Specications subject to change without notice
(2) Hex Head
Cap Screws &
(2) Lock Washers
425-3385
Ratchet
Handle
425-1273
Articulated
Swing Arm
425-1188
REPLACEMENT COMPONENTS
Hex Key
425-3379
Vertical Tube Assembly
1 Tube &
1 Telescoping Rod
425-5342
USB LIGHT
Model 425-2490
12” exible wand with blue LED’s and
rheostat to adjust brightness. Three
foot power cord plugs into cigarette
lighter.
PIVOTING CELL PHONE HOLDER
Model 425-5299
Allows you to tilt your phone
independent of the desktop angle.
Mounts to side of 10” x 12” Desktop.
KENSINGTON® MASTERLOCK®
Model 425-1317
Computer securing system uses
Kensington locking system. Fasten
security cable to permanent
structure in vehicle.
No Holes Base
425-3765

1. Remove plastic trim from the top of seat rail. Remove the two front seat
bolts using a 13mm socket from passenger side seat rails. NOTE: For
easier installation, install vertical tube onto one piece base and secure with
socket head cap screws before installing base onto the seat rails. Place one
piece base under seat rails, replace OEM 13mm bolts and tighten securely.
Replace trim pieces back onto seat rails.
2. Place articulated swing arm over the 5/8” end of the telescoping rod.
Tighten with ratchet handle.
3. Attach desktop to end of articulated swing arm and secure by tightening
ratchet handle.
INSTALLATION PROCEDURE
READ INSTRUCTIONS BEFORE BEGINNING INSTALLATION
STAND ASSEMBLY OPERATION
1. Remove Hex Head Cap Screws from
stand assembly and place tube over
the No-Holes Mount Base.
2. Thread (2) Hex Head Cap Screws
with (2) Lock Washers through tube
and into front and rear of No Holes
Mount post at bottom of tube. (A)
3. Raise inner rod to desired height.
Thread (2) Hex Head Cap Screws
with (2) Lock Washers into front and
rear holes at top of tube. (B)
4. Use provided Hex Key to tighten (4)
Hex Head Cap Screws to ensure
secure positioning.
RATCHET CLAMP OPERATION
B
A
Insert the ratchet handle through the
unthreaded side of the articulated swing
arm and tighten. Going through threaded
side rst will not allow the arm to tighten
properly
To adjust, pull handle out (B) and rotate
counter clockwise (A), release and tight-
en. If needed, use 1/8” hex head wrench
for adjustment (C)
Ratchet handles are spring loaded and
can be readjusted to tighten.
NOTE:
NOTE:
