Jotto Desk 425-5626 User manual

‘15+ FORD TRANSIT
Computer Mount - No Holes
425-5626
PLEASE CHECK ALL BOX
FLAPS AND INSERTS
FOR PARTS STORED
UNDERNEATH BEFORE
DISCARDING BOX.
THANK YOU.
WARNING: Do not install or use this product in any manner which would interfere
with any of the vehicles controls, air bags or safety devices. Follow vehicle owner’s
manual instructions should a dash warning light come on after installation of this desk.
Do not install or use this product in any manner which causes a safety hazard for
vehicle and/or occupants.
To avoid serious injury do not place this desk or any objects between the air bags
and yourself or any passengers. If necessary remove the desk before driving. Store
in trunk or other safe place.
We recommend that you do not work on the Jotto Desk while driving!
Park safely, then use. Remember, driving safely comes rst.
WARNING: Make sure of and check on a regular basis that all knobs, fastening
devices and handles are tight and secure. Repair or replace any faulty or worn
parts. All equipment, such as computers, printers, phones, etc. must be safely
secured when vehicle is in motion.
DISCLAIMER: The manufacturer of this product may not be held liable for
any accidents, injuries or problems caused by the use or installation of this
product.
Specications subject to change without notice.

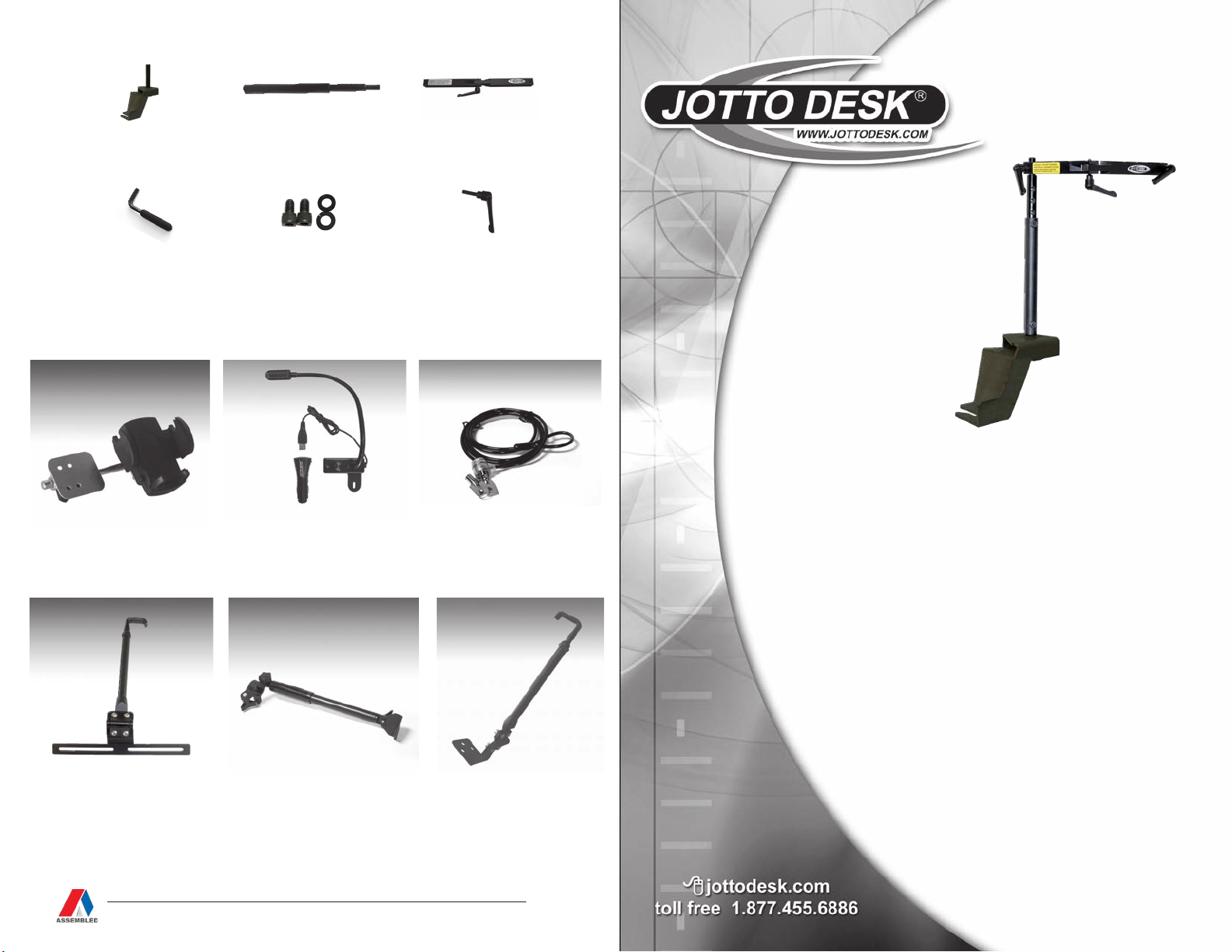

(2) Hex Head
Cap Screws &
(2) Lock Washers
425-3385
Ratchet
Handle
425-1273
Articulated
Swing Arm
425-1188
REPLACEMENT COMPONENTS
Hex Key
425-3379
Vertical Tube Assembly
1 Tube &
1 Telescoping Rod
425-5342
No Holes Base
425-3837
JOTTO DESK ACCESSORIES
Specications subject to change without notice
USB LIGHT
Model 425-2490
12” exible wand with blue LED’s and
rheostat to adjust brightness. Three
foot power cord plugs into cigarette
lighter.
PIVOTING CELL PHONE HOLDER
Model 425-5299
Allows you to tilt your phone
independent of the desktop angle.
Mounts to side of 10” x 12” Desktop.
KENSINGTON® MASTERLOCK®
Model 425-1317
Computer securing system uses
Kensington locking system. Fasten
security cable to permanent
structure in vehicle.
209 W. EASY ST., ROGERS, AR 72756 • www.EVERYTHINGBUTLIGHTS.com • 9/18
Jotto Desk® is a patented product and Registered Trademark of Assembled Products™ Corporation.
Specications subject to change without notice.
SCREEN SUPPORT - ACD
Model 425-5999
The Screen Support is designed
to keep your screen in place while
you use your computer. It attaches
directly to the ACD Desktop and
adjusts in height and tilt angle.
BRACE KIT
Model 425-5238
The Brace Kit attaches to the stand
providing additional support. It can
be adjusted in length and mounts to
at, vertical or angled surfaces.
SCREEN SUPPORT - A-MOD
Model 450-0449
The Screen Support is designed
to keep your screen in place while
you use your computer. It attaches
directly to the A-MOD Desktop and
adjusts in height and tilt angle.

INSTALLATION PROCEDURE
READ INSTRUCTIONS BEFORE BEGINNING INSTALLATION STAND ASSEMBLY OPERATION
1. Remove Hex Head Cap Screws from
stand assembly and place tube over
the No-Holes Mount Base.
2. Thread (2) Hex Head Cap Screws
with (2) Lock Washers through tube
and into front and rear of No Holes
Mount post at bottom of tube. (A)
3. Raise inner rod to desired height.
Thread (2) Hex Head Cap Screws
with (2) Lock Washers into front and
rear holes at top of tube. (B)
4. Use provided Hex Key to tighten (4)
Hex Head Cap Screws to ensure
secure positioning.
RATCHET CLAMP OPERATION
B
A
Insert the ratchet handle through the
unthreaded side of the articulated swing
arm and tighten. Going through threaded
side rst will not allow the arm to tighten
properly
To adjust, pull handle out (B) and rotate
counter clockwise (A), release and tight-
en. If needed, use 1/8” hex head wrench
for adjustment (C)
Ratchet handles are spring loaded and
can be readjusted to tighten.
NOTE:
NOTE:
1. Will need 10” socket extension and short 15mm socket.
2. Loosen the fabric jack cover to access the seat frame bolts.
3. Remove the (1) 15mm bolt from front passenger side seat at the oor level.
Loosen the door side front 15mm bolt. Tilt seat structure just enough to
position NHM base under the seat frame/pedestal and oor, with slot on
base in alignment with seat frame/rail hole.
4. Place the (1) 15mm bolt back into original position and tighten all bolts.
Check to make sure there is no movement at post and that mount is rmly
secured.
5. Base/Post will be positioned on the transmission hump side of the
passenger seat.
6. Assemble the desktop stand to the mount base, starting with the vertical
tube. Use 2 Hex Head Cap Screws and 2 Lock Washers to secure vertical
tube to mount post.
7. Place articulated swing arm over the 5/8” end of the telescoping rod.
Tighten with ratchet handle.
8. Attach desktop to end of articulated swing arm and secure by tightening
ratchet handle.
