JOVY Systems iSolder 40 User manual

Jovy Systems® Limited
Jovy Systems®Limited

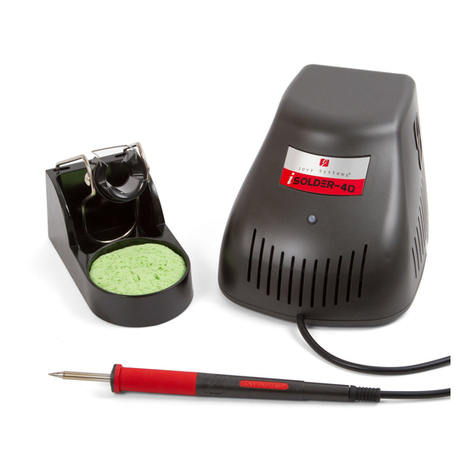

iSolder 40
User Manual

Jovy Systems® Limited
User Manual
UM1501SLD01
Revision
1.00
Date
August 2015
Page | 1
Contents
Warnings and precautions .................................................................................................................... 2
Safety precautions: ................................................................................................................................... 2
Specifications ........................................................................................................................................3
Power supply technical specifications: ..................................................................................................... 3
Hand piece technical specifications:......................................................................................................... 3
Initial set-up .......................................................................................................................................... 4
Packing list: ............................................................................................................................................... 4
How to use: ...............................................................................................................................................5
Modes Guideline................................................................................................................................... 7
1. Heating up mode...............................................................................................................................7
2. Operating mode................................................................................................................................7
3. User mode......................................................................................................................................... 8
4. Debug mode...................................................................................................................................... 9
5. Sleep mode ..................................................................................................................................... 11
6. Power saving mode*.......................................................................................................................11
7. Software Mode ...............................................................................................................................13
Tip care and selection .........................................................................................................................16

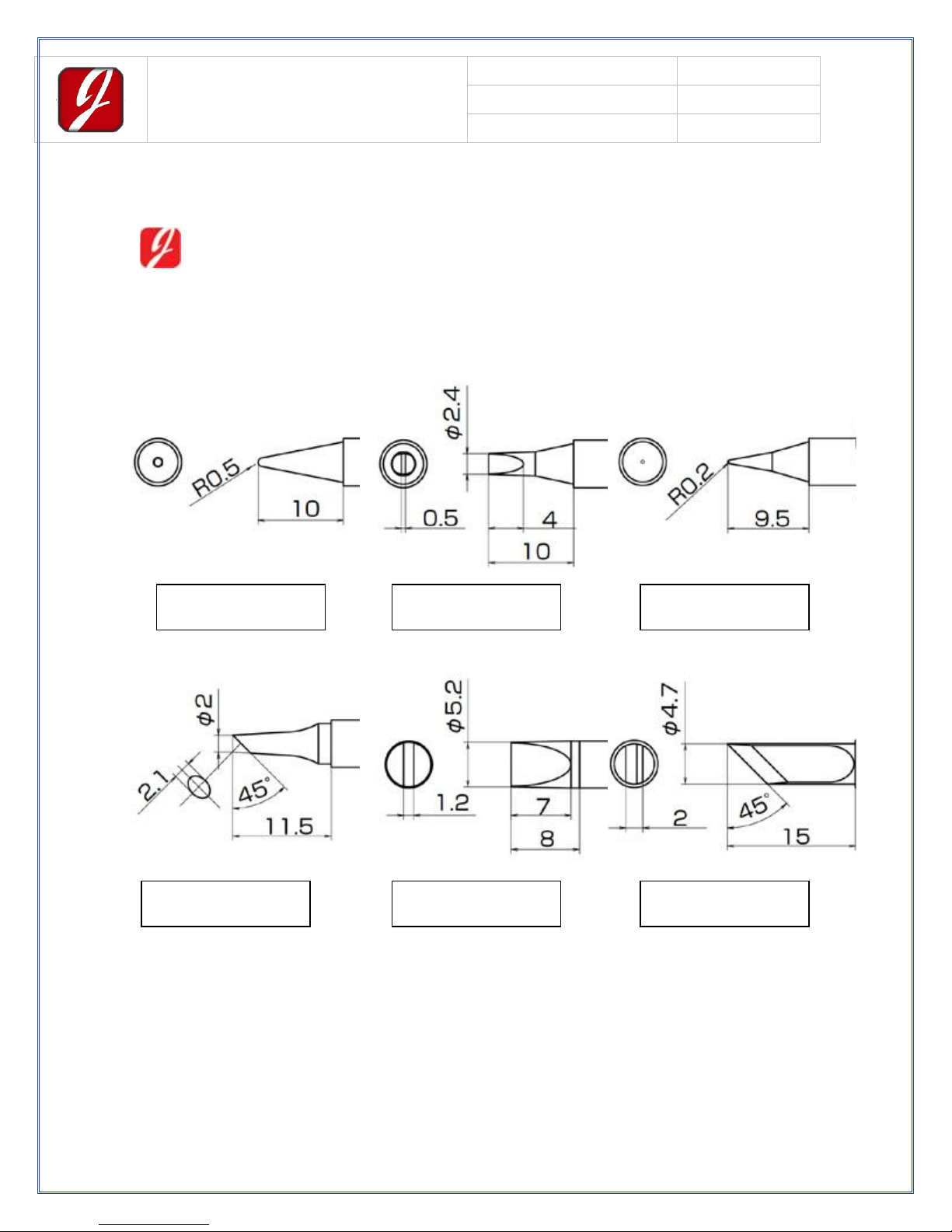

Available tips for iSolder-40:................................................................................................................... 16
Guide for tip selection: ........................................................................................................................... 17
Tip care guide for longer life time:..........................................................................................................17
Hints and Tricks................................................................................................................................... 18

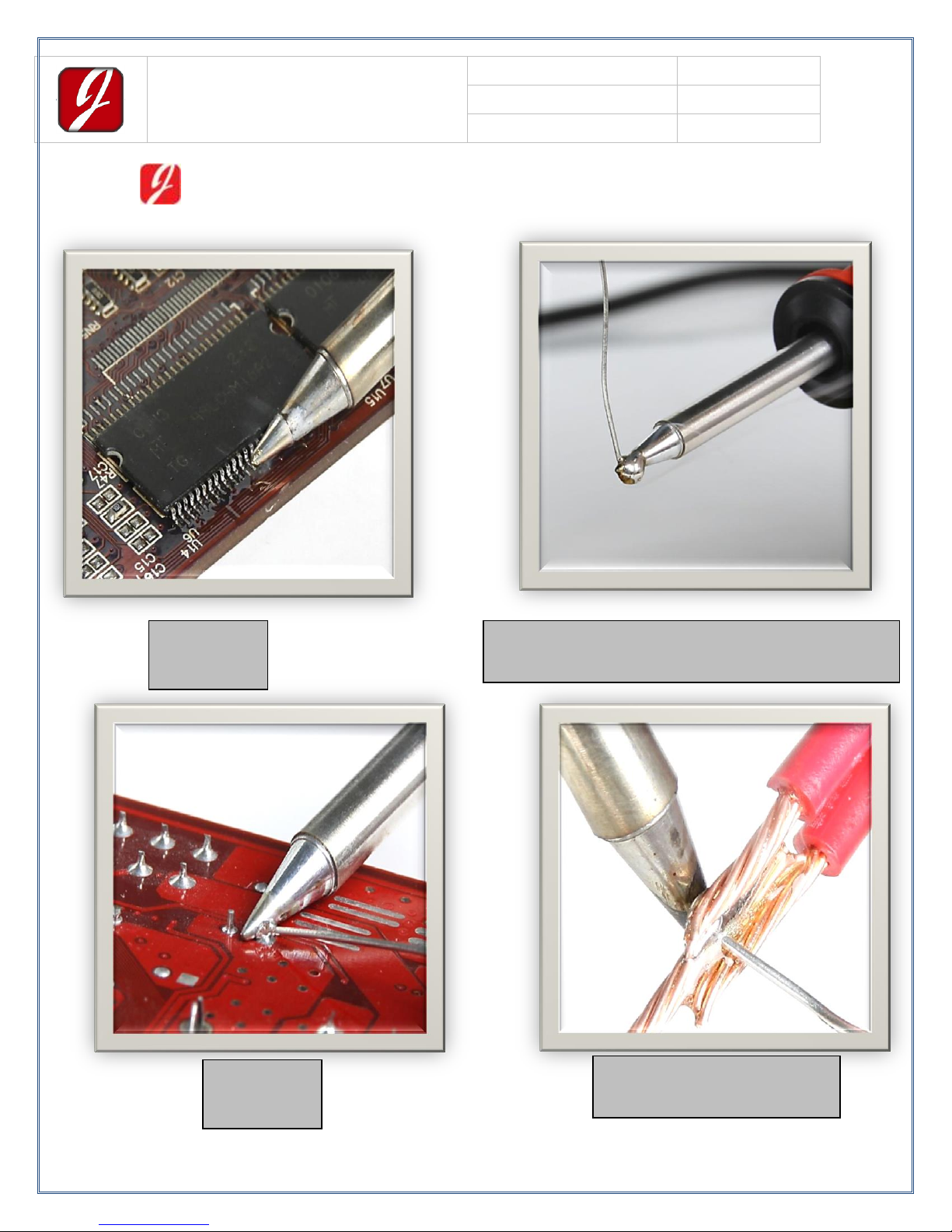

Sample applications for the iSolder-40 main tip ................................................................................19
Warranty .............................................................................................................................................20
Getting Technical support................................................................................................................... 21

Jovy Systems® Limited
User Manual
UM1501SLD01
Revision
1.00
Date
August 2015
Page | 2
Warnings and precautions
The tip temperature can be > 400°C. Please note; ignoring the
precautions may lead to injury to users or damage the iSolder-40
Do not touch or change the tip while operating the iSolder-40.
Do not use the iSolder-40 near flammable items
Do not use the solder station for any function other than De-
soldering or soldering of the electronic/electrical components.
(Do not use it with wood, wax, plastic, etc…)
Use only tips and parts supplied by JOVY Systems®.
Make sure that the tip does not touch any object while in
operating mode. It negatively affects the tip sensitivity.
Use in a well-ventilated work space and preferably use a smoke
absorber appliance.
Do not use the equipment or the hand piece with wet hands.
Connect only to properly grounded outlets to prevent risk of
electric shock or equipment malfunction.
Always place hand-piece back into the holder to prevent
accidental burning of oneself or surrounding objects.
The iSolder-40 is not intended for use by persons (including
children) with reduced physical, sensorial or mental capabilities.
As well, persons with lack of experience and knowledge, unless
they have been given supervision or training concerning use of
the soldering station by a person responsible for their safety.
Safety precautions:
Use the protective pad to exchange the tip and do not expose or touch the
tip by your skin.
Keep a distance from the working space during the rework process,
reworking process might produce unwanted smoke toward your eyes and
lungs.

Jovy Systems® Limited
User Manual
UM1501SLD01
Revision
1.00
Date
August 2015
Page | 3
Specifications
Power supply technical specifications:
Ambient Operating Temperature
20 - 40°C
Maximum Enclosure Temperature
53°C
Input Line voltage
115VAC/60Hz – 230VAC/50Hz
Output voltage
24VAC
Power Consumption
50 Watts max.
Dimensions (L*W*H) mm.
188 x 144 x 120
Power chord length (Plug type)
1.8 meters
Hand piece technical specifications:
Tip-to-Ground Potential
< 2 mV
Tip-to-Ground Resistance
< 2 Ohm
Hand piece cord Length
1.5 meters
Hand piece Length
158 mm
iSolder-40 is an ESD Safe Equipment

Jovy Systems® Limited
User Manual
UM1501SLD01
Revision
1.00
Date
August 2015
Page | 4
Initial set-up
Packing list:
Item
Quantity
Code
Solder Station
1
(JV-SSS)
Main tip
1
(JV-TP1)
Hand piece holder
1
Cleaning sponge
1
Protective Pad
1
Power cord
1
Multilingual Startup Guide
1
CD
1
Main Tip
Protective Pad
Main Unit
Hand
Piece
Holder

Jovy Systems® Limited
User Manual
UM1501SLD01
Revision
1.00
Date
August 2015
Page | 5

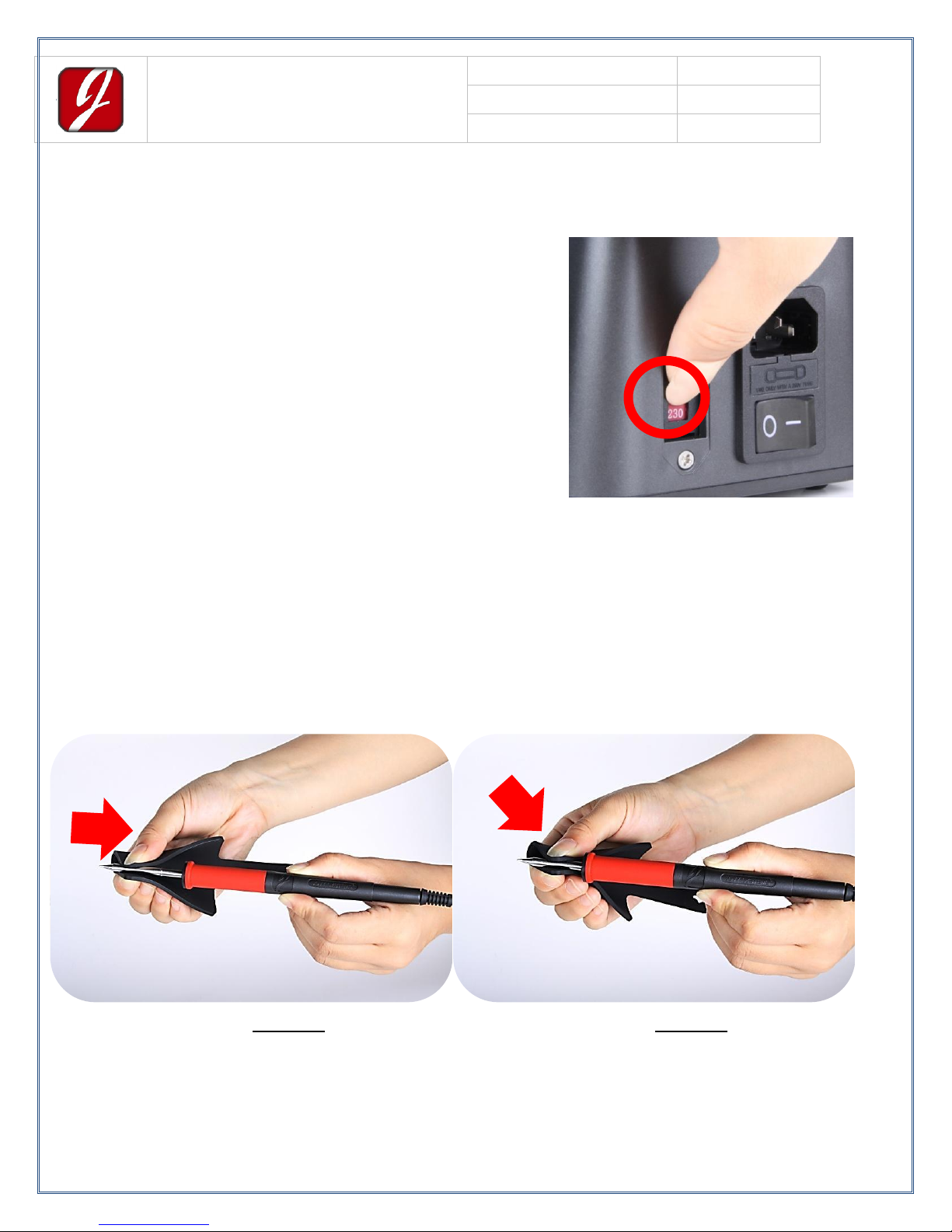

How to use:
1- Unpack the iSolder-40 and select the
proper voltage range from the voltage
selector (110VAC/60Hz or 220VAC/50Hz).
2- Place and arrange the iSolder-40 with all
other parts in a convenient location in your workspace.
3- Insert the desired tip into the hand piece to end –fastening click heard –by
using the protective pad, steps as shown in figure 1 and 2. (For more
information about tips see Tip care and selection section and also Hints and
Tricks Section)
Figure 1
Figure 2

Jovy Systems® Limited
User Manual
UM1501SLD01
Revision
1.00
Date
August 2015
Page | 6
4- Plug the power cord into electricity supply and switch on the iSolder-40.
5- If the tip is inserted correctly a green led indicator will start flashing –
Heating up mode. If the tip inserted wrongly the led color will be red.
6- Wait for the led indictor light to become green and start using the solder
station for soldering process.

Jovy Systems® Limited
User Manual
UM1501SLD01
Revision
1.00
Date
August 2015
Page | 7
Modes Guideline
Recognize the solder station’s status is done by observing the led indicator’s color
and state.
Attention!
When the tip is disconnected from the hand piece, the controller gives a
continuous red light indication on the led indicator.
When the controller is active and sensing, the fast flashing Green Led will be seen
from time to time.
Make sure that the toggle button is upwards (Mode 2) when starting the station;
otherwise the station will enter in the debug mode.
1. Heating up mode
When the tip is fully inserted into the hand piece, the iSolder-40 controller starts
to detect the tip.
The indicator of this state is a flashing green led.
2. Operating mode
When the tip is ready to be used the green led stop flashing and becomes steady
green.
The indicator of this state is a steady green led.

Jovy Systems® Limited
User Manual
UM1501SLD01
Revision
1.00
Date
August 2015
Page | 8

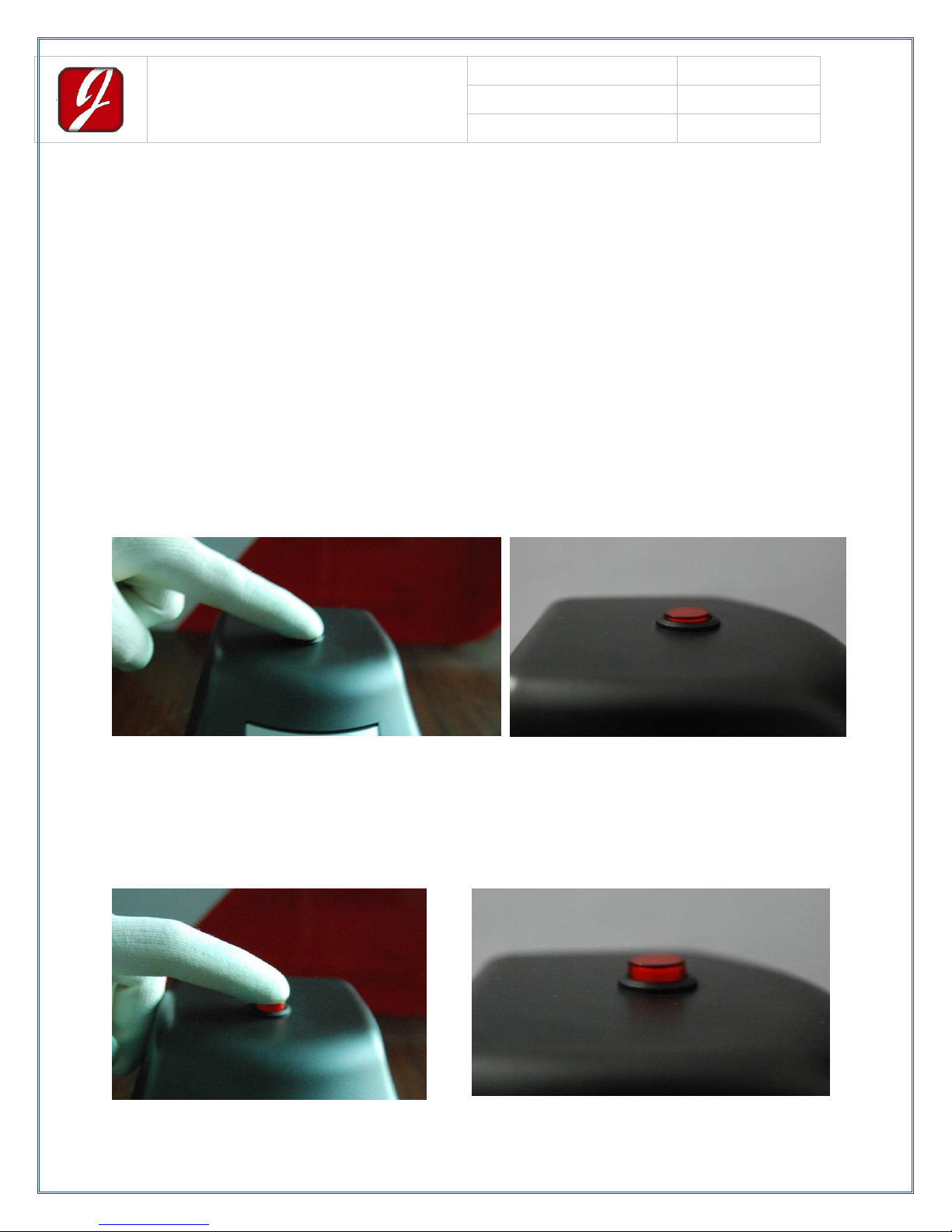

3. User mode
The iSolder-40 Station offers the user 2 different adjustable modes: Mode 1 and
Mode 2, to enter the desired mode use the button.
The default mode will be the Automatic iControl mode.
A) User Mode 1
To enter User Mode 1, default starting mode, make sure that button’s position is
downwards otherwise press the button until its position is downwards just as in
the following picture. Notice that Entering mode 2 is done AFTER the station is
turned on.
B) User Mode 2
To enter User Mode 2, press the button to change its position to become upwards
just as in the following picture.

Jovy Systems® Limited
User Manual
UM1501SLD01
Revision
1.00
Date
August 2015
Page | 9
4. Debug mode
To Enter the Debug mode of the iSolder-40 station, which is also known as the
firmware update mode and is used to update the station to the latest firmware
version, make sure to press the toggle button so that its position is hold
downwards, connect the iSolder-40 station to the PC using the USB port and then
power the station up.
The LED indicator will NOT flash any color
and will remain dim when it enters the
debug mode. When the Station is
successfully connected to the software,
the “Connect” will be available through
the software.

Jovy Systems® Limited
User Manual
UM1501SLD01
Revision
1.00
Date
August 2015
Page | 10
When the station is successfully
connected, a Firmware upgrade menu
will appear, showing the Name of the
station and the Serial Number.
Choosing import will open a browse
window to choose the location of the
firmware
After the Firmware Upgrade file is chosen a confirmation message will appear, if
it’s confirmed (By choosing Yes) the Upgrade process will start.
Make sure to NOT disconnect the station until the process is complete.

Jovy Systems® Limited
User Manual
UM1501SLD01
Revision
1.00
Date
August 2015
Page | 11
When the upgrade is successfully complete , a message will appear confirming
that the Firmware update process is complete.
5. Sleep mode
When the iSolder-40 controller senses no usage for 5 minutes, the iSolder-40
starts the sleep mode for saving power.
The indicator of this mode is a flashing red led (short on; short off).
To get out from sleep mode and turn to operating mode, move the hand piece
from the holder and wait until the iControl automatically senses and update the
status from Sleep to Operating mode.
6. Power saving mode*
After 15 minutes in the sleep mode, the iSolder-40 will turn to the power saving
mode, where no power is delivered to the tip at all and the tip temperature drops
down to room temperature.
The power saving mode is a safety mode where the device can get out of it by
moving the hand piece to left or right direction.
Also to shift from operating mode switch Off/On the iSolder-40

Jovy Systems® Limited
User Manual
UM1501SLD01
Revision
1.00
Date
August 2015
Page | 12
The indication of this state is a flashing red led (short on; short off).
*The difference between the sleep mode led color indicator and the auto shut-down mode led
color indicator is the speed of flashing.
For sleep mode the led red flash speed is Off/on in seconds is 1/1.
For standby mode the led flash speed is Off/on in seconds is 5/1.

Jovy Systems® Limited
User Manual
UM1501SLD01
Revision
1.00
Date
August 2015
Page | 13
7. Software Mode
The software of the station is used to define the desired operating temperatures.
a) Offline Mode
If the software is opened without
connecting the station, or if it’s
connected but not turned on, the
software’s menu will show only “Work
Offline” and “Exit”.
b) Online Mode
When the station is properly
connected via the USB and is turned
on, the software menu interface when
opened will look like the opposite
picture.
The serial Number will be displayed in
the first field.
Connect will lead directly into the
software.

Jovy Systems® Limited
User Manual
UM1501SLD01
Revision
1.00
Date
August 2015
Page | 14
c) Load
Choosing “Load” will allow the
software to import the last saved
configurations from the station to the
software.
d) Edit
Choosing “Edit” will allow the software to Edit the saved configurations, and
adjust the temperatures of both modes as desired.
After Editing the configurations of both modes, they can both be easily saved as
the new modes of the station by choosing “Save”.
When the Save is successfully
completed a confirmation message
will appear

Jovy Systems® Limited
User Manual
UM1501SLD01
Revision
1.00
Date
August 2015
Page | 15
While if the temperature ranges
(Highest Temp. and Lowest Temp.) are
out of the range, an error message
will appear.
e) Default
Choosing “Default” will restore both
of the configuration modes to the
original values.

Jovy Systems® Limited
User Manual
UM1501SLD01
Revision
1.00
Date
August 2015
Page | 16
Tip care and selection
Available tips for iSolder-40:
JV-TP1
JV-TP2
JV-TP3
JV-TP4
JV-TP5
JV-TP6

Jovy Systems® Limited
User Manual
UM1501SLD01
Revision
1.00
Date
August 2015
Page | 17
Guide for tip selection:
Good
Too light
Too heavy
The ideal tip choice is the tip which its active area should cover completely the
solder area. The best percentage of soldering area to tip active area is 2:1.
Tip care guide for longer life time:
-Clean the tip by wiping it with a wet sponge and slightly drag it out after
each use.
-Never use excessive mechanical force for the tip when soldering.
-Soldering tip oxidation should quickly be cleaned and removed; it
negatively affects the tip sensitivity.
-Use the wire mesh to remove bulk solder materials remaining over the tip
after each usage.

Jovy Systems® Limited
User Manual
UM1501SLD01
Revision
1.00
Date
August 2015
Page | 18
Hints and Tricks
Tip oxidation removal:
Firstly, clean the tip using a wet sponge then clean with wire brush.
Secondly, use a tip re-activator chemical to remove hard residues and
oxidation, and finally re-tinning using solder wire (flux cored).
Make sure that the tip type is compatible to the application –as explained
above in tip selection section –with the solder material mass to avoid
process failure, tip damage and oxidation.
Apply the tip to small part of solder wire before you start soldering or de-
soldering.
Wet the sponge by distilled water.
Note: Sulfur and other minerals in Tap-water cause fast tip oxidation.
Keeping the tip clean and shine, enhances the sensitivity and performance
of the tip.

Jovy Systems® Limited
User Manual
UM1501SLD01
Revision
1.00
Date
August 2015
Page | 19
Sample applications for the iSolder-40 main tip
SMT
D
SMD
SMD
Any type of soldering material
Heavy junctions
THT
D
SMD
SMD
