Judo EASY FILT BAL JEFBAL 3/4 User manual

Attention:
Carefully read through the instal-
lation and operating instructions
and safety information before
installing and putting the unit into
service.
These must always be issued to
the owner/user.
Attention: Avant le montage et la
mise enservice,il est absolument
indispensable d'avoir lu, compris
et observé les instructions de
montage et de service ainsi que
les consignes de sécurité ! Il
convient de toujours les remettre
entre les mains de l'exploitant.
Prolongated guarantee period
if a maintenance contract has
been concluded!
Extension de garantie dans le
cadre d’un contrat de mainte-
nance!
GB Installation and Operating
Instructions
FInstructions de montage
et de service
JUDO EASY FILT BAL
Backwash Protective Filter with Water Treatment Unit ¾" – 1¼ "
Filtre de protection à rétrolavage avec dispositif de traitement
de l’eau ¾" – 1¼ "

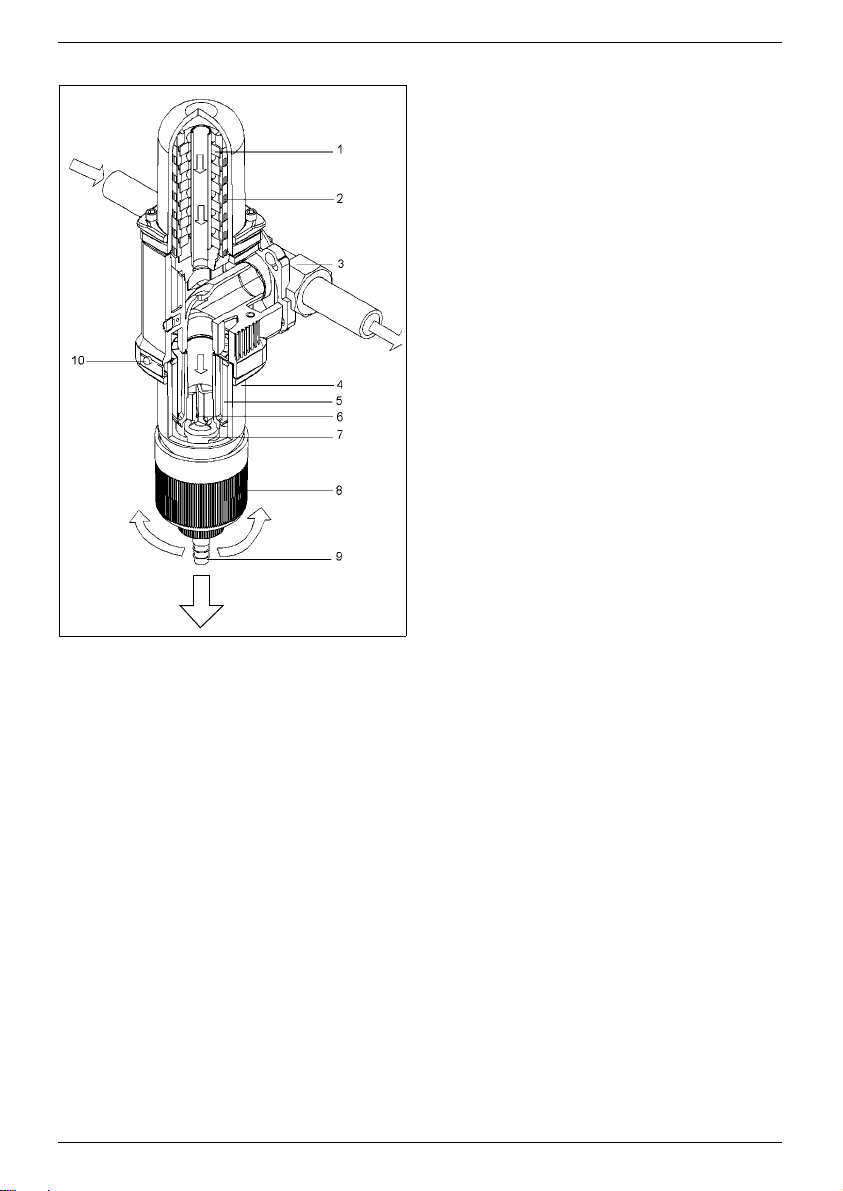

Fig.: JEFBAL ¾" – 1¼"

2 JUDO EASY FILT BAL
Inquiries, orders, customer support
JUDO Wasseraufbereitung GmbH
P.O. Box 380
D-71351 Winnenden
internet: www.judo.eu
e-mail: [e-mail]
Address
JUDO Wasseraufbereitung GmbH
Hohreuschstraße 39-41
D-71364 Winnenden
Trademarks:
Trademarks used in this document are protected
and registered trademarks of the respective
holder.
© JUDO Wasseraufbereitung GmbH
D-71364 Winnenden
All rights reserved.
Reprints – even of extracts – is only permitted
with special approval.
Dear Customer,
We would like to thank you for your con-
fidence in us, which you have shown by
purchasing this device. The product you
have purchased is a filter developed us-
ing state of the art technology.
This filter is suitable for use in cold drink-
ing water up to a maximum ambient tem-
perature of 30 °C (86 °F).
It removes coarse and fine-grained parti-
cles larger or equal in size to the filter
screen (strainer) mesh from the filter
through screen filtration.
Via a new special water treatment device
the predisposition of drinking water to
generate calcium deposits is reduced.
Particles smaller than the screen mesh
size used, turbidities (i.e. substances
that make the water turbid) and sub-
stances dissolved in the water cannot be
filtered out of the water.
Each unit is thoroughly checked before de-
livery. Nevertheless, should difficulties oc-
cur, please contact the responsible custom-
er service (see back page).

JUDO EASY FILT BAL 3
About this Instruction Manual
Table of Contents
1. About this Instruction Manual..............3
1.1 Symbols used..............................4
1.2 Safety information and dangers
due to non-compliance................4
1.3 Units used....................................4
2. Intended Use.......................................5
2.1 Water Pressure............................5
2.2 Notes on special dangers............6
3. Product Information.............................7
3.1 Intended purpose.........................7
3.2 Materials used.............................7
4. Installation ...........................................8
4.1 General........................................8
4.2 Discharging the
backwashing water....................10
5. Operation...........................................11
5.1 Commissioning..........................11
5.2 Functional description................11
5.3 Backwashing .............................13
5.4 Modifications / changes / spare
parts...........................................14
5.5 Stoppages .................................15
6. Faults.................................................16
7. Maintenance......................................17
7.1 Cleaning ....................................17
8. Warranty and Services......................17
9. Data Sheet ........................................18
9.1 Type...........................................18
9.4 Installing dimensions JEFBAL ¾" -
1¼"............................................19
9.5 Extent of Supply ........................19
10.Spare Parts JEFBAL ¾" – 1¼"..........20
Customer Service/ Service Clientèle 40
1. About this Instruction
Manual
ATTENTION
(see chapter "Safety information and
dangers due to non-compliance")
The instruction manual must be permanently
available at the place in which the filter is
used.
This instruction manual is intended to make
it easier to familiarize yourself with the filter
and its possible intended uses.
The instruction manual contains important
information in order to safely, properly and
economically run the filter.
It contains fundamental information, which
must be observed during installation, opera-
tion and maintenance. Observance of this
information helps to avoid dangers, reduce
repair costs and increase the reliability and
service life of the filter.
The instruction manual must be read and
used by each person entrusted with carrying
out work on the filter, for example:
– Installation
– Operation
–Maintenance
(servicing, inspection, repair)
Installation and maintenance may only be
carried out by personnel authorized by the
manufacturer, who are capable of fulfilling
the instructions given in the installation and
operating instructions and the country-
specific regulations.
Apart from the instruction manual and the
legally binding accident prevention provi-
sions applicable in the country and place of
use, the recognizedtechnical regulations for
safe and proper work must also be
observed.

4 JUDO EASY FILT BAL
About this Instruction Manual
Therefore, this instruction manual must
always be read by the fitter and responsible
skilled personnel/owner or operator before
installation, putting into service and mainte-
nance.
Not only the general safety notes given in
the on chapter "Intended Use" are to be
observed, but also the special safety
notes inserted under the other main
items.
1.1 Symbols used
The safety notescontained in this instruction
manual are labelled with the following
symbols:
Notes directly attached to the Backwash
Protective Filter, e.g.
– Direction of flow (see Fig. 1)
– Rating plate
– Cleaning information
must always be observed and kept in a fully
legible condition.
1.2 Safety information and dangers
due to non-compliance
In detail, failure to observe the general
danger symbols can result, for example, in
the following risks:
– Failure of important functions of the
backwash protective filter.
– Danger to persons due to electrical and
mechanical effects.
– Danger to persons and the environment
due to leaks.
Refrain from any unsafe working methods.
Failure to comply with this instruction manual
and the safety information can not only
result in dangers for people but can also
harm the environment and the unit.
1.3 Units used
In derogation of the International System
of Units (SI = System International), the
following units are used:
ATTENTION Notes on
existing
dangers
Warning, electrical voltage.
Torques specified by the
manufacturer.
Tips for use and other
information.
Fig. 1: Built-in rotary flange
Units Conversion
°F °F = 9/5 °C + 32
bar 1 bar = 105Pa = 0,1 N/mm²
¾" DN 20
1" DN 25
1¼" DN 32

JUDO EASY FILT BAL 5
Intended Use
2. Intended Use
The installation and operation of the filter is
subject to the following existing national
regulations.
In addition to the operating instructions and
the obliging regulations concerning accident
prevention that exist in the country of opera-
tion and the location of use, the established
technical regulations concerning safe and
professional work, should also be observed.
The water which is to be treated should
fulfil the requirements stipulated by
European drinking water directives!
It is absolutely essential that the manufac-
turer / supplier will be consulted prior to any
operation of the device using water of a
different quality, respectively with water that
contains additives.
This filter is suitable for use in cold drinking
water up to a maximum ambient tempera-
ture of 30 °C (86 °F).
The filter has been developed and manufac-
tured using state of the art technology and
the established safety regulations in
Germany.
The filter may only be operated in accor-
dance with the manufacturer’s specifica-
tions. Any other operation or operation
beyond the specified use, is not in accor-
dance with the manufacturer’s specifications.
Additional dangers may result in the event of
the device not being operated in accordance
with the manufacturer’s specifications and
non-observance of the danger symbols or
safety instructions. The manufacturer /
supplier cannot be made liable for any
damages caused by these additional
dangers. The operator is responsible for
these risks.
The use of the device in accordance with the
customer’s specifications includes the
observance of the operating instructions.
The manufacturer/supplier should be
consulted prior to any operation of the filter
other than in the operational areas stated in
these operating instructions.
The filter may only be operated in a techni-
cally faultless condition, in accordance with
the manufacturer’s specifications and the
stated safety and danger relevant instruc-
tions and under observance of theoperating
instructions!
Any functional defects are to be removed
immediately!
2.1 Water Pressure
The water pressure should be between 1.5
bar and 10 bar.
The water pressure must not exceed 1.5 bar
as otherwise the backwashing can be im-
paired! If the filter is not backwashed regu-
larly a pressure loss can result and this can
impair the filter function.
ATTENTION
(see chapter "Safety information and
dangers due to non-compliance")
In the event of water pressure above
10 bar, the pressure reduction valve should
be fitted in front of the backwash protective
filter (seeFig. 2). If the operating pressure is
above 10 bar, this may result in defects
during operation.

6 JUDO EASY FILT BAL
Intended Use
2.2 Notes on special dangers
2.2.1 Magnetic Fields
ATTENTION
High performance magnet!
Persons with a pacemaker have to keep a
safety distance of minimum 0.5 meters to
the device.
2.2.2 Electrical equipment /
installations
Electrical devices / equipment that are not
splash-water proof and are situated in the
direct vicinity of the filter may be damaged
by water leaking from the filter caused as a
result of the device not being operated in
accordance with the manufacturer’s specifi-
cations. In addition this may also result short
circuits if these electrical devices / equip-
ment being connected to the electrical
power supply. In the event of such cases
persons are at risk and may sustain elec-
trical shocks. Therefore any electrical
devices / equipment situated in the direct
vicinity should be splash-water proof,
respectively comply with the statutory
requirements for wet areas (IP44).
Fig. 2: Pressure reducer upstream of the unit
The installation of a pressure
reduction valve is recommended
for water pressures between 5
bar and 10 bar.
1 = Pressure reducer
1
There must not be any electrical
cables and devices underneath or
in the immediate vicinity of the filter!

JUDO EASY FILT BAL 7
Product Information
3. Product Information
3.1 Intended purpose
This filter is suitable for use in cold drinking
water up to a water temperature of maxi-
mum 30 °C (86 °F).
ATTENTION
(see chapter "Safety information and
dangers due to non-compliance")
Please refer to the chapter on “Intended
Use” for use restrictions.
This filter removes coarse and fine-grained
particles from the water which are larger
than or equal in size to the mesh size of the
filter.
3.2 Materials used
The materials coming into use are physically,
chemically and corrosively resistant against
the loads that can be expected in the drink-
ing water und fulfill the requested
DIN EN 13443-1 and DIN 19628 standards
(„Mechanically operated filters in the water
installation”). All materials are physiologically
and hygienically harmless. Plastics fulfill the
KTW guideline of the German Environ-
mental Agency and the DVGW work sheet
W270. Metallic materials fulfill the require-
ments of the DIN 50930-6 standard (Impact
on the Drinking Water Quality).
Particles smaller than the supplied
mesh size and impurities causing
turbidity cannot be filtered out of
the water.

8 JUDO EASY FILT BAL
Installation
4. Installation
4.1 General
ATTENTION
(see chapter "Safety information and
dangers due to non-compliance")
The unit may only be installed by skilled
personnel.
The chapter "Intended Use" must always be
observed!
The pipes must be able to safely support the
filter.
Otherwise mechanical damage or fractures/
bursts can occur in the pipes. This can result
in major water damage. People close to the
filter are exposed to a health risk due to the
large quantities of water released. There-
fore, if necessary, the pipes must be addi-
tionally fixed or supported.
A space of at least 200 mm should be main-
tained above and below the filter. These dis-
tances are necessary to be able to properly
carry out the backwashing (see chapter
"Backwashing").
4.1.1 Requirements for the place of
installation
The room where the unit is installed must
be dry and frost free!
Unauthorised persons must not have
access to the filter!
ATTENTION
(see chapter "Safety information and
dangers due to non-compliance")
– The ambient temperature must not ex-
ceed 30 °C (86 °F)! At higher tempera-
tures or direct sun radiation the material
can be damaged and the filter hood can
even break.
– In order to be able to safely discharge
the wastewater in operation and in case
of any defects that occur in the system,
precise compliance with the details given
in the "Installation" chapter is necessary!
If the wastewater (backwashing) cannot
be safely and completely discharged,
the house and installations can be
damaged by water.
– A shut-off valve must be installed
upstream of the filter! This enables the
water supply to the filter to be interrupted
during installation, servicing/mainte-
nance, repairs and in case of malfunc-
tions. Floods and serious water damage
to house installations can therefore be
avoided.
– The unit can be installed in all standard
drinking water pipes.
– It is not permitted to install the filter
upstream of the water meter!

JUDO EASY FILT BAL 9
Installation
4.1.2 Installing position
ATTENTION
(see chapter "Safety information and
dangers due to non-compliance")
Always install the filter in a vertical position
(± 5°)!
Failure to observe this can cause uncon-
trolled backwashing water to escape and
can result in water damage.
4.1.3 Mounting the built-in rotary
flange
Install using the supplied built-in rotary
flange. The built-in rotary flange is used as a
connecting element between the pipe and
the filter.
The built-in rotary flange must be
installed in the direction of flow. This is
marked by a cast in arrow.
Failure to comply with this means the filter
cannot work.
ATTENTION
(see chapter "Safety information and
dangers due to non-compliance")
The flange surface of the built-in rotary
flange must be in a horizontal position! The
built-in rotary flange must be fitted so that
mechanical stresses cannot occur! Other-
wise mechanical damage can result in the
built-in rotary flange. Otherwise mechanical
damagecan result, the pipe may burst or the
built-in rotary flange can break. This can
result in major water damage.
In this case, people close to the filter are
exposed to a health risk due to the large
quantities of water.
Therefore, during installation, ensure that no
large forces act on the pipe, built-in rotary
flange and filter.
4.1.4 Installing the backwash
protective filter
The filter is connected using the supplied
built-in rotary flange. It consists of the built-
in rotary flange and profiled flange seal.
Undo the built-in rotary flange union nuts
and fit to the pipe with the sleeve.
Note the installed dimensions!
Positionthefilterwithpre-fittedbuilt-inrotary
flange between the sleeves, insert the flat
seals and screw using the union nut.
The cast in arrow of the built-in rotary flange
must match the direction offlow of the water.
ATTENTION
(see chapter "Safety information and
dangers due to non-compliance")
The section of the profiled flange gasket
must point towards the built-in rotary flange.
Failure to observe this can lead to leaks and
water escaping.This can inturn cause water
damage to the house and its installations.
Select the torque (approx. 4 Nm) so
that the gasket closes and the filter
is not damaged or strained!
Fig. 3: Built-in rotary flange

10 JUDO EASY FILT BAL
Installation
4.2 Discharging the
backwashing water
ATTENTION
(see chapter "Safety information and
dangers due to non-compliance")
For the backwashing water a wastewater
connection (for example a floor drainage) in
accordance with DIN1986 must be in place.
The dimensioning depends on conditions on
site (e.g. wastewater pipe gradient, number
of pipe bends, length of the wastewater
pipe, etc.). The dimensioning must at least
allow all the wastewater to be discharged at
the same time. If it is not possible to provide
a wastewater connection directly beneath
the filter, the flushing water can be fed sev-
eral meters to the next wastewater connec-
tion, either through a hose or a pipe to be
fitted to the flushing water valve. This pipe
must have the same dimension as the
flushing water valve.
In all options, a free discharge must be
ensured in accordance with EN 1717.
The following points must be noted if a
bucket is used for backwashing:
– If the mains pressure is high, water can
splash out of the bucket. In this case,
damage to property close to the back-
wash protective filter is possible.
– When the bucket is half-filled, the back-
washing process must be stopped.
Otherwise it is possible for the bucket to
overflow. Therefore the bucket must be
adequately dimensioned and the back-
washing should be carried out quickly.
4.2.1 Backwashing water discharge
options

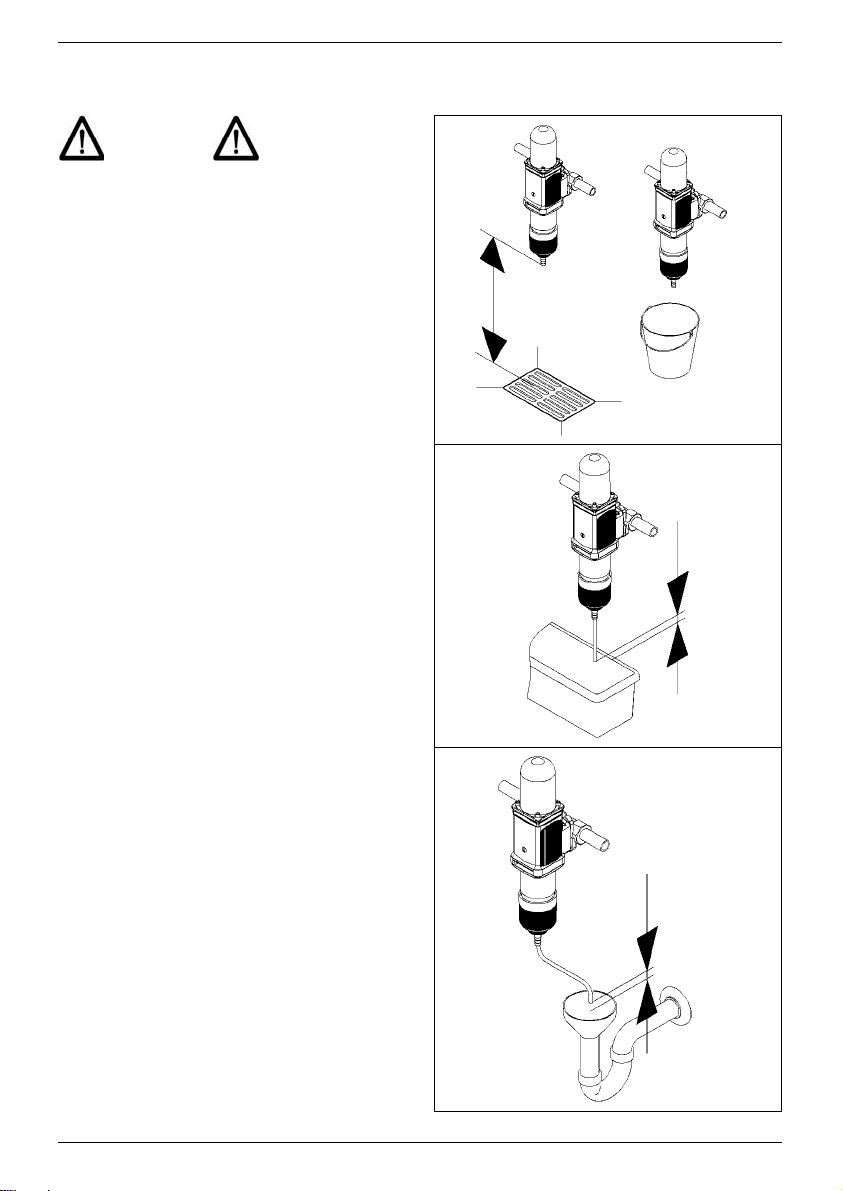

Fig. 4: Backwashing water discharge options
> 200 mm
min.10 l
> 20 mm
> 20 mm

JUDO EASY FILT BAL 11
Operation
5. Operation
ATTENTION
(see chapter "Safety information and
dangers due to non-compliance")
Always observe the chapter "Intended Use"!
5.1 Commissioning
Prior to the start-up (Initial start-up or start-
up effected upon maintenance works) do fill
the filter with water and ventilate the filter.
– In order to do so the filter, when having
been installed, is filled with water
through the opening of the upstream
positionned shut-off valve.
– The filter has now become system-
pressurized.
– The enclosed air has then immediately
to be let out of the filter to avoid device
damage through water hammers. The
ventilation of the filter is effected via a
backwash performance (see chapter:
"Discharge of the backwash water")
upon the backwashing and ventilation
having been effected, the filter is ready-
to-operate.
5.2 Functional description
Unfiltered water runs through the built-in
rotary flange (3) into the backwash protec-
tive filter. The water flows through the fine
filter outside-inside, dirt particles getting
stuck on the filter cloth of the fine filter. The
adherent contamination is externally visible
through a transparent filter hood (5). Having
passed through the backwash protective
filter, the flow is redirected upwards and
flows through a concentrically arranged noz-
zle system (2). This nozzle system brings
about an activation chamber in which the
pressure drops considerably in certain
zones, what causes a partial out-gasing of
the carbonic acid, that is dissolved in the
water.

12 JUDO EASY FILT BAL
Operation
1Permanent magnets
2Nozzle system
3Built-in rotary flange
4Filter hood
5Sieve insert
6Suction pipe
7Flush valve
8Backwash wheel, manually operated
9Rotary hose connection piece/
backwash water
10 Indicator knob to show the next
backwash date
This leads to a punctual carbonate equili-
brium displacement which entails that the
disposition of water to build lime crystals
increases. To prompt this procedure, the
thus pretreated water is conducted centrally
upwards through the device where it flows
radially inwards between six strong, ring-
shaped permanent magnets (1) and collects
in a ring-shaped channel.
Upon the intersection of the magnetic field
lines that the magnets will produce, an elec-
tric current will be induced via the charge
carriersthat arecontained in the water (such
as calcium ions), the so-called electro-mag-
netic induction current. This electric current
leads, among others, to a local fortification
of calcium and magnesium ions relevant to
lime-generation and thus to a local over-
saturation of this substances. That is why a
spontaneous precipitation of smallest lime
crystals takes place in the pre-treated water.
Now, similar to a snow ball effect, additional
lime can continue to be deposited on these
microscopically small crystals. The lime
crystals grow, remain, however, due to their
large quantity, about the size of only some
thousandth millimetres, so that they cannot
deposit and, as an example, heater rods
cannot become incrusted any longer. The
used magnets are anisotropic ones (that is
especially strongly magnetized in one direc-
tion) allowed in contact with drinking water
(that means, among others, rust-proof)
ceramic-bound hard ferrit magnets, that
keep their abundantly dimensioned energy
over many years.
Fig. 5: Functional description

JUDO EASY FILT BAL 13
Operation
5.3 Backwashing
The filter must be backwashed (=cleaned) at
the specified cycles in order to remove the
filtered dirt from the fine filter screen.
The backwashing takes place at full tap
(water system) pressure.
To clean the backwash protective filter, the
handwheel must be turned to the left up to
the limit stop, thereby opening the flushing
valve. While the handwheel is being turned
the flushing water escapes. The flushing
valve must then be closed again by turning
the handwheel to the right.
The ceramic flushing valve thus closes
again and the backwashing process is com-
pleted.
ATTENTION
(see chapter "Safety information and
dangers due to non-compliance")
If the locking procedure is interrupted the
flushing valve is not completely closed.
Water permanently escapes as a result.
Apart from high water consumption, this can
also cause water damage, especially if the
backwashing water is not discharged as de-
scribed in the chapter "Discharging the
backwashing water".
All sizes of filter are backwashed
with treated water. The supply of
treated water to the filter station is
maintained throughout the back-
washing process. Dirty water
cannot get into the clean water
side during backwashing.
Both the degree of soiling and the
cleaning process can be observed
from the outside.

14 JUDO EASY FILT BAL
Operation
5.3.1 Backwashing interval
The Backwash Protective Filter must be
backwashed:
– Every two months at the latest.
– If the water pressure falls.
– If the backwash protective filter is visibly
dirty.
ATTENTION
(see chapter "Safety information and
dangers due to non-compliance")
If the interval until the next backwashing is
longer than two months, the particles on the
filter screen can stick or a large filter pres-
sure resistance can result.
Unauthorised persons must not operate the
filter! Persons who operate the filter must
observe the operating instructions. Failure
to observe these instructions can result in
damage to property and personal injuries.
The smaller the mesh size of the screen
insert the more frequently backwashing is
required!
From experience, increased dirt is deposited
during the initial running period. In this case
the unit will have to be flushed more
frequently than normal.
Failure to flush in good time can cause dam-
age to the screen.Large quantitiesof filtered
particles can deform the screen. As a result,
proper function of the filter is no longer en-
sured. In addition, large quantities of dirt can
cause mechanical damage to the back-
washing function.
5.4 Modifications / changes /
spare parts
ATTENTION
(see chapter "Safety information and
dangers due to non-compliance")
Only original spare parts are to be used!
Independent modifications and changes are
prohibited for safety reasons! These can
impair the function of the filter, lead to lead
and in extreme cases can cause the filter to
burst.
The test marks imprinted on the unit are only
valid if original spare parts are used.
5.4.1 Servicing / Repair
Before carrying out any work on the filter,
which extends beyond pure operational con-
trol, the filter must be depressurised! Failure
to observe this can lead to an uncontrolled
escape of water and therefore lead to water
damage in the building. Strictly comply with
the instructions given in the "Installation"
and "Maintenance" chapters.
There is a display button on the built-
in rotary flange attached to the back-
wash protective filter. It can be slid
along the months scale. This enables
the backwashing interval to be moni-
tored.

JUDO EASY FILT BAL 15
Operation
5.5 Stoppages
ATTENTION
(see chapter "Safety information and
dangers due to non-compliance")
If a filter has to be removed from the flange
or unscrewed, the chapter „Intended use“
must always be observed!
– Protect the flange surfaces from dam-
age! Damaged flange surfaces cannot
close tight. As a result, escaping water
can damage the building and installa-
tions.
– Ensure that no dirt can get into the filter!
This dirt can get into contact with and be
discharged into the drinking water when
the filter is switched back on. The health
of people who drink dirty water is at risk.
– Store the filter in frost-free conditions!
Frost can cause any water contained in
the filter voids to freeze and thus cause
mechanical damage to the filter so that it
leaks at operating pressure or can burst.
Leaking water can cause major damage
to the building. In addition, people near
the filter can be injured by breaking off
filter parts.
– When restarting the filter, follow the
instructions for a new filter.

16 JUDO EASY FILT BAL
Faults
6. Faults
In order to ensure unit safety and leak
tightness, only approved persons may
open the units and replace parts subject
to water pressure.
Help with faults:
Fault Cause Remedy
Backwashing water
continues running!
Flushing valve not fully
closed. Repeat the backwashing and
then turn to the right up to the
limit stop of the flushing valve!
Dirt in the flushing valve.
Water flow rate falls! Screen is blocked. Carry out backwashing.
Leaks in the backwash
protective filter! Inform the fitter or nearest
customer service centre.
(The filter cover must be
replaced immediately.)
Filter cover becomes turbid! Filter cover has been
exposed to high tempera-
tures or solvents.
Hairline cracks on the filter
hood!

JUDO EASY FILT BAL 17
Maintenance
7. Maintenance
ATTENTION
(see chapter "Safety information and
dangers due to non-compliance")
Always observe chapter "Intended Use"!
7.1 Cleaning
ATTENTION
(see chapter "Safety information and
dangers due to non-compliance")
Only use clear, clean drinking water to
clean the housing and transparent filter
cover.
Domestic all-purpose cleaners and glass
cleaners can contain up to 25% solvents or
alcohol (spirits).
These substancescan chemically attack the
plastic parts, which can lead to brittleness or
even fractures.
Such cleaners must therefore not be
used.
8. Warranty and Services
In order to comply with the legal warranty
claim, according to DIN 1988, Part 8, it is
necessary that the "… backwashing takes
place according to the existing operating
conditions, at the latest, however, every two
months … ".
Further, an annual "… check of the set
discharge pressure at the pressure gauge
(visual check) when no water is flowing and
at the peak flow (large amount drawn off) …"
is necessary.
Regular servicing is indispensable in order
to continue to achieve a successful process
for many years after the unit is put into
service. In the building services sector this is
covered by DIN 1988, Part 8.
A servicing agreement is the best way to
ensure a good operating function beyond
the warranty period.
Wherever possible, the regular servicing
work and supply with consumables and
wearingmaterials, etc. shouldbe carried out
by the specialist trade or the factory’s
customer service department.

18 JUDO EASY FILT BAL
Data Sheet
9. Data Sheet
9.1 Type
JUDO EASY FILT BAL Backwash Protec-
tive Filter
Abbreviated name: JEFBAL
9.2 Models
9.3 Technical Data
The following applies for all the models of
the device:
– The filters are supplied with a stainless
steel screen with a mesh size of 0.1 mm
as a standard.
– Pressure loss when clean (after back-
washing): 0.2 bar at the water flow rate
(nominal flow rate) given in the table.
– Maximum ambient temperature and
water temperature: 30 °C (86 °F).
– The water to be filtered must conform
to the European Drinking Water
Regulations!
– Threaded connection to DIN 2999.
The nominal pressure denotes the pressure
class,according to which the filter must fulfill
the requirements of the DIN EN 13443-1
and DIN 19628 standards. The maximum
operating pressure is lower, in order to
ensure the optimum function of the filter.
The backwashing volumetric flow given applies to 2-3 bar mains pressure and for a
completely opened flushing water valve.
Model Order No.
JEFBAL¾" 8215010
JEFBAL1" 8215011
JEFBAL1¼" 8215012
Nominal Pressure
Model Operating
Pressure Nominal Pressure
JEFBAL ¾" – 1¼" 1.5 – 10 bar PN 10
Model Weight Water flow
rate up to Pressurelossafter
backwashing Back-flush
volume stream
JEFBAL¾" 2,4 kg 1,2 / 2,0 m³/h 0,2 / 0,5 bar 0,3 l/s
JEFBAL1" 2,5 kg 1,6 / 2,7 m³/h 0,2 / 0,5 bar 0,3 l/s
JEFBAL1¼" 2,9 kg 2,0 / 3,0 m³/h 0,2 / 0,5 bar 0,3 l/s

JUDO EASY FILT BAL 19
Data Sheet
9.4 Installing dimensions JEFBAL¾" - 1¼"
A = Installation length
B = Device width
C = Height above pipe centre
D = Height below pipe centre
E = installation depth till pipe centre
F = Connection dimension residual water
G = Nominal diameter residual water
9.5 Extent of Supply
– Pre-installed backwash protective filter
– Installation and Operation Instructions
– Built-in rotary flange JQE ¾", 1" or 1¼"
Abb. 6: Installing dimensions JEFBAL ¾" - 1¼"
Model A B C D E F G
JEFBAL
¾" 90 78 187 236 122 77,5 12
JEFBAL
1" 90 78 187 236 122 77,5 12
JEFBAL
1¼" 110 78 187 236 122 77,5 12
All dimensions in [mm] (see Fig.7)

20 JUDO EASY FILT BAL
Spare Parts JEFBAL ¾" – 1¼"
10. Spare Parts JEFBAL ¾" – 1¼"
