Jumbuck GEN-FP001 User manual

Jumbuck Paramount Multi Function
Spit Rotisserie (GEN-FP001) 0094874
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT: READ THE ASSEMBLY INSTRUCTIONS IN THIS
BOOKLET BEFORE REMOVING THE CONTENTS OF
THIS CARTON
IMPORTANT SAFETY INSTRUCTIONS
DO NOT OPERATE THIS APPLIANCE BEFORE
READING THE INSTRUCTION
BOOKLET
DO NOT PLACE ARTICLES ON OR AGAINST
THIS APPLIANCE
DO NOT STORE CHEMICALS OR FLAMMABLE
MATERIALS OR SPRAY AEROSOLS
NEAR THIS APPLIANCE
DO NOT OPERATE THIS APPLIANCE
INDOORS
DO NOT ENCLOSE THIS APPLIANCE
DO NOT LIGHT OR OPERATE WITH THE COVER
ON (COVER NOT INCLUDED)
For outdoor use only.
Improper installation, adjustment, alteration, service or maintenance can
cause property damage, injury or death.
Read the installation instructions thoroughly before installing this equipment.
Warning: accessible parts may be very hot. Keep young children away.
Do not move the appliance during use.
Any modification of the appliance may be dangerous and will void the
warranty.
Installer to leave instructions with the consumer and consumer to retain them
for future reference.
Please ensure all packaging and transit protection materials are removed prior
to using the fire pit.
This appliance must only be used in an above
ground open-air situation with natural
ventilation, without stagnant areas, where
products of combustion are rapidly dispersed
by wind and natural convection
This spit rotisserie is an outdoor appliance
only. Under no circumstances should it be
use indoors.
Do not store chemicals or flammable
materials near this appliance.
Unsupervised children should not be near
the spit rotisserie while in use or during
warm up or cool down.
People with flammable clothing such as
nylon etc. should keep well away from the
spit rotisserie when it is operating.
Do not leave solid fuel unattended on the
spit rotisserie.
Particular care must be taken when removing
the ash OR used fuel. Hot ash can cause
serious injury.
FOR
OUTDOOR
USE ONLY

OPERATING GUIDELINES
Lighting the spit rotisserie
solid fuel is to be used for this product (fire
wood, charcoal etc.)
place solid fuel onto the charcoal tray and
light using fire starters
let the solid fuel light (check occasional to
ensure fire is lit)
Cooking
ensure solid fuel is lit and that there is
sufficient heat for cooking
place food on the cooking grill
regularly monitor temperature to ensure
food is not under or over cooked
Cleaning
once finished cooking, remove left over
solid fuel from the spit rotisserie
always ensure spit rotisserie is clean and
free from oil or grease (internally and
externally) to ensure longevity of the spit
rotisserie
always keep spit rotisserie dry and under
cover to protect from weather and
moisture
Pre-caution
always ensure hands are protected when
putting or removing food from the spit
rotisserie
always ensure spit rotisserie is cool before
touching or cleaning the internal areas
always ensure hands are protected when
making any adjustments to the spit
rotisserie
do not use flammable liquids for igniting
and re-igniting
open flames and burning embers must
never be left unattended
after use, make sure the spit rotisserie is
allowed to cool before moving
Important Notes
do not use this spit rotisserie indoors.
do not use this spit rotisserie inside a tent,
gazebo or within a confined space.
this spit rotisserie will become very hot
during and for some time after use. Keep
children away from the spit rotisserie and
do not touch metal parts of the spit
rotisserie when in use
use suitable gloves for protection,
especially when loading the spit rotisserie
with coal or charcoal
we recommend protecting your spit
rotisserie when not in use with a cover to
protect it from weather exposure

EXPLODED VIEW

PARTS CODE
Parts Number
Parts Name
Parts Code
1
Motor
GEN-FP001-01
2
Motor support
GEN-FP001-02
3
Rear panel
GEN-FP001-03
4
Cooking grill
GEN-FP001-04
5
Upper leg
GEN-FP001-05
6
Charcoal tray
GEN-FP001-06
7
Firebox
GEN-FP001-07
8
Lower leg
GEN-FP001-08
9
Support bracket
GEN-FP001-09
10
Leg support
GEN-FP001-10
11
Wheel
GEN-FP001-11
12
Front panel
GEN-FP001-12
13
Side handle
GEN-FP001-13
14
Skewer
GEN-FP001-14
15
Rotisserie support
GEN-FP001-15
16
Rotisserie weight
GEN-FP001-16
17
Rotisserie handle
GEN-FP001-17
18
Rotisserie rod connector
GEN-FP001-18
19
Rotisserie rod
GEN-FP001-19
20
Rotisserie fork
GEN-FP001-20

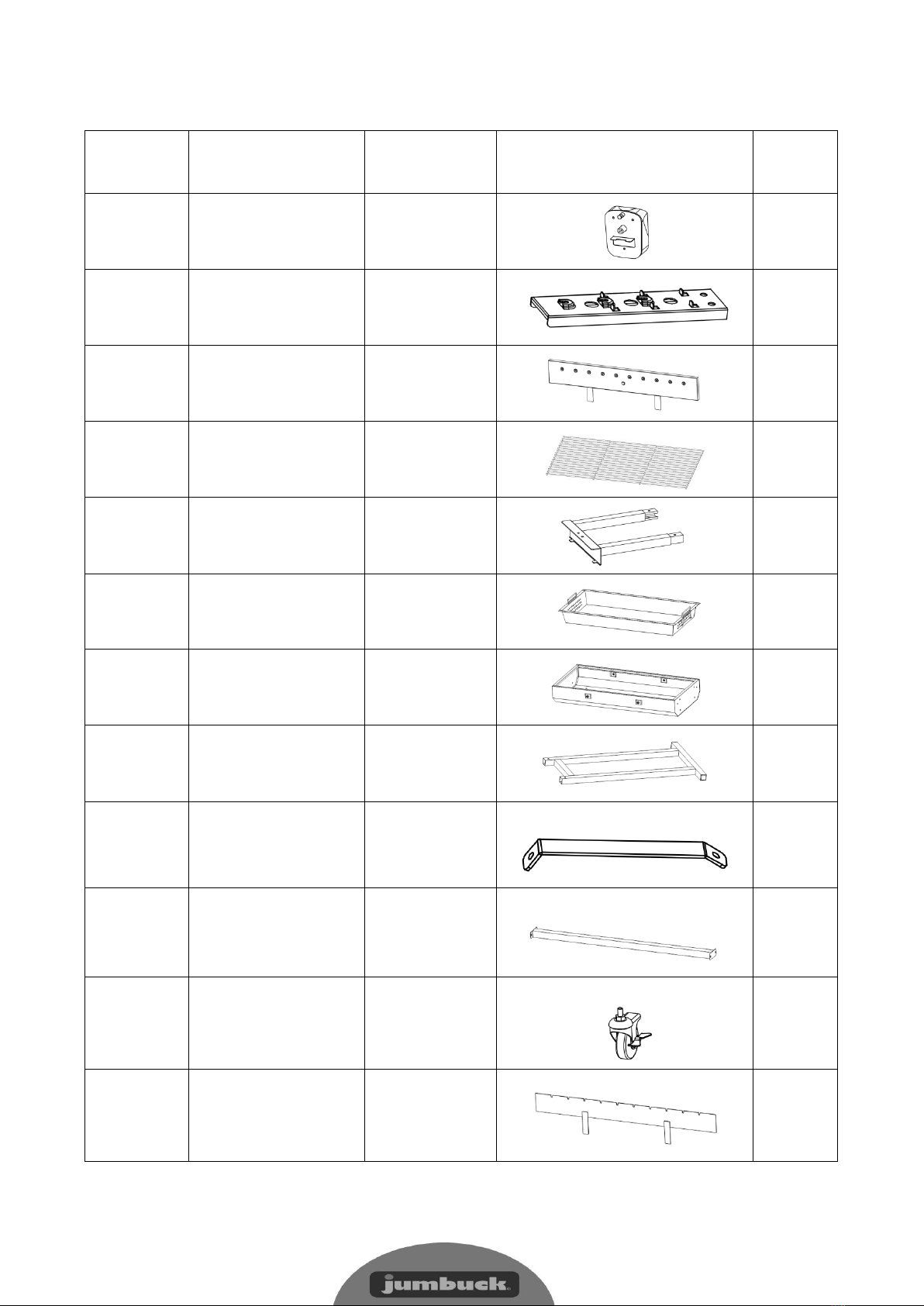

CARTON CONTENTS
Reference#
Description
Part#
Illustration
Quantity
1
Motor
GEN-FP001-01
2
2
Motor support
GEN-FP001-02
1
3
Rear panel
GEN-FP001-03
1
4
Cooking grill
GEN-FP001-04
1
5
Upper leg
GEN-FP001-05
2
6
Charcoal tray
GEN-FP001-06
1
7
Firebox
GEN-FP001-07
1
8
Lower leg
GEN-FP001-08
2
9
Support bracket
GEN-FP001-09
4
10
Leg support
GEN-FP001-10
1
11
Wheel
GEN-FP001-11
4
12
Front panel
GEN-FP001-12
1

13
Side handle
GEN-FP001-13
1
14
Skewer
GEN-FP001-14
10
15
Rotisserie support
GEN-FP001-15
1
16
Rotisserie weight
GEN-FP001-16
1
17
Rotisserie handle
GEN-FP001-17
1
18
Rotisserie rod
connector
GEN-FP001-18
1
19
Rotisserie rod
GEN-FP001-19
1
20
Rotisserie fork
GEN-FP001-20
2

HARDWARE PACK CONTENTS
Reference#
Description
Illustration
Quantity
A
Bolt M6x
12mm
4
B
Nut M6
8
C
Bolt M6x15mm
16
D
Bolt
M6x20mm
2
E
Flat Washer
M6
2
F
Bolt
M6x35mm
4
G
Spring Washer
M5 White
4

ASSEMBLY INSTRUCTIONS
ASSEMBLY TIPS
Remove all contents from packaging, and make sure all the parts are present before
attempting to assemble!
Tighten all bolt connections by hand first.
When the spit rotisserie is fully assembled, retighten the screws, nuts and bolts by
using a wrench and screw driver.
TOOLS REQUIRED
Philips screwdriver
Pliers or adjustable spanner

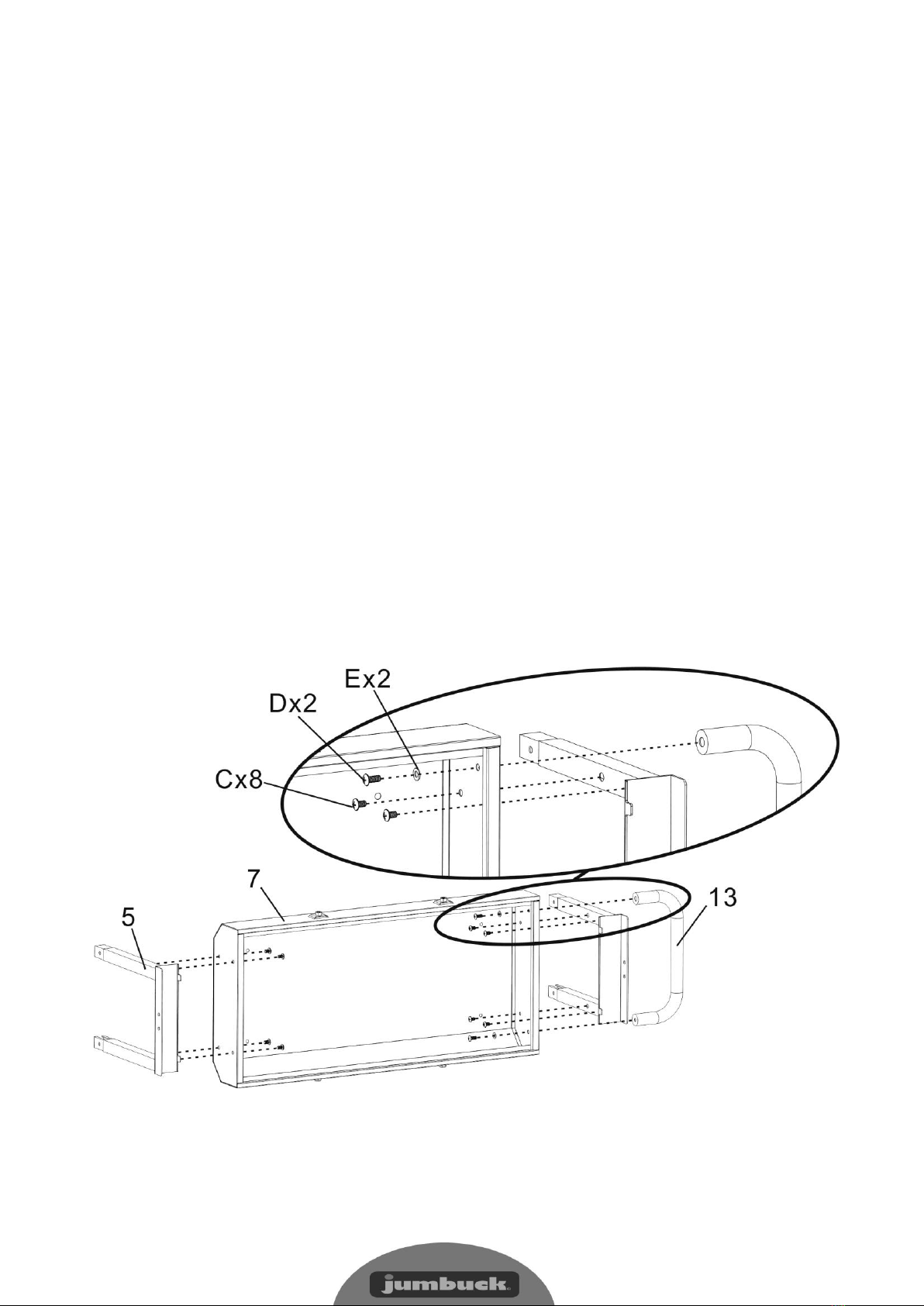

STEP 1
Install the upper leg (part 5) and side handle (part 13) onto the firebox (part 7) as per illustration
below.

STEP 2
Install the lower leg (part 8) and support bracket (part 9) onto the assembled firebox as per
illustration below.
STEP 3
Install the wheel (part 11) and lower leg support (part 10) as per illustration below.

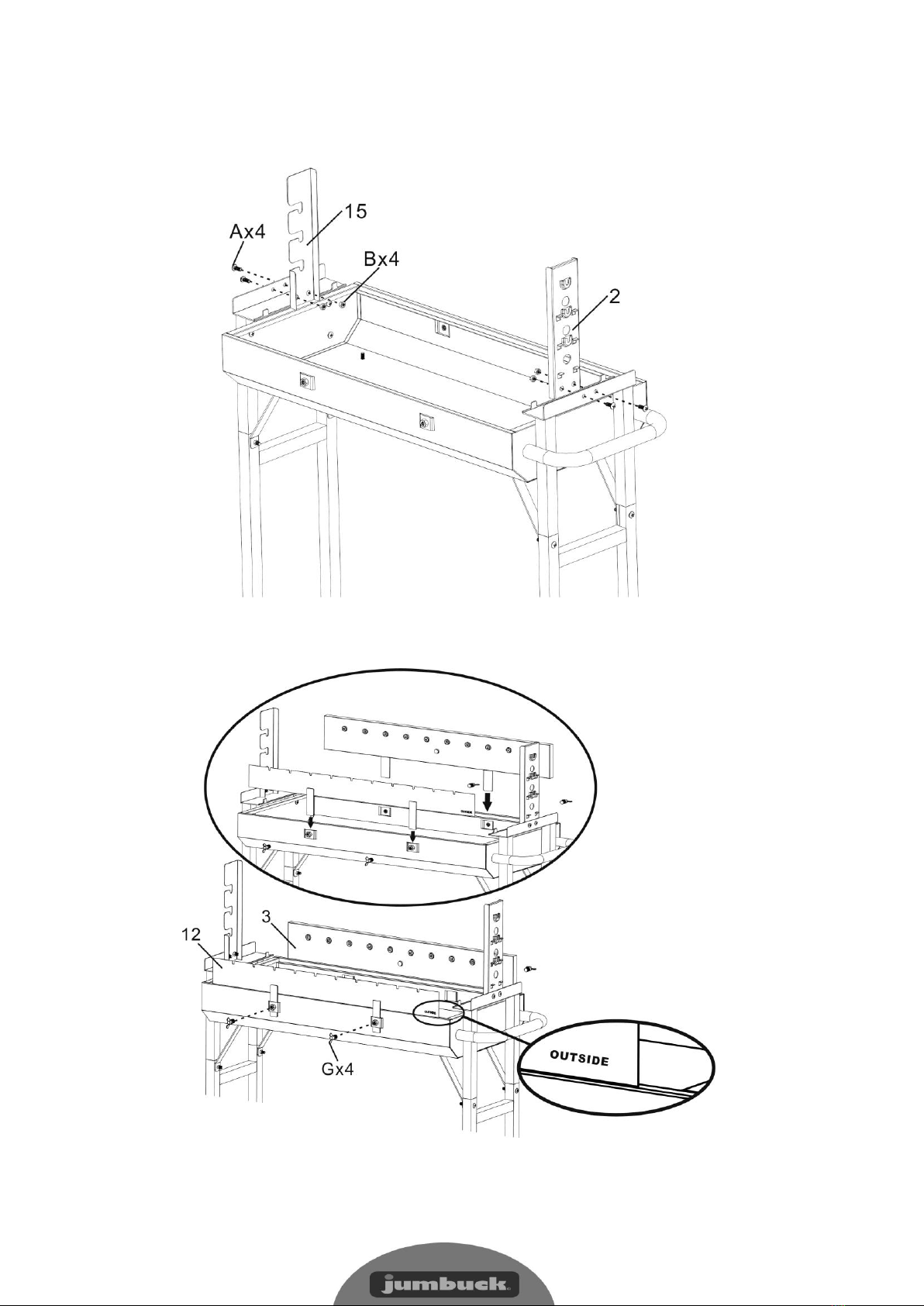

STEP4
Install the rotisserie support (part 15) and motor support (part 2) as per illustration below.
STEP 5
Install the rear panel (part 3) and front panel (part 12) onto the firebox as per illustration below.

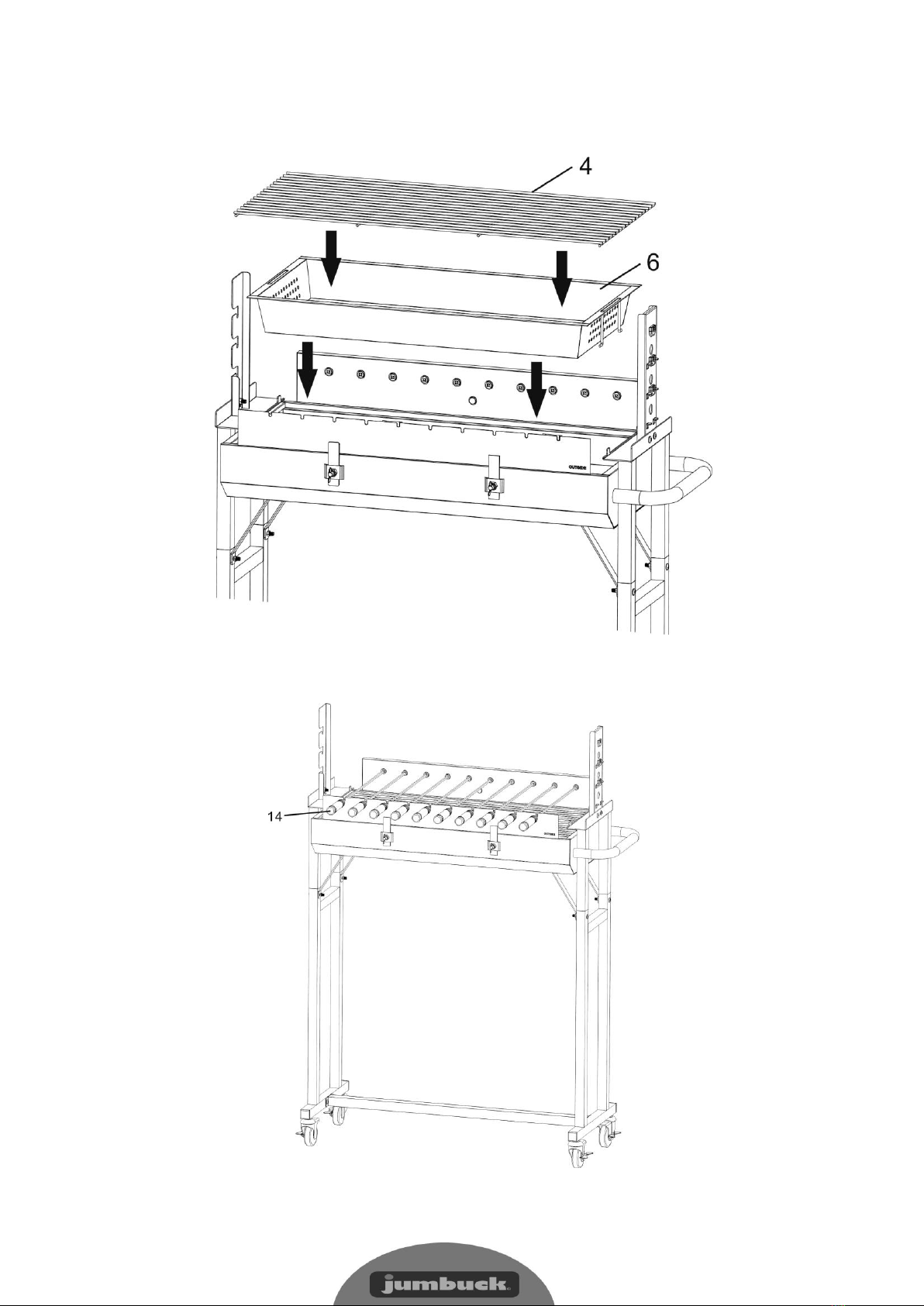

STEP 6
Place the cooking grill (part 4) and charcoal tray (part 6) onto the firebox as per illustration
below.
STEP 7
Attached the skewer (part 14) as per illustration below.

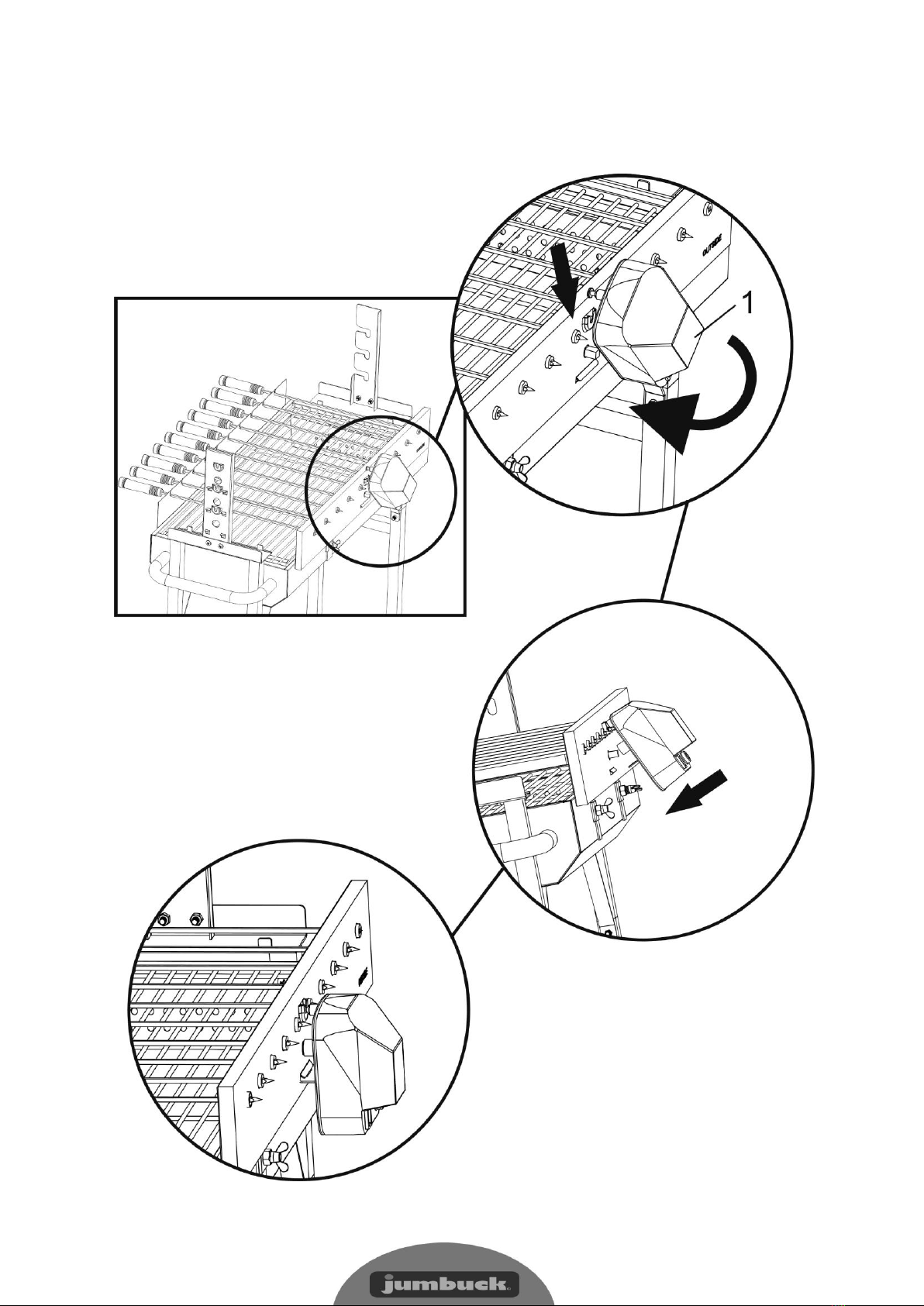

STEP 8
Install the motor (part 1) onto the rear panel (part 3) as per illustration below.

STEP 9
Assemble the rotisserie rod and attachments as per as per illustration below.
STEP 10
Place the assembled rotisserie rod and motor (part 1) onto the spit rotisserie as per below.

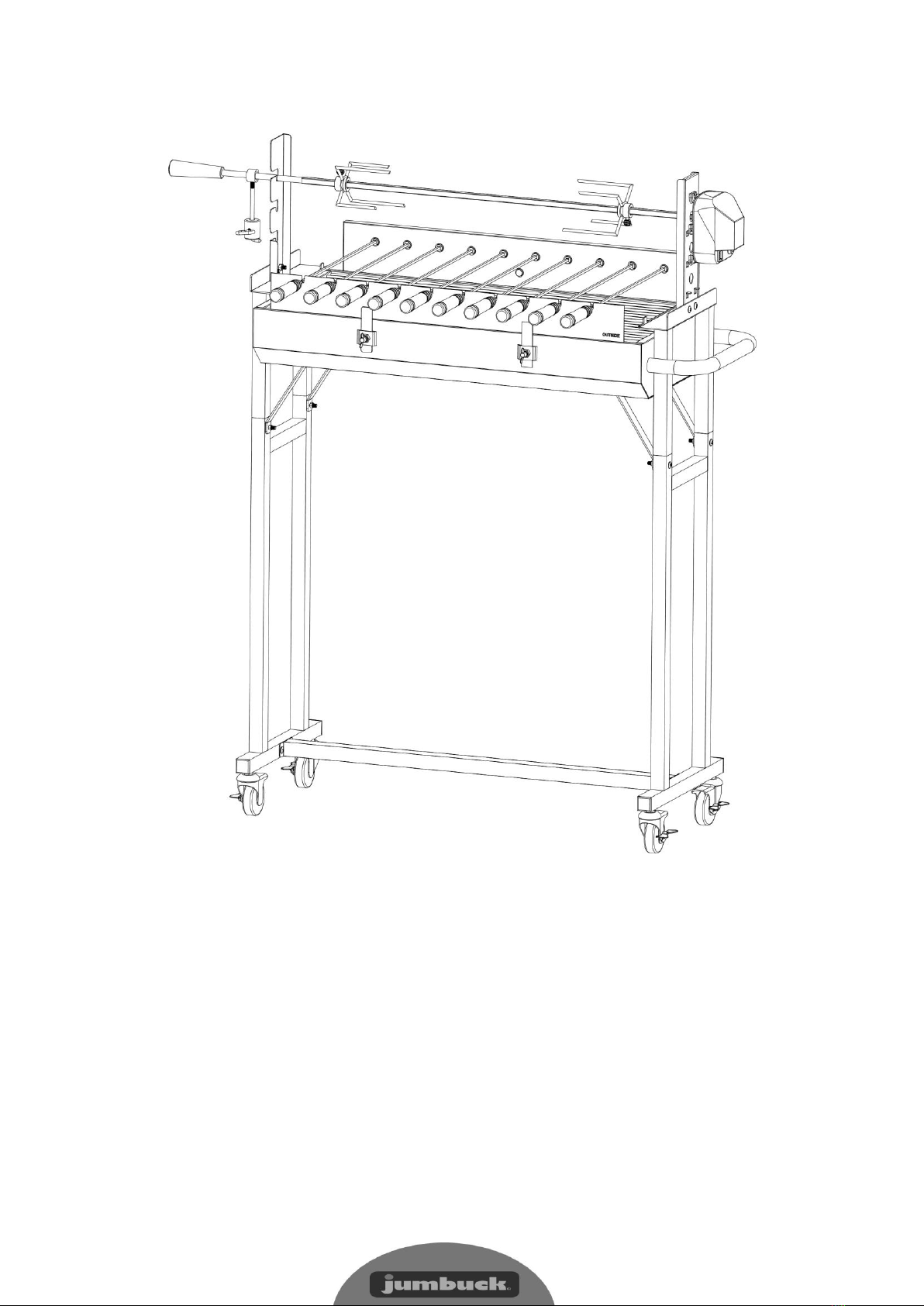

Fully Assembled
Your spit rotisserie is now ready for use.
Please take care when lighting your spit rotisserie.
Always keep children away from this spit rotisserie at all times.

WARRANTY
Thank you for purchasing one of our quality
Jumbuck Spit Rotisserie.
YOUR JUMBUCK SPIT ROTISSERIE IS COVERED
AGAINST DEFECTS FOR A PERIOD OF 12 MONTHS
FOR PARTS AND LABOUR, REPAIR OR
REPLACEMENT
THIS WARRANTY EXCLUDES SURFACE RUST AND
DAMAGE CAUSE BY ABUSE OR NEGLECT
CONDITIONS OF THE WARRANTY
The appliance must be operated and maintained
in accordance with the instructions supplied in
the operating manual.
Any repair does not extend the warranty period.
Any parts other than original Jumbuck parts will
void this warranty.
FOR WARRANTY CLAIMS
The warranty for Australia is given by :
Genesis International Corporation Pty Ltd
1/71 Truganina Road,
Malaga
Western Australia 6090
AUSTRALIA
[phone]
[e-mail]
Proof of purchase must be presented.
The warranty for New Zealand is given by :
Bunnings NZ Limited
PO Box 14436,
Panmure, Auckland, 1471
NEW ZEALAND
[phone]
[e-mail]
Proof of purchase must be presented.
Any claims under this warranty must be made
within 12 months of the date of purchase of the
product.

WARRANTY
For Australian Customers
Any claim under this warranty must be made
within 12 months of the date of purchase of the
product. To make a claim under the warranty,
please contact Genesis International at
[e-mail] or return the product
(with proof of purchase) to any Bunning store.
Visit www.bunnings.com.au for store locations.
Genesis International bears reasonable, direct
expenses of claiming under the warranty. You may
submit details and proof to us for consideration.
The warranty covers manufacturer defects in
materials, workmanship and finish under normal
use.
This warranty is provided in addition to other
rights and remedies you may have under law: our
goods come with guarantees which cannot be
excluded under the Australian Consumer Law. You
are entitled to replacement or refund for a major
failure and to have the goods repaired or replaced
if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
The warranty excludes damage resulting from
product misuse or product neglect. The warranty
covers domestic use only and does not apply to
commercial applications.
For New Zealand Customer
Any claim under this warranty must be made
within 12 months of the date of purchase of the
product. To make a claim under the warranty, take
the product (with proof of purchase) to any
Bunnings store. Visit www.bunnings.co.nz for
store locations.
Bunnings NZ Ltd bears reasonable, direct,
expenses of claiming under the warranty. You
may submit details and proof to our store for
consideration.
The warranty covers manufacturer defects in
materials, workmanship and finish under normal
use.
This warranty is provided in addition to other
rights and remedies you may have under
law: our goods come with guarantees which
cannot be excluded under the Consumer
Guarantees Act 1993 (NZ). You are entitled to
replacement or refund for a major failure and to
compensation for other reasonably foreseeable
loss or damage. You are also entitled to have the
goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not
amount to a major failure.
Goods presented for repair may be replaced by
refurbished goods of the same type rather than
being repaired. Refurbished parts may be used to
repair the goods.
The warranty excludes damage resulting from
product misuse or product neglect. The warranty
covers domestic use only and does not apply to
commercial applications.

WARRANTY
WHAT IS NOT COVERED IN THE WARRANTY
Removal or re-installation costs. This warranty does
not cover costs for transit, nor in home service
Liability will only be accepted for loss or damage
during transit if at the time the product was being
transported by Bunnings or a Bunnings approved
contractor
Lack of maintenance, abuse, neglect, misuse,
accidental or improper installation of this
appliances
Scratches, dents, corrosion or discoloration caused
by heat, abrasive chemicals cleaners
Corrosions or damage caused by exposure to
elements such as insects, weather, hail or grease
and fat fires
Rusting of the grill
Cleaning and wear and tear, service calls of this
nature are chargeable
Commercial use of this product
Unauthorized repairs or modification during
warranty period
RECORD THE FOLLOWING INFORMATION
Attached the copy of the purchase receipt here
Date of Purchase...........................................................................
Purchased From.............................................................................
Location.............................................................................................
Model Name and Number........................................................
Serial Number.................................................................................
Receipt Number.............................................................................
Note: The serial number is located either on the
outside of the packing carton or inside on the
appliance
FOR TECHNICAL ASSISTANCE
For Australia customers if you experience any
technical issues with your JUMBUCK SPIT
ROTISSERIE, in the first instance review the
instructions manual or contact the warranty service
agent
For New Zealand customers if you experience any
technical issues with your JUMBUCK SPIT
ROTISSERIE, in the first instance review the
instructions manual or contact your local Bunnings
warehouse
FOR SPARE PARTS
Call your local Bunnings warehouse and ask them
to order a part for you. You should provide the
following information:
Model of spit rotisserie
...........................................................................................................
Year of Purchase
...........................................................................................................
Name of warranty service company
...........................................................................................................
Part that requires replacement (refer to the parts
list in the instructions manual)
...........................................................................................................
