Jumbuck HS-CB007 User manual

Jumbuck HS-CB007
(0256536) Portable Charcoal
Spit Roaster
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT: READ THE ASSEMBLY INSTRUCTIONS IN THIS
BOOKLET BEFORE REMOVING THE CONTENTS OF
THIS CARTON
IMPORTANT SAFETY INSTRUCTIONS
•For outdoor use only.
•Improper installation, adjustment, alteration, service or
maintenance can cause property damage, injury or death.
Read the installation instructions thoroughly before
installing this equipment.
•Warning: accessible parts may be very hot. Keep young
children away.
•Do not move the appliance during use.
•Any modification of the appliance may be dangerous.
•Installer to leave instructions with the consumer and
consumer to retain them for future reference.
•Dispose of all polythene packing carefully and keep out of
the reach of children
This appliance must only be used in an above
ground open-air situation with natural ventilation,
without stagnant areas, where products of
combustion are rapidly dispersed by wind and
natural convection
•This BBQ is an outdoor appliance only. Under no
circumstances should it be used indoors.
•Do not store chemicals or flammable materials
near this appliance.
•Unsupervised children should not be near the
BBQ while cooking or during warm up or cool
down.
•People with flammable clothing such as nylon
etc. should keep well away from the BBQ when it
is operating.
•Do not leave food unattended on the BBQ.
•Particular care must be taken when removing the
ash OR used fuel. Hot ash can cause serious injury.
DO NOT OPERATE THIS APPLIANCE
BEFORE READING THE
INSTRUCTION BOOKLET
DO NOT PLACE ARTICLES ON OR
AGAINST THIS APPLIANCE
DO NOT STORE CHEMICALS OR
FLAMMABLE MATERIALS OR
SPRAY AEROSOLS NEAR THIS
APPLIANCE
DO NOT OPERATE THIS APPLIANCE
INDOORS
DO NOT ENCLOSE THIS APPLIANCE
DO NOT LIGHT OR OPERATE WITH THE
COVER ON(COVER NOT
INCLUDED)

Lighting the Charcoal BBQ
•solid fuel is to be used for this product (fire
wood, charcoal etc.)
•place solid fuel onto the charcoal grid and
light using fire starters
•let the solid fuel light (check occasional to
ensure fire is lit)
Using the Spit function
•the Spit Motor requires 2 x D size battery to
operate (batteries not included)
•set the cooking height by securing the motor
and rotisserie rod onto the motor supports
•switch the motor on to begin using the spit
function
Cooking
•ensure solid fuel is lit and that there is
sufficient heat for cooking
•place food on the cooking grill
•regularly monitor the temperature to ensure
food is not under or over cooked
Cleaning
•once finished cooking, remove left over solid
fuel from the BBQ
•always ensure BBQ is clean and free from oil
or grease (internally and externally) to
ensure longevity of the BBQ
•always keep BBQ dry and under cover to
protect from weather and moisture
Pre-caution
•always ensure hands are protected when
putting or removing food from the BBQ
•always ensure BBQ is cool before touching or
cleaning the internal areas
•always ensure hands are protected when
making adjustments to the air vent
•do not use flammable liquids for igniting and
re-igniting
•open flames and burning embers must never
be left unattended
•after use, make sure the BBQ is allowed to
cool before moving
Important Notes
•do not use this BBQ indoors.
•do not use this BBQ inside a tent, gazebo or
within a confined space.
•this BBQ will become very hot during and for
some time after use. Keep children away
from the BBQ and do not touch metal parts
of the BBQ when in use
•use suitable gloves for protection, especially
when loading the BBQ with coal or charcoal
•we recommend protecting your BBQ when
not in use with a cover to protect it from
weather exposure

EXPLODED VIEW
PARTS CODE
Parts Number
Parts Name
Parts Code
1
Motor
(requires 2 x D size battery to operate, batteries not included)
HS-CB007-01
2
Rotisserie spike
HS-CB007-02
3
Rotisserie arm
HS-CB007-03
4
Weight
HS-CB007-04
5
Handle
HS-CB007-05
6
Rotisserie pole
HS-CB007-06
7
Cooking grill
HS-CB007-07
8
Charcoal grill
HS-CB007-08
9
Charcoal plate
HS-CB007-09
10
Motor support
HS-CB007-10
11
Motor support bolt
HS-CB007-11
12
Ash tray
HS-CB007-12
13
BBQ body
HS-CB007-13
14
Leg
HS-CB007-14

CARTON CONTENTS
Reference#
Description
Part#
Illustration
Quantity
1
Motor
HS-CB007-01
1
2
Rotisserie spike
HS-CB007-02
2
3
Rotisserie arm
HS-CB007-03
1
4
Weight
HS-CB007-04
1
5
Handle
HS-CB007-05
1
6
Rotisserie pole
HS-CB007-06
1
7
Cooking grill
HS-CB007-07
1
8
Charcoal grill
HS-CB007-08
1
9
Charcoal plate
HS-CB007-09
2
10
Motor support
HS-CB007-10
2
11
Motor support
bolt
HS-CB007-11
2
12
Ash tray
HS-CB007-12
2
13
BBQ body
HS-CB007-13
1
14
Leg
HS-CB007-14
4

HARDWARE PACK CONTENTS
ASSEMBLY INSTRUCTIONS
ASSEMBLY TIPS
•Remove all contents from packaging, and make sure all the parts are present before
attempting to assemble!
•Tighten all bolt connections by hand first.
•When the BBQ is fully assembled, retighten the screws, nuts and bolts by using a wrench
and screwdriver.
TOOLS REQUIRED
•Philips screwdriver
•Pliers or adjustable spanner

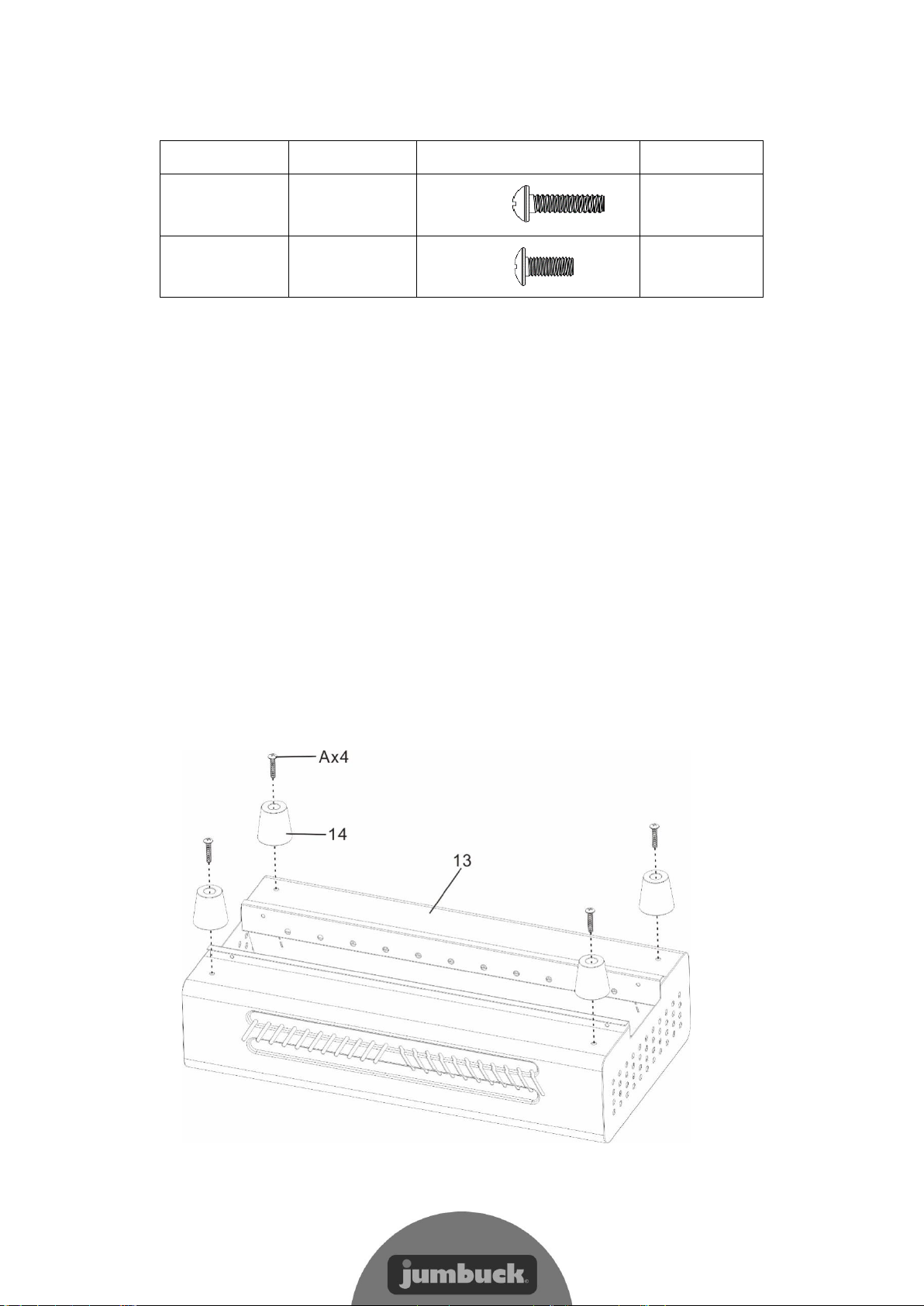

STEP 1
Install the Leg (part 14) onto the BBQ body (part 13) as per illustration below.
Reference#
Description
Illustration
Quantity
A
Bolt M6x
35mm
4
B
Bolt M6x
15mm
2

STEP 2
Install the Charcoal plate (part 9) onto the BBQ body (part 13) as per illustration below.
STEP 3
Place the Ash tray (part 12) into the assembled BBQ as per illustration below.
STEP 4
Place the Cooking grill (part 7) and Charcoal grill (part 8) into the assembled BBQ as per illustration
below.

STEP 5
Install the Motor support (part 10) onto the assembled BBQ as per illustration below.
STEP 6
Assemble the Rotisserie spike (part 2), Rotisserie arm(part 3), Weight(part 4), Handle(part 5) and
Rotisserie pole(part 6) together as per illustration below.
STEP 7
Place the Motor (part 1) and the assembled rotisserie rod onto the assembled BBQ as per illustration
below.
PLEASE NOTE: MOTOR REQUIRES 2 X D SIZE BATTERY TO OPEREATE (BATTERIES NOT INCLUDED)

Fully Assembled
Your BBQ is now ready for use.
Please take care when lighting your BBQ.
Always keep children away from this BBQ at all times

WARRANTY
Thank you for purchasing one of our quality
Jumbuck BBQs.
YOUR JUMBUCK BBQ IS COVERED AGAINST
DEFECTS FOR A PERIOD OF 12 MONTHS FOR PARTS
AND LABOUR, REPAIR OR REPLACEMENT
THIS WARRANTY EXCLUDES SURFACE RUST AND
DAMAGE CAUSE BY ABUSE OR NEGLECT
CONDITIONS OF THE WARRANTY
•The appliance must be operated and maintained
in accordance with the instructions supplied in
the operating manual.
•Any repair does not extend the warranty period.
•Any parts other than original Jumbuck parts will
void this warranty.
FOR WARRANTY CLAIMS
The warranty for Australia is given by :
Genesis International Corporation Pty Ltd
1/71Truganina Road,
Malaga
Western Australia 6090
AUSTRALIA
[phone]
[e-mail]
Proof of purchase must be presented.
The warranty for New Zealand is given by :
Bunnings NZ Limited
PO Box 14436,
Panmure, Auckland, 1471
NEW ZEALAND
[phone]
marketi[email protected]o.nz
Proof of purchase must be presented.
Any claims under this warranty must be made
within 12 months of the date of purchase of the
product.

WARRANTY
For Australian Customers
Any claim under this warranty must be made
within 12 months of the date of purchase of the
product. To make a claim under the warranty,
please contact Genesis International at
[e-mail] or return the product
(with proof of purchase) to any Bunning store. Visit
www.bunnings.com.au for store locations.
Genesis International bears reasonable, direct
expenses of claiming under the warranty. You may
submit details and proof to us for consideration.
The warranty covers manufacturer defects in
materials, workmanship and finish under normal
use.
This warranty is provided in addition to other
rights and remedies you may have under law: our
goods come with guarantees which cannot be
excluded under the Australian Consumer Law. You
are entitled to replacement or refund for a major
failure and to have the goods repaired or replaced
if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
The warranty excludes damage resulting from
product misuse or product neglect. The warranty
covers domestic use only and does not apply to
commercial applications.
For New Zealand Customer
Any claim under this warranty must be made
within 12 months of the date of purchase of the
product. To make a claim under the warranty, take
the product (with proof of purchase) to any
Bunnings store. Visit www.bunnings.co.nz for store
locations.
Bunnings NZ Ltd bears reasonable, direct, expenses
of claiming under the warranty. You may submit
details and proof to our store for consideration.
The warranty covers manufacturer defects in
materials, workmanship and finish under normal
use.
This warranty is provided in addition to other
rights and remedies you may have under law: our
goods come with guarantees which cannot be
excluded under the Consumer Guarantees Act
1993 (NZ). You are entitled to replacement or
refund for a major failure and to compensation for
other reasonably foreseeable loss or damage. You
are also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable
quality and the failure does not amount to a major
failure.
Goods presented for repair may be replaced by
refurbished goods of the same type rather than
being repaired. Refurbished parts may be used to
repair the goods.
The warranty excludes damage resulting from
product misuse or product neglect. The warranty
covers domestic use only and does not apply to
commercial applications.

WARRANTY
WHAT IS NOT COVERED IN THE WARRANTY
•Removal or re-installation costs. This warranty does
not cover costs for transit, nor in home service
•Liability will only be accepted for loss or damage
during transit if at the time the product was being
transported by Bunnings or a Bunnings approved
contractor
•Lack of maintenance, abuse, neglect, misuse,
accidental or improper installation of this appliance
•Scratches, dents, corrosion or discoloration caused
by heat, abrasive chemicals cleaners
•Corrosions or damage caused by exposure to
elements such as insects, weather, hail or grease
and fat fires
•Rusting of the grill
•Cleaning and wear and tear, service calls of this
nature are chargeable
•Commercial use of this product
•Unauthorized repairs or modification during
warranty period
RECORD THE FOLLOWING INFORMATION
Attached the copy of the purchase receipt here
Date of Purchase...........................................................................
Purchased From.............................................................................
Location.............................................................................................
Model Name and Number........................................................
Serial Number.................................................................................
Receipt Number.............................................................................
Note: The serial number is located either on the
outside of the packing carton or inside on the
appliance
FOR TECHNICAL ASSISTANCE
For Australia customers if you experience any
technical issues with your JUMBUCK BBQ, in the
first instance review the instructions manual or
contact the warranty service agent
For New Zealand customers if you experience any
technical issues with your JUMBUCK BBQ, in the
first instance review the instructions manual or
contact your local Bunnings warehouse
FOR SPARE PARTS
Call your local Bunnings warehouse and ask them
to order a part for you. You should provide the
following information:
Model of BBQ
...........................................................................................................
Year of Purchase
...........................................................................................................
Name of warranty service company
...........................................................................................................
Part that requires replacement (refer to the parts
list in the instructions manual)
...........................................................................................................
