Jumbuck HS-PZ002 Parts list manual

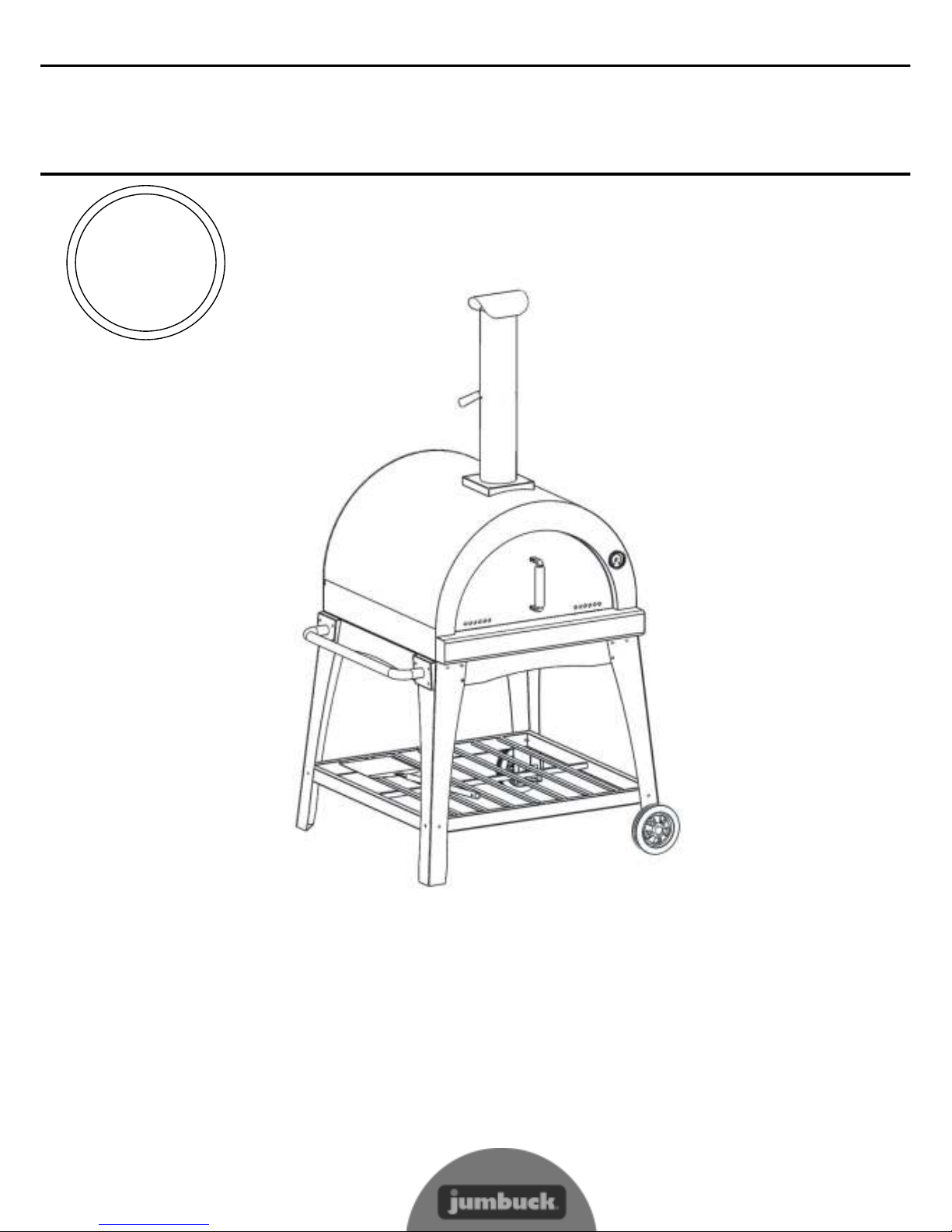

ASSEMBLY & OPERATION
INSTRUCTIONS (HS-PZ002)
Outdoor Charcoal Pizza Oven
FOR
OUTDOOR
USE ONLY

PART LIST
Part Number Part Name Supplier Code
1 smoke pipe PZ00201
2 smoke pipe handle PZ00202
3 body PZ00203
4 body back plate PZ00204
5 charcoal collect bo PZ00205
6 thermometer PZ00206
7 door handle PZ00207
8 door PZ00208
9 charcoal ash grid PZ00209
10 firebrick PZ00210
11 control plate PZ00211
12 cart handle PZ00212
13 spade PZ00213
14 cart leg-L PZ00214
15 cart body support plate PZ00215
16 cart leg-R PZ00216
17 cart bottom grid PZ00217
18 wheel PZ00218
19 wheel a le PZ00219

Warnin
• For outdoor use only.
• Improper installation, adjustment, alteration, service or maintenance can cause property damage,
injury or death.
• Read the installation, operating and maintenance instructions thoroughly before installing or
servicing this equipment.
• Warning: accessible parts may be very hot. Keep young children a ay.
• Do not move the appliance during use.
• Any modifications of the appliance may be dangerous.

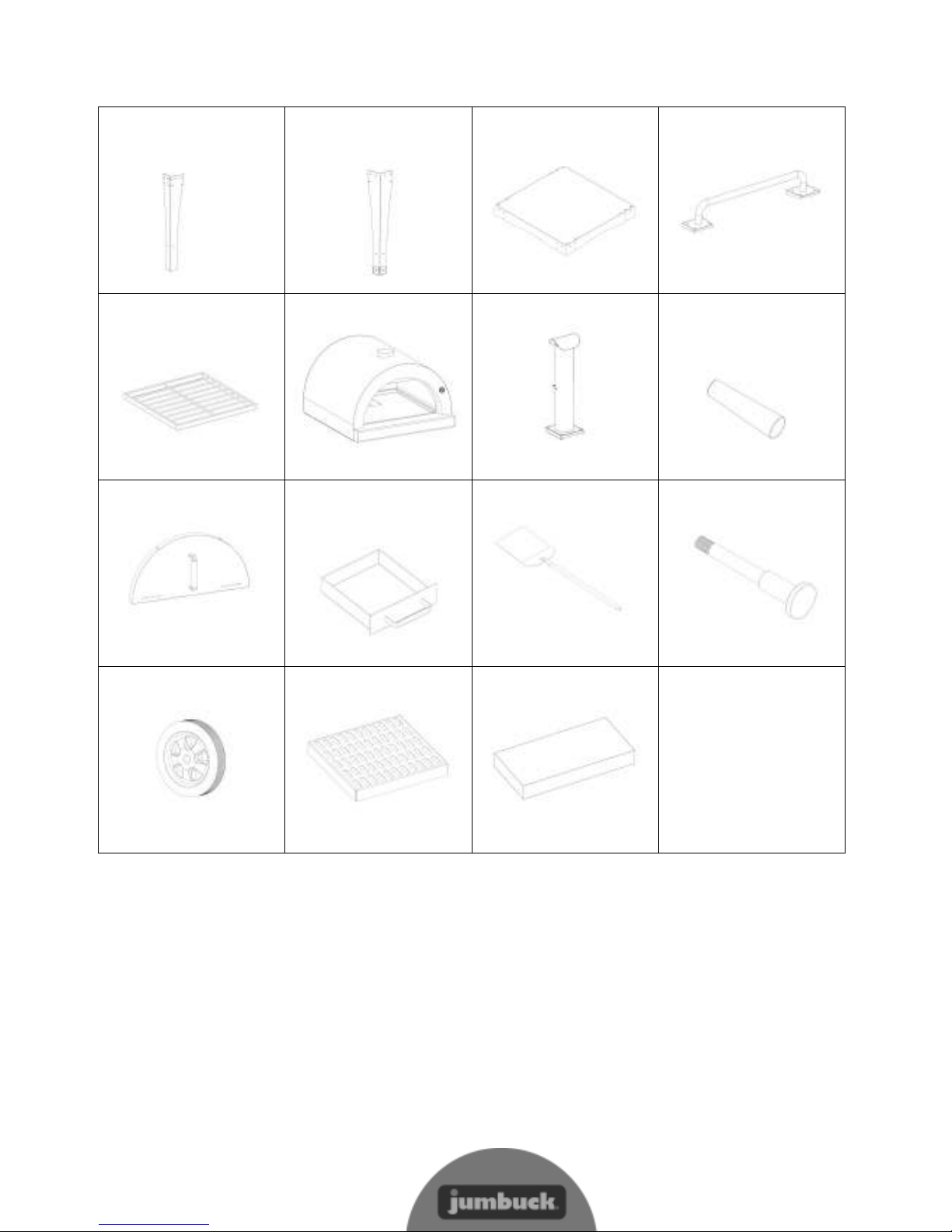

1. cart leg L……2pcs 2. cartleg R…....2pcs
3. cartbodysupport plate
.......1pc
4.cart handle…1pc
5.cart bottom grid
......1pc
6.body ......……1pc
7.smoke pipe……1pc
8. smoke pipe handle
........1pc
9.door ...........…..1pc
10.charcoalcollectbo
.........1pc
11.spade…….1pc
12.wheel a le…..2pcs
13. wheel……2pcs
14.charcoal ash grid..1pc
15. firebrick……16pcs

Hardware Pack
A
Bolt: M6x15
22 pcs
B
Bolt: M6x45
4 pcs
C
Bolt: M6x30
8 pcs
D
Flat asher M10
2 pcs
E
Bolt: M6x40
8 pcs
F
Flat asher M6
4 pcs
G
Lock nut M10
2 pcs
H
skid resistance nut M6
34pc
I
Spanner
1pc
J
screwdriver
1pc

Assembly Instructions
Remove all contents from packaging, and make sure all parts are present before attempting to assemble! Tighten all bolt
connections by hand first. When the OVEN is fully assembled, go back and tighten.
STEP 1
Assemble thecart leg L(Part 1), cart leg R(Part 2)andcarthandle (Part4)to thecart body support plate(Part3)as sho n.Use
the Bolt A, Bolt C, Nut H tighten.
STEP 2
Assemble the Wheel(part 13)to the cart leg R as sho n. Use the heel axle(part 12), flat asher D, Nut G tighten.

STEP 3
Assemble the cart bottom grid (part 5) to the cart leg as sho n. Use Bolt E ,Nut H tighten.
STEP 4
Assemble the body(part 6)to the cart as sho n. Use Bolt A tighten.

STEP 5
Assemblethe smoke pipe handle (part 8) to smoke pipe (part 7) ,then assemblethe smoke pipe to body as sho n. Use Bolt
B ,flat asher F tighten.
STEP 6
Place thecharcoal ashgrid (part 14), firebrick (part 15) into body as sho n.

STEP 7
Place thedoor(part 9) into body as sho n.
STEP 8
Place the charcoalcollect box(part 10) into body as sho n.

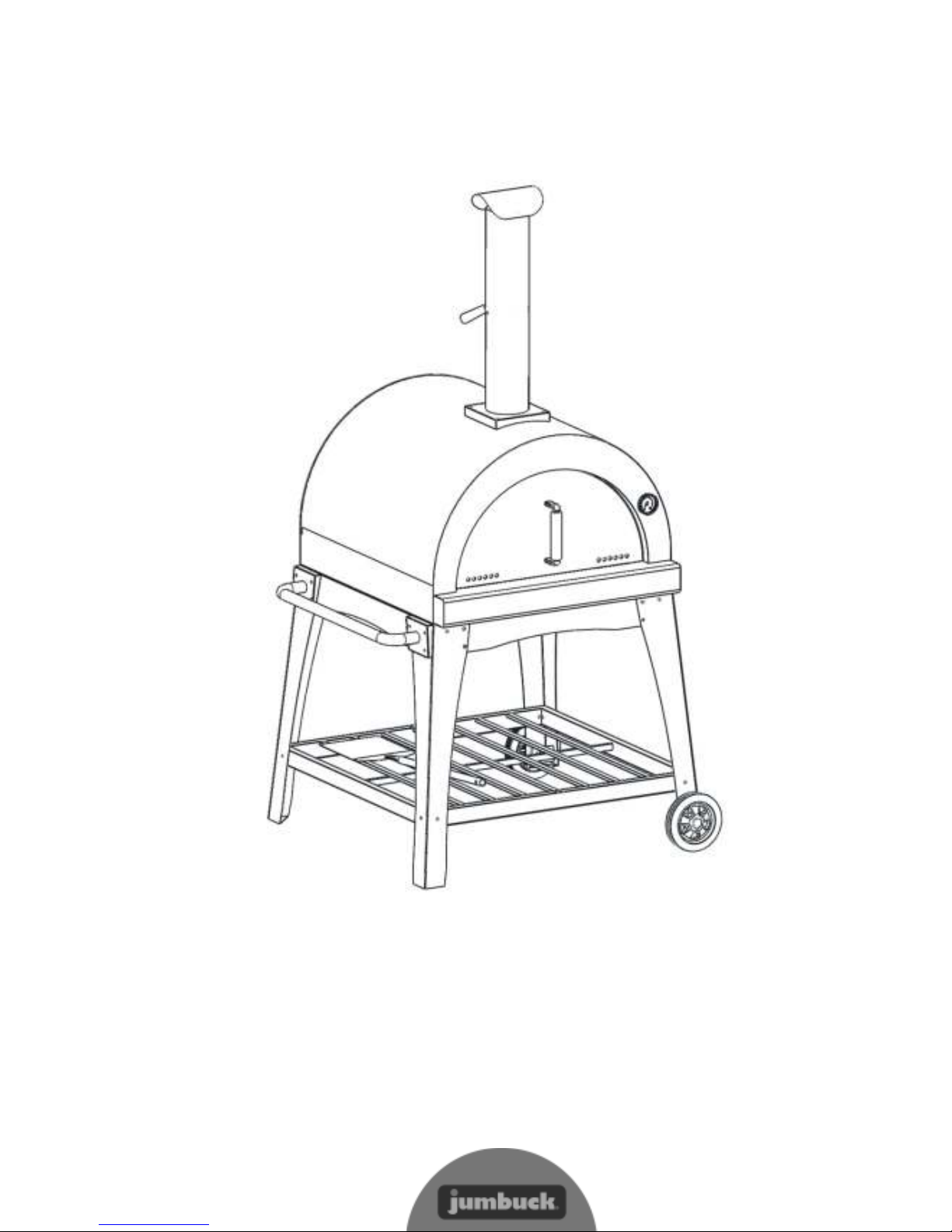

Fully-Assembled

Oven Operatin Guidelines
Lighting the oven
• solid fuel is to be used for this product (fire ood, charcoal etc.)
• place solid fuel onto the fire bricks and light using fire starters
• close oven door and let the solid fuel burn (check occasionally to ensure fire is lit)
Cooking
• monitor heat inside oven via temperature gauge
• recommended temperature for cooking pizza is 230 to 250 degrees Celsius
• once desired temperature is reached, move solid fuel to the side to create cooking space on the fire
bricks
• place pizza (or desired food) on the fire bricks to cook
• regularly monitor temperature to ensure pizza/food is not under or over cooked
• smoke pipe handle can be used to control smoke and temperature ithin oven hen door is
closed/sealed
Cleaning
• once finished cooking, remove left over solid fuel
• ashes can be removed via the charcoal collect box (ash tray)
• al ays ensure oven is clean and free from oil or grease (internally and externally) to ensure
longevity of the oven
• al ays keep oven dry and under cover to protect from eather and moisture
Pre-caution
• al ays ensure hands are protected hen placing or removing food from oven
• al ays ensure oven is cool before touching or cleaning the internal areas
• do not subject the charcoal bricks to sudden changes in temperature as this might damage the
bricks

Jumbuck Warranty
Thank you for purchasing one of our quality
Jumbuck Outdoor Charcoal Pizza Oven.
YOUR JU BUCK OUTDOOR
CHARCOAL PIZZA OVEN IS COVERED
AGAINST DEFECTS FOR A PERIOD OF
12 ONTHS FOR PARTS AND LABOUR,
REPAIR OR REPLACE ENT
THIS WARRANTY EXCLUDES SURFACE
RUST AND DA AGE CAUSE BY ABUSE
OR NEGLECT
CONDITIONS OF THE WARRANTY
. The appliance must be operated and
maintained in accordance with the instructions
supplied in the operating manual.
. Any repair does not e tend the warranty
period.
. Any parts other than original Jumbuck parts
will
Void this warranty.
FOR WARRANTY CLAI S
This warranty for Australia is given by :
Genesis Australia Corporation Pty Ltd
2/26 Industry St Malaga WA 6090
08 9248 9822
[e-mail]
The warranty for New Zealand is given by
Bunnings NZ Ltd, PO Bo 14436, Panmure,
Auckland, 1741
Tel: [phone] Fa : 09 9782222
Email: [e-mail]
Any claim under this warranty must be made
within 12 months from the date of purchase of
the product. Proof of purchase must be
presented.
For Australian Customers
To make a claim under the warranty please contact
[e-mail] or return the product
(with proof of purchase) to any Bunning store.
(see.www.bunnings.com.au for store locations)
Genesis Australia Corporation Pty Ltd bears
reasonable,
Direct e penses of claiming under the warranty. You
may submit details and proof to us for consideration.
The warranty covers manufacturer defects in
materials, workmanship and finish under normal
use.
This warranty is provided in addition to other rights
and remedies you may have under law: our goods
come with guarantees which cannot be e cluded
under the Australian Consumer Law. You are
entitled to replacement or refund for a major
failure and to have the goods repaired or
replaced if the goods fail to be of acceptable
quality and the failure does not amount to a
major failure.
For New Zealand Customer
To make a claim under the warranty, take the
product (with proof of purchase ) to any Bunnings
store (see www.bunnings.co.nz ) for store locations.
The warranty covers manufacturer defects in
materials, workmanship and finish under normal
use.
This warranty is provided in addition to other rights
and remedies you may have under law: our goods
come with guarantees which cannot be e cluded
under the Consumers Guarantees Act 1993 (NZ).
You are entitled to replacement or refund for a
major failure and to have the goods repaired or
replaced if the goods fail to be of acceptable
quality and the failure does not amount to a
major failure.
Please thoroughly read conditions of warranty

WHAT IS NOT COVERED IN
THE WARRANTY
 Removal or re-installation costs. This warranty
does not cover costs for transit, nor in home
service
 Liability will only be accepted for loss or
damage during transit if at the time the product
was being transported by Bunnings or a
Bunnings approved contractor.
 Lack of maintenance, abuse, neglect, misuse,
accidental or improper installation of this
appliances
 Scratches, dents, corrosion or discoloration
caused by heat, abrasive chemicals cleaners
 Corrosions or damage caused by e posure to
elements such as insects, weather, hail or
grease and fat fires
 Rusting of grill
 Cleaning and wear and tear, service calls of this
nature are chargeable
 Commercial use of this product
 Unauthorized repairs or modification during
warranty period
RECORD THE FOLLOWING
INFORMATION
Attached the copy of the purchase receipt here
Date of Purchase.........................................................
Purchased From..........................................................
Location......................................................................
Model Name and Number...........................................
Receipt Number..........................................................
Note: The serial number is located either on the outside
of the packing carton or outside or inside the appliance
FOR TECHNICAL ASSISTANCE
For Australia customers if you e perience any
technical issues with your JUMBUCKOutdoor
Charcoal Pizza Oven, in the first instance review
the instructions manual or contact the warranty
service agent.
For New Zealand customers if you e perience
any technical issues with your JUMBUCK Outdoor
Charcoal Pizza Oven, in the first instance review
the instructions manual or contact your local
Bunnings warehouse
FOR SPARE PARTS
Call your local Bunnings warehouse and ask them
to order a part for you. You should provide the
following information:
Model of Oven.........................................................
Year of
purchase......................................................
Name of warranty service
company
above........................................................
Part that requires replacement
(refer to the list of spare parts in the
instructions
manual)...............................................
