JUMO LOGOPRINT 500 User manual

Printing Recorder
with text printing and
LED dot-matrix display
B 70.6030.0
Operating Manual
2009-06-03/00353037

Key functions
e- Paper (chart) fast-forward,
when recording is stopped
(in basic status)
- Abort parameter
entry (Exit)
- Leave the levels
S-Start/Stop
of recording
- Selection of decimal point
position when entering values
- For text entry:
Fast character selection
(jump to “ ”, “0”, “A”, “a”, “°”,
“2”, “À”, “à”)
F-Function key for special
functions
(press for at least 4sec)
factory setting:
print the scaling
l, r- Shift cursor left/right
(selecting position)
h, R- Select display:
- Instrument designation,
date & time
- Measurements of the
channels
- System status
- Parameter selection
- Channel selection
- Value selection
from a table of values
- Increment/decrement
present digit
E- Initiate parameter entry
-Confirmentry
- Acknowledge error message
- Activate/de-activate statistical
display (in basic status)
l+ r- Activate/de-activate the
display of status/error
messages
h+ R- Change to next level

Contents
1 Introduction 7
1.1 Preface ......................................................................................................... 7
1.2 Arrangement of the documentation .......................................................... 8
1.2.1 Structure of this operating manual ............................................................... 8
1.3 Typographical conventions ........................................................................ 9
1.3.1 Warning signs ............................................................................................... 9
1.3.2 Note signs ..................................................................................................... 9
1.3.3 Presentation ............................................................................................... 10
2 Instrument description 11
2.1 Display and controls ................................................................................ 11
2.2 Basics of operation ................................................................................... 12
3 Operation and visualisation 23
3.1 Limit monitoring by limit comparators ................................................... 23
3.2 Open-collector outputs ............................................................................ 25
3.3 Different chart speeds (paper feed) ........................................................ 26
3.4 Graphic print-out ...................................................................................... 27
3.4.1 Measurement traces (signal traces) ............................................................ 29
3.4.2 Event traces ................................................................................................ 30
3.5 Text printing ............................................................................................... 31
3.5.1 Printing priorities ......................................................................................... 31
3.5.2 Printing modes ........................................................................................... 34
3.5.3 Queuing during text printing ....................................................................... 35
3.5.4 Limit comparator texts, external text, binary-linked external text .............. 36
3.5.5 Report ......................................................................................................... 38
3.5.6 Switching the chart speed .......................................................................... 41
3.5.7 “Power On” and “Power Off” texts ............................................................. 42
3.5.8 Scaling ........................................................................................................ 43
3.5.9 Time ............................................................................................................ 46
3.5.10 Print out channel numbers ......................................................................... 47
3.5.11 Recording start and stop ............................................................................ 47
3.5.12 Incrementing the two event counters ......................................................... 48
3.5.13 Print test ..................................................................................................... 49
3.5.14 Service print ................................................................................................ 50

Contents
3.6 Colour assignment ................................................................................... 51
3.7 Relationship between measurement range and scaling ....................... 52
4 Configuration table 53
4.1 Operating examples ................................................................................. 53
4.2 Table of the configuration parameters ................................................... 55
4.2.1 Operating level (S-level) .............................................................................. 55
4.2.2 Parameter level (P-Level) ............................................................................ 56
4.2.3 Configuration level 1 (C1-level) ................................................................... 57
4.2.4 Configuration level 2 (C2-level) ................................................................... 63
4.2.5 Configuration level 3 (C3-level) ................................................................... 66
5 Identifying the instrument version 69
5.1 Instrument description ............................................................................. 69
5.2 Order details .............................................................................................. 70
6 Installation 71
6.1 Site and climatic conditions .................................................................... 71
6.2 Assembly in a control panel ..................................................................... 71
7 Electrical connection 73
7.1 Installation notes ...................................................................................... 73
7.2 Technical data ........................................................................................... 74
7.3 Connection diagram ................................................................................. 78
7.4 Electrical isolation .................................................................................... 81
8 Starting up 83
8.1 Opening and closing the door ................................................................. 83
8.2 Marking the channel label ........................................................................ 83
8.3 Fitting the print head ................................................................................ 84
9 Consumables 85
9.1 Consumables ............................................................................................ 85

Contents
9.2 Removing and replacing the chart cassette .......................................... 86
9.2.1 Changing the roll chart ............................................................................... 88
9.2.2 Changing the fanfold chart ......................................................................... 89
10 Extra codes and accessories 91
10.1 Converting the chart cassette ................................................................. 91
10.2 “8 logic inputs”, “interface for ER8”,
“voltage output” ........................................................................................ 92
10.3 External relay module ER8 ....................................................................... 93
10.4 Setup program .......................................................................................... 95
10.5 Mathematics and logic module ............................................................... 97
10.6 Interface (RS422/RS485) .......................................................................... 98
11 Fault-finding 99
11.1 What to do if … ......................................................................................... 99
12 Appendix 101
12.1 Error messages ....................................................................................... 101
12.2 Hardware fault ......................................................................................... 103
12.3 Status messages .................................................................................... 104
12.4 Character set .......................................................................................... 105
12.5 Summary of the parameters .................................................................. 106
13 Index 109

Contents

7
1 Introduction
1.1 Preface
Please read this Operating Manual before commissioning the instrument.
Keep the operating manual in a place which is accessible to all users at all
times.
Please assist us to improve this manual, where necessary.
Your suggestions will be appreciated.
Phone in Germany [phone]
from abroad ([phone]
Fax in Germany [phone]
from abroad ([phone]
H
All the necessary settings are described in this manual. However, if
any problems should arise during start-up, you are asked not to
carry out any unauthorised manipulations. You could endanger
your rights under the warranty!
Please contact the nearest JUMO office or the head office.
E
When returning modules, assemblies or components, the
regulations of EN 61340-5-1 and EN 61340-5-2 “Protection of
electronic devices from electrostatic phenomena” must be
observed. Use only the appropriate ESD packaging for transport.
Please note that we cannot accept any liability for damage caused
by ESD.
ESD=electrostatic discharge
B

1 Introduction
8
1.2 Arrangement of the documentation
The documentation for this instrument consists of the following parts:
Operating
Manual
B 70.6030.0
This operating manual is always supplied with the instrument. It is addressed
to OEMs (original equipment manufacturers) and users with the appropriate
technical know-how.
In addition to installation and electrical connections, it also includes
information on commissioning, operation, and setting the parameters in the
instrument, on extra codes and accessories.
Interface
Description
B 70.6030.2
This manual is supplied with the instrument if the Extra Code “RS422” or
“RS485” was ordered. It provides information about communication with
higher-level (supervisory) systems.
Setup
Program
B 70.6030.3
This manual describes the installation of the setup program, and also deals
with special features in the operation of the setup program.
Online Help The online help is part of the setup program. It is a Windows1online help.
1.2.1 Structure of this operating manual
This operating manual is laid out so that the user is immediately able to get on
with operating and configuring the instrument. To this end, the chapters which
describe procedures which are usually only carried out once, such as
description of the instrument, type designations, assembly and electrical
connections, are placed at the end of the manual.
1. Microsoft and Windows are registered trademarks
of the Microsoft Corporation

9
1 Introduction
1.3 Typographical conventions
1.3.1 Warning signs
The signs for Danger and Warning are used in this manual under the
following conditions:
V
Danger
This symbol is used where there may be danger to personnel if the
instructions are disregarded or not followed accurately!
A
Warning
This symbol is used where there may be danger to equipment or data if the
instructions are disregarded or not followed accurately!
E
Warning
This symbol is used where special care is required when handling
components which are liable to damage from electrostatic discharge.
1.3.2 Note signs
H
Note
This symbol is used when your attention is drawn to a special remark.
v
Reference
This sign refers to further information in other manuals, chapters or sections.
abc1Footnote
Footnotes are notes which refer to certain points in the text. Footnotes
consist of two parts:
Marking in the text and the footnote text.
The markings in the text are arranged as continuous superscript numbers.
h
Action
This symbol shows that an action to be performed is described.
The individual steps are designated by the star, for example:
hPress the hkey
hConfirm with E

1 Introduction
10
1.3.3 Presentation
h+ E
Keys
Keys are shown in a box. Both symbols and texts are possible. If a key has
multiple functions, then the text shown is that which corresponds to the
currently active function.
Program
Manager
Screen texts
Texts which are displayed in the setup program are distinguished by italic
script.
Edit Î
instrument data
Menu items
The menu items in the setup program which are referred to in this manual are
shown in italic script. Menu name, menu item, and sub-menu item are
separated from one another by “Δ.

11
2 Instrument description
2.1 Display and controls
Fault signal LED
This lights up as soon as the recording is interrupted by the “end
of chart paper”, “stop” through pressing stop key S, or by an
external stop.
24-character green LED
dot-matrix display
Print head
Keys for
operating und programming
Setup interface
(behind the swing-up
LED dot-matrix)
Panel-mounting housing to IEC 61554 in galvanised steel sheet
Measurement channel label
Here you can enter the channel designation and/or the
corresponding measurement range
Chart paper
Housing door
to open or close

2 Instrument description
12

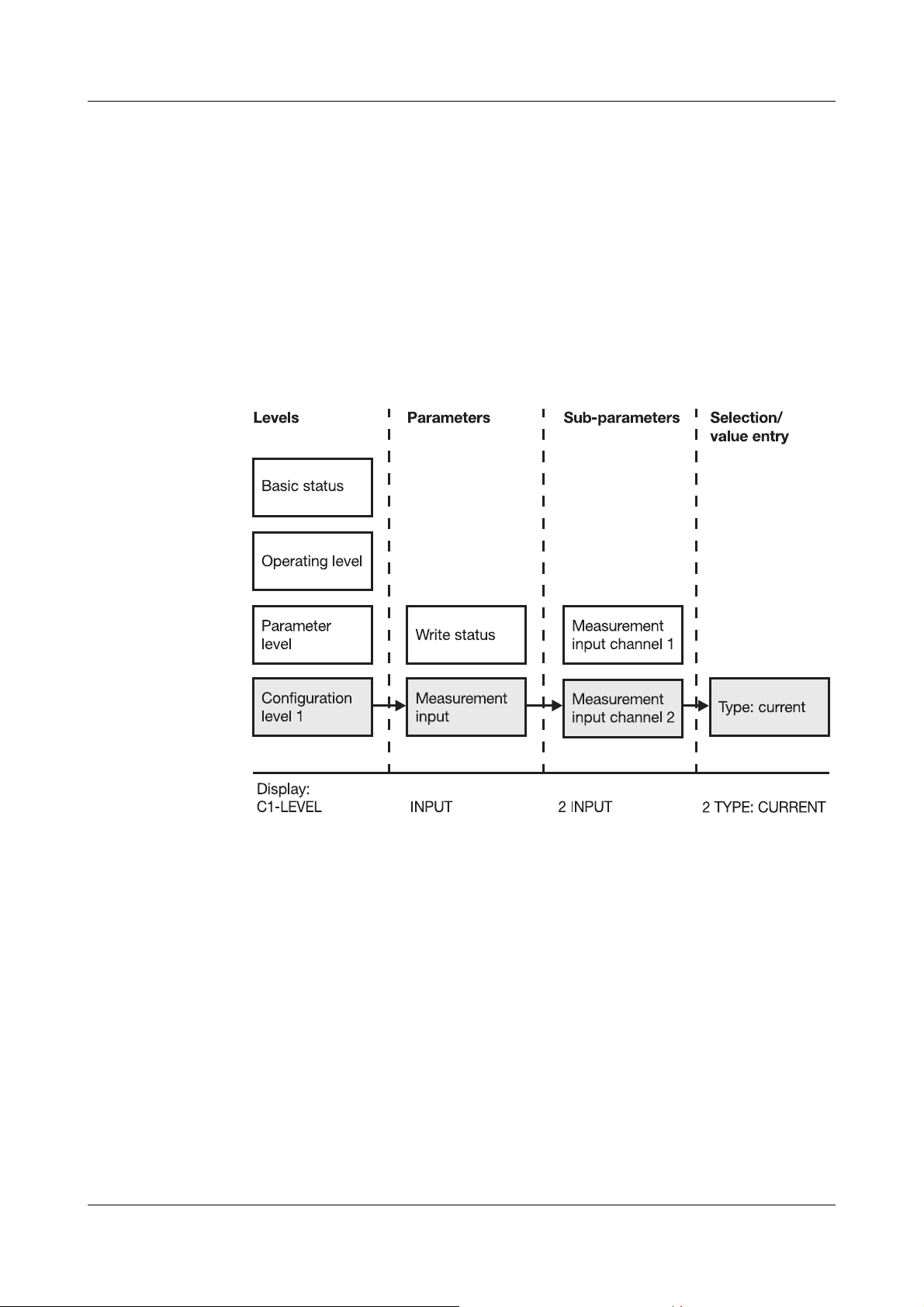

2.2 Basics of operation
In order to keep the operating and programming of the printing recorder clear
and simple, the individual parameters and functions are divided into several
levels:
- Basic status
- Operating level (S-level)
- Parameter level (P-level)
- Configuration level 1 (C1-level)
- Configuration level 2 (C2-level)
- Configuration level 3 (C3-level)
The levels, parameters and sub-parameters are arranged as a tree structure.
Starting from the basic status, it branches out into the individual levels, and
from there further into the corresponding parameters and, if available, sub-
parameters.
If it is necessary to alter a certain parameter, then step through the relevant
level until this parameter is reached.
Pressing Estarts the editing process.
If a parameter has several sub-parameters, these can also be accessed by
pressing E.

13
2 Instrument description
Key
functions
1. Press the Fkey for at least 4 sec in the standard version: print out the
scaling of all the active channels (writing status = ON).
Basic status Operating level after correct
code number
in parameter and
configuration levels
eChart fast-forward,
when recording is
stopped
-Abort parameter
entry
(Exit)
-Leave the level
-Abort parameter
entry
-Leave the level
SStart/stop
recording mode
Start/stop
recording mode
Step
-for values:
Select the
decimal place
-for texts:
Quick selection
of character:
jump to “ ”, “0”,
“A”“, “a”, “°”, “2”, “À”,
“à”
FFunction key
(reserved for
special functions) 1
Function key
(reserved for
special functions)
-----------------
l, r----------------- ----------------- Shift cursor to left/right
(select place)
h, RSelect display:
-Instrument
name,
date & time
-Channel
measurements
-System status
-Select parameter
-Select channel
-Select value
from table
-Enter figures:
Change the
place selection
-Select parameter
-Select channel
-Select value
from table
-Enter text/figures:
Change the
place selection
EChange-over
between cyclic and
static display
-Initiate the
parameter entry
-Confirm the
entry
-Acknowledge any
error messages
-Initiate the
parameter entry
-Confirm the
entry
-Acknowledge any
error messages
Key combinations
l+ rActivate/de-activate the
display of status/error
messages
----------------- -----------------
h+ RChange to next level Change to next level Change to next level

2 Instrument description
14
For all alterations to the parameters (sub-parameters):
Confirmation of
parameters If there are no further sub-parameters available, then Etransfers all the data which belong to the parameter into the memory.
Abort
programming Inside a parameter, programming can be abandoned by pressing the ekey.
Error messages
during
programming
If error messages occur during programming, as a result of erroneous entries,
then these messages must be acknowledged with Ebefore the program-
ming can be taken up again.

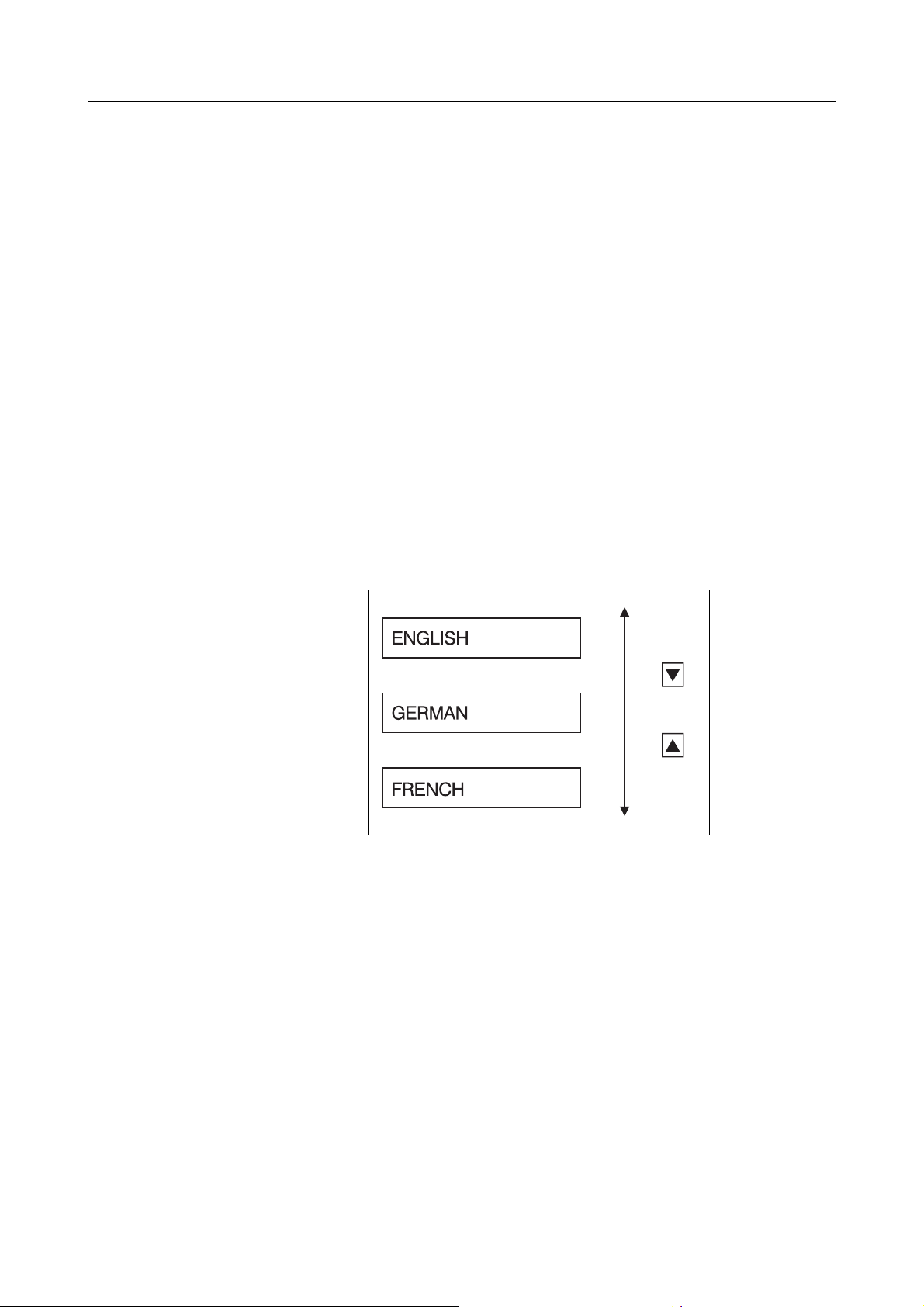

Selection A selection consists of a list of several options:
Three keys are used to select an option:
hSelect the option with the hand Rkeys
hConfirm the selection with E
H
If the last sub-parameter has not been confirmed, then the data
which were already edited for the parameter will be abandoned.
The old values for the sub-parameters will be retained.

15
2 Instrument description
Value/text
entry Five keys are used to enter values:
hselect the position to be altered, using the land rkeys
hincrement and decrement the selected position with the hand Rkeys
hmove the decimal point with the Skey
hconfirm the value entered with E
Five keys are used to enter texts:
hselect the character to be entered, using the land rkeys
hselect the new character with the hand Rkeys
(quick character selection with the Skey)
hconfirm the text entry with E
H
An erroneous entry will cause an error message in the display
vSection 12.1 “Error messages”
The error message must be acknowledged by E
Afterwards, a new value can be entered.

2 Instrument description
16
Key inhibit If the printing recorder is fitted with the extra code “logic inputs”, then it is
possible when a selected logic input is closed, in connection with the parame-
ter Configuration level 3 ÎInhibit keys, to inhibit the recorder keys.
The following keys or functions can be inhibited in the basic status:
-echart fast-forward, when the recording mode is stopped
-Sstart/stop of recording mode
-Ffunction key, to activate scaling print-out
-h+ Rchange from the basic status to the operating level
Even when the keys are inhibited, certain functions are still possible in the ba-
sic status:
-l+ rswitch error messages on/off
-h, Rchannel selection
-Eswitch between cyclic and static display
Key inhibit has no effect as long as the printing recorder is in the basic status
or in one of the configuration levels. On leaving these levels the keys will be in-
hibited if the logic input is set. It is only possible to call up the operating or
configuration levels again after opening this logic input.

17
2 Instrument description
Basic status After the supply voltage has been applied, the printing recorder will be initial-
ised and is then in the basic status. Measurements are made, processed, and
recorded.
The 24-character LED dot-matrix display can show:
- instrument designation (name), date and time
(the time can be switched off via the parameter Parameter level ÎDisplay
time)
- channel number and measurements (incl. units) of all active channels
(in pairs)
- channel number, name and measurement (incl. units) of all active channels
(sequentially)
- status and error messages
-interfacetexts
vSection 10.6 “Interface (RS422/RS485)”
- customer-specific texts
The display can be either cyclic or static:
Cyclic display
The printing recorder switches automatically to the next display after about
3sec.
Static display
In the basic status, the static display is activated and de-activated with E.
If it is activated, then the present display remains, and is regularly updated.
In the basic status, the information in the display can be changed over with the
hand Rkeys.
Status and error messages will be identified in plain language by a regularly
flashing display, instead of the present display.
The display of status and error messages can be inhibited, or activated again,
by pressing l+ r.
The recording can be stopped or re-started with the Skey. In the stop status
“STOP” will flash in the LED dot-matrix display.
Using the ekey, in the stop status, activates the chart fast-forward.
Pressing the Fkey for at least 4 sec will restart the scaling print-out.
The operating level can be accessed by pressing the h+ Rkeys simultane-
ously.
H
If a measurement is outside the valid range of the A/D converter
(out-of-range), or if a probe break has been detected, then the
character combination “>>>>>>” will appear in place of the value.

2 Instrument description
18
Example of the basic status for a 6-channel recorder
Operating level
(S-level) The operating level can be accessed from the basic status with the aid of the h+ Rkeys, from the parameter level by using e.
Signal acquisition and processing remain active in this level.
The following parameters can be altered:
- chart speed
-printtest
- service print
- version number (display only)
BUILDING28 03.11.98 08 : 54 Display instrument name, date and time
hR
1 -5.321m/h 2 +34.67°C Display the first 2 channels in one frame
hR
3 +76.20°C 4 +20.35bar Display the next two channels in one frame
hR
5 +35.08°C 6 +007.4U/m Display the next two channels in one frame
hR
1 CONVEYOR -5.321m/h Display the 6 channels, each in a separate frame
hR
2 MIXER +34.67°C
hR
3 MOT7. BEARING +76.20°C
hR
4 PRESSURE +20.35 bar
hR
5 VENT.TEMP. +35.08°C
hR
6 SHAFT +007.4U/m
H
It the operating level is active, then signal acquisition, processing
and recording, as well as limit monitoring, will all continue to be
performed.

19
2 Instrument description
Parameter
level (P-level) The parameter level can be accessed from the operating level with the aid of the h+ Rkeys, from the configuration level 1 by using e.
The parameter level and configuration levels are protected by a four-figure
code number.
There are two different code numbers:
- Code number for the restricted parameter set (factory setting 9200)
- Code number for the full parameter set (factory setting 9210)
The parameters which belong to the restricted parameter set are defined in the
setup program under Edit ÎInstrument operation …
Here, parameters which are not needed for the application, or only have to be
programmed once, can be appropriately marked. They will no longer be dis-
played on the recorder after the new setup has been transferred.
If one of the two code numbers is entered, then
- signal acquisition and
-recording
will be interrupted.
Furthermore
- events will no longer be recorded,
- reports will be aborted and reset,
- limits will no longer be monitored,
- the Code for the mathematics module will no longer be applied,
- the fault signal output will be set to fault, and
- all other outputs will remain in their last state.
The parameters can now be programmed.
H
If the wrong code number is entered, then the recorder will remain
in the normal mode. Signal acquisition, processing and recording
are still active.
The parameters can be looked at, but not programmed.
H
The code numbers can be altered through the setup program
(Edit ÎCode numbers …) or on the instrument.
vSection 4.2 “Table of the configuration parameters”
H
If customer-specific code numbers are entered, then the original
JUMO code numbers will be overwritten, and are no longer valid.

2 Instrument description
20
After a valid code number has been entered, the following parameters can be
altered in the parameter level:
- language
- date & time
- summer time
- display brightness
-displaytime
Configuration
level 1 (C1-level) Channel-specific parameters can be configured in configuration level 1. This level can be accessed from the parameter level with the aid of the h+ Rkeys,
or from configuration level 2 by using e.
Configuration level 1 includes the following channel-specific parameters:
-plotstatus
- signal input
-scaling
- channel name (word and number)
- limit comparator
- limit feed
-zoom
- presentation range (offset)
- peak value recording
H
If the same figures are used for both code numbers, then these
code numbers will be interpreted as code numbers for the com-
plete parameter set.
H
The relays in the external relay module ER8 remain in their present
state. They will only be switchable again when the printing record-
er has been returned to the operating level or the basic status.
H
If a correct code number is entered when calling up the parameter
level, then the signal acquisition and recording will be interrupted
in this level. The parameters can be viewed and altered.
H
The relays of the external relay module ER8 remain in the present
state. They will only be switchable again when the printing record-
er has been returned to the operating level or the basic status.
