JURALCO TRIDENT
SHOWER DOOR SYSTEM
ISSUE 1/16

Page 2
Juralco Trident Shower Door System Issue 1/16
www.juralco.co.nz ph [phone]
Juralco Trident Shower Door System
This Guide is intended for use by Architects, Specifiers and Fabricators
Pages 2-3 cover areas of general interest. Pages 4 onwards are intended for Fabricators
Juralco Aluminium Building Products Ltd designs and distributes specialist aluminium
joinery systems through a national network of franchised fabricators and agents.
0
For more than 25 years we have been at the forefront of specialist aluminium door and
window products suitable for New Zealand joinery and building methods.
Our wide product range includes security and insect screens, balustrades and gates,
shutters and awnings, shower screens, wardrobe doors and organisers and internal doors.
0
The Juralco Trident Shower Door System is ideal for any bathroom. Doors slide easily
from top hung tracks. The design can cope with installations on floor, on shower
trays or over baths. Doors can be framed, or frameless for a more contemporary styling.
The Shower doors are custom made to your specifications, as a three door system
for small spaces or a two door for larger units. Its space saving layout optimizes
the room available while maintaining a generous entry width.
The stacking Doors can be set up as right or left hand opening.
Juralco Trident Shower Door System
For Shower Tray or direct on Floor
Shown, 3 door, between walls
2 x Sliding, 1 x Fixed
Shown below are some layout possibilities
for the Trident Shower Door System
- see next page for fuller explanations

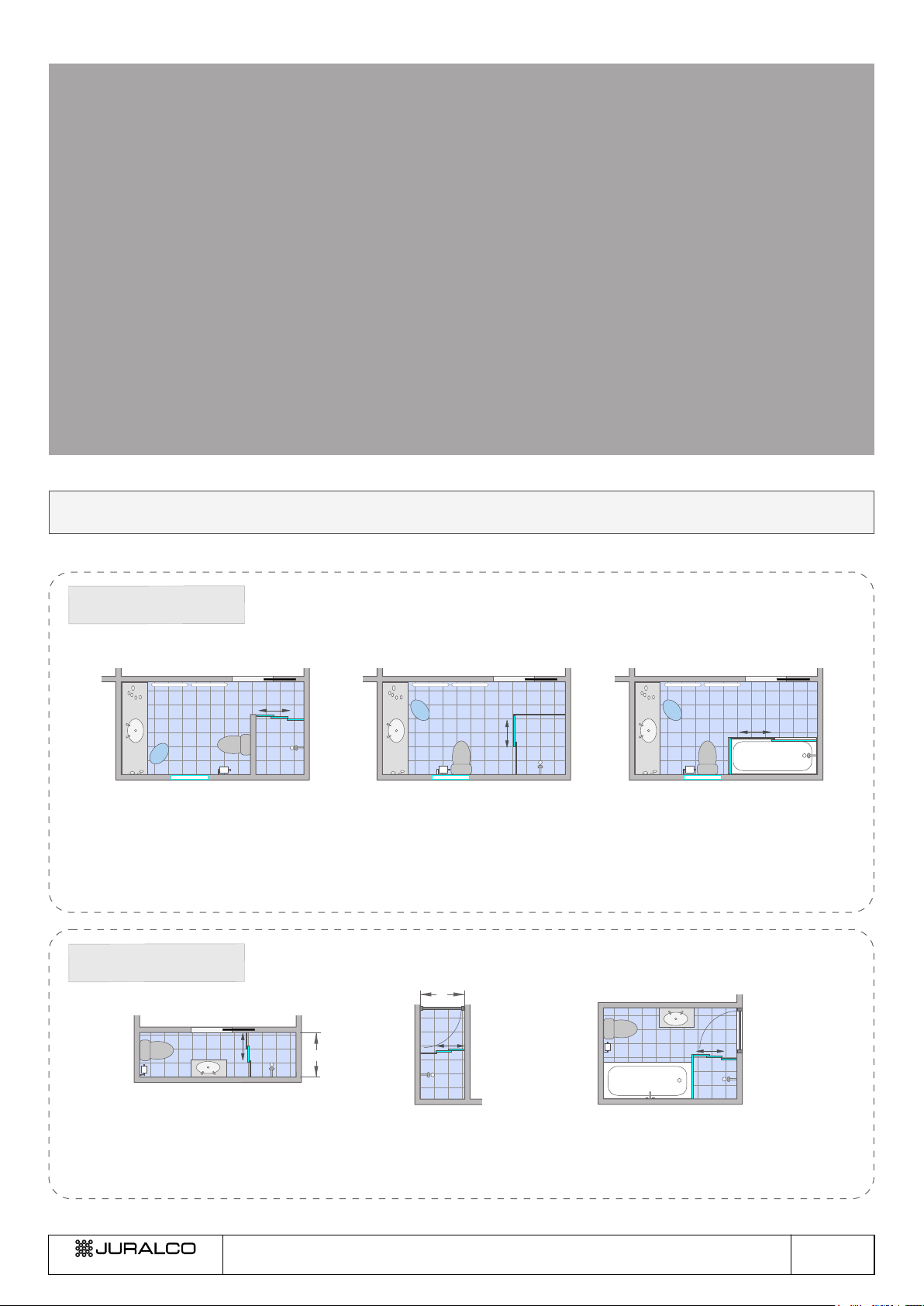

Typical Layouts
Juralco Trident Shower Door System
For Over bath
Shown, 2 door and 90deg return
2 x Sliding, 1 x Fixed Return
Juralco Trident Shower Door System
For Shower Tray or direct on Floor
Shown, 2 door and 90deg return
2 x Sliding, 1 x Fixed Return
All pages Copyright Juralco Aluminium Building Products Ltd, 2016
©
Can be down
to 800mm
Can be down
to 800mm
Trident 3 x Door
in a typical compact en-suite
Trident 3 x Door
in a typical older house
Trident 3 x Door
behind Bathroom door
Typical Applications

Page 3
Juralco Trident Shower Door System Issue 1/16
www.juralco.co.nz ph [phone]

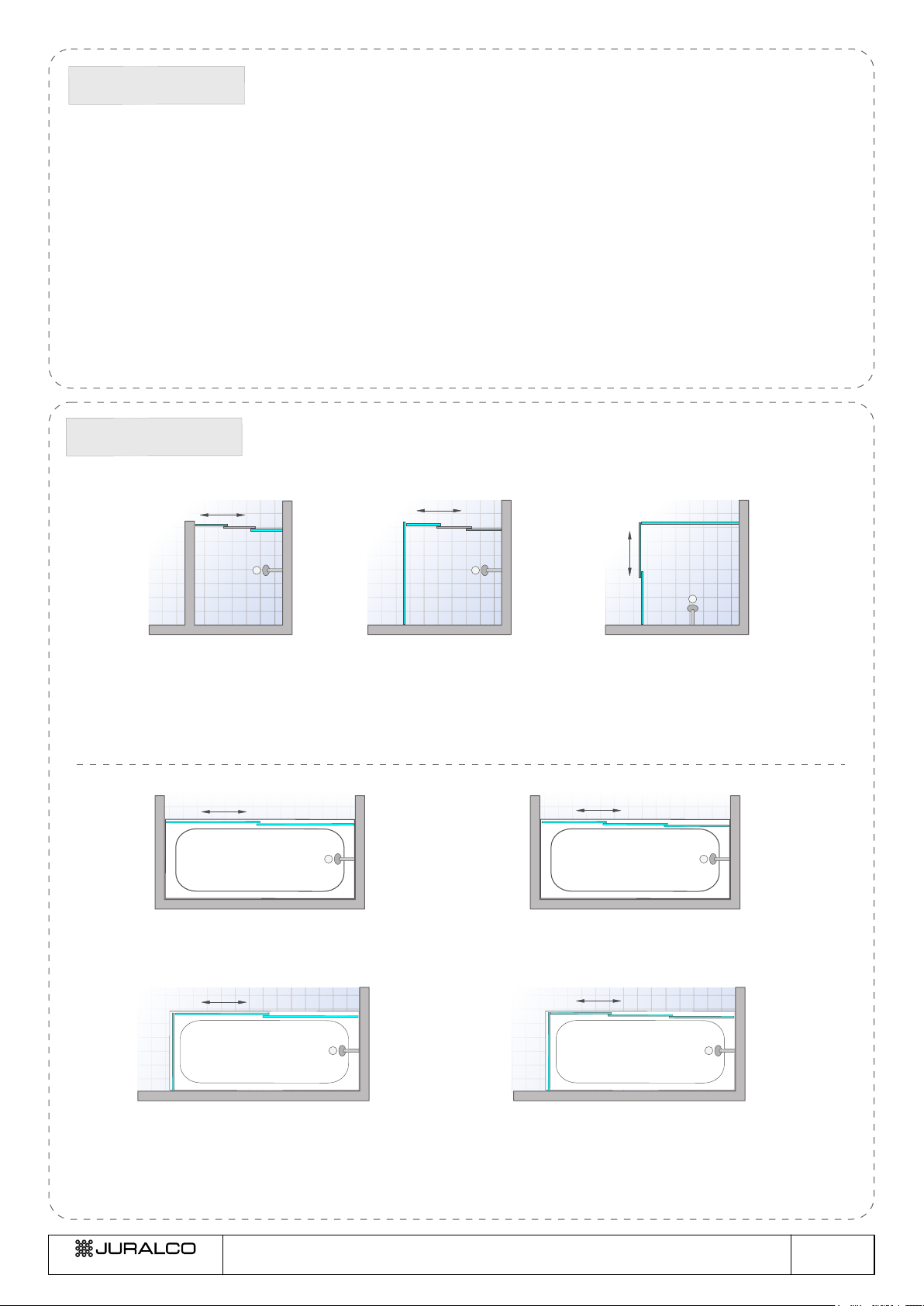

General Description
Three Door - 2 x sliding, 1 x fixed
Typical Layouts
Juralco Trident Shower Door System
Three Door - 2 x sliding, 1 x fixed
and 90deg return
Juralco Trident Shower Door System
For Shower Tray or direct on Floor
Juralco Trident Shower Door System
For Over bath
Three Door - 2 x sliding, 1 x fixed
Three Door - 2 x sliding, 1 x fixed
and a 90deg return
- For best results the Shower Rose should not point directly at the sliding doors.
Two Door - Both Sliding
or 1 x Sliding, 1 x Fixed
and a 90deg return
Two Door - Both Sliding
or 1 x Sliding, 1 x Fixed
Two Door - 2 x sliding
and 90deg return
- The Trident Shower Door system is designed to provide a range of easily installed doors to suit any opening.
- Designed for installation with standard Shower trays, direct on to suitable flooring or over bath.
- There are two sliding door configurations. Three door for compact situations and Two door for wider doors.
- For compact situations, shower openings as small as 750mm wide can be accomodated with the three door system.
- Minimizes water dripping to floor.
- Doors normally supplied as framless (no stiles), but available as framed (including Stiles) .
- All doors are constructed from our propriety range of aluminium extrusions.
- Framed Doors, Fixed Panels and Returns are 4mm toughened glass, while Frameless Doors and Fixed Panels are 6mm toughened glass,
both to NZS 4233 Part 3 for human impact requirements
- Infill panels are Glass, either Clear, Frosted or Patterned.
- Easy Door adjustments on site.
- Extrusion frames available in White or Anodised polished bright or natural .
- All doors and returns are custom made to your specifications
- For Shower tray or Floor mounting the standard heights are 1830mm and 1930mm respectively.

Page 4
Juralco Trident Shower Door System Issue 1/16
www.juralco.co.nz ph [phone]

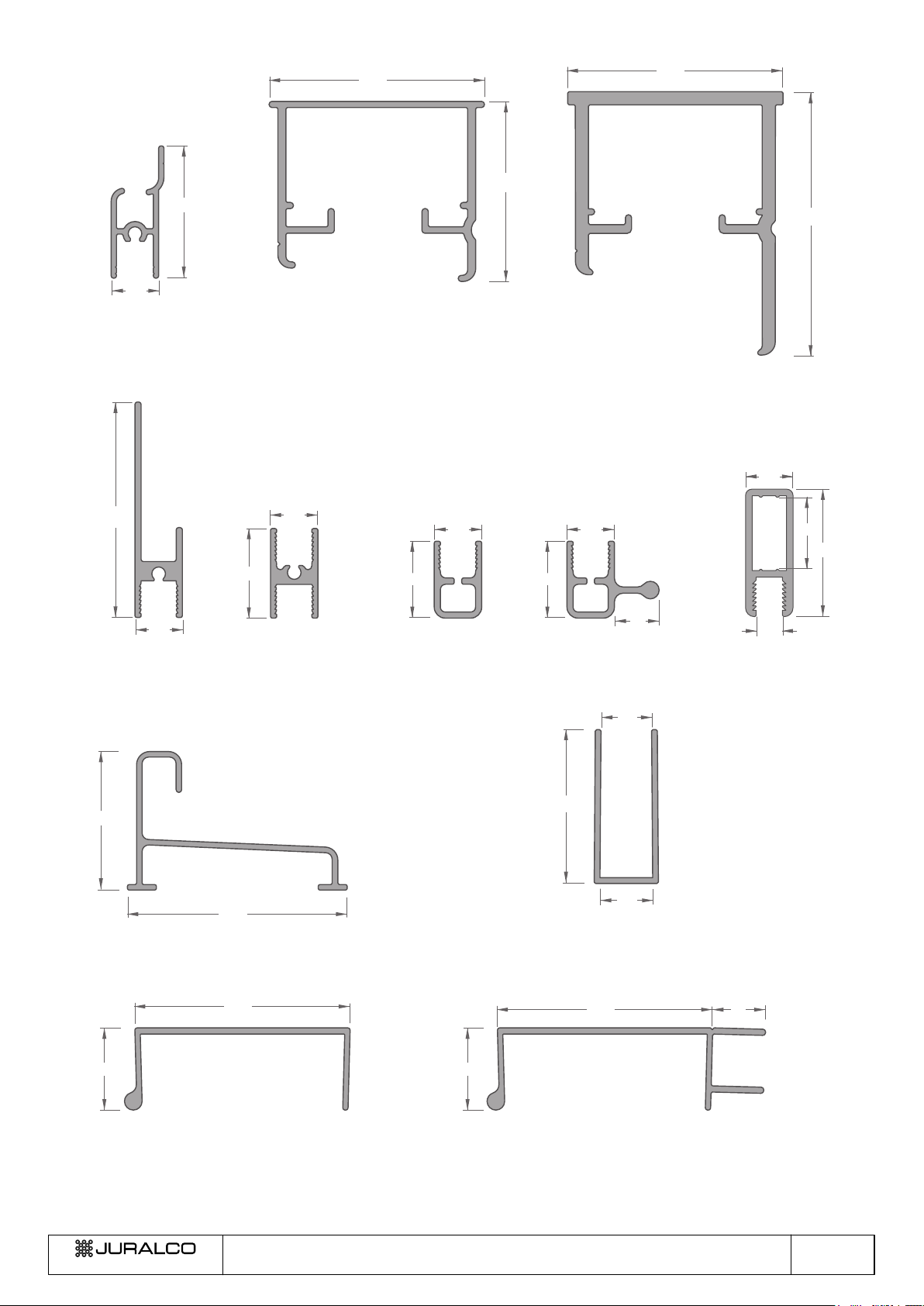

Juralco Trident Shower Door System - Extrusions
HEAVY DUTY HEAD RAIL
Part No 3842
HEAD RAIL
Part No 3836
SILL
Part No 3835
MAXI CHANNEL
Part No 3838
STILE
Part No 3831
HANDLE STILE
Part No 3834
TOP RAIL
Part No 3833
BOTTOM RAIL
Part No 3832
JAMB
Part No 3830
90 deg RETURN JAMB
Part No 3837
49
60
50
31.5
11.5
12
35
10
10.8 10.8
10.8
10.8
17.517.5
49
20.5
49
41
49 49
18.7 18.7
12
FRONT RAIL
FIXED PANEL
Part No 3844
10.8
30
RETURN FRAME
Part No 6679
6
29
10.8
16.3

Page 5
Juralco Trident Shower Door System Issue 1/16
www.juralco.co.nz ph [phone]

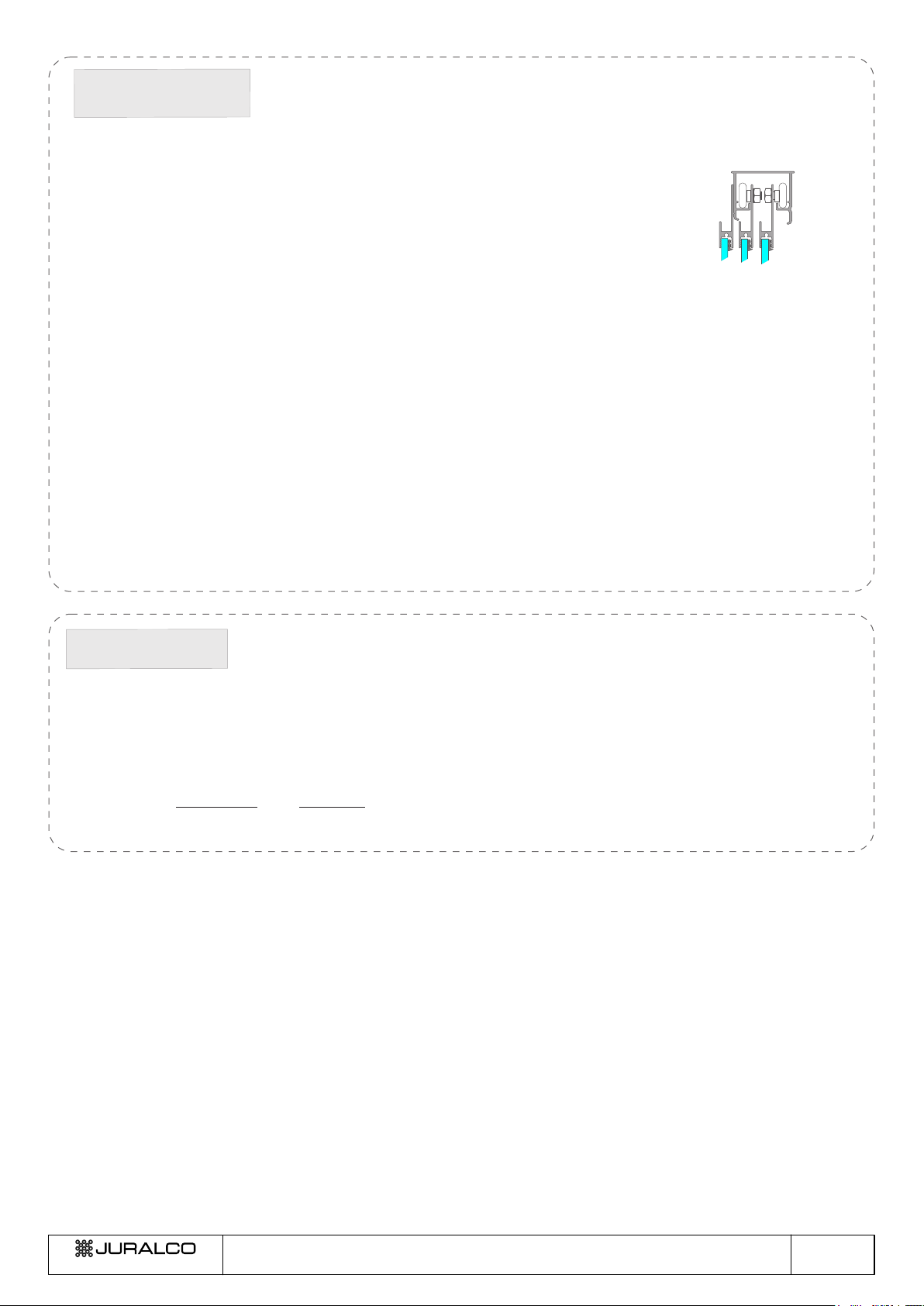

Juralco Trident Shower Door System - Components
Glazing Wedge, clear
Part No 31
Wheel - Part No 69
Washer - Part No 70
Nut - Part No 71
Shower Wheel
60mt reels
Peg (or Stop Block)
Part No SU 11
Pickup Block
Part No SU 10
Hook
(Shown LH)
LH - Part No SU 12
RH - Part No SU 13
Double Hook
Part No SU 14
One hook to be cut off
depending on hand.
Door Handle
Part No 77
Door Handle
Part No 96
Fasteners
Frame/ Corners - Pop 73AS44
Door Corners - 6 x 25 Pan
Peg attach - 6 x 25 C/S
Knob Set
Part No KN 306
Corner Stake
Part No 04
For 6679 Return
Standard for Frameless GlassOptional for Frameless Glass
Optional for Frameless Glass
Glazing Wedge
Part No H/22/100/CLE
Clear Glazing Wedge

Page 6
Juralco Trident Shower Door System Issue 1/16
www.juralco.co.nz ph [phone]

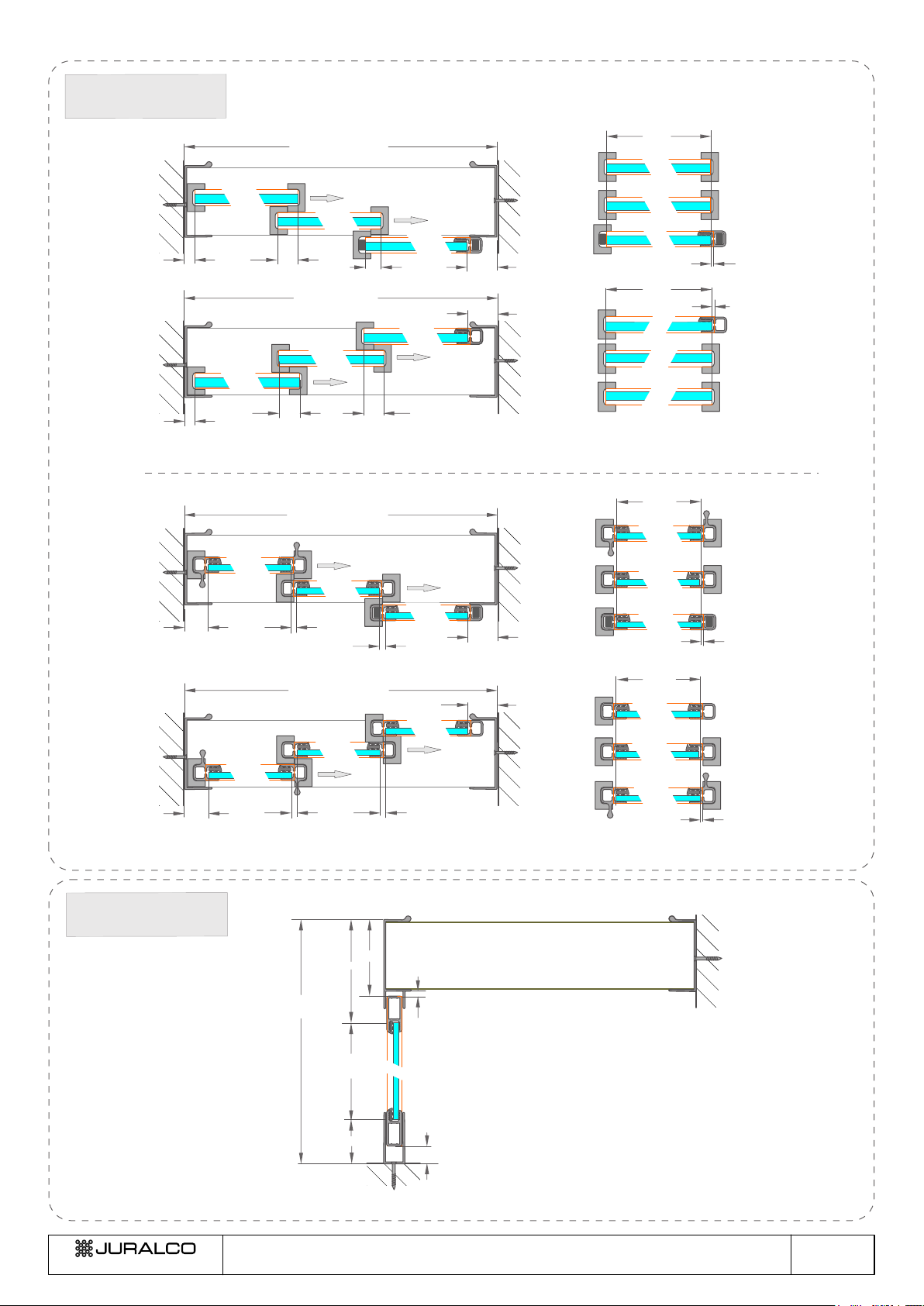

Juralco Trident Shower Door System - Typical Cross Sections
Three Door
Typical Horizontal
Cross Sections
- Available as Framed or Framless Doors (no stiles)
- Fixed Panel can either be Outside or Inside mounted
- All available with 90 deg return
Pick up Blocks SU 10 - Top
Hook SU 12, 13 - Bottom
Top Rail 3833
Bottom Rail 3832
Handle 77
Jamb 3830
Frameless, Back mounted Fixed Panel
Three Door - 2 x sliding, 1 x fixed, 6mm Glass
Peg SU 11
Framed, Front mounted Fixed Panel
Three Door - 2 x sliding, 1 x fixed, 4mm Glass
Stile 3831
Handle Stile 3834
Framed, Back mounted Fixed Panel
Three Door - 2 x sliding, 1 x fixed, 4mm Glass
Frameless, Front mounted Fixed Panel
Three Door - 2 x sliding, 1 x fixed, 6mm Glass
Pick up Blocks SU 10 - Top
Hook SU 12, 13 - Bottom
Top Rail 3833
Bottom Rail 3832
Jamb 3830
Peg SU 11
Stile 3831
Glazing
Strip No 31

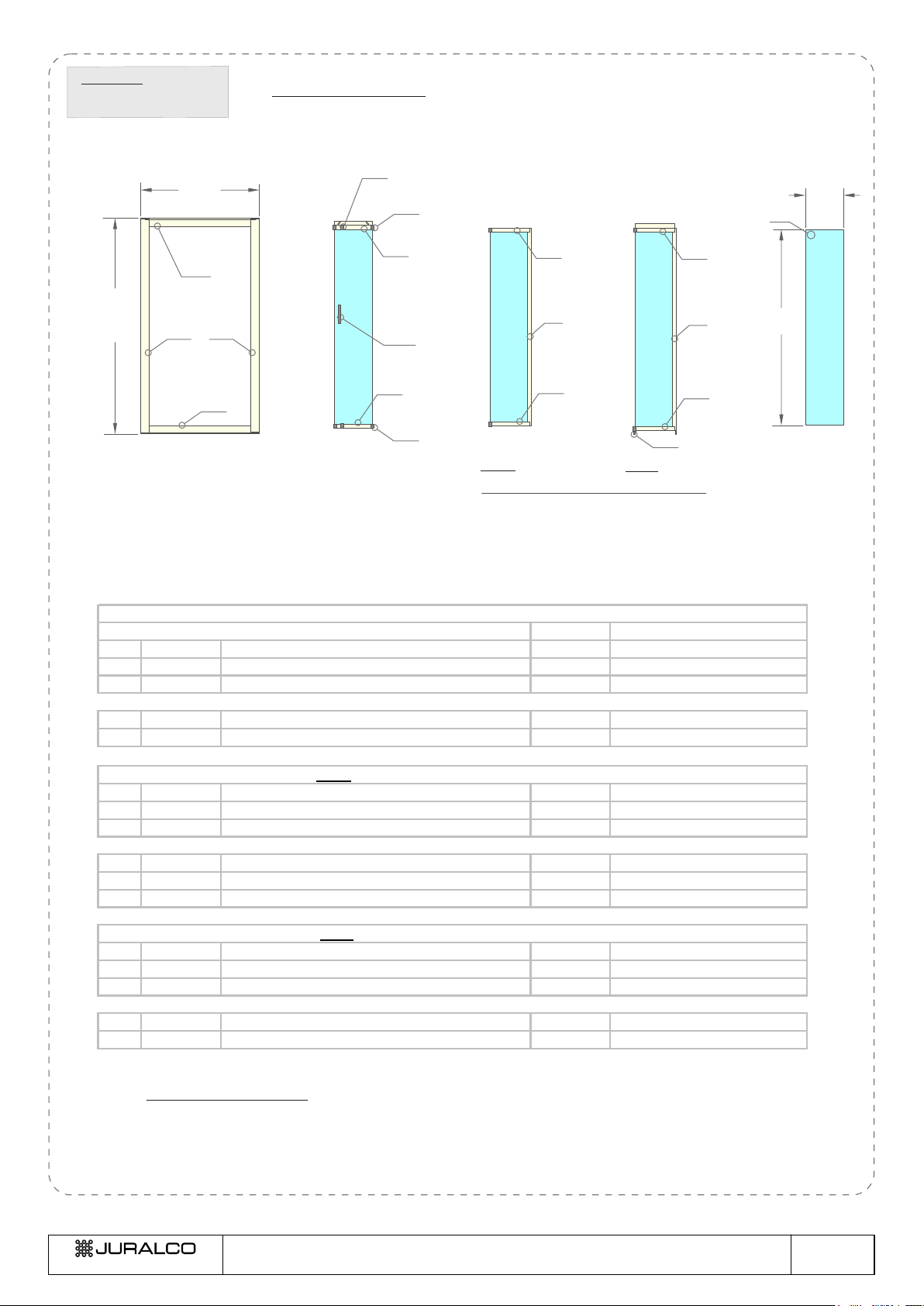

- Measure width at top and bottom of the shower Door Frame. Check for out of square walls. Frames must be built out of square if
(if more than 5mm out) necessary to reflect actual site measurements.
- Double check all measurements.
- Check position of shower head and entry point for correct door set out.
- For shower enclosures with return panels establish points at corners where outside line of screen will finish (approx 10mm in from edge of Tray)
Measure to these points. Small samples of corner sections are useful to assist in determining where shower enclosure is to finish.
- Decide on your fitting allowances to give Door Frame Width and Height, then use the appropriate Cutting formula sheets.
- Heights normally 1830mm for Shower tray or 1930mm for level floor installations.
Trident Door
Shower System
Door Measuring
INSIDE
SHOWER
OUTSIDE
INSIDE
SHOWER
OUTSIDE
INSIDE
SHOWER
OUTSIDE
INSIDE
SHOWER
OUTSIDE
Pick up Block
SU 14 - Bottom
Pick up Block
SU 14 - Bottom
Trident Door
Shower System
Door Set Out

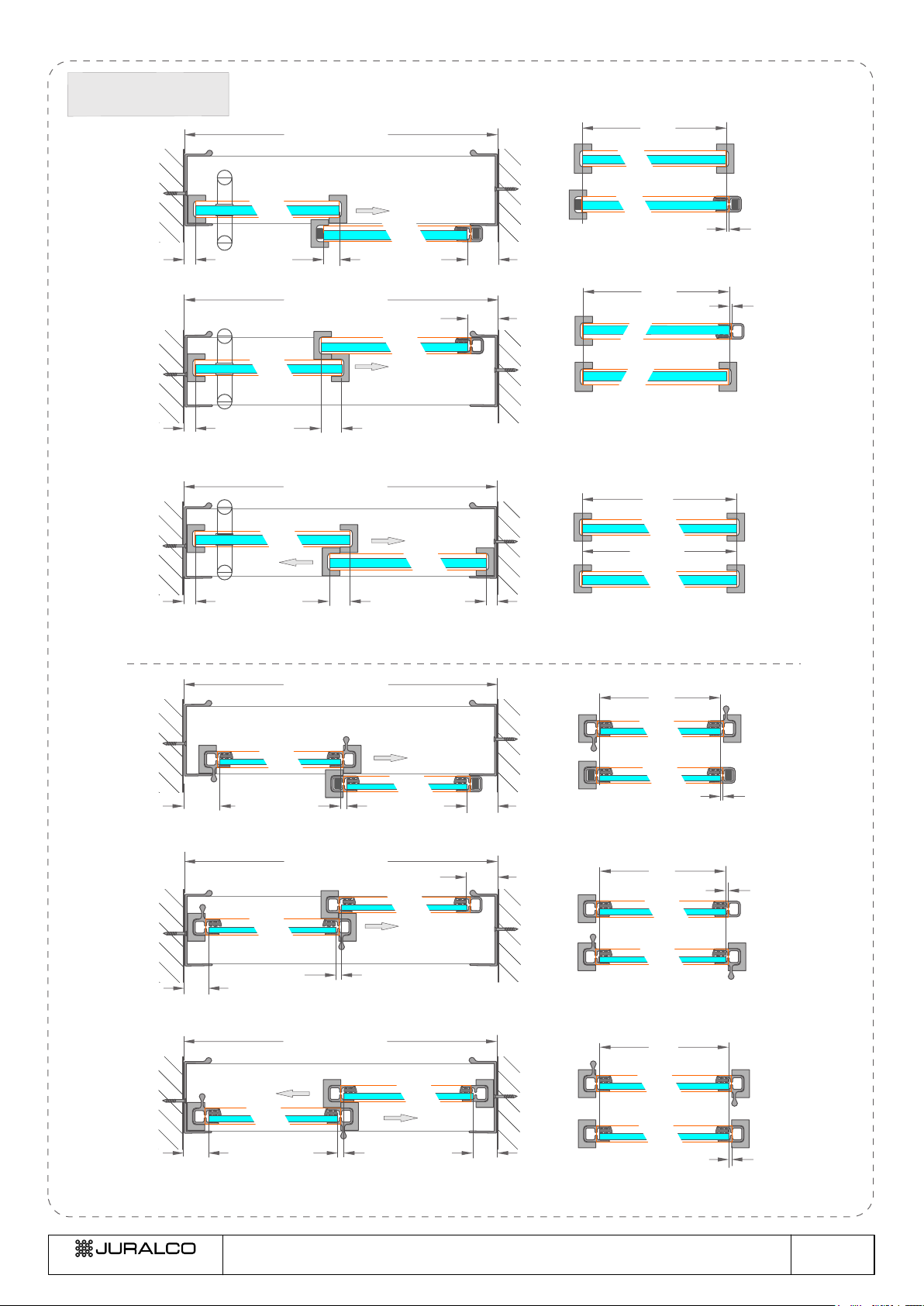

- Notes on Door set out, Shower head and Entry side. (Fixed Panel is normally to Inside)
- Same applies to all Two Door systems
- Shower rose not to point at Door.
Fixed
LH Entry
NO - Door at
incorrect setout
to Shower head
Fixed
(Outside fix)
LH Entry
OK - Door at
correct setout
to Shower Head
Fixed
Sliding
RH Entry
OK - Door at
correct setout
to Shower Head
Sliding
RH Entry
NO - Door at
incorrect setout
to Shower head
Sliding
LH Entry
OK - Door at
correct setout
to Shower Head
Fixed
Sliding
RH Entry
OK - Door at
correct setout
to Shower Head
Fixed
(Outside fix)
Fixed
Sliding
Sliding

Page 7
Juralco Trident Shower Door System Issue 1/16
www.juralco.co.nz ph [phone]
Pick up Blocks SU 10 - Top
Hook SU 12, 13 - Bottom
Top Rail 3833
Bottom Rail 3832
Handle 77
Jamb 3830
Peg SU 11
Stile 3831
Handle Stile 3834
Pick up Blocks SU 10 - Top
Hook SU 12, 13 - Bottom
Top Rail 3833
Bottom Rail 3832
Jamb 3830
Peg SU 11
Stile 3831
Glazing Strip No 31

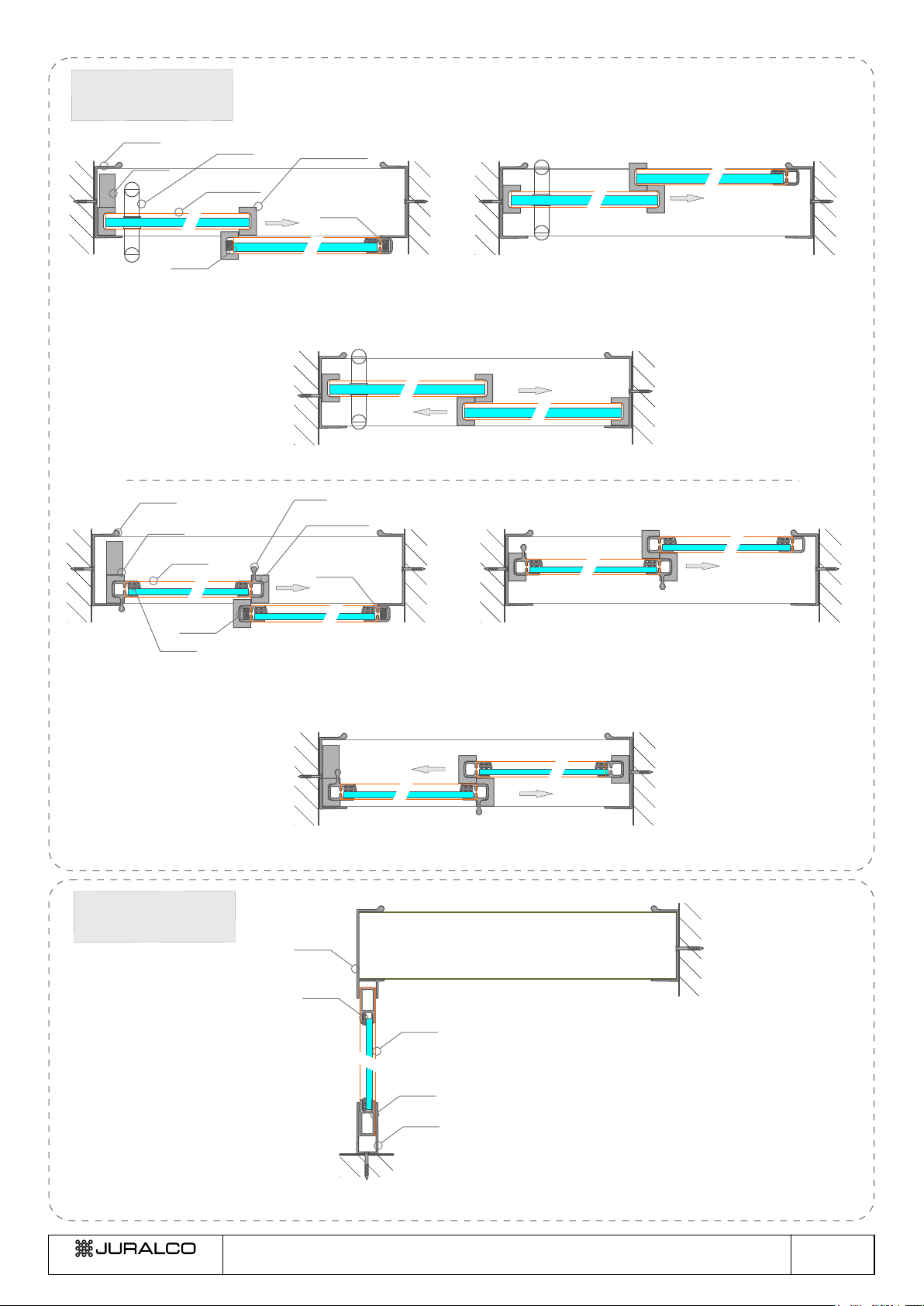

Juralco Trident Shower Door System - Typical Cross Sections
Frameless, Two Door - Both sliding, 6mm Glass
Frameless, Front mounted Fixed Panel
Two Door - 2 x sliding, 1 x fixed, 6mm Glass
Framed, Back mounted Fixed Panel
Two Door - 2 x sliding, 1 x fixed, 4mm Glass
Framed, Two Door - Both sliding, 4mm Glass
Framed, Front mounted Fixed Panel
Two Door - 2 x sliding, 1 x fixed, 4mm Glass
Frameless, Back mounted Fixed Panel
Two Door - 2 x sliding, 1 x fixed, 6mm Glass
Two Door
Typical Horizontal
Cross Sections
Return Panel, framed, 4mm Glass
Top, Bottom Rail 6679
Maxi Channel 3838
Three Doors. Framed or Frameless
Fixed Panel - Front or Back Mount
Stile 6679
Glazing
Strip No 31
90 deg Corner
Jamb 3837
Return
Typical Horizontal
Cross Sections
- Available as Framed or Framless Doors (no stiles)
- Fixed Panel can either be Outside or Inside mounted
- All available with 90 deg return
INSIDE
SHOWER
OUTSIDE
INSIDE
SHOWER
OUTSIDE
INSIDE
SHOWER
OUTSIDE
INSIDE
SHOWER
OUTSIDE
INSIDE
SHOWER
OUTSIDE
INSIDE
SHOWER
OUTSIDE
INSIDE
SHOWER
OUTSIDE
Pick up Block
SU 14 - Bottom
Pick up Block
SU 14 - Bottom

Page 8
Juralco Trident Shower Door System Issue 1/16
www.juralco.co.nz ph [phone]

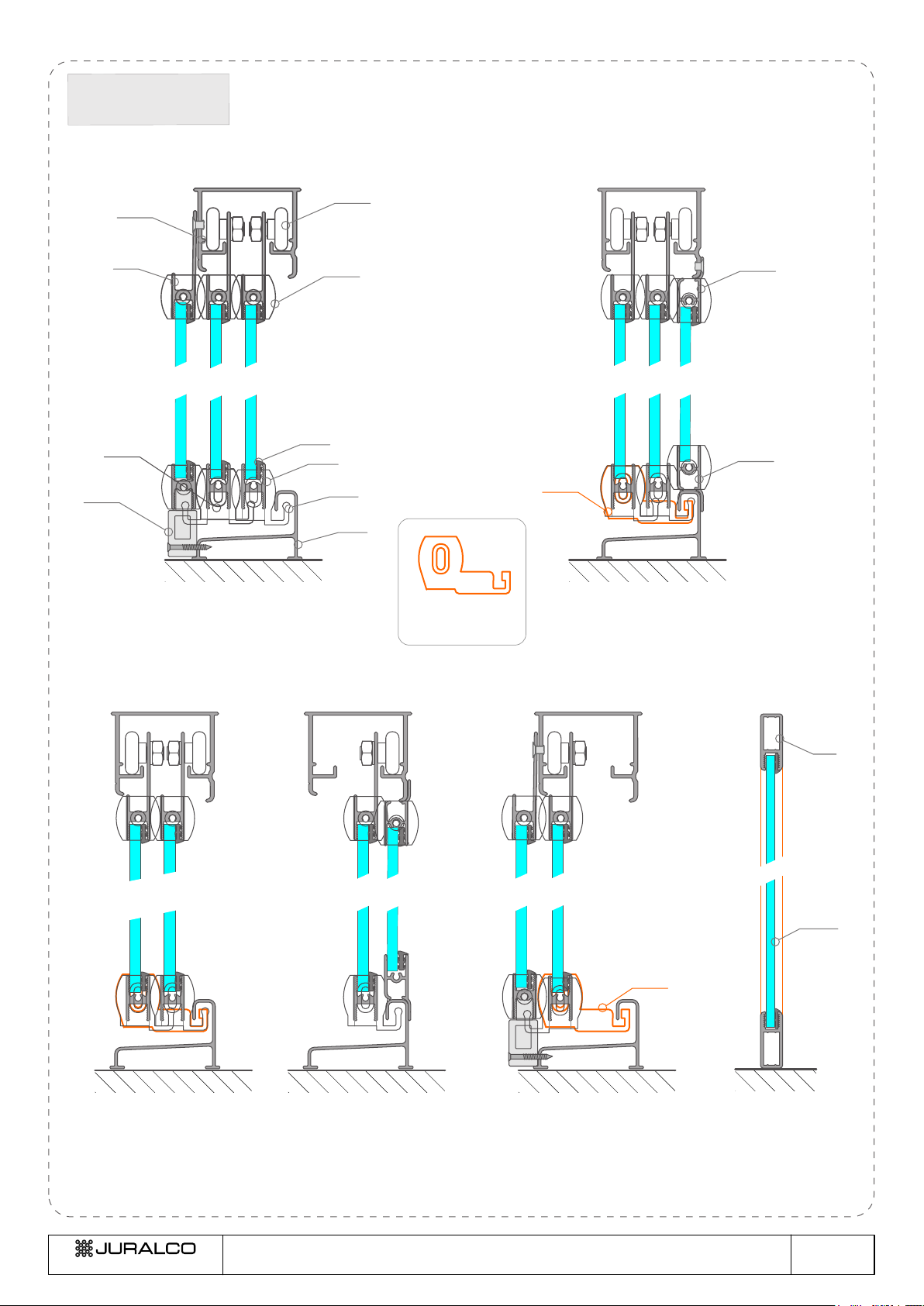

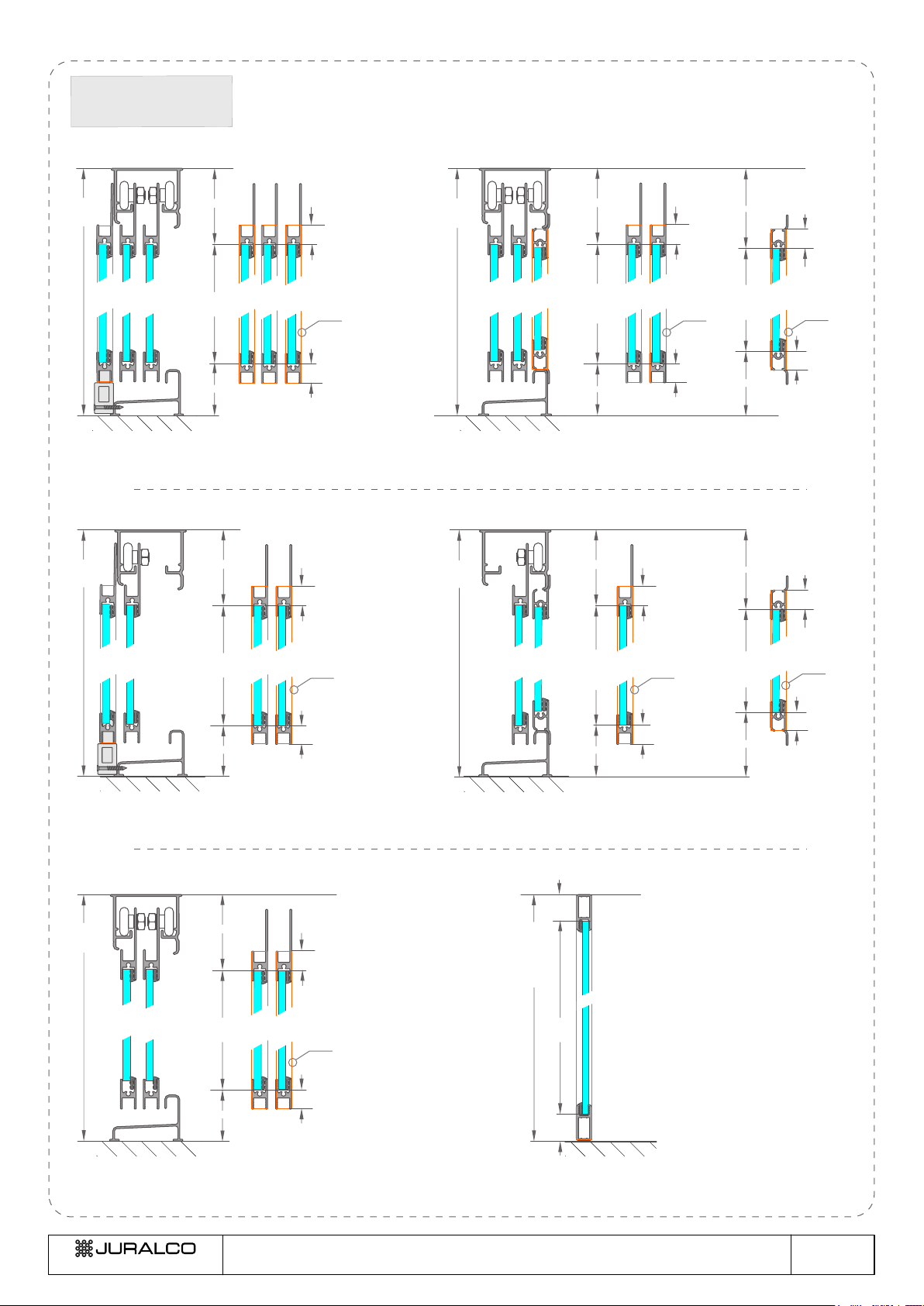

Juralco Trident Shower Door System - Typical Cross Sections
Pick up Blocks SU 10
Shower Wheels
69, 70, 71
Glazing Strip No 31
Hook SU 12, 13
Sill 3835
Bottom Rail 3832
Top Rail 3833
Peg SU 11
Return Panel
Fixed Panel
4mm Safety
Glass
Head Rail 3836
( or Heavy Duty 3842)
Double Hook SU 14
- One leg cut off
- Attached to front
of leading panel
Hook SU 12, 13
on front of mid panel
Front
Top Rail 3844
Both move
-either Leading
Panel
- These sections apply to both Framed or Framless Doors (no stiles)
- Glass 4mm for Framed, 6mm for Frameless Doors. Always 4mm for Returns.
Front
Top Rail 3844
Two Door
No Fixed Panel
2 x Sliding
Two Door
Front mounted Fixed Panel
1 x Sliding, 1 x Fixed
Two Door
Back mounted Fixed Panel
1 x Sliding, 1 x Fixed
Leading
Panel
Mid
Panel
Fixed
Panel
Leading
Panel
Mid
Panel
Fixed
Panel
Double Hook SU 14
- One leg cut off
- Attached to front
of leading panel
Moving
Panel
Fixed
Panel
Fixed
Panel
Moving
Panel
Three Door
Front mounted Fixed Panel
2 x Sliding, 1 x Fixed
Note - Two door systems use exactly same components as per Three Door
Three Door
Back mounted Fixed Panel
2 x Sliding, 1 x Fixed
Three and Two Door
Typical Vertical
Cross Sections
INSIDE
SHOWER OUTSIDE
INSIDE
SHOWER OUTSIDE
INSIDE
SHOWER OUTSIDE
INSIDE
SHOWER OUTSIDE
INSIDE
SHOWER OUTSIDE
INSIDE
SHOWER OUTSIDE
Note - Orange outline
= Double Hook SU 14
- One leg cut off
Top, Bottom
Rail 6679

Page 9
Juralco Trident Shower Door System Issue 1/16
www.juralco.co.nz ph [phone]

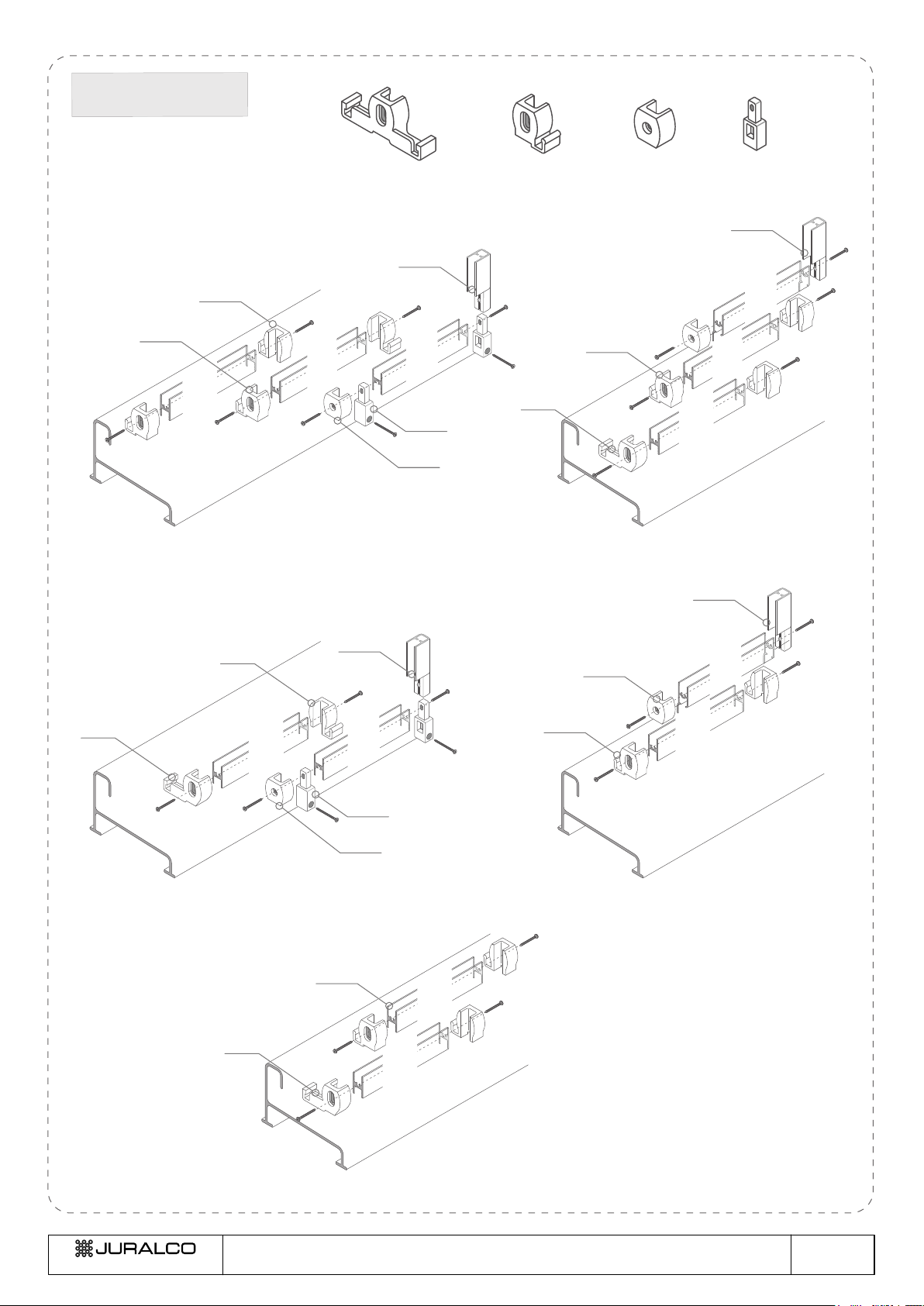

Hooks Opposite
Hand on this Door
Hooks Same
Hand on this Door
Three Door
Inside Mount Fixed Panel
2 x Sliding, 1 x Fixed
Fixed
Panel
Leading
Panel
Mid
Panel
Three Door
Outside Mount Fixed Panel
2 x Sliding, 1 x Fixed
Fixed
Panel
Mid
Panel
Leading
Panel
Pick up block
Pegs
Peg
SU 11
Pickup Block
SU 10
Hook
(Shown LH)
LH - SU 12
RH - SU 13
Double Hook
SU 14
One hook to be cut off
depending on hand.
Double Hook
SU 14
Note - Only Fixed Panel Stiles shown
- Framed / Framless Stiles not shown
- Sill not to scale
- All shown as RH entry.
Two Door
Inside Mount Fixed Panel
1 x Sliding, 1 x Fixed
Two Door
Outside Mount Fixed Panel
1 x Sliding, 1 x Fixed
Two Door
No Fixed Panel
Both Sliding
Fixed
Panel
Moving
Panel
Pick up block
Pegs
Fixed
Panel
Moving
Panel
Moving
Panel
Double Hook
SU 14
Double Hook
SU 14
Pick up block
Hooks Opposite
Hand on this Door
Hooks Opposite
Hand on this Door
Hooks Same
Hand on this Door
Hooks Opposite
Hand on both
these Doors
Moving
Panel
Fixed Panel
Stile this end
INSIDE
SHOWER
OUTSIDE
INSIDE
SHOWER
OUTSIDE
INSIDE
SHOWER
OUTSIDE
INSIDE
SHOWER
OUTSIDE
INSIDE
SHOWER
OUTSIDE
Juralco Trident Shower Door System - Hook, Block Arrangements
Hook, Block
Arrangements
Fixed Panel
Stile this end
Fixed Panel
Stile this end
Fixed Panel
Stile this end

Page 10
Juralco Trident Shower Door System Issue 1/16
www.juralco.co.nz ph [phone]
Juralco Trident Shower Door System - Cutting Allowances
Mid
Door
Fixed
Panel
Three Door
Width Allowances
Note - All Glass same Width
Top, Bottom Rails
add 2mm this end only
Leading
Door
Mid
Door
Fixed
Panel
Glass
14mm overlap Glass
12mm overlap
20mm
Glass width
= GW
Leading
Door
Frameless
Three Door
Back mounted
Fixed Panel
Frameless
Three Door
Front mounted
Fixed Panel
8mm
Fixed
Panel
8mm
Glass
14mm overlap
Framed,
Three Door
Back mounted
Fixed Panel
Framed
Three Door
Front mounted
Fixed Panel
Glass
4mm gap
16mm
Fixed
Panel Fixed
Panel
16mm
20mm
20mm
20mm
Fixed
Panel
Return Panel, framed, 4mm Glass
Three Doors. Framed or Frameless.
Fixed Panel - Front or Back Mount
Note - Glass Widths for the above two configurations are different. Glass all 6mm.
Note - Glass Widths for the above two configurations are the same. Glass all 4mm.
Return
Depth = RD
3mm
7mm
Return
Depth Allowances
Overall Width = OW
Glass
14mm overlap
Fixed
Panel
Note - All Glass same Width
(but different to above)
Top, Bottom Rails
add 2mm this end only
Glass width
= GW
Note - All Glass same Width
Top, Bottom Rails
add 2mm both ends
for all panels
Fixed
Panel
Glass width
= GW
Glass width
= GW
Top, Bottom Rails
add 2mm both ends
for all panels
Note - All Glass same Width
(and same as above)
Glass width
= GW
75mm
29mm
Glass
4mm gap
Glass
4mm gap
Glass
4mm gap
Leading
Door
Mid
Door
Leading
Door
Mid
Door
Mid
Door
Leading
Door
Leading
Door
Mid
Door
Leading
Door
Mid
Door
Mid
Door
Leading
Door
INSIDE
SHOWER
OUTSIDE
INSIDE
SHOWER
OUTSIDE
INSIDE
SHOWER
OUTSIDE
INSIDE
SHOWER
OUTSIDE
INSIDE
SHOWER
OUTSIDE
Overall Width = OW
Overall Width = OW
Overall Width = OW
52mm

Page 11
Juralco Trident Shower Door System Issue 1/16
www.juralco.co.nz ph [phone]
Two Door
Width Allowances
Frameless
Two Door
Back mounted
Fixed Panel
Frameless
Two Door
Front mounted
Fixed Panel
Framed
Two Door
Back mounted
Fixed Panel
Framed
Two Door
Front mounted
Fixed Panel
Frameless
Two Door
Both Panels
Moving
Framed
Two Door
Both Panels
Moving
Moving
Door
Fixed
Panel
Glass
14mm overlap
20mm
Glass
11mm overlap
8mm
Note - All Glass
same Width
20mm
8mm
8mm 8mm
Fixed
Panel
Glass
14mm overlap
Note - Glass Widths for the above three configurations are all different. Glass all 4mm.
Note - Glass Widths for the above three configurations are all different. Glass all 6mm.
Moving
Door
Top, Bottom Rails
= Glass width
24mm
Glass
4mm gap
20mm
20mm
Glass
4mm gap
16mm
16mm
Glass
4mm gap
16mm
Moving
Door
Moving
Door
Moving
Door
Fixed
Panel
Fixed
Panel
Moving
Door
Fixed
Panel
Moving
Panel
Fixed
Panel
Moving
Door
Note - All Glass
and Doors
same Width.
Note - All Glass
and Doors
same Width.
Note - All Glass
and Doors
same Width.
Deductions
all the same.
Top, Bottom Rails
add 2mm this end only
Glass width
= GW
Moving
Door
Fixed
Panel
Top, Bottom Rails
add 2mm this end only
Glass width
= GW
Note - All Glass
same Width
(but different
to above)
Glass width
= GW
Note - All Glass
same Width
(but different
to both above)
Glass width
= GW
Top, Bottom Rails
add 2mm both ends
Glass width
= GW
Top, Bottom Rails
add 2mm both ends
Glass width
= GW
Top, Bottom Rails
add 2mm both ends
Fixed
Panel
Moving
Door Moving
Door
Moving
Door
Moving
Door
Moving
Door
Moving
Door
Moving
Door INSIDE
SHOWER
OUTSIDE
INSIDE
SHOWER
OUTSIDE
INSIDE
SHOWER
OUTSIDE
INSIDE
SHOWER
OUTSIDE
INSIDE
SHOWER
OUTSIDE
INSIDE
SHOWER
OUTSIDE
Juralco Trident Shower Door System - Cutting Allowances
Overall Width = OW
Overall Width = OW
Overall Width = OW
Overall Width = OW
Overall Width = OW
Overall Width = OW

Page 12
Juralco Trident Shower Door System Issue 1/16
www.juralco.co.nz ph [phone]
Juralco Trident Shower Door System - Cutting Allowances
Three, Two Door
and Return
Height Allowances
Return PanelTwo Door
No Fixed Panel
2 x Sliding
Two Door
Front mounted Fixed Panel
1 x Sliding, 1 x Fixed
Two Door
Back mounted Fixed Panel
1 x Sliding, 1 x Fixed
Three Door
Front mounted Fixed Panel
2 x Sliding, 1 x Fixed
Three Door
Back mounted Fixed Panel
2 x Sliding, 1 x Fixed
Fixed
Panel
Leading
Door
Mid
Door
- Height considerations apply to both Framed or Framless Doors (no stiles) equally
- Glass 4mm for Framed, 6mm for Frameless Doors. Always 4mm for Returns.
- Stiles on all edges if Framed. 1 x Stile on back edge of fixed panel only if Frameless
Moving
Door
Fixed
Panel
Moving
Door
Moving
Door
Moving
Panel
Fixed
Panel
Note - All Glass
and Doors
same Height
Stile, add 13mm
this end
52mm
35mm
Moving
Panel
Moving
Door
Overall
Height
= OH
Stile, add 13mm
this end
Stile, add 13mm
this end
52mm
35mm
Stile, add 13mm
this end
Stile, add 13mm
this end
52mm
35mm
Moving
Door Stile 3831
where used
Stile, add 13mm
this end
54mm
Stile, add 13mm
this end
44mm
Stile, add
this end only
Glass
Height
=GH
Stile, add 13mm
this end
52mm
35mm
Stile 3831
where used
Stile, add 13mm
this end
Glass
Height
=GH
Stile, add 13mm
this end
52mm
35mm
Stile 3831
where used
Stile, add 13mm
this end
Moving
Glass
Height
=MGH
Fixed
Panel
54mm
Stile, add 13mm
this end
44mm
Stile, add 13mm
this end
Fixed
Glass
Height
=FGH
Fixed
Panel
Stile 3831
Glass
Height
=GH
Overall
Height
= OH
= Return
Height
= RH
Stile 3831
Stile 3831
where used
Stile 3831
where used
Glass
Height
=GH
Moving
Glass
Height
=MGH
Fixed
Glass
Height
=FGH
22mm
22mm
Fixed
Panel
Leading
Door
Mid
Door
Mid
Door
Leading
Door
Mid
Door
Leading
Door
Fixed
Panel
Moving
Door
Fixed
Panel
Note - For 90 deg Twin door Shower
the Leading edge of the Moving Door
has a Corner Stile.
INSIDE
SHOWER OUTSIDE
INSIDE
SHOWER OUTSIDE
INSIDE
SHOWER OUTSIDE
INSIDE
SHOWER OUTSIDE
INSIDE
SHOWER OUTSIDE
INSIDE
SHOWER OUTSIDE
Overall
Height
= OH
Overall
Height
= OH
Overall
Height
= OH
Overall
Height
= OH

Page 13
Juralco Trident Shower Door System Issue 1/16
www.juralco.co.nz ph [phone]

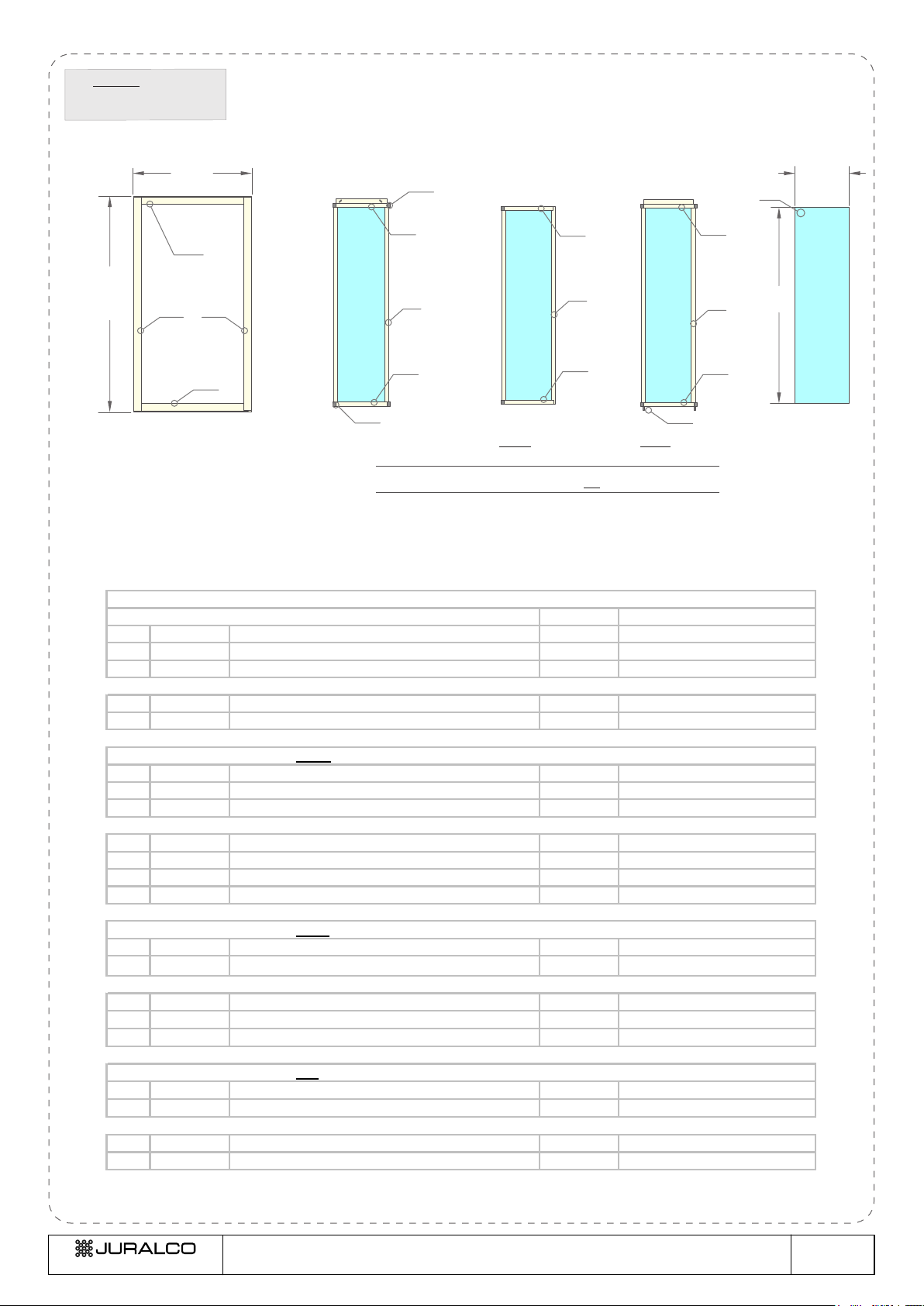

Juralco Trident Shower Door System - Cutting
Door Frame Moving Doors
x 2
Overall
Width
= OW
Jamb
3830
Head Rail 3836
or Heavy Duty
Head Rail
3842
Sill
3835
Glass x 3
Glass
Width
Glass
Height
Std mark
here
Frameless, Three Door
Back or Front
Fixed Panel
Jamb
3830
Front mounted
Fixed Panel
- Glass all toughened 6mm, Polish all edges
- Use Heavy Duty Head Rail 3842 if width greater than 1200mm
- If frame out of square and DFW is different at top and bottom, use the smaller DFW in cutting below
Rail
3832
Hooks
SU 12,13
Top Rail
3833
Pick up
Blocks
SU 10
Back mounted
Fixed Panel
OR
Overall
Height
= OH
Pegs SU 11
Top Rail
3833
Rail
3832
Stile
3831
Front Rail
3844
Front Rail
3844
Stile
3831
And
either
Handle 77
(or 96)
Leading Door
only
Note - For front fix panel option only, Moving Door glass height (MGH)
and Fixed Panel glass height (FGH) are different. Widths all the same
Note - Alternative approach. Applies to Widths 830mm to 905mm.
Use 3 x 300mm wide glass panels. Overlap varies but OK in practice.
Stop Blocks
SU 11
(top and Bottom)
Applies to all Door Frames
ITEM PART Formula, mm
1Width Door Frame Width = OW OW
2Width Door Frame, Head Rail, Heavy Duty or normal 3842, 3836 OW - 3
3Width Door Frame ,Sill 3835 OW - 3
1Height Door Frame Height = OH OH
2Height Door Frame , Jambs 3830 OH - 3
Frameless, Three Door, Front
Fixed Panel
1Width Moving Doors and Fixed Panel, Glass width = GW 6mm OW / 3 = All GW
2Width Moving and Mid Door - Top, Bottom Rails 3833, 3832 GW
3Width Front Fixed Panel - Top, Bottom Rails 3844 GW + 2
1Height Moving Doors, Glass height = MGH 6mm OH - 87 = MGH
2Height Fixed Panel, Glass height = FGH 6mm OH - 98 = FGH
3Height Fixed Panel, Stile (one only) 3831 FGH + 26
Frameless, Three Door, Back
Fixed Panel
1Width Moving Doors and Fixed Panel, Glass width = GW 6mm (OW - 2) / 3 = All GW
2Width Moving and Mid Door - Top, Bottom Rails 3833, 3832 GW
3Width Back Fixed Panel -Top, Bottom Rails 3833, 3832 GW + 2
1Height Moving Doors and Fixed Panel, Glass height = GH 6mm OH - 87 = All GH
2Height Fixed Panel, Stile (one only) 3831 GH + 26

Page 14
Juralco Trident Shower Door System Issue 1/16
www.juralco.co.nz ph [phone]
Juralco Trident Shower Door System - Cutting
Door Frame Leading
Moving Door
Jamb
3830
Head Rail 3836
or Heavy Duty
Head Rail
3842
Sill
3835
Glass x 3
Glass
Width
Glass
Height
Std mark
here
Framed, Three Door,
Back or Front
Fixed Panel
Jamb
3830
Front mounted
Fixed Panel
- Glass all toughened 4mm, Rough arris all edges
- Use Heavy Duty Head Rail 3842 if width greater than 1200mm
- If frame out of square and DFW is different at top and bottom, use the smaller DFW in cutting below.
Rail
3832
Hooks SU 12,13
Top Rail
3833
Pick up
Blocks
SU 10
Back mounted
Fixed Panel
OR
Front Rail
3844
Front Rail
3844
Stile
3831
Handle
Stile
3834
(both
sides)
Mid
Moving Door
Stile
3831
(both
sides)
Pegs SU 11
Top Rail
3833
Rail
3832
Stile
3831
(both
sides)
And
either
Note - For front fix panel option only, Moving Door glass height (MGH)
and Fixed Panel glass height (FGH) are different. Widths all the same
Overall
Width
= OW
Overall
Height
= OH
Applies to all Door Frames
ITEM PART Formula, mm
1Width Door Frame Width = OW OW
2Width Door Frame, Head Rail, Heavy Duty or normal 3842, 3836 OW - 3
3Width Door Frame ,Sill 3835 OW - 3
1Height Door Frame Height = OH OH
2Height Door Frame , Jambs 3830 OH - 3
Framed, Three Door, Front
Fixed Panel
1Width Moving Doors and Fixed Panel, Glass width = GW 4mm (OW - 44) / 3 = All GW
2Width Moving and Mid Door - Top, Bottom Rails 3833, 3832 GW + 4
3Width Front Fixed Panel - Top, Bottom Rails 3844 GW + 4
1Height Moving Doors, Glass height = MGH 4mm OH - 87 = MGH
2Height Leading Moving Door, Handle Stiles 3834 MGH + 26
3Height Mid Door, Stiles 3831 MGH + 26
4Height Fixed Panel, Glass height = FGH 4mm OH - 98 = FGH
5Height Fixed Panel, Stile 3831 FGH + 26
Framed, Three Door, Back
Fixed Panel
1Width Moving Doors and Fixed Panel, Glass width = GW 4mm (OW - 44) / 3 = All GW
2Width Moving Doors and Fixed Panel, Top, Bottom Rails 3833, 3832 GW + 4
1Height Moving Doors and Fixed Panel, Glass height = GH 4mm OH - 87 = All GH
2Height Leading Moving Door, Handle Stiles 3834 GH + 26
3Height Mid Door and Fixed Panel, Stiles 3831 GH + 26

Page 15
Juralco Trident Shower Door System Issue 1/16
www.juralco.co.nz ph [phone]
Juralco Trident Shower Door System - Cutting
Frameless, Two Door,
Back, Front or No
Fixed Panel
- Glass all toughened 6mm, Polish all edges
- Use Heavy Duty Head Rail 3842 if width greater than 1200mm
- If frame out of square and DFW is different at top and bottom, use the smaller DFW in cutting below.
Door Frame
Jamb
3830
Head Rail 3836
or Heavy Duty
Head Rail
3842
Sill
3835
Glass x 2
Glass
Width
Glass
Height
Std mark
here
Jamb
3830
Rail
3832
Hooks
SU 12,13
Top Rail
3833
Pick up
Blocks
SU 10
Pegs SU 11
Top Rail
3833
Rail
3832
Stile
3831
Front Rail
3844
Front Rail
3844
Stile
3831
Moving Door x 1 Front mounted
Fixed Panel
Back mounted
Fixed Panel
ORAnd
either
Handle 77
(or 96)
Note - For front fix panel option only, Moving Door glass height (MGH)
and Fixed Panel glass height (FGH) are different. Widths all the same
OR
Moving Doors x 2 And No Fixed Panel
Stop Blocks
SU 11
(top and Bottom)
Overall
Width
= OW
Overall
Height
= OH
Applies to all Door Frames
ITEM PART Formula, mm
1Width Door Frame Width = OW OW
2Width Door Frame, Head Rail, Heavy Duty or normal 3842, 3836 OW - 3
3Width Door Frame ,Sill 3835 OW - 3
1Height Door Frame Height = OH OH
2Height Door Frame , Jambs 3830 OH - 3
Frameless, Two Door, Front
Fixed Panel
1Width Moving Door and Fixed Panel, Glass width = GW 6mm (OW - 14) / 2 = All GW
2Width Moving Door - Top, Bottom Rails 3833, 3832 GW
3Width Front Fixed Panel - Top, Bottom Rails 3844 GW + 2
1Height Moving Door, Glass height = MGH 6mm OH - 87 = MGH
2Height Fixed Panel, Glass height = FGH 6mm OH - 98 = FGH
3Height Fixed Panel, Stile (one only) 3831 FGH + 26
Frameless, Two Door, Back
Fixed Panel
1Width Moving Door and Fixed Panel, Glass width = GW 6mm (OW - 19) / 2 = All GW
2Width Moving Door - Top, Bottom Rails 3833, 3832 GW
3Width Back Fixed Panel -Top, Bottom Rails 3833, 3832 GW + 2
1Height Moving Door and Fixed Panel, Glass height = GH 6mm OH - 87 = All GH
2Height Fixed Panel, Stile (one only) 3831 GH + 26
Frameless, Two Door, NO
Fixed Panel
1Width Moving Doors, Glass width = GW 6mm (OW - 2) / 2 = All GW
2Width Moving Doors - Top, Bottom Rails 3833, 3832 GW
1Height Moving Doors, Glass height = GH 6mm OH - 87 = All GH

Page 16
Juralco Trident Shower Door System Issue 1/16
www.juralco.co.nz ph [phone]
Juralco Trident Shower Door System - Cutting
Door Frame
Jamb
3830
Head Rail 3836
or Heavy Duty
Head Rail
3842
Sill
3835
Glass x 2
Glass
Width
Glass
Height
Std mark
here
Framed, Two Door,
Back, Front or No
Fixed Panel
Jamb
3830
- Glass all toughened 4mm, Rough arris all edges
- Use Heavy Duty Head Rail 3842 if width greater than 1200mm
- If frame out of square and DFW is different at top and bottom, use the smaller DFW in cutting below.
Rail
3832
Hooks SU 12,13
Top Rail
3833
Pick up
Blocks
SU 10
Front Rail
3844
Front Rail
3844
Stile
3831
Handle
Stile
3834
(both
sides)
Pegs SU 11
Top Rail
3833
Rail
3832
Stile
3831
(both
sides)
Note - For front fix panel option only, Moving Door glass height (MGH)
and Fixed Panel glass height (FGH) are different. Widths all the same
Moving Door x 1 Front mounted
Fixed Panel
Back mounted
Fixed Panel
OR
And
either
OR
Moving Doors x 2 And No Fixed Panel
Overall
Width
= OW
Overall
Height
= OH
Applies to all Door Frames
ITEM PART Formula, mm
1Width Door Frame Width = OW OW
2Width Door Frame, Head Rail, Heavy Duty or normal 3842, 3836 OW - 3
3Width Door Frame ,Sill 3835 OW - 3
1Height Door Frame Height = OH OH
2Height Door Frame , Jambs 3830 OH - 3
Framed, Two Door, Front
Fixed Panel
1Width Moving Door and Fixed Panel, Glass width = GW 4mm (OW - 40) / 2 = All GW
2Width Moving Door - Top, Bottom Rails 3833, 3832 GW + 4
3Width Front Fixed Panel - Top, Bottom Rails 3844 GW + 4
1Height Moving Door, Glass height = MGH 4mm OH - 87 = MGH
2Height Moving Door, Handle Stile 3834 MGH + 26
3Height Fixed Panel, Glass height = FGH 4mm OH - 98 = FGH
4Height Fixed Panel, Stiles 3831 FGH + 26
Framed, Two Door, Back
Fixed Panel
1Width Moving Door and Fixed Panel, Glass width = GW 4mm (OW - 48) / 2 = All GW
2Width Moving Doors and Fixed Panel, Top, Bottom Rails 3833, 3832 GW + 4
3Height Moving Door and Fixed Panel, Glass height = GH 4mm OH - 87 = All GH
4Height Moving Door, Handle Stiles 3834 GH + 26
5Height Fixed Panel, Stiles 3831 GH + 26
Framed, Two Door, No
Fixed Panel
1Width Moving Doors, Glass width = GW 4mm (OW - 36) / 2 = All GW
2Width Moving Doors, Top, Bottom Rails 3833, 3832 GW + 4
1Height Moving Doors, Glass height = GH 4mm OH - 87 = All GH
2Height Moving Doors, Handle Stiles 3834 GH + 26

Page 17
Juralco Trident Shower Door System Issue 1/16
www.juralco.co.nz ph [phone]
Juralco Trident Shower Door System - Cutting
Door Frame
90deg
CornerJamb
3837
Glass x 1
Glass
Width
Glass
Height
Std mark
here
90deg Return
Panel
Stile
6679
- Framed - Glass all toughened 4mm, Rough arris all edges
- If measurements out of square, will be taken up in Maxi channel
Wall
Channel
Maxi Channel
3838
Rail
6679
Return Panel
Overall
Height
= OH
90 deg Return Panel
ITEM PART Formula, mm
1Width Return Depth = RD RD
2Width Return Panel, Glass width = GW 4mm RD - 108 = GW
3Width Return Panel, Top, Bottom Rails 6679 RD - 60
1Height Return Height = Door Frame Height = OH OH
2Height Return Panel, Glass height = GH 4mm OH - 48 = GH
3Height Maxi Channel 3838 OH
4Height Return Panel, Stiles 6679 OH
5Height Return Jamb ( part of Door Frame) 3837 OH

Page 18
Juralco Trident Shower Door System Issue 1/16
www.juralco.co.nz ph [phone]
Machining
Extrusions
Juralco Trident Shower Door System - Machining
Machining Top Rail 3833
for Shower wheels
- Cut square, 2 x slots
10
5
20.5
Slot 4mm wide
@ 45 deg
Slot 4mm wide @ 45 deg at each end of Top Rail 3833
Machining ends of Stile
extrusions
- Cut square, mill recess
drill hole, rebate handle
Handle Stile 3834
Identical machining
each end
Rail attach Hole
1 x Hole 3.85mm dia
Drill through
both webs
Stile 3831
Identical machining
each end
10.3
8.5
25
Door Frame and
Corner Sections
Machining
- All cut square, no machining
Heavy Duty
Head Rail
3842
Head Rail
3836
Sill 3835
Maxi Channel
3838
Jamb
3830
90 deg Corner Jamb
3837
20.5 Rail attach Hole
1 x Hole 3.85mm dia
Drill through
both webs
10.3
8.5
Top Rail
3833
Bottom Rail
3832
Front Rail
3844
Stile
3831
Handle Stile
3834
17
30 deg
Use for 3 x panel
up to 1490mm
or for 2 x Panel
up to1190mm
Use for 3 x panel
over 1500mm
or for 2 x Panel
over 1200mm

Page 19
Juralco Trident Shower Door System Issue 1/16
www.juralco.co.nz ph [phone]
Juralco Trident Shower Door System - Assembly
1 - Inspect all extrusions for damage, surface defects. Assemble all necessary components. Ensure workplace is clean.
extrusions to size as per cutting formula schedule2 - Cut all aluminium . Machine stiles to drawings.
Frame:
1 - Fit jambs to head and sill sections riveting into position as illustrated using colour matched rivets.
Make sure frame matches site measurements incl any out of square.
Four corners x 2 = 8 rivets
A - Door Panels:
1 - Fixed Panel assembly requires 2 x 3831 stiles, 1 x 3832 bottom rail and 1 x 3833 un-punched top rail.
Place 1 x SU 10 pick up block on the top panel style opposite the jamb side of the door frame secure through the block and to the
top rail using a 6g x 25 pan stainless steel screw. Secure opposite (jamb side) by screwing direct through the stile into the top rail.
Push 2 x SU 11 pegs up into the bottom of each style and screw into the stile through each peg and into bottom rail.
Note: Before final assembly of bottom rail insert 4mm Glass.
2 - Trailing Panel assembly requires 2 x 3831 plain styles, 1 x 3832 bottom rail and 1 x 3833 punched top rail. Place the 2 x SU 10
pickup blocks on the top of each style and secure through each SU 10 and style into top rail using 6g x 25 stainless steel screws.
Note: The flat surface of the 3833 profile always faces the front of the shower unit. Using the appropriate bottom hooks
(SU 12/13) screw through, into the bottom rail 3832. Note: insert 4mm Glass into door frame before fitting bottom rail into place.
Fit wheel assemblies to the rear of the 3833 section securing in approximately middle of each slot.
3 - Leading Panel assembly requires 2 x Handle stiles 3834, 1 x 3832 bottom rail and 1 x 3833 punched top rail. The 3834 handle stile
must be fitted to the top and bottom rails so as the leading handle section of this style will face into the shower enclosure. The rear
handle of the leading door panel faces outwards from the shower enclosure. Assemble panel as in 2 above using 2 x bottom hooks
which face outwards to front of the shower sill 3835. Fit wheels to the 3833 top rail with wheels secured to the flat front side.
4 - Glass - With each panel facing upwards representing the front outside of the shower enclosure wedge into place using clear 31
wedge. Ensure the glass is fitted in frame as a 'loose' fit and is not binding on the inner extrusion ribs. Ensure each panel is true and
square after glazing.
5 - Clean up, pack securely, ready for transport to site.
Manufacture
Three Door Framed
Back Fixed Panel
Pop Rivet
(both sides)
Jamb
Head (top)
Sill (bottom)
Manufacture
Other Configurations
B - Three Door, Frameless, Back mounted Fixed Panel
All as A above, but delete reference to stiles, apart from the one on the back of the Fixed Panel. Attach 6mm Glass to top and
bottom rails with clear Rhodorsil V-60 and the 31 Glazing strip on the outside. Clean off all excess V-60 and wait 24 hrs to harden.
C - Three Door, Framed, Front mounted Fixed Panel
All as A above, but delete reference to Back Panel. Front Panel assembly requires 2 x 3831 stiles and 2 x 3844 front rails.
Make up panel, including 4mm Glass, then attach to Head and Sill, leaving a 10mm gap between stile and jamb.
D - Three Door, Frameless, Front mounted Fixed Panel
All as A above, but delete reference to Back Panel. Front Panel assembly requires 1 x 3831 stile and 2 x 3844 front rails.
Attach 6mm Glass to top and bottom rails with clear Rhodorsil V-60 and the 31 Glazing strip on the outside. Clean off all excess
V-60 and wait 24 hrs to harden. Attach to Head and Sill, leaving a 10mm gap between stile and jamb.
E - All Two Door Configurations.
All as above. Fixed panel references the same. Only one moving panel.
Note: Prior to delivering to site, unpack and check all items

Page 20
Juralco Trident Shower Door System Issue 1/16
www.juralco.co.nz ph [phone]
Juralco Trident Shower Door System - Assembly, Installation
A - Assembly
1 - Assemble the three panels on a large flat table taking care that the flat fins of the 3833 top rail are facing
Upwards on both doors.
2 - Check that the wheels assemblies are facing the correct way. Also check bottom hooks have been
correctly selected as an alternative placement is required for right and left hand fixed panel fittings.
Both hooks face front of sill.
3 - Place door outer frame on the bench with the inside of the frame facing upwards. Rest the fixed panel on the frame so that the 3833
top rail flat leaf is hard against the jamb and the bottom pegs SU 11 sit neatly on the sill 3835 recess. The fixed panel stile 3831 nearest
the outer frame jamb will overlap the jamb.
4 - Rivet the 3833 top rail to the head 3836 with the stile 10mm in from the end
5 - Drill and screw through the bottom pegs SU 11 to the sill 3835.
6 - Fit the leading door panel wheel assembly into the front track of the head 3836. Cup the bottom hooks into the lip of the sill 3835.
7 - Fit the trailing door wheels into the rear track of the head section 3836. Tilt panel away from the leading panel to allow the SU 10 pick up
blocks to cross each other including the fixed panel SU 10.
8 - Adjust the wheel assemblies of each door so as to have each top pick up block SU 11 and bottom hook striking simultaneously those of
the other panel. The leading panel should also be adjusted so that the closing edge evenly strikes the jamb 3830 when closed.
9 - Nip up wheel nuts after all adjustments made.
10 - Adjust each bottom hook by slackening off the screws and raising or lowering each hook so as to allow approximately a 2 mm gap
between the top of the hook and the extrusion in which its runs. Tighten up screws until door runs smoothly in tracks.
Assembly
Three Door Framed
Back Fixed
Fixed
Panel
Leading
Panel
Mid
Panel
INSIDE
SHOWER
FRONT
SIDE
All pages Copyright Juralco Aluminium Building Products Ltd, 2016
©
Installation
- The Frame (Sill, Jambs and Head rail + fixed panel are all made up / ex factory.
- The completed Doors are supplied separately.
1 - Unpack Frame and Doors, inspect for damage.
2 - Present frame to opening, and attach jambs to wall with 4 off 6 x 35 SS screws each side.
3 - Insert moving doors, temporarily removing/loosening pick up blocks or pegs as necessary.
4 - Adjust all rollers so doors hang square, and move freely with correct pick up block action.
5 - Apply a bead of Rhodorsil V-60 on the outside only of both the Jamb and Sill.
6 - Clean off all fingermarks. Leave site clean and tidy.
Note: Prior to delivering to site, unpack and check all items
