juwel Primo 110 User manual
Introduction
Thank you for choosing a JUWEL Aquarium product.
Our products represent over 50 years experience in the manufacturing of aquariums and their acessories applying most modern
production techniques bringing together the JUWEL Aquarium system, which is both easy to use and simple to maintain.
Please read this instruction manual carefully and completely to make sure you have received all components before setting up
the aquarium. Please observe the safety instructions and maintenance guidelines given in this manual.
This instruction manual has been carefully prepared to provide you with accurate and complete information. All efforts have
been made to ensure that the information given is correct. However, we cannot accept responsibility for printing or other errors.
Technical details are always approximate and are not warranted characteristics and may be subject to change without notice.
This product fulfils the guidelines issued by the European Union (EU) and is therefore entitled to carry the CE mark.
www.juwel-aquarium.de/en/declaration-of-conformity/
Setting up the Aquarium
SAFETY INSTRUCTIONS:
This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
•
The power plugs of the electrical devices must not become moist. Connect
the power plugs to the power supply at such a height that the connection
cable forms a loop which would enable the water to drip down.
•
At all times, only operate the electrical devices for your aquarium (lighting,
heater, pump etc.) using an earth leakage circuit breaker (EL circuit breaker)
with a maximum tripping current of 30 mA. If the socket that you are using in
your home installation is not safeguarded with such a circuit breaker, please
use a commercially available power strip with an integrated earth leakage
circuit breaker.
•
The electrical devices may only be operated in rooms.•
Pull the power plug of all devices operated in water before coming into
contact with the water.
•
We have produced your JUWEL Aquarium with the utmost care using most
advanced production techniques. Extra strong packaging has been used to
prevent damage to the aquarium. Please note however, that your aquarium
has been transported and handled several times prior to reaching its final
destination. We recommend therefore, that you test the aquarium for leaks in
a suitable area (e.g. garage), by filling it with water and checking it very
carefully.
Having made your checks, you should select the most suitable and desirable
position for your aquarium. The position selected should have an even and level
surface and should be able to support the weight of the filled aquarium. In order to
prevent excessive algae growth, we recommend that you select a position that is not
exposed to direct daylight.
We strongly recommend that the appropriate JUWEL Aquarium cabinet is used.
They have a water-repellent surface and they have been made to match the
dimensions and to bear the weight of the filled aquarium. The cabinet must be
positioned on a level surface. The JUWEL Aquarium is built with a special bottom
frame for security. The aquarium should be placed directly onto the cabinet. DO
NOT place any additional support, e.g. polystyrene, under the aquarium since this is
not necessary with our
aquariums.
2
Notice:
TIPP JUWEL Backgrounds
For decorative designs on the rear wall of your JUWEL aquarium, we recommend the JUWEL rear walls and posters for various
sizes of aquariums.
JUWEL rear wall motifs
With an attractive 3D rock motif that creates a powerful impression of depth.
JUWEL textured rear walls
With an attractive and distinctive bark texture.
Juwel Conexo Adhesive
The JUWEL motif and structure back panels are affixed to the rear wall of the aquarium using the special Conexo silicon before
it is filled with water.
JUWEL Posters
JUWEL Posters are printed on both sides and provide attractive motifs to create a simple and highly effective background
design for your aquarium.
JUWEL Poster Fix
JUWEL PosterFix is an oil that will enhance the three-dimensional effect of your film backgrounds. JUWEL PosterFix prevents
unattractive light refraction, thus increasing the colours and structure of your motif to great effect. The poster can be easily
removed.
These JUWEL accessories are available from your specialist retailer.
Please ensure that any air stones or similar aeration devices used are placed in the centre of the aquarium. The use of
such equipment may cause water to splash and condense on the lighting unit and frame, which may then run down on the
outer wall of the aquarium. The occurrence of such effects does not constitute a defect in the product.
•
Do not transport the aquarium when full.•
Make sure that maintenance of the aquarium does not damage the bonding.•
Do not use any toxic substances to clean the aquarium.•
Set-up suggestions for JUWEL aquariums
Let our sample designs inspire you; set up your
aquarium in just a few steps.
Follow our step-by-step instructions to create wonderful
underwater worlds. Naturally all our suggested set-ups can be
used in every JUWEL aquarium. Watch the corresponding
set-up video on our website and download the step-by-step
set-up plan as a PDF file.
3
Setting up your JUWEL Aquarium
Perform the following steps when putting the aquarium into operation:
The JUWEL filter system Bioflow
Assemble the cabinet if necessary.1.
Arrange the inspected aquarium in a suitable place.2.
Affix the JUWEL structured backgrounds if necessary, please observe the drying time of between 48 and 72 hours.3.
Prepare the filter for operation as described in the chapter "Putting the JUWEL filter system into operation".4.
Complete the decoration with ground material etc. as desired.5.
Plant the short plant species in the aquarium if applicable.6.
Slowly fill the aquarium with water through the filter to half way up.7.
Plant higher plant species in the aquarium if applicable.8.
Slowly fill the aquarium with water through the filter up to the water level line.9.
Connect the circulating pump and the heater to the power supply.10.
Install the lamp unit and connect it to the power supply.11.
If appropriate, close the aquarium with the designated flaps.12.
We recommend introducing fish in steps. You may put in the first fish (4-5) after a few days. These also ensure that the
biological filter develops. The run-in period of the filter may last 6 - 8 weeks. You may increase the number of fish in steps
during this time.
13.

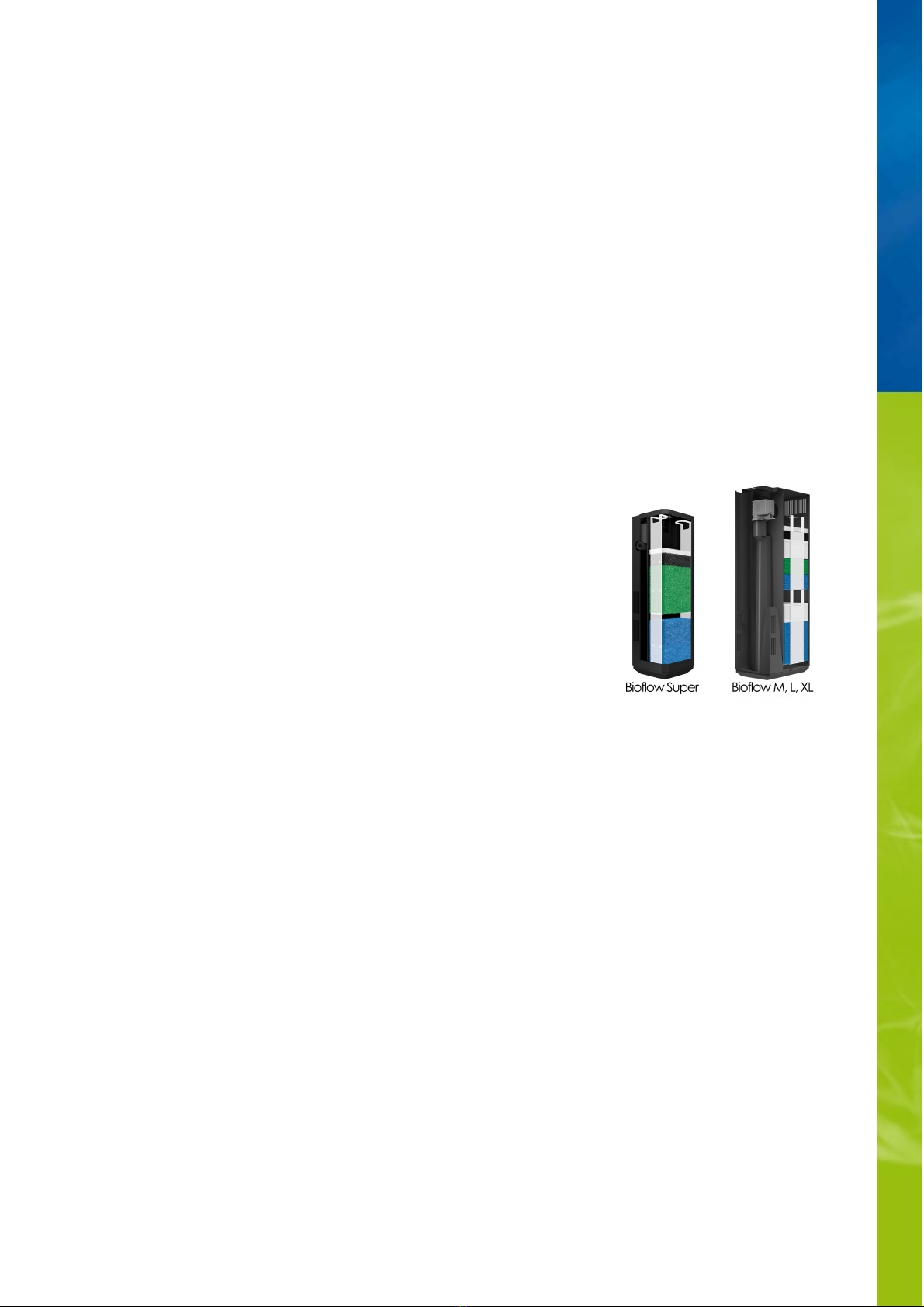

The JUWEL filter system Bioflow is a highly effective biological filter system with
two stages that includes components complementing each other in an ideal manner.
Installing the filter in the aquarium makes hose connections unnecessary and
prevents leaks. The pump output is not negatively affected by hose couplings,
intake tubes etc.
The capacity of the pump is designed in such a manner that an ideal level of
biological filtering is ensured by a sufficient level of percolation through the filter
material.
In that context, the large filter volume ensures excellent mechanical filtering and
facilitates long cleaning intervals.
The construction of the filter system enables you to quickly access the individual
heater, pump, and filter media components. This way, the filter system may
comfortably be operated during cleaning and while performing maintenance work.
4

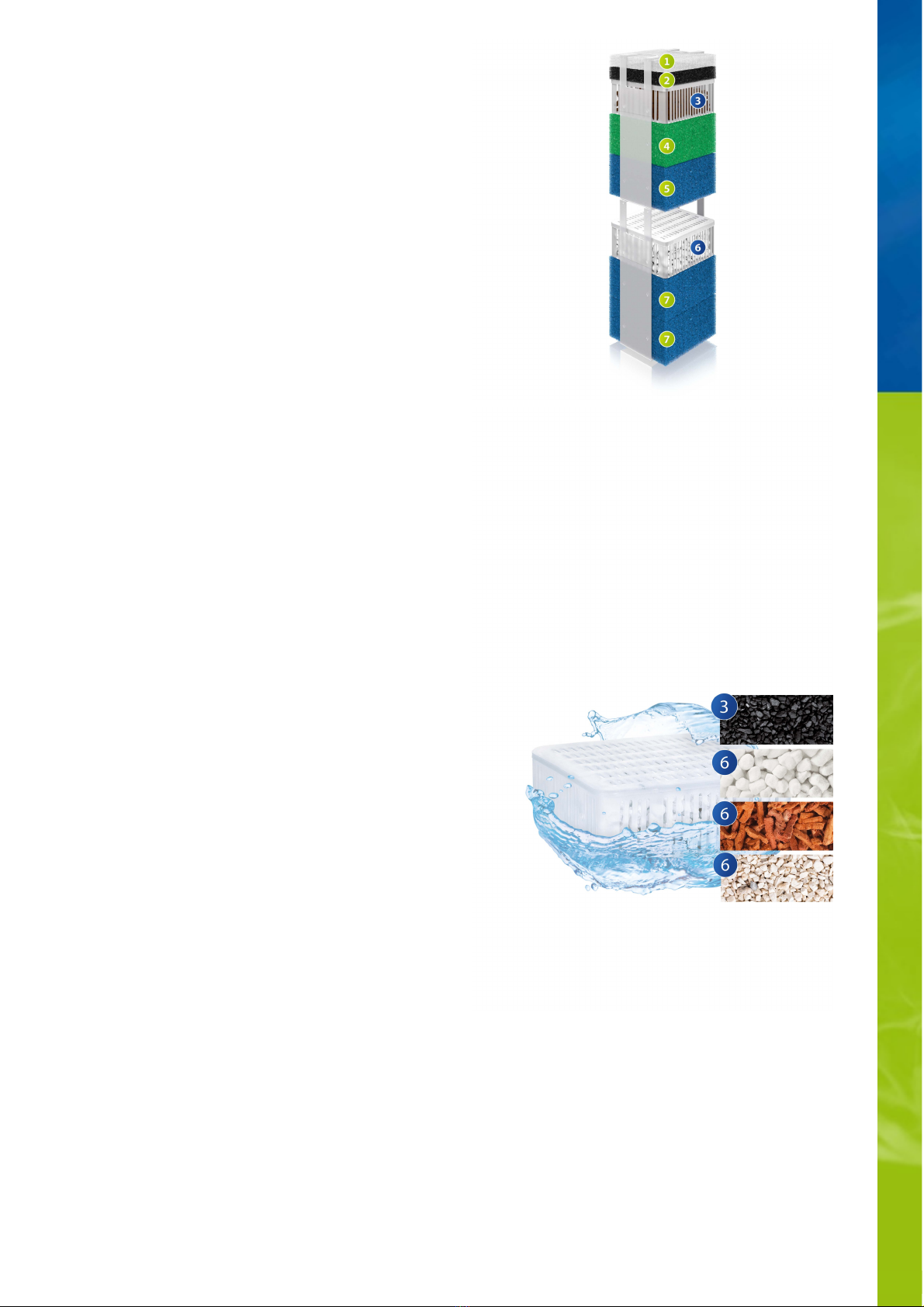

All Bioflow filter systems are delivered with five top-quality
filter media:
1. bioPad – filter wadding (white)
The fleece wadding acts as a mechanical pre-filter. It stops
coarse dirt, such as dead plant parts, from penetrating deeper
into the filter.
2. bioCarb – activated carbon sponge (black)
The sponge containing bound activated carbon removes
toxins from the water, e.g. harmful heavy metals and organic
impurities.
4. Nitrax – nitrate remover (green)
The sponge contains micro-organisms that are able to break
down nitrates. The JUWEL filter offers a particularly good
environment to this end.
5. bioPlus coarse – coarse filter sponge (blue)
The coarse-pored filter sponge in the middle of the filter
causes the biological clarification of the water through the
accumulation of bacterial cultures.
7. bioPlus fine – fine filter sponge (blue)
The fine-pored filter sponges in the lower section of the filter
retain even the smallest suspended particles and ensure
crystal-clear water.
Other optional filter media round off the options that are
available for the optimum use of your JUWEL inside filter:
6. Amorax – ammonium remover
Amorax is a highly efficient filter medium made of natural
zeolite. It quickly and effectively binds ammonium, thereby
preventing the formation of ammonia and promotes the vitality
of your fish.
3. Carbax – highly effective activated carbon
Carbax's excellent absorption properties permanently and
quickly bind discolourations, odours and toxic substances and
ensure crystal-clear water.
6. Cirax – ceramic granules
Cirax is a biological filter medium which creates the perfect
colonisation conditions for useful bacteria, due to its large,
highly porous surface.
6. Phorax – phosphate remover
JUWEL Phorax is a highly effective filter medium used to
break down phosphates in your aquarium. This effectively
reduces the growth of algae and can contribute to improved
plant growth.
5
Getting Started - The JUWEL filter system Bioflow Super
You should prepare the filter for operation prior to setting up the aquarium. However,
do not yet connect the electrical components to the power supply.
Please observe the following notes regarding commissioning the JUWEL filter
system Bioflow Super:
The JUWEL filter system Bioflow Super consists of:
- 1 heater (included in complete aquariums only)
- 1 heater holder
- 1 pump
- 1 white filter wool - bioPad
- 1 carbon sponge, packaged - bioCarb
- 1 green nitrate remover sponge, packaged - Nitrax
- 1 blue filter sponge fine - bioPlus fine
1. Insert the base of the pump into the pump holder of the filter and firmly push it
into position. In that context, the pump outlet faces in the direction of the nozzle
opening. Confirm the proper arrangement of the gasket in the nozzle opening (it is
used to minimize the transmission of vibrations).
2. Click the heater bracket onto the heat and insert both into the guide rails of the
filter divider.
3. Now start preparing the filter sponges by removing the plastic packaging from the
carbon sponge and the nitrate remover sponge. Thoroughly rinse the blue filter
sponge only under running water.
4. After that, insert the blue filter sponge, the nitrate remover sponge, the carbon
sponge and the filter wool on top into the filter basket and push it into the filter
housing.
5. Carefully attach the nozzle from the outside through the opening to the pump
outlet and ensure its firm connection.
6. Place the filter cover on the filter housing.
7. The JUWEL filter system Bioflow Super is now ready for operation.
Please note that the filter system takes approx. 14 days for the blue filter sponges to
have formed a bacteria culture which biologically cleans the water.
JUWEL FilterGrid
The JUWEL FilterGrid prevents very small shrimp and fish from entering the JUWEL
Bioflow Filter.
The JUWEL FilterGrid is available as an original accessory (Article Number
87099) for JUWEL aquariums.
6
Notice:
JUWEL EccoSkim combines the benefits of a surface skimmer with a compact design and great adjustable surface-skimming
capacities. With a performance of 300 l/h at a consumption of only 4.5 W, the JUWEL EccoSkim guarantees effective surface
skimming for freshwater and salt-water aquariums. Film and other surface-active substances are effectively removed and
conveyed to the JUWEL filter system and stored there. This can be ordered from your JUWEL Aquarium retailer (Part No.
87025).
Care and maintenance of the JUWEL Filter System
Recommendation
OxyPlus - O2 Air Diffuser
The special OxyPlus - O2 Air Diffuser provides additional oxygen to the aquarium if
desired. This can be ordered from your JUWEL Aquarium retailer (Part No. 85145).
The JUWEL Filter System requires very little maintenance if you follow the following
instructions.
bioPad
Replace the white filter wool pad once a week. If you have large fish, then this may
require changing slightly more frequently. This will ensure that the filter sponges will
not be clogged by larger dirt particles.
bioCarb
Replace the black activated carbon sponge every 4-6 weeks. Again, if you have
large fish then this may be to be more frequent. This ensures that any chemical
impurities from the water will be removed. Please note that the chemicals which are
absorbed by the activated carbon contained in the sponge, will be released to the
water again if the change intervals are too long.
bioPlus coarse/bioPlus fine
If the filter wool and the activated carbon sponge are replaced as suggested, then it
is sufficient to carefully clean or replace the coarse blue sponges at 6-12 weeks and
the fine blue sponges at 3-9 months only.
- Cleaning or replacing the blue sponges or the Cirax filter medium affects the
impact of the bacterial culture. For that reason, it is recommended not to clean or
replace the blue sponges and the Cirax filter medium at the same time, but rather
successively in an alternating manner.
You do not need to worry about the liquid dirt accumulating at the bottom of the filter
housing. Normally, this dirt contains important biological substances which enhance
the water quality.
Please do not worry if some dirt gets into the water during the cleaning process
causing cloudiness. After the filter system is back in operation, the water will soon
clear again.
Nitrax
In order to allow a proper level of micro-organisms in the filtration system it is
recommended to exchange the sponge every 8 weeks. The nitrate removal sponge
contains bacteria, which will after a while reduce the nitrate level in the aquarium
significantly.
7
JUWEL AquaHeat Pro - Installing the heater in the JUWEL filter
system
OPTIONAL:
Amorax
Amorax is a highly efficient filter medium made of natural zeolite. It quickly and
effectively binds ammonium, thereby preventing the formation of ammonia and
promotes the vitality of your fish. Replace the JUWEL Amorax every 3 months.
Carbax
Carbax's excellent absorption properties permanently and quickly bind
discolourations, odours and toxic substances and ensure crystal-clear water. We
recommend replacing JUWEL Carbax every 2 months.
Cirax
Cirax is a biological filter medium which creates the perfect colonisation conditions
for useful bacteria, due to its large, highly porous surface. We recommend changing
JUWEL Cirax every 12 months.
Phorax
JUWEL Phorax is a highly effective filter medium used to break down phosphates in
your aquarium. This effectively reduces the growth of algae and can contribute to
improved plant growth. Change JUWEL Phorax every 2 weeks.
Important:
Always use original JUWEL Aquarium filter media to ensure the optimum
performance of your system.
The JUWEL aquarium heater is supplied with the heater holder (fig. 1) which you
will need for the installation.
Please perform the following steps for all JUWEL Aquarium filter systems: (You may
need to start by removing an installed separation wall holder.)
1. Install the heater holder.
2. Attach the heater to the filter housing on the inside of the filter and/or initially insert
the heater holder into the guide rail of the separation wall.
The heater is properly positioned if the heater holder rests on the upper edge of the
housing and/or the separation wall.
The heater is now operational.
8
JUWEL AquaHeat Pro- Operation and maintenance of the heater
Recommendation:
The JUWEL automatic heater warms the water of your aquarium up to 28°C depending on a nomal room temperature of 21°C. If
you keep your aquarium in rooms below this or your fish need a higher temperature, we recommend to purchase a second
heater.
Safety instructions:
SAFETY INSTRUCTIONS:
The JUWEL adjustable aquarium heater is an essential component of the JUWEL
filter system. Its positioning within the filter housing and consequently in the water
stream facilitates even warming of the water in the aquarium.

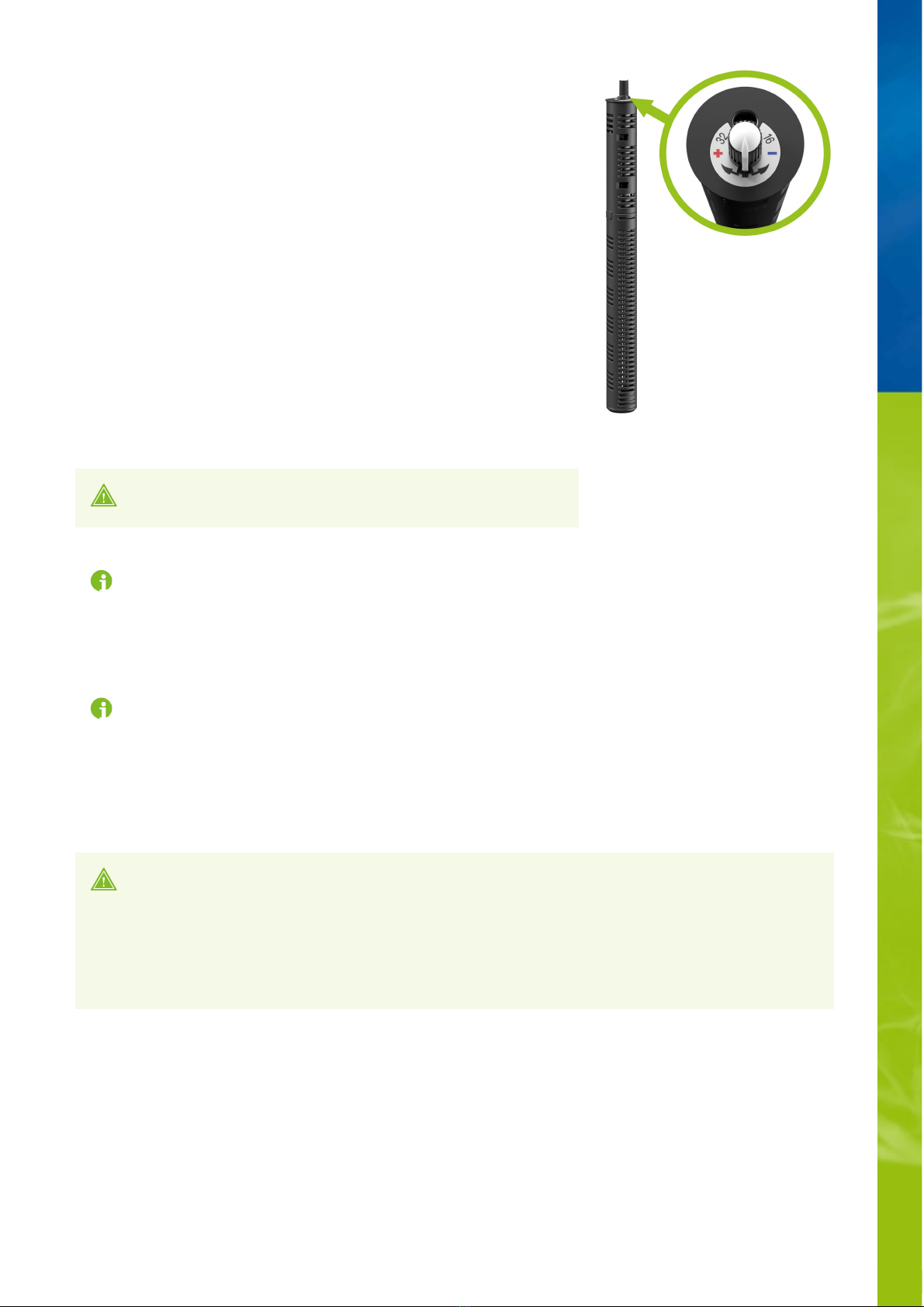

You control the temperature of the water via the adjusting knob in the heater head.
You may specify the temperature the heater is supposed to heat the water to in
accordance with your individual requirements. The centre position between "+" and
"-" corresponds to a water temperature of approximately 23 – 26°C or 74 – 78°F
depending on the ambient temperature.
THE HOUSING CANNOT AND MUST NOT BE OPENED!
Only connect the heater once the aquarium is filled with water at least to the minimum water level of the heater.•
Maximum operating depth 80 cm.•
Never use the heater outside the aquarium.•
Operate the heater indoors only.•
Always unplug the heater and allow it to cool before removing it from the filter.•
Never attempt to open or repair the heater. Any signs of damage or malfunction and the heater should be replaced with
an original JUWEL Aquarium heater.
•
Never repair the electrical cord or plug. In case of damage replace the complete heater.•
Once removed never place on a flammable surface.•
9
Maintenance of the pump JUWEL Eccoflow in the filter system
Bioflow Super M, L, XL
The JUWEL Eccoflow pump should be checked with regard to functionality and cleaned at regular intervals (at least once a
month).
Please proceed as follows to this end:
After that, please reinstall the pump in reverse order in the filter.
Recommendation:
We recommend that you replace the parts subjected to wear and tear, e.g. the impeller, axle and the rubber axle holders, at
intervals of approx. 12 months in order to ensure the optimum function and operating quietness of the pump. Inquire at your
specialist retailer for assistance.
JUWEL DigitalThermometer 3.0
With the digital thermometer 3.0, you can check the water temperature in your
aquarium conveniently and precisely. The thermometer is integrated perfectly into
the JUWEL design and the large display allows for comfortable temperature
readings.
The JUWEL DigitalThermometer 3.0 is available as an original accessory
(Article Number 85703) for JUWEL aquariums.
Disconnect all electrical devices that are operated in the water from the power grid.1.
Remove the outlets.2.

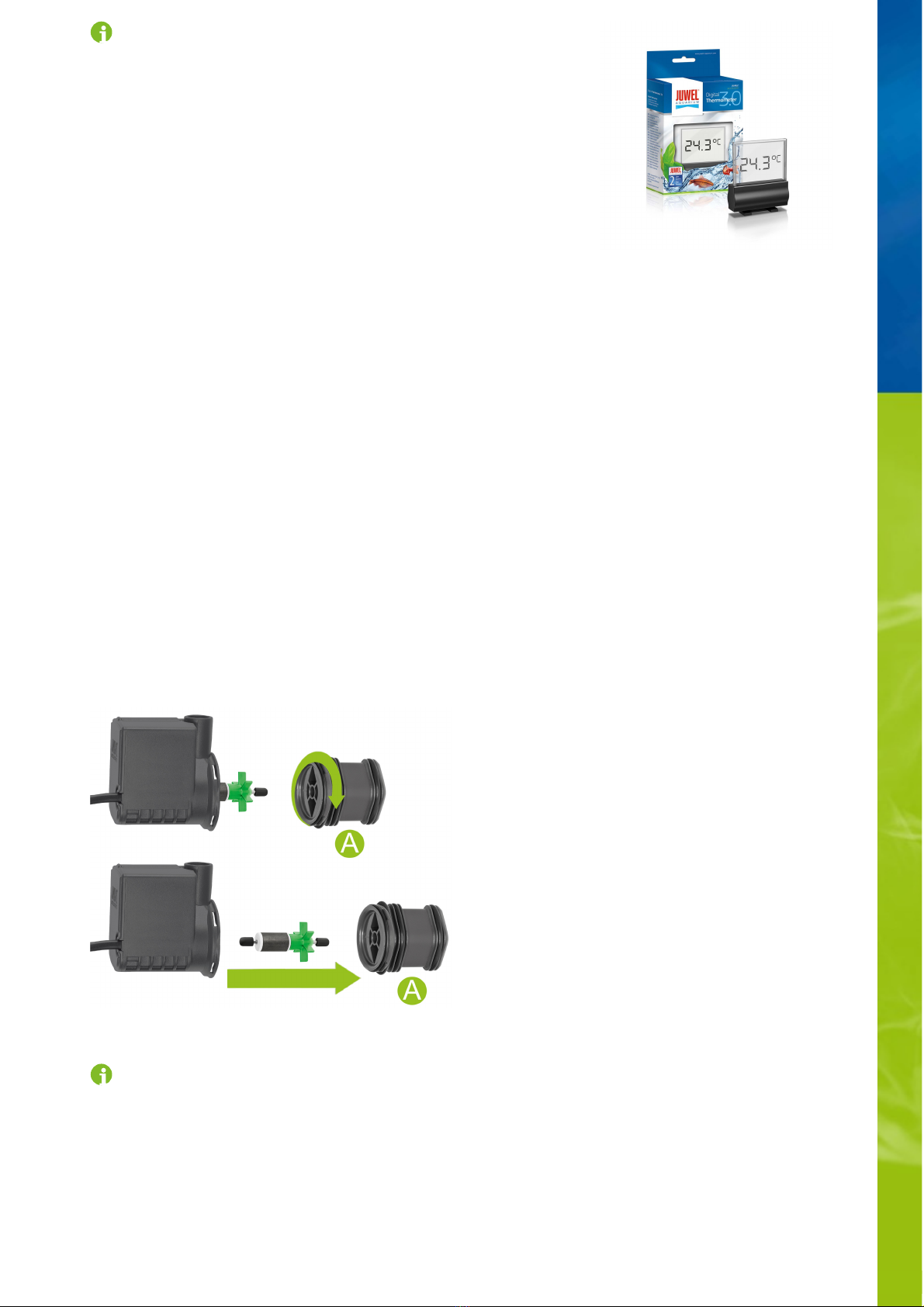

Remove the pump from the pump retainer of the filter.3.
Disconnect the adapter (A) from the motor by turning it counter-clockwise and remove the impeller from the chamber.4.
Now clean all components thoroughly. Deposits and dirt should in particular be removed from the pump chamber, the
impeller and pump shaft. Otherwise the functionality of the pump will be impaired.
5.
Check the impeller for damage and possible signs of wear of the magnet. You should also ensure that the two rubber
bearings are located on the ends of the pump shaft.
6.
10
SAFETY INSTRUCTIONS:
JUWEL PrimoLux 60 / 80
Putting the PrimoLux 60 / Primolux 80 into operation.
Maintenance and care JUWEL PrimoLux 60 / 80
Never operate the power head out of water.•
Always unplug the power head from the power supply before removing it from the filter.•
The power head is intended for indoor use and for use in fluids up to 35°C.•
Never repair the electrical cord or plug. In case of damage replace the complete power head.•
You achieve the optimum energy-saving lighting for your aquarium with the Primolux
60 / PrimoLux 80 cover light by JUWEL Aquarium, and it simultaneously offers you
access to the aquarium for maintenance measures while being lit.
The Primolux 60 / Primolux 80 cover light by JUWEL Aquarium consists of
- Covering hood (1)
- JUWEL NovoLux LED with charger (2)
- Service hatch/es (3) for the supply of feed and water treatment agents etc.

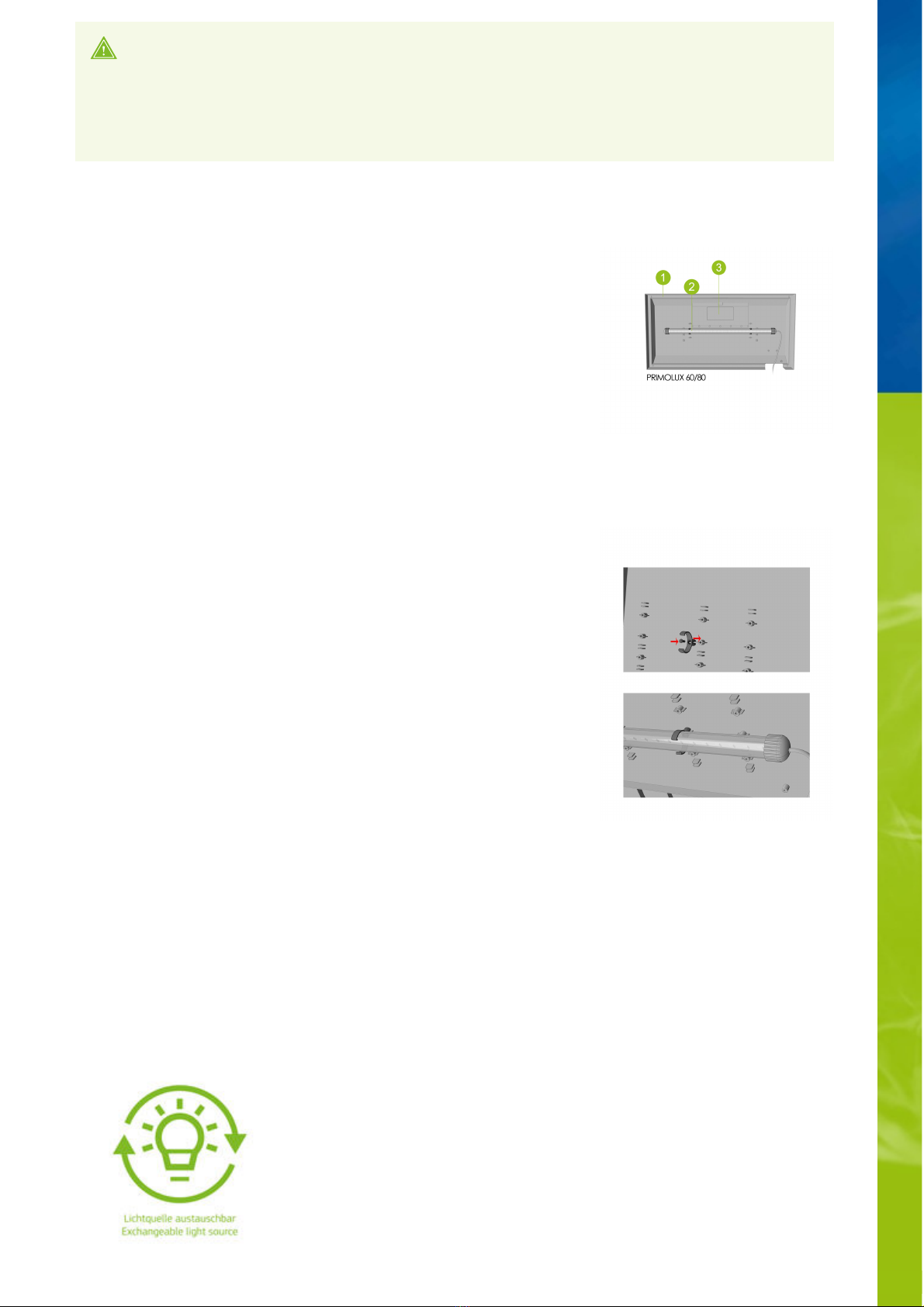

Position the enclosed brackets onto the cover light mountings according to the
illustration and screw them tight.
Now insert the NovoLux LEDs into the brackets and place the cover light on the
aquarium.
Then insert the service hatch and connect the PrimoLux 60 / PrimoLux 80 to the
power supply.
Ensure that the upper edge of the aquarium and the guide rails of the service
hatch/es are free of foreign objects, e.g. sand or gravel.
The PrimoLux 60 / Primolux 80 cover light requires very little maintenance and
attention.
If necessary, we recommend cleaning with a soft cloth and mild detergent.
During care and maintenance activities, always disconnect the Novolux LED from
the power supply.
11
TIPP Tip:
The PrimoLux 60 / Primolux 80 offers you the option of using additional NovoLux LEDs to enhance the illumination or achieve
special colour effects in the aquarium. Inquire at your specialist retailer to that end.
PrimoLux symbols
NovoLux LED symbols
Bioflow Filter symbols
JUWEL SmartFeed 2.0 Futterautomat
The JUWEL SmartFeed 2.0 is a convenient automatic feeder for granulate and flake
feed with an extended range of functions.
Three different feeding intervals (24/48/72 hours), as well as the desired feeding
time and quantity can be programmed individually (up to 8 levels). The device
allows for up to 3 feedings per day. The feeder is equipped with a micro USB
interface for external power supply.
The JUWEL SmartFeed 2.0 is available as an original accessory (Article
Number 89020) for JUWEL aquariums.
12
AquaHeat Pro symbols
Filtermedia symbols
PLEASE RECYCLE AS REQUIRED!
Please do not hesitate to contact our competent administration if you have any questions.
Proper disposal (electrical waste)
The labelling on the product or on the accompanying literature declares that it must not be disposed of, at the end of its service
life, together with household rubbish. Please dispose of this equipment separately from other waste, to protect the environment
or public health from damage by unregulated waste disposal.
Recycle the equipment and support the sustained recycling of material resources.
Private users should contact the dealer who sold them the product or the responsible authorities, for a demonstration on how to
recycle the equipment in an environmentally friendly way.
13
Guarantee
We guarantee the performance of the JUWEL-Aquarium product or its accessories to the purchaser for a period of 24 months
from the date of purchase according to the following conditions:
§ 1 Extent of the guarantee
(1) This guarantee extends to the JUWEL-Aquarium product and its components excluding items subject to wear and tear such
as T5 and T8 light tubes and filter media. It is limited to the product as such and does not cover damage to other property
and/or individuals. In addition, the provisions of the product liability law apply. These provisions are not limited by the
aforementioned arrangement.
(2) It is the prerogative of JUWEL-Aquarium to decide whether the guarantee is performed by means of repair or replacement. If
neither repair nor replacement can ensure the performance of the JUWEL-Aquarium product the purchaser is entitled to
demand a reduction in price or to return the product against repayment of the purchase price.
§ 2 Guarantee period and settlement procedure
(1) The guarantee period begins on the day of the purchase of the JUWEL Aquarium product from the retailer. Claims under this
guarantee will not be honoured, if
(a) the damage is caused as a result of improper use or maintenance or nonobservance of the instructions given in this manual
(b) the product or its components have been maintained by persons or companies not authorised by the manufacturer to do so
(c) the product or its components have been damaged by mechanical means of whatsoever kind, in particular broken glass
(2) All claims under this guarantee have to be notified to the retailer, from whom the aquarium has been purchased without delay,
however, not longer than 2 weeks from the day of first occurrence of defects. Rights under the consumer protection laws will
remain unaffected.
(3) Guarantee claims will only be accepted if the validity of the claim is supported by evidence of purchase of the JUWEL-
Aquarium product. This declaration of guarantee is a translation only. In case of doubts the original
German language version prevails.
We reserve the right to make technical alterations.
© JUWEL AQUARIUM
® JUWEL, Trigon, Vision, Rekord, Rio, Lido, Vio, Primo, Korall,
MonoLux, DuoLux, MultiLux, KoralLux, Violux, NovoLux, PrimoLux,
SeaSkim, EccoSkim AquaHeat, EasyFeed, SmartFeed, High-Lite,
Warm-Lite, Colour-Lite, Day-Lite, Juwel Twin-Lite, HiFlex,
SmartControl, Juwel Eccoflow, Bioflow, Cirax, Nitrax, Phorax, Carbax,
BioPad, BioCarb, BioPlus, bioBoost, OxyPlus, Silexo,Conexo.
JUWEL AQUARIUM AG & CO. KG
Karl-Göx-Straße 1 27356 Rotenburg/Wümme . GERMANY
Telefon +49(0)42 61/93 79-32
Telefax +49(0)42 61/93 79-856
Service-Mail service@juwel-aquarium.de
JUWEL AQUARIUM UK Branch
Gateway 11 Business Park
Penfold Drive, Wymondham Norfolk NR18 0WZ
Tel.: 01953 606 363 Fax: 01953 603 839
E-Mail: info@juwel-aquarium.co.uk
Service-Mail: info@juwel-aquarium.co.uk
14
This product contains light sources of the energy efficiency classes:
15
Primo 60 & 70 Primo 110
Product Code Product Code
1. black: black:
INT: 36360 INT: 36380
AU: 36363 AU: 36383
UK: 36362 UK: 36382
white: ---
INT: 36460 ---
AU: 36463 ---
UK: 36462 ---
2. 49260 49280
3. 49205 49205
4 49200 49200
17

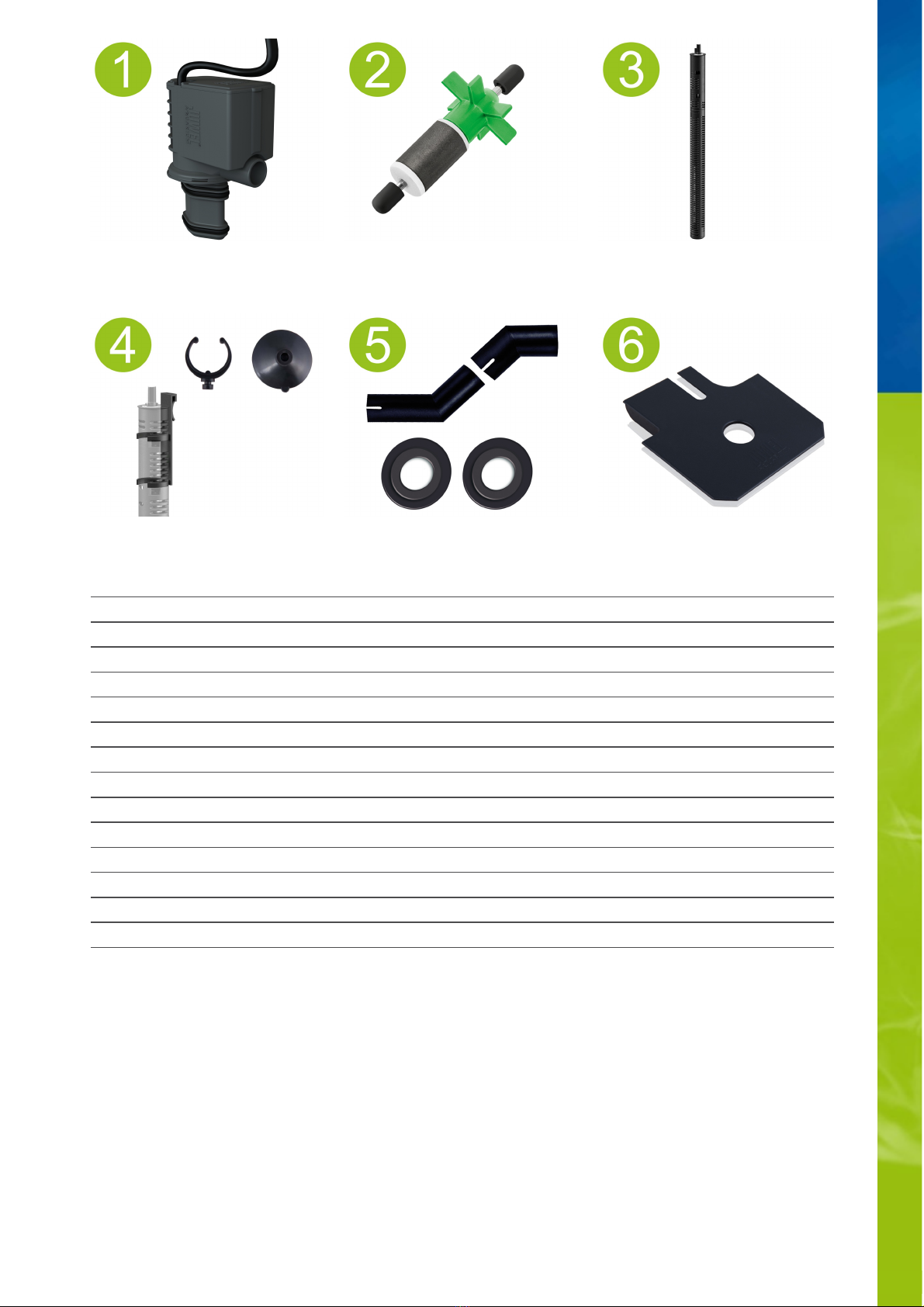

Aquarium Primo 110
Filter Type Bioflow Super
Product Code
1. Eccoflow 500
INT: 85752
UK: 85762
AU: 85772
2. 85091
3. AquaHeat Pro 100 W
INT: 85625
UK:85825
AU: 85875
4. 85990
5. 90046
6. 90016
19
Table of contents
Other juwel Aquarium manuals
