JVC KD-X210 User manual

Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
ENGLISH
FRANÇAIS
GET0946-001A [E/EN/EU]
KD-X210 / KD-X110
DIGITAL MEDIA RECEIVER
INSTRUCTION MANUAL
RÉCEPTEUR MULTIMÉDIA NUMÉRIQUE
MANUEL D’INSTRUCTIONS
Please read all instructions carefully before
operation to obtain the best possible performance
from the unit.
Veuillez lires les instructions attentivement avant
d’utiliser l’appareil afin d’obtenir les meilleures
performances possibles de l’appareil.
EN_KD-X210[E_EU]1.indd 1EN_KD-X210[E_EU]1.indd 1 10/23/2013 4:19:33 PM10/23/2013 4:19:33 PM

i
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
Information on Disposal of Old Electrical and Electronic Equipment and Batteries
(applicable for EU countries that have adopted separate waste collection systems)
Products and batteries with the symbol (crossed-out wheeled bin) cannot be disposed as
household waste.
Old electrical and electronic equipment and batteries should be recycled at a facility capable of
handling these items and their waste byproducts.
Contact your local authority for details in locating a recycle facility nearest to you. Proper
recycling and waste disposal will help conserve resources whilst preventing detrimental effects
on our health and the environment.
Notice: The sign “Pb” below the symbol for batteries indicates that this battery contains lead.
Information sur l’élimination des anciens équipements électriques et électroniques
et piles électriques (applicable dans les pays de l’Union Européenne qui ont adopté
des systèmes de collecte sélective)
Les produits et piles électriques sur lesquels le pictogramme (poubelle barrée) est apposé ne
peuvent pas être éliminés comme ordures ménagères.
Les anciens équipements électriques et électroniques et piles électriques doivent être recyclés
sur des sites capables de traiter ces produits et leurs déchets.
Contactez vos autorités locales pour connaître le site de recyclage le plus proche. Un recyclage
adapté et l’élimination des déchets aideront à conserver les ressources et à nous préserver des
leurs effets nocifs sur notre santé et sur l’environnement.
Remarque: Le symbole “Pb“ ci-dessous sur des piles électrique indique que cette pile contient
du plomb.
For Israel
EN_KD-X210[E_EU]1.indd iEN_KD-X210[E_EU]1.indd i 10/23/2013 4:19:36 PM10/23/2013 4:19:36 PM

ii
ENGLISH |
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
Declaration of Conformity with regard to the EMC Directive 2004/108/EC
Declaration of Conformity with regard to the RoHS Directive 2011/65/EU
Manufacturer:
JVC KENWOOD Corporation
3-12, Moriya-cho, Kanagawa-ku, Yokohama-shi, Kanagawa, 221-0022, Japan
EU Representative’s:
JVC Technical Services Europe GmbH
Konrad-Adenauer-Allee 1-11, D-61118 Bad Vilbel, Germany
Déclaration de conformité se rapportant à la directive EMC 2004/108/EC
Déclaration de conformité se rapportant à la directive RoHS 2011/65/EU
Fabricant:
JVC KENWOOD Corporation
3-12, Moriya-cho, Kanagawa-ku, Yokohama-shi, Kanagawa, 221-0022, Japan
Représentants dans l’UE:
JVC Technical Services Europe GmbH
Konrad-Adenauer-Allee 1-11, D-61118 Bad Vilbel, Germany
EN_KD-X210[E_EU]1.indd iiEN_KD-X210[E_EU]1.indd ii 10/23/2013 4:19:36 PM10/23/2013 4:19:36 PM

2
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
CONTENTS BEFORE USE
Warning
Do not operate any function that takes your attention away from safe driving.
Caution
Volume setting:
• Adjust the volume so that you can hear sounds outside the car to prevent accidents.
• Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of
the output level.
General:
• Avoid using the USB device or iPod/iPhone if it might hinder safe driving.
• Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded
data.
• Never put or leave any metallic objects (such as coins or metal tools) inside the unit, to prevent a short
circuit.
Remote control (RM-RK52):
• Do not leave the remote control in hot places such as on the dashboard.
• The Lithium battery is in danger of explosion if replaced incorrectly. Replace it only with the same or
equivalent type.
• The battery pack or batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
• Keep the battery out of reach of children and in its original packaging when not in used. Dispose of used
batteries promptly. If swallowed, contact a physician immediately.
BEFORE USE 2
BASICS 3
GETTING STARTED 4
USB / iPod 5
RADIO 7
AUX 8
AUDIO SETTINGS 9
DISPLAY SETTINGS 10
MORE INFORMATION 11
TROUBLESHOOTING 12
SPECIFICATIONS 13
INSTALLATION /
CONNECTION 14
How to read this manual
• Operations are explained mainly
using buttons on the faceplate of
KD-X110 .
•
[XX] indicates the selected items.
•
( XX) indicates references are
available on the stated page.
Maintenance
Cleaning the unit: Wipe off dirt on the faceplate with a dry silicone or soft
cloth.
Cleaning the connector: Detach the faceplate and clean the connector
gently with a cotton swab, being careful not to damage the connector. Connector (on the reverse
side of the faceplate)
EN_KD-X210[E_EU]1.indd 2EN_KD-X210[E_EU]1.indd 2 10/23/2013 4:19:36 PM10/23/2013 4:19:36 PM

3
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
BASICS
Remote control (RM-RK52)
KD-X110 can be remotely controlled with an
optionally purchased remote control.
To Do this (on the faceplate) Do this (on the remote control)
Turn on the power Press B/SOURCE.
• Press and hold to turn off the power. ( not available )
Adjust the volume Turn the volume knob. Press VOL + or VOL –.
Press the volume knob to mute the sound or pause playback.
• Press again to cancel. Press to mute the sound or pause playback.
• Press again to cancel.
Select a source • Press B/SOURCE repeatedly.
• Press B/SOURCE, then turn the volume knob within 2 seconds.
Press SOURCE repeatedly.
Change the display
information
Press DISP repeatedly.
( 11)
• Press and hold to scroll the current display information. ( not available )
Attach
How to reset
Detach
Your preset adjustments
will also be erased.
Faceplate
KD-X210
KD-X210 Volume knob
(turn/press)
Detach
button
Display window
ENGLISH |
Pull out the insulation sheet
when using for the first time.
How to replace the battery
Remote sensor
(Do not expose to bright sunlight.)
EN_KD-X210[E_EU]1.indd 3EN_KD-X210[E_EU]1.indd 3 10/23/2013 4:19:36 PM10/23/2013 4:19:36 PM

4
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
GETTING STARTED
Cancel the demonstration
1 Press and hold MENU.
2 Turn the volume knob to select [DEMO] , then press the knob.
3 Turn the volume knob to select [DEMO OFF] , then press the knob.
4 Press MENU to exit.
Set the clock
1 Press and hold MENU.
2 Turn the volume knob to select [CLOCK] , then press the knob.
3 Turn the volume knob to select [CLOCK SET] , then press the knob.
4 Turn the volume knob to make the settings, then press the knob.
Day Hour Minute
5 Turn the volume knob to select [24H/ 12H] , then press the knob.
6 Turn the volume knob to select [12 HOUR] or [24 HOUR] , then press the
knob.
7 Press MENU to exit.
Set the basic settings
1 Press and hold MENU.
2 Turn the volume knob to make a selection (see the following table),
then press the knob.
3 Press MENU to exit.
To return to the previous setting item or hierarchy, press T/P.
1
2
Default: XX
CLOCK
CLOCK ADJ AUTO
:The clock time is automatically set using the Clock Time (CT) data in
FM Radio Data System signal.;
OFF :Cancels.
CLOCK DISP ON :The clock time is shown on the display even when the unit is turned
off.;
OFF :Cancels.
SETTINGS
BEEP ON
:Activates the keypress tone.; OFF :Deactivates.
SRC SELECT
AM
* ON :Enables AM in source selection.; OFF :Disables.

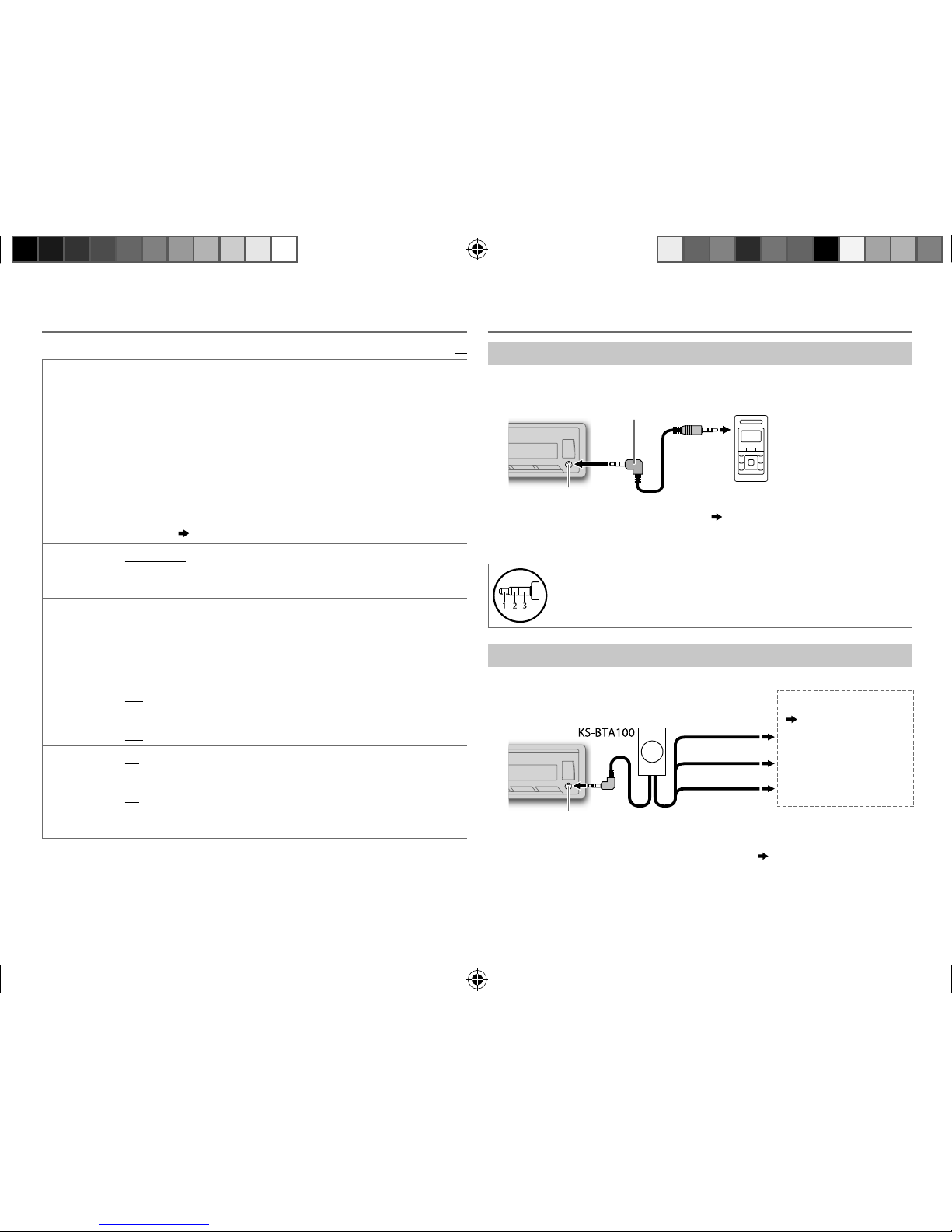

AUX * ON :Enables AUX in source selection.; OFF :Disables.; BT ADAPTER :Select
when the KS-BTA100 Bluetooth adapter is connected to the auxiliary input
jack
( 8) . The source name will change to BTAUDIO.
LANGUAGE Selects the display language for menu and Tag information (folder name, file
name, song title, artist name, album name) if applicable.
ENGLISH :Display language is English.
РУССКИЙ :Display language is Russian.
F/W UPDATE
SYSTEM
F/W xxxx YES
:Starts upgrading the firmware.; NO :Cancels (upgrading is not
activated).
For details on how to update the firmware, see:
<http://www.jvc.net/cs/car/>.
* Not displayed when the corresponding source is selected.
3
EN_KD-X210[E_EU]1.indd 4EN_KD-X210[E_EU]1.indd 4 10/23/2013 4:19:36 PM10/23/2013 4:19:36 PM

5
ENGLISH |
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
USB / iPod
KD-X210
KD-X210
To Do this
Select a file Press S/T(or press H/Ion RM-RK52).
Select a folder *2Press 1K/2J(or press J/Kon RM-RK52).
Reverse/
Fast-forward
Press and hold S/T(or press and hold H/Ion RM-RK52).
Repeat play *3Press 4repeatedly to make a selection.
• JVC Playlist Creator (JPC) / JVC Music Control (JMC) file ( 11) : TRACKRPT,
RPTOFF
• MP3/WMA/WAV/FLAC file: TRACKRPT, FOLDERRPT, RPTOFF
• iPod: ONE RPT, ALL RPT, RPT OFF
Random play *3Press 3repeatedly to make a selection.
• MP3/WMA/WAV/FLAC file or JPC / JMC file: FOLDERRND, ALLRND,
RNDOFF
• iPod: SONGRND, ALLRND, RNDOFF
*1Do not leave the cable inside the car when not using.
*2Only for MP3/WMA/WAV/FLAC files. This does not work for iPod.
*3For iPod: Applicable under
[HEAD MODE] only.
Start playback
The source changes automatically and
playback starts.
USB
iPod/iPhone (for KD-X210 )
• You can also change the source from the
other source to iPod by pressing iPod.
Press 5 iPod MODE repeatedly to select the
control mode (
[HEAD MODE] / [IPHONE MODE] ).
USB input terminal
USB input terminal USB 2.0 cable
*1
(commercially available)
(Accessory of the iPod/iPhone)
*1
EN_KD-X210[E_EU]1.indd 5EN_KD-X210[E_EU]1.indd 5 10/23/2013 4:19:37 PM10/23/2013 4:19:37 PM

6
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
Select a file from a list
For iPod: Applicable only when [HEAD MODE] is selected. ( 5)
1 Press MENU
2 Turn the volume knob to make a selection, then press the knob.
• MP3/WMA/WAV/FLAC file: Select the desired folder, then a file.
• iPod or JPC / JMC file: Select the desired file from the list (PLAYLISTS,
ARTISTS, ALBUMS, SONGS, PODCASTS*, GENRES, COMPOSERS*,
AUDIOBOOKS*).
*
Only for iPod.
If you have many files....
You can search through them quickly (on step 2above) by turning the
volume knob quickly.
• Not applicable for iPod.
Select a song by name
(For KD-X210 )
While listening to the iPod and
[HEAD MODE] is selected ( 5) ....
If you have many folders or files, you can search through them quickly
according to the first character (A to Z, 0 to 9 and OTHERS).
• “OTHERS” appear if the first character is other than Ato Z, 0 to 9.
1 Press MENU.
2 Turn the volume knob to select the desired list, then press the
knob.
3 Press 1K/2Jor turn the volume knob quickly to select the desired
character.
4 Turn the volume knob to select the desired folder or file, then press
the knob.
Change the USB drive
When a smartphone (Mass Storage Class) is connected to the USB input
terminal, you can select its internal memory or external memory (such as an
SD card) to playback the stored songs.
You can also select the desired drive to playback when a multiple drives
device is connected.
Press number button 5repeatedly to select the desired drive.
(or)
1 Press and hold MENU.
2 Turn the volume knob to select [USB/IPOD] , then press the knob.
3 Turn the volume knob to select [USB] , then press the knob.
4 Press the volume knob to select [DRIVECHANGE] .
The next drive is selected automatically.
Repeat steps 1to 4to select the following drives.
Selectable items:
[DRIVE  1] to [DRIVE  5]
Change the playback speed of the Audiobook
(For KD-X210 )
While listening to the iPod and
[HEAD MODE] is selected ( 5) ....
1 Press and hold MENU.
2 Turn the volume knob to select [USB/IPOD] , then press the knob.
3 Turn the volume knob to select [IPOD] , then press the knob.
4 Turn the volume knob to make a selection, then press the knob.
BOOK NORMAL / BOOK FASTER / BOOK SLOWER : Select the desired playback
speed of the Audiobooks sound file in your iPod/iPhone.
(Default: Depends on your iPod/iPhone setting.)
• To return to the previous setting item or hierarchy, press T/P.
• To cancel, press MENU.
USB / iPod
EN_KD-X210[E_EU]1.indd 6EN_KD-X210[E_EU]1.indd 6 10/23/2013 4:19:37 PM10/23/2013 4:19:37 PM

7
ENGLISH |
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
RADIO
“ST” lights up when receiving an FM stereo broadcast with sufficient
signal strength.
Search for a station
1 Press B/SOURCE to select FM or AM.
2 Press S/T(or press H/Ion RM-RK52) to search for a station
automatically.
(or)
Press and hold S/T(or press and hold H/Ion RM-RK52) until
“M” flashes, then press repeatedly to search for a station manually.
Store a station
You can store up to 18 stations for FM and 6 stations for AM.
While listening to a station....
Press and hold one of the number buttons (1to 6) to store.
(or)
1 Press and hold the volume knob until “PRESETMODE” flashes.
2 Turn the volume knob to select a preset number, then press the
knob.
The preset number flashes and “MEMORY” appears.
• To select a stored station: Press one of the number buttons (1to6).
(or)
Press MENU, then turn the volume knob to select a preset number and
press the knob to confirm.
Search for your favorite program (PTY Search)
Available only for FM source.
1 Press and hold T/P.
2 Turn the volume knob to select a PTY code, then press the knob to
start searching.
If there is a station broadcasting a program of the same PTY code as
you have selected, that station is tuned in.
PTY code: NEWS , AFFAIRS , INFO , SPORT , EDUCATE , DRAMA , CULTURE , SCIENCE , VARIED ,
POP M (music), ROCK M (music), EASY M (music), LIGHT M (music), CLASSICS , OTHER M
(music),
WEATHER , FINANCE , CHILDREN , SOCIAL , RELIGION , PHONE IN , TRAVEL , LEISURE ,
JAZZ , COUNTRY , NATION M (music), OLDIES , FOLK M (music), DOCUMENT
Activate TA Standby Reception
Available only for FM source.
Press T/P.
The unit will temporarily switch to Traffic Announcement (TA) (if
available) from any source other than AM.
• To deactivate, press T/P again.
Other settings
1 Press and hold MENU.
2 Turn the volume knob to select [TUNER] , then press the knob.
3 Turn the volume knob to make a selection ( 8) , then press the
knob.
4 Press MENU to exit.
To return to the previous setting item or hierarchy, press T/P.
EN_KD-X210[E_EU]1.indd 7EN_KD-X210[E_EU]1.indd 7 10/23/2013 4:19:37 PM10/23/2013 4:19:37 PM

8
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
Use a portable audio player
1 Connect a portable audio player (commercially available).
2 Select [ON] for [AUX] in [SRC SELECT] . ( 4)
3 Press B/SOURCE to select AUX.
4 Turn on the portable audio player and start playback.
Use a 3-core plug head stereo mini plug for optimum audio
output.
Use a Bluetooth® device
1 Connect the Bluetooth adapter, KS-BTA100 (separately purchased).
2 Register (pair) the Bluetooth device with KS-BTA100.
3 Select [BT ADAPTER] for [AUX] in [SRC SELECT] . ( 4)
4 Press B/SOURCE to select BT AUDIO.
5 Start using the Bluetooth device.
For details, refer to the instruction manual of KS-BTA100.
3.5mm stereo mini plug with “L” shaped connector
(commercially available)
Portable audio player
Auxiliary input jack
Auxiliary input jack
Blue/white Blue/white: Remote
Black Black: Ground
Brown Brown: Tel muting
Wiring harness of the unit
( 15)
AUX
Default: XX
RADIO TIMER Turns on the radio at a specific time regardless of the current source.
1 ONCE / DAILY / WEEKLY / OFF :Select how often the timer will be turned
on.
2 FM / AM :Select the FM or AM band.
3 01 to 18 (for FM)/ 01 to 06 (for AM):Select the preset station.
4 Set the activation day and time.
• “
M ” lights up when complete.
Radio Timer will not activate for the following cases.
• The unit is turned off.
•
[OFF] is selected for [AM] in [SRC SELECT] after Radio Timer for AM is
selected.
( 4)
SSM SSM 01 – 06
/ SSM 07 – 12 / SSM 13 – 18 :Automatically presets up to
18 stations for FM. “SSM” stops flashing when the first 6 stations are stored.
Select
SSM 07 – 12 / SSM 13 – 18 to store the following 12 stations.
IF BAND * AUTO :Increases the tuner selectivity to reduce interference noises from
adjacent FM stations. (Stereo effect may be lost.);
WIDE :Subjects to
interference noises from adjacent FM stations, but sound quality will not be
degraded and the stereo effect will remain.
MONO * ON :Improves the FM reception, but the stereo effect will be lost.;
OFF :Cancels.
NEWS-STBY * ON :The unit will temporarily switch to News Programme if available.;
OFF :Cancels.
REGIONAL * ON : Switches to another station only in the specific region using the “AF”
control.;
OFF :Cancels.
AF SET * ON : Automatically searches for another station broadcasting the same
program in the same Radio Data System network with better reception
when the current reception is poor.;
OFF : Cancels.
* Only for FM source.
RADIO
EN_KD-X210[E_EU]2.indd 8EN_KD-X210[E_EU]2.indd 8 10/30/2013 9:50:14 AM10/30/2013 9:50:14 AM

9
ENGLISH |
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
AUDIO SETTINGS
(For KD-X110 )
To Do this
Select a preset
equalizer
Press EQ repeatedly.
(or)
Press EQ, then turn the volume knob within
2seconds.
FLAT (default), HARD ROCK, JAZZ, POP, R&B,
TALK, USER1, USER2, VOCAL BOOST, BASS BOOST,
CLASSICAL, DANCE
Store your
own sound
settings
Default:
00
1 Press and hold EQ.
2 Turn the volume knob to select [EASY EQ] , then press
the knob.
3 Turn the volume knob to select [USER1] or [USER2] ,
then press the knob.
4 Turn the volume knob to make a selection, then
press the knob.
SUB.W
*: –08 to +08
BASSLVL: –06 to +06
MIDLVL:–06to+06
TRELVL: –06 to +06
• To return to the previous setting item, press GT/P.
• To exit, press EQ.
* Displayed only when
[L/O  MODE] is set to [SUB.W] ( 10) and [SUB.W] is set
to
[ON] . ( 9)
Other settings
1 Press and hold MENU.
2 Turn the volume knob to make a selection ( see the following table ) ,
then press the knob.
Repeat step 2until the desired item is selected.
3 Press MENU to exit.
To return to the previous setting item or hierarchy, press GT/P.
Default: XX
EQ SETTING
EQ PRESET FLAT
/ HARD ROCK / JAZZ / POP / R&B / TALK / USER1 / USER2 /
VOCAL BOOST / BASS BOOST / CLASSICAL / DANCE :Selects a preset
equalizer.
EASY EQ
Default: 00
1 USER1 / USER2 :Select a preset name.
2 Adjust your own sound settings.
SUB.W
*1
: –08 to +08 / BASS  LVL : –06 to +06 /
MID  LVL: –06 to +06 / TRE  LVL : –06 to +06
PRO EQ
1 USER1 / USER2 :Select a preset name.
2 BASS / MIDDLE / TREBLE :Select a sound tone.
3 Adjust the sound elements of the selected sound tone.
BASS Frequency: 60 / 80 / 100 / 200 Hz Default: ( 80 Hz )
Level:
–06 to +06 ( 00 )
Q:
Q1.0 / Q1.25 / Q1.5 / Q2.0 ( Q1.0 )
MIDDLE Frequency: 0.5 / 1.0 / 1.5 / 2.5 kHz Default: ( 1.0 kHz )
Level:
–06 to +06 ( 00 )
Q:
Q0.75 / Q1.0 / Q1.25 ( Q1.25 )
TREBLE Frequency: 10.0 / 12.5 / 15.0 / 17.5 kHz Default: ( 10.0 kHz )
Level:
–06 to +06 ( 00 )
Q:
Q FIX ( Q FIX )
AUDIO
BASS BOOST
*2
+01 / +02 : Selects your preferred bass boost level.; OFF :Cancels.
LOUD 01 / 02 :Boosts low or high frequencies to produce a well-balanced sound
at low volume.;
OFF :Cancels.
SUB.W LEVEL
*3
–08 — +08 ( 00 ):Adjusts the subwoofer output level.
SUB.W
*4
ON / OFF : Turns on or off the subwoofer output.
SUB.W  LPF
*3
THROUGH :All signals are sent to the subwoofer. ; LOW  55Hz /
MID  85Hz / HIGH 120Hz :Audio signals with frequencies lower than
55Hz/ 85Hz/ 120Hz are sent to the subwoofer.
EN_KD-X210[E_EU]2.indd 9EN_KD-X210[E_EU]2.indd 9 10/30/2013 9:50:15 AM10/30/2013 9:50:15 AM

10
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
1 Press and hold MENU.
2 Turn the volume knob to make a selection (see the following table),
then press the knob.
Repeat step
2until the desired item is selected.
3 Press MENU to exit.
To return to the previous setting item or hierarchy, press GT/P.
Default: XX
DISPLAY
DIMMER
Selects the display and button illumination adjusted in the [BRIGHTNESS]
setting.
AUTO :Changes between the day and night adjustments when you turn off
or on the car headlights.*
1
; ON :Selects the night adjustments.; OFF :Selects
the day adjustments.
BRIGHTNESS Sets the button, display and USB input terminal brightness for day and night
separately.
1 DAY / NIGHT :Select day or night.
2 Select a zone for setting. ( Illustration above)
3 Set the brightness level ( 00 to 31 ).
(Default:
BUTTON ZONE : DAY : 25 ; NIGHT : 09
DISP ZONE : DAY : 31 ; NIGHT : 12 )
SCROLL * 2 ONCE :Scrolls the display information once.; AUTO :Repeats scrolling at
5-second intervals.;
OFF :Cancels.
*1
The illumination control wire connection is required. ( 15)
*2
Some characters or symbols will not be shown correctly (or will be blanked).
DISPLAY SETTINGS
FADER
*2
*5
R06 — F06 ( 00 ):Adjusts the front and rear speaker output balance.
BALANCE
*2 *5
L06 — R06 ( 00 ):Adjusts the left and right speaker output balance.
VOL  ADJUST –05 — +05 ( 00 ):Presets the volume adjustment level of each source
(compared to the FM volume level). Before adjustment, select the source
you want to adjust. (“VOLADJFIX” appears if FM is selected.)
AMP  GAIN LOW  POWER :Limits the maximum volume level to 30. (Select if the
maximum power of each speaker is less than 50W to prevent damaging
the speakers.);
HIGH POWER :The maximum volume level is 50.
D.T.EXP
(Digital Track
Expander)
ON :Creates realistic sound by compensating the high-frequency
components and restoring the rise-time of the waveform that are lost in
audio data compression.;
OFF :Cancels.
TEL  MUTING
*6
ON :Mutes the sounds while using the cellular phone (not connected
through KS-BTA100).;
OFF :Cancels.
L/O  MODE SUB.W / REAR :Selects whether rear speakers or a subwoofer are
connected to the REAR/SW line out terminals on the rear panel (through an
external amplifier).
*1Displayed only when
[L/O  MODE] is set to [SUB.W] and [SUB.W] is set to
[ON] .
*2This adjustment will not affect the subwoofer output.
*3Displayed only when
[SUB.W] is set to [ON] .
*4Displayed only when
[L/O  MODE] is set to [SUB.W] .
*5If you are using a two-speaker system, set the fader level to
[00] .
*6Does not work if
[BT  ADAPTER] is selected for [AUX] in [SRC  SELECT] . ( 4)
AUDIO SETTINGS
EN_KD-X210[E_EU]f.indd 10EN_KD-X210[E_EU]f.indd 10 11/12/2013 5:05:51 PM11/12/2013 5:05:51 PM

11
ENGLISH |
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
MORE INFORMATION
Playable files
• Playable audio file: MP3 (.mp3), WMA (.wma), WAV(.wav), FLAC (.flac)
• Playable USB device file system: FAT12, FAT16, FAT32
Even when audio files comply with the standards listed above, playback may be impossible
depending on the types or conditions of media or device.
About USB devices
• This unit can play MP3/WMA/WAV/FLAC files stored on a USB mass storage class device.
• You cannot connect a USB device via a USB hub.
• Connecting a cable whose total length is longer than 5m may result in abnormal playback.
• The maximum number of characters for:
- Folder names: 64 characters
- File names: 64 characters
- MP3 Tag: 64 characters
- WMA Tag: 64 characters
- WAV Tag: 64 characters
• This unit can recognize a total of 20 480 files, 999 folders (999 files per folder including folder
without unsupported files), and of 8 hierarchies.
• This unit cannot recognize a USB device whose rating is other than 5V and exceeds 1A.
About iPod/iPhone
• Made for
- iPod touch (1st, 2nd, 3rd, 4th, and 5th generation)
- iPod classic
- iPod nano (3rd, 4th, 5th, 6th and 7th generation)
- iPhone, iPhone 3G, 3GS, 4, 4S, 5
• It is not possible to browse video files on the “Videos” menu in
[HEAD MODE] .
• The song order displayed on the selection menu of this unit may differ from that of the iPod/
iPhone.
• If some operations are not performed correctly or as intended, visit:
<http://www.jvc.net/cs/car/>.
About JVC Playlist Creator and JVC Music Control
• This unit supports the PC application JVC Playlist Creator and Android
TM
application JVC Music
Control.
• When you play audio file with song data added using the JVC Playlist Creator or JVC Music
Control, you can search for audio file by Genres, Artists, Albums, Playlists, and Songs.
• JVC Playlist Creator and JVC Music Control are available from the following web site:
<http://www.jvc.net/cs/car/>.
Available Cyrillic letters
Change the display information
Press DISP repeatedly.
FM or AM Station name (PS)*
1
Frequency Program type (PTY)*
1
*
2
Title*
1
*
2
Day/Clock (back to the beginning)
*1
For FM Radio Data System stations only.
*2
If unavailable, “NO PTY” / “NO TEXT” appears.
USB Playing time Day/Clock Album title/Artist*
3
Track title*
3
Folder/file
name (back to the beginning)
*3
If not recorded, “NO NAME” appears.
USB-IPOD Playing time Day/Clock Album title/Artist*
4
Track title*
4
(back to
the beginning)
*4
If not recorded, “NO NAME” appears.
AUX AUX Day/Clock
BT AUDIO BT AUDIO Day/Clock
Available characters
Display indications
EN_KD-X210[E_EU]2.indd 11EN_KD-X210[E_EU]2.indd 11 10/30/2013 9:50:16 AM10/30/2013 9:50:16 AM

12
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
TROUBLESHOOTING
Symptom Remedy
Sound cannot be heard. • Adjust the volume to the optimum level.
• Check the cords and connections.
“MISWIRING CHK WIRING THEN
RESET UNIT” / “WARNING CHK
WIRING THEN RESET UNIT”
appears and no operations can
be done.
Check to be sure the terminals of the speaker wires are
insulated properly, then reset the unit. If this does not solve
the problem, consult your nearest service center.
Source cannot be selected. Check the
[SRC SELECT] setting. ( 4)
Radio reception is poor. / Static
noise while listening to the radio.
• Connect the antenna firmly.
• Pull the antenna out all the way.
Correct characters are not
displayed.
This unit can only display uppercase letters, numbers, and
a limited number of symbols. The unit can also display
uppercase Cyrillic letters.
( 11)
Playback order is not as intended. The playback order is determined by the file name (USB).
Elapsed playing time is not
correct.
This depends on the recording process earlier.
“NOT SUPPORT” appears and
track skips.
Check whether the track is a playable format.
( 11)
“CANNOT PLAY” flashes and/
or connected device cannot be
detected.
• Check whether the connected device is compatible with this
unit and ensure the files are in supported formats.
( 11)
• Reattach the device.
“READING” keeps flashing. • Do not use too many hierarchical levels and folders.
• Reattach the USB device.
The iPod/iPhone does not turn on
or does not work.
• Check the connection between this unit and iPod/iPhone.
• Detach and reset the iPod/iPhone using hard reset.
If you still have troubles, reset the unit. ( 3)
EN_KD-X210[E_EU]1.indd 12EN_KD-X210[E_EU]1.indd 12 10/23/2013 4:19:39 PM10/23/2013 4:19:39 PM

13
ENGLISH |
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
SPECIFICATIONS
Auxiliary

Frequency Response (±3dB) 20Hz—20kHz
Input Maximum Voltage 1200mV
Input Impedance 30kΩ
Audio
Maximum Output Power 50W×4
Output Power
(DIN 45324, +B = 14.4 V)
30W×4
Speaker Impedance 4Ω—8Ω
Preout Level/Load (USB) 2500mV/10kΩ
Preout Impedance ≤600Ω
General
Operating Voltage 14.4V (10.5V—16V allowable)
Maximum Current Consumption 10A
Operating Temperature Range 0°C to +40°C
Installation Size (W×H×D) 182mm×53mm×106mm
Weight 0.62k
g
Subject to change without notice.
TUNER
FM Frequency Range 87.5MHz to 108.0MHz (50kHz step)
Usable Sensitivity (S/N=26dB) 0.71μV/75Ω
Quieting Sensitivity
(DINS/N=46dB)
2.0μV/75Ω
Frequency Response (±3dB) 30Hz to 15kHz
Signal-to-Noise Ratio (MONO) 64dB
Stereo Separation (1kHz) 40dB
AM Frequency Range MW 531kHz to 1611kHz (9kHz step)
LW 153kHz to 279kHz (9kHz step)
Usable Sensitivity (S/N=20dB) MW 28.2μV
LW 50μV
USB
USB Standard USB1.1, USB2.0 (Full speed)
Compatible Devices Mass storage class
File System FAT12/16/32
Maximum Supply Current DC5V 1A
D/A Converter 24 Bit
Frequency Response (±1dB) 20Hz to 20kHz
Signal-to-Noise Ratio (1kHz) 105dB
Dynamic Range 88dB
Channel Separation 90dB
MP3 Decode Compliant with MPEG-1/2 Audio Layer-3
WMA Decode Compliant with Windows Media Audio
WAV Decode RIFF waveform Audio Format (Linear PCM only)
FLAC Decode FLAC files
EN_KD-X210[E_EU]1.indd 13EN_KD-X210[E_EU]1.indd 13 10/23/2013 4:19:39 PM10/23/2013 4:19:39 PM

14
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
INSTALLATION / CONNECTION
Warning
• The unit can only be used with a 12V DC power supply, negative ground.
• Disconnect the battery’s negative terminal before wiring and mounting.
• Do not connect Battery wire (yellow) and Ignition wire (red) to the car
chassis or Ground wire (black) to prevent a short circuit.
• Insulate unconnected wires with vinyl tape to prevent a short circuit.
• Be sure to ground this unit to the car’s chassis again after installation.
Caution
• For safety’s sake, leave wiring and mounting to professionals. Consult the
car audio dealer.
• Install this unit in the console of your vehicle. Do not touch the metal
parts of this unit during and shortly after use of the unit. Metal parts such
as the heat sink and enclosure become hot.
• Do not connect the
[ wires of speakers to the car chassis or Ground wire
(black), or connect them in parallel.
• Connect speakers with a maximum power of more than 50W. If the
maximum power of the speakers is lower than 50W, change the
[AMP GAIN] setting to avoid damaging the speakers. (  10)
•
Mount the unit at an angle of less than 30º.
• If your vehicle wiring harness does not have the ignition terminal,
connect Ignition wire (red) to the terminal on the vehicle’s fuse box
which provides 12 V DC power supply and is turned on and off by the
ignition key.
• After the unit is installed, check whether the brake lamps, blinkers,
wipers, etc. on the car are working properly.
• If the fuse blows, first make sure the wires are not touching car’s chassis,
then replace the old fuse with one that has the same rating.
Basic procedure
1 Remove the key from the ignition switch, then
disconnect the [terminal of the car battery.
2 Connect the wires properly.
See Wiring connection.
(  15)
3 Install the unit to your car.
See Installing the unit (in-dash mounting).
4 Connect the [terminal of the car battery.
5 Reset the unit. (  3)
How to remove the unit
Bracket (not supplied)
Pocket
Flat or round head screws
(not supplied) M5 × 8mm
Do the required wiring.
(  15)
Bend the appropriate tabs to
hold the sleeve firmly in place.
Hook on the top side
Orientate the trim plate as
illustrated before fitting.
Dashboard of
your car
Installing the unit (in-dash mounting)
When installing without the mounting
sleeve
Use only the specified screws. Using wrong screws
might damage the unit.
EN_KD-X210[E_EU]1.indd 14EN_KD-X210[E_EU]1.indd 14 10/23/2013 4:19:39 PM10/23/2013 4:19:39 PM

15
ENGLISH |
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
STEERING
WHEEL
REMOTE
Part list for
installation
(A) Faceplate
(C) Mounting sleeve
(B) Trim plate
(D) Wiring harness
(E) Extraction key
Light blue/yellow
(For
KD-X210 )
To the steering wheel
remote control adapter
IMPORTANT: A custom wiring harness
(separately purchased) which is suitable for
your car is recommended for connection.
If your car does NOT have an
ISO terminal
( or )
ISO connector
* Custom wiring harness (separately
purchased)
For some VW/Audi or Opel (Vauxhall)
automobiles
You may need to modify the wiring of the
supplied power cord
(D) as illustrated.
If the unit does not turn on with modified
wiring 1, use modified wiring 2 instead.
Y: Yellow R: Red
Original wiring
Modified wiring 1
Modified wiring 2
Pin Color and function
A2 Brown : To mobile phone system
A4 Yellow : Battery
A5 Blue/White : Power control
A6 Orange/white : Car light control switch
A7 Red : Ignition (ACC)
A8 Black : Earth (ground) connection
B1 Purple : Rear speaker (right)
B2 Purple/black
B3 Gray : Front speaker (right)
B4 Gray/black
B5 White : Front speaker (left)
B6 White/black
B7 Green : Rear speaker (left)
B8 Green/black
Wiring connection
Signal cord (not supplied)
Remote wire (not supplied)
Fuse (10A)
To Blue/white wire of the
wiring harness
(D)
JVC Amplifier
Rear/subwoofer output
Aerial terminal
EN_KD-X210[E_EU]1.indd 15EN_KD-X210[E_EU]1.indd 15 10/23/2013 4:19:39 PM10/23/2013 4:19:39 PM

2
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
TABLE DES MATIERES AVANT L’UTILISATION
Avertissement
N’utilisez aucune fonction qui risque de vous distraire de la conduite sure de votre véhicule.
Précautions
Réglage du volume:
• Ajustez le volume de façon à pouvoir entendre les sons extérieurs à la voiture afin d’éviter tout risque d’accident.
• Réduisez le volume avant de reproduire des sources numériques afin d’éviter d’endommager les enceintes par la soudaine
augmentation du niveau de sortie.
Généralités:
• Évitez d’utiliser un périphérique USB ou un iPod/iPhone s’il peut gêner la conduite en toute sécurité.
• Assurez-vous que toutes les données importantes ont été sauvegardées. Nous ne pouvons pas être tenu responsable pour toute
perte des données enregistrées.
• Veuillez faire en sorte de ne jamais mettre ou laisser d’objets métalliques (tels que des pièces ou des outils) dans l’appareil, afin
d’éviter tout risque de court-circuit.
Télécommande (RM-RK52):
• Ne laissez pas la télécommande dans des endroits exposés à la chaleur, comme sur le tableau de bord par exemple.
• La pile au lithium risque d’exploser si elle est remplacée incorrectement. Ne la remplacez uniquement qu’avec le même type de
pile ou son équivalent.
• Le boîtier de la pile ou les piles ne doivent pas être exposés à des chaleurs excessives telles que les rayons du soleil, du feu, etc.
• Gardez la pile hors de la portée des enfants et dans son emballage d’origine quand elle n’est pas utilisée. Débarrassez-vous des
piles usagées rapidement. En cas d’ingestion, contactez un médecin immédiatement.
AVANT L’UTILISATION 2
FONCTIONNEMENT DE BASE 3
PRISE EN MAIN 4
USB / iPod 5
RADIO 7
AUX 8
RÉGLAGES AUDIO 9
RÉGLAGES D’AFFICHAGE 10
PLUS D’INFORMATIONS 11
GUIDE DE DÉPANNAGE 12
SPÉCIFICATIONS 13
INSTALLATION /
RACCORDEMENT 14
Comment lire ce manuel
• Les opérations sont expliquées
principalement en utilisant les touches
de la façade du
KD-X110 .
•
[XX] indique les éléments choisis.
•
( XX) indique que des références sont
disponibles aux page citées.
Entretien
Nettoyage de l’appareil: Essuyez la saleté de la façade avec un chiffon sec au silicone
ou un chiffon doux.
Nettoyage du connecteur: Détachez la façade et nettoyez le connecteur à l’aide d’un
coton tige en faisant attention de ne pas endommager le connecteur. Connecteur (sur la face arrière
de la façade)
FR_KD-X210[E_EU]1.indd 2FR_KD-X210[E_EU]1.indd 2 4/11/2013 9:52:18 AM4/11/2013 9:52:18 AM

3
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
FONCTIONNEMENT DE BASE
Télécommande (RM-RK52)
KD-X110 peut être commandé à distance avec une
télécommande vendue séparément.
Pour Faire (sur la façade) Faire (sur la télécommande)
Mettez l’appareil sous
tension Appuyez sur
B /SOURCE .
• Maintenez la touche enfoncée pour mettre l’appareil hors tension. ( non disponible )
Ajustez le volume Tournez le bouton de volume. Appuyez sur
VOL+ ou VOL– .
Appuyez sur le bouton de volume pour couper le son ou mettre la lecture en
pause.
• Appuyez une nouvelle fois pour annuler.
Appuyez sur pour couper le son ou mettre la lecture en
pause.
• Appuyez une nouvelle fois pour annuler.
Sélectionner la source • Appuyez répétitivement sur
B /SOURCE .
• Appuyez sur
B /SOURCE , puis tournez le bouton de volume avant
2 secondes.
Appuyez répétitivement sur
SOURCE .
Changez l’information
sur l’affichage Appuyez répétitivement sur
DISP . ( 11)
• Maintenez la touche enfoncée pour faire défiler les informations actuelles de
l’affichage.
( non disponible )
Attachez
Comment réinitialiser
Détachez
Vos ajustements préréglés sont
aussi effacés.
Façade
KD-X210
KD-X210
Bouton de volume
(tournez/appuyez)
Touche de
détachement
Fenêtre d’affichage
FRANÇAIS |
Retirez la feuille d’isolant lors de la
première utilisation.
Comment remplacer la pile
Capteur de télécommande
(Ne l’exposez Pas à la lumière directe du soleil.)
FR_KD-X210[E_EU]1.indd 3FR_KD-X210[E_EU]1.indd 3 4/11/2013 3:38:58 PM4/11/2013 3:38:58 PM

4
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
PRISE EN MAIN
Annulez la démonstration
1 Maintenez enfoncée MENU.
2 Tournez le bouton de volume pour choisir [DEMO] , puis appuyez sur le
bouton.
3 Tournez le bouton de volume pour choisir [DEMOOFF] , puis appuyez sur
le bouton.
4 Appuyez sur MENU pour quitter.
Réglez l’horloge
1 Maintenez enfoncée MENU.
2 Tournez le bouton de volume pour choisir [CLOCK] , puis appuyez sur le
bouton.
3 Tournez le bouton de volume pour choisir [CLOCKSET] , puis appuyez sur
le bouton.
4 Tournez le bouton de volume pour faire les réglages, puis appuyez sur
le bouton.
Jour Heure Minute
5 Tournez le bouton de volume pour choisir [24H/ 12H] , puis appuyez sur
le bouton.
6 Tournez le bouton de volume pour choisir [12 HOUR] ou [24 HOUR] , puis
appuyez sur le bouton.
7 Appuyez sur MENU pour quitter.
Faites les réglages de base
1 Maintenez enfoncée MENU.
2 Tournez le bouton de volume pour réaliser une sélection (voir le tableau
suivant), puis appuyez sur le bouton.
3 Appuyez sur MENU pour quitter.
Pour retourner à l’option de réglage ou à la hierarchie précédente, appuyez sur   T/P .
1
2
Défaut: XX
CLOCK
CLOCK ADJ AUTO
:L’horloge est réglée automatiquement à l’aide des données d’horloge (CT) comprises
dans les données du signal FM Radio Data System.;
OFF :Annulation.
CLOCK DISP ON :L’horloge apparaît sur l’affichage même quand l’appareil est hors tension.;
OFF :Annulation.
SETTINGS
BEEP ON
:Met en service la tonalité des touches.; OFF :Met hors service la fonction.
SRC SELECT
AM
* ON :Met en service AM dans la sélection de la source.; OFF :Hors service.
AUX * ON :Met en service AUX dans la sélection de la source.; OFF :Hors service.; BTADAPTER :
Sélectionnez ce réglage quand l’adaptateur Bluetooth KS-BTA100 est connecté à la prise
d’entrée auxiliaire
( 8) . Le nom de la source change sur BT AUDIO.
LANGUAGE
Sélectionnez la langue d’affichage pour les menus et les informations des balises (nom de
dossier, nom de fichier, titre du morceau, nom de l’artiste, nom de l’album) si applicable.
ENGLISH :La langue d’affichage est l’anglais.
РУССКИЙ :La langue d’affichage est le russe.
F/W UPDATE
SYSTEM
F/W xxxx YES
:Démarrer la mise à niveau du micrologiciel.; NO :Annulation (la mise à niveau n’est
pas activée).
Pour en savoir plus sur la mise à niveau du micrologiciel, référez-vous à:
<http://www.jvc.net/cs/car/>.
* Pas d’affichage quand la source correspondante est sélectionnée.
3
FR_KD-X210[E_EU]1.indd 4FR_KD-X210[E_EU]1.indd 4 4/11/2013 9:52:19 AM4/11/2013 9:52:19 AM
