JVC KW-AV71BT User manual

ENGLISHESPAÑOLFRANÇAIS
For canceling the display demonstration, see page 6.
Para cancelar la demonstración en pantalla, consulte la página 6.
Pour annuler la démonstration des affichages, référez-vous à la page 6.
KW-AV71BT
GET0892-001A
[J/JW]
MONITOR WITH DVD RECEIVER
MONITOR CON RECEPTOR DE DVD
MONITEUR AVEC RÉCEPTEUR DVD
For installation and connections, refer to the separate manual.
Para la instalación y las conexiones, refiérase al manual separado.
Pour l’installation et les raccordements, se référer au manuel séparé.
INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
MODE D’EMPLOI
For customer Use:
Enter below the Model No. and
Serial No. which are located on
the top or bottom of the cabinet.
Retain this information for future
reference.
Model No.
Serial No.
This instruction manual is used to describe models listed below.
• Region 1 (DVD Region Code 1 area)/Region 4 (DVD Region Code 4 area)
En este manual de instrucciones se describen los modelos listados a continuación.
• Región 1 (DVD Código de región Área 1)/Región 4 (DVD Código de región Área 4)
Ce mode d’emploi est utilisé pour décrire les modèles de la liste ci-dessous.
• Région 1 (zone de code de région DVD 1)/Région 4 (zone de code de région DVD 4)
Covers_KW-AV71[JJW].indb 2 12/11/02 15:43

2
ENGLISH
Thank you for purchasing a JVC product.
Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best
possible performance from the unit.
WARNINGS: (To prevent accidents and
damage)
• DO NOT install any unit or wire any cable in a location
where;
– it may obstruct the steering wheel and gearshift
lever operations.
– it may obstruct the operation of safety devices
such as air bags.
– it may obstruct visibility.
• DO NOT operate the unit while driving.
If you need to operate the unit while driving, be sure
to look around carefully.
• The driver must not watch the monitor while driving.
• The driver must not put on the headphones while
driving.
• Excessive sound pressure from earphones or
headphones can cause hearing loss when you listen
through earphones or headphones playing the rear
source.
CAUTION
Use of controls or adjustments or performance of
procedures other than those specified herein may result in
hazardous radiation exposure. In compliance with Federal
Regulations, following are reproductions of labels on, or
inside the product relating to laser product safety.
JVC KENWOOD Corporation
2967-3, ISHIKAWA-MACHI, HACHIOJI-SHI,TOKYO, JAPAN
THIS PRODUCT COMPLIESWITH DHHS RULES
21CFR SUBCHAPTER J IN EFFECT AT DATE OF
MANUFACTURE.
Location : Top plate
For Region 4 models:
The marking of products using lasers
The label is attached to the chassis/case and says
that the component uses laser beams that have been
classified as Class 1. It means that the unit is utilizing
laser beams that are of a weaker class. There is no
danger of hazardous radiation outside the unit.
For Region 1 models:
FCC WARNING
This equipment may generate or use radio frequency
energy. Changes or modifications to this equipment may
cause harmful interference unless the modifications are
expressly approved in the instruction manual.The user
could lose the authority to operate this equipment if an
unauthorized change or modification is made.
FCC NOTE
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules.These limits are
designed to provide reasonable protection against
harmful interference in a residential installation.This
equipment may cause harmful interference to radio
communications, if it is not installed and used in
accordance with the instructions. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can
be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
•
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV
technician for help.
EN_KW-AV71JJW.indb 2 12/11/02 10:02

3
ENGLISH
Cautions on the monitor:
• The monitor built in this unit has been produced with
high precision, but it may have some ineffective dots.
This is inevitable and is not considered defective.
• Do not expose the monitor to direct sunlight.
• Do not operate the touch panel using a ball-point
pen or similar tool with the sharp tip.
Touch the buttons on the touch panel with your
finger directly (if you are wearing a glove, take it off).
• When the temperature is very cold or very hot...
–
Chemical changes occur inside, causing malfunction.
– Pictures may not appear clearly or may move
slowly. Pictures may not be synchronized with
the sound or picture quality may decline in such
environments.
For safety...
• Do not raise the volume level too much, as this will
make driving dangerous by blocking outside sounds,
and may cause hearing loss.
• Stop the car before performing any complicated
operations.
Temperature inside the car...
If you have parked the car for a long time in hot or cold
weather, wait until the temperature in the car becomes
normal before operating the unit.
How to read this manual:
• Illustrations of Region 1 models are mainly used for explanation.
• This manual mainly explains operations using the buttons on the monitor panel and touch panel. For
operations using the remote controller (RM-RK256: supplied only for Region 4 models), page 64.
• < > indicates the variable screens/menus/operations/settings that appear on the touch panel.
• [ ] indicates the buttons on the touch panel.
• Indication language: English indications are used for the purpose of explanation.You can select the
indication language from the <Settings> menu. (page 51)
How to reset your unit
• Your preset adjustments will also be erased (except
the registered Bluetooth devices).
How to forcibly eject a disc
Press [ ] on the source control screen and /
HOME on the monitor panel at the same time.
•Be careful not to drop the disc when it ejects.
•If this does not work, reset your unit. (above)
EN_KW-AV71JJW.indb 3 12/11/02 10:02

4
ENGLISH
Contents
How to reset your unit...........................................3
How to forcibly eject a disc....................................3
INTRODUCTIONS
Detaching/attaching the monitor panel...5
Initial settings .......................................6
Setting the clock ....................................7
Common operations ...............................8
Turning on the power............................................8
Turning off the power............................................8
Turning on/off the AV source.................................8
Turning off the screen............................................8
Adjusting the volume............................................ 9
Monitor panel operations — Open/Tilt ................9
Switching screens ................................10
Operations on the screen ......................11
AV SOURCE OPERATIONS
Selecting the playback source ...............12
Listening to the radio ...........................13
Disc operations.....................................17
Playing a disc.......................................................17
Playable disc types .............................................. 18
Playback operations ............................................19
Settings for disc playback.................................... 23
SD operations.......................................24
Playing files in an SD card ...................................24
USB operations.....................................26
Playing a USB device ...........................................26
Listening to the iPod/iPhone device ......28
Preparation .........................................................28
Setting iPod control mode...................................29
Selecting preference settings for iPod/iPhone
playback..............................................................29
iPod/iPhone playback operations for <Head>
mode................................................................... 30
iPod/iPhone playback operations for <iPod Out>
mode................................................................... 31
Using an App of iPod touch/iPhone.....................32
Pandora® operations for
Region 1 models............................34
Using other external components..........36
AV-IN...................................................................36
Listening to the SiriusXM™ Radio for
Region 1 models............................37
Activating subscription........................................ 37
Tuning in to a channel.........................................37
Setting the reception restrictions ........................39
Rear source operations .........................41
Sound adjustment................................42
Using the sound equalization.............................. 42
Adjusting the crossover frequency.......................43
Changing display design .......................44
Setting for video playback ....................46
Adjusting the picture........................................... 46
Changing the aspect ratio ................................... 47
Zooming the picture............................................ 47
Using a rear view camera ......................48
Setting menu items..............................49
Memorizing/recalling the settings .....................52
Updating the system...........................................53
Adjusting the touch position .............................. 53
BLUETOOTH OPERATIONS
Information for using Bluetooth®
devices..........................................54
Bluetooth operations ...........................54
Connecting Bluetooth devices.............................55
Setting up Bluetooth........................................... 57
Using the Bluetooth mobile phone......................58
Settings for Bluetooth mobile phones.................62
Using the Bluetooth audio player........................ 63
REFERENCE
Using the remote controller ..................64
Operations using the remote controller
(RM-RK256) ........................................................64
Maintenance .......................................67
More about this unit.............................68
Troubleshooting...................................71
Specifications.......................................76
EN_KW-AV71JJW.indb 4 12/11/02 10:02

5
ENGLISH
Attaching
Detaching
1On the source control screen:
2
The monitor panel opens by about 50°.
• It closes automatically when no operation is
done for about 60 seconds.
Remove the monitor panel before this happens.
Cautions
• Hold the monitor panel securely so as not to drop it accidentally.
• Fit the monitor panel onto the attaching plate until it is firmly locked.
Detaching/attaching the monitor panel
3
Attaching plate
The monitor panel is
unlocked.
• The attaching plate closes automatically about
10 seconds after the monitor panel is unlocked.
4
Soft case (supplied)
INTRODUCTIONS
EN_KW-AV71JJW.indb 5 12/11/02 10:02

6
ENGLISH
Initial settings
When you power on the unit for the first time or reset
the unit, the initial setting screen appears.
• You can also change the settings on the <Settings>
screen. (page 49)
1
Language Select the text language used
for on-screen information.
(page 51)
• Set <GUI Language>
to display the operation
buttons and menu items
in the selected language
([Local]: initially selected)
or English ([English]).
AV Input Select an external component
to play. (page 50)
Camera Input Select [On] when connecting
the rear view camera.
(page 51)
Display
Design
Select the background and
the colors of the text and
the touch panel buttons.
(page 44)
Demonstration Activate or deactivate the
display demonstration.
(page 50)
2Finish the procedure.
The <HOME> screen is displayed.
• [AV Off] is selected initially. Select the playback
source. (page 12)
EN_KW-AV71JJW.indb 6 12/11/02 10:02

7
ENGLISH
Setting the clock
1Display the <HOME> screen.
On the source control screen:
2Display the <Settings> screen.
3Display the <Time Set> screen.
4Set the clock time.
To synchronize the clock time with
FM RBDS
To set the clock manually
1Select the time display format
2Adjust the hour
3Adjust the minute
5Finish the procedure.
EN_KW-AV71JJW.indb 7 12/11/02 10:02

8
ENGLISH

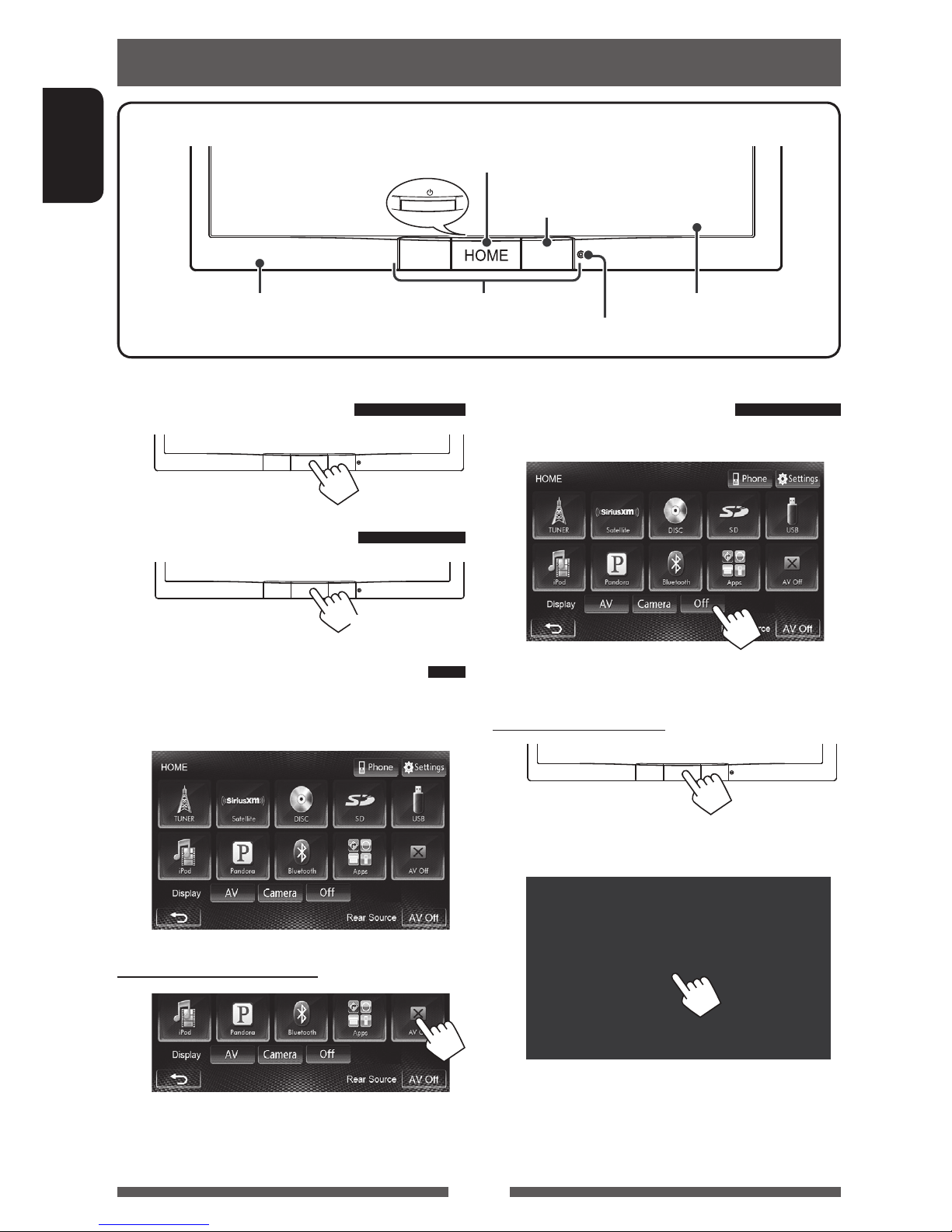

Screen (touch panel)Monitor panel
Remote sensor
Reset button (page 3)
Motion sensor (page 11)
• Turns on/off the power. (below)
• Displays the <HOME> screen. (Press) (page 10)
Turning on the power
Turning off the power
(Hold)
Turning on/off the AV source
You can activate the AV function by selecting a source
on the <HOME> screen.
To turn off the AV source
The AV source is turned off.
Turning off the screen
On <HOME> screen:
The screen is turned off.
To turn on the screen
or
Touch the screen to display the <HOME> screen.
Common operations
EN_KW-AV71JJW.indb 8 12/11/02 10:02

9
ENGLISH
Adjusting the volume
To adjust the volume (00 to 50)
• On the source control screen, you can also adjust the
volume by moving your finger on the touch panel
as illustrated. (Not available depending on the AV
source.)
IncreaseDecrease
To attenuate the sound
The ATT indicator lights up.
To cancel the attenuation, press [ ] again.
Caution on the volume setting:
Digital devices produce very little noise compared
with other sources. Lower the volume before
playing these digital sources to avoid damaging
the speakers by sudden increase of the output
level.
Monitor panel operations —
Open/Tilt
1On the source control screen:
2
Open Opens the monitor panel.
Eject Ejects the disc.
Close
Closes the monitor panel.
• Do not place your finger
behind the monitor panel.
Tilt +
Tilt –
Tilts the monitor panel.
Detach Detaches the monitor panel.
(page 5)
Goes back to the current source
screen.
• When the ignition switch is turned to the ACC
position, you can also eject the disc. Press /HOME
to display the <Open/Tilt> screen.
EN_KW-AV71JJW.indb 9 12/11/02 10:02

10
ENGLISH
<HOME> screen
Displays the source control screen/settings screen
and changes the picture source.
Source control screen
• Press [ ] to return to the previous screen.
• Press [ ] to display the current source control
screen.
<Settings> screen
Changes the detailed settings. (page 49)
Switching screens
Changes the page
Displays the phone
control screen
page 12
*1 Appears when <Input> in <Navigation Input> is
set to [iPhone]. (page 32)
* 2 The icon varies depending on the connection status of
the Bluetooth device (page 54).
Select an item to display on the screen.
AV Displays the source control screen.
(above)
Camera Displays the picture from the rear
view camera. (page 48)
Apps*1Displays the screen of App from
the connected iPod touch/iPhone.
(page 32)
Off Turns off the screen. (page 8)
Common operating buttons
*1Displays the screen of App from the
connected iPod touch/iPhone. (page 32)
*2Displays the phone control screen.
(page 59)
Displays the sound adjustment screen.
(page 42)
TP Activates/deactivatesTA standby reception
mode. (page 16)
Displays the <Open/Tilt> screen.
(page 9)
• Pressing /HOME on the monitor panel
also displays the <HOME> screen.
EN_KW-AV71JJW.indb 10 12/11/02 10:02

11
ENGLISH
Operations on the screen
Setting <Display Sensor>
Change the settings of how to display the buttons, the
sensitivity of the motion sensor, and how the screen is
changed when no operation is performed for a while.
1On <HOME> screen:
2
3
<Sensor>
Selects the method to show the buttons and playback
information.
Motion Shows the buttons and playback
information when you move your hand
closer to the motion sensor.
• The motion sensor does not work when
the screen is turned off. (page 8)
Touch Shows the buttons and playback
information when you touch the screen.
Off Deactivates the [Motion] or [Touch]
function.
• To hide the buttons and playback information again
when
[Motion] or [Touch] is selected, touch the
screen repeatedly.
<Motion Sensitiv.>
Selects the sensor sensitivity ([High] or [Low]).
• Available when <Sensor> is set to [Motion].
<Time Out Mode>
Selects the items shown on the screen when no
operation is performed for approximately 10 seconds
and when the light of the /HOME on the monitor
panel is turned off.
• Available when <Sensor> is set to [Motion] or
[Touch] (above).
Simple Shows source information and some
source control buttons (such as volume
control buttons).
Backgrnd The background is shown.
BlackOut The screen is turned off.
• To restore the screen:
– When <Sensor> is set to
[Motion], move your hand closer
to the motion sensor.
– When <Sensor> is set to [Touch],
touch the screen.
EN_KW-AV71JJW.indb 11 12/11/02 10:02

12
ENGLISH

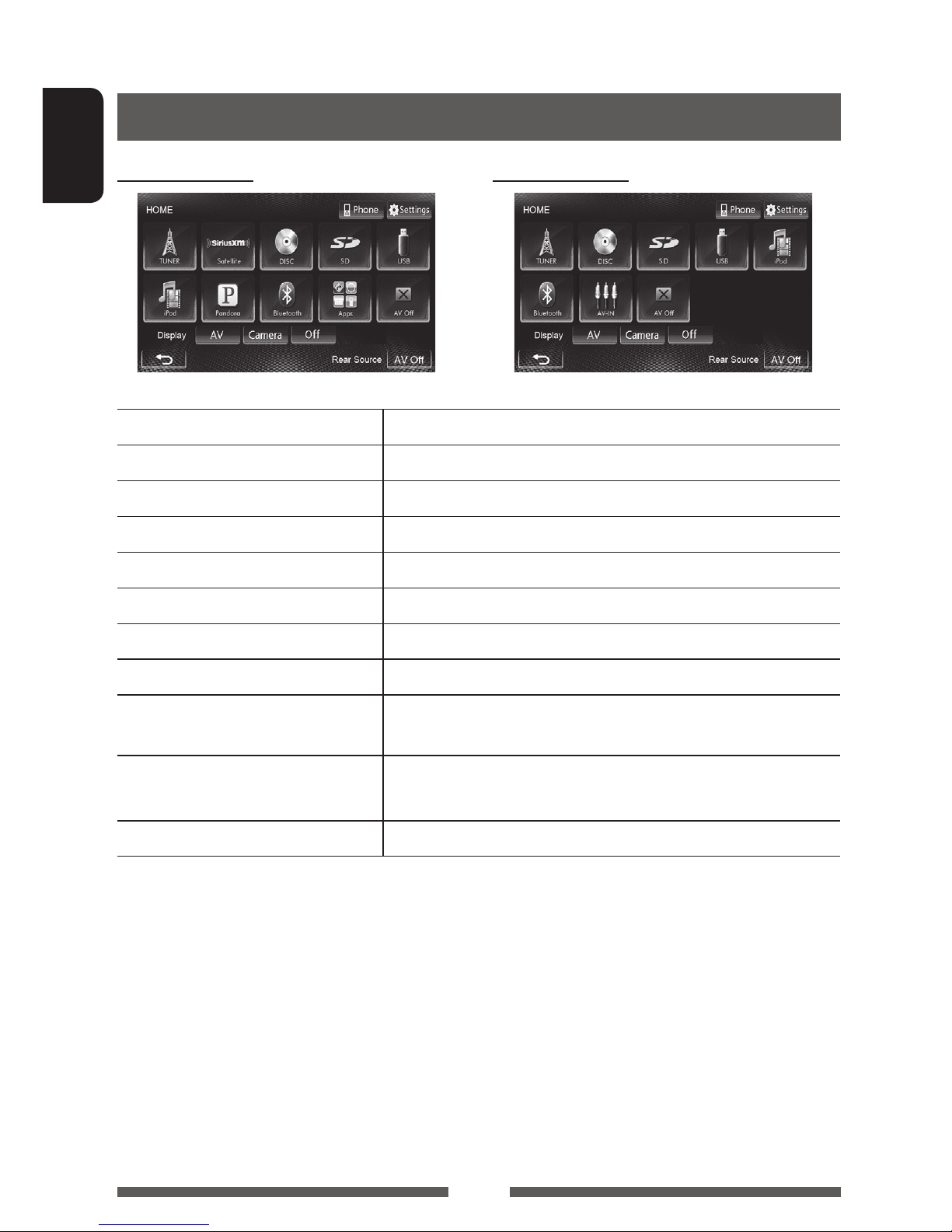

TUNER (page 13) Switches to the radio broadcast.
Satellite *1(page 37) Switches to the SiriusXM™ radio broadcast.
DISC (page 17) Plays a disc.
SD (page 24) Plays files on an SD card.
USB (page 26) Plays files on a USB device.
iPod (page 28) Plays an iPod/iPhone.
Pandora *1(page 34) Switches to the Pandora.
Bluetooth (page 63) Plays a Bluetooth audio player.
AV-IN *2(page 36) Switches to an external component connected to LINE IN/VIDEO IN jacks
on the rear panel.
Apps *3(page 32) Switches to the screen of App from the connected iPod touch/
iPhone.
AV Off (page 8) Turns off the AV source.
*1 Only for Region 1 models.
* 2 Appears only when <AV Input> is set to [AV-IN]. (page 50)
*3 Appears only when <AV Input> is set to [iPod]. (page 50)
AV SOURCE OPERATIONS
Selecting the playback source
Region 1 models Region 4 models
EN_KW-AV71JJW.indb 12 12/11/02 10:02

13
ENGLISH

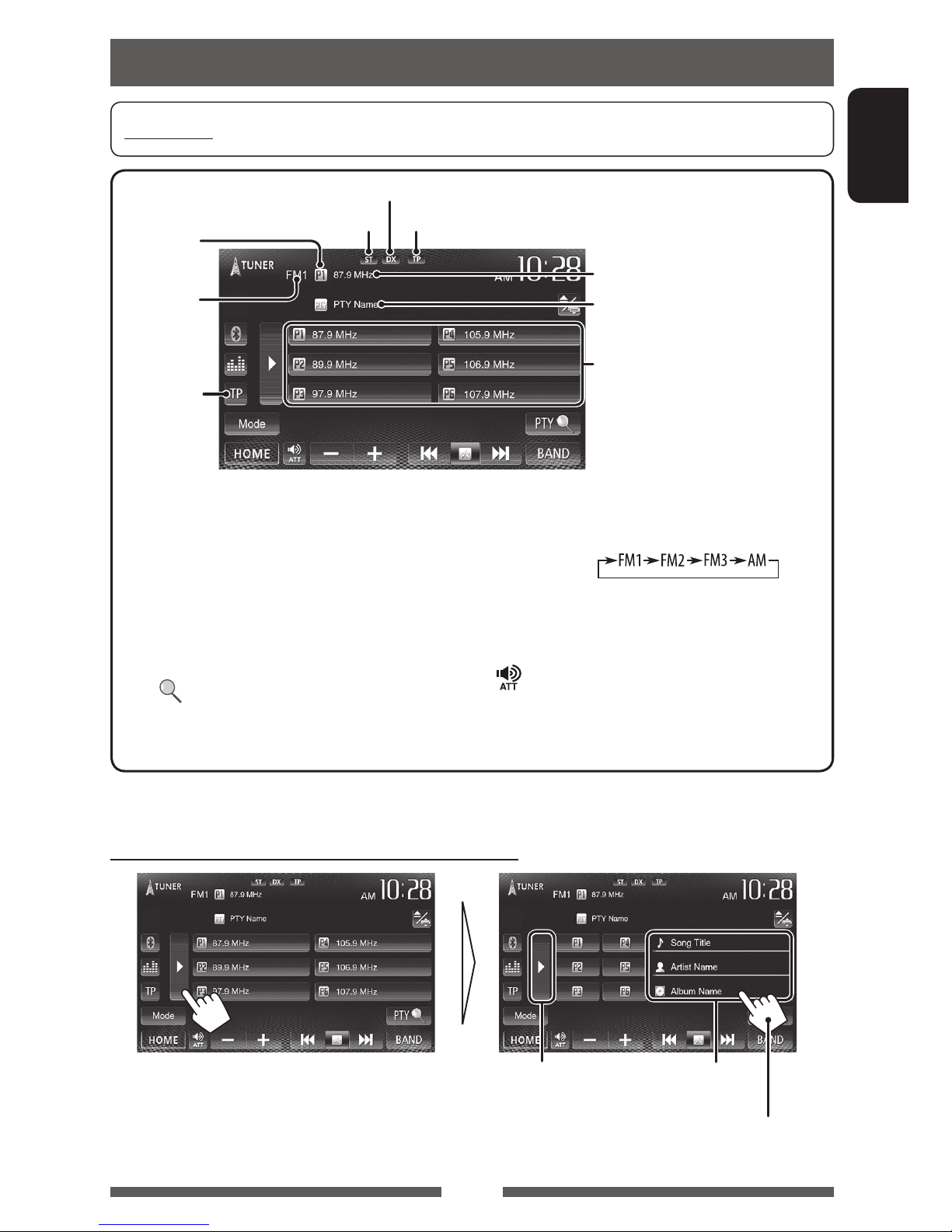

Listening to the radio
• The ST indicator lights up when receiving an FM stereo broadcast with sufficient signal strength.
Standby reception indicator
DX/LO indicator
PTY code for FM RBDS
[P1] – [P6] • Selects a stored station. (Press)
• Stores the current station. (Hold)
[TP]* Activates/deactivates TA standby
reception mode. (page 16)
[3] Displays/hides the information on
the current station (below).
[PTY ]* EntersPTYsearchmode.(page16)
[BAND] Selects the band.
[4] [¢] Searches for a station.
• Auto search (Press)
• Manual search (Hold)
[ ] [–] [+]Adjusts the volume.
[Mode] Changes the settings for tuner
reception. (pages 14 – 15)
[HOME] Displays the <HOME> screen.
Band
Preset no.
Preset list
ST/MO indicator
page 16
The station frequency currently
tuned in/PS (station name) for FM
RBDS when PS signal is coming in
Displaying the information on the current station
Hides the text
information
Text information (only for
Radio Text Plus)
Scrolls the text information
*Appears only when FM is selected as the source.
Preparation: Select the appropriate tuner channel interval for <Area Setting>. (page 15)
EN_KW-AV71JJW.indb 13 12/11/02 10:02

14
ENGLISH
When an FM stereo broadcast is hard to
receive...
Activate monaural mode for better reception.
1
2
On Activate monaural mode to improve FM
reception, but the stereo effect will be
lost.The MO indicator lights up.
Off Restore the stereo effect.
Tuning in FM stations only with strong
signals—LO/DX (Local/Distance-extreme)
1
2
Local Select this to tune in only to stations
with sufficient signal strength. The LO
indicator lights up.
DX Deactivate the function. The DX
indicator lights up.
When the FM reception is interfered...
1
2
Auto Increases the tuner selectivity to reduce
interference noises between adjacent
stations. (Stereo effect may be lost.)
Wide Subject to the interference from
adjacent stations, but sound quality
will not be degraded and the stereo
effect will remain.
EN_KW-AV71JJW.indb 14 12/11/02 10:02

15
ENGLISH
Storing stations in memory
You can preset six stations for each band.
Automatic presetting—SSM (Strong-
station Sequential Memory) (For FM only)
1
2
(Hold)
Local stations with the strongest signals are searched
and stored automatically.
Manual presetting
1Tune in to a station you want to preset.
(page 13)
2Select a preset number.
(Hold)
The station selected in step 1is stored.
Changing the tuner channel
interval
Tuner channel interval changes depending on the area
you use this unit.
1
2
US Select this when using in North/
Central/South America. FM/AM
intervals are set to 200 kHz/10 kHz.
Europe Select this when using in any other
areas. FM/AM intervals are set to 50
kHz/9 kHz.
SA Select this when using in South
American countries where FM interval
is 50 kHz. AM interval is set to 10 kHz.
• The initial setting is <US> for Region 1 models,
and <SA> for Region 4 models.
EN_KW-AV71JJW.indb 15 12/11/02 10:02

16
ENGLISH
Activating/deactivating TA Standby
Reception
TP indicator
TP indicator TA Standby Reception
Lights up The unit will temporarily switch
to Traffic Announcement (TA) if
available.
Flashes Not yet activated.Tune in to another
station providing the RBDS signals.
Goes off Deactivated.
• The volume adjustment for Traffic Announcement
is automatically memorized. The next time the unit
switches toTraffic Announcement, the volume is set
to the previous level.
The following features are available only for FM
RBDS stations.

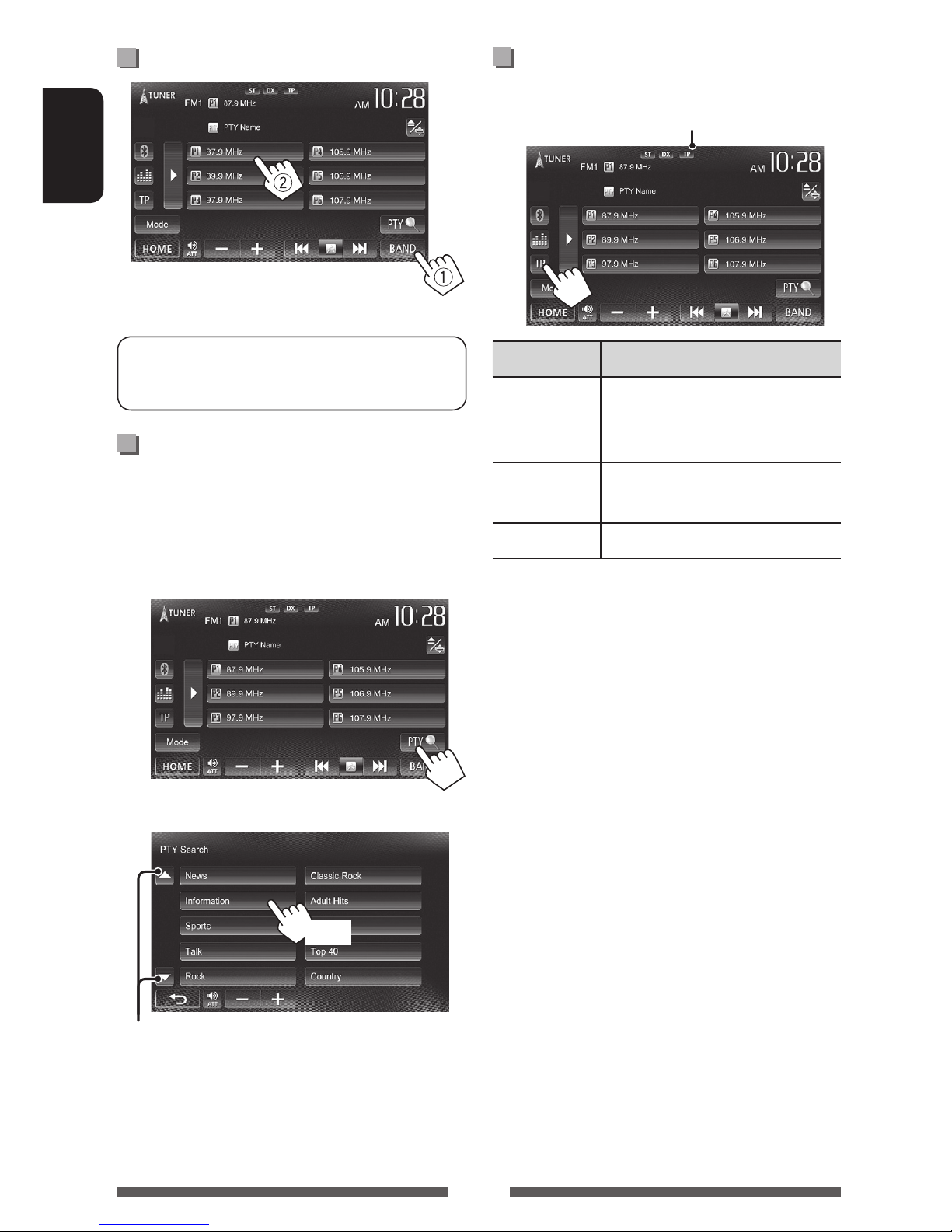

Searching for FM RBDS program—
PTY Search
You can search for your favorite programs being
broadcast by selecting the PTY code for your favorite
programs.
1
2Select a PTY code.
Changes the page
(Hold)
PTY Search starts.
If there is a station broadcasting a program of the
same PTY code as you have selected, that station
is tuned in.
Selecting a preset station
EN_KW-AV71JJW.indb 16 12/11/02 10:02

17
ENGLISH

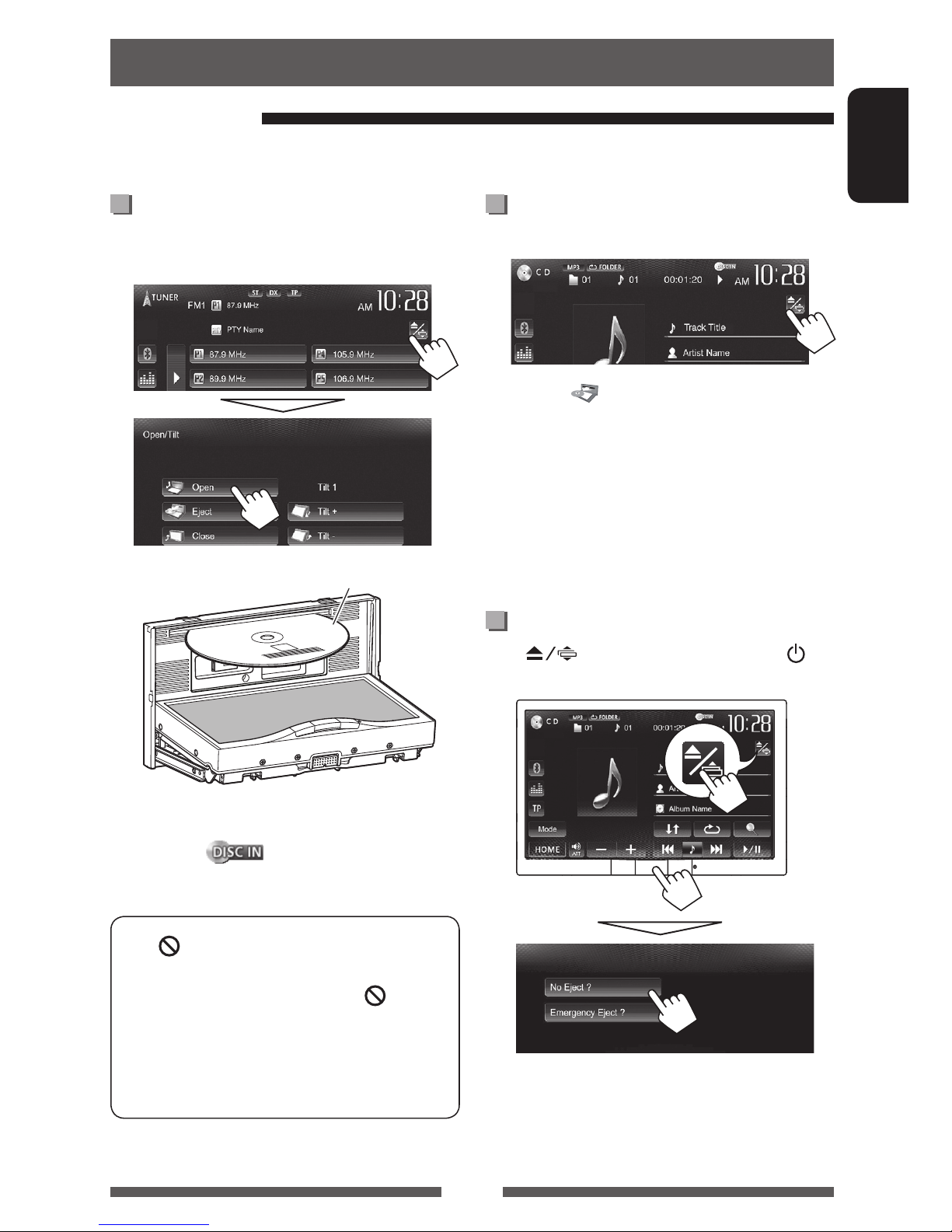

Ejecting a disc
1 On the source control screen:
2Press [ Eject].
• You can eject a disc when playing another AV source.
• If the ejected disc is not removed within 15 seconds,
the disc is automatically inserted again into the
loading slot to protect it from dust.
• If the disc cannot be ejected, page 3.
When removing a disc, pull it horizontally.
Prohibiting disc ejection
Press [ ] on the source control screen and /
HOME on the monitor panel at the same time.
To cancel the prohibition, repeat the same procedure
to select [Eject OK?].
Disc operations
Playing a disc
• If a disc does not have any disc menu, all tracks on it will be played repeatedly until you change the source or eject
the disc.
Inserting a disc
1 Open the monitor panel.
On the source control screen:
2Label side
The source changes to“ DISC ”and playback starts.
• The DISC IN ( ) indicator lights up while a
disc is inserted.
• If“ ”appears on the screen, the unit cannot
accept the operation you have tried to do.
– In some cases, without showing“ ,”
operations will not be accepted.
• When playing back a multi-channel encoded
disc, the multi-channel signals are downmixed
to stereo.
EN_KW-AV71JJW.indb 17 12/11/02 10:02

18
ENGLISH
Playable disc types
Disc type Recording format, file type, etc. Playable
DVD
• DTS sound cannot be
reproduced or emitted from
this unit.
DVD-Video *1
Region Code:
DVD-Audio/DVD-ROM
DVD Recordable/Rewritable
(DVD-R/-RW *2, +R/+RW *3)
• DVD Video: UDF bridge
• DVD-VR
• DivX *4/MPEG1/MPEG2/JPEG/
MP3/WMA/WAV: ISO 9660 level
1, level 2, Romeo, Joliet
DVD-Video
DVD-VR *5
DivX *4/MPEG1/MPEG2
JPEG
MP3/WMA/WAV
MPEG4/AAC/DVD+VR/DVD-RAM
Dual Disc DVD side
Non-DVD side
CD/VCD Audio CD/CD Text (CD-DA)
VCD (Video CD)
DTS-CD/SVCD (SuperVideo CD)/CD-ROM/CD-I (CD-I Ready)
CD Recordable/Rewritable
(CD-R/-RW)
• ISO 9660 level 1, level 2,
Romeo, Joliet
CD-DA
VCD (Video CD)
DivX *4/MPEG1/MPEG2
JPEG
MP3/WMA/WAV
MPEG4/AAC
*1 If you insert a DVD Video disc of an incorrect Region Code, “Region Code Error” appears on the screen.
*2 DVD-R recorded in multi-border format is also playable (except for dual layer discs). DVD-RW dual layer discs are not
playable.
*3 It is possible to play back finalized +R/+RW (Video format only) discs. “DVD” is selected as its disc type when a
+R/+RW disc is loaded. +RW double layer discs are not playable.
*4 Playable only for Region 1 models.
*5 This unit cannot play back contents protected with CPRM (Content Protection for Recordable Media).
Caution for DualDisc playback
The Non-DVD side of a“DualDisc”does not comply with the“Compact Disc Digital Audio”standard. Therefore, the use
of Non-DVD side of a DualDisc on this product may not be recommended.
1/4 (depending on the
country and sales area)
EN_KW-AV71JJW.indb 18 12/11/02 10:02

19
ENGLISH
Playback operations
To select the method to display the source control screen, page 10.
• The operation buttons disappear when no operation is done for about 10 seconds.

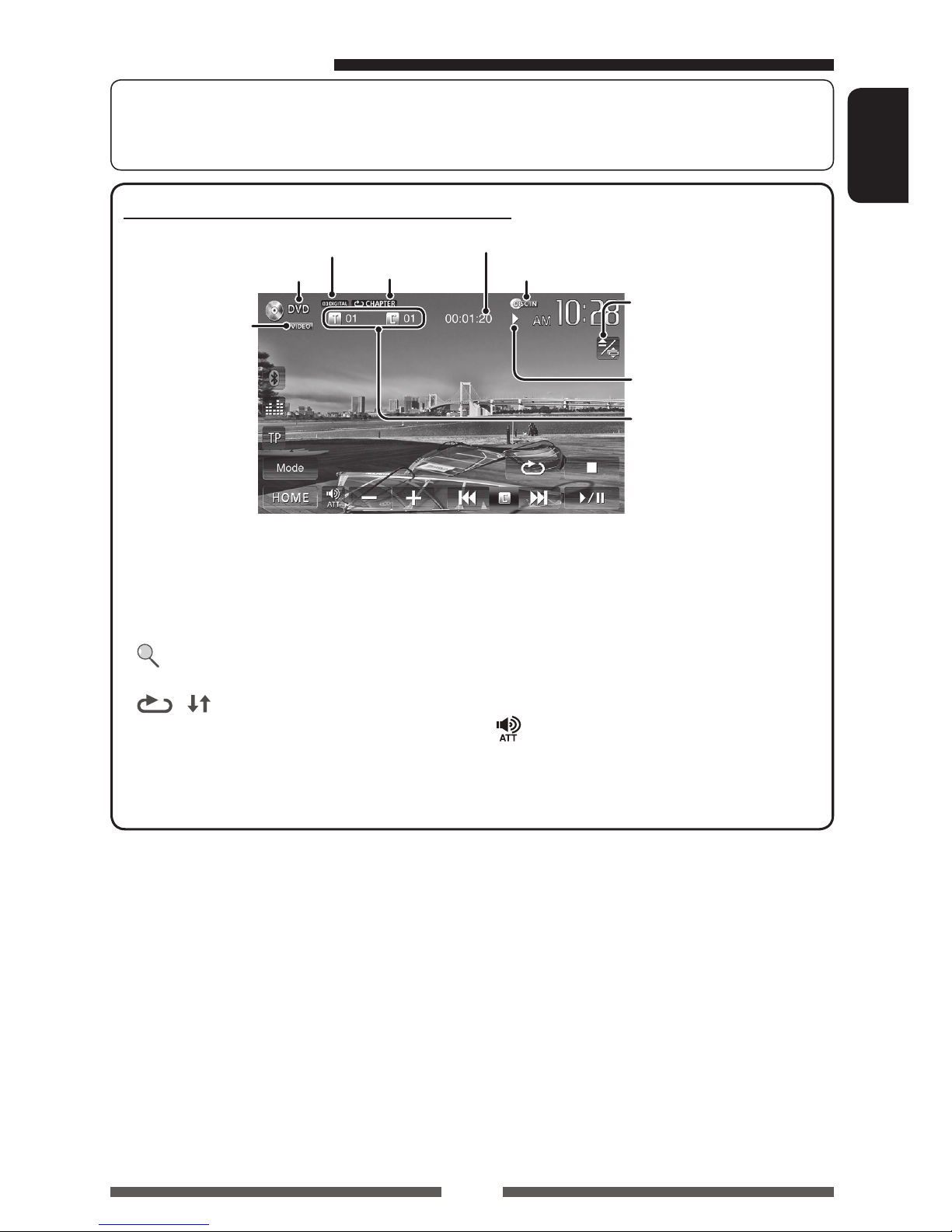

For DVD/DVD-VR/VCD/DivX/MPEG1/MPEG2/JPEG
Media type
Audio format
Video format/
video playback
mode—VIDEO/
VR-PRG (program)/
VR-PLAY (playlist)/
DivX/MPEG/PBC
Playback status
(3: play/8: pause/7: stop)
Playing time
• DVD Video: Title no./
Chapter no.
• DVD-VR: Program no. (or
Playlist no.)/Chapter no.*1
• DivX/MPEG1/MPEG2:
Folder no./Track no.
• JPEG: Folder no./File no.
• VCD: Track no.
Playback mode
(page 22)
page 9
DISC IN indicator
[7]*2Stops playback.
[ ]*3Displays the folder/track list.
(page 20)
[ ] [ ]*4Selects playback mode. (
page 22)
[6] Starts/pauses playback.
[4] [¢]*5• Selects a chapter/track.
(Press)
• Reverse/forward search.*6
(Hold)
[ ] [–] [+]Adjusts the volume.
[Mode]*7Changes the settings for disc
playback. (page 23)
[HOME] Displays the <HOME> screen.
* 1 To display the Original Program/Playlist screen, page 21.
*2 Appears only for DVD/DVD-VR/VCD.
*3 Does not appear for DVD/DVD-VR/VCD.
*4 Does not appear for DVD/DVD-VR/JPEG.
*5 The icon displayed between the buttons varies depending on the type of disc or file.
*6 Search speed varies depending on the type of disc or file.
*7 Does not appear for VCD.
EN_KW-AV71JJW.indb 19 12/11/02 10:02

20
ENGLISH
Playing Recordable/Rewritable discs
• This unit can recognize a total of 5 000 files and
250 folders (a maximum of 999 files per folder).
• Use only“finalized”discs.
• This unit can play back multi-session discs;
however, unclosed sessions will be skipped
while playing.
• Some discs or files may not be played back due
to their characteristics or recording conditions.
Selecting a folder/track on the list
Plays tracks/files in the folder
Changes the page
Returns to the root folder
Returns to the upper layer

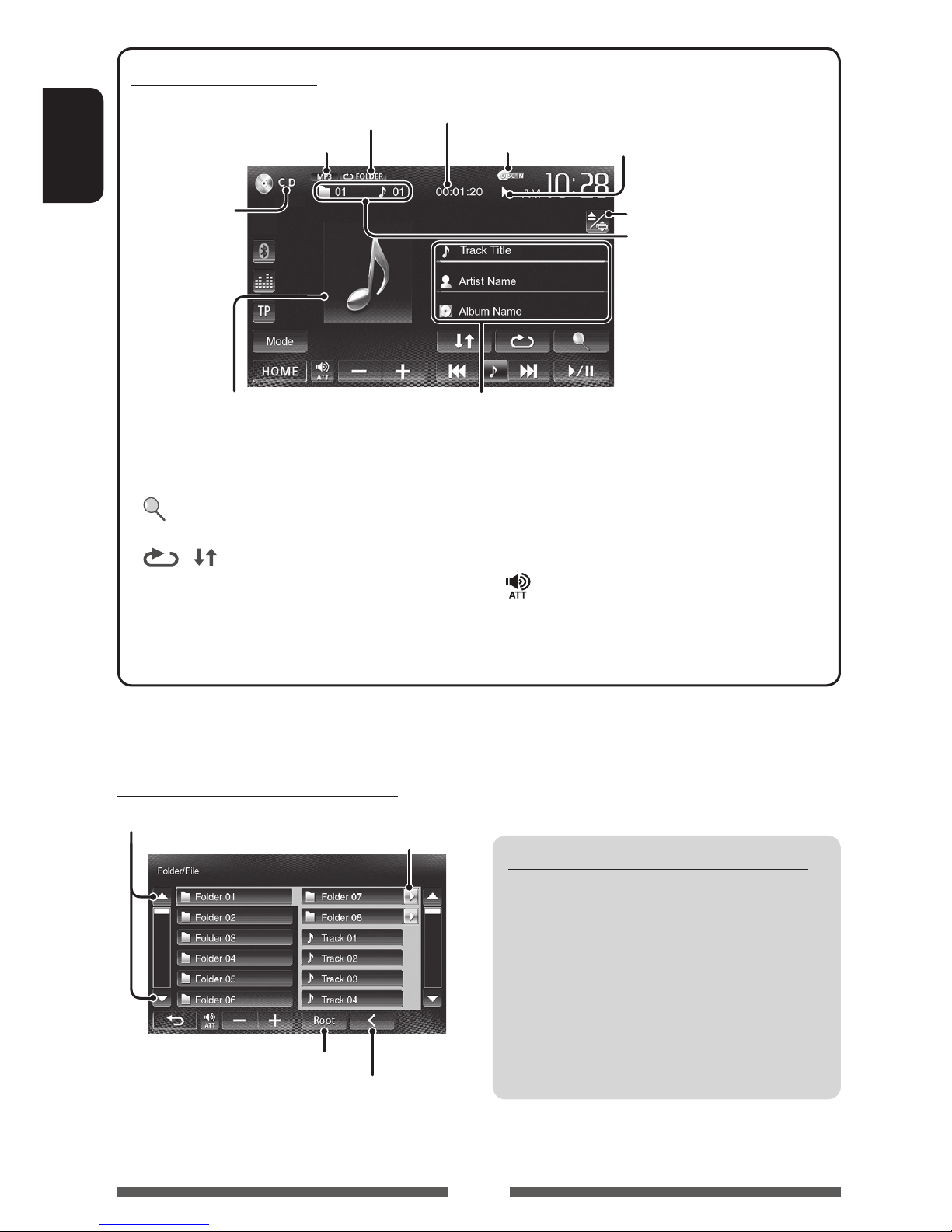

For CD/MP3/WMA/WAV
DISC IN indicator
Media type
Audio format
Playback status
(3: play/8: pause)
Playing time
• MP3/WMA/WAV: Folder
no./Track no.
• CD: Track no.
Playback mode (page 22)
Track/file information
• Touching an information bar scrolls the text if not all of the
text is shown.
While playing, the jacket picture is
shown if the file has the tag data
including the jacket picture.
page 9
[ ]*1Displays the folder/track list.
(below)
[ ] [ ] Selects playback mode.
(page 22)
[6] Starts/pauses playback.
[4] [¢] • Selects a track. (Press)
• Reverse/forward search.*2
(Hold)
[ ] [–] [+]Adjusts the volume.
[Mode]*1Changes the settings for disc
playback. (page 23)
[HOME] Displays the <HOME> screen.
*1 Does not appear for CD.
*2 Search speed varies depending on the type of disc or file.
EN_KW-AV71JJW.indb 20 12/11/02 10:02
