JVC KW-R710 User manual

Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
ENGLISH
FRANÇAIS
GET0949-001A [E/EN]
KW-R710 / KW-R510
CD RECEIVER
INSTRUCTION MANUAL
RÉCEPTEUR CD
MANUEL D’INSTRUCTIONS
Please read all instructions carefully before
operation to obtain the best possible performance
from the unit.
Veuillez lires les instructions attentivement avant
d’utiliser l’appareil afin d’obtenir les meilleures
performances possibles de l’appareil.
JS_JVC_KW-R710_E_01_C001A.indd 1JS_JVC_KW-R710_E_01_C001A.indd 1 11/19/2013 11:08:54 AM11/19/2013 11:08:54 AM

i
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
Information on Disposal of Old Electrical and Electronic Equipment and Batteries
(applicable for EU countries that have adopted separate waste collection systems)
Products and batteries with the symbol (crossed-out wheeled bin) cannot be disposed as
household waste.
Old electrical and electronic equipment and batteries should be recycled at a facility capable of
handling these items and their waste byproducts.
Contact your local authority for details in locating a recycle facility nearest to you. Proper
recycling and waste disposal will help conserve resources whilst preventing detrimental effects
on our health and the environment.
Notice: The sign “Pb” below the symbol for batteries indicates that this battery contains lead.
Information sur l’élimination des anciens équipements électriques et électroniques
et piles électriques (applicable dans les pays de l’Union Européenne qui ont adopté
des systèmes de collecte sélective)
Les produits et piles électriques sur lesquels le pictogramme (poubelle barrée) est apposé ne
peuvent pas être éliminés comme ordures ménagères.
Les anciens équipements électriques et électroniques et piles électriques doivent être recyclés
sur des sites capables de traiter ces produits et leurs déchets.
Contactez vos autorités locales pour connaître le site de recyclage le plus proche. Un recyclage
adapté et l’élimination des déchets aideront à conserver les ressources et à nous préserver des
leurs effets nocifs sur notre santé et sur l’environnement.
Remarque: Le symbole “Pb“ ci-dessous sur des piles électrique indique que cette pile contient
du plomb.

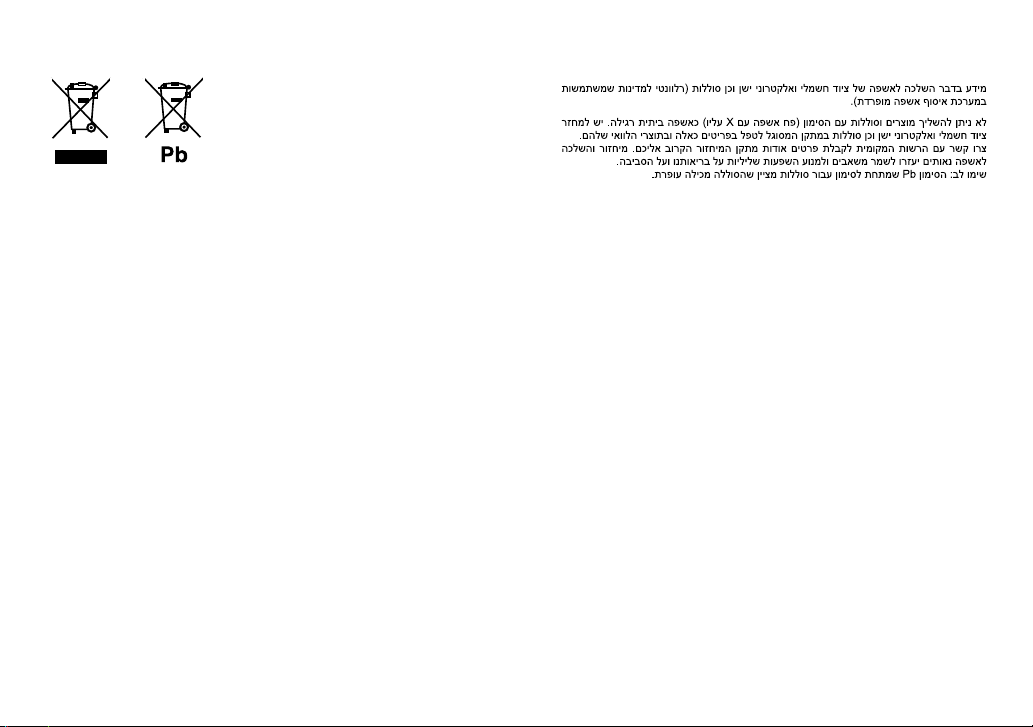

For Israel
JS_JVC_KW-R710_E_01_S001A.indd iJS_JVC_KW-R710_E_01_S001A.indd i 11/13/2013 10:26:19 AM11/13/2013 10:26:19 AM

ii
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
Declaration of Conformity with regard to the EMC Directive 2004/108/EC
Declaration of Conformity with regard to the RoHS Directive 2011/65/EU
Manufacturer:
JVC KENWOOD Corporation
3-12, Moriya-cho, Kanagawa-ku, Yokohama-shi, Kanagawa, 221-0022, Japan
EU Representative’s:
JVC Technical Services Europe GmbH
Konrad-Adenauer-Allee 1-11, D-61118 Bad Vilbel, Germany
Déclaration de conformité se rapportant à la directive EMC 2004/108/EC
Déclaration de conformité se rapportant à la directive RoHS 2011/65/EU
Fabricant:
JVC KENWOOD Corporation
3-12, Moriya-cho, Kanagawa-ku, Yokohama-shi, Kanagawa, 221-0022, Japan
Représentants dans l’UE:
JVC Technical Services Europe GmbH
Konrad-Adenauer-Allee 1-11, D-61118 Bad Vilbel, Germany

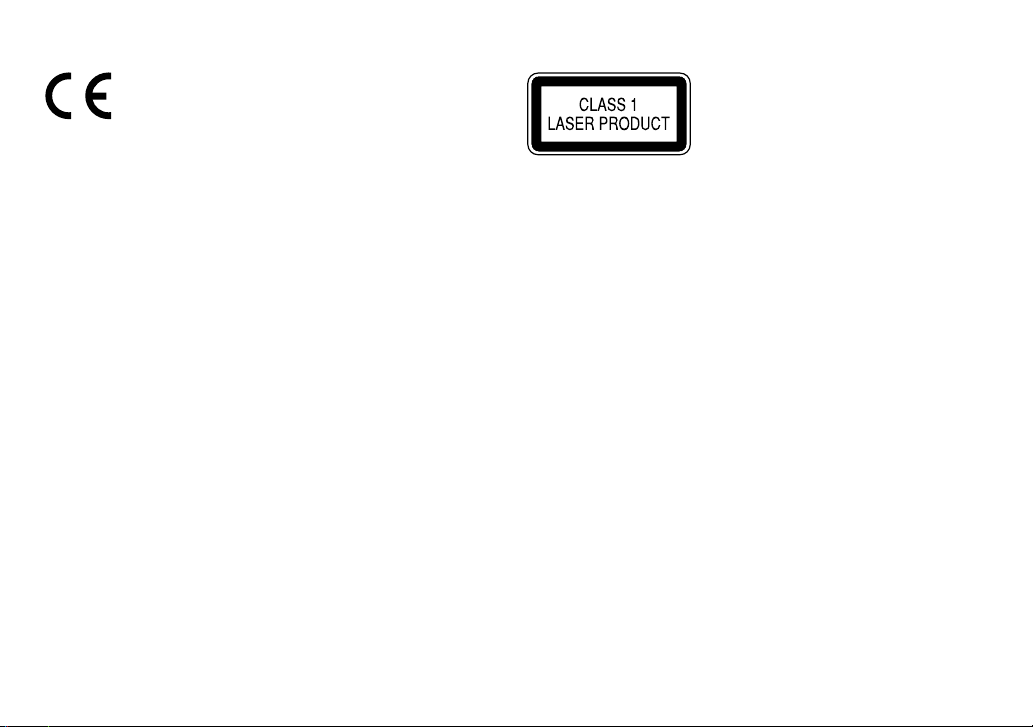

The marking of products using lasers
The label is attached to the chassis/case and says that the component uses laser beams that
have been classified as Class 1. It means that the unit is utilizing laser beams that are of a
weaker class. There is no danger of hazardous radiation outside the unit.
Marquage des produits utilisant un laser
L’étiquette est attachée au châssis/boîtier de l’appareil et indique que l’appareil utilise des
rayons laser de classe 1. Cela signifie que l’appareil utilise des rayons laser d’une classe faible. Il
n’y a pas de danger de radiation accidentelle hors de l’appareil.
JS_JVC_KW-R710_E_01_S001A.indd iiJS_JVC_KW-R710_E_01_S001A.indd ii 11/13/2013 10:26:20 AM11/13/2013 10:26:20 AM

2
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
CONTENTS BEFORE USE
Warning
Do not operate any function that takes your attention away from safe driving.
Caution
Volume setting:
• Adjust the volume so that you can hear sounds outside the car to prevent accidents.
• Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of
the output level.
General:
• Avoid using the USB device or iPod/iPhone if it might hinder safe driving.
• Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded
data.
• Never put or leave any metallic objects (such as coins or metal tools) inside the unit, to prevent a short
circuit.
• If a disc error occurs due to condensation on the laser lens, eject the disc and wait for the moisture to
evaporate.
Remote control (RM-RK52):
• Do not leave the remote control in hot places such as on the dashboard.
• The Lithium battery is in danger of explosion if replaced incorrectly. Replace it only with the same or
equivalent type.
• The battery pack or batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
• Keep the battery out of reach of children and in its original packaging when not in used. Dispose of used
batteries promptly. If swallowed, contact a physician immediately.
BEFORE USE 2
BASICS 3
GETTING STARTED 4
CD / USB / iPod 5
RADIO 7
AUX 9
AUDIO SETTINGS 9
DISPLAY SETTINGS 11
MORE INFORMATION 12
TROUBLESHOOTING 13

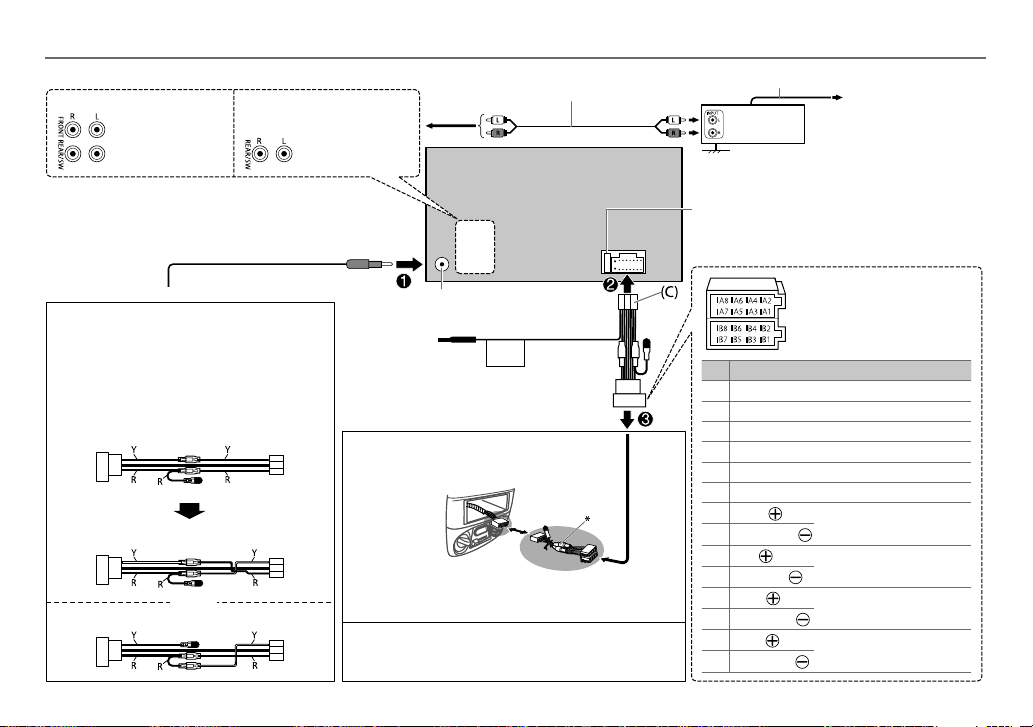

INSTALLATION /
CONNECTION 14
SPECIFICATIONS 17
How to read this manual
• Operations are explained mainly
using buttons on the faceplate of
KW-R710 .
• English language is used for
the display explanation in this
manual.
•
[XX] indicates the selected items.
•
( XX) indicates references are
available on the stated page.
Maintenance
Cleaning the unit: Wipe off dirt on the faceplate with a dry silicone or soft cloth.
Handling discs:
• Do not touch the recording surface of the disc.
• Do not stick tape etc. on the disc, or use a disc with tape stuck on it.
• Do not use any accessories for the disc.
• Clean from the center of the disc and move outward.
• Clean the disc with a dry silicone or soft cloth. Do not use any solvents.
• When removing discs from this unit, pull them out horizontally.
• Remove burrs from the center hole and disc edge before inserting a disc.
JS_JVC_KW-R710_E_01_EN.indd 2JS_JVC_KW-R710_E_01_EN.indd 2 11/13/2013 10:24:03 AM11/13/2013 10:24:03 AM

3
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)

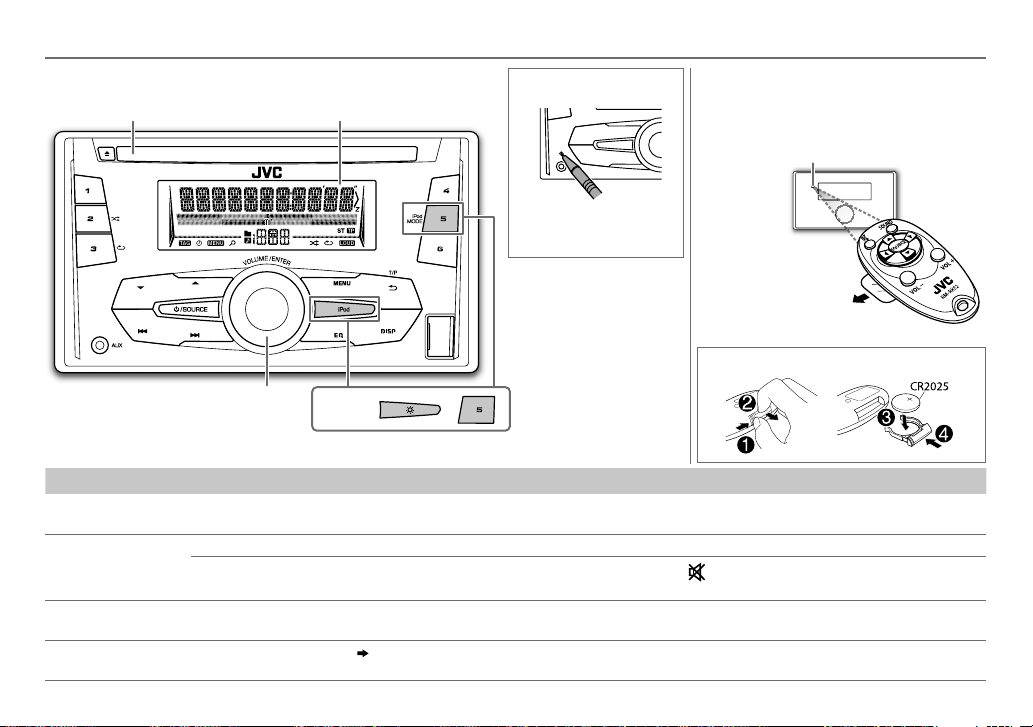

Remote control (RM-RK52) (not supplied)
KW-R710 can be remotely controlled with an
optionally purchased remote control.
To Do this (on the faceplate) Do this (on the remote control)
Turn on the power Press B/SOURCE.
• Press and hold to turn off the power. ( not available )
Adjust the volume Turn the volume knob. Press VOL + or VOL –.
Press the volume knob to mute the sound or pause playback.
• Press again to cancel. Press to mute the sound or pause playback.
• Press again to cancel.
Select a source • Press B/SOURCE repeatedly.
• Press B/SOURCE, then turn the volume knob within 2 seconds.
Press SOURCE repeatedly.
Change the display
information
Press DISP repeatedly.
( 13)
• Press and hold to scroll the current display information. ( not available )
BASICS
How to reset
Your preset adjustments
will also be erased.
KW-R510
Volume knob
(turn/press)
Loading slot Display window
Faceplate
ENGLISH |
Pull out the insulation sheet
when using for the first time.
How to replace the battery
Remote sensor
(Do not expose to bright sunlight.)
JS_JVC_KW-R710_E_01_EN.indd 3JS_JVC_KW-R710_E_01_EN.indd 3 11/13/2013 10:24:06 AM11/13/2013 10:24:06 AM

4
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)

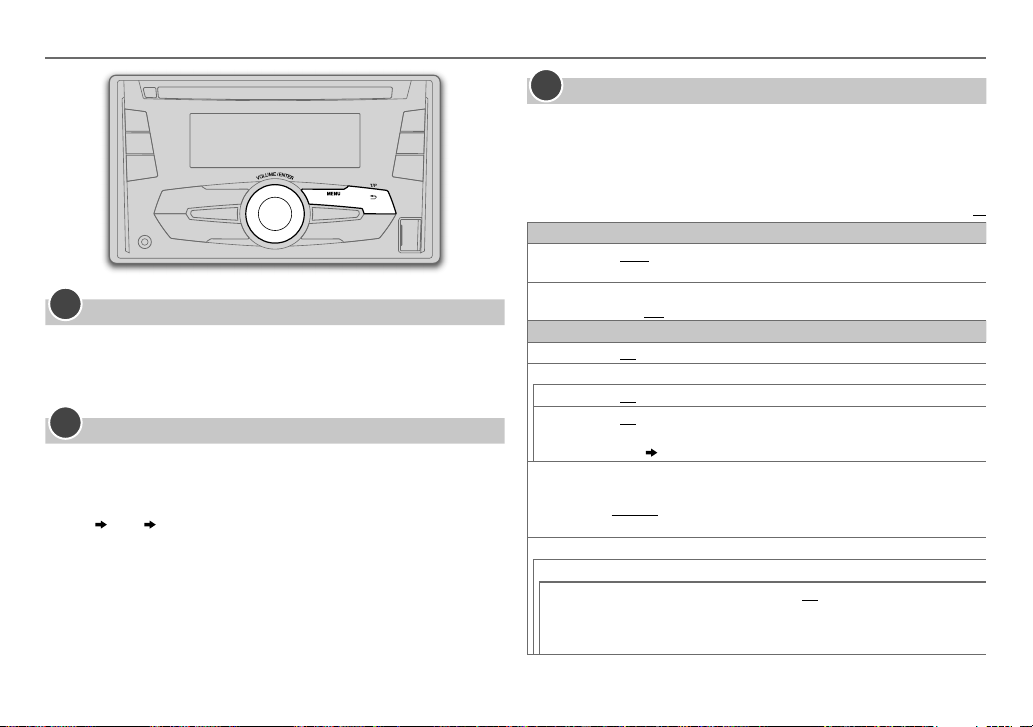

GETTING STARTED
Cancel the demonstration
1 Press and hold MENU.
2 Turn the volume knob to select [DEMO] , then press the knob.
3 Turn the volume knob to select [DEMO OFF] , then press the knob.
4 Press MENU to exit.
Set the clock
1 Press and hold MENU.
2 Turn the volume knob to select [CLOCK] , then press the knob.
3 Turn the volume knob to select [CLOCK SET] , then press the knob.
4 Turn the volume knob to make the settings, then press the knob.
Day Hour Minute
5 Turn the volume knob to select [24H/ 12H] , then press the knob.
6 Turn the volume knob to select [12 HOUR] or [24 HOUR] , then press the
knob.
7 Press MENU to exit.
1
2
Set the basic settings
1 Press and hold MENU.
2 Turn the volume knob to make a selection (see the following table),
then press the knob.
3 Press MENU to exit.
To return to the previous setting item or hierarchy, press GT/P.
Default: XX
CLOCK
CLOCK ADJ AUTO
:The clock time is automatically set using the Clock Time (CT) data in
FM Radio Data System signal.;
OFF :Cancels.
CLOCK DISP ON :The clock time is shown on the display even when the unit is turned
off.;
OFF :Cancels.
SETTINGS
BEEP ON
:Activates the keypress tone.; OFF :Deactivates.
SRC SELECT
AM
* ON :Enables AM in source selection.; OFF :Disables.
AUX * ON :Enables AUX in source selection.; OFF :Disables.; BT ADAPTER :Select
when the KS-BTA100 Bluetooth adapter is connected to the auxiliary input
jack
( 9) . The source name will change to BTAUDIO.
LANGUAGE Selects the display language for menu and Tag information (folder name, file
name, song title, artist name, album name) if applicable.
ENGLISH :Display language is English.
РУССКИЙ :Display language is Russian.
F/W UPDATE
SYSTEM
F/W xxxx YES
:Starts upgrading the firmware.; NO :Cancels (upgrading is not
activated).
For details on how to update the firmware, see:
<http://www.jvc.net/cs/car/>.
* Not displayed when the corresponding source is selected.
3
JS_JVC_KW-R710_E_01_EN.indd 4JS_JVC_KW-R710_E_01_EN.indd 4 11/13/2013 10:24:07 AM11/13/2013 10:24:07 AM

5
ENGLISH |
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
CD / USB / iPod
KW-R510
To Do this
Select a track/file Press S/T(or press H/Ion RM-RK52).
Select a folder *3Press J/K(or press J/Kon RM-RK52).
Reverse/
Fast-forward
Press and hold S/T(or press and hold H/Ion RM-RK52).
Repeat play *4Press 3Brepeatedly to make a selection.
• Audio CD or JVC Playlist Creator (JPC) / JVC Music Control (JMC) file ( 13) :
TRACKRPT, RPT OFF
• MP3/WMA/WAV file: TRACKRPT, FOLDER RPT, RPT OFF
• iPod: ONE RPT, ALL RPT, RPT OFF
Random play *4Press 2Arepeatedly to make a selection.
• Audio CD: ALL RND, RND OFF
• MP3/WMA/WAV file or JPC / JMC file: FOLDERRND, ALL RND, RND OFF
• iPod: SONG RND, ALL RND, RND OFF
*1Do not leave the cable inside the car when not using.
*2You can still play/pause, file skip, fast-forward or reverse files from the unit.
*3Only for MP3/WMA/WAV files. This does not work for iPod.
*4For iPod: Applicable under
[HEAD MODE] only.
Start playback
The source changes automatically and
playback starts.
CD
USB
iPod/iPhone (for KW-R710 )
• You can also change the source from the
other source to iPod by pressing iPod.
Press 5 iPod MODE repeatedly to select the
control mode (
[HEAD MODE] / [IPHONE MODE] ).
HEAD MODE : From the unit.
IPHONE MODE : From the iPod/iPhone.*2
Eject disc Label side
USB input terminal
(Accessory of the iPod/iPhone)
*1
USB input terminal
USB 2.0 cable
*1
(commercially available)
JS_JVC_KW-R710_E_f_EN.indd 5JS_JVC_KW-R710_E_f_EN.indd 5 12/16/2013 4:45:44 PM12/16/2013 4:45:44 PM

6
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
Select a track/file from a list
For iPod: Applicable only when [HEAD MODE] is selected. ( 5)
1 Press MENU.
2 Turn the volume knob to make a selection, then press the knob.
• MP3/WMA/WAV file: Select the desired folder, then a file.
• iPod or JPC / JMC file: Select the desired file from the list (PLAYLISTS,
ARTISTS, ALBUMS, SONGS, PODCASTS*, GENRES, COMPOSERS*,
AUDIOBOOKS*).
*
Only for iPod.
If you have many files....
You can search through them quickly (on step 2above) by turning the
volume knob quickly.
• Not applicable for iPod.
Select a song by name
(For KW-R710 )
While listening to the iPod and
[HEAD MODE] is selected ( 5) ....
If you have many folders or tracks/files, you can search through them
quickly according to the first character (A to Z, 0 to 9 and OTHERS).
• “OTHERS” appear if the first character is other than Ato Z, 0 to 9.
1 Press MENU.
2 Turn the volume knob to select the desired list, then press the
knob.
3 Press J/Kor turn the volume knob quickly to select the desired
character.
4 Turn the volume knob to select the desired folder or track/file, then
press the knob.
Change the USB drive
When a smartphone (Mass Storage Class) is connected to the USB input
terminal, you can select its internal memory or external memory (such as an
SD card) to playback the stored songs.
You can also select the desired drive to playback when a multiple drives
device is connected.
Press number button 5repeatedly to select the desired drive.
(or)
1 Press and hold MENU.
2 Turn the volume knob to select [USB/IPOD] , then press the knob.
3 Turn the volume knob to select [USB] , then press the knob.
4 Press the volume knob to select [DRIVECHANGE] .
The next drive is selected automatically.
Repeat steps 1to 4to select the following drives.
Selectable items:
[DRIVE  1] to [DRIVE  5]
Change the playback speed of the Audiobook
(For KW-R710 )
While listening to the iPod and
[HEAD MODE] is selected ( 5) ....
1 Press and hold MENU.
2 Turn the volume knob to select [USB/IPOD] , then press the knob.
3 Turn the volume knob to select [IPOD] , then press the knob.
4 Turn the volume knob to make a selection, then press the knob.
BOOK NORMAL / BOOK FASTER / BOOK SLOWER : Select the desired playback
speed of the Audiobooks sound file in your iPod/iPhone.
(Default: Depends on your iPod/iPhone setting.)
• To return to the previous setting item or hierarchy, press GT/P.
• To cancel, press MENU.
CD / USB / iPod
JS_JVC_KW-R710_E_03_EN.indd 6JS_JVC_KW-R710_E_03_EN.indd 6 12/4/2013 10:18:59 AM12/4/2013 10:18:59 AM

7
ENGLISH |
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
RADIO
“ST” lights up when receiving an FM stereo broadcast with sufficient
signal strength.
Search for a station
1 Press B/SOURCE to select FM or AM.
2 Press S/T(or press H/Ion RM-RK52) to search for a station
automatically.
(or)
Press and hold S/T(or press and hold H/Ion RM-RK52) until
“M” flashes, then press repeatedly to search for a station manually.
Store a station
You can store up to 18 stations for FM and 6 stations for AM.
While listening to a station....
Press and hold one of the number buttons (1to 6) to store.
(or)
1 Press and hold the volume knob until “PRESETMODE” flashes.
2 Turn the volume knob to select a preset number, then press the
knob.
The preset number flashes and “MEMORY” appears.
• To select a stored station: Press J/Kor one of the number buttons
(1to6).
(or)
Press MENU, then turn the volume knob to select a preset number and
press the knob to confirm.
Search for your favorite program (PTY Search)
Available only for FM source.
1 Press and hold GT/P.
2 Turn the volume knob to select a PTY code, then press the knob to
start searching.
If there is a station broadcasting a program of the same PTY code as
you have selected, that station is tuned in.
PTY code: NEWS , AFFAIRS , INFO , SPORT , EDUCATE , DRAMA , CULTURE , SCIENCE , VARIED ,
POP M (music), ROCK M (music), EASY M (music), LIGHT M (music), CLASSICS , OTHER M
(music),
WEATHER , FINANCE , CHILDREN , SOCIAL , RELIGION , PHONE IN , TRAVEL , LEISURE ,
JAZZ , COUNTRY , NATION M (music), OLDIES , FOLK M (music), DOCUMENT
Activate TA Standby Reception
Available only for FM source.
Press GT/P.
The unit will temporarily switch to Traffic Announcement (TA) (if
available) from any source other than AM.
• To deactivate, press GT/P again.
JS_JVC_KW-R710_E_01_EN.indd 7JS_JVC_KW-R710_E_01_EN.indd 7 11/13/2013 10:24:09 AM11/13/2013 10:24:09 AM

8
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
RADIO
Other settings
1 Press and hold MENU.
2 Turn the volume knob to select [TUNER] , then press the knob.
3 Turn the volume knob to make a selection (see the following table),
then press the knob.
4 Press MENU to exit.
To return to the previous setting item or hierarchy, press GT/P.
Default: XX
RADIO TIMER Turns on the radio at a specific time regardless of the current source.
1 ONCE / DAILY / WEEKLY / OFF :Select how often the timer will be turned
on.
2 FM / AM :Select the FM or AM band.
3 01 to 18 (for FM)/ 01 to 06 (for AM):Select the preset station.
4 Set the activation day*
1
and time.
• “
M ” lights up when complete.
*
1
Selectable only when [ONCE] or [WEEKLY] is selected in step 1 .
Radio Timer will not activate for the following cases.
• The unit is turned off.
•
[OFF] is selected for [AM] in [SRC SELECT] after Radio Timer for AM is
selected.
( 4)
SSM SSM 01 – 06
/ SSM 07 – 12 / SSM 13 – 18 :
Automatically presets up to 18 stations for FM. “SSM” stops flashing when
the first 6 stations are stored. Select
SSM 07 – 12 / SSM 13 – 18 to store
the following 12 stations.
IF BAND *2 AUTO :Increases the tuner selectivity to reduce interference noises from
adjacent FM stations. (Stereo effect may be lost.);
WIDE :Subjects to
interference noises from adjacent FM stations, but sound quality will not be
degraded and the stereo effect will remain.
MONO *2 ON :Improves the FM reception, but the stereo effect will be lost.;
OFF :Cancels.
NEWS-STBY *2 ON :The unit will temporarily switch to News Programme if available.;
OFF :Cancels.
REGIONAL *2 ON : Switches to another station only in the specific region using the “AF”
control.;
OFF :Cancels.
AF SET *2 ON : Automatically searches for another station broadcasting the same
program in the same Radio Data System network with better reception
when the current reception is poor.;
OFF : Cancels.
*2Only for FM source.
JS_JVC_KW-R710_E_03_EN.indd 8JS_JVC_KW-R710_E_03_EN.indd 8 12/4/2013 10:19:10 AM12/4/2013 10:19:10 AM

9
ENGLISH |
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
Use a portable audio player
1 Connect a portable audio player (commercially available).
2 Select [ON] for [AUX] in [SRC SELECT] . ( 4)
3 Press B/SOURCE to select AUX.
4 Turn on the portable audio player and start playback.
Use a 3-core plug head stereo mini plug for optimum audio
output.
Use a Bluetooth® device
1 Connect the Bluetooth adapter, KS-BTA100 (separately purchased).
2 Register (pair) the Bluetooth device with KS-BTA100.
3 Select [BT ADAPTER] for [AUX] in [SRC SELECT] . ( 4)
4 Press B/SOURCE to select BT AUDIO.
5 Start using the Bluetooth device.
For details, refer to the instruction manual of KS-BTA100.
AUX
Auxiliary input jack
Blue/white Blue/white: Remote
Black Black: Ground
Brown Brown: Tel muting
Wiring harness of the unit
( 16)
3.5mm stereo mini plug with “L” shaped connector
(commercially available)
Portable audio player
Auxiliary input jack
AUDIO SETTINGS
To Do this
Select a preset
equalizer
Press EQ repeatedly.
(or)
Press EQ, then turn the volume knob within
2seconds.
FLAT (default), HARD ROCK, JAZZ, POP, R&B,
TALK, USER1, USER2, VOCAL BOOST, BASS BOOST,
CLASSICAL, DANCE
Store your
own sound
settings
Default:
00
1 Press and hold EQ.
2 Turn the volume knob to select [EASY EQ] , then press
the knob.
3 Turn the volume knob to select [USER1] or [USER2] ,
then press the knob.
4 Turn the volume knob to make a selection, then
press the knob.
SUB.W
*: –08 to +08
BASSLVL: –06 to +06
MIDLVL:–06to+06
TRELVL: –06 to +06
• To return to the previous setting item, press GT/P.
• To exit, press EQ.
* Displayed only when
[L/O  MODE] is set to [SUB.W] and [SUB.W] is set to
[ON] . ( 10)
Other settings
1 Press and hold MENU.
2 Turn the volume knob to make a selection ( 10) , then press the
knob.
Repeat step 2until the desired item is selected.
3 Press MENU to exit.
To return to the previous setting item or hierarchy, press GT/P.
JS_JVC_KW-R710_E_03_EN.indd 9JS_JVC_KW-R710_E_03_EN.indd 9 12/4/2013 10:19:12 AM12/4/2013 10:19:12 AM

10
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
Default: XX
EQ SETTING
EQ PRESET FLAT
/ HARD ROCK / JAZZ / POP / R&B / TALK / USER1 / USER2 /
VOCAL BOOST / BASS BOOST / CLASSICAL / DANCE :Selects a preset
equalizer.
EASY EQ
Default: 00
1 USER1 / USER2 :Select a preset name.
2 Adjust your own sound settings.
SUB.W
*1
: –08 to +08 / BASS  LVL : –06 to +06 /
MID  LVL: –06 to +06 / TRE  LVL : –06 to +06
PRO EQ
1 USER1 / USER2 :Select a preset name.
2 BASS / MIDDLE / TREBLE :Select a sound tone.
3 Adjust the sound elements of the selected sound tone.
BASS Frequency: 60 / 80 / 100 / 200 Hz Default: ( 80 Hz )
Level:
–06 to +06 ( 00 )
Q:
Q1.0 / Q1.25 / Q1.5 / Q2.0 ( Q1.0 )
MIDDLE Frequency: 0.5 / 1.0 / 1.5 / 2.5 kHz Default: ( 1.0 kHz )
Level:
–06 to +06 ( 00 )
Q:
Q0.75 / Q1.0 / Q1.25 ( Q1.25 )
TREBLE Frequency: 10.0 / 12.5 / 15.0 / 17.5 kHz Default: ( 10.0 kHz )
Level:
–06 to +06 ( 00 )
Q:
Q FIX ( Q FIX )
AUDIO
BASS BOOST +01
/ +02 : Selects your preferred bass boost level.; OFF :Cancels.
LOUD 01 / 02 :Boosts low or high frequencies to produce a well-balanced sound
at low volume.;
OFF :Cancels.
SUB.W LEVEL
*1
–08 — +08 ( 0 ):Adjusts the subwoofer output level.
SUB.W
*2
ON / OFF : Turns on or off the subwoofer output.
SUB.W  LPF
*1
THROUGH :All signals are sent to the subwoofer. ; LOW  55Hz /
MID  85Hz / HIGH 120Hz :Audio signals with frequencies lower than
55Hz/ 85Hz/ 120Hz are sent to the subwoofer.
FADER
*3
*4
R06 — F06 ( 0 ):Adjusts the front and rear speaker output balance.
BALANCE
*3
L06 — R06 ( 0 ):Adjusts the left and right speaker output balance.
VOL ADJUST –05 — +05 ( 00 ):Presets the volume adjustment level of each source
(compared to the FM volume level). Before adjustment, select the source
you want to adjust. (“VOLADJFIX” appears if FM is selected.)
AMP GAIN LOW  POWER :Limits the maximum volume level to 30. (Select if the
maximum power of each speaker is less than 50W to prevent damaging
the speakers.);
HIGH POWER :The maximum volume level is 50.
D.T.EXP
(Digital Track
Expander)
ON :Creates realistic sound by compensating the high-frequency
components and restoring the rise-time of the waveform that are lost in
audio data compression.;
OFF :Cancels.
TEL  MUTING
*5
ON :Mutes the sounds while using the cellular phone (not connected
through KS-BTA100).;
OFF :Cancels.
L/O MODE SUB.W / REAR :Selects whether rear speakers or a subwoofer are
connected to the REAR/SW line out terminals on the rear panel (through an
external amplifier).
*1Displayed only when
[L/O  MODE] is set to [SUB.W] and [SUB.W] is set to
[ON] .
*2Displayed only when
[L/O MODE] is set to [SUB.W] .
*3This adjustment will not affect the subwoofer output.
*4If you are using a two-speaker system, set the fader level to
[00] .
*5Does not work if
[BT ADAPTER] is selected for [AUX] in [SRC SELECT] . ( 4)
AUDIO SETTINGS
JS_JVC_KW-R710_E_f_EN.indd 10JS_JVC_KW-R710_E_f_EN.indd 10 12/4/2013 12:53:03 PM12/4/2013 12:53:03 PM

11
ENGLISH |
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
KW-R710 KW-R510
1 Press and hold MENU.
2 Turn the volume knob to make a selection (see the following
table), then press the knob.
Repeat step
2until the desired item is selected.
3 Press MENU to exit.
To return to the previous setting item or hierarchy, press GT/P.
Default: XX
DISPLAY
DIMMER
Selects the display and button illumination adjusted in the
[BRIGHTNESS] setting.
AUTO :Changes between the day and night adjustments when you turn
off or on the car headlights.*
1
; ON :Selects the night adjustments.;
OFF :Selects the day adjustments.
BRIGHTNESS Sets the button, display and USB input terminal brightness for day and
night separately.
1 DAY / NIGHT :Select day or night.
2 Select a zone for setting. ( Illustration above)
3 Set the brightness level ( 00 to 31 ).
(Default:
KW-R710 : DAY : 31 ; NIGHT : 11
KW-R510 : BUTTON ZONE : DAY : 25 ; NIGHT : 09
DISP ZONE : DAY : 31 ; NIGHT : 12 )
SCROLL * 2 ONCE :Scrolls the display information once.; AUTO :Repeats scrolling at
5-second intervals.;
OFF :Cancels.
*1
The illumination control wire connection is required. ( 16)
*2
Some characters or symbols will not be shown correctly (or will be blanked).
DISPLAY SETTINGS
Default: XX
COLOR (for KW-R710 )
PRESET You can select a color for [ ALL ZONE ], [ ZONE 1 ], [ DISP ZONE ], or [ ZONE 2 ]
separately. For [
ALL ZONE ], you can also select a color pattern.
Default color:
ALL ZONE : [ COLOR 06 ], ZONE 1 : [ COLOR 06 ],
DISP ZONE : [ COLOR 01 ], ZONE 2 : [ COLOR 27 ]
1 Select a zone for setting. ( Illustration on left column)
2 Select a color for the selected zone.
•
COLOR 01 to COLOR 29
• USER : The color you have created for [ DAY COLOR ] or [ NIGHT COLOR ] is
shown.
•
COLOR FLOW 01 to COLOR FLOW 03 : Color changes at different speeds.
•
SPECTRUM / GROOVE / TECHNO / EMOTION / RELAX / NIGHT SWEEP : The
selected color pattern is shown.* (Selectable only when [
ALL ZONE ] is
selected in step
1 .)
* If one of these color pattern is selected, the [ ZONE 1 ], [ DISP ZONE ], [ ZONE 2 ]
illumination color will change to the default color.
DAY COLOR Store your own day and night colors for different zone.
1 Select a zone for setting. ( Illustration on left column)
2 RED / GREEN / BLUE :Select a primary color.
3 00 to 31 :Select the level.
Repeat steps
2 and 3 for all the primary colors.
• Your setting is stored to
[USER] in [PRESET] .
• If
[00] is selected for all primary colors for [DISP ZONE] , nothing appears on
the display.
NIGHT COLOR
COLOR GUIDE ON
:Changes the button, display and USB input terminal illumination when
settings are performed on menu and list search. Display zone will automatically
change depending on volume level.;
OFF :Cancels.
[NIGHT COLOR] or [DAY COLOR] is changed by turning on or off your car’s
headlight.
JS_JVC_KW-R710_E_03_EN.indd 11JS_JVC_KW-R710_E_03_EN.indd 11 12/4/2013 10:19:25 AM12/4/2013 10:19:25 AM

12
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
DISPLAY SETTINGS MORE INFORMATION

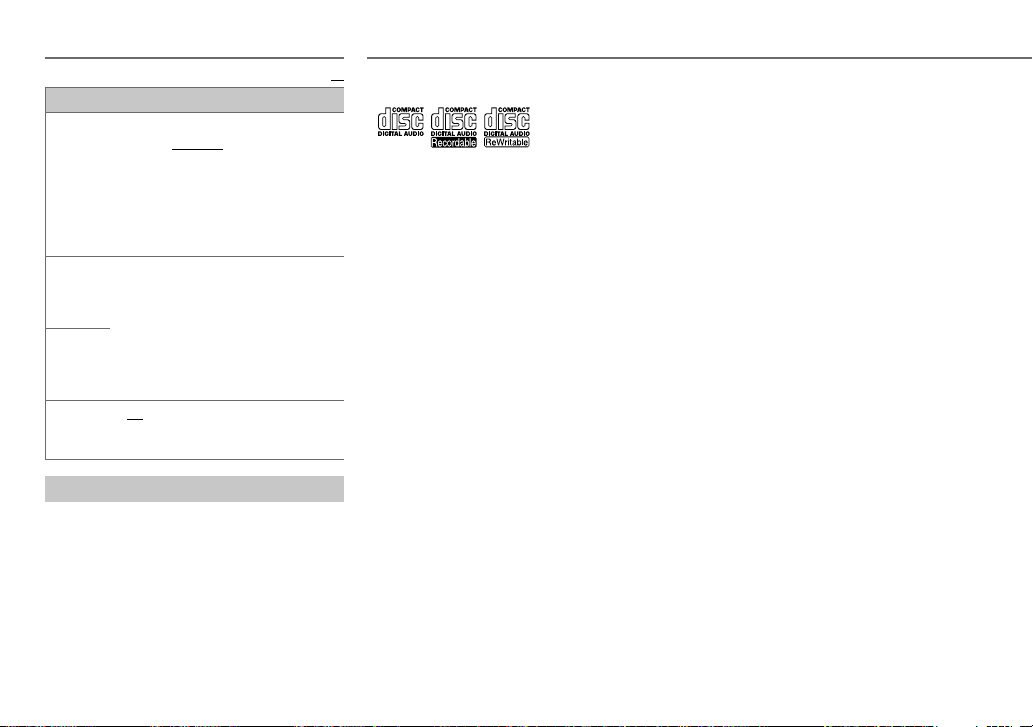

About discs and audio files
• This unit can only play the following CDs:
• This unit can play back multi-session discs; however,
unclosed sessions will be skipped during playback.
•
Unplayable discs:
- Discs that are not round.
- Discs with coloring on the recording surface or discs that
are dirty.
- Recordable/ReWritable discs that have not been
finalized.
- 8 cm CD. Attempting to insert using an adapter may
cause malfunction.
•
DualDisc playback: The Non-DVD side of a “DualDisc”
does not comply with the “Compact Disc Digital Audio”
standard. Therefore, the use of Non-DVD side of a DualDisc
on this product cannot be recommended.
•
Playable files:
- File extensions: MP3(.mp3), WMA(.wma)
- Bit rate: MP3: 8kbps — 320kbps
WMA: 32kbps — 192kbps
- Sampling frequency:
MP3: 48kHz, 44.1kHz, 32kHz, 24kHz, 22.05kHz,
16kHz, 12kHz, 11.025kHz, 8kHz
WMA: 8kHz — 48kHz
- Variable bit rate (VBR) files.
•
Maximum number of characters for file/folder name:
It depends on the disc format used (includes 4 extension
characters—<.mp3> or <.wma>).
- ISO 9660 Level 1 and 2: 32 characters
- Romeo: 32 characters
- Joliet: 32 characters
- Windows long file name: 32 characters
About USB devices
• This unit can play MP3/WMA/WAV files stored on a USB
mass storage class device.
• You cannot connect a USB device via a USB hub.
• Connecting a cable whose total length is longer than 5m
may result in abnormal playback.
• The maximum number of characters for:
- Folder names: 64 characters
- File names: 64 characters
- MP3 Tag: 64 characters
- WMA Tag: 64 characters
- WAV Tag: 64 characters
• This unit can recognize a total of 20 480 files, 999 folders
(999 files per folder including folder without unsupported
files), and of 8 hierarchies.
• This unit cannot recognize a USB device whose rating is
other than 5V and exceeds 1A.
About iPod/iPhone
• Made for
- iPod touch (1st, 2nd, 3rd, 4th, and 5th generation)
- iPod classic
- iPod nano (3rd, 4th, 5th, 6th and 7th generation)
- iPhone, iPhone 3G, 3GS, 4, 4S, 5
• It is not possible to browse video files on the “Videos”
menu in
[HEAD MODE] .
• The song order displayed on the selection menu of this unit
may differ from that of the iPod/iPhone.
• If some operations are not performed correctly or as
intended, visit: <http://www.jvc.net/cs/car/>.
Default: XX
COLOR (for KW-R510 )
PRESET Select a color for [ BUTTON ZONE ].
Default: [
COLOR 06 ]
•
COLOR 01 to COLOR 29
• USER : The color you have created for
[
DAY COLOR ] or [ NIGHT COLOR ] is
shown.
•
COLOR FLOW 01 to COLOR FLOW 03 :
Color changes at different speeds.
DAY COLOR Store your own day and night colors.
1 RED / GREEN / BLUE :Select a primary
color.
2 00 to 31 :Select the level.
Repeat steps
1 and 2 for all the primary
colors.
• Your setting is stored to
[USER] in
[PRESET] .
NIGHT
COLOR
MENU
COLOR
ON :Changes the button illumination to
white color when settings are performed on
menu and list search.;
OFF :Cancels.
Adjust the brightness (for KW-R510 )
1 Press Ito enter brightness adjustment.
2 Turn the volume knob to select
[BUTTON ZONE] or [DISP ZONE] , then press the
knob.
3 Turn the volume knob to adjust the
brightness level
( 00 to 31 ) , then press the
knob.
4 Press MENU to exit.
JS_JVC_KW-R710_E_03_EN.indd 12JS_JVC_KW-R710_E_03_EN.indd 12 12/4/2013 10:19:27 AM12/4/2013 10:19:27 AM

13
ENGLISH |
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
About JVC Playlist Creator and JVC Music Control
• This unit supports the PC application JVC Playlist Creator and Android
TM
application JVC Music Control.
• When you play audio file with song data added using the JVC Playlist Creator or JVC Music Control, you
can search for audio file by Genres, Artists, Albums, Playlists, and Songs.
• JVC Playlist Creator and JVC Music Control are available from the following web site:
<http://www.jvc.net/cs/car/>.

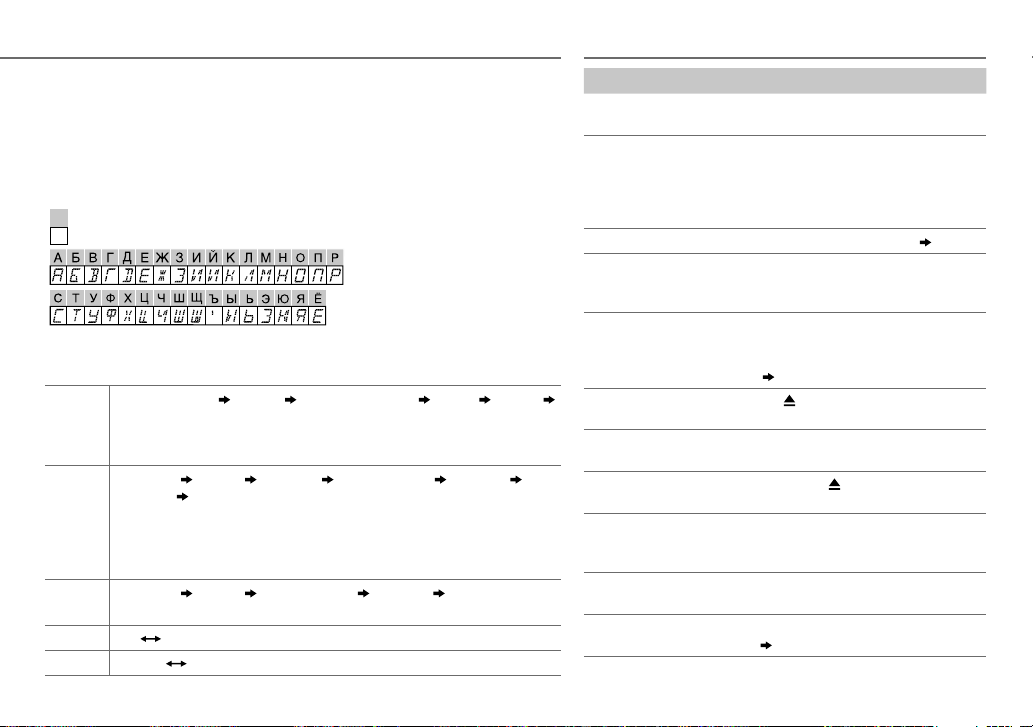

Available Cyrillic letters
Change the display information
Press DISP repeatedly.
FM or AM Station name (PS)*
1
Frequency Program type (PTY)*
1
*
2
Title*
1
*
2
Day/Clock
(back to the beginning)
*1
For FM Radio Data System stations only.
*2
If unavailable, “NO PTY” / “NO TEXT” appears.
CD or USB Playing time Day/Clock Disc name*
3
Album title/Artist*
4
Track title*
5
Folder/
file name*
6
(back to the beginning)
*3
Only for CD-DA: If not recorded, “NO NAME” appears.
*4
Only for MP3/WMA files: If not recorded, “NO NAME” appears.
*5
If not recorded, “NO NAME” appears.
*6
Only for MP3/WMA files.
USB-IPOD Playing time Day/Clock Album title/Artist*
7
Track title*
7
(back to the beginning)
*7
If not recorded, “NO NAME” appears.
AUX AUX Day/Clock
BT AUDIO BT AUDIO Day/Clock
MORE INFORMATION TROUBLESHOOTING
Symptom Remedy
Sound cannot be heard. • Adjust the volume to the optimum level.
• Check the cords and connections.
“MISWIRING CHK WIRING
THEN RESET UNIT” /
“WARNING CHK WIRING THEN
RESET UNIT” appears and no
operations can be done.
Check to be sure the terminals of the speaker
wires are insulated properly, then reset the
unit. If this does not solve the problem, consult
your nearest service center.
Source cannot be selected. Check the
[SRC SELECT] setting. ( 4)
Radio reception is poor. /
Static noise while listening to
the radio.
• Connect the antenna firmly.
• Pull the antenna out all the way.
Correct characters are not
displayed.
This unit can only display uppercase letters,
numbers, and a limited number of symbols. The
unit can also display uppercase Cyrillic letters.
( Left column)
“PLEASE” and “EJECT” appear
alternately.
Press , then insert the disc correctly.
“IN DISC” appears. Make sure nothing is blocking the loading slot
when you eject the disc.
Disc cannot be ejected. Press and hold to forcibly eject the disc. Be
careful not to drop the disc when it is ejected.
Playback order is not as
intended.
The playback order is determined by the file
name (USB) or the order in which files were
recorded (disc).
Elapsed playing time is not
correct.
This depends on the recording process earlier.
“NOT SUPPORT” appears and
track skips.
Check whether the track is a playable format.
( 12)
Available characters
Display indications
JS_JVC_KW-R710_E_02_EN.indd 13JS_JVC_KW-R710_E_02_EN.indd 13 11/29/2013 11:37:46 AM11/29/2013 11:37:46 AM

14
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
Symptom Remedy
“CANNOT PLAY” flashes
and/or connected device
cannot be detected.
• Check whether the connected device is compatible with this
unit and ensure the files are in supported formats.
( 12)
• Reattach the device.
“READING” keeps flashing. • Do not use too many hierarchical levels and folders.
• Reload the disc or reattach the USB device.
The iPod/iPhone does not
turn on or does not work.
• Check the connection between this unit and iPod/iPhone.
• Detach and reset the iPod/iPhone using hard reset.
If you still have troubles, reset the unit. ( 3)
Warning
• The unit can only be used with a 12V DC power supply, negative ground.
• Disconnect the battery’s negative terminal before wiring and mounting.
• Do not connect Battery wire (yellow) and Ignition wire (red) to the car chassis or Ground wire
(black) to prevent a short circuit.
• Insulate unconnected wires with vinyl tape to prevent a short circuit.
• Be sure to ground this unit to the car’s chassis again after installation.
Caution
• For safety’s sake, leave wiring and mounting to professionals. Consult the car audio dealer.
• Install this unit in the console of your vehicle. Do not touch the metal parts of this unit during
and shortly after use of the unit. Metal parts such as the heat sink and enclosure become hot.
• Do not connect the wires of speakers to the car chassis or Ground wire (black), or connect
them in parallel.
• Connect speakers with a maximum power of more than 50W. If the maximum power of
the speakers is lower than 50W, change the
[AMP GAIN] setting to avoid damaging the
speakers.
(  10)
• Mount the unit at an angle of less than 30º.
• If your vehicle wiring harness does not have the ignition terminal, connect Ignition wire (red)
to the terminal on the vehicle’s fuse box which provides 12 V DC power supply and is turned
on and off by the ignition key.
• After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are
working properly.
• If the fuse blows, first make sure the wires are not touching car’s chassis, then replace the old
fuse with one that has the same rating.
Basic procedure
1 Remove the key from the ignition switch, then disconnect the
terminal of the car battery.
2 Connect the wires properly.
See Wiring connection.
(  16)
3 Install the unit to your car.
See Installing the unit (in-dash mounting).
4 Connect the terminal of the car battery.
5 Reset the unit. (  3)
TROUBLESHOOTING INSTALLATION / CONNECTION
JS_JVC_KW-R710_E_01_EN.indd 14JS_JVC_KW-R710_E_01_EN.indd 14 11/13/2013 10:24:13 AM11/13/2013 10:24:13 AM

15
ENGLISH |
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
Installing the unit (in-dash mounting) How to remove the unit
INSTALLATION / CONNECTION
Part list for installation
(B) Mounting sleeve
(A) Trim plate
(C) Wiring harness
(D) Extraction key
(E) Flat head screw ( M5 × 8mm )
(F) Round head screw ( M5 × 8mm )
Dashboard of
your car
Do the required wiring.
(  16)
Bend the appropriate tabs to
hold the sleeve firmly in place.
When installing without the mounting sleeve
Use only the specified screws. Using wrong screws might damage the unit.
Mounting bracket
removed from the car
If there is an interfering tab on the
mounting bracket, bend it flat.
* Screw removed from the
car.
JS_JVC_KW-R710_E_f_EN.indd 15JS_JVC_KW-R710_E_f_EN.indd 15 12/16/2013 4:49:12 PM12/16/2013 4:49:12 PM

16
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
STEERING
WHEEL
REMOTE
KW-R710 KW-R510
Wiring connection
Light blue/yellow
Signal cord
(not supplied) Remote wire (not supplied)
To the steering
wheel remote
control adapter
Fuse (10A)
To Blue/white wire of the
wiring harness
(C)
Aerial terminal
JVC Amplifier
Rear/subwoofer output
IMPORTANT: A custom wiring harness (separately purchased)
which is suitable for your car is recommended for connection.
If your car does NOT have an ISO terminal
( or )
ISO connector
* Custom wiring harness (separately purchased)
For some VW/Audi or Opel (Vauxhall) automobiles
You may need to modify the wiring of the supplied
power cord
(C) as illustrated.
If the unit does not turn on with modified wiring 1, use
modified wiring 2 instead.
Y: Yellow R: Red
Original wiring
Modified wiring 1
Modified wiring 2
Pin Color and function
A2 Brown : Tel muting
A4 Yellow : Battery
A5 Blue/White : Power control
A6 Orange/white : Car light control switch
A7 Red : Ignition (ACC)
A8 Black : Earth (ground) connection
B1 Purple : Rear speaker (right)
B2 Purple/black
B3 Gray : Front speaker (right)
B4 Gray/black
B5 White : Front speaker (left)
B6 White/black
B7 Green : Rear speaker (left)
B8 Green/black
Front output
Rear/subwoofer output
INSTALLATION / CONNECTION
JS_JVC_KW-R710_E_02_EN.indd 16JS_JVC_KW-R710_E_02_EN.indd 16 11/25/2013 3:48:53 PM11/25/2013 3:48:53 PM

17
ENGLISH |
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
SPECIFICATIONS
USB
USB Standard USB1.1, USB2.0 (Full speed)
Compatible Devices Mass storage class
File System FAT12/16/32
Maximum Supply Current DC5V 1A
MP3 Decode Compliant with MPEG-1/2 Audio Layer-3
WMA Decode Compliant with Windows Media Audio
WAV Decode Linear-PCM
Auxiliary

Frequency Response (±3dB) 20Hz—20kHz
Input Maximum Voltage 1200mV
Input Impedance 30kΩ
Audio
Maximum Output Power 50W×4
Output Power
(DIN 45324, +B = 14.4 V)
30W×4
Speaker Impedance 4Ω—8Ω
Preout Level/Load (CD) 2500mV/10kΩ load (full scale)
Preout Impedance ≤600Ω
General
Operating Voltage 14.4V (10.5V—16V allowable)
Maximum Current Consumption 10A
Operating Temperature Range 0°C to +40°C
Installation Size (W×H×D) 182mm×112mm×158mm
Weight 1.5k
g
Subject to change without notice.
TUNER
FM Frequency Range 87.5MHz to 108.0MHz (50kHz step)
Usable Sensitivity (S/N=26dB) 0.71μV/75Ω
Quieting Sensitivity
(DINS/N=46dB)
2.0μV/75Ω
Frequency Response (±3dB) 30Hz to 15kHz
Signal-to-Noise Ratio (MONO) 64dB
Stereo Separation (1kHz) 40dB
AM Frequency Range MW 531kHz to 1611kHz (9kHz step)
LW 153kHz to 279kHz (9kHz step)
Usable Sensitivity (S/N=20dB) MW 28.2μV
LW 50μV
CD player
Laser Diode GaAIAs
Digital Filter 8 times over sampling
Spindle Speed 500 rpm — 200 rpm (CLV)
Wow & Flutter Below measurable limit
Frequency Response (±1dB) 20 Hz — 20 kHz
Total Harmonic Distortion (1 kHz) 0.01 %
Signal-to-Noise Ratio (1 kHz) 105 dB
Dynamic Range 90 dB
Channel Separation 85 dB
MP3 Decode Compliant with MPEG-1/2 Audio Layer-3
WMA Decode Compliant with Windows Media Audio
JS_JVC_KW-R710_E_01_EN.indd 17JS_JVC_KW-R710_E_01_EN.indd 17 11/13/2013 10:24:15 AM11/13/2013 10:24:15 AM

2
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
TABLE DES MATIERES AVANT L’UTILISATION
Avertissement
N’utilisez aucune fonction qui risque de vous distraire de la conduite sure de votre véhicule.
Précautions
Réglage du volume:
• Ajustez le volume de façon à pouvoir entendre les sons extérieurs à la voiture afin d’éviter tout risque d’accident.
• Réduisez le volume avant de reproduire des sources numériques afin d’éviter d’endommager les enceintes par la soudaine
augmentation du niveau de sortie.
Généralités:
• Évitez d’utiliser un périphérique USB ou un iPod/iPhone s’il peut gêner la conduite en toute sécurité.
• Assurez-vous que toutes les données importantes ont été sauvegardées. Nous ne pouvons pas être tenu responsable pour toute
perte des données enregistrées.
• Veuillez faire en sorte de ne jamais mettre ou laisser d’objets métalliques (tels que des pièces ou des outils) dans l’appareil, afin
d’éviter tout risque de court-circuit.
• Si une erreur de disque se produit à cause de la condensation sur l’objectif laser, éjectez le disque et attendez que l’humidité
s’évapore.
Télécommande (RM-RK52):
• Ne laissez pas la télécommande dans des endroits exposés à la chaleur, comme sur le tableau de bord par exemple.
• La pile au lithium risque d’exploser si elle est remplacée incorrectement. Ne la remplacez uniquement qu’avec le même type de
pile ou son équivalent.
• Le boîtier de la pile ou les piles ne doivent pas être exposés à des chaleurs excessives telles que les rayons du soleil, du feu, etc.
• Gardez la pile hors de la portée des enfants et dans son emballage d’origine quand elle n’est pas utilisée. Débarrassez-vous des
piles usagées rapidement. En cas d’ingestion, contactez un médecin immédiatement.
AVANT L’UTILISATION 2
FONCTIONNEMENT DE BASE 3
PRISE EN MAIN 4
CD / USB / iPod 5
RADIO 7
AUX 9
RÉGLAGES AUDIO 9
RÉGLAGES D’AFFICHAGE 11
PLUS D’INFORMATIONS 12
GUIDE DE DÉPANNAGE 13
INSTALLATION /
RACCORDEMENT 14
SPÉCIFICATIONS 17
Comment lire ce manuel
• Les opérations sont expliquées
principalement en utilisant les touches
de la façade du
KW-R710 .
• La langue anglaise est utilisée pour
l’explication des affichages de ce manuel.
•
[XX] indique les éléments choisis.
•
( XX) indique que des références sont
disponibles aux page citées.
Entretien
Nettoyage de l’appareil: Essuyez la saleté de la façade avec un chiffon sec au silicone ou un chiffon doux.
Manipulation des disques:
• Ne pas toucher la surface d’enregistrement du disque.
• Ne pas coller de ruban adhésif, etc. sur les disques et ne pas utiliser de disque avec du ruban adhésif collé dessus.
• N’utilisez aucun accessoire pour le disque.
• Nettoyer le disque en partant du centre vers l’extérieur.
• Nettoyez le disque avec un chiffon sec au silicone ou un chiffon doux. N’utilisez aucun solvant.
• Pour retirer les disques de cet appareil, tirez-les horizontalement.
• Retirez les ébarbures du bord du trou central du disque avant d’insérer un disque.
JS_JVC_KW-R710_E_FR_01.indd 2JS_JVC_KW-R710_E_FR_01.indd 2 5/12/2013 9:22:06 AM5/12/2013 9:22:06 AM
