JVC KD-G334 Guide

1
KD-G334
Installation/Connection Manual
GET0404-002B
[UI]
This unit is designed to operate on 12 V DC, NEGATIVE ground electrical systems. If your vehicle does
not have this system, a voltage inverter is required, which can be purchased at JVC car audio dealers.
© 2009 Victor Company of Japan, Limited
F
Handles
A/ B
Hard case/Control panel
C
Sleeve
D
Trim plate
E
Power cord
Parts list for installation and connection
The following parts are provided for this unit. If any item is missing, consult your JVC car audio dealer
immediately.
WARNINGS
To prevent short circuits, we recommend that you disconnect the battery’s negative terminal and make all
electrical connections before installing the unit.
• Be sure to ground this unit to the car’s chassis again after installation.
Notes:
• Replace the fuse with one of the specified rating. If the fuse blows frequently, consult your JVC car audio
dealer.
• It is recommended to connect to the speakers with maximum power of more than 50 W (both at
the rear and at the front, with an impedance of 4 Ωto 8 Ω). If the maximum power is less than
50 W, change “AMP GAIN” setting to prevent the speakers from being damaged (see page 12 of the
INSTRUCTIONS).
• To prevent short-circuit, cover the terminals of the UNUSED leads
with insulating tape.
• The heat sink becomes very hot after use. Be careful not to touch it
when removing this unit.
Heat sink

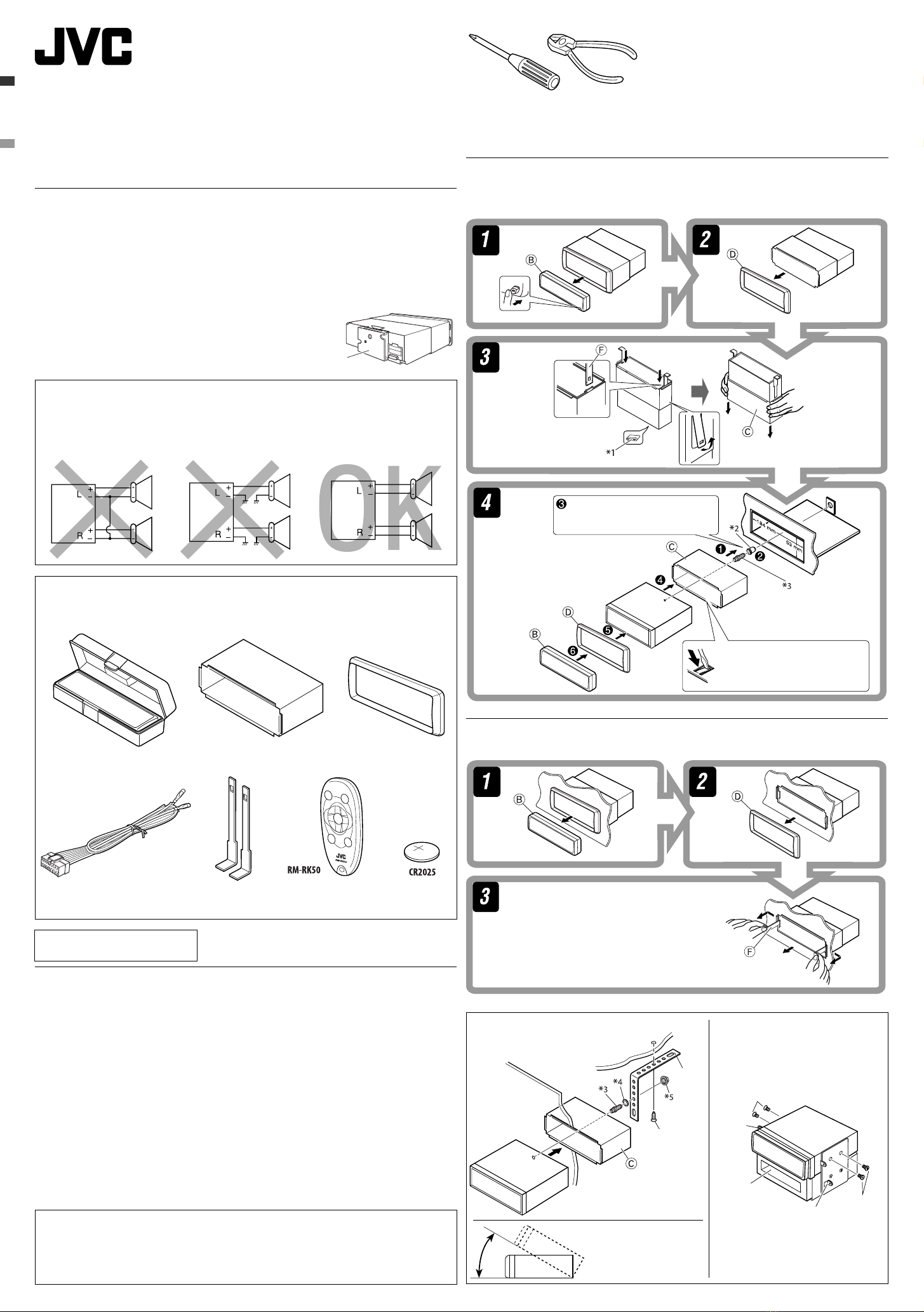

INSTALLATION (IN-DASH MOUNTING)
The following illustration shows a typical installation. If you have any questions or require information
regarding installation kits, consult your JVC car audio dealer or a company supplying kits.
• If you are not sure how to install this unit correctly, have it installed by a qualified technician.
PRECAUTIONS on power supply and speaker connections:
• DO NOT connect the speaker leads of the power cord to the car battery; otherwise, the unit
will be seriously damaged.
• BEFORE connecting the speaker leads of the power cord to the speakers, check the speaker wiring in
your car.
G
Remote controller
H
Battery
Do the required electrical
connections.
Bend the appropriate tabs to hold
the sleeve firmly in place.
Removing the unit
Before removing the unit, release the rear section.
Insert the two handles, then pull them as
illustrated so that the unit can be removed.
TROUBLESHOOTING
• The fuse blows.
* Are the red and black leads connected correctly?
• Power cannot be turned on.
* Is the yellow lead connected?
• No sound from the speakers.
* Is the speaker output lead short-circuited?
• Sound is distorted.
* Is the speaker output lead grounded?
* Are the “–” terminals of L and R speakers grounded in common?
• Noise interfere with sounds.
* Is the rear ground terminal connected to the car’s chassis using shorter and thicker cords?
• This unit becomes hot.
* Is the speaker output lead grounded?
* Are the “–” terminals of L and R speakers grounded in common?
• This unit does not work at all.
* Have you reset your unit?
When installing the unit
without using the sleeve
In a Toyota car for example, first remove
the car radio and install the unit in its
place.
When using the optional stay
Note:
When installing the unit on the mounting
bracket, make sure to use the 8 mm-long
screws. If longer screws are used, they
could damage the unit.
Flat type screws
(M5 ×8 mm)*6
Pocket
Flat type screws (M5 ×8 mm)*6
Screw
(option)
Stay
(option)
Fire wall
Dashboard
Install the unit at an
angle of less than 30˚.
Bracket*6
Bracket*6
*1When you stand the unit, be careful not to damage the fuse on the rear.
*2Rubber cushion—Not supplied for this unit
*3Mounting bolt (M5 × 20 mm)—Not supplied for this unit
*4Washer (ø5)—Not supplied for this unit
*5Lock nut (M5)—Not supplied for this unit
*6Not supplied for this unit.
0409DTSMDTJEIN
EN
Install_KD-G334[UI]ff.indd 1Install_KD-G334[UI]ff.indd 1 4/10/09 12:35:50 PM4/10/09 12:35:50 PM

2
*1 Not supplied for this unit.
*2 Before checking the operation of this unit prior to installation, this lead must be connected, otherwise power cannot be turned on.
*3 Firmly attach the ground wire to the metallic body or to the chassis of the car—to the place uncoated with paint (if coated with paint, remove the paint before attaching the wire). Failure to do so may cause damage to the unit.
*4 Signal cord (not supplied for this unit).
Typical connections
Before connecting: Check the wiring in the vehicle carefully. Incorrect connection may cause serious damage to this unit.
The leads of the power cord and those of the connector from the car body may be different in color.
1 Connect the colored leads of the power cord in the order specified in the illustration below.
2 Connect the antenna cord.
3 Finally connect the wiring harness to the unit.
Purple
Purple with black stripe
GreenGreen with black stripeGray
Gray with black stripe
hite
hite with black stripe
A
ELECTRICAL CONNECTIONS
To the automatic antenna if any (250 mA max.)
To the remote lead of other equipment (200 mA max.)
To metallic body or chassis of the car
To a live terminal in the fuse block connecting to the car battery
(bypassing the ignition switch) (constant 12 V)
To an accessory terminal in the fuse block
Right speaker (rear)Left speaker (rear)Right speaker (front)Left speaker (front)
15 A fuse
Line out (see diagram )
Antenna terminal
Rear ground terminal
Ignition switch
Fuse block
Black
Blue with white stripe
Red
Yellow *2
Blue
Connecting t e external amplifier or subwoofer
You can connect an amplifier to upgrade your car stereo system.
• Connect the remote lead (blue with white stripe) to the remote lead of the other equipment so that it can be controlled through this unit.
• Disconnect t e speakers from t is unit, connect t em to t e amplifier. Leave t e speaker leads of t is unit unused.
B
Rear speakers
Remote lead
Remote lead (blue with white stripe)
To the remote lead of other equipment or automatic antenna if any
Y-connector (not supplied for this unit)
Front speakers
Subwoofer
Set “L/O MODE” to “REAR” (See page 1 of the
INSTRUCTIONS.)
You can connect a power amplifier for rear speakers.
JVC Amplifier
Set “L/O MODE” to “WOOFER” (See page 1 of the
INSTRUCTIONS.)
You can also connect a subwoofer to the REAR LINE OUT
terminals.
JVC Amplifier
or
Instal1-2_KD-G334[UI]f.indd 2Instal1-2_KD-G334[UI]f.indd 2 9/28/06 6:19:47 PM9/28/06 6:19:47 PM
