SERVICE MANUAL
DVD VIDEO PLAYER
No.A0003
Feb. 2001
COPYRIGHT 2001 VICTOR COMPANY OF JAPAN, LTD.
Printed in Japan
200102(S)
XV-S40BK / XV-S42SL
XV-S45GD / XV-S30BK
No.A0003
XV-S40BK/XV-S42SL
XV-S45GD/XV-S30BK
XV-S40BK/XV-S42SL
XV-S45GD/XV-S30BK
Area Suffix
(XV-S40BK/XV-S30BK)
J ------------- U.S.A.
C ---------- Canada
Area Suffix (XV-S42SL)
C ---------- Canada
Area Suffix (XV-S45GD)
J ------------- U.S.A.
This service manual is printed on 100% recycled paper.
VICTOR COMPANY OF JAPAN, LIMITED
OPTICAL DISC BUSINESS DIV. PERSONAL & MOBILE NETWORK BUSINESS UNIT
AV & MULTIMEDIA COMPANY 1644, Shimotsuruma, Yamato, Kanagawa 242-8514, Japan
Contents
Safety precautions ------------------------ 1-2
Preventing static electricity ------------- 1-3
Importance admistering
point on the safety ------------ 1-4
˚
Precautions for service ----------------- 1-5
Disassembly method -------------------- 1-6
Adjustment method ---------------------- 1-15
Description of major ICs ---------------- 1-21
Model
XV-S40BK
XV-S42SL
XV-S45GD
XV-S30BK
Body color
Black
Silver
Gold
Black
Optical digital out
O
O
O
X
AV Compulink
O
O
O
X
Each difference point

XV-S40BK/XV-S42SL/XV-S45GD/XV-S30BK
1-2
Safety Precautions
1. This design of this product contains special hardware and many circuits and components specially
for safety purposes. For continued protection, no changes should be made to the original design
unless authorized in writing by the manufacturer. Replacement parts must be identical to those
used in the original circuits. Services should be performed by qualified personnel only.
2. Alterations of the design or circuitry of the product should not be made. Any design alterations of
the product should not be made. Any design alterations or additions will void the warranty
and will further relieve the manufacture of responsibility for personal injury or property damage
resulting therefrom.
3. Many electrical and mechanical parts in the products have special safety-related characteristics.
These characteristics are often not evident from visual inspection nor can the protection afforded
by them necessarily be obtained by using replacement components rated for higher voltage,
wattage, etc. Replacement parts which have these special safety characteristics are identified in
the Parts List of Service Manual. Electrical components having such features are identified by
shading on the schematics and by ( ) on the Parts List in the Service Manual. The use of a
substitute replacement which does not have the same safety characteristics as the recommended
replacement parts shown in the Parts List of Service Manual may create shock, fire, or other
hazards.
4. The leads in the products are routed and dressed with ties, clamps, tubings, barriers and the
like to be separated from live parts, high temperature parts, moving parts and/or sharp edges
for the prevention of electric shock and fire hazard. When service is required, the original lead
routing and dress should be observed, and it should be confirmed that they have been returned
to normal, after reassembling.

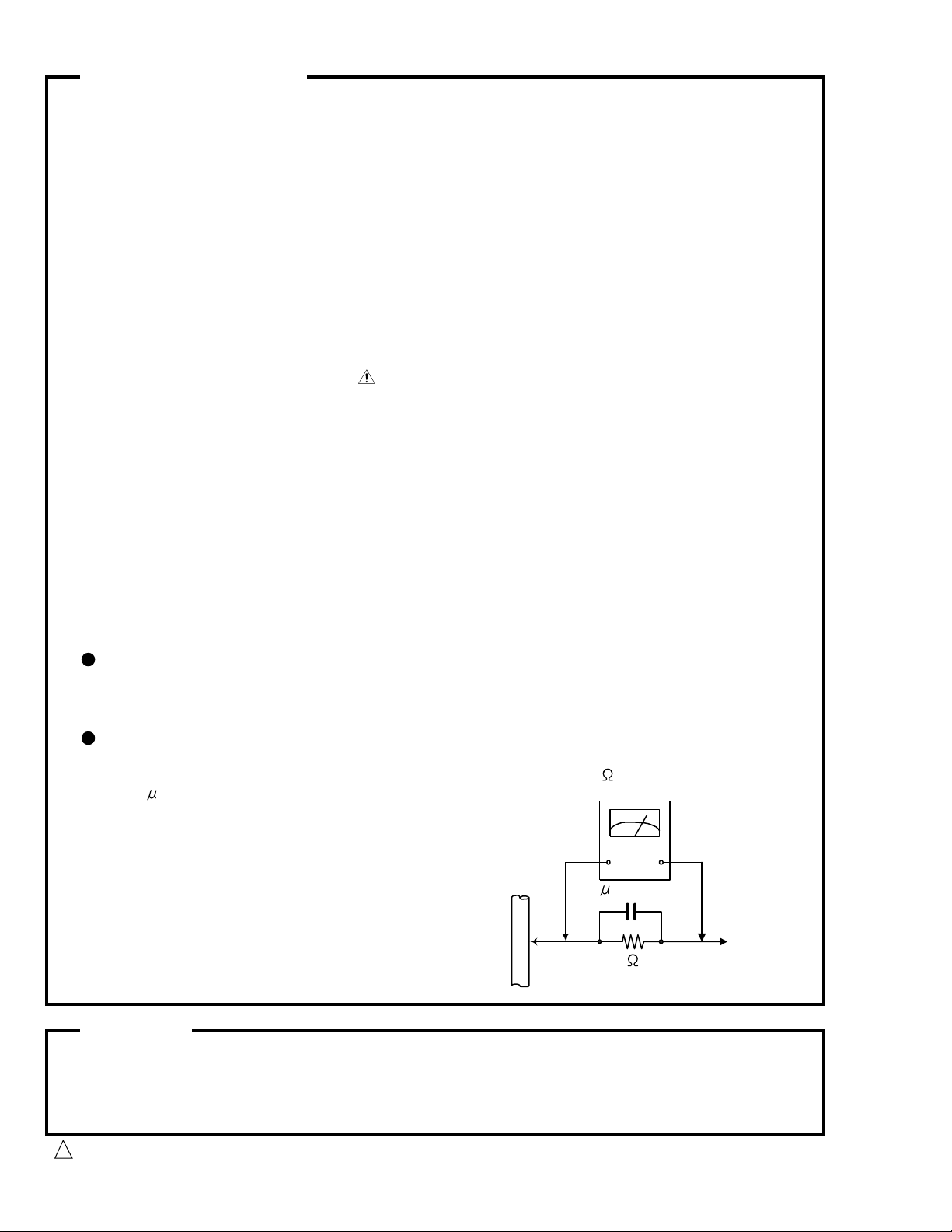

5. Leakage current check (Electrical shock hazard testing)
After reassembling the product, always perform an isolation check on the exposed metal parts of
the product (antenna terminals, knobs, metal cabinet, screw heads, headphone jack, control
shafts, etc.) to be sure the product is safe to operate without danger of electrical shock.
Do not use a line isolation transformer during this check.
Plug the AC line cord directly into the AC outlet. Using a "Leakage Current Tester", measure
the leakage current from each exposed metal parts of the cabinet , particularly any exposed
metal part having a return path to the chassis, to a known good earth ground. Any leakage
current must not exceed 0.5mA AC (r.m.s.)
Alternate check method
Plug the AC line cord directly into the AC outlet. Use an AC voltmeter having, 1,000 ohms
per volt or more sensitivity in the following manner. Connect a 1,500 10W resistor paralleled by
a 0.15 F AC-type capacitor between an exposed
metal part and a known good earth ground.
Measure the AC voltage across the resistor with the
AC voltmeter.
Move the resistor connection to each exposed
metal part, particularly any exposed metal part
having a return path to the chassis, and measure
the AC voltage across the resistor. Now, reverse
the plug in the AC outlet and repeat each
measurement. voltage measured Any must not
exceed 0.75 V AC (r.m.s.). This corresponds to 0.5
Warning
1. This equipment has been designed and manufactured to meet international safety standards.
2. It is the legal responsibility of the repairer to ensure that these safety standards are maintained.
3. Repairs must be made in accordance with the relevant safety standards.
4. It is essential that safety critical components are replaced by approved parts.
5. If mains voltage selector is provided, check setting for local voltage.
Good earth ground
Place this
probe on
each exposed
metal part.
AC VOLTMETER
(Having 1000
ohms/volts,
or more sensitivity)
1500 10W
0.15 F AC TYPE
!
CAUTION
Burrs formed during molding may be left over on some parts of the chassis. Therefore,
pay attention to such burrs in the case of preforming repair of this system.

XV-S40BK/XV-S42SL/XV-S45GD/XV-S30BK
1-3
Preventing static electricity
Electrostatic discharge (ESD), which occurs when static electricity stored in the body, fabric, etc. is discharged,
can destroy the laser diode in the traverse unit (optical pickup). Take care to prevent this when performing repairs.
1.1. Grounding to prevent damage by static electricity
Static electricity in the work area can destroy the optical pickup (laser diode) in devices such as DVD players.
Be careful to use proper grounding in the area where repairs are being performed.
1.1.1. Ground the workbench
1. Ground the workbench by laying conductive material (such as a conductive sheet) or an iron plate over
it before placing the traverse unit (optical pickup) on it.
1.1.2. Ground yourself
1. Use an anti-static wrist strap to release any static electricity built up in your body.
1.1.3. Handling the optical pickup
1. In order to maintain quality during transport and before installation, both sides of the laser diode on the
replacement optical pickup are shorted. After replacement, return the shorted parts to their original condition.
(Refer to the text.)
2. Do not use a tester to check the condition of the laser diode in the optical pickup. The tester's internal power
source can easily destroy the laser diode.
1.2. Handling the traverse unit (optical pickup)
1. Do not subject the traverse unit (optical pickup) to strong shocks, as it is a sensitive, complex unit.
2. Cut off the shorted part of the flexible cable using nippers, etc. after replacing the optical pickup. For specific
details, refer to the replacement procedure in the text. Remove the anti-static pin when replacing the traverse
unit. Be careful not to take too long a time when attaching it to the connector.
3. Handle the flexible cable carefully as it may break when subjected to strong force.
4. It is not possible to adjust the semi-fixed resistor that adjusts the laser power. Do not turn it
Conductive material
(conductive sheet) or iron plate
(caption)
Anti-static wrist strap

XV-S40BK/XV-S42SL/XV-S45GD/XV-S30BK
1-4

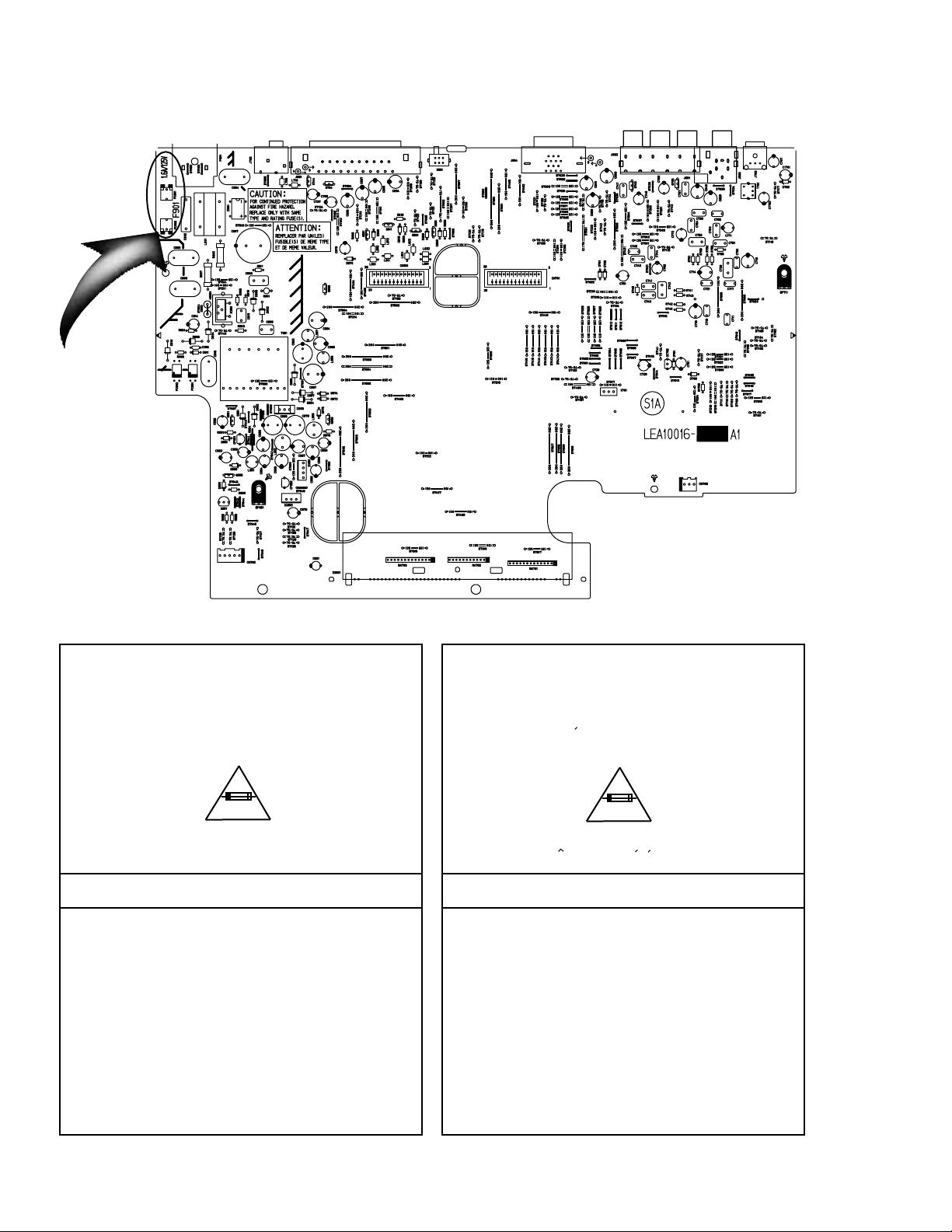

Full Fuse Replacement Marking
Graphic symbol mark
(This symbol means fast blow type fuse.)
should be read as follows ;
FUSE CAUTION
FOR CONTINUED PROTECTION AGAINST RISK
OF FIRE, REPLACE ONLY WITH SAME TYPE
AND RATING OF FUSES ;
F901 : 1.6 A / 125 V F901 : 1.6 A / 125 V
Marquage Pour Le Remplacement
Complet De Fusible
PRECAUTIONS SUR LES FUSIBLES
POUR UNE PROTECTION CONTINUE CONTRE
DES RISQUES D'INCENDIE, REMPLACER
SEULEMENT PAR UN FUSIBLE DU MEME TYPE ;
Le symbole graphique (Ce symbole signifie
fusible de type a fusion rapide.)
doit etre interprete comme suit ;
Importance Admistering point on the Safety

XV-S40BK/XV-S42SL/XV-S45GD/XV-S30BK
1-5
Precautions for Service
Handling of Traverse Unit and Laser Pickup
1. Do not touch any peripheral element of the pickup or the actuator.
2. The traverse unit and the pickup are precision devices and therefore must not be subjected to
strong shock.
3. Do not use a tester to examine the laser diode. (The diode can easily be destroyed by the
internal power supply of the tester.)
4. To replace the traverse unit, pull out the metal short pin for protection from charging.
5. When replacing the pickup, after mounting a new pickup, remove the solder on the short land
which is provided at the center of the flexible wire to open the circuit.
6. Half-fixed resistors for laser power adjustment are adjusted in pairs at shipment to match the
characteristics of the optical block.
Do not change the setting of these half-fixed resistors for laser power adjustment.
Destruction of Traverse Unit and Laser Pickup by Static Electricity
Laser diodes are easily destroyed by static electricity charged on clothing
or the human body. Before repairing peripheral elements of the traverse
unit or pickup, be sure to take the following electrostatic protection:
1. Wear an antistatic wrist wrap.
2. With a conductive sheet or a steel plate on the workbench on which
the traverse unit or the pick up is to be repaired, ground the sheet
or the plate.
3. After removing the flexible wire from the connector (CN101),
short-circuit the flexible wire by the metal clip.
4. Short-circuit the laser diode by soldering the land which is provided
at the center of the flexible wire for the pickup.
After completing the repair, remove the solder
to open the circuit.
Servo control
board
Short circuit
Please refer to "Fig.4" of "Disassembly
method" for details.

XV-S40BK/XV-S42SL/XV-S45GD/XV-S30BK
1-6

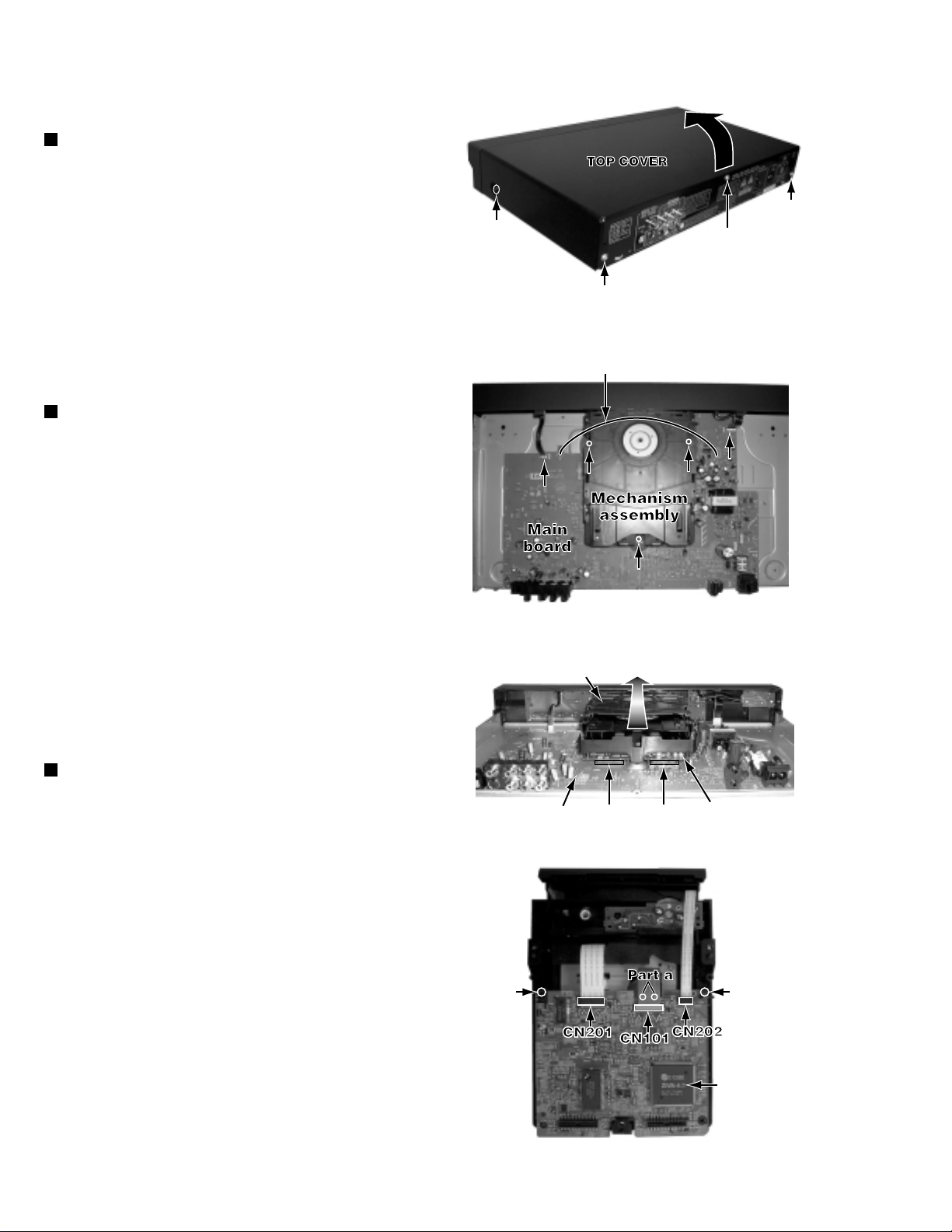

Disassembly method
<Main body>
Removing the top cover (see Fig.1)
Removing the mechanism assembly
(see Fig.2,3)
Removing the servo control board
(see Fig.4)
1.Remove the two screws Aattaching the top cover
on both sides of the body.
2.Remove the three screws Battaching the top cover
on the back of the body.
3.Remove the top cover from the body by lifting the
rear part of the top cover.
ATTENTION: Do not break the front panel tab
fitted to the top cover.
* Prior to performing the following procedure, remove
the top cover.
* There is no need to remove the front panel assembly.
1.Remove the three screws Cattaching the mechanism
assembly on the bottom chassis.
2.The servo control board is removed from the connector
CN961 and CN701 connected with the main board
respectively.
3.Remove the mechanism assembly by lifting the rear part
of the mechanism assembly.
* Prior to performing the following procedure, remove
the top cover and mechanism assembly.
1.Disconnect the card wire from connector CN201 and
CN202 on the servo control board respectively.
2.Disconnect the flexible wire from connector CN101
on the servo control board from pick-up.
ATTENTION
At this time, please extract the wire after short-circuited
of two places on the wire in part awith solder.
Please remove the solder two places of part aafter
connecting the wire with CN101 when reassembling.
3.Two places in hook bare removed, the servo control board
is lifted, and it is removed.
*Please remove lug wire when you do not remove
the mechanism assembly easily.
A x 2
B
B
B
Fig.1
CC
C
CN703
CN702
Fig.2
CN701 CN961
Servo control
board
Main board
Mechanism
assembly
Fig.3
Hook b Hook b
Servo control
board
Fig.4
Lug wire

XV-S40BK/XV-S42SL/XV-S45GD/XV-S30BK
1-7
Removing the rear panel (see Fig.5)
Removing the front panel assembly
(see Fig.6,7)
Removing the main board (see Fig.8)
*Prior to performing the following procedure, remove
the top cover.
1.Remove the six screws Dattaching the rear panel
on the back of the body.
* Prior to performing the following procedure, remove
the top cover.
* There is no need to remove the mechanism assembly.
1.Remove the one screw Eattaching the front panel
assembly on the bottom chassis.
2.Disconnect the wire from CN702 and CN703 on the
main board respectively.
3.Hook cand dare removed respectively, and the front
panel assembly is removed.
* Prior to performing the following procedure, remove
the top cover, mechanism assembly and rear panel.
1.Disconnect the wire from CN702 and CN703 on the
main board respectively.
2.Remove the four screws Fattaching the main board
on the bottom chassis.
DDD
Rear panel
Fig.5
E
Hook c
Hook d
Hook d
Front panel
assembly
Fig.6
CN703
CN702
Fig.7
CN703
CN702
Fig.8
F
F
F
F

XV-S40BK/XV-S42SL/XV-S45GD/XV-S30BK
1-8
Remove the four screws Aattaching the clamper
assembly.
Move the clamper in the direction of the arrow to
release the two joints aon both sides.
1.
2.
<Loading assembly section>

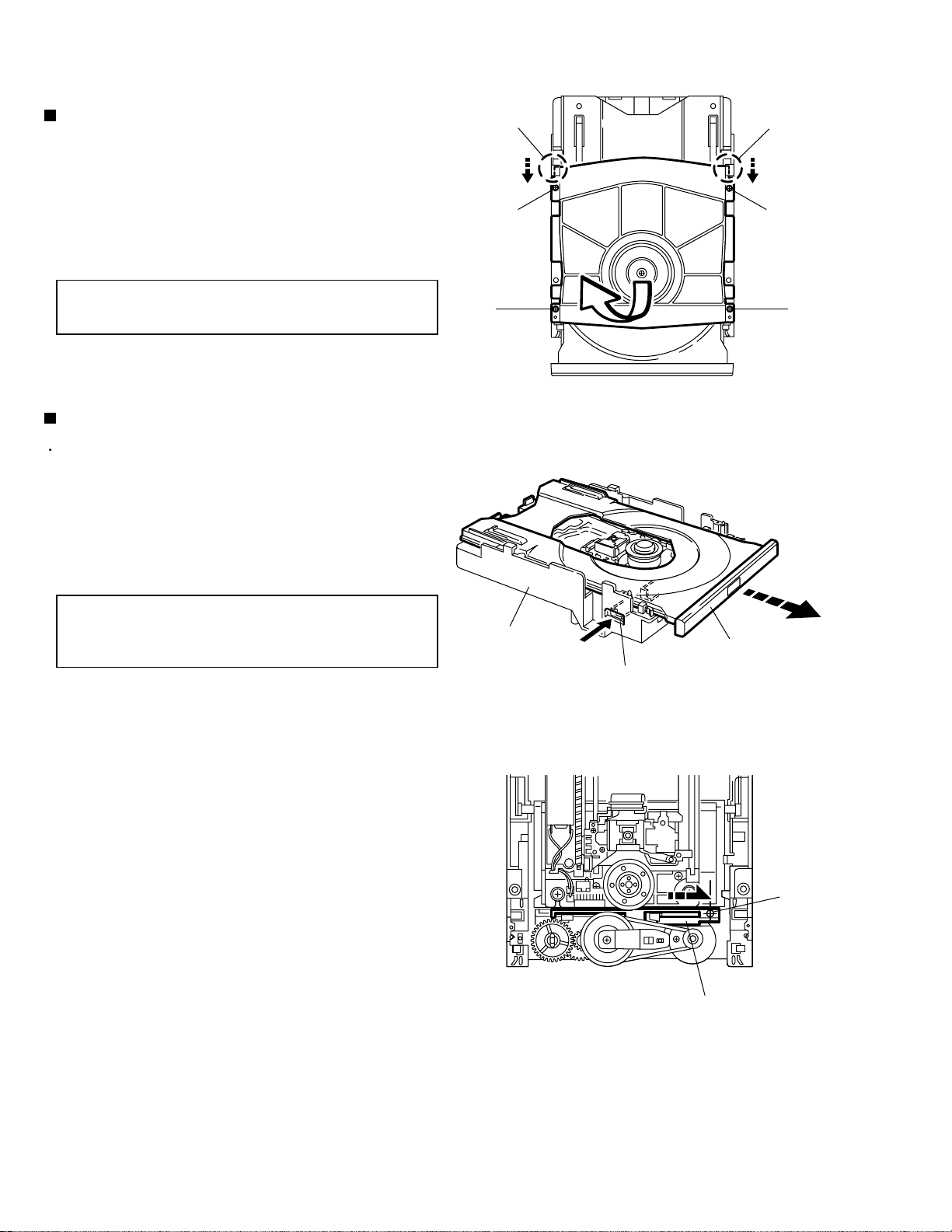

Removing the clamper assembly
(See Fig.1)
Prior to performing the following procedure, remove
the clamper assembly.
Push bof the slide cam into the slot on the left side
of the loading base until it stops.
Draw out the tray toward the front.
1.
2.
Removing the tray (See Fig.2 and 3)
When reattaching, fit the clamper to
the two joints a.
ATTENTION:
Before reattaching the tray, slide the
part cof the slide cam to the right as
shown in Fig.3.
ATTENTION:
Joint a
Joint a
AA
A A
Fig.1
Fig.2
Fig.3
Push
b
Tray
Clamper base
Part c
Slide cam

XV-S40BK/XV-S42SL/XV-S45GD/XV-S30BK
1-9
Prior to performing the following procedure, remove
the clamper assembly and the tray.
Remove the four screws Battaching the traverse
mechanism assembly.
1.
Removing the traverse mechanism
assembly (See Fig.4 and 5)
Before reattaching the traverse
mechanism assembly, pass the card
wire extending from the spindle motor
board through the notch dof the
elevator.
ATTENTION:
Prior to performing the following procedure, remove
the clamper assembly, the tray and the traverse
mechanism assembly.
Extend each bar einside of the loading base
outward and detach the elevator shaft.
1.
Removing the elevator (See Fig.6 and 7)
When reattaching, first fit the two
shafts on the front of the elevator to
the slots fof the slide cam.
ATTENTION:
Fig.4
Fig.5
Fig.6Fig.7
BB
B
BB
B
Traverse mechanism
assembly
B
BB
Traverse mechanism assembly
Elevator
Notch d
Elevator
Elevator
Elevator
e
e
Loading base
Elevator
Shafts
Slide cam
Slots f

XV-S40BK/XV-S42SL/XV-S45GD/XV-S30BK
1-10
Prior to performing the following procedure, remove
the clamper assembly, the tray, the traverse
mechanism assembly and the elevator.
Remove the belt from the pulley.
Remove the screw Cattaching the motor assembly.
Turn over the body and remove the screw D
attaching the motor assembly.
Release the two tabs gretaining the motor board.
1.
2.
3.
4.
Removing the motor assembly
(See Fig.8 and 9)
Fig.8
Fig.9
C
Motor assembly
Belt
Loading base
Motor assembly
D
Tabs g

XV-S40BK/XV-S42SL/XV-S45GD/XV-S30BK
1-11
Prior to performing the following procedure, remove
the clamper assembly, the tray, the traverse
mechanism assembly, the elevator and the motor
assembly.
Press the two tabs hinward and pull out the idle
gear.
Remove the screw Eattaching the pulley gear
bracket. Slide the pulley gear bracket in the direction
of the arrow and pull out the pulley gear.
Slide the slide cam in the direction of the arrow to
release the two joints iand remove upward.
Remove the middle gear.
1.
2.
3.
4.

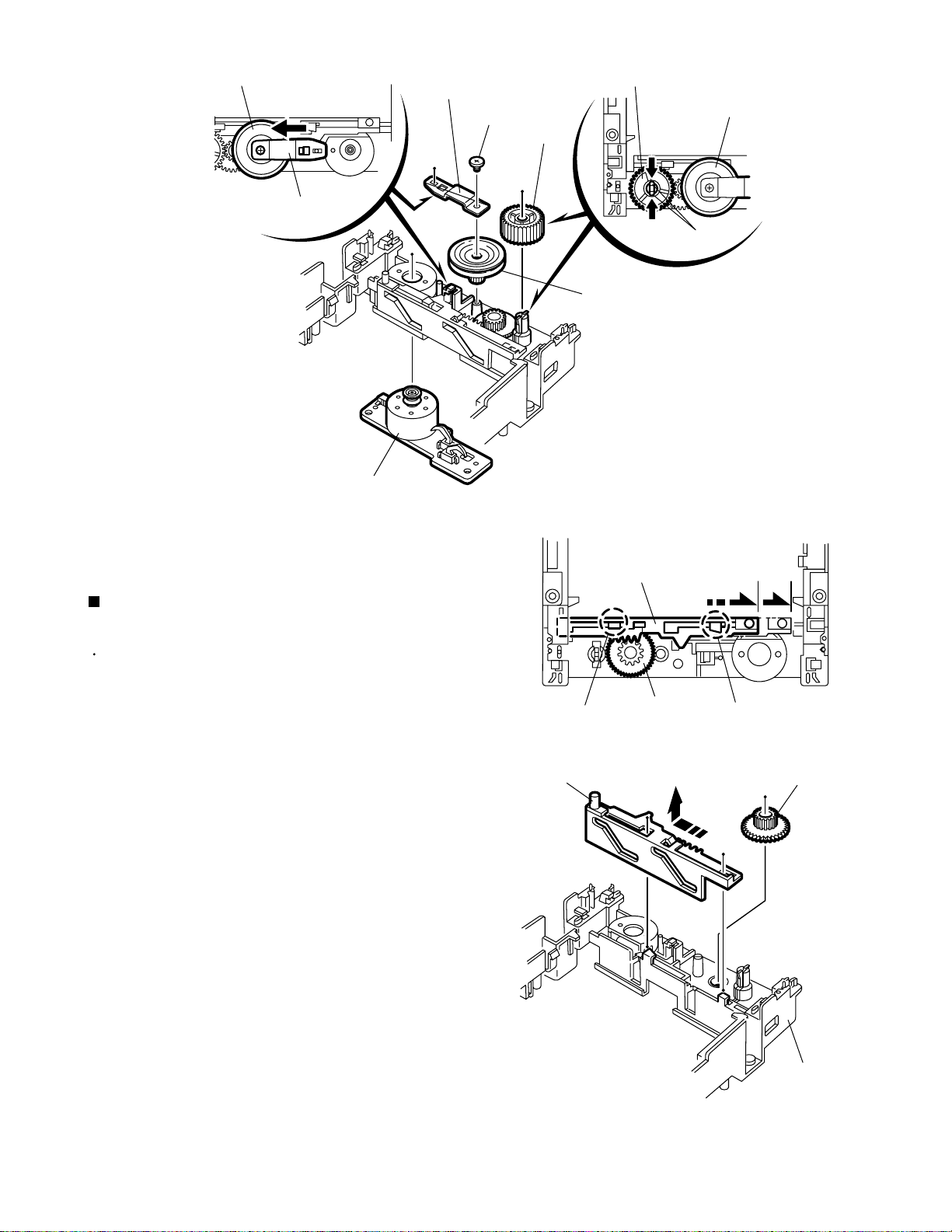

Removing the Idle gear / pulley gear /
middle gear / slide cam (See Fig.10 to 12)
Fig.11
Fig.12
Fig.10
Motor assembly
Pulley gear
Pulley gear bracket
Pulley gear bracket
E
Idle gear
Idle gear
Pulley gear
Tads h
Pulley gear
Middle gear
Joint i Joint i
Slide cam
Slide cam
Middle gear
Loading base

XV-S40BK/XV-S42SL/XV-S45GD/XV-S30BK
1-12
Prior to performing the following procedure, remove
the feed motor assembly.
Remove the screw Gattaching the thrust spring.
1.

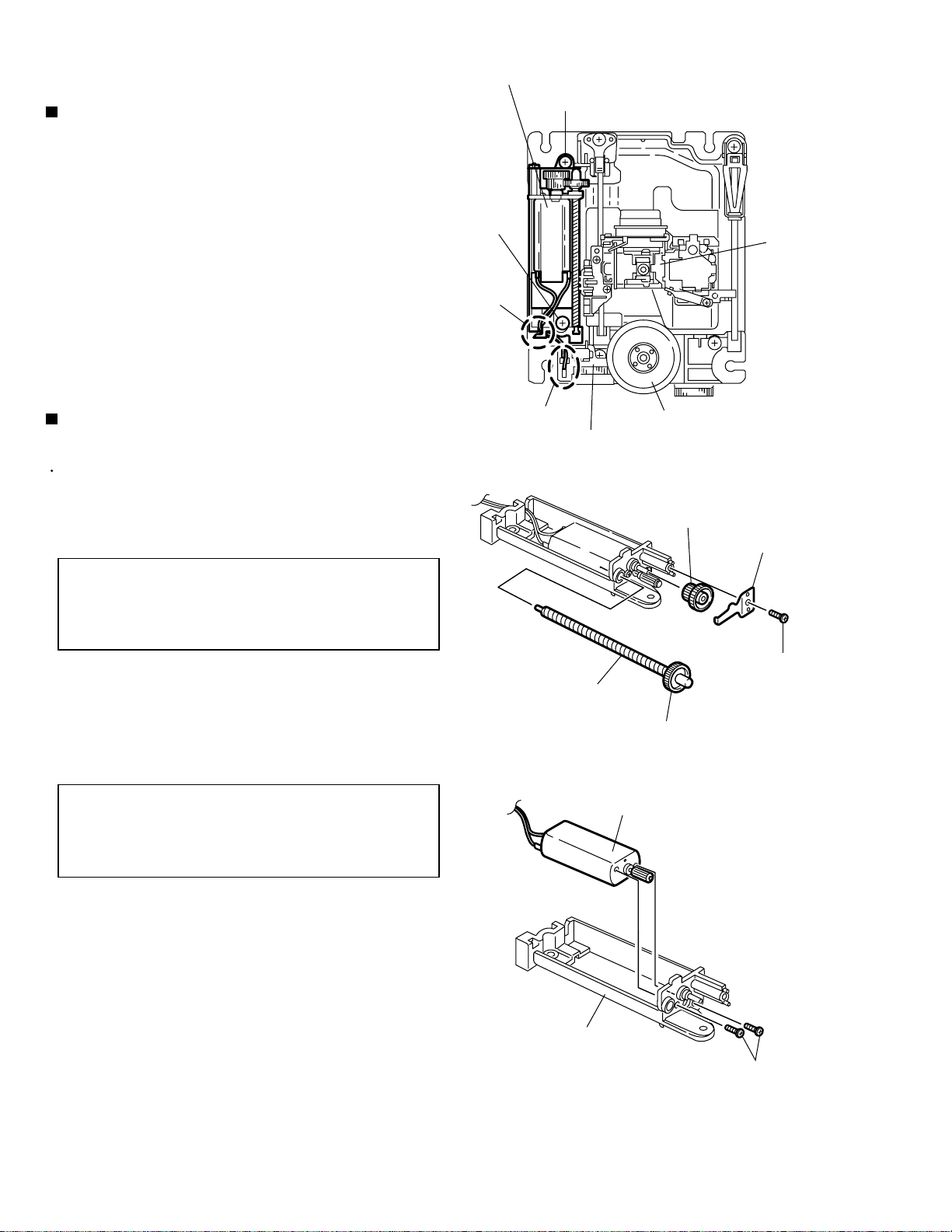

Removing the feed motor
(See Fig.13 to 15)
Unsolder the two soldering jon the spindle motor
board.
Remove the two screws Fattaching the feed motor
assembly.
1.
2.
Removing the feed motor assembly
(See Fig.13)
When reattaching the thrust spring,
make sure that the thrust spring
presses the feed gear (M) and the feed
gear (E) reasonably.
ATTENTION:
Remove the feed gear (M).
Pull out the feed gear (E) and the lead screw.
Remove the two screws Hattaching the feed motor.
2.
3.
4.
When reattaching, pass the two cables
extending from the feed motor through
the notch kof the feed holder as
shown in Fig.13.
ATTENTION:
<Traverse mechanism assembly section>
Fig.13
Fig.14
Fig.15
F
Soldering j
Notch k
F
Feed motor assembly
Spindle motor board
Spindle motor
Feed gear (M)
Thrust spring
G
Feed gear (E)
Lead screw
Feed motor
Feed holder
H
Pickup

XV-S40BK/XV-S42SL/XV-S45GD/XV-S30BK
1-13
Remove the screw Iattaching the T spring (S) and
the shaft holder. Remove also the plate.
1.
Removing the pickup (See Fig.16 and 17)
Remove the screw Kattaching the shaft holder.
Remove the shaft.
1.
2.
Removing the shaft holder / shaft
(See Fig.18)
When reattaching, make sure that the
T spring (S) presses the shaft.
ATTENTION:
Pull out the part lof the shaft upward. Move the part
min the direction of the arrow and detach from the
spindle base.
Disengage the joint nof the pickup and the shaft in
the direction of the arrow.
Pull out the shaft from the pickup.
Remove the two screws Jattaching the actuator.
Disengage the joint of the actuator and the lead
spring. Pull out the lead spring.
2.
3.
4.
5.
6.
The spring must be under the shaft when you
install pick-up.
Fig.16
Fig.17
Fig.18
T spring (S)
Plate
Joint n
Pickup
Part m
Shaft holder
Part l
I
Shaft
Shaft
Spring
Pick-up
Pickup
Lead spring
Actuator
J
Actuator
Lead spring
Shaft
Shaft holder
K

XV-S40BK/XV-S42SL/XV-S45GD/XV-S30BK
1-14
Remove the three screws Lattaching the spindle
motor on the bottom of the mechanism base.
1.
Removing the spindle motor assembly
(See Fig.19 to 21)
When reattaching, pass the card wire
extending from the spindle motor
board through the notch of the spindle
base.
ATTENTION:
Remove the three screws Mattaching the spindle
base.
2. Fig.19
Fig.20
Fig.21
Spindle motor assembly
Spindle base
L
M
M
Spindle base
Mechanism base
L
L
Spindle motor

XV-S40BK/XV-S42SL/XV-S45GD/XV-S30BK
1-15
Adjustment method
(1) Initialization method
(2) Display of "Laser current value" and "Jitter value"
If microprocessor (IC401,IC402,IC403) or pick-up is replaces, initialize the
DVD player in the following matter
1)Take out the disc and close the tray.
2)Unplug the power plug.
3)Insert power plug into outlet while pressing both PLAY button and OPEN/CLOSE button.
4)FL Display indicate "TEST " . :Version, :Region code
5)Press 3D-PHONIC key button of remote controller. and EEPROM initialize start.
6)When indicate "DTS" on the display, initialize finishes.
7)The power is turned OFF, and Unplug the power plug.
1)Take out the disc and close the tray.
2)Unplug the power plug.
3)Insert power plug into outlet while pressing both PLAY button and OPEN/CLOSE button.
4)FL Display indicate "TEST " . :Version, :Region code
5)Press the "OPEN/CLOSE" button to move the tray outward.
Put the test disc (VT-501) on the tray and press "OPEN/CLOSE" button.
The tray should move inward (Note:Don't push to close the tray directly by hand etc.)
6)Press the "PLAY" button.
7)The laser current value and the jitter value is displayed on the FL indicator as follows.
"Laser current value" and "Jitter value" are displayed on the FL display by the undermentioned
method. Please refer to the failure diagnosis.
0 0 4 0 3 9 7 8
FL Display
Laser current value Jitter value
* The test mode is canceled when
the power is turned off.
The laser current value becomes 40mA for the above-mentioned.
Becomes a test mode by doing above-mentioned procedure 1) - 4). Afterwards, the laser current value can
be switched by pushing the key to remote control without turning on the disk.
If the laser current value is 64mA or less, it is roughly good. There is a possibility to which pick-up is
deteriorated, and exchange pick-up, please when there are 65mA or more laser current value.
For Laser current value
Remote control "4" key --- Laser of CD
Remote control "5" key --- Laser of DVD
*Returns to a usual test mode by the
thing to push the stop button of
remote control.

XV-S40BK/XV-S42SL/XV-S45GD/XV-S30BK
1-16
FL display FL display
Conversion
value(&)
Conversion
value(&)
Jitter value
3818
3828
3838
3848
3858
3868
3878
3888
3898
38A8
38b8
38c8
38d8
38E8
38F8
3918
3928
3938
3948
3958
3968
3978
3988
4.7
4.8
4.9
5.1
5.2
5.3
5.4
5.5
5.7
5.8
5.9
6.0
6.1
6.3
6.4
6.6
6.7
6.9
7.0
7.1
7.2
7.3
7.5
3B18
3B28
3B38
3B48
3B58
3B68
3B78
3B88
3B98
3BA8
3BB8
3BC8
3BD8
3BE8
3BF8
3C18
3C28
3C38
3C48
3C58
3C68
3C78
3C88
10.5
10.6
10.7
10.8
10.9
11.1
11.2
11.3
11.4
11.5
11.7
11.8
11.9
12.0
12.1
12.4
12.5
12.7
12.7
12.9
13.0
13.1
13.2
3998
39A8
39B8
39C8
39D8
39E8
39F8
3A18
3A28
3A38
3A48
3A58
3A68
3A78
3A88
3A98
3AA8
3AB8
3AC8
3AD8
3AE8
3AF8
7.6
7.7
7.8
7.9
8.1
8.2
8.3
8.5
8.7
8.8
8.9
9.0
9.1
9.3
9.4
9.5
9.6
9.7
9.9
10.0
10.1
10.2
3C98
3CA8
3CB8
3CC8
3CD8
3CE8
3CF8
3D18
3D28
3D38
3D48
3D58
3D68
3D78
3D88
3D98
3DA8
3DB8
3DC8
3DD8
3DE8
3DF8
13.3
13.5
13.6
13.7
13.8
13.9
14.1
14.3
14.4
14.5
14.7
14.8
14.9
15.0
15.1
15.3
15.4
15.5
15.6
15.7
15.9
16.0
FL display FL display
Conversion
value(&)
Conversion
value(&)
The jitter value is displayed by the hexadecimal number and refer to the conversion table of following,please.
If the indication value is 11% or less, it can be judged by this simple checking method that the signal
read precision of the set is satisfactory.
Before using the TEST disc VT-501, careful check it if there is neither damage nor dirt on the read surface.
For Jitter value
OPEN
/CLOSE STANDBY/ON
PLAY
MODE
123
56
89
0+1010
7
4
3D
PHONIC CANCEL
SUBTITLEANGLE AUDIO
THEATER
POSITION
DIGEST
PREVIOUS
NEXT
CLEAR
STROBE
SLOW
+
SLOW–
TITLE
MENU
CHOICE
ENTER
RM-SXVB40A REMOTE CONTROL
SELECT
DISPLAY
ZOOM
RETURN
STANDBY
STANDBY ON
DVD/VIDEO CD/CD
PAUSEPLAYSTOP
SKIP
OPEN/CLOSE
DVD/CD PLAYER
DOLBY
D I G I T A L
3D PHONIC
BUTTON
POWER BUTTON
DTS display part
FL Display
OPEN/CLOSE
BUTTON
PLAY BUTTON
5 BUTTON
(LASER OF DVD)
4 BUTTON
(LASER OF CD)

XV-S40BK/XV-S42SL/XV-S45GD/XV-S30BK
1-17
FE
OFF ON
TE
OFF ON
FE
LO LI
OK !
Y
Y
A
N
N
N
N
Y
Y
N
N
Y
N
Y
Y
A
Y
Y
Y
N
N
N
Two layers of DVD only.
Is the inter-layer jump OK?
(8) Inter-layer
jump error
Has the disc information
been collected?
Stop will result
(7) Address read
error
Is playback
possible?
Troubleshooting
Servo volume
Press OPEN
/CLOSE key
Confirmation of tray drive circuit
and circuit in surrounding
See "(2) Disk detection, distinction error"
in "Check points for individual errors"
Is tray
operation
correct?
Is the traverse moving
along the innermost
perimeter for SW detection?
"NO DISC" message appears
immediately after vertical
movement of the pick-up lens
The state that DISC does not rotate continues for
several seconds, and becomes NO DISC or an
error display afterwards.
The rotation of DISC becomes high-speed and
abnormal, and becomes NO DISC or an error
display afterwards.
Is focus retraction OK?
Even when it retracts
correctly, if it is out of focus
and makes repeated retries
with a clicking sound, it is
in error.
Is tracking retraction OK?
If TE waveform reappears
or fails to converge after the
TE retraction, it is in error.
Is the spindle servo
locked correctly?
Is the RF OUT waveform
locked correctly?
See "(6) Spindle CLV error"
in "Check points for
individual errors"
See "(5) Tracking ON error"
in "Check points for
individual errors"
See "(4) Focus ON error"
in "Check points for
individual errors"
See "(1) Spindle startup error"
in "Check points for individual errors"
See "(3) Traverse movement error"
in "Check points for individual errors"
Check (9),(10),(11), and
(12) items in "Check points
for individual errors"

XV-S40BK/XV-S42SL/XV-S45GD/XV-S30BK
1-18
Check points for each error
(1) Spindle start error
1.Defective spindle motor
*Are there several ohms resistance between each pin of CN201 "5-6","6-7","5-7"?
(The power supply is turned off and measured.)
*Is the sign wave of about 100mVp-p in the voltage had from each terminal?
[ CN201"9"(H1-),"10"(H1+),"11"(H2-),"12"(H2+),"13"(H3-),"14"(H3+) ]
2.Defective spindle motor driver (IC251)
*Has motor drive voltage of a sine wave or a rectangular wave gone out to each terminal(SM1~3)
of CN201"5,6,7" and IC251"2,4,7"?
*Is FG pulse output from the terminal of IC251"24"(FG) according to the rotation of the motor?
*Is it "L(about 0.9V)" while terminal of IC251"15"(VH) is rotating the motor?
3.Has the control signal come from servo IC or the microcomputer?
*Is it "L" while the terminal of IC251"16"(SBRK) is operating?
Is it "H" while the terminal of IC251"23"(/SPMUTE) is operating?
*Is the control signal input to the terminal of IC251"22"(EC)?
(changes from VHALF voltage while the motor is working.)
*Is the VHALF voltage input to the terminal of IC251"21"(ECR)?
4.Is the FG signal input to the servo IC?
*Is FG pulse input to the terminal of IC201"53"(FG) according to the rotation of the motor?
* Laser is defective.
* Front End Processor is defective (IC101).
* APC circuit is defective. --- Q101,Q102.
* Pattern is defective. --- Lines for CN101 - All patterns which relate to pick-up and patterns between IC101
* Servo IC is defective (IC201).
* IC101 --- For signal from IC101 to IC201, is signal output from IC101 "20" (ASOUT) and
IC101 "41"(RFENV) and IC101 "22" (FEOUT)?
(2) Disc Detection, Distinction error (no disc, no RFENV)

XV-S40BK/XV-S42SL/XV-S45GD/XV-S30BK
1-19
(4) Focus ON NG
* Is FE output ? --- Pattern, IC101
* Is FODRV signal sent ? (R279) --- Pattern, IC201
* Is driving voltage sent ?
IC271 "13", "14" --- If NG, pattern, driver, mechanical unit .
* Mechanical unit is defective.
(5) Tracking ON NG
* When the tracking loop cannot be drawn in, TE shape of waves does not settle.
* Mechanical unit is defective.
Because the self adjustment cannot be normally adjusted, the thing which cannot be normally
drawn in is thought.
* Periphery of driver (IC271)
Constant or IC it self is defective.
* Servo IC (IC201)
When improperly adjusted due to defective IC.
(6) Spindle CLV NG
* IC101 -- "35"(RF OUT), "30"(RF-), "31(RF+).
* Does not the input or the output of driver's spindle signal do the grip?
* Has the tracking been turned on?
* Spindle motor and driver is defective.
* Additionally, "IC101 and IC201" and "Mechanism is defective(jitter)", etc. are thought.
* Besides, the undermentioned cause is thought though specific of the cause is difficult because various
factors are thought.
Mechanism is defective. (jitter)
IC201, IC301, IC401.
The disc is dirty or the wound has adhered.
(7) Address read NG
(8) Between layers jump NG (double-layer disc only)
Mechanism defective
Defect of driver's IC(IC271)
Defect of servo control IC(IC201)
(3) Traverse movement NG
1.Defective traverse driver
*Has the voltage come between terminal of CN101 "1" and "2" ?
2.Defective BTL driver (IC271)
*Has the motor drive voltage gone out to IC271"17" or "18"?
3.Has the control signal come from servo IC or the microcomputer?
*Is it "H" while the terminal of IC271"9"(STBY1) ?
*TRSDRV Is the signal input?
4.TRVSW is the signal input from microcomputer?

XV-S40BK/XV-S42SL/XV-S45GD/XV-S30BK
1-20
(9) Neither picture nor sound is output
1.It is not possible to search
*Has the tracking been turned on?
*To
"(5) Tracking ON error" in "Check points for individual errors" when the tracking is not normal.
*Is the feed operation normal?
To "(3) traverse movement NG" in "Check points for individual errors" when it is not normal.
Are not there caught of the feeding mechanism etc?
(10) Picture is distorted or abnormal sound occurs at intervals of several seconds.
(11) Others
Is the feed operation normal?
Are not there caught of the feeding mechanism etc?
The image is sometimes blocked, and the image stops.
The image is blocked when going to outer though it is
normal in surroundings in the disk and the stopping
symptom increases.
There is a possibility with bad jitter
value for such a symptom.
(12) CD During normal playback operation
a) Is TOC reading normal?
Displays total time
for CD-DA.
Shifts to double-speed
mode for V-CD.
b)Playback possible? *--:-- is displayed during FL search.
According to [It is not possible to search ] for DVD(9), check the feed
and tracking systems.
*No sound is output although the time is displayed.(CA-DA)
DAC, etc, other than servo.
*The passage of time is not stable, or picture is abnormal.(V-CD)
*The wound of the disc and dirt are confirmed.
NO
YES
