JVCKENWOOD Kenwood DDX7016BT User manual
B5A-1058-00 (MN/M2N/XN/A9N/NN)© 2016 JVC KENWOOD Corporation
DDX7016BT
DDX7016BTM
MONITOR WITH DVD RECEIVER
INSTRUCTION MANUAL
This instruction manual is used to describe models listed below. Model availability and features (functions)
may differ depending on the country and sales area.
• Region 2 (DVD Region Code 2 area)
• Region 3 (DVD Region Code 3 area)
• Region 4 (DVD Region Code 4 area)
• Region 5 (DVD Region Code 5 area)
DDX716WBT
DDX716WBTM
DDXMidM.indb1DDXMidM.indb1 2015/12/2414:522015/12/2414:52
2
CONTENTSCONTENTS
BEFORE USE............................................................ 2
How to reset your unit.................................................... 3
INITIAL SETTINGS .................................................. 4
Initial setup......................................................................... 4
Setting the security function ....................................... 4
Clock settings .................................................................... 5
BASICS .................................................................... 6
Component names and functions............................. 6
Common operations....................................................... 7
Common screen operations......................................... 8
Selecting the playback source..................................... 9
DISCS .................................................................... 11
USB........................................................................ 16
iPod/iPhone ......................................................... 18
APPs...................................................................... 21
Pandora® (Only for DDX7016BT Region 4)........ 22
AUPEO! ................................................................. 24
Radio..................................................................... 26
OTHER EXTERNAL COMPONENTS ...................... 30
Using external audio/video players—AV-IN ........30
Using a camera................................................................30
Using a smartphone—HDMI/MHL...........................32
Watching a TV..................................................................32
Using the external navigation unit..........................33
BLUETOOTH ......................................................... 34
SETTINGS.............................................................. 42
Settings for using applications of iPod/iPhone/
Android..............................................................................42
Sound adjustment .........................................................44
Adjustment for video playback.................................46
Changing the display design.....................................48
Customizing the <HOME> screen............................49
Customizing the system settings .............................49
Setting menu items.......................................................51
REMOTE CONTROLLER ........................................ 54
CONNECTION/INSTALLATION ............................ 57
REFERENCES......................................................... 64
Maintenance....................................................................64
More information...........................................................64
Error message list...........................................................68
Troubleshooting.............................................................69
Specifications...................................................................70
How to read this manual:
• Illustrations of DDX7016BT Region 3 are mainly used for explanation. The displays and panels shown in
this manual are examples used to provide clear explanations of the operations. For this reason, they may
be different from the actual displays or panels.
• This manual mainly explains operations using the buttons on the monitor panel and touch panel. For
operations using the remote controller (RC-DV340: supplied only forDDX7016BT Region 3/DDX7016BT
Region 5/DDX7016BTM/DDX716WBT/DDX716WBTM), see page54.
• < > indicates the various screens/menus/operations/settings that appear on the touch panel.
• [ ] indicates the buttons on the touch panel.
• Indication language: English indications are used for the purpose of explanation. You can select the
indication language from the <Setup> menu. (Page53)
• Updated information (the latest Instruction Manual, system updates, new functions, etc.) is available
from <http://www.kenwood.com/cs/ce/>.
BEFORE USEBEFORE USE
IMPORTANT
To ensure proper use, please read through this
manual before using this product. It is especially
important that you read and observe WARNINGS
and CAUTIONS in this manual. Please keep the
manual in a safe and accessible place for future
reference.
VWARNINGS: (To prevent accidents and
damage)
• DO NOT install any unit or wire any cable in a
location where;
– it may obstruct the steering wheel and gearshift
lever operations.
– it may obstruct the operation of safety devices
such as air bags.
– it may obstruct visibility.
• DO NOT operate the unit while driving.
If you need to operate the unit while driving, be
sure to look around carefully.
• The driver must not watch the monitor while
driving.
The marking of products using lasers
The label is attached to the chassis/case and says
that the component uses laser beams that have
been classified as Class 1. It means that the unit is
utilizing laser beams that are of a weaker class. There
is no danger of hazardous radiation outside the unit.
DDXMidM.indb2DDXMidM.indb2 2015/12/2414:522015/12/2414:52
ENGLISH 3
For DDX7016BTM/DDX716WBTM
Declaration of Conformity with regard to the
EMC Directive
Declaration of Conformity with regard to the
R&TTE Directive 1999/5/EC
Declaration of Conformity with regard to the
RoHS Directive 2011/65/EU
Manufacturer:
JVC KENWOOD Corporation
3-12 Moriya-cho, Kanagawa-ku, Yokohama-shi,
Kanagawa, 221-0022, Japan
EU Representative:
JVCKENWOOD NEDERLAND B.V.
Amsterdamseweg 37, 1422 AC UITHOORN, The
Netherlands
English
Hereby, JVC KENWOOD declares that this unit
“DDX7016BTM/DDX716WBTM” is in compliance
with the essential requirements and other relevant
provisions of Directive 1999/5/EC.
Türkçe
Bu vesileyle JVC KENWOOD, “DDX7016BTM/
DDX716WBTM” ünitesinin,1999/5/EC Direktifinin
başlıca gereksinimleri ve diğer ilgili hükümleri ile
uyumlu olduğunu beyan eder.
For Turkey
Bu ürün 28300 sayılı Resmi Gazete’de yayımlanan
Atik Elektrikli ve Elektronik Eşyalarin Kontrolü
Yönetmeliğe uygun olarak üretilmiştir.
Eski Elektrik ve Elektronik Ekipmanların İmha
Edilmesi Hakkında Bilgi (ayrı atık toplama
sistemlerini kullanan ülkeleri için uygulanabilir)
Sembollü (üzerinde çarpı işareti olan çöp
kutusu) ürünler ev atıkları olarak atılamaz.
Eski elektrik ve elektronik ekipmanlar,
bu ürünleri ve ürün atıklarını
geri dönüştürebilecek bir tesiste
değerlendirilmelidir. Yaşadığınız bölgeye
en yakın geri dönüşüm tesisinin yerini
öğrenmek için yerel makamlara müracaat
edin. Uygun geri dönüşüm ve atık imha
yöntemi sağlığımız ve çevremiz üzerindeki
zararlı etkileri önlerken kaynakların
korunmasına da yardımcı olacaktır.
VCautions on the monitor:
• The monitor built into this unit has been
produced with high precision, but it may have
some ineffective dots. This is inevitable and is not
considered defective.
• Do not expose the monitor to direct sunlight.
• Do not operate the touch panel using a ball-point
pen or similar tool with a sharp tip.
Touch the buttons on the touch panel with your
finger directly (if you are wearing a glove, take it
off).
• When the temperature is very cold or very hot...
– Chemical changes occur inside, causing
malfunction.
– Pictures may not appear clearly or may move
slowly. Pictures may not be synchronized with
the sound or picture quality may decline in such
environments.
For safety...
• Do not raise the volume level too much, as this
will make driving dangerous by blocking outside
sounds, and may cause hearing loss.
• Stop the car before performing any complicated
operations.
Temperature inside the car...
If you have parked the car for a long time in hot or
cold weather, wait until the temperature in the car
becomes normal before operating the unit.
❏How to reset your unit
If the unit fails to operate properly, press the reset
button.
DDX7016BT/DDX7016BTM
DDX716WBT/DDX716WBTM
BEFORE USEBEFORE USE
DDXMidM.indb3DDXMidM.indb3 2015/12/2414:522015/12/2414:52
4
INITIAL SETTINGSINITIAL SETTINGS

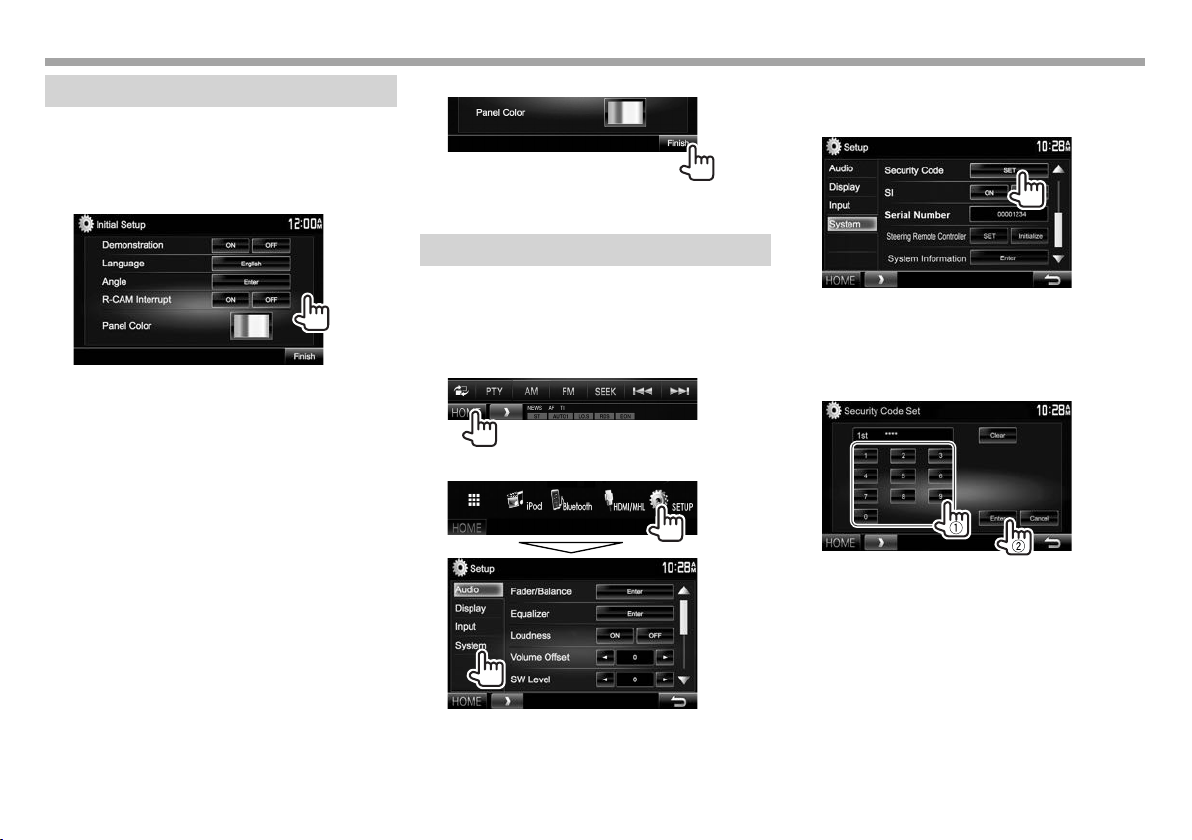

Initial setup
When you power on the unit for the first time or
reset the unit, the initial setting screen appears.
• You can also change the settings on the <Setup>
screen. (Page51)
1Perform the initial settings.
<Demonstration>
(Page52)
Activate or deactivate the
display demonstration.
<Language>
(Page53)
Select the text language
used for on-screen
information.
• Set <GUI Language>
to display the operation
buttons and menu items
in the selected language
([Local]) or English.
<Angle>
(Page7)
Adjust the panel angle.
<R-CAM
Interrupt>
(Page30)
Select [ON] when
connecting the rear view
camera.
<Panel Color>
(Page48)
Select the color of the
buttons on the monitor
panel.
2Finish the procedure.
The <HOME> screen is displayed.
Setting the security function
❏Registering the security code
You can set a security code to protect your receiver
system against theft.
1Display the <HOME> screen.
On the source control screen:
2Display the <System> setting screen.
3Display the <Security Code Set> screen.
• Press [K] repeatedly to change the page on
the <System> menu screen.
• To clear the registered security code, perform
steps 1and 2, then press [CLR] in <Security
Code>.
4Enter a four-digit number (1), then
confirm the entry (2).
• Press [Clear] to delete the last entry.
• Press [Cancel] to cancel the setting.
5Repeat step 4to confirm your security
code.
Now, your security code is registered.
• When the unit is being reset or disconnected from
the battery, you are required to enter the security
code. Enter the correct security code, then press
[Enter].
DDXMidM.indb4DDXMidM.indb4 2015/12/2414:522015/12/2414:52
ENGLISH 5
INITIAL SETTINGSINITIAL SETTINGS
❏Activating the security function (Only
for DDX7016BT/DDX7016BTM)
You can activate the security function to protect
your receiver system against theft.
1Display the <System> setting screen.
On the <HOME> screen:
• Press [K] repeatedly to change the page on
the <System> menu screen.
2
The security indicator on the monitor panel
flashes when the vehicle ignition is off.
To deactivate the security function: Select [OFF]
for <SI>.
Clock settings
1Display the <HOME> screen.
On the source control screen:
2Display the <Setup> screen.
3Display the <Clock> screen.
4Set the clock time.
<Radio Data
System>
Synchronizes the clock time with
FM Radio Data System.
<NAV>* Synchronizes the clock time with
the connected navigation unit.
<OFF> Sets the clock manually. (See
below.)
When selecting <OFF>:
Adjust the hour (1), then adjust the minute (2).
• Press [Reset] to set the minute to “00”.
5Finish the procedure.
*
Appears only when the navigation unit is connected.
DDXMidM.indb5DDXMidM.indb5 2015/12/2414:522015/12/2414:52
6
BASICSBASICS
Component names and functions
VCaution on the volume setting:
Digital devices produce very little noise compared
with other sources. Lower the volume before
playing these digital sources to avoid damaging
the speakers by sudden increase of the output
level.
DDX7016BT/DDX7016BTM
1Monitor panel*
2Screen (touch panel)
3Reset button/Power indicator/Security indicator
• Resets the unit. (Page 3)
• Lights up while the unit is turned on.
• Flashes when the security function is activated.
(Page 5)
4VOLUME K/Jbutton
Adjusts the audio volume. (Page 7)
5AV/AV OUT button
• Displays the current source screen. (Press)
• Switches the AV source for external monitors
or amplifiers connected to the AV-OUT
terminal. (Hold) (Page62)
6/CAMERA button
• Displays the App screen. (Press) (Page21)
• The function of the button when held varies
depending on the <Apps Key Long Press>
setting. (Page 53)
7BHOME button
• Displays the <HOME> screen. (Press)
(Page 8)
• Turns on the power. (Press) (Page 7)
• Turns off the power. (Hold) (Page 7)
8TEL/VOICE button
• Displays the phone control screen. (Press)
(Page 38)
• Activates voice dialing. (Hold) (Page 39)
9M(Eject) button
• Ejects the disc. (Tilts the monitor panel fully.)
(Page11)
• Opens/closes the monitor panel. (Page11)
* You can change the color of the buttons on the monitor panel.
(Page 48)
DDX716WBT/DDX716WBTM
1Monitor panel*
2Screen (touch panel)
3Reset button
Resets the unit. (Page 3)
4button
• Displays the App screen. (Press) (Page21)
• The function of the button when held varies
depending on the <Apps Key Long Press>
setting. (Page 53)
5Volume K/Jbutton
Adjusts the audio volume. (Page 7)
6HOME button
• Displays the <HOME> screen. (Press)
(Page 8)
• Turns on the AV source. (Press) (Page 7)
• Turns off the AV source. (Hold) (Page 7)
7AV button
• Displays the current source screen. (Press)
• Displays the phone control screen. (Hold)
(Page 38)
8M(Eject) button
• Ejects the disc. (Tilts the monitor panel fully.)
(Page11)
• Opens/closes the monitor panel. (Page11)
* You can change the color of the buttons on the monitor panel.
(Page 48)
DDXMidM.indb6DDXMidM.indb6 2015/12/2414:522015/12/2414:52
ENGLISH 7
BASICSBASICS
Common operations
❏Turning on the power (Only for
DDX7016BT/DDX7016BTM)
❏Turning off the power (Only for
DDX7016BT/DDX7016BTM)
(Hold)
❏Adjusting the volume
To adjust the volume (0 to 35)
DDX7016BT
DDX7016BTM
DDX716WBT
DDX716WBTM
Press Jto increase, and press Kto decrease.
• Holding Jincreases the volume continuously to
level 15.
❏Turning off the AV source (Only for
DDX716WBT/DDX716WBTM)
(Hold)
To restore the AV source: Press the HOME on the
monitor panel, or touch the screen.
❏Putting the unit in standby
1Display the <HOME> screen.
On the <HOME> screen:
2
❏Adjusting the panel angle
1Display the <Angle Adjust> screen.
On the <HOME> screen:
• Press [K] repeatedly to change the page on
the <Display> menu screen.
2Select an angle (0 – 6).
• To set the current position as the power off
position, select [Memory].
DDXMidM.indb7DDXMidM.indb7 2015/12/2414:522015/12/2414:52
8
BASICSBASICS
❏Turning off the screen
• This operation works only when <Apps Key Long
Press> is set to [DISP OFF]. (Page53)
DDX7016BT
DDX7016BTM
DDX716WBT
DDX716WBTM
(Hold)
(Hold)
To turn on the screen: Press and hold the same
button, or touch the display.
Common screen operations
❏Common screen descriptions
You can display other screens any time to change
the source, show the information, or change the
settings, etc.
Source control screen
Performs source playback operations.
• The operation buttons and information displayed
vary depending on the selected source.
2
1
43
Common operation buttons:
1Displays other operation buttons.
• Disabled when there are no other buttons.
2Switches between the normal source control
screen and easy control screen. (See below.)
3Displays the <HOME> screen. (See the right
column.)
• Pressing BHOME on the monitor panel also
displays the <HOME> screen.
4Displays/hides short-cut buttons. (Page10)
Easy control screen
Pressing [ ] switches between the normal source
control screen and easy control screen.
The easy control screen allows you to control the
source easily with simple buttons.
• The buttons displayed vary depending on the
selected source.
<HOME> screen
Displays the source control screen and settings
screen.
• You can arrange the items to display on the
<HOME> screen.(Page 49)
3
1
2
Common operating buttons:
1Changes the playback source. (Page 10)
2Displays all playback sources and items.
(Page9)
3Displays the <Setup> screen. (See below.)
<Setup> screen
Changes the detailed settings. (Page 51)
3
1
24
Common operating buttons:
1Selects the menu category.
2Displays the <HOME> screen.
3Changes the page.
4Returns to the previous screen.
DDXMidM.indb8DDXMidM.indb8 2015/12/2414:522015/12/2414:52
ENGLISH 9
BASICSBASICS
❏Touch screen operations
1
3
2
4
1Displays the video control menu while playing a
video.
2Displays the source control screen while playing
a video.
• The operation buttons disappear when the
screen is touched or when no operation is
done for about 5 seconds.
3Goes to the previous chapter/track.*
4Goes to the next chapter/track.*
* Not available for video from an external component.
Selecting the playback source
On the <HOME> screen:
• You can change the page to display more items by
pressing [J]/[K].
[NAV]*1Displays the navigation screen
when a navigation unit is
connected. (Page33)
[DISC]
Plays a disc. (Page 11)
[Radio] Switches to the radio broadcast.
(Page 26)
[iPod] Plays an iPod/iPhone. (Page 18)
[USB] Plays files on a USB device.
(Page 16)
[HDMI/MHL] Plays a device connected to
the HDMI/MHL input terminal.
(Page 32)
[PANDORA]*2Switches to the Pandora
broadcast. (Page 22)
[AUPEO!] Switches to the AUPEO!
application. (Page 24)
[Bluetooth] Plays a Bluetooth audio player.
(Page 40)
[APPs] Switches to the App screen from
the connected iPod touch/iPhone/
Android device. (Page 21)
[TEL] Displays the phone control screen.
(Page 38)
[AV-IN1][AV-IN2]
Switches to an external
component connected to the
AV-IN1 or iPod/AV-IN2 input
terminal. (Page 30)
*1When no navigation unit is connected, “No Navigation” appears.
*2 Only for DDX7016BT Region 4.
DDXMidM.indb9DDXMidM.indb9 2015/12/2414:522015/12/2414:52
10
BASICSBASICS
❏Selecting the playback source on the
<HOME> screen
• You can change the items (other than [SETUP]) to
display on the <HOME> screen. (Page49)
❏Using short-cut buttons
While displaying the source control screen or the
<Setup> screen, you can use the short-cut buttons
to go to the items on the <HOME> screen indicated
below.
To display the short-cut buttons
On the source control screen:
On the <Setup> screen:
• When the navigation screen is displayed, pressing
[ ] displays the source control screen.
To hide the short-cut buttons: Press [ ].
DDXMidM.indb10DDXMidM.indb10 2015/12/2414:522015/12/2414:52
ENGLISH 11
DISCSDISCS
Playing a disc
• If a disc does not have a disc menu, all tracks on
it will be played repeatedly until you change the
source or eject the disc.
• For playable disc types/file types, see page 65.
❏Inserting a disc
Insert a disc with the label side facing up.
DDX7016BT
DDX7016BTM
DDX716WBT
DDX716WBTM
The source changes to “DISC” and playback starts.
• The IN indicator lights up while a disc is inserted.
• If “ ” appears on the screen, the unit cannot
accept the operation you have tried to do.
– In some cases, without showing “ ,”
operations will not be accepted.
• When playing back a multi-channel encoded
disc, the multi-channel signals are downmixed
to stereo.
❏Ejecting a disc
DDX7016BT
DDX7016BTM
DDX716WBT
DDX716WBTM
• When removing a disc, pull it horizontally.
• You can eject a disc when playing another AV
source.
• If the ejected disc is not removed within
60 seconds, the disc is automatically inserted
again into the loading slot to protect it from dust.
Closing the monitor panel
After removing the disc, press Mon the monitor
panel. The monitor panel closes.
Playback operations
When the operation buttons are
not displayed on the screen, touch
the area shown on the illustration.
• To change settings for video
playback, see page 46.
❏Indications and buttons on the source
control screen
For video playback
1
54 6
32
Playback information
• The information displayed on the screen differs
depending on the type of disc/file being played
back.
1Media type
2Current playback item information (title no./
chapter no./folder no./file no./track no.)
3Playing time
4Playback mode (Page14)
5File type
6IN indicator
Continued on the next page...
DDXMidM.indb11DDXMidM.indb11 2015/12/2414:522015/12/2414:52
12
DISCSDISCS
Operation buttons
• Available buttons on the screen and operations
differ depending on the type of disc/file being
played back.
[ ] Displays the folder/track list.
(Page13)
[O] [N]Reverse/forward search during
playback.
[S] [T]• Selects a chapter/track. (Press)
• Reverse/forward search. (Hold)
[IW]Starts/pauses playback.
[o]Stops playback.
[ ] Displays other operation buttons.
• Disabled when there are no other
buttons.
[MODE] Changes the settings for disc
playback on the <DISC Mode>
screen. (Page15)
[ ] Selects Repeat playback mode.
(Page14)
[ ] Selects Random playback mode.
(Page14)
[Playlist] Displays the Original Program/
Playlist screen.
[ ] [ ] Plays in frame-by-frame.
[ ] [ ] Selects a folder.
[PBC] Activates or deactivates the VCD PBC
(Playback Control) function.
[HOME] Displays the <HOME> screen.
For audio playback
12
9876
54
3
Playback information
• The information displayed on the screen differs
depending on the type of disc/file being played
back.
1Media type
2Track/file information
• Pressing [<] scrolls the text if not all of the text
is shown.
3Current playback item information (folder no./file
no./track no.)
4Playback status
5Playing time
6Jacket picture (Shown while playing if the file has
tag data that includes the jacket picture)
7Playback mode (Page14)
8File type
9IN indicator
Operation buttons
• Available buttons on the screen and operations
differ depending on the type of disc/file being
played back.
[ ] Displays the easy control screen.
(Page8)
[ ] Displays the folder/track list.
(Page13)
[S] [T]Selects a track.
[O] [N]Reverse/forward search.
[IW]Starts/pauses playback.
[ ] Displays other operation buttons.
• Disabled when there are no other
buttons.
[MODE] Changes the settings for disc
playback on the <DISC Mode>
screen. (Page15)
[ ] [ ] Selects a folder.
[ ] Selects Repeat playback mode.
(Page14)
[ ] Selects Random playback mode.
(Page14)
[o]Stops playback.
[HOME] Displays the <HOME> screen.
DDXMidM.indb12DDXMidM.indb12 2015/12/2414:522015/12/2414:52
ENGLISH 13
DISCSDISCS
❏Selecting a folder/track on the list
1Display the folder/track list.
2Select the folder (1), then the item in the
selected folder (2).
• Repeat the procedure until you select the
desired track.
• You can change the page to display more
items by pressing [J]/[K].
• Press [ ] to open the folder containing the
current track.
• Press [ ] to return to the root folder.
• Press [ ] to return to the upper layer.
❏Video menu operations
You can display the video menu screen during video
playback.
• The operation buttons disappear when the screen
is touched or when no operation is done for about
5 seconds.
For video playback except VCD
• Available buttons on the screen and operations
differ depending on the type of disc/file being
played back.
[ZOOM] Displays the picture size selection
screen. (Page47)
[Aspect] Selects the aspect ratio.
(Page47)
[PictureAdjust] Displays the picture adjustment
screen. (Page46)
[Audio] Selects the audio type (or channel
for DVD-VR).
[Subtitle] Selects the subtitle type.
[Angle] Selects the view angle.
[MENU] Displays the disc menu.
[T MENU] Displays the disc menu (DVD).
[Highlight] Switches to the direct disc menu
mode. Touch the target item to
select.
• To exit the menu selection
screen, press AV on the monitor
panel.
[CUR] Displays the menu/scene
selection screen.
• [J] [K] [H] [I]: Selects an item.
• [Enter]: Confirms the selection.
• [Return]: Returns to the
previous screen.
Continued on the next page...
DDXMidM.indb13DDXMidM.indb13 2015/12/2414:522015/12/2414:52
14
DISCSDISCS
For VCD
[ZOOM] Displays the picture size selection
screen. (Page47)
[Aspect] Selects the aspect ratio.
(Page47)
[PictureAdjust] Displays the picture adjustment
screen. (Page46)
[Audio] Selects the audio channel (ST:
stereo, LL: left, RR: right).
[Direct] Displays/hides the direct selection
buttons. (See the right column.)
[Return] Displays the previous screen or
menu.
To select a track directly on a VCD
While playing a VCD with PBC activated...
• When PBC is deactivated, activate the PBC
function by pressing [PBC] on the source control
screen.
• When you enter a wrong number, press [CLR] to
delete the last entry.
❏Selecting playback mode
[ ] Selects Repeat playback mode.
[ ] Selects Random playback mode.
• Available playback modes differ depending on the
type of disc/file being played back.
• You cannot activate the repeat mode and the
random mode at the same time.
• Each time you press the button, the playback
mode changes. (The corresponding indicator
lights up.)
– Available items differ depending on the type of
disc/file being played back.
C-REP Repeats current chapter.
T-REP Repeats current title/program.
REP Repeats current track.
FO-REP Repeats all tracks of the
current folder.
FO-RDM Randomly plays all tracks of
the current folder, then tracks
of the next folders.
RDM Randomly plays all tracks.
To cancel Repeat/Random playback: Press the
button repeatedly until the indicator disappears.
DDXMidM.indb14DDXMidM.indb14 2015/12/2414:522015/12/2414:52
ENGLISH 15
DISCSDISCS
Settings for disc playback
• Available items shown on the <DISC Mode>
screen differ depending on the type of disc/file
being played back.
❏Setting items
<Menu
Language>*
Select the initial disc menu language.
(Initial: English) (Page67)
<Subtitle
Language>*
Select the initial subtitle language
or turn subtitles off (Off). (Initial:
English) (Page67)
<Audio
Language>*
Select the initial audio language.
(Initial: Original) (Page67)
<Dynamic
Range
Control>*
You can change the dynamic range
while playing using Dolby Digital
software.
• Wide: Select this to enjoy a
powerful sound at a low volume
level with its full dynamic range.
• Normal: Select this to reduce the
dynamic range a little.
• Dialog (Initial): Select this to
reproduce movie dialog more
clearly.
<Angle
Mark>
Select whether to display the angle
mark.
• ON (Initial): Select this to display
the angle mark.
• OFF: Select this to hide the angle
mark.
<Screen
Ratio>*
Select the monitor type to watch a
wide screen picture on the external
monitor.
16:9 (Initial) 4:3 LB 4:3 PS
<Parental
Level>*
Set the parental level.
(See the right column.)
<CD Read> Select the files to play on a disc
containing music files. You cannot
change the setting when a disc is
inserted.
• 1 (Initial): Automatically
distinguishes between audio file
discs and music CDs.
• 2: Forcesplayback as a music CD.
No sound can be heard if an audio
file disc is played.
* You can change these settings only while playback is stopped.
Setting the parental lock
The parental lock cannot be set during DVD
playback.
1Display the <Parental Pass> screen.
On the <DISC Mode> screen:
• Press [K] repeatedly to change the page on
the <DISC Mode> screen.
2Enter the 4-digit parental pass code (1),
and press [Enter] (2).
• To clear the entry, press [Clear].
• To cancel setting the code, press [Cancel].
3Adjust the parental level (<OFF>,
<Level1> to <Level 8>).
To deactivate the parental lock: Select <OFF> for
<Parental Level>.
DDXMidM.indb15DDXMidM.indb15 2015/12/2414:522015/12/2414:52
16
USBUSB
Connecting a USB device
You can connect a USB mass storage class device
such as a USB memory, Digital Audio Player etc. to
the unit.
• For details about connecting USB devices, see
page 61.
• You cannot connect a computer or portable HDD
to the USB input terminal.
• For playable file types and notes on using USB
devices, see page 66.
When a USB device is connected...
The source changes to “USB” and playback starts.
• All tracks in the USB device will be played
repeatedly until you change the source.
To disconnect the USB device safely:
Press [M], then disconnect the USB device after “No
Device” appears.
Playback operations
When the operation buttons are
not displayed on the screen, touch
the area shown on the illustration.
• To change settings for video
playback, see page 46.
❏Indications and buttons on the source
control screen
12
76
5
4
3
Playback information
• The information displayed on the screen differs
depending on the type of file being played back.
1Track/file information
• Pressing [<] scrolls the text if not all of the text
is shown.
2Current playback item information (folder no./file
no.)
3Playback status
4Playing time
5Jacket picture (Shown while playing if the file has
tag data that includes the jacket picture)
6Playback mode (See the right column.)
7File type
Operation buttons
• Available buttons on the screen and operations
differ depending on the type of file being played
back.
[ ] Displays the easy control screen.
(Page8)
[ ] Displays the list selection screen.
(Page17)
[S] [T]Selects a track.
[O] [N]Reverse/forward search.
[IW]Starts/pauses playback.
[ ] Displays other operation buttons.
• Disabled when there are no other
buttons.
[MODE] Changes the settings for USB
playback on the <USB Mode> screen.
(Page17)
[ ] [ ] Selects a folder.
[ ] Selects repeat playback mode.*1 *2
• REP: Repeats the current track/file.
• FO-REP: Repeats all tracks/files
in the current folder or specified
category.
[ ] Selects random playback mode. (The
RDM indicator lights up.)*1 *2
• When selecting the track/file from
a folder, randomly plays all tracks/
files of the current folder, then the
tracks/files of the next folder.
• When selecting the track/file from a
category, randomly plays all tracks/
files of the specified category.
[M]Disconnects the USB device safely.
[HOME] Displays the <HOME> screen.
*1To cancel random or repeat mode, press the button repeatedly until
the indicator disappears.
*2You cannot activate the repeat mode and the random mode at the
same time.
DDXMidM.indb16DDXMidM.indb16 2015/12/2414:522015/12/2414:52
ENGLISH 17
USBUSB

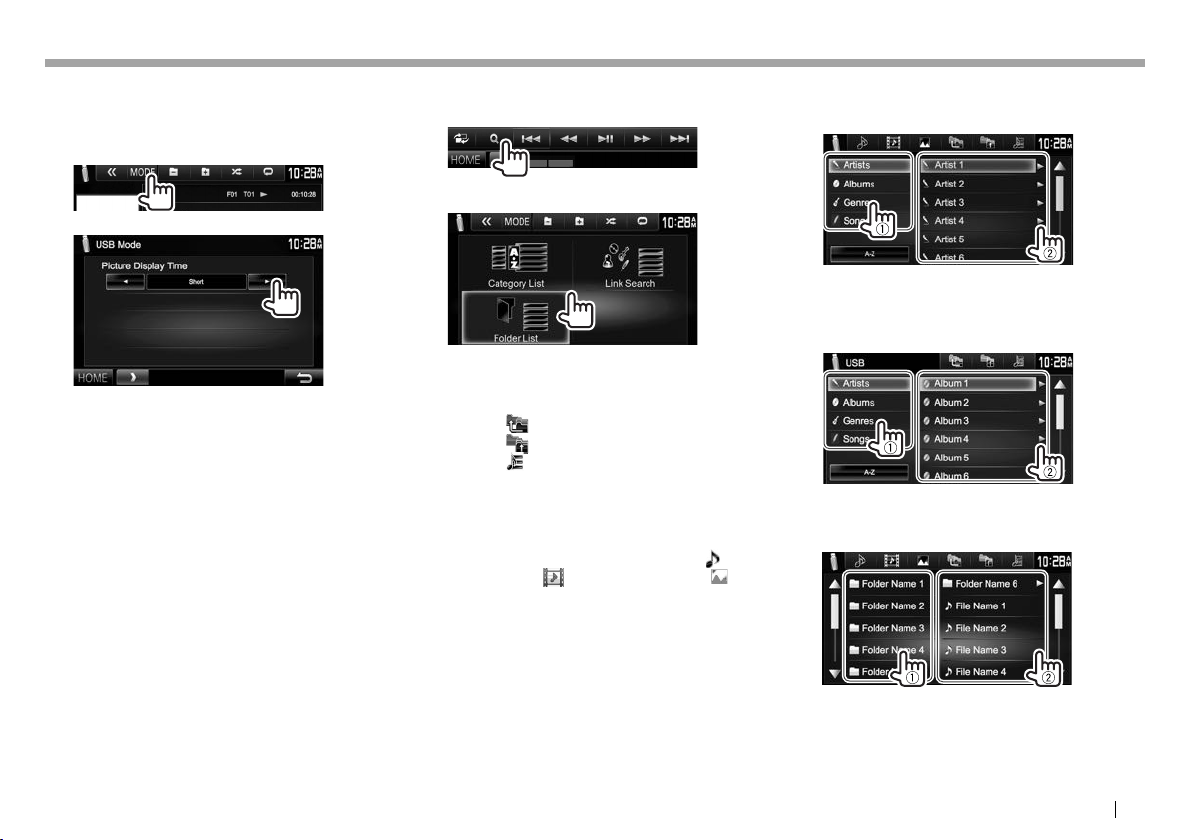

❏Setting picture display time
Select the interval between slides during slide-shows
of the picture files.
1Display the <USB Mode> screen.
2
❏Selecting a track in a list
1Display the list selection screen.
2Select the list type.
3Select the track.
• You can change the page to display more
items by pressing [J]/[K].
• Press [ ] to return to the root folder.
• Press [ ] to return to the upper layer.
• Press [ ] to open the folder containing the
current track.
• If you want to play all tracks in the folder,
press [I] on the right of the desired folder.
• On the <Category List>/<Folder List>: You
can switch the file type to list: Press [ ] to list
audio files, [ ] to list video files, or [ ] to
list still picture files.
• On the <Category List>/<Link Search>: To
list the items in alphabetical order, press [A-Z],
then select the first character.
From <Category List>:
Select the category (1), then the item in the
selected category (2).
From <Link Search>:
Select the tag type (1) to display a list of
content that contains the same tag as the track/
file currently being played, then the item (2).
From <Folder List>:
Select the folder (1), then the item in the
selected folder (2).
DDXMidM.indb17DDXMidM.indb17 2015/12/2414:522015/12/2414:52
18
iPod/iPhoneiPod/iPhone

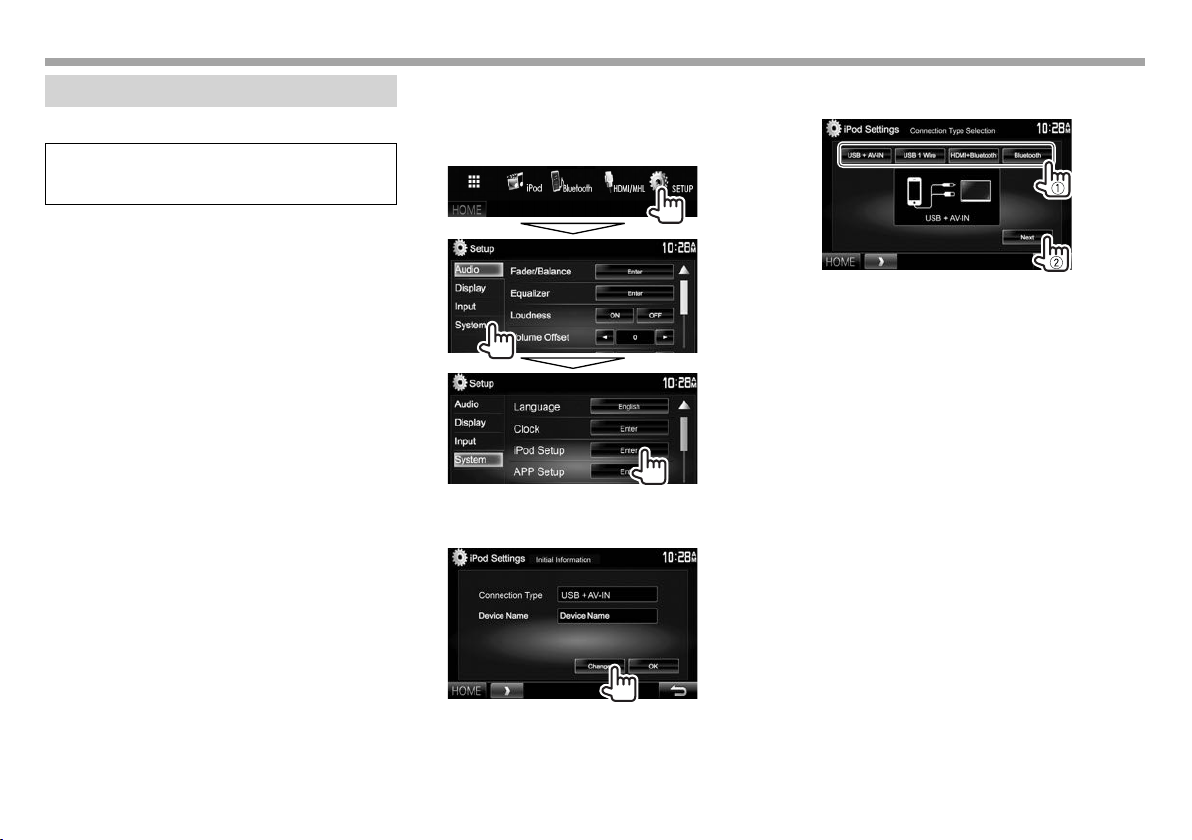

Preparation
❏Connecting iPod/iPhone
• For details about connecting iPod/iPhone, see
page 61.
• For playable iPod/iPhone types, see page 66.
Connect your iPod/iPhone according to your
purpose or the type of iPod/iPhone.
Wired connection
• To listen to music:
– For Lightning connector models: Use USB Audio
cable for iPod/iPhone—KCA-iP103 (optional
accessory).
– For 30-pin connector models: Use USB Audio
cable for iPod/iPhone—KCA-iP102 (optional
accessory).
• To watch video and listen to music:
– For Lightning connector models: Use the
HDMI cable KCA-HD100 (optional accessory)
and KCA-iP103 (optional accessory) through a
Lightning-Digital AV adapter (accessory of the
iPod/iPhone).
– For 30-pin connector models: Use USB Audio
and Video cable for iPod/iPhone—KCA-iP202
(optional accessory).
Bluetooth connection
Pair the iPod/iPhone through Bluetooth. (Page34)
• For Lightning connector models: To watch video,
connect your iPod/iPhone to the HDMI/MHL input
terminal using KCA-HD100 (optional accessory).
(Page62)
• For 30-pin connector models: You cannot watch
video with a Bluetooth connection.

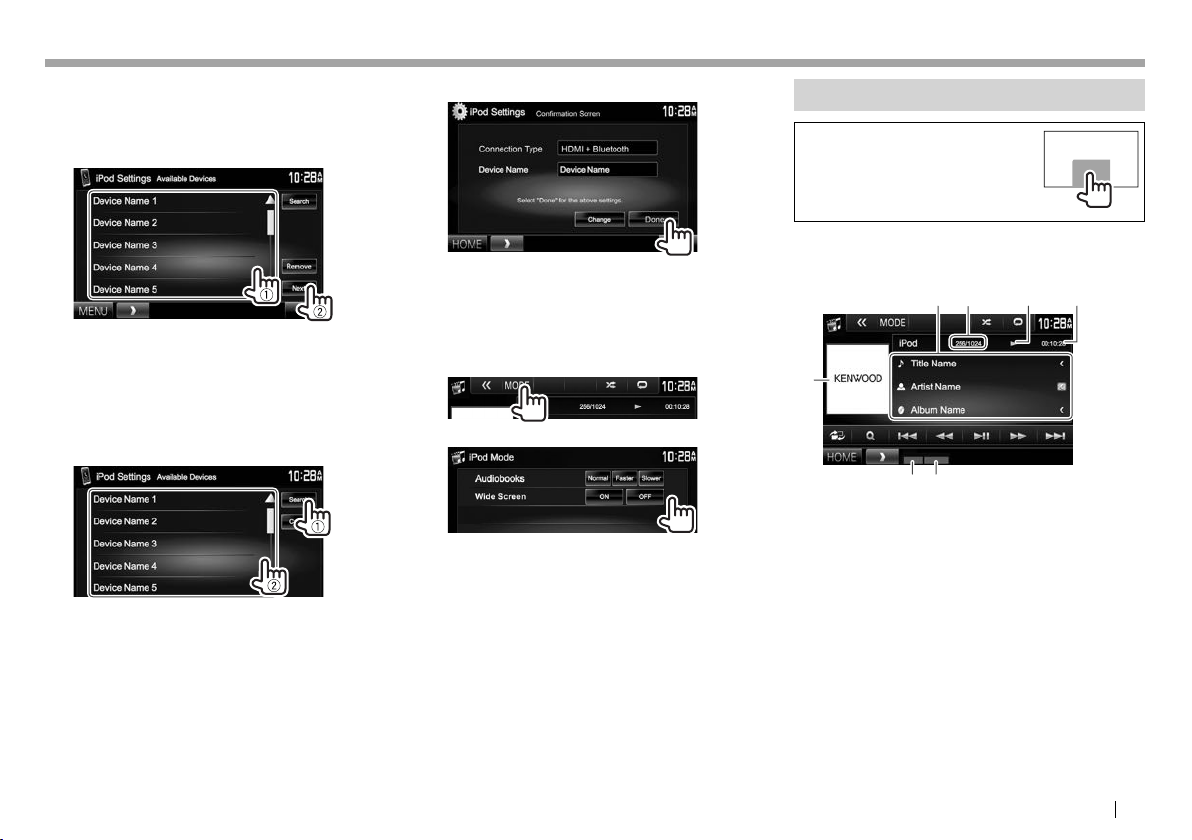

❏Selecting the iPod/iPhone device to
play and connection method
1Display the <iPod Settings> screen.
On the <HOME> screen:
• If [Enter] for <iPod Setup> cannot be
selected, put the unit in standby. (Page7)
2
• If you do not need to change the settings,
press [OK] to exit the setup screen.
3Select the connection method (1), then
press [Next] (2).
<USB +
AV-IN>
Select this when the iPod/
iPhone is connected using
KCA-iP202 (optional accessory).
<USB 1 Wire> Select this when the iPod/
iPhone is connected using
KCA-iP102 (optional accessory)
or KCA-iP103 (optional
accessory).
<HDMI +
Bluetooth>
Select this when the iPod/
iPhone is connected using
HDMI cable KCA-HD100
(optional accessory) and
KCA-iP103 (optional accessory)
through a Lightning-Digital AV
adapter (accessory of the iPod/
iPhone).
<Bluetooth> Select this when the iPod/
iPhone is connected via
Bluetooth.
• When selecting <USB + AV-IN> or <USB 1
Wire>, go to step 5.
DDXMidM.indb18DDXMidM.indb18 2015/12/2414:522015/12/2414:52
ENGLISH 19
iPod/iPhoneiPod/iPhone
4When selecting <HDMI + Bluetooth> or
<Bluetooth> as the connection method,
the paired device list appears. Select the
target device (1), then press [Next] (2).
• You can delete the Bluetooth registration of a
device. Press [Remove], then press [Yes] after
a confirmation message appears.
• If the desired device is not listed, press
[Search] to search for the available iPod/
iPhone (1), then select the target device from
the <Available Devices> screen (2).
– You can change the page to display more
items by pressing [J]/[K].
– To stop searching, press [Cancel].
5Confirm the settings.
❏Selecting preference settings for iPod/
iPhone playback
When the source is “iPod”...
1Display the <iPod Mode> screen.
2
<Audiobooks> Select the speed of audio
books.
<Wide
Screen>*
• [ON]: Select this to display
video compatible with
wide-screen display in wide-
screen.
• [OFF]: Select this to
deactivate.
* You cannot change the setting when iPod/iPhone is connected.
Playback operations
When the operation buttons are
not displayed on the screen, touch
the area shown on the illustration.
• To change settings for video
playback, see page 46.
❏Indications and buttons on the source
control screen
12 43
5
67
Playback information
1Song information
• Pressing [<] scrolls the text if not all of the text
is shown.
2Track no./Total track number
3Playback status
4Playing time
5Artwork (Shown if the song contains artwork)
6Playback mode (Page20)
7File type
Continued on the next page...
DDXMidM.indb19DDXMidM.indb19 2015/12/2414:522015/12/2414:52
20
iPod/iPhoneiPod/iPhone
Operation buttons
[ ] Displays the easy control screen.
(Page8)
[ ] Displays the audio/video track menu.
(See the right column.)
[S] [T]Selects a track.
[O] [N]Reverse/forward search.
[IW]Starts/pauses playback.
[ ] Displays other operation buttons.
• Disabled when there are no other
buttons.
[MODE] Changes the settings for iPod/iPhone
playback on the <iPod Mode> screen.
(Page19)
[ ] Selects repeat playback mode.
• 1: Functions the same as Repeat
One.
• All: Functions the same as
Repeat All.
• : Cancels the repeat mode.
[ ] Selects random playback mode.*
• : Functions the same as Shuffle
Songs.
• Album: Functions the same as
Shuffle Albums.
[HOME] Displays the <HOME> screen.
* To cancel random mode, press the button repeatedly until the
indicator disappears.

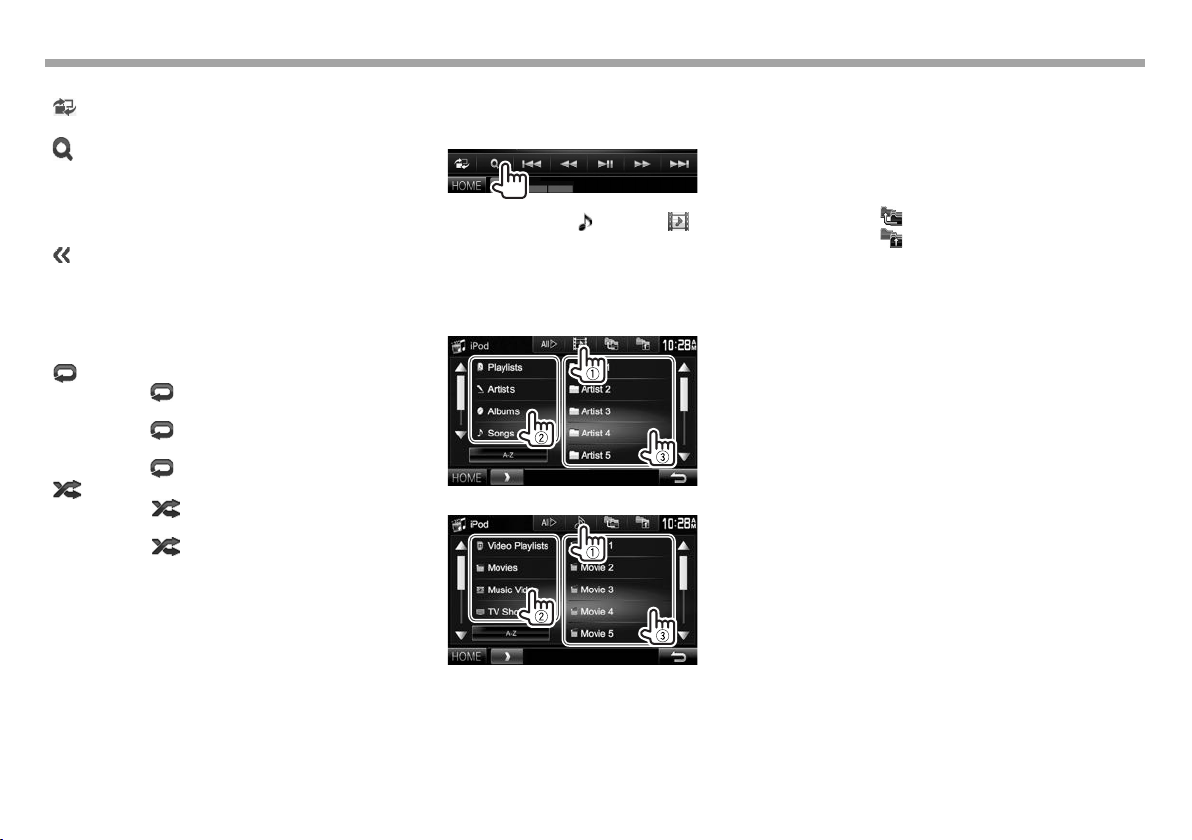

❏Selecting an audio/video track from the
menu
1Display the menu screen.
2Select the menu ( : audio or : video)
(1), a category (2), then a desired item
(3).
• Select an item in each layer until you reach
and select the desired track.
Audio menu:
Video menu:
• You can change the page to display more
items by pressing [J]/[K].
• Press [All E] to play all songs/videos.
• Press [A-Z] to sort the list in alphabetical
order.
– You cannot sort the list in alphabetical order
on the Playlists.
• Press [ ] to return to the top layer.
• Press [ ] to return to the upper layer.
• Available categories differ depending on the type
of your iPod/iPhone.
DDXMidM.indb20DDXMidM.indb20 2015/12/2414:522015/12/2414:52
This manual suits for next models
3
Table of contents
Other JVCKENWOOD Car Video System manuals
